2003 LEXUS LS430 Identifying condition

Fig. 97: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 22
NG: GO TO NEXT STEP
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

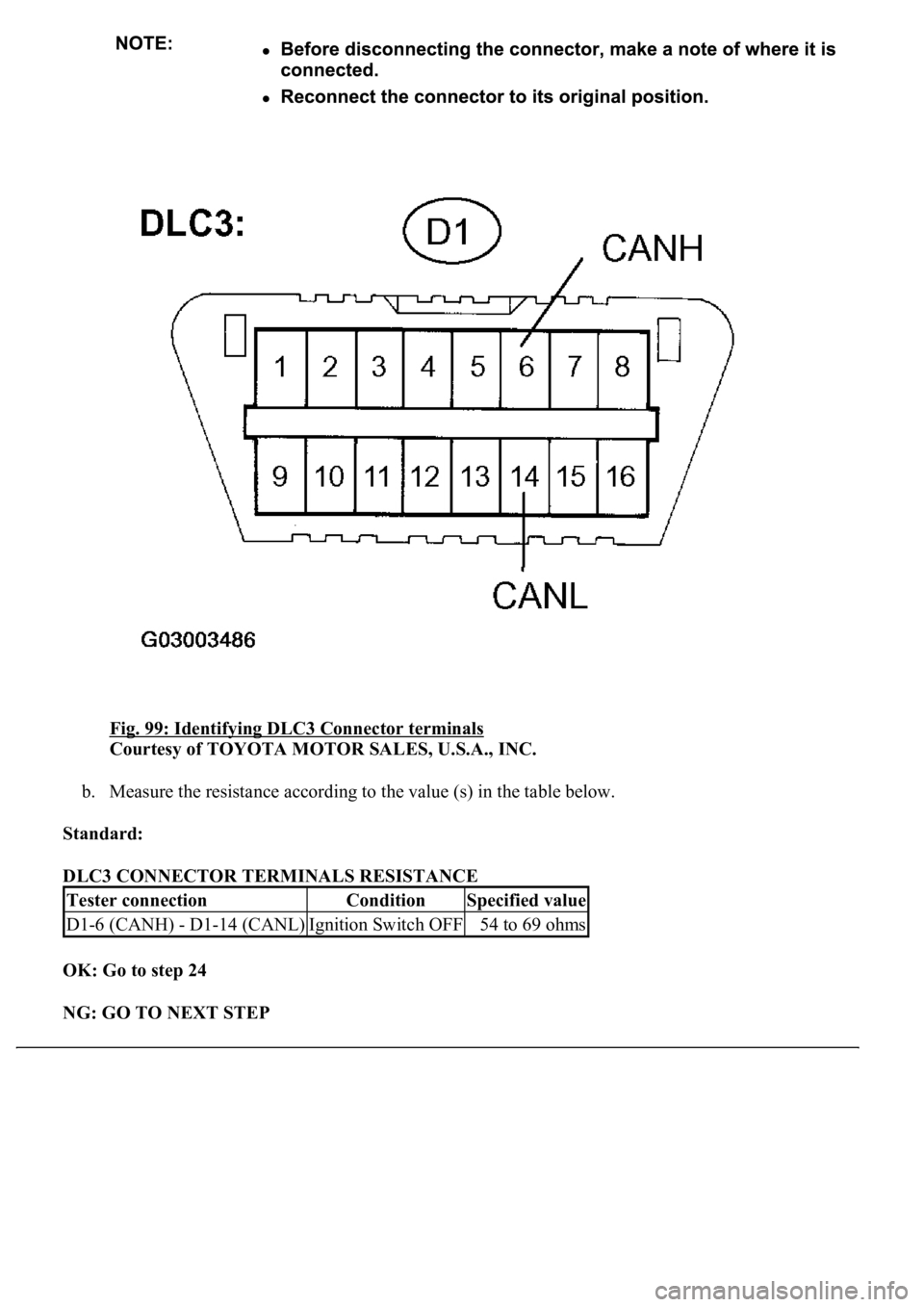

Fig. 99: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: Go to step 24
NG: GO TO NEXT STEP
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

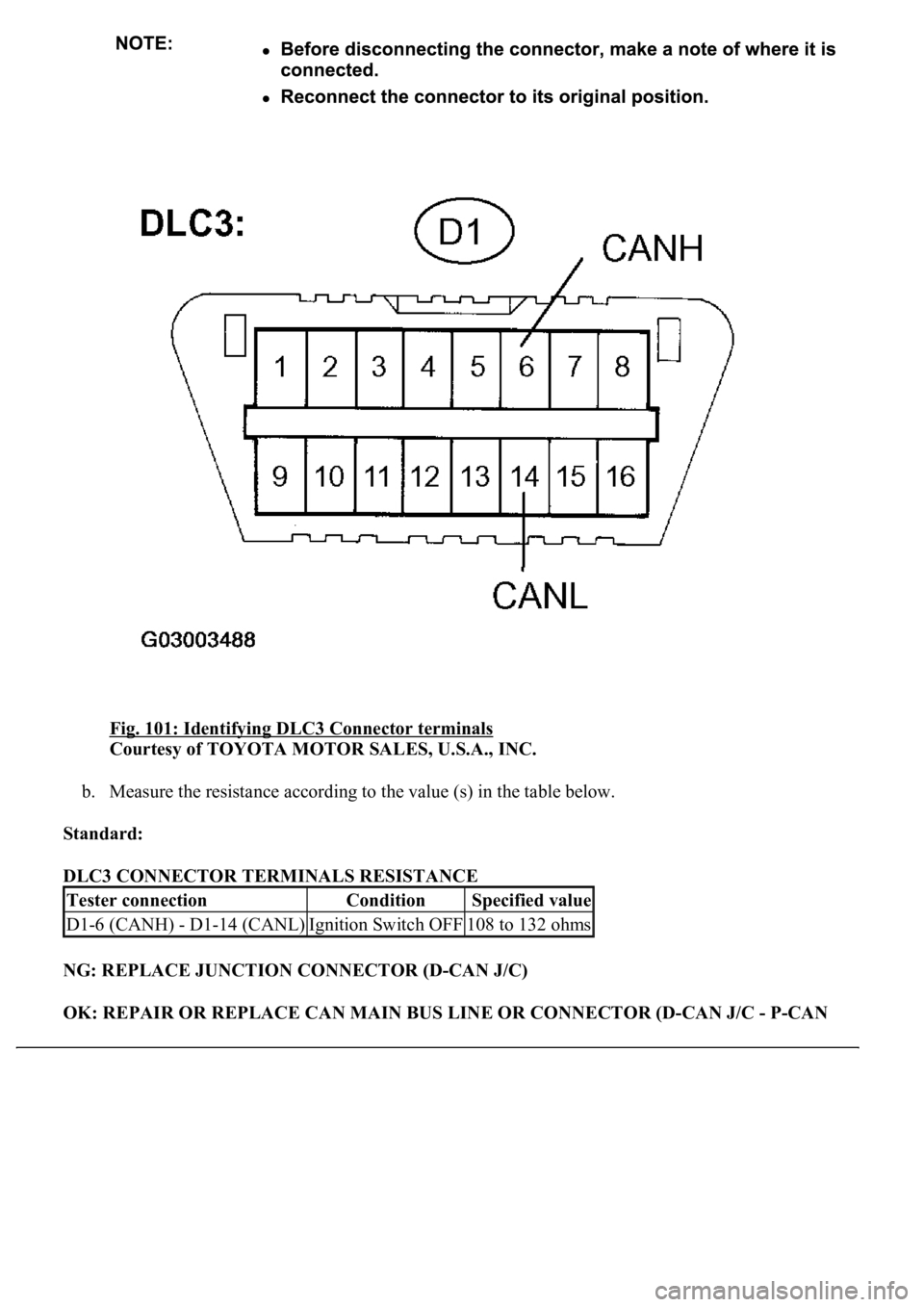

Fig. 101: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
NG: REPLACE JUNCTION CONNECTOR (D-CAN J/C)
OK: REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (D-CAN J/C - P-CAN
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF108 to 132 ohms

J/C)
16.CONNECT CONNECTOR
a. Reconnect the suspension control ECU sub bus line connector (J38) to the D-CAN J/C A side
(w/earth terminal).

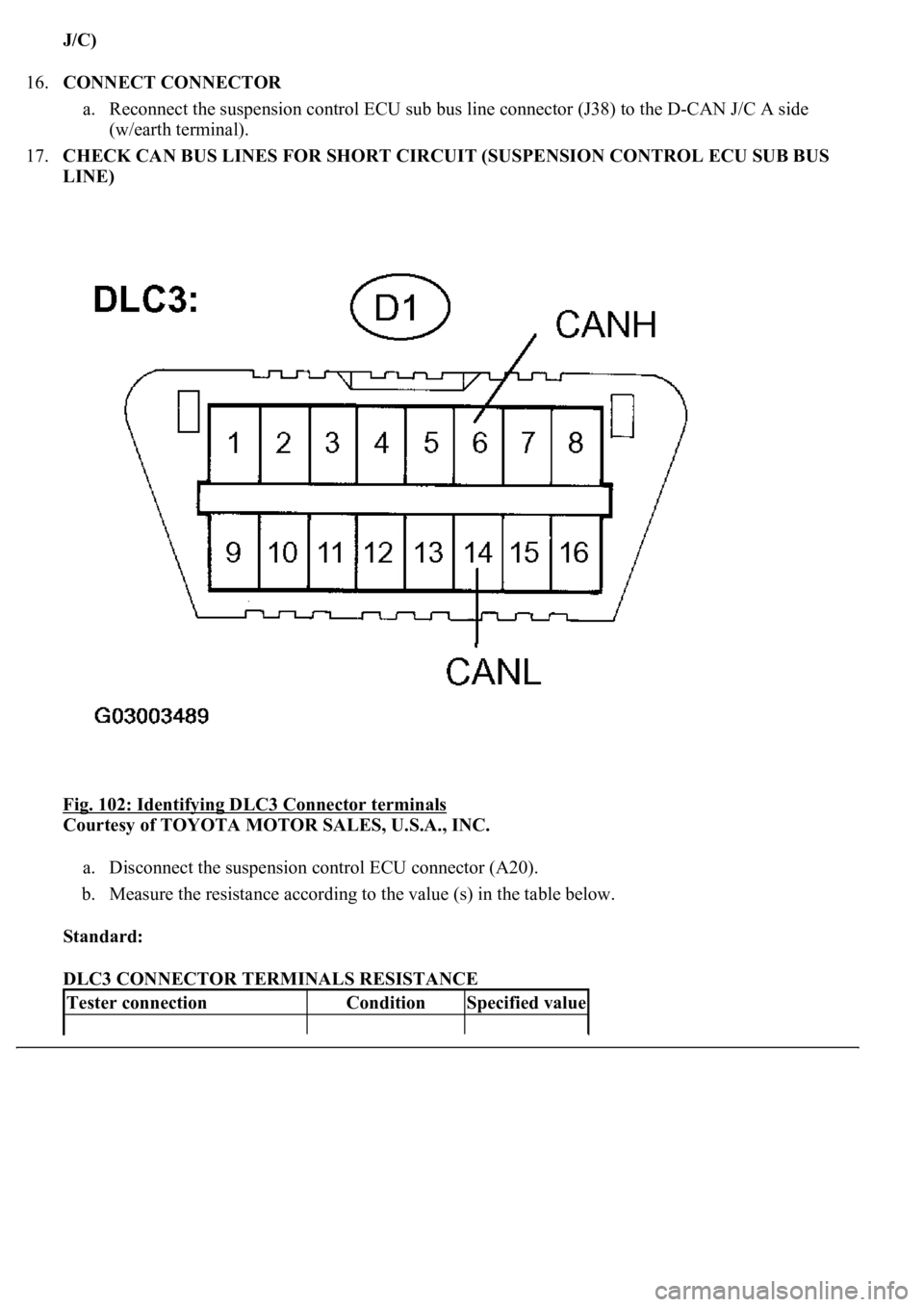

17.CHECK CAN BUS LINES FOR SHORT CIRCUIT (SUSPENSION CONTROL ECU SUB BUS
LINE)
Fig. 102: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the suspension control ECU connector (A20).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified value

DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE GATEWAY ECU
NG: GO TO NEXT STEP
REPAIR OR REPLACE GATEWAY ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
20.CONNECT CONNECTOR
a. Reconnect the ECM sub bus line connector (J40) to the D-CAN J/C B side (w/o earth terminal).
21.CHECK CAN BUS LINES FOR SHORT CIRCUIT (ECM SUB BUS LINE)
Fig. 104: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the ECU connector (E3).
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

Fig. 105: Identifying DLC3 Connector terminals
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the skid control ECU connector (S42).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE SKID CONTROL ECU WITH (SEE REPLACEMENT
) ACTUATOR
NG: REPAIR OR REPLACE SKID CONTROL ECU SUB BUS LINE OR CONNECTOR (CAN-
H, CAN-L)
24.CONNECT CONNECTOR
Tester connectionConditionSpecified value
D1-6 (CANH) -D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

a. Reconnect the steering sensor sub bus line connector (J43) to the D-CAN J/C B side (w/o earth
terminal).
25.CHECK CAN BUS LINES FOR SHORT CIRCUIT (STEERING SENSOR SUB BUS LINE)
Fig. 106: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the steering sensor connector (S16).
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
OK: REPLACE STEERING SENSOR (SEE REPLACEMENT
)
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF54 to 69 ohms

a. Disconnect the CAN main bus line connector (J49) from the LUG-CAN J/C A side (w/earth
terminal).
Fig. 108: Identifying DLC3 Connector terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Measure the resistance according to the value (s) in the table below.
Standard:
DLC3 CONNECTOR TERMINALS RESISTANCE
Tester connectionConditionSpecified value
D1-6 (CANH) - D1-14 (CANL)Ignition Switch OFF108 to 132 ohms
