2002 BMW 745LI SEDAN Owners Manual

Using your mobile phone
160
Key PadThe Key Pad allows you to use all of your
BMW Mobile Phone's basic functions
without ever picking up the receiver.
Conversations are automatically routed
through the hands-free system.The Key Pad is available for operation
with the ignition switch in the radio
mode and above, refer to page 61.<
1Briefly press the Key Pad, it will extend
automatically.
When you are done using the Key Pad,
press it back in, continuing until the detent
engages.
It is not possible to remove the Key
Pad.<
2Press briefly: end call
Maintain pressure: switch BMW mobile
phone on and off3Press briefly: delete the last digit entered
Maintain pressure: delete the entire
number
4Press briefly: dial or accept call
5Enter digits 1 Ð 9
6Symbol entry
7Enter the digit 0
8Press briefly: symbol entry
Maintain pressure: pause for dialling in the
DTMF modeKey Pad control buttons
Key Pad digit buttonsKey
Function / OperationPress briefly: end call
Extended pressure: switch BMW Mobile Phone on and off
Incoming calls: accept call
After entering phone number: establish a connection
Press briefly: delete the last digit entered
Extended pressure: delete the entire number
Key
Function / OperationEnter digits
Enter special character #
Enter special character *
Ð

At a glanceControlsDriving tipsCommunicationsNavigationEntertainmentMobilityReference
161
Hands-free system On vehicles prewired for installation of a
mobile phone, the hands-free microphone
is located on the front headliner.
The hands-free system is automatically
activated whenever you establish or
receive a call using the following:
>Button in the steering wheel
>Control Display
>Key Pad
>Voice command system.To make SOS call The emergency SOS call function is avail-
able only when the mobile phone receiver/
handset is in its tray.To make call manually Maintain pressure on button, see arrow, for
at least 1 second. The system automatically triggers an
emergency SOS call >when an airbag deploys
>in response to severe rear impact >if the vehicle rolls over.
The indicator lamp in the button flashes.
If the vehicle is not equipped with a naviga-
tion system the phone system will automat-
ically establish contact to the standard 911
emergency number.
If the vehicle is equipped with a navigation
system, the phone system will automati-
cally establish contact with the BMW
ASSIST emergency call center. The system
also transmits the vehicle's current location
to the center at the same time. Following
transmission of the data a confirmation
message will appear in the Control Display.
The emergency call center can initiate
immediate action for emergency assis-
tance.
If conditions allow, remain in the
vehicle until the connection has been
established. You will then be able to
provide a detailed description of the situa-
tion.
If the indicator lamp flashes, but you are
unable to hear the emergency call center
through the hands-free system, this could
indicate (for instance) that the hands-free
system is no longer operational. Under
these conditions you may be able to
continue the call using your BMW mobile
phone.
Misuse of the emergency call system is
forbidden under penalty of law.<
Initial operationPress button 1 and insert the plug in the
mobile phone.

Using your mobile phone
162 Before starting off place the BMW
mobile phone in the tray, see arrow.
You can then operate it with the in-car
controls. Terminate calls using the same
control feature with which the call was initi-
ated.<
Getting startedSwitching your BMW mobile phone
on and off
You can switch your BMW mobile
phone on and off by maintaining
extended pressure on the Key Pad.
Using the Voice Command system:
>>Telephone on<<.<
Enter lock codeIf, after switching on the telephone, you are
requested by a message from the Control
Display to enter the lock code:
Enter lock code, for instance 1234 .
Confirm your entry with the
key.To place a callEnter the desired phone number
Press.
The phone number appears in the Control
Display's status line. If a number that you
dialed earlier appears maintain pressure on
the
button.
The new phone number can now be dialed.
Using the voice command system:1.>>Dial (telephone) number<<
2.Enter the phone number
>To delete the entire number:
>>Delete (number)<< (>>Wrong<<,
>>Correction<<)
3.>>Done<< (>>Save<<, >>Dial<<).<
Always remember to enter the
complete telephone number,
including the area code, even if you are
currently in the same area as the number
that you wish to contact.<
End callPress
After conducting a call using the button in
the steering wheel or the voice command
system, you can terminate the call using
the button.Telephone directoryYou must enter your mobile phone's tele-
phone directory in the voice command
system before it will be available for access
using voice commands. This creates a
special voice command telephone direc-
tory. If changes are then made to the direc-
tory using the voice command system,
these modifications will apply exclusively
to the voice directory, and not to the direc-
tory in the mobile phone.Creating and updating voice
command telephone directory
1.>>Telephone (menu)<<
2.>>Load telephone book<<
(>>Update telephone book<<)<
The entries in the mobile phone's tele-
phone directory appear sequentially in the
Info Display.
You must assign a specific name to each
number that you wish to transfer to the
voice command telephone directory. These
numbers will no longer be requested during
updates.

At a glanceControlsDriving tipsCommunicationsNavigationEntertainmentMobilityReference
163
To make a new entry in the voice
command telephone directory Using the voice command system:
1.>>Save name<<
2.Enter name and repeat entry upon
request
3.Enter phone numbers
4.>>Save<<. >Select "A-Z" and confirm
An alphabetical listing of the entries in the
phone directory appears on the right side
of the Control Display
>Select "1,2,3" and confirm
The entries in the telephone directory
appear on the right side of the Control
Display.
2.After selecting the desired entry you can
dial and establish a connection using the
button in the steering wheel or the Key Pad,
the phone number appears in the upper
status line, refer to page 25.
Depending upon which version of the
BMW mobile phone you have, it may
be possible to store several phone
numbers under each entry. The following
symbols are used to identify the phone
numbers in the Control Display:
home, office, mobile phone,
fax, pager.<
Using the voice command system:
1.>>Select name<<
2.Enter name.<
The system dials the number.
To view entriesUsing the voice command system:
>>Read out (telephone book)<<
>To scroll forward:
>>Next entry<< (>>Next name<<, >>Entry
next<<, >>Name next<<)
>To scroll back:
>>Previous entry<< (>>Previous name<<,
>>Entry back<<, >>Name back<<)
>To repeat entry:
>>Once again<<
>To call:
>>Dial (name)<<. 1.>>Telephone (menu)<<
2.>>Delete name<<
(>>Delete entry<<)
3.Enter name. directoryUsing the voice command system:
1.>>Telephone (menu)<<
2.>>Delete telephone book<<. Top 8 listThe eight numbers that you call most
frequently are automatically stored in the
Top 8 list. The number called most often
appears at the top of the list.
1.Select "Top 8" from the "Communica-
tion" menu and confirm your selection
2.Select an entry from the list that now
appears in the display, and confirm your
selection
3.After selecting the desired entry you can
dial and establish a connection using the
button in the steering wheel or the Key Pad,
the phone number appears in the upper
status line, refer to page 25.

Using your mobile phone
164
Redialing, including
numbers not initially
reachedBoth numbers that you reached on your
earlier attempt and numbers that were
unavailable are automatically stored in your
redialing list. The last number dialed is at
the top of the list.
1.Select "Communication"
2.Select and confirm "Last"
3.Select an entry from the list that now
appears in the display, and confirm your
selection
4.After selecting the desired entry you can
dial and establish a connection using the
button in the steering wheel or the Key Pad,
the phone number appears in the upper
status line, refer to page 25.
You can use the voice command system to
redial the last number called:
>>Redial<<.<
Missed calls Provided that the phone numbers have
been received by the system, you can also
request a display of all calls registered in
your absence if this feature is cellular
provider activated.
1.Select "Communication"
2.Select and confirm "Missed"
3.Select an entry from the list that now
appears in the display, and confirm your
selection.
4.After selecting the desired entry you can
dial and establish a connection using the
button in the steering wheel or the Key Pad,
the phone number appears in the upper
status line, refer to page 25.

At a glanceControlsDriving tipsCommunicationsNavigationEntertainmentMobilityReference
165

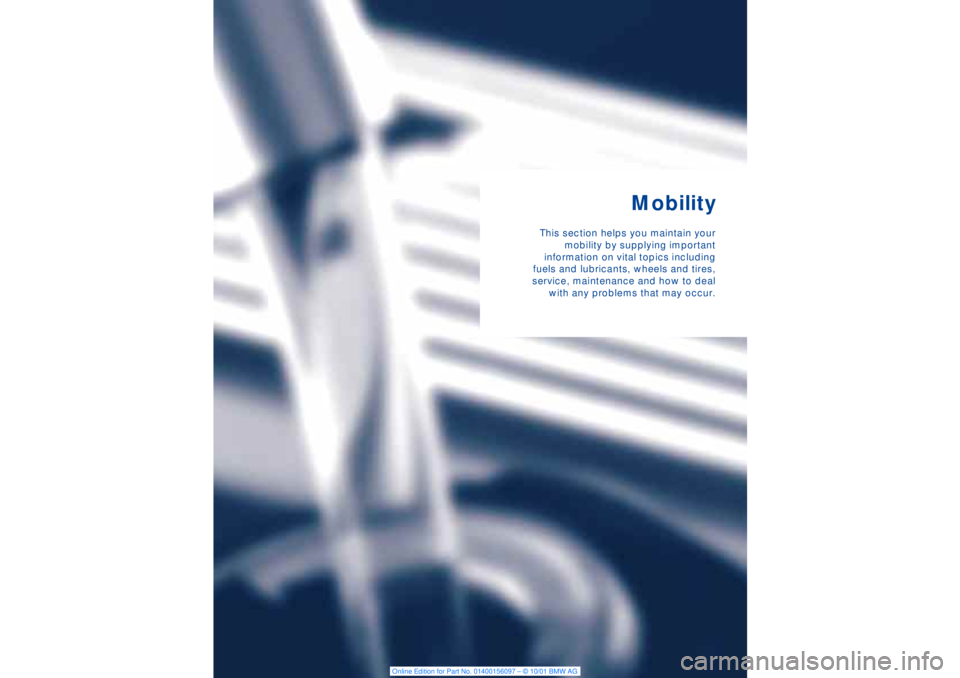

Mobility
This section helps you maintain your
mobility by supplying important
information on vital topics including
fuels and lubricants, wheels and tires,
service, maintenance and how to deal
with any problems that may occur.
