2002.5 Peugeot 307 Break Owner's Manual

09-09-2002
2YOUR 307 AT A GLANCE

09-09-2002

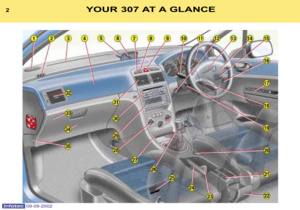

3YOUR 307 AT A GLANCE
1Speaker (tweeter).
2 Side window demisting vent.
3 Windscreen demisting vents.
4 Passenger air bag.
5 Brightness sensor.
6 Multifunction display.
7 Alarm button.
8 Central locking button.
9 Hazard warning lights
switch.
10 Lights and direction indica
tors stalk.

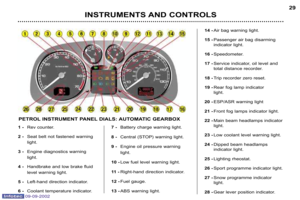

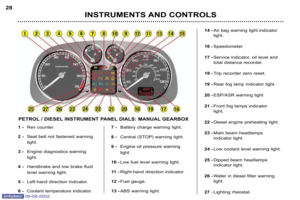

11 Instrument dials.
12 Steering wheel adjustment
control.
13 Windscreen wash/wipe
stalk.

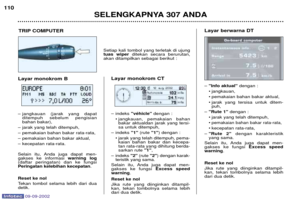

Trip computer stalk.
14 Driver's air bag.
Horn. 15

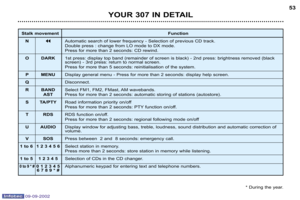

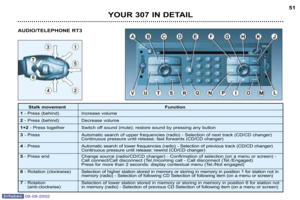

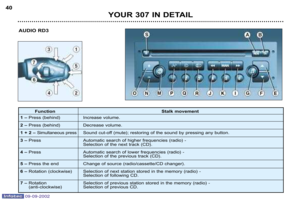

Radio remote control stalk.
16 Headlamp height
adjustment.
17 Electric mirror controls.
Window controls.
Rear window locking
control.
18 Steering lock and ignition.

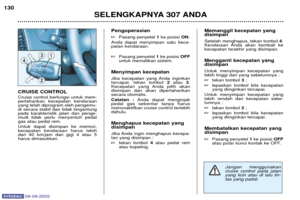

19 Cruise control switch.
20 12 V accessories socket.
21 Coin storage
Passenger air bag
disarming switch*.
22 Rubbish container.
23 Can holder.
24 Handbrake.
25 Rear footwell heating vent.
26 Gear lever.
27 Front ash tray.
28 Heating/air conditioning
controls. 29
CD changer.
30 RB3, RD3 or RT3
audio equipment.
31 Central adjustable heating/
ventilation vent and air flow
regulation.
32 Side adjustable heating/
ventilation vent and air flow
regulation.

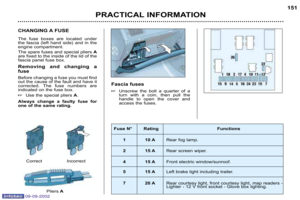

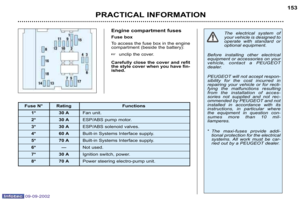

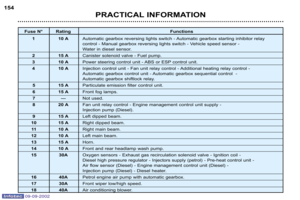

33 Fuse box.
34 Glove box.
35 Bonnet opening control.
* According to destination.

Unlocking
Press button Bto unlock the vehicle.
This is confirmed by rapid flashing
of the direction indica
tors.
Note : If the vehicle is
locked and unlocking
is then activated inad
vertently, the vehicle
will relock automatically unless a
door is opened within 30 seconds
of unlocking.
STARTING
STOP position:
The ignition is off.
1st notch,
Accessories position:
The ignition is off but the acces
sories can be used.
2nd notch, Running position:
The ignition is on.
Starting position:
Operates the starter.
09-09-2002
99
4YOUR 307 AT A GLANCE
THE KEYS
The keys allow you to switch on
the ignition and to independently
operate the locks on the front
doors, the fuel filler cap and the
glove box, as well as operate the
passenger air bag disarming
switch.
Central locking
From the driver's door, the keys
allow you to lock, deadlock or
unlock the doors and the boot
and to fold back the exterior mir
rors.
If one of the doors or the boot is
open, it is impossible to operate
the central locking; a bleep indi
cates locking by remote control.
The remote control performs
the same functions at a dis
tance. The remote control key
Locking ➜
Press button A
to lock the
vehicle.
This is confirmed by fixed
lighting of the direction indi
cators for approximately two
seconds.
Note: in addition to deadlocking,
a long press on button Aauto
matically closes the windows and
the sunroof.
Vehicles fitted with
deadlocking
Deadlocking renders the
internal and external door
locking controls inopera
tive
➜ Press button Ato deadlock
the vehicle.
This is confirmed by fixed
lighting of the direction indi
cators for approximately two
seconds.
Note: in addition to deadlocking,
a long press on button Aauto
matically closes the windows and
the sunroof.
A second press on button Ain
the five seconds following dead
locking, changes deadlocking to
normal locking.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.

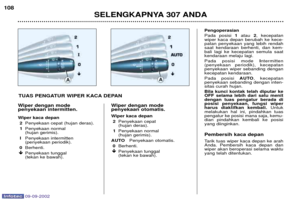

WINDSCREEN WIPERS
Front 2 Rapid wipe
(heavy rain).
1 Normal wipe
(moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe.
Windscreen wash: pull the stalk
towards you.
Automatic wipe
In the AUTOposition,
the wiper operates auto
matically and adjusts
its speed to the inten
sity of the rainfall .
Rear
Off Intermittent Windscreen wipe wash
STEERING WHEEL
STALKS
LIGHTS
Front and rear lights (ring A)
Lights off.
Side lights.
Dipped / Main
beam headlamps.
Automatic switch
ing on of lights.
Automatic switching on of lights
To activate or deactivate the
function, place the key in the
accessories position, with the
lights stalk in position 0and
press the end of the stalk for
more than two seconds. Vehicles fitted with a rear fog
lamp (ring B)
Rear fog lamp (rotation
of the ring forwards).
Vehicles fitted with front fog
lamps and a rear fog lamp
(ring C) Front fog lamps (first
rotation of the ring for
wards)Front fog lamps and
rear fog lamp
(second rotation of
the ring forwards)
To switch off: rotate the
push ring rearwards.
09-09-2002
106
108
5YOUR 307 AT A GLANCE

FRONT SEATS
1 Forwards/backwards
adjustment.
2 Access to rear seats
(3 door).
3 Seat back angle adjustment.
4 Driver or passenger seat
height adjustment.
5 Front removable armrest
(5 door).
6 Head restraint height and
angle adjustment.
To raise or lower the head
restraint, pull it forwards,
sliding it at the same time.
Never drive with the
head restraints removed.
7 Storage drawer.
09-09-2002
90
6YOUR 307 AT A GLANCE

REAR SEATS
To fold down the rear left seat (2/3 part) or right seat (1/3 part):
always start with the cushion, never with the seat back (the re is a risk of damage):
– Move the seat(s) forward if necessary,
– Tilt the seat cushion 1 against the front seat(s), estate: tilt using the handle.
– Check that the seat belt is in the correct position on the side of the seat back,
– Pull control 2forwards to unlock the seat back 3,
– Place the head restraints in the low position,
– Tilt the seat back 3forwards
estate: the seat cushion 1can be removed.
When refitting: – Fold up the seat back and lock it (the red marker of control 2should no longer be visible at this
point),
– Fold back the seat cushion.
09-09-2002
92
7YOUR 307 AT A GLANCE

Take care not to trap the seat
belts.
AIR BAGS
The air bags have been designed
to maximise the safety of the
occupants in the event of serious
collisions. They work in conjunc
tion with the force limiting seat
belts.
Front air bags
These are folded in the centre of
the steering wheel for the driver
and in the fascia for the front pas
senger. They are deployed simul
taneously, except in cases where
the passenger air bag is dis
armed.
Precautions regarding
the passenger air bag ➜disarm the air bag if you
install a rearfacing child
seat,,
➜ arm the air bag for an adult
passenger. Operating check
With the ignition switched
on (2nd notch of the igni
tion), illumination of this
warning light, accompa
nied by an audible signal and the
message ' 'Passenger air bag
disarmed'' on the multi_function
display, indicates that the pas
senger air bag is disarmed (swit
ch in the "OFF"position).
The warning light remains on
throughout the disarming pro
cess.
Side air bags*
and curtain air bags*
The side air bags are incorporat
ed into the seat backs of the front
seats, on the door side.
The curtain air bags are incorpo
rated into the door pillars and the
top of the passenger compart
ment.
They are deployed unilaterally, on
whichever side the col
lision occurs.
* According to country.
132133
Disarming the passenger
air bag* ➜ with the ignition off, insert the
key into slot 1and turn the
passenger air bag switch to
the "OFF" position.
As soon as you remove the child
seat, turn the air bag switch to the
''ON'' position, to activate the air
bag again.
8
YOUR 307 AT A GLANCE
09-09-2002

ELECTRIC WINDOWS
1 Driver's electric window
2 Passenger's electric window.
3 Rear right electric window.
4 Rear left electric window.
5 Disarming the rear window switches.
Safety autoreverse:When the window is rising and meets an
obstacle, it stops and lowers again.

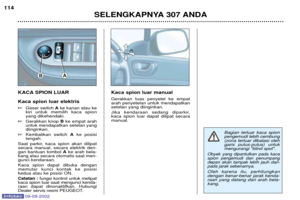

ELECTRIC MIRRORS STEERING WHEEL
HEIGHT AND DEPTH
ADJUSTMENT ➜
When stationary, pull handle
Ato unlock the steering wheel.
➜ Adjust the height and depth of
the steering wheel.
➜ Lock it by pushing handle Ain
fully.
Manual mode: ➜ Press or pull the switch lightly.
The window stops as soon as
the switch is released. Automatic mode: ➜
Press or pull the switch firmly.
One touch completely opens
or closes the window.
➜ Move switch 6to the right or
left to select the corresponding
mirror.
➜ Then move button 7in all four
directions to adjust.
➜ Move switch 6back to the
centre position. When the vehicle is parked, the
mirrors can be folded back man
ually, electrically by
pulling switch
6rear
wards or automatically
when locking the vehicle.
09-09-2002
11 3
11 411 6
9YOUR 307 AT A GLANCE
