2002.5 Peugeot 307 Break technical data

09-09-2002
TECHNICAL DATA161
Manual Manual Automatic Manual Automatic
(5 speed) (5 speed) (4 speed) (5 speed) (4 speed) PETROL ENGINES / COMPANY
ENGINES 1.4 litre 1.6 litre 16V 2 litre 16V
Cubic capacity (cm
3
) 1 360 1 587 1 997
Bore x stroke (mm) 75 x 77 78.5 x 82 85 x 88
EU standard maximum power (kW) 5 5 8 0 1 0 0
Maximum power at engine
speed (rpm) 5 500 5 800 6 000
EU standard maximum torque (Nm) 1 2 0 1 4 7 1 9 0
Maximum torque at engine
speed (rpm) 3 000 4 000 4 100
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
OIL CAPACITIES (in litres)
Engine
(with cartridge replacement) 3.25 3 3 4.25 4.25
GearboxFinal drive 2 2 1.9
MODELS:
Model codes
GEARBOX
3CKFWB/T 3CNFUB 3CNFUE 3CRFNC/IF 3CRFNE
3AKFWB/T 3ANFUB 3ANFUE 3ARFNC/IF 3ARFNE
3EKFWB 3ENFUB 3ENFUE 3ERFNC/IF 3ERFNE 3CNFUC/IF
3ANFUC/IF

09-09-2002
TECHNICAL DATA
162
3C8HZB/T 3CRHYB/T 3CRHSB
3A8HZB/T 3ARHYB/T 3ARHSB
3E8HZB 3ERHYB 3ERHSB
Manual Manual Manual
(5 speed) (5 speed) (5 speed) DIESEL ENGINES / COMPANY
ENGINES 1.4 litre turbo HDI 2 litre turbo HDI 90 bhp 2 litre
turbo HDI 110 bhp
Cubic capacity (cm 3
) 1 398 1 998 1 997
Bore x stroke (mm) 73.7 x 82 85 x 88 85 x 68
EU standard maximum power (kW) 5 0 6 6 7 9
Maximum power at engine
speed (rpm) 4 000 4 000 4 000
E U standard maximum torque (Nm) 1 6 0 2 0 5 2 5 0
Maximum torque at engine
speed (rpm) 1 900 2 000 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particulate emission filter No No Yes
Oil capacities (in litres)
Engine
(with cartridge replacement) 4.3 4.5 4.5
GearboxFinal drive 1.9 1.9 1.9
MODELS:
Model codes
GEARBOX

09-09-2002
Saloon consumption In accordance with directive 99/100 [In MPG (litres/100km)]
Engine Gearbox Model Circuit Circuit Circuit Emission of codesUrban Interurban Mixed CO 2by
3C…3A… weight g/Km
1.4 litre ManualKFWB/T 32.5 (8.7) 51.4 (5.5) 42.2 (6.7) 159
1.6 litre 16V ManualNFUB29.7 (9.5) 48.7 (5.8) 39.2 (7.2) 169
1.6 litre 16V ManualNFUC/IF 28.2 (10.0) 48.7 (5.8) 38.2 (7.4) 174
1.6 litre 16V AutomaticNFUE25.9 (10.9) 45.6 (6.2) 35.8 (7.9) 189
2 litre 16 V ManualRFNC/IF 25.9 (10.9) 45.6 (6.2) 35.8 (7.9) 188
2 litre 16V AutomaticRFNE22.8 (12.4) 42.1 (6.0) 32.5 (8.3) 198
1.4 litre Turbo HDIManual 8HZB/T 51.4 (5.5) 70.4 (4.0) 62.8 (4.5) 120
2 litre Turbo HDI 90 bhpManualRHYB/T 40.9 (6.9) 65.7 (4.3) 54.3 (5.2) 138
2 litre Turbo HDI 110 bhpManual RHSB40.4 (7.0) 67.2 (4.2) 54.2 (5.2) 138
TECHNICAL DATA 163
Fuel consumption values correct at time of printing.

09-09-2002
TECHNICAL DATA
164
Estate consumption In accordance with directive 99/100 [MPG(li
tres/100km)]
Engine Gearbox Model Urban Interurban Mixed Emission codescircuit circuit circuit of CO 2by
weight (g/km)
1.4 litre Manual3EKFWB 31.1 (9.0) 50.4 (5.6) 40.9 (6.9) 163
1.6 litre 16V Manual3ENFUB
28.5 (9.9) 44.8 (6.3) 36.7 (7.7) 178
3ENFUC/IF
1.6 litre 16V Automatic3ENFUE25.3 (11.2) 44.1 (6.4) 34.0 (8.3) 194
2 litre 16V Manual3ERFNB
24.7 (11.5) 44.8 (6.3) 34.0 (8.3) 194
3ERFNC/IF
2 litre 16V Automatic3ERFNE20.9 (13.1) 43.5 (6.5) 32.0 (8.8) 206
1.4 litre Turbo HDIManual3E8HZB 49.6 (5.7) 67.2 (4.2) 60.1 (4.7) 124
2 litre Turbo HDI 90 bhpManual3ERHYB 39.8 (7.1) 62.8 (4.5) 50.4 (5.4) 143
2 litre Turbo HDI 110 bhpManual3ERHSB 39.2 (7.2) 64.2 (4.4) 50.4 (5.4) 143
Fuel consumption values correct at time of printing.

09-09-2002

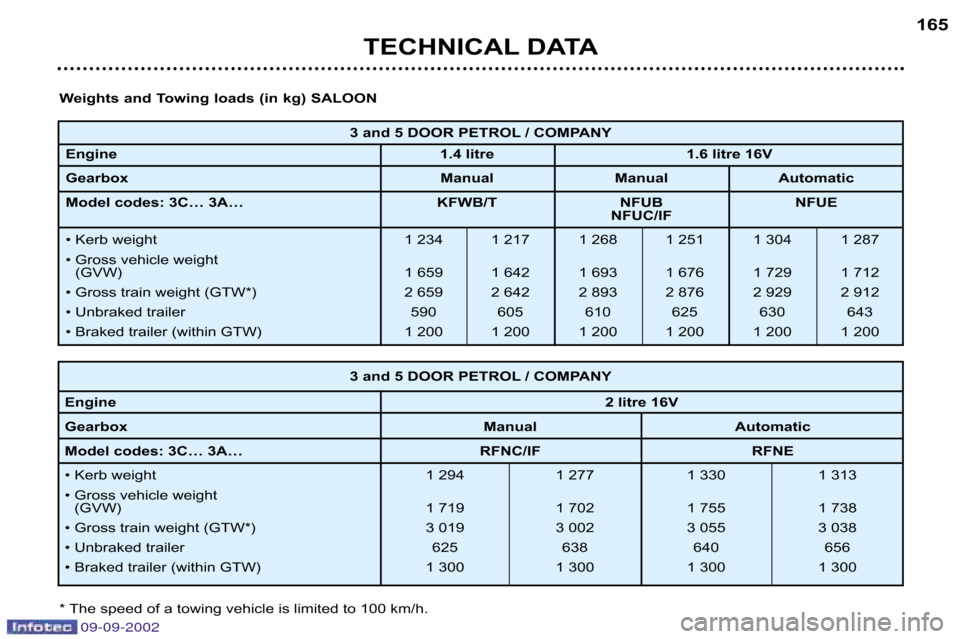

3 and 5 DOOR PETROL / COMPANY
Engine 1.4 litre 1.6 litre 16V
Gearbox Manual Manual Automatic
Model codes: 3C… 3A… KFWB/T NFUB NFUE NFUC/IF
• Kerb weight 1 234 1 217 1 268 1 251 1 304 1 287
• Gross vehicle weight (GVW) 1 659 1 642 1 693 1 676 1 729 1 712
• Gross train weight (GTW*) 2 659 2 642 2 893 2 876 2 929 2 91 2
• Unbraked trailer 590 605 610 625 630 643
• Braked trailer (within GTW) 1 200 1 200 1 200 1 200 1 200 1 2 00
TECHNICAL DATA165
Weights and Towing loads (in kg) SALOON
* The speed of a towing vehicle is limited to 100 km/h.
3 and 5 DOOR PETROL / COMPANY
Engine 2 litre 16V
Gearbox Manual Automatic
Model codes: 3C… 3A… RFNC/IF RFNE
• Kerb weight 1 294 1 277 1 330 1 313
• Gross vehicle weight (GVW) 1 719 1 702 1 755 1 738
• Gross train weight (GTW*) 3 019 3 002 3 055 3 038
• Unbraked trailer 625 638 640 656
• Braked trailer (within GTW) 1 300 1 300 1 300 1 300

09-09-2002
TECHNICAL DATA
166
Weights and Towing loads (in kg) SALOON
* The speed of a towing vehicle is limited to 100 km/h.
3 and 5 DOOR DIESEL / COMPANY
Engine
1.4 litre Turbo HDI 2 litre Turbo HDI 90 bhp 2 litre Tur bo HDI 110 bhp
GearboxManual Manual Manual
Model codes: 3C… 3A… 8HZB/T RHYB/T RHSB
• Kerb weight 1 271 1 254 1 335 1 318 1 371 1 354
• Gross vehicle weight (GVW) 1 696 1 679 1 760 1 743 1 796 1 779
• Gross train weight (GTW*) 2 836 2 819 3 060 3 043 3 136 3 11 9
• Unbraked trailer 635 627 655 659 685 677
• Braked trailer (within GTW) 1 140 1 140 1 300 1 300 1 340 1 340

09-09-2002
TECHNICAL DATA167
PETROL
Engine 1.4 litre 1.6 litre 16V 2 litre 16V
Gearbox Manual Manual Auto. Manual Auto.
Model codes: 3EKFWB 3ENFUB 3ENFUE 3ERFNB 3ERFNE 3ENFUC/IF 3ERFNC/IF
• Kerb weight 1 292 1 344 1 380 1 370 1 406
• Gross vehicle weight (GVW) 1 800 1 850 1 875 1 880 1 880
• Gross train weight (GTW)* 2 900 2 950 2 975 3 380 3 380
• Unbraked trailer 645 670 690 685 700
• Braked trailer (within GTW) 1 100 1 100 1 100 1 500 1 500
Weights and towing loads (in kg) ESTATE
* The speed of a towing vehicle is limited to 100 km/h.
DIESEL
Engine
1.4 litre Turbo HDI 2 litre Turbo HDI 90 bhp 2 litre Tur bo HDI 110 bhp
GearboxManual Manual Manual
Model codes: 3E8HZB 3ERHYB 3ERHSB
• Kerb weight 1 332 1 403 1 434
• Gross vehicle weight (GVW) 1 800 1 900 1 950
• Gross train weight (GTW)* 2 900 3 400 3 450
• Unbraked trailer 665 700 715
• Braked trailer (within GTW) 1 100 1 500 1 500

TECHNICAL DATA
168
Saloon dimensions 3 and 5 door versions (in mm) Estate dimensions (in mm)
09-09-2002
