2001 PEUGEOT EXPERT DAG Owners Manual

CHANGING A WHEEL109V- 5
The jack is designed specifically for your vehicle,do not use it for other applications.
Replacing the spare wheel in the carrier
Slide the spare wheel back into its carrier.Lift the carrier up and re-engage the retaining hook.Retighten the screw from inside the load area.Stow the tools.
AdviceThe wheel bolts are specific to the type of wheel fitted. If the type of wheel is changed, check with your dealer that thewheel bolts are compatible.

TOWING - LIFTINGV- 6
110
BEWARE
If the engine is not running,
the steering and braking systems will not be power-assisted.
Towing with the front or rear wheels lifted Use special towing equipment with a rigid bar and straps.Attach the hooks to each of the suspension arms.
Take the necessary precautions to protect the bumper and the front or rear of the vehicle.
NEVER TOW THE VEHICLE WITH THE FRONT OR REAR ENDS LIFTED AND THE WHEELS HANGING FREE. Towing with all wheels on theground

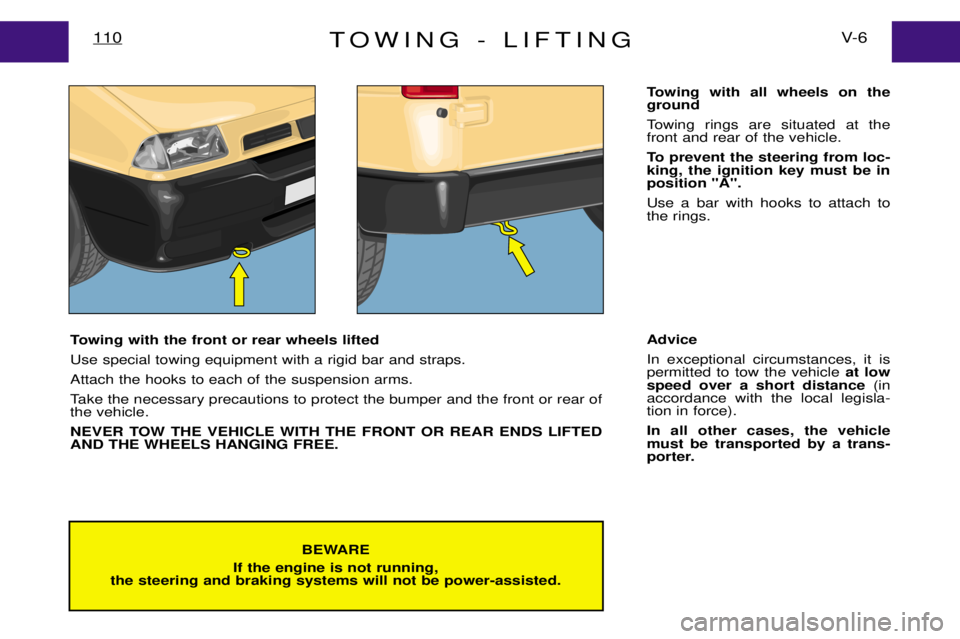

Towing rings are situated at the front and rear of the vehicle.
To prevent the steering from loc- king, the ignition key must be inposition "A". Use a bar with hooks to attach to the rings. Advice In exceptional circumstances, it is permitted to tow the vehicle
at low
speed over a short distance (in
accordance with the local legisla-tion in force). In all other cases, the vehicle must be transported by a trans-
porter.

FRONT AIRBAG130
IMPORTANT:
For your safety, it is essential that you always sit with your back fully against the backrest.
Front airbags - Precautions ¥
The wearing of seat belts is obligatory.
¥ Never fix nor attach anything to the steering wheel boss; this could cause facial injuries should the airbag be activated.
¥ Do not stow nor allow objects to rest between your body and the airbag.
¥ Never drive with your hands on the centre boss of the steering wheel or holding the branches of the wheel.
¥ Do not smoke in the vehicle (risk of burns or injury should the airbag be deployed).
¥ Do not leave objects on the dashboard which could interfere with the operation of the airbag or cause injury to the passenger when activated.
¥ Make sure that the passenger does not place his feet on the dashboard when the vehicle is in motion.
¥ Children under ten years of age should use the rear seats with appropriate child restraints (see "Child restraints").

FRONT AIRBAG131
Replacing the airbag pyrotechnic systems
They must be replaced following deployment or within ten years after first
registration of the vehicle. This must be done by the dealer network. In accordance with the strict security regulations in force, any repairs or checks must be performed exclusively by the dealer network. Any repairs that have not been carried out in strict compliance with the regulations could prevent the systems from operating correctly or couldcause their premature deployment, with the risk of bodily injuries.
Warning When the airbag(s) is(are) deployed, there is a light discharge of harmless smoke and a loud noise; both are due to the detonation of the explosive cartridge(s) forming part of the airbag system.
This smoke is not toxic but may cause irritation to people suffering from respiratory problems.As a precaution therefore, vacate the vehicle as soon as possible after deployment of an airbag (provided it is safe to do so). If this is not possible, open the windows or doors. The noise associated with the detonation may cause a temporary loss of hearing.These devices can only operate once and cannot provide further protection in the event of a second impact (either during the same collision or in any further collision). It is imperative that the system be repaired by the dealer network.

VEHICLE PRESENTATIONVI-1
112
VA N
Normal door VAN WITH LONG WHEELBASE
Normal door
VAN WITH LONG WHEELBASEOffset side door

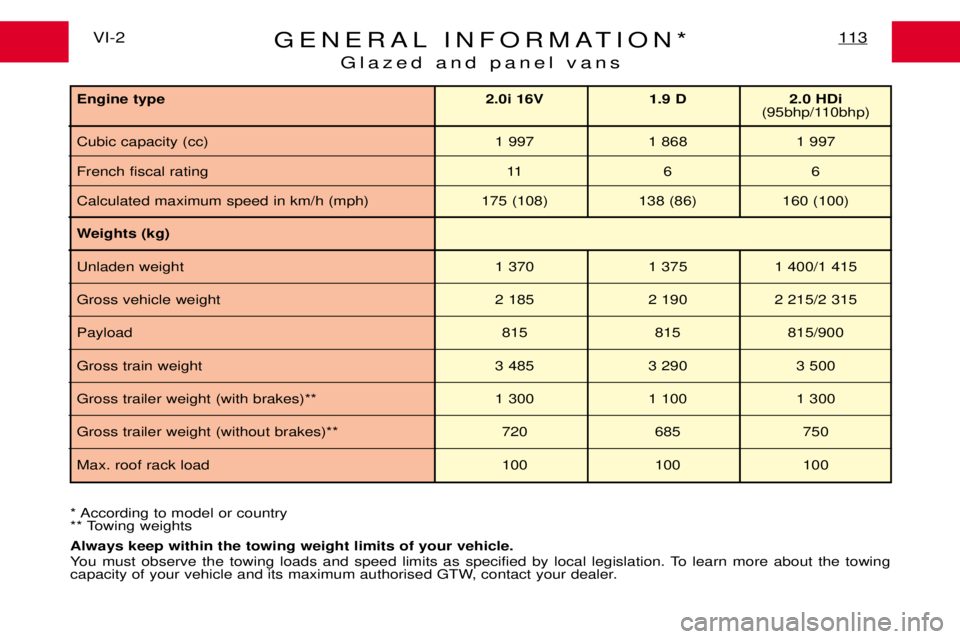

GENERAL INFORMATION*Glazed and panel vans113VI-2
Weights (kg) Unladen weight 1 370 1 375 1 400/1 415
Gross vehicle weight 2 185 2 190 2 215/2 315
Payload 815 815 815/900
Gross train weight 3 485 3 290 3 500
Gross trailer weight (with brakes)** 1 300 1 100 1 300
Gross trailer weight (without brakes)** 720 685 750Max. roof rack load 100 100 100
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
French fiscal rating 11 6 6
Calculated maximum speed in km/h (mph) 175 (108) 138 (86) 160 (100)
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.

GENERAL INFORMATION*
Glazed and panel vans longwheelbaseVI-2
114
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Weights (kg) Unladen weight 1 410 1 445
Gross vehicle weight 2 205 2 315
Payload 795 900
Gross train weight 3 305 3 500
Gross trailer weight (with brakes)** 1 100 1 300
Gross trailer weight (without brakes)** 705 730Max. roof rack load 100 100
Engine type
1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 868 1 997
French fiscal rating 6 6
Calculated maximum speed in km/h (mph) 138 (86) 157 (98)

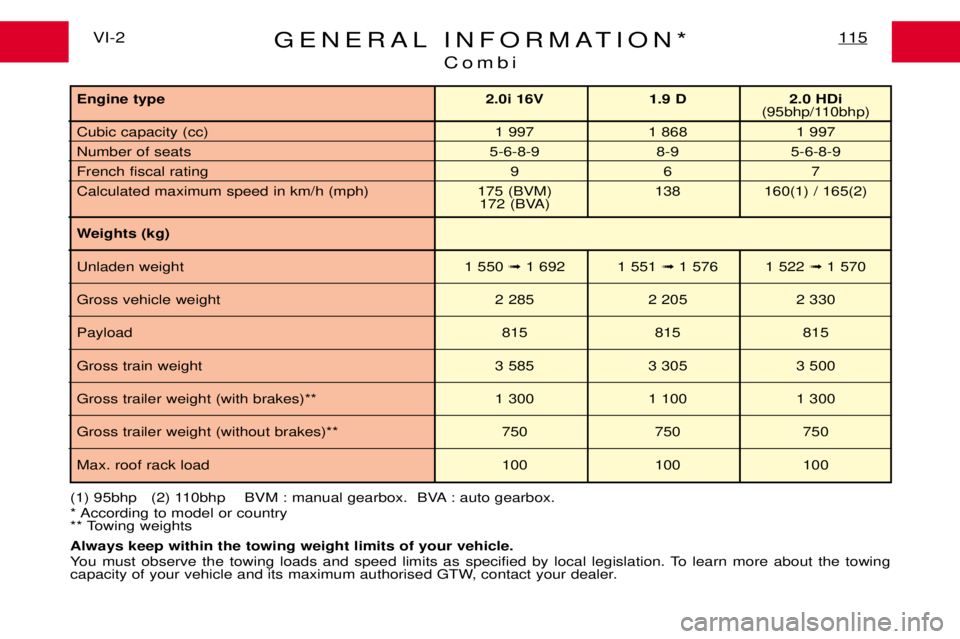

GENERAL INFORMATION*Combi115VI-2
(1) 95bhp (2) 110bhp BVM : manual gearbox. BVA : auto gearbox.
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Weights (kg) Unladen weight 1 550 ➟1 692 1 551 ➟1 576 1 522 ➟1 570
Gross vehicle weight 2 285 2 205 2 330
Payload 815 815 815
Gross train weight 3 585 3 305 3 500
Gross trailer weight (with brakes)** 1 300 1 100 1 300
Gross trailer weight (without brakes)** 750 750 750Max. roof rack load 100 100 100
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
Number of seats 5-6-8-9 8-9 5-6-8-9
French fiscal rating 9 6 7
Calculated maximum speed in km/h (mph) 175 (BVM) 138 160(1) / 165(2) 172 (BVA)
