2001 PEUGEOT EXPERT DAG Owners Manual

VENTILATION - HEATINGIII-1
66
Air intake Keep the air intake grille in front of the windscreen clear
of dead leaves, snow, etc. If a high pressure wash be used, avoid directing the jet of water at the air intake. Air vents The air vents have thumb-wheels to control and direct the

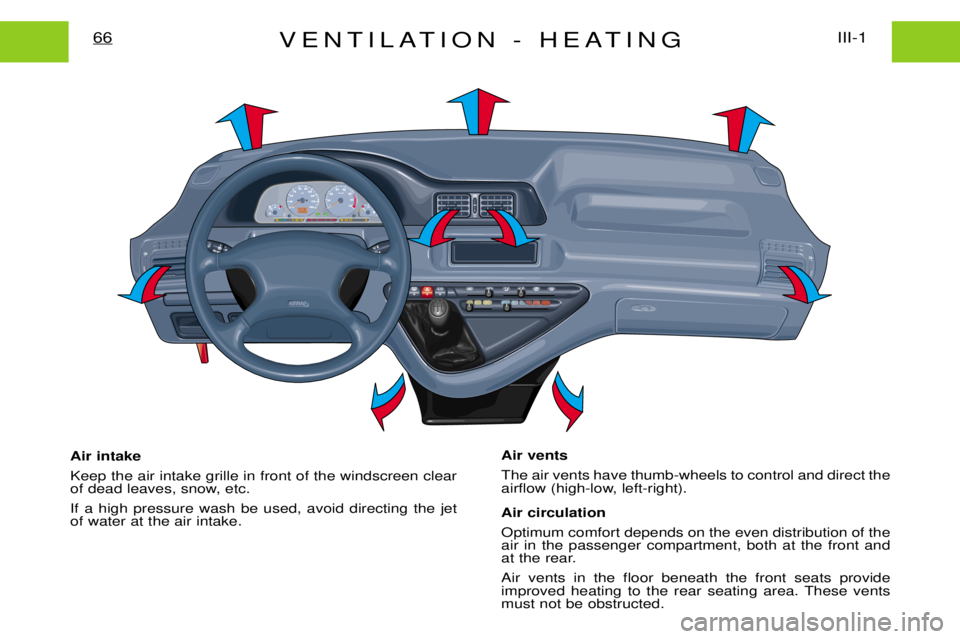

airflow (high-low, left-right). Air circulation Optimum comfort depends on the even distribution of the air in the passenger compartment, both at the front and
at the rear. Air vents in the floor beneath the front seats provide
improved heating to the rear seating area. These ventsmust not be obstructed.

VENTILATION - HEATING67III-1
1 - Air distribution controlAir flow from the front vents. Air flow to the footwells and rear seats. Air flow to the footwells and windscreen and side windows. Distribution of air to the windscreen and the side windows.Demisting Ð De-icing.
2 - Isolation of passenger compartment* Intake of outside air. Optimum position for demisting.
Recycled interior air.
This position prevents the entry of unpleasant odours into the vehicle. It is recommended that the control not be left in the recycling position for longer than necessary. The normal position will provide a continuous fresh air
supply to the passenger compartment and will avoid misting of the windows.
3 - Heater blower control slider. For optimum comfort inside the passenger compartment, this control should not be left in the minimum position.
4 - Temperature control.2
34
1
* According to model or country

AIR CONDITIONING*III-2
68
Air conditioning
The air conditioning system will only operate with the engine running. Press the switch Aon the dashboard.
A warning lamp confirms that the system is switched on.
For the air conditioning to be fully effective, the windows should be closed. The system contains a non-polluting CFC sub- stitute. If after a prolonged stop in direct sunlight the inside of the car is hot, leave the windows openfor a few minutes to provide a rapid air change,then close them.
Air recycling
To obtain the most effective cooling in the pas-senger compartment in very hot conditions,select the recycling position. Set control Bto the left, and place the heater
blower control Din the mid-way position.
It is recommended that the control not be left in the recycling position for longer than necessa-
ry. The normal position will provide a conti-nuous fresh air supply to the passenger com-partment. Rapid demisting Switch on the air conditioning.Set the control to the fresh air position and air flow to
maximum.Select the demisting position using control C.
Set the temperature control to maximum. Note: A normal consequence of having the air conditioning turned
on is that water condenses on the surface of the air conditioner. This drains out through a specially provided hole and may form apuddle under the car when parked.
To maintain effective operation of the compressor seals, ope- rate the air conditioning at least once a month. The air conditioning is useful even in winteras it can be used to
remove moisture from the air.ABC
D
* According to model or country
Protection fuses (under the dashboard)F5 - F20 - F25
(under the bonnet)
F13 - F15 (with ABS)

INTERIOR LIGHTING*69III-3
Front interior lamp Controlled by the opening of a front door or by pivoting the lens.Rear interior lamp Combi Controlled by pivoting the lens.
Rear interior lamp VanControlled by pivoting the lens.
* According to model or country
Protection fuses (under the dashboard)F15 - F25

INTERIOR COMFORTIII-4
70
WARNING
As a safety measure,
the glovebox must remain shut when the vehicle is in motion.
1 Armrest
2 Oddments pocket
3 Bottle holder
4 Oddments pocket
5 Speaker housing
Sun visors Fold visors down to avoid dazzle
from ahead. They can be disenga-ged from their central fixing andpivoted over to the side windows ifrequired.
The driverÕs side visor contains a
ticket holder.
Glovebox.
To open the glove box, push the release towards the left. The lid contains two cup holders.
1
2
3
45

INTERIOR COMFORT71III-4
Ensure that children are kept away from the cigar lighter whichoperates even when the ignition is off.
Front ashtray:
lift the lid and release it. It folds away automatically.
To close the ashtray , lift the lid by its right hand corner and then release.
To empty, press down the right hand corner of the open lid and then lift the
ashtray.
To refit Locate the ashtray and push fully home. Cigar lighter
Push in and wait a few moments. The cigar lighter will release automatically.Protection fuses (under the dashboard)F16 - F16A

RADIO PRE-EQUIPMENT*III-5
72
Positions and functions of the connectors A1 : Ñ A2 : ÑA3 : ÑA4 : (+) Accessories.
A5 : ÑA6 : (+) Sidelamps.
A7 : (+) Permanent.
A8 : Earth.
B1 : ÑB2 : ÑB3 : (+) RH front speaker.
B4 : (Ð) RH front speaker.
B5 : (+) LH front speaker.
B6 : (Ð) LH front speaker.
B7 : ÑB8 : Ñ Fitting loud speakers Locations are provided in each front
door. Consult your dealer in the case of vehicles fitted with manual windupwindows. Aerial For optimum radio reception, the angle of the aerial should matchthat of the windscreen.
Radio connections Remove the storage bin to gain access to the wiring and connec-tions allowing the audio system,loudspeakers and aerial wire to beconnected.
* According to model or country
Protection fuses (under the dashboard)F1 - F19 - F25

AUDIO-SYSTEM138

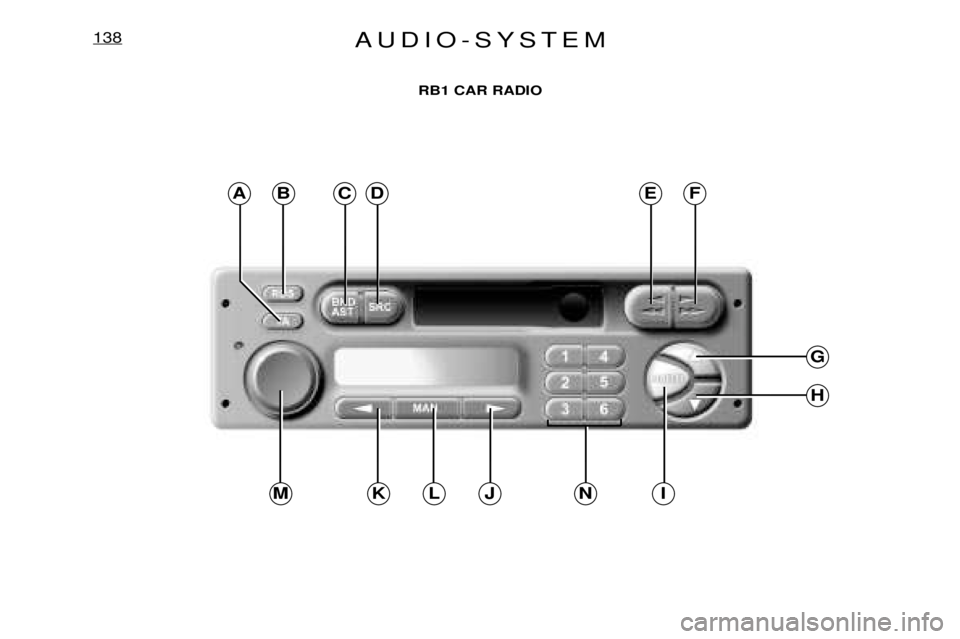

RB1 CAR RADIO
ABC
G
H
IJNLKM
DEF
