2001 PEUGEOT EXPERT DAG Owners Manual

AUDIO-SYSTEM155
EON system
This connects stations which are part of the same network. It enables broadcasting of traffic information or a PTY programme from a station which is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTY function.
COMPACT DISC Selecting the CD as source
After inserting a disc, with the printed surface upwards, the player starts automatically.If a disc is already inserted, press the "K"button.
Ejecting a discPress button ÒAÓto eject the disc from the player.
Selecting a trackPress button ÒGÓto select the next track.
Press button ÒHÓto return to the start of the current track or to select the previous track.
Accelerated playPress the ÒMANÓbutton.
Keep button ÒGÓor ÒHÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button.Buttons ÒGÓand ÒHÓ resume the Òtrack selectionÓ function when the ÒMANÓbutton is pressed again.
Shuffle (RDM)When the CD is selected, keep the ÒKÓbutton pressed for two seconds. The tracks will be played in random
sequence. Pressing the ÒKÓbutton again for two seconds returns you to normal play.
Note : Do not use blank CDs as these could damage your changer.

AUDIO-SYSTEM156
CD MULTI-CHANGER* Selecting the CD multi-changer Press the ÒLÓbutton.
Selecting a discPress a button from Ò1Óto Ò6Ó to select the corresponding disc.
Selecting a trackPress button ÒGÓto select the next track.
Press button ÒHÓto return to the start of the current track or to select the previous track.
Accelerated playPress the ÒMANÓbutton.
Keep button ÒGÓor ÒHÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button.Buttons ÒGÓand ÒHÓ resume the Òtrack selectionÓ function when the ÒMANÓbutton is pressed again.
Shuffle (RDM)When the CD multi-changer is selected, keep the ÒLÓbutton pressed for two seconds. The tracks will be
played in random sequence. Pressing the ÒLÓbutton again for two seconds returns you to normal play.
Note : Do not use blank CDs as these could damage your changer.
* According to specification

CD
CBA
AUDIO-SYSTEM157
CD changer** According to specification
To insert a disc into the changer:
- open sliding panel
A,
- press button Bto eject the cartridge C,
- open one of the six compartments of the cartridge by pulling tab D,
- insert the disc with the printed face upwards and close the compart- ment ,
- insert the cartridge into the changer,
- close the sliding panel A.

BATTERYV- 1
88
Emergency starting with a slave battery
A vehicle with a discharged battery can be started with either a slavebattery or the battery of anothervehicle. For safety reasons, it is essential that the slave battery is connectedstrictly following the sequence
described below.
A Positive terminal on a vehiclewhich has broken down. (underthe bonnet)
B Slave battery
C
Earth point on broken down vehicle.
Ensure that the voltage of the slave battery is correct (12 volts).
When using the battery of another vehicle, its engine should be switched off. The two vehicles must not be allowed to
come into contact with each other. Connect the battery cables in the ordershown in the diagram, ensuring a good contact is made (to avoid the risk of
sparks occurring).Start the engine of the assisting vehicle and let it run at a fast idle for about a minute.
Then start the engine of the vehicle with the discharged battery. Advice Do not touch the cable clamps during the procedure.Do not lean over the batteries.
Disconnect the cables in the reverse order to connection, ensuring that they do not touch each other.
2
1
3
4
CB
A

BATTERY137
BEWARE
Never expose a battery to a naked flame or spark (explosive gases present).
The battery contains dilute sulphuric acid which is corrosive. When handling a battery, protect the hands, eyes and face. In case of contact with the skin, rinse immediately and abundantly with clean water.
Removal Disconnect the battery leads, negati- ve lead first and then remove the
securing clamp to release the battery. Refitting Reconnect the battery starting with the positive lead first. If the vehicle is not used for a prolonged period If the vehicle is to be taken out of use for periods of more than onemonth, the battery should be dis-connected.
* According to model or country Precautions Ensure that the posts and terminals are clean. If they become sulphated, dis- connect and clean them. Never disconnect the leads while the engine is run-ning. Never recharge the battery without first disconnecting the leads. Do notoperate electrical equipment before the engine has reached its operating tem-perature. Starting the engine for the first time after disconnecting and connecting the battery:
- Switch on the ignition.
- Wait 10 seconds before operating the starter to allow the electronic systems
to be reinitialised following the disconnection of the battery. Enter the radio security code*.
Charging a battery The voltage must never exceed 15.5 volts and the charging current must never exceed 20% of the rating marked on the battery casing. For example: L1 250 - Setting: 50 amps maximum.The battery charge period should not exceed 24 hours.Only battery chargers with a constant, regulated voltage output should be used. If the vehicle is used in hot conditions (30¡C and higher) If the battery is fitted with filler plugs, the electrolyte level should be checked
periodically. The electrolyte should just cover the plates. Top up if necessary
using distilled water.

FUSES*89V- 2
Fuse box There are two fuse boxes, one below the dashboard and one under the bonnet. Fuses under the dashboard
To gain access to the dashboard fuses (to the left of the driver), turn the but- ton on the cover a quarter turn. Replacing a fuse Before replacing a fuse, it is essential to find the cause of the incident and to
rectify it. The fuse identification numbers are indicated inside the fuse box. The fuses positions which are not numbered are for spare fuses. Replace a blown fuse with one of the same rating (the same colour). Use the special tool Aprovided in the fuse housing.
* According to model or country Good
Faulty
Tool A

TABLE OF FUSES
(According to model or country)V- 2
90

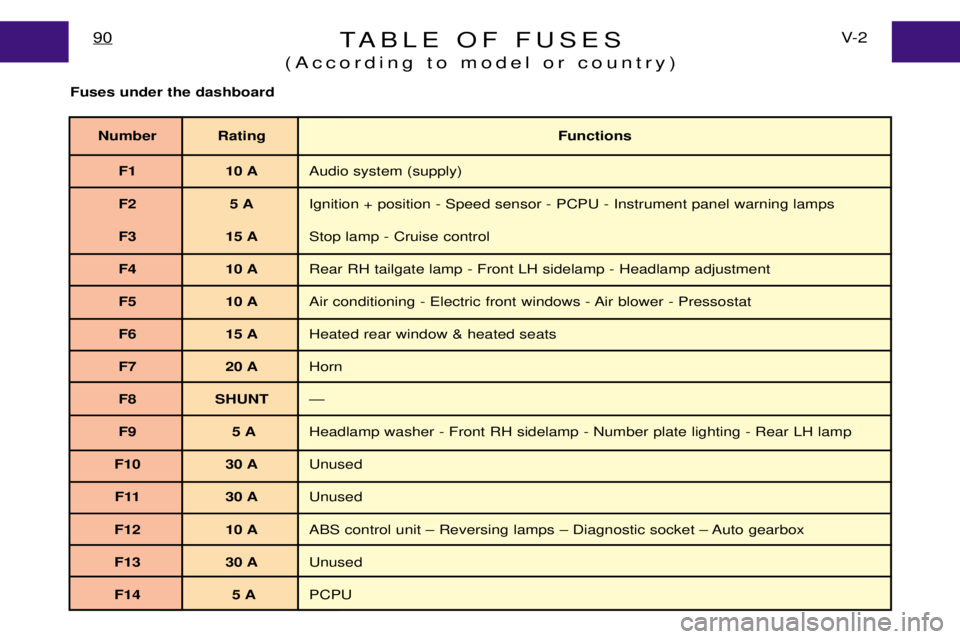

Fuses under the dashboard
Number Rating Functions
F1 10 A Audio system (supply)
F2 5 A Ignition + position - Speed sensor - PCPU - Instrument panel warning lamps
F3 15 A Stop lamp - Cruise control
F4 10 A Rear RH tailgate lamp - Front LH sidelamp - Headlamp adjustment
F5 10 A Air conditioning - Electric front windows - Air blower - Pressostat
F6 15 A Heated rear window & heated seats
F7 20 A Horn
F8 SHUNT Ñ
F9 5 A Headlamp washer - Front RH sidelamp - Number plate lighting - Rear LH lamp
F10 30 A Unused
F11 30 A Unused
F12 10 A ABS control unit Ð Reversing lamps Ð Diagnostic socket Ð Auto gearbox
F13 30 A Unused
F14 5 A PCPU

TABLE OF FUSES
(According to model or country)91V- 2
Number Rating Functions
F15 30 A PCPU (central locking Ð ceiling lights)
F16 20 A Cigar lighter - Permanent + position
F16A 20 A Cigar lighter - Accessories + position
F17 15 A Coolant temperature control unit - Cooling fan assembly
F18 10 A Foglamp
F19 10 A Instrument panel lighting - Audio system - Sidelamps
F20 30 A Air conditioning - Air blower
F21 20 A Heated seats
F22 20 A Accessories + position - Unused
F23 SHUNT F14 - F15 - F25 - F27
F24 30 A Windscreen washer - Windscreen wiper
F25 10 A Air conditioning - Interior lamp - Radio memory - Digital clock
F26 15 A Hazard warning lamps
F27 30 A Heated rear screen
F28 15 A Electric window - Charge warning lamp
F29 30 A Electric window
F30 15 A Interior lighting - Direction indicators - Clock - Electric rear view mirror
