2001 PEUGEOT EXPERT DAG Owners Manual

GENERAL INFORMATION*Chassis cabVI-2
116
Weights (kg) Unladen weight 1 195 1 255 1 240
Gross vehicle weight 2 185 2 205 2 315
Payload According to model or country
Gross train weight 3 485 3 305 3 500
Engine type
2.0i 16V 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 997 1 868 1 997
French fiscal rating 11 8 8
Calculated maximum speed in km/h (mph) According to model or country
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.

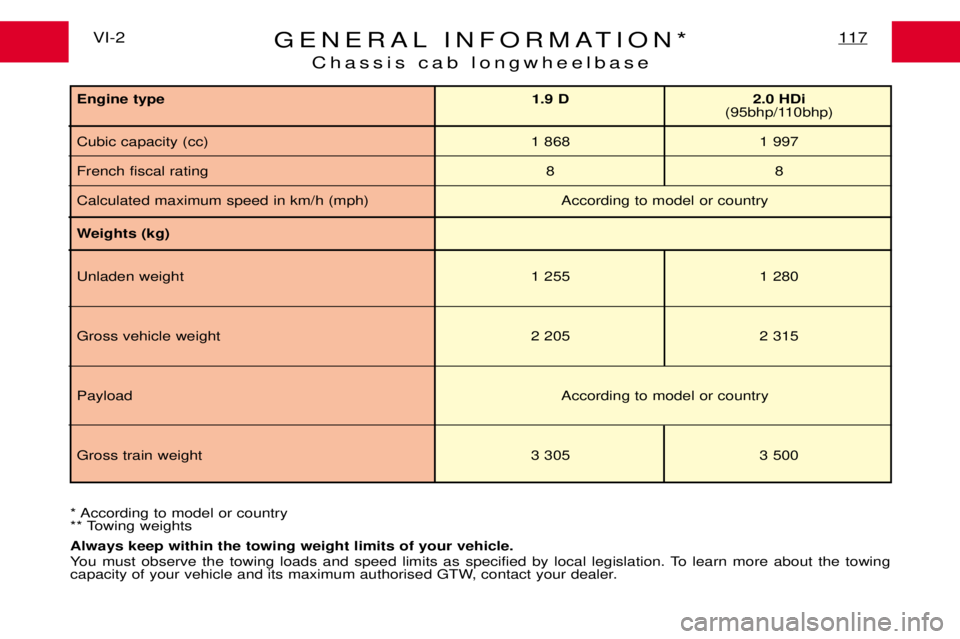

GENERAL INFORMATION*Chassis cab longwheelbase117VI-2
* According to model or country
** Towing weights Always keep within the towing weight limits of your vehicle.
You must observe the towing loads and speed limits as specified by local legislation. To learn more about the towing
capacity of your vehicle and its maximum authorised GTW, contact your dealer.
Engine type 1.9 D 2.0 HDi
(95bhp/110bhp)
Cubic capacity (cc) 1 868 1 997
French fiscal rating 8 8
Calculated maximum speed in km/h (mph) According to model or country
Weights (kg) Unladen weight 1 255 1 280
Gross vehicle weight 2 205 2 315
Payload According to model or country
Gross train weight 3 305 3 500

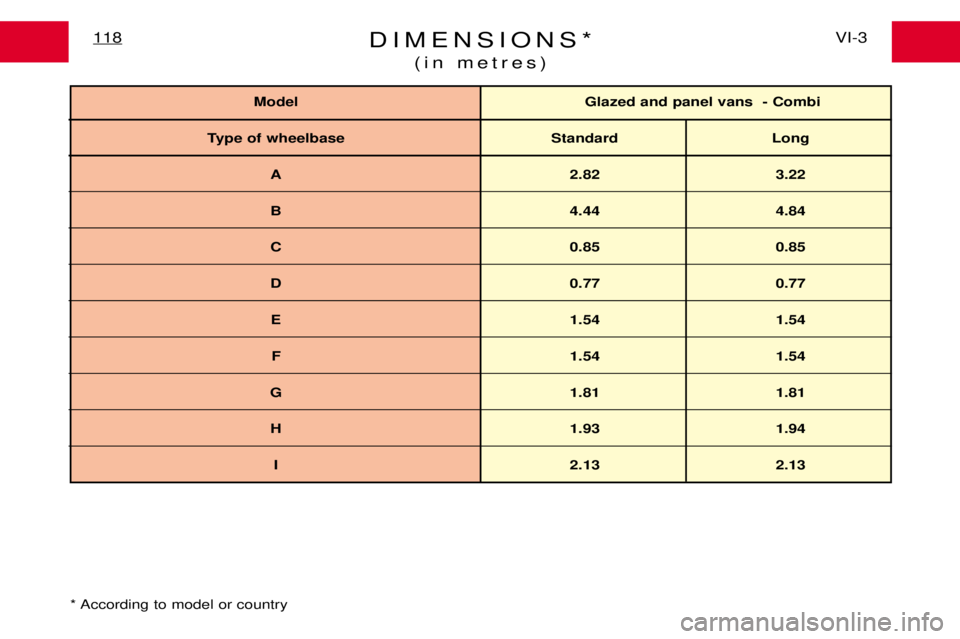

DIMENSIONS*(in metres)VI-3
118
* According to model or country
Model Glazed and panel vans - Combi
Type of wheelbase Standard Long
A 2.82 3.22
B 4.44 4.84
C 0.85 0.85
D 0.77 0.77
E 1.54 1.54
F 1.54 1.54
G 1.81 1.81
H 1.93 1.94
I 2.13 2.13

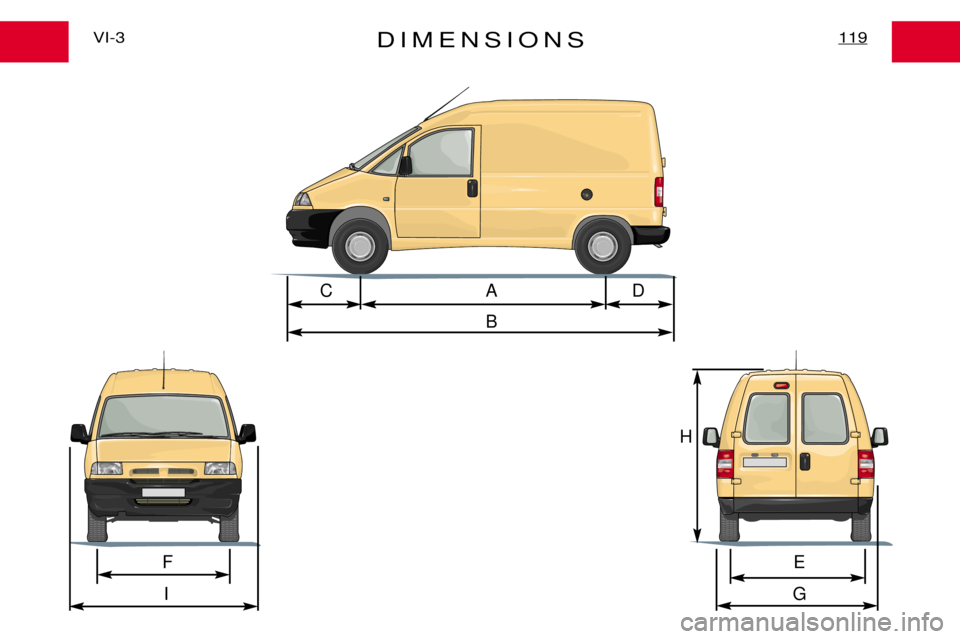

DIMENSIONS119VI-3
CADB
F E
I G
H

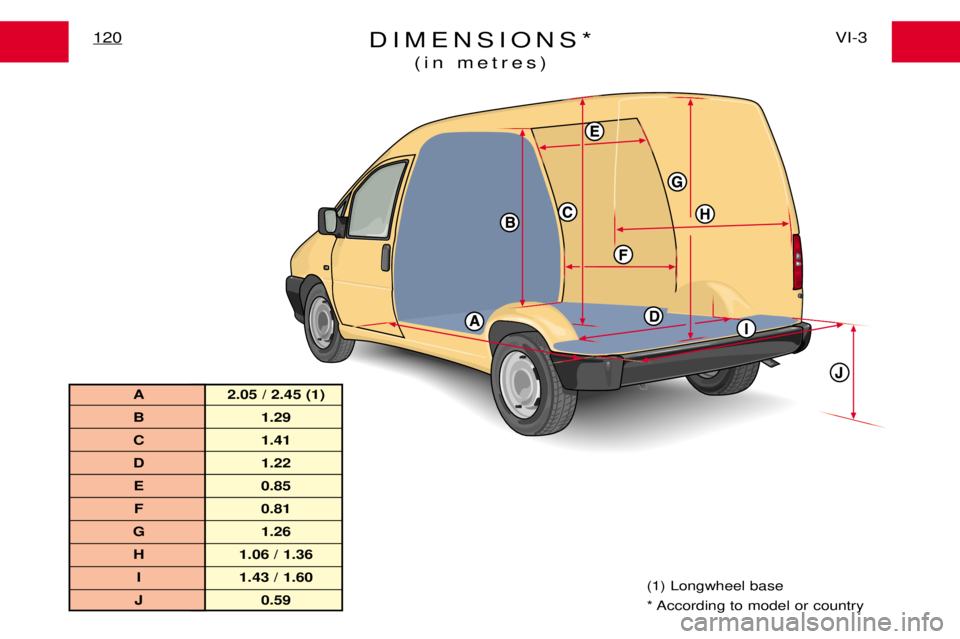

DIMENSIONS*(in metres)VI-3
120
(1) Longwheel base
* According to model or country
A 2.05 / 2.45 (1)
B 1.29
C 1.41
D 1.22
E 0.85 F 0.81
G 1.26 H 1.06 / 1.36 I 1.43 / 1.60
J 0.59

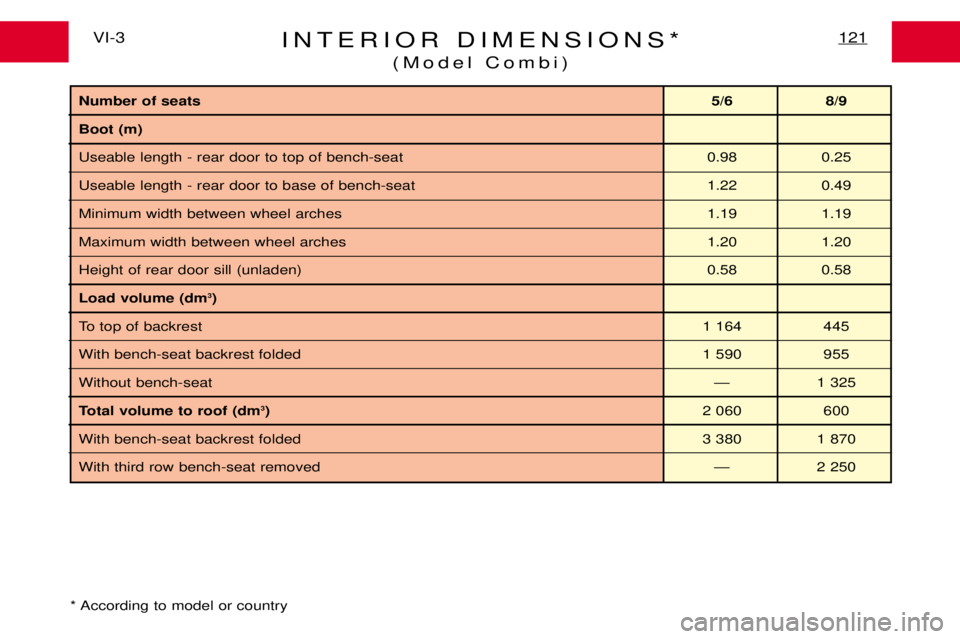

INTERIOR DIMENSIONS*(Model Combi)121VI-3
* According to model or country
Number of seats 5/6 8/9
Boot (m) Useable length - rear door to top of bench-seat 0.98 0.25
Useable length - rear door to base of bench-seat 1.22 0.49
Minimum width between wheel arches 1.19 1.19
Maximum width between wheel arches 1.20 1.20
Height of rear door sill (unladen) 0.58 0.58
Load volume (dm 3
)
To top of backrest 1 164 445
With bench-seat backrest folded 1 590 955
Without bench-seat Ñ 1 325
Total volume to roof (dm 3
) 2 060 600
With bench-seat backrest folded 3 380 1 870
With third row bench-seat removed Ñ 2 250

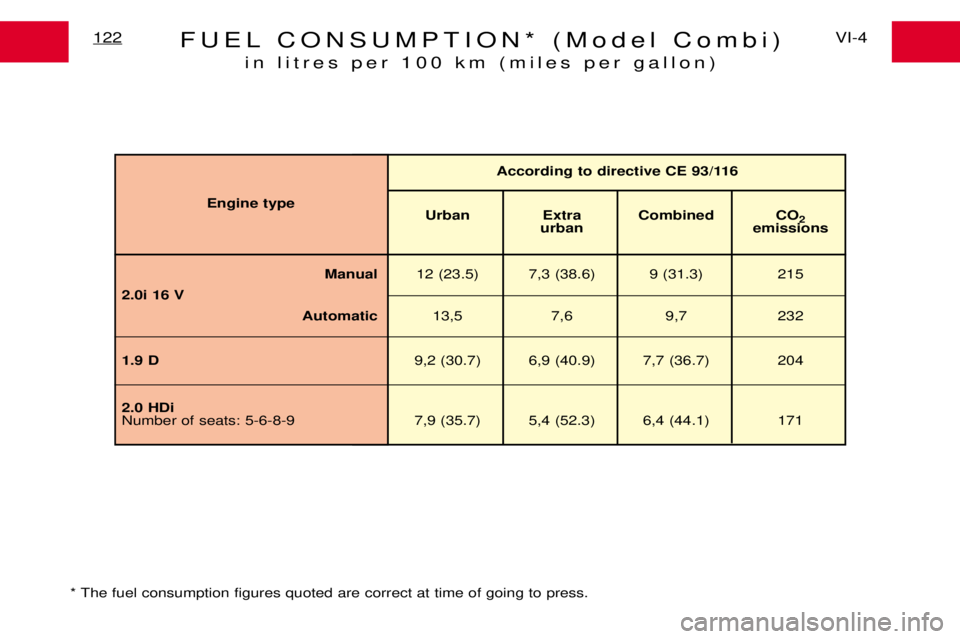

FUEL CONSUMPTION* (Model Combi)in litres per 100 km (miles per gallon)VI-4
122
Manual 12 (23.5) 7,3 (38.6) 9 (31.3) 215
2.0i 16 V Automatic13,5 7,6 9,7 232
1.9 D 9,2 (30.7) 6,9 (40.9) 7,7 (36.7) 204
2.0 HDi
Number of seats: 5-6-8-9 7,9 (35.7) 5,4 (52.3) 6,4 (44.1) 171 Engine type
According to directive CE 93/116
Urban Extra Combined CO 2
urban emissions
* The fuel consumption figures quoted are correct at time of going to press.

VEHICLE IDENTIFICATION*123VI-5
Chassis number plate
On the left hand front door pillar.1 :Type approval number.
2 : Vehicle Identification Number (VIN).
3 : Gross vehicle weight.
4 : Gross train weight.
5 : Maximum weight on front axle.
6 : Maximum weight on rear axle.
7 : Colour code.
All original replacement parts are available from the manufacturer.
It is in the user's interest, for his safety and for the sake of the warranty, to reject all other parts.
Fitting parts or units not supplied by the manufacturer may even result in violation of the law, if it results in non-com-
pliance with the regulations, especially as regards safety, pollution control, interference suppression and the noise level
of the vehicle. Fitting such parts or units could deprive the user of any recourse against the manufacturer.
* According to model or country
1 2 3 456 7
