2001 PEUGEOT EXPERT DAG Owners Manual

WINDOWS*I-16
46
ALWAYS PAY ATTENTION TO WHERE CHILDREN
ARE WHEN OPENING OR CLOSING WINDOWS.
Sequential control*
One touch on the switch to its first position offers partial opening of the driverÕs
window.
Pressing the switch to its second position fully opens or closes the window. Child safety precaution Always remove the ignition key when leaving the vehicle, even for short periods. Electric control The switches mounted in the roof
console control the vehicleÕs frontwindows.
Glazed or Combi versions Sliding side window in second row
To open, pull Aand slide the win-
dow towards the front.
To close, slide the window towards
the rear, then press Bto lock it.
* According to model or countryProtection fuses under the dashboardF5 - F28 - F29
AB

REAR VIEW MIRRORS*47I-17
Interior rear view mirror
A lever on the underside of the mir- ror allows you to choose betweentwo positions:1 - Day position: the lever is not
visible.
2 - Night position (anti-dazzle):
the lever is visible. Door mirrors Manual operation The mirror can be adjusted, from inside the vehicle, in four directionsusing the control on the door panel. When parking, the mirror heads
may be folded manually. If the mirror housing is out of posi- tion it should be manually repositio-ned (with the vehicle at standstill). Zones for toll cards / car parktickets* The athermic windscreen has two non-reflective zones located eitherside of the base of the interior rear-
view mirror.
They are designed for affixing toll cards and/or car park tickets.
21
* According to model or country

REAR VIEW MIRRORS*I-17
48
Electrically - controlled door mirrors If your vehicle is fitted with two electrically controlled rear view mirrors, turn lever Ato select the desired rear view mirror:
- to the right for the right hand rear view mirror,
- to the left for the left hand rear view mirror. Adjust the rear view mirror using lever A.
* According to model or country
Protection fuses under the dashboardF30
A

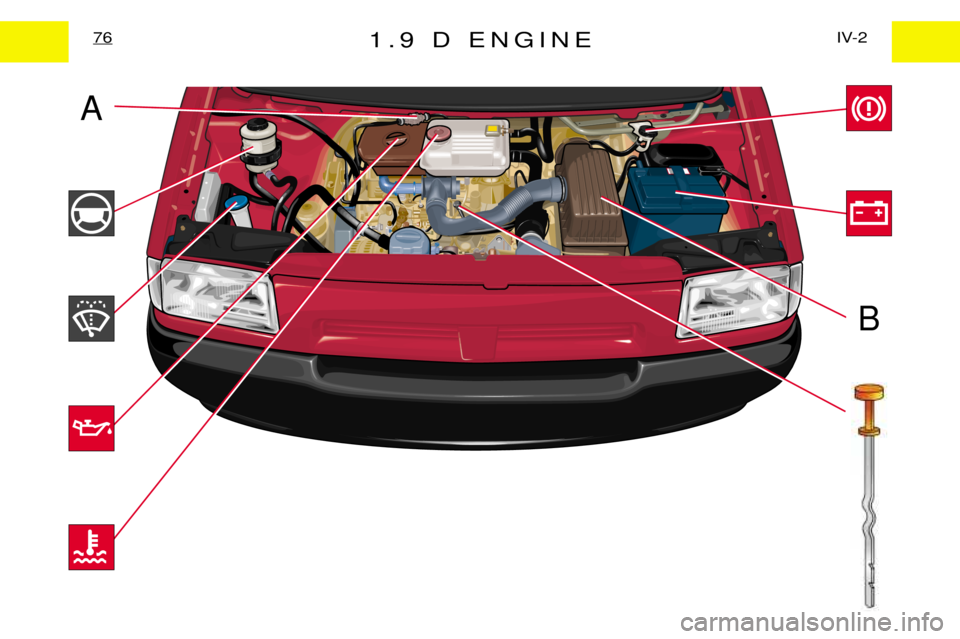

2.0i 16V ENGINEIV-1
74
B

CHECKS*
Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Air filter Follow the recommenda- tions in the maintenanceguide. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
MaxMin
* According to model or country
75IV-1
B

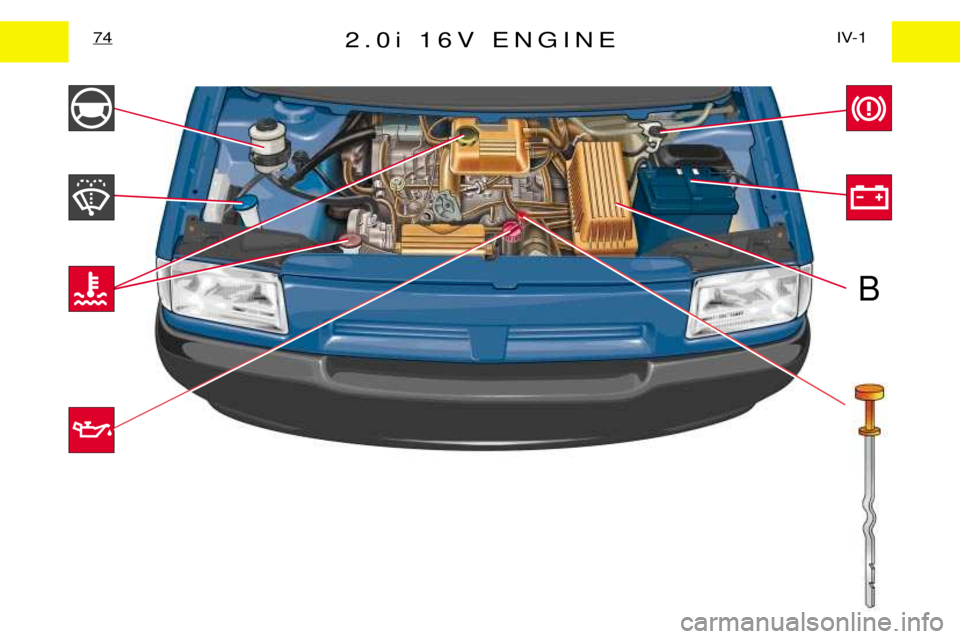

1.9 D ENGINEIV-2
76
B
A

CHECKS*77IV-2Beware:When working under the bonnet, the cooling fan could operate if
the engine is hot (even when switched off). The engine oil level should be checked frequently between services (as recommended by the manufacturer), as well as before long journeys.
Priming pump Refer to the section Ç Diesel injection equipment È. Coolant The level should be bet- ween the maximum andminimum marks on the
reservoir. If the engine is hot, wait 15 minutes.Oil quality: see Ç Lubricants and
fluids È. Never work on the cooling sys- tem if the engine is hot. (see
Ç Levels È).
Windscreen, rear screenand headlamp washerfluid It is recommended to use
manufacturer approved products.
12 volt batterySee Ç Emergency starting with a slave battery È. Engine oil Check with the vehicle on level ground, and the
engine off for at least
10 minutes. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Take out the oil dipstick.The level must be bet- ween the MAX and MINmarks on the dipstick.
It must not exceed
the maximum mark. Brake fluid The level should be bet- ween the maximum andminimum marks on the
reservoir. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
If the warning lamp comes on: stop the vehicle
Power steering oilCheck the level with the
engine switched off. Level: see Ç Levels È.
Oil quality: see Ç Lubricants and
fluids È.
Air filterFollow the recommendations in the maintenance guide.
Max Min
* According to model or country
A
B

2.0 HDi ENGINEIV-2
78
The 2.0 HDi engine makes use of advanced technology.
Any repair work must be carried out by suitably qualified
personnel, such as can be provided by the dealer network.
Due to the fact that the diesel sys- tem is a high pressure system:
IT IS FORBIDDEN TO CARRY OUT
ANY REPAIRS TO THE SYSTEM.
B
