2001 PEUGEOT EXPERT DAG Owners Manual

INSTRUMENT PANEL*I-12
32

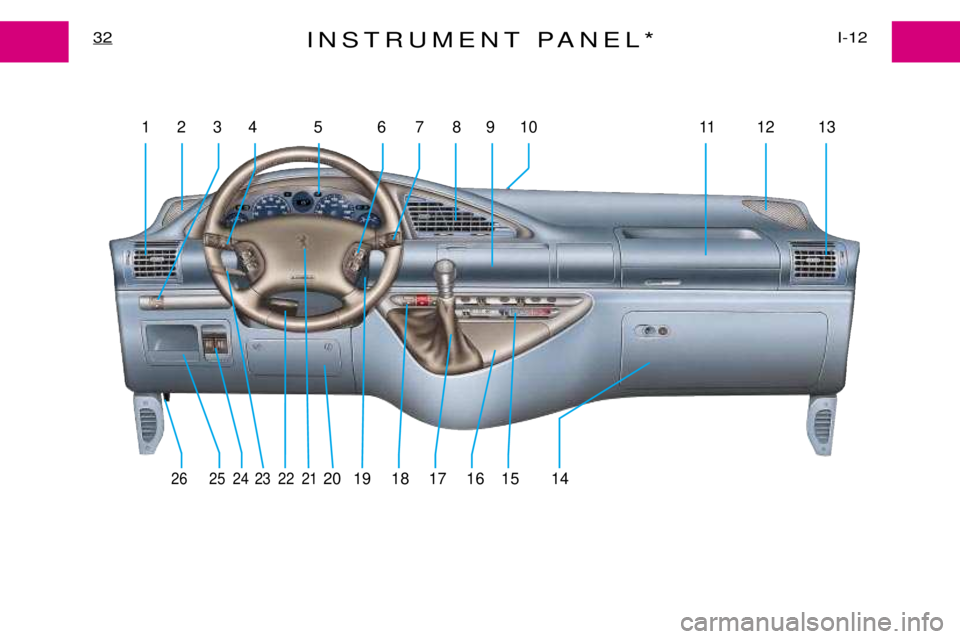

1 2 3 4 5 6 7 8 9 10 11 12 13
26 25 24 23 22 2120 19 18 17 16 15 14

INSTRUMENT PANEL*33I-12
1Left hand air vent
2 Left hand loudspeaker (Tweeter)
3 Cruise control switch
4 Controls for: ¥ Horn¥ Lighting¥ Direction indicators¥ Front foglamps¥ Fog lamps
5 Instrument panel
6 Radio control on steering wheel
7 Controls for:¥ Windscreen wiper¥ Windscreen wash¥ Rear screen wiper
8 Centre air vents
9 Radio housing or oddments pocket
10 Electronic key indicator lamp 11
Passenger Airbag*
12 Right hand loudspeaker
(Tweeter)
13 Right hand air vent
14 Glovebox
15 Controls for:
¥ Air conditioning or heating/
air distribution
16 Front ashtray with cigar lighter
17 Gear lever
18 Controls for:
¥ Air conditioning¥ Hazard warning lamps¥ Rear screen demister
19 Steering lock and ignition switch
20 Fuse box access
21 Driver's airbag 22
Steering column adjustment lever
23 Cruise control lever
24 Controls for:
¥ Adjusting the headlamps¥ Dashboard lighting rheostat
25 Oddments pocket
26 Bonnet release lever
* According to model or country

INSTRUMENT PANEL*I-12
34
Tachometer Do not enter the red zone. Display
¥ Outside temperature.
¥ Automatic gearbox display. Display
¥ Maintenance indicator.
¥ Total mileage recorder.
¥ Trip mileage recorder.
Fuel gauge Coolant temperature gauge
Display control:
¥ Total mileage recorder.
¥ Trip mileage recorder.
¥ Resetting the trip mileage recorder to zero.
Engine oil level
* According to model or country

INSTRUMENT PANEL*35I-12
Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may continue
to operate for a while , and allow to cool before checking the coolant level, taking the precautions
described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.The STOP warning lamp flashes when the coolant temperature warning lamp is lit.
Engine oil levelOn switching on the ignition, the needle indicates the oil level and then returns to zero.Reading in the min. zone, check the level manually using the dipstick. Fuel gauge When the low level warning lamp comes on continuously with the vehicle on level ground, there remain approximately 5 to 7 litres of fuel in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*I-12
34
Tachometer Do not enter the red zone. Display
¥ Outside temperature.
¥ Automatic gearbox display. Display
¥ Maintenance indicator.
¥ Total mileage recorder.
¥ Trip mileage recorder.
Fuel gauge Coolant temperature gauge
Display control:
¥ Total mileage recorder.
¥ Trip mileage recorder.
¥ Resetting the trip mileage recorder to zero.
Engine oil level
* According to model or country

INSTRUMENT PANEL*35I-12
Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may continue
to operate for a while , and allow to cool before checking the coolant level, taking the precautions
described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.The STOP warning lamp flashes when the coolant temperature warning lamp is lit.
Engine oil levelOn switching on the ignition, the needle indicates the oil level and then returns to zero.Reading in the min. zone, check the level manually using the dipstick. Fuel gauge When the low level warning lamp comes on continuously with the vehicle on level ground, there remain approximately 5 to 7 litres of fuel in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*I-12
36
* According to model or country
Protection fuses under the dashboardF2 - F19
A
Exterior temperature display The outside temperature is dis- played whenever the ignition isswitched on. If the ¡C symbol flashes, there is a danger of ice on the roads. Resetting the trip mileage recorder to zero Press button
Ato alternate the dis-
play between the total mileage
recorder and the trip mileage recorder. Press and hold down the button to reset the current trip mileage recor-der to zero. Dashboard lighting The intensity of the dashboard ligh- ting can be adjusted. Use the rheostat dimmer wheel located in the dashboard.

MAINTENANCE INDICATOR*37I-12

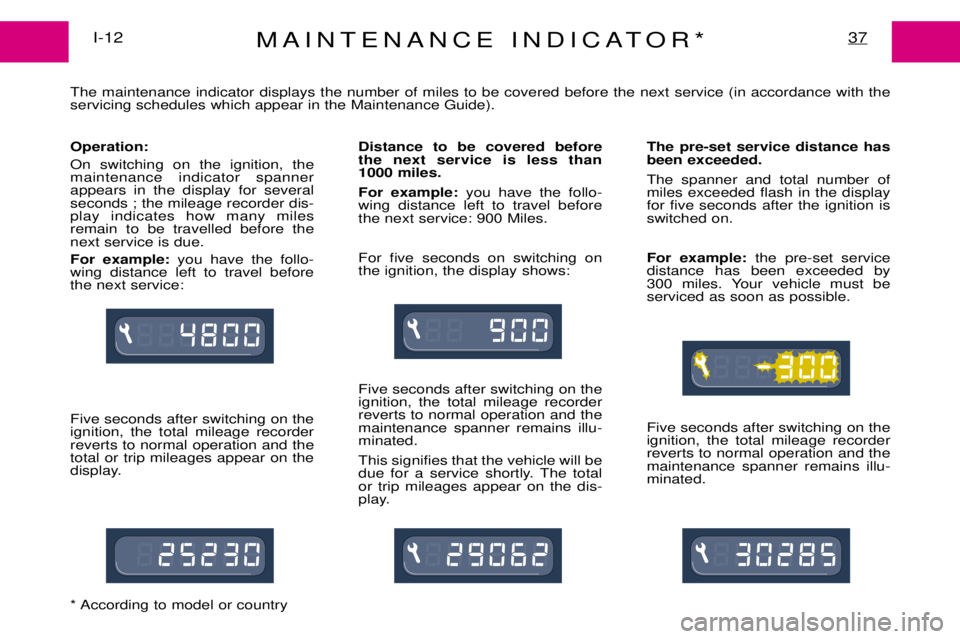

The maintenance indicator displays the number of miles to be covered before the next service (in accordance with the servicing schedules which appear in the Maintenance Guide). Operation: On switching on the ignition, the maintenance indicator spannerappears in the display for severalseconds ; the mileage recorder dis-play indicates how many milesremain to be travelled before thenext service is due. For example: you have the follo-
wing distance left to travel before the next service: Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and thetotal or trip mileages appear on the
display. Distance to be covered beforethe next service is less than
1000 miles. For example:
you have the follo-
wing distance left to travel before the next service: 900 Miles. For five seconds on switching on the ignition, the display shows: Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and themaintenance spanner remains illu-minated. This signifies that the vehicle will be
due for a service shortly. The totalor trip mileages appear on the dis-
play. The pre-set service distance hasbeen exceeded. The spanner and total number of miles exceeded flash in the displayfor five seconds after the ignition isswitched on. For example:
the pre-set service
distance has been exceeded by
300 miles. Your vehicle must beserviced as soon as possible. Five seconds after switching on the ignition, the total mileage recorderreverts to normal operation and themaintenance spanner remains illu-minated.
* According to model or country
