2001 PEUGEOT EXPERT DAG dashboard

REMOTE CONTROLI-1
4
Remote control The remote control transmitter emits a high frequency signal which
offers the following advantages:
- does not require aiming at the
receiver in the vehicle.
- can be operated from behind the vehicle and penetrates any load on board.
- has a range of several metres. Note : The simultaneous use of
other high frequency equipment (mobile telephones, domesticalarms...) may momentarily hinderthe operation of the remote control. In the event of a permanent fault, the remote control should be reini-tialised. See Ç Changing the remo-te control battery È. Central locking The remote controls activate the locking or unlocking of the doors.Press control
Aonce to lock or control Bto unlock.
If nothing happens, press it again. The direction indicator lamps will come on to show that the central locking has been activated. - Unlocked = rapid flashing.
- Locked = on for approximately two seconds.
The central locking will not operate if a door is open, or not properly closed.
Protection fuses under the dashboardF2- F4 - F15
BA

DOORSI-3
8
Protection fuses under the dashboard F2- F4 - F15

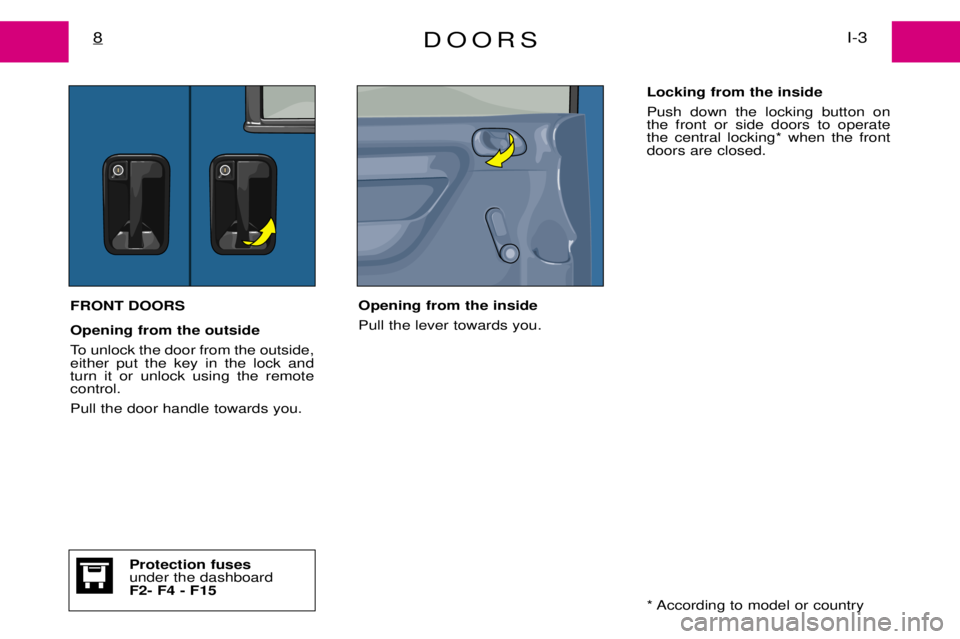

FRONT DOORS Opening from the outside
To unlock the door from the outside, either put the key in the lock andturn it or unlock using the remotecontrol. Pull the door handle towards you. Opening from the inside Pull the lever towards you. Locking from the inside Push down the locking button on the front or side doors to operatethe central locking* when the frontdoors are closed.
* According to model or country

DASHBOARD*I-11
22
18 17 16 15
12 3 45 6 7
14 13 12 11 10 9 8* According to model or country

DASHBOARD*23I-11
1Left hand air vent & Side glass demister vent.
2 Controls for: ¥ Lighting ¥ Direction indicators ¥ Horn ¥ Foglamp
3 Instrument panel.
4 Controls for: ¥ Windscreen wash ¥ Windscreen wiper
5 Centre air vents. 6
Radio housing or oddments pocket.
7 Right hand air vent & Side glassdemister vent.
8 Glovebox.
9 Heating/ventilation controls.
10 Ashtray & Cigar lighter.
11 Gear lever. 12
Controls for: ¥ Hazard warning lamps.
¥ Heated glass of hinged rear
doors.
¥ Air conditioning
¥ Demisting and defrosting of the rear view mirrors.
13 Steering lock and ignition switch.
14 Fuse box access.
15 Adjusting the headlamps.
16 Cruise control lever.
17 Bonnet release lever.
18 Cruise control switch.
* According to model or country

INSTRUMENT PANEL*I-12
24
Display
¥ Digital clock.
¥ Maintenance indicator.
¥ Engine oil level indicator.
¥ Total mileage recorder.
¥ Trip mileage recorder.
Coolant temperature gauge Fuel gauge
Dashboard lighting rheostat See Page 31 Changing the time See Page 30
Display control:
¥ Total mileage recorder.
¥ Trip mileage recorder.
¥ Resetting the trip mileage recorder to zero. Tachometer Do not enter the red zone
* According to model or country

INSTRUMENT PANEL*25I-12
Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may conti-
nue to operate for a while , and allow to cool before checking the coolant level, taking the pre-
cautions described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.
Fuel gaugeWhen the low level warning lamp comes on continuously with the vehicle on level ground, there are approximately 6 litres of fuel remaining in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*25I-12
Coolant temperature gauge Coolant temperature warning lampUnder normal operating conditions, the gauge may indicate a temperature of up to 100¡C.Under severe operating conditions, such as in high temperatures, the needle may approach the red zones.
If the warning lamp lights up, stop immediately, switch the engine off, the cooling fan may conti-
nue to operate for a while , and allow to cool before checking the coolant level, taking the pre-
cautions described in chapter IV - Maintenance - "Levels, checks".
Engine overheating can have various causes. Contact your nearest dealer.
Fuel gaugeWhen the low level warning lamp comes on continuously with the vehicle on level ground, there are approximately 6 litres of fuel remaining in the tank. Reservoir capacity (in litres):
80 Approximately.
* According to model or country
Protection fuses under the dashboardF2

INSTRUMENT PANEL*31I-12

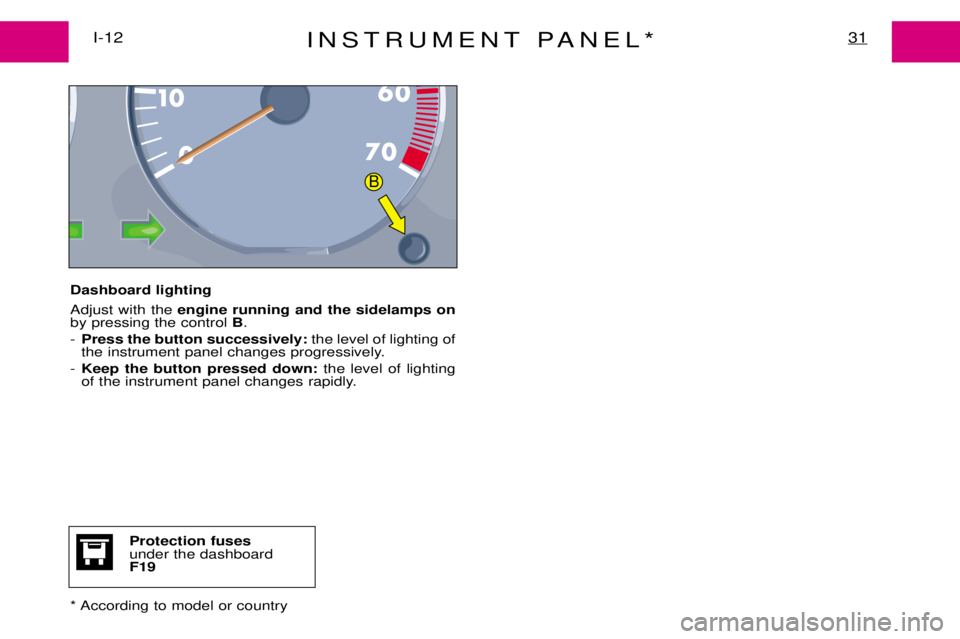

Dashboard lighting Adjust with the engine running and the sidelamps on
by pressing the control B.
- Press the button successively: the level of lighting of
the instrument panel changes progressively.
- Keep the button pressed down: the level of lighting
of the instrument panel changes rapidly.
* According to model or country
Protection fuses under the dashboardF19
