2001 NISSAN X-TRAIL check engine

BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
AT-389
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004UA
1.CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following items:
●Harness for short or open between ignition switch and
TCM (Main harness)
●Ignition switch and fuse
Refer to PG-2, "
POWER SUPPLY ROUTING" .
2.CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when A/T is cold.
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)>>GO TO 3.
OK (Without CONSULT-II)>>GO TO 4.
NG >> 1. Remove oil pan.
2. Check the following items:
A/T fluid temperature sensor
Refer to AT- 3 9 1 , "
Component Inspection" .
Harness of terminal cord assembly for short or open Voltage: Battery voltage
Voltage: Battery voltage
SCIA0736E
Resistance Cold[20°C(68°F)]
: Approximately 2.5 kΩ
SCIA0737E

AT-390
[ALL]
BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW-
ER SOURCE)
3. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT- I I )
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “FLUID TEMP SE”.
OK or NG
OK >> GO TO 5.
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-580, "
DTC P1065 ECM POWER SUP-
PLY" (QR25DE) or EC-1269, "DTC P1065 ECM POWER SUPPLY" (QR20DE).
4. CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 47 and ground while warming up A/T.
3. Turn ignition switch to “OFF” position.
4. Disconnect TCM harness connector.
5. Check resistance between terminal 42 and ground.
OK or NG
OK >> GO TO 5.
NG >> Check the following item:
●Harness for short or open between TCM, ECM and
terminal cord assembly
●Ground circuit for ECM
Refer to EC-580, "
DTC P1065 ECM POWER SUP-
PLY" (QR25DE) or EC-1269, "DTC P1065 ECM
POWER SUPPLY" (QR20DE). Vo l ta g e
Cold [20°C (68°F)] → Hot [80°C (176°F)]:
Approximately 1.5V→0.5V
SAT614J
Vo l ta g e
Cold [20°C (68°F)] → Hot [80°C (176°F)]:
Approximately 1.5V→0.5V
SCIA0738E
Continuity should exist.
SCIA0739E

AT-392
[ALL]
ENGINE SPEED SIGNAL
ENGINE SPEED SIGNAL
PFP:24825
DescriptionECS004UC
The engine speed signal is sent from the ECM to the TCM.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 10 seconds.
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 10 seconds.
3. Perform self-diagnosis.
Refer to AT- 2 5 3 , "
SELF-DIAGNOSTIC PROCEDURE (WITH-
OUT CONSULT-II)" .
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
39 L/OREngine speed
signalandRefer to EC-479, "
ECM INSPECTION TABLE"
(QR25DE) or EC-1166, "ECM INSPECTION
TABLE" (QR20DE).—
Diagnostic trouble code Malfunction is detected when... Check item (Possible cause)
: ENGINE SPEED SIG
TCM does not receive the proper voltage
signal from ECM.
●Harness or connectors
(The sensor circuit is open or shorted.)
: 9th judgement flicker
SAT014K
SCIA0703E

AT-394
[ALL]
ENGINE SPEED SIGNAL
Diagnostic Procedure
ECS004UE
1. CHECK DTC WITH ECM
Perform diagnostic test mode II (self-diagnostic results) for engine control. Check ignition signal circuit condi-
tion.
OK or NG
OK (With CONSULT-II)>>GO TO 2.
OK (Without CONSULT-II)>>GO TO 3.
NG >> Check ignition signal circuit for engine control. Refer to EC-683, "
IGNITION SIGNAL" (QR25DE)
orEC-1331, "
IGNITION SIGNAL" (QR20DE).
2. CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “ENGINE SPEED”.
Check engine speed changes according to throttle position.
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
●Harness for short or open between TCM and ECM
●Resistor and ignition coil
Refer to EC-683, "
IGNITION SIGNAL" (QR25DE) or
EC-1331, "
IGNITION SIGNAL" (QR20DE).
SAT014K
SAT645J

ENGINE SPEED SIGNAL
AT-395
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

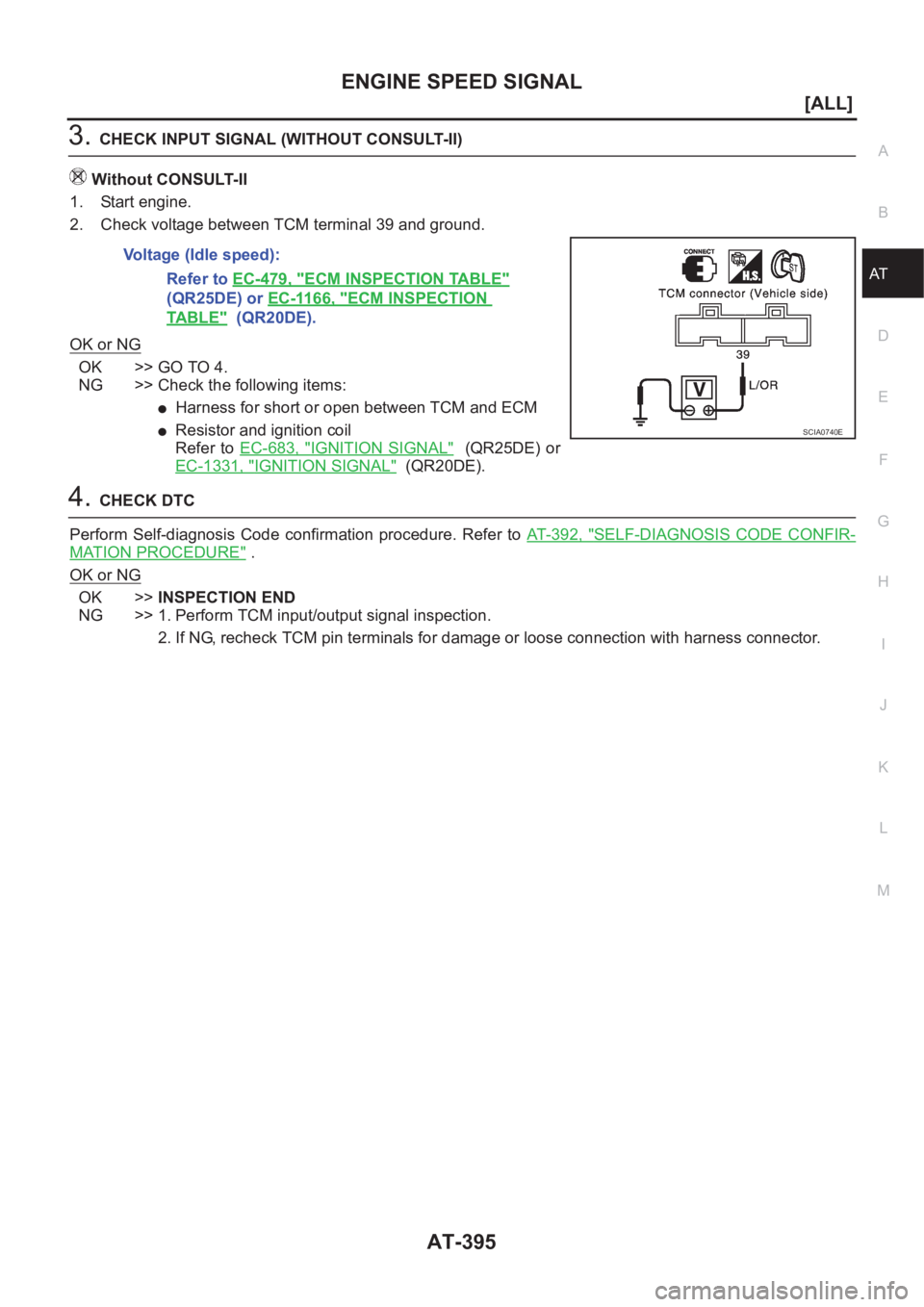

3.CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 39 and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
●Harness for short or open between TCM and ECM
●Resistor and ignition coil
Refer to EC-683, "
IGNITION SIGNAL" (QR25DE) or
EC-1331, "
IGNITION SIGNAL" (QR20DE).
4.CHECK DTC
Perform Self-diagnosis Code confirmation procedure. Refer to AT- 3 9 2 , "
SELF-DIAGNOSIS CODE CONFIR-
MATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Voltage (Idle speed):
Refer to EC-479, "
ECM INSPECTION TABLE"
(QR25DE) or EC-1166, "ECM INSPECTION
TABLE" (QR20DE).
SCIA0740E

AT-396
[ALL]

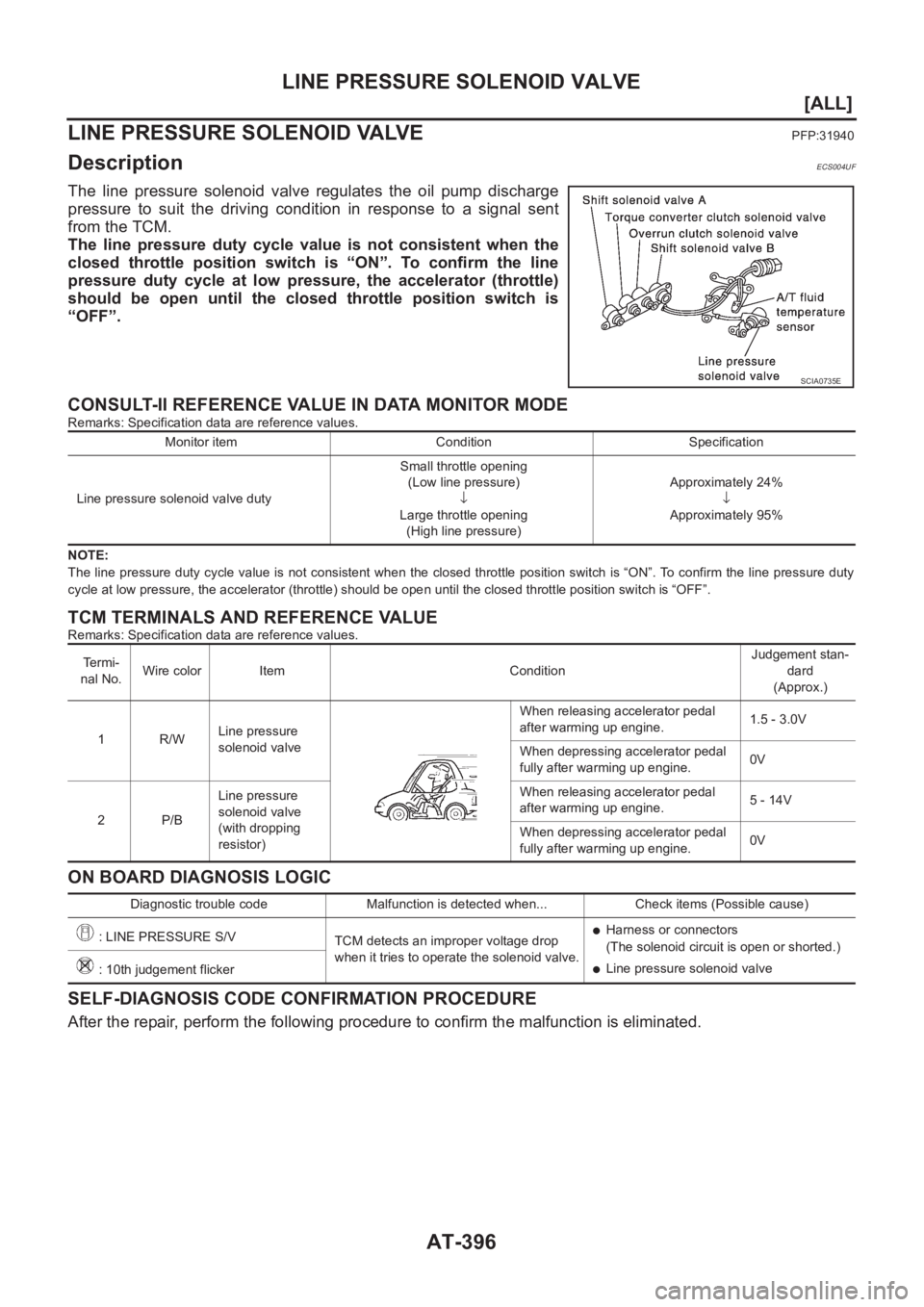

LINE PRESSURE SOLENOID VALVE
LINE PRESSURE SOLENOID VALVE
PFP:31940
DescriptionECS004UF
The line pressure solenoid valve regulates the oil pump discharge
pressure to suit the driving condition in response to a signal sent
from the TCM.
The line pressure duty cycle value is not consistent when the
closed throttle position switch is “ON”. To confirm the line
pressure duty cycle at low pressure, the accelerator (throttle)
should be open until the closed throttle position switch is
“OFF”.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
NOTE:
The line pressure duty cycle value is not consistent when the closed throttle position switch is “ON”. To confirm the line pressure duty
cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is “OFF”.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
SCIA0735E
Monitor item Condition Specification
Line pressure solenoid valve dutySmall throttle opening
(Low line pressure)
↓
Large throttle opening
(High line pressure)Approximately 24%
↓
Approximately 95%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 3.0V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: LINE PRESSURE S/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●Line pressure solenoid valve
: 10th judgement flicker

LINE PRESSURE SOLENOID VALVE
AT-399
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004UH
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 4 and ground.
OK or NG
OK >> GO TO 2.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 3 ,
"Installation" .
2. Check the following items:
–Line pressure solenoid valve
Refer to AT- 4 0 1 , "
Component Inspection" .
–Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal 4 and TCM harness connector terminal 2.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
●Dropping resistor
Refer to AT- 4 0 1 , "
Component Inspection" .
●Harness for short or open between TCM terminal 2
and terminal cord assembly Resistance: 2.5 - 5Ω
SCIA0741E
Resistance: 10 - 15Ω
SCIA0742E

CAN COMMUNICATION LINE
AT-403
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN COMMUNICATION LINEPFP:31940
DescriptionECS004UJ
CAN (Control Area Network) is a serial communication line for real time application. It is an on-vehicle multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS004UK
Self-Diagnosis Code Confirmation ProcedureECS004UL
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Wait at least 6 seconds or start engine and wait for at least 6
seconds.
WITHOUT CONSULT-II
1. Turn ignition switch “ON”.
2. Wait at least 6 seconds or start engine and wait at least 6 sec-
onds.
3. Perform self-diagnosis.
Refer to AT- 2 5 3 , "
SELF-DIAGNOSTIC PROCEDURE (WITH-
OUT CONSULT-II)" .
Te r m i -
nal No.Wire color Item ConditionJudgement
standard
(Approx.)
5QR20DE: B/W
QR25DE: W/BCAN-H (high) — —
6 L/R CAN-L (low) — —
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: CAN COMM CIRCUIT
When a malfunction is detected in CAN
communication line.
●Harness or connectors
(CAN communication line is open or
shorted.)
: 11th judgement flicker
SAT014K
SAT599J
