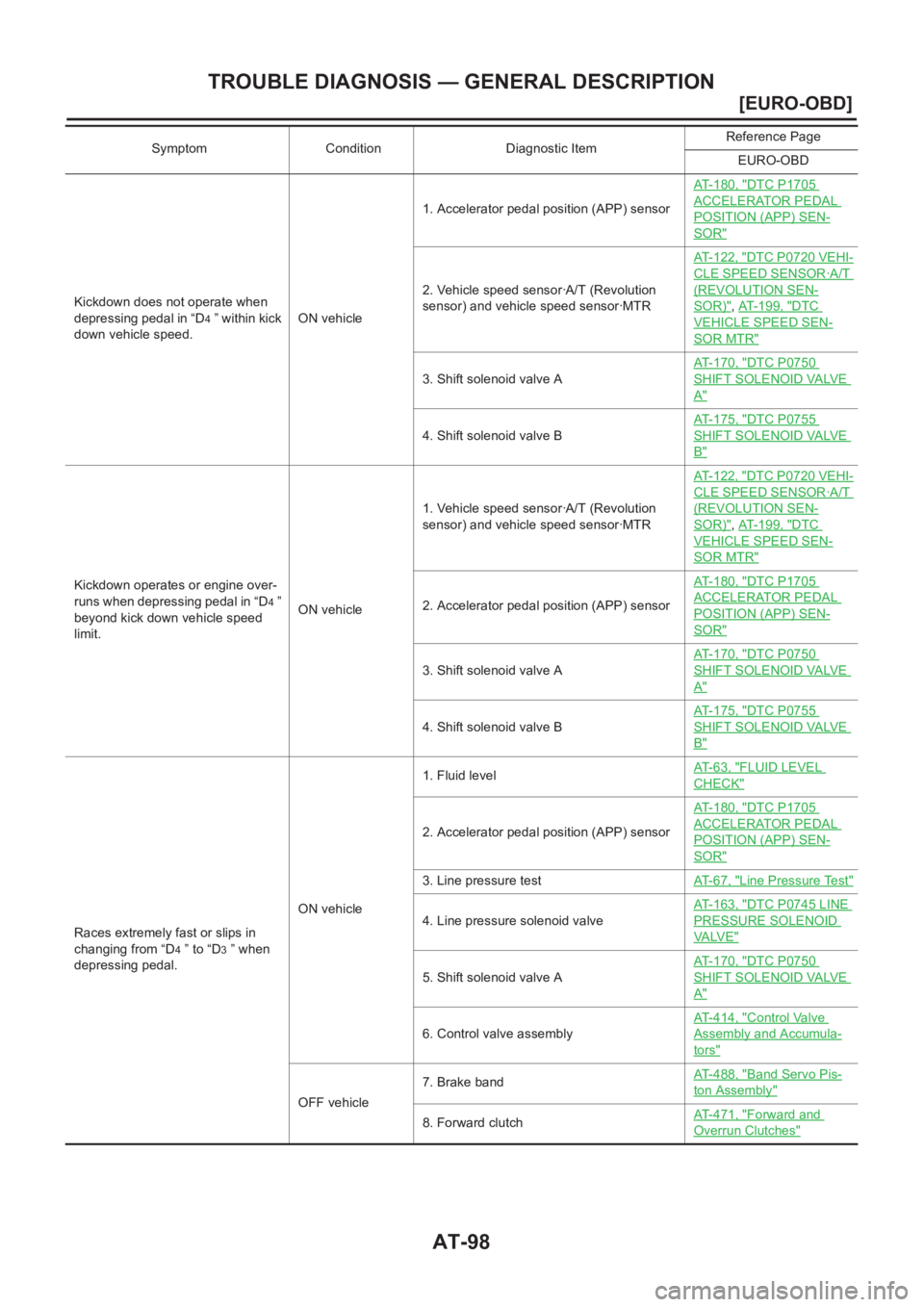

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Kickdown does not operate when
depressing pedal in “D
4 ” within kick
down vehicle speed.ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
Kickdown operates or engine over-
runs when depressing pedal in “D
4 ”
beyond kick down vehicle speed
limit.ON vehicle1. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
Races extremely fast or slips in
changing from “D
4 ” to “D3 ” when
depressing pedal.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
6. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle7. Brake bandAT-488, "
Band Servo Pis-
ton Assembly"
8. Forward clutchAT-471, "Forward and
Overrun Clutches"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-99
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Races extremely fast or slips in
changing from “D
4 ” to “D2 ” when
depressing pedal.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT-67, "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
6. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
7. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle8. Brake bandAT-488, "
Band Servo Pis-
ton Assembly"
9. High clutchAT-466, "High Clutch"
10. Forward clutchAT-471, "Forward and
Overrun Clutches"
Races extremely fast or slips in
changing from “D
3 ” to “D2 ” when
depressing pedal.ON vehicle1. Fluid levelAT-63, "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT-67, "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
6. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
OFF vehicle7. Brake bandAT-488, "
Band Servo Pis-
ton Assembly"
8. High clutchAT-466, "High Clutch"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

AT-100
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Races extremely fast or slips in
changing from “D
4 ” or “D3 ” to “D1 ”
when depressing pedal.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
5. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
6. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
7. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle8. Forward clutchAT-471, "
Forward and
Overrun Clutches"
9. Forward one-way clutchAT-421, "OVERHAUL"
10. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
Vehicle will not run in any position.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
OFF vehicle5. Oil pumpAT-444, "
Oil Pump"
6. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
7. Parking componentsAT-421, "Components"
Transmission noise in “D”, “2”, “1”
and “R” positions.ON vehicle 1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
OFF vehicle 2. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-101
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Failure to change from “D3 ” to “22 ”
when changing lever into “2” posi-
tion.
AT-237, "
A/T Does Not Shift: D3→
22 , When Selector Lever “D”→“2”
Position"
ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Shift solenoid valve BAT-175, "
DTC P0755
SHIFT SOLENOID VALVE
B"
3. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
4. Control cable adjustmentAT-416, "Control Cable
Adjustment"
Failure to change from “D3 ” to “22 ”
when changing lever into “2” posi-
tion.
AT-237, "
A/T Does Not Shift: D3→
22 , When Selector Lever “D”→“2”
Position"
OFF vehicle 5. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
Gear change from “22 ” t o “23 ” in “2”
position.ON vehicle1. PNP switchAT-110, "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
Engine brake does not operate in
“1” position.
AT-234, "
Vehicle Does Not Start
From D1"
ON vehicle1. PNP switchAT-110, "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
3. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
5. Overrun clutch solenoid valveAT-185, "
DTC P1760
OVERRUN CLUTCH
SOLENOID VALVE"
OFF vehicle6. Overrun clutchAT-471, "
Forward and
Overrun Clutches"
7. Low & reverse brakeAT-476, "Low & Reverse
Brake"
Gear change from “11 ” t o “12 ” in “1”
position.ON vehicle1. PNP switchAT-110, "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
2. Control cable adjustmentAT-416, "Control Cable
Adjustment"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

AT-102
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Does not change from “12 ” to “11 ”
in “1” position.ON vehicle1. PNP switchAT- 11 0 , "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle5. Low one-way clutchAT-421, "
OVERHAUL",AT-
425, "Locations of Adjust-
ing Shims, Needle Bear-
ings, Thrust Washers and
Snap Rings"
6. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
7. Low & reverse brakeAT-476, "Low & Reverse
Brake"
Large shock changing from “12 ” to
“1
1 ” in “1” position.ON vehicle 1. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 2. Low & reverse brakeAT-476, "Low & Reverse
Brake"
Transmission overheats. ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Engine idling rpmEC-38
[QR25 (WITH
EURO-OBD)], EC-448
[QR25 (WITHOUT EURO-
OBD)], EC-771
[QR20
(WITH EURO-OBD)], EC-
1135 [QR20 (WITHOUT
EURO-OBD)]
3. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
4. Line pressure testAT- 6 7 , "Line Pressure Test"
5. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
6. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

AT-104
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Torque converter is not locked up. ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT- 1 9 9 , "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. Engine speed signalAT-127, "DTC P0725
ENGINE SPEED SIGNAL"
4. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
5. Line pressure testAT- 6 7 , "Line Pressure Test"
6. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
7. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
Torque converter is not locked up. OFF vehicle 8. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Torque converter clutch piston slip.ON vehicle1. Fluid levelAT- 6 3 , "
FLUID LEVEL
CHECK"
2. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
3. Line pressure testAT- 6 7 , "Line Pressure Test"
4. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
5. Line pressure solenoid valveAT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
6. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
OFF vehicle 7. Torque converterAT-425, "
Locations of
Adjusting Shims, Needle
Bearings, Thrust Washers
and Snap Rings"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-105
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Lock-up point is extremely high or
low.
AT-229, "
A/T Does Not Perform
Lock-up"
ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
3. Torque converter clutch solenoid valveAT-158, "
DTC P0740
TORQUE CONVERTER
CLUTCH SOLENOID
VA LV E"
4. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
A/T does not shift to “D4 ” when driv-
ing with overdrive control switch
“ON”.ON vehicle1. Accelerator pedal position (APP) sensorAT-180, "
DTC P1705
ACCELERATOR PEDAL
POSITION (APP) SEN-
SOR"
2. PNP switchAT-110, "
DTC P0705
PARK/NEUTRAL POSI-
TION (PNP) SWITCH"
3. Overdrive control switchAT-241, "TCM Self-diagno-
sis Does Not Activate"
4. Vehicle speed sensor·A/T (Revolution
sensor) and vehicle speed sensor·MTRAT-122, "
DTC P0720 VEHI-
CLE SPEED SENSOR·A/T
(REVOLUTION SEN-
SOR)",AT-199, "DTC
VEHICLE SPEED SEN-
SOR MTR"
5. Shift solenoid valve AAT-170, "
DTC P0750
SHIFT SOLENOID VALVE
A"
6. Overrun clutch solenoid valveAT-185, "
DTC P1760
OVERRUN CLUTCH
SOLENOID VALVE"
7. Control valve assemblyAT-414, "
Control Valve
Assembly and Accumula-
tors"
8. A/T fluid temperature sensorAT-193, "
DTC BATT/FLUID
TEMP SEN (A/T FLUID
TEMP SENSOR CIRCUIT
AND TCM POWER
SOURCE)"
9. Line pressure testAT-67, "Line Pressure Test"
A/T does not shift to “D4 ” when driv-
ing with overdrive control switch
“ON”.OFF vehicle10. Brake bandAT-488, "Band Servo Pis-
ton Assembly"
11. Overrun clutchAT-471, "Forward and
Overrun Clutches"
Symptom Condition Diagnostic ItemReference Page
EURO-OBD

AT-108
[EURO-OBD]

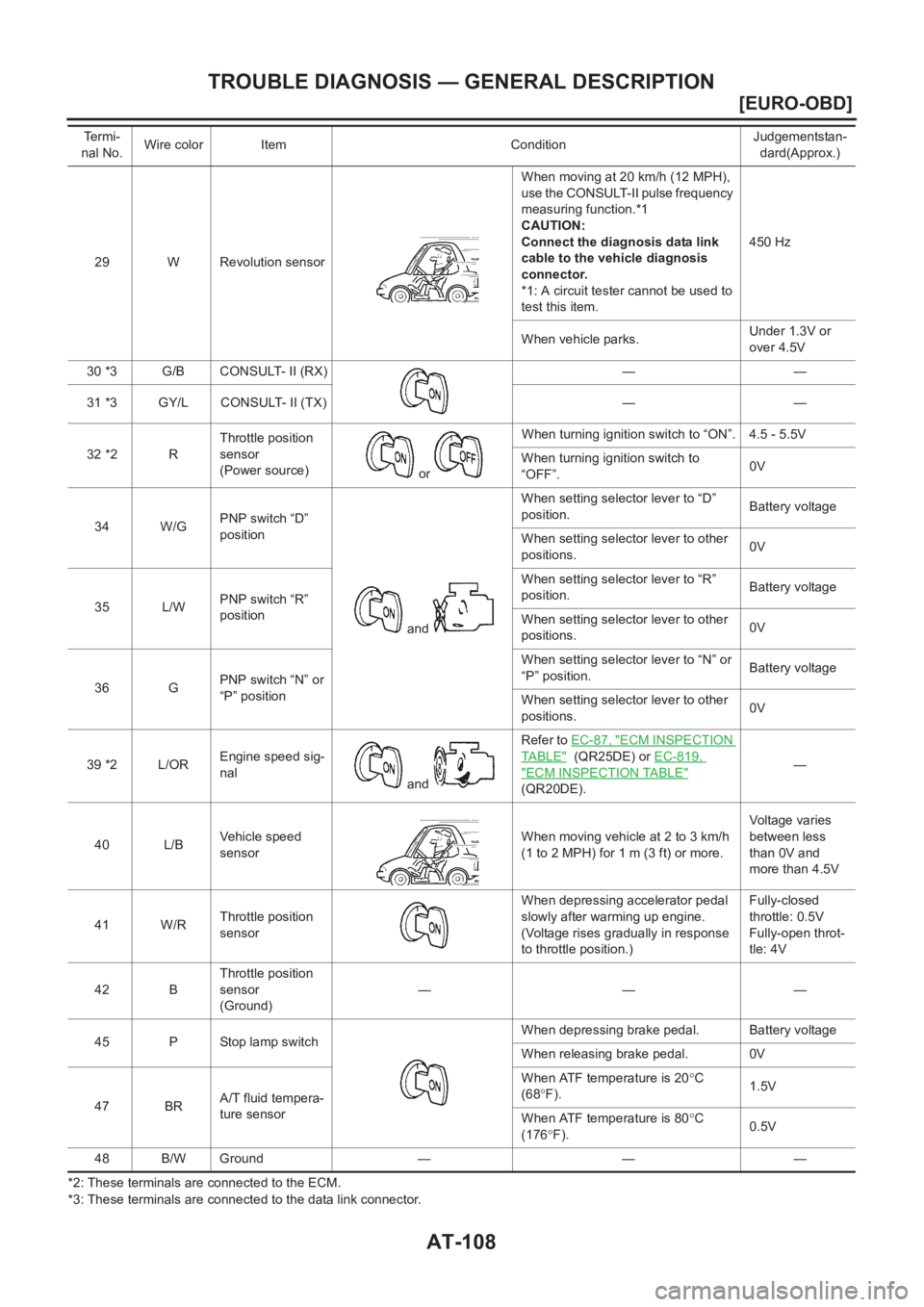

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
30 *3 G/B CONSULT- II (RX) — —
31 *3 GY/L CONSULT- II (TX) — —
32 *2 RThrottle position
sensor
(Power source)
or When turning ignition switch to “ON”. 4.5 - 5.5V
When turning ignition switch to
“OFF”.0V
34 W/GPNP switch “D”
position
and When setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *2 L/OREngine speed sig-
nal
and Refer to EC-87, "
ECM INSPECTION
TABLE" (QR25DE) or EC-819,
"ECM INSPECTION TABLE"
(QR20DE).—
40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42 BThrottle position
sensor
(Ground)———
45 P Stop lamp switchWhen depressing brake pedal. Battery voltage
When releasing brake pedal. 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B/W Ground — — — Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
