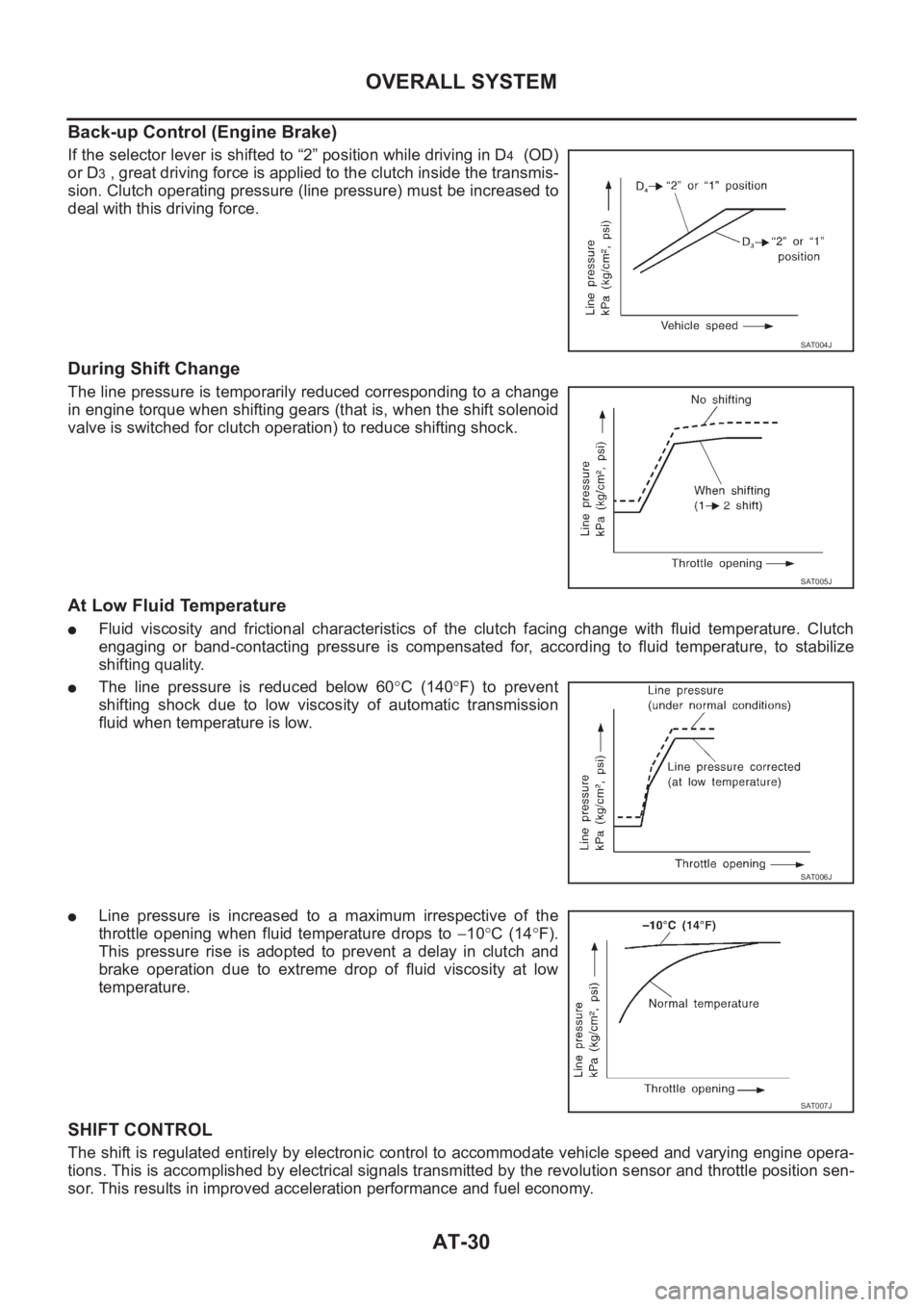

AT-30
OVERALL SYSTEM
Back-up Control (Engine Brake)
If the selector lever is shifted to “2” position while driving in D4 (OD)
or D
3 , great driving force is applied to the clutch inside the transmis-
sion. Clutch operating pressure (line pressure) must be increased to
deal with this driving force.
During Shift Change
The line pressure is temporarily reduced corresponding to a change
in engine torque when shifting gears (that is, when the shift solenoid
valve is switched for clutch operation) to reduce shifting shock.
At Low Fluid Temperature
●Fluid viscosity and frictional characteristics of the clutch facing change with fluid temperature. Clutch
engaging or band-contacting pressure is compensated for, according to fluid temperature, to stabilize
shifting quality.
●The line pressure is reduced below 60°C (140°F) to prevent
shifting shock due to low viscosity of automatic transmission
fluid when temperature is low.
●Line pressure is increased to a maximum irrespective of the
throttle opening when fluid temperature drops to −10°C (14°F).
This pressure rise is adopted to prevent a delay in clutch and
brake operation due to extreme drop of fluid viscosity at low
temperature.
SHIFT CONTROL
The shift is regulated entirely by electronic control to accommodate vehicle speed and varying engine opera-
tions. This is accomplished by electrical signals transmitted by the revolution sensor and throttle position sen-
sor. This results in improved acceleration performance and fuel economy.
SAT004J
SAT005J
SAT006J
SAT007J

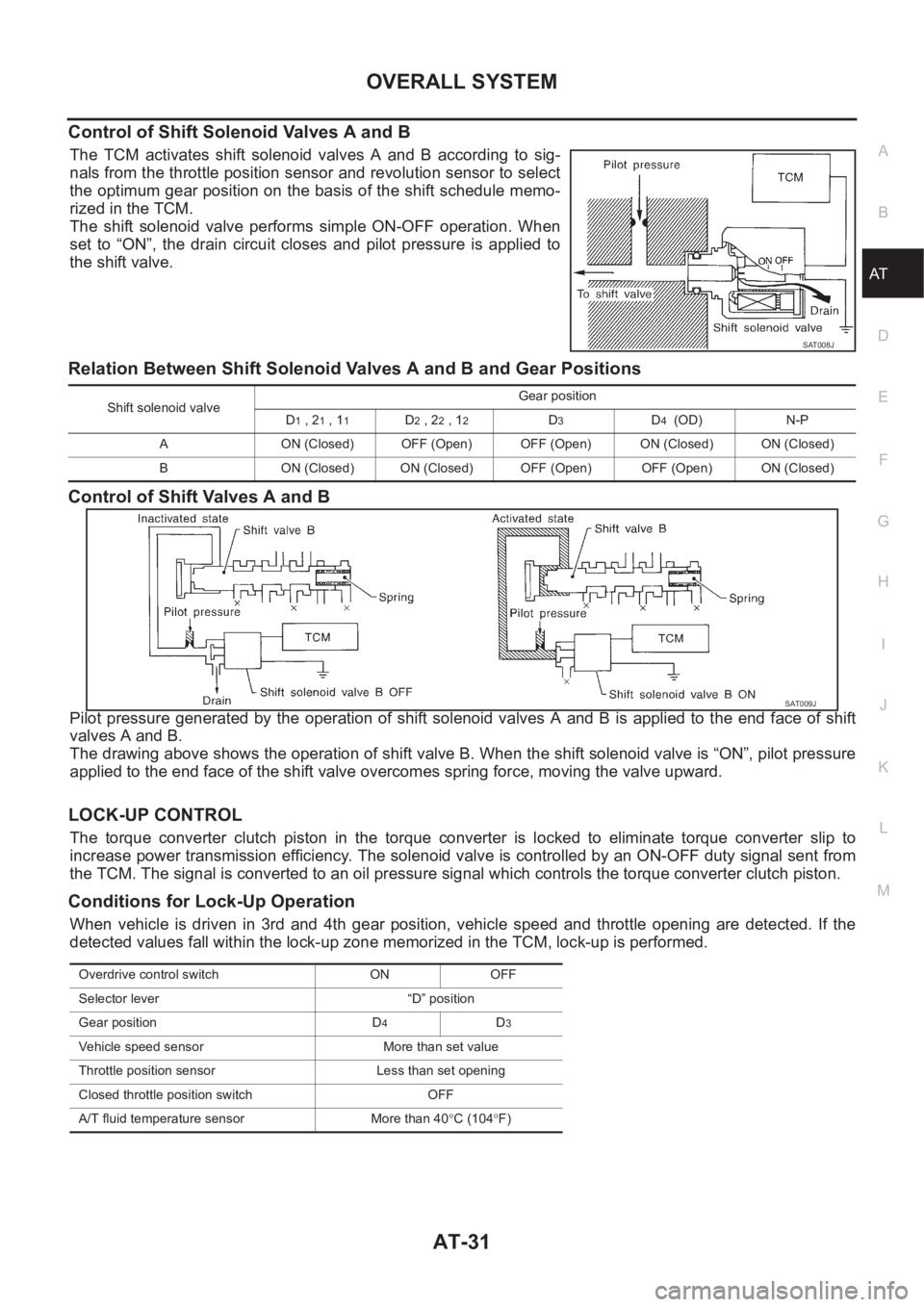

OVERALL SYSTEM
AT-31
D
E
F
G
H
I
J
K
L
MA
B
AT
Control of Shift Solenoid Valves A and B
The TCM activates shift solenoid valves A and B according to sig-
nals from the throttle position sensor and revolution sensor to select
the optimum gear position on the basis of the shift schedule memo-
rized in the TCM.
The shift solenoid valve performs simple ON-OFF operation. When
set to “ON”, the drain circuit closes and pilot pressure is applied to
the shift valve.
Relation Between Shift Solenoid Valves A and B and Gear Positions
Control of Shift Valves A and B
Pilot pressure generated by the operation of shift solenoid valves A and B is applied to the end face of shift
valves A and B.
The drawing above shows the operation of shift valve B. When the shift solenoid valve is “ON”, pilot pressure
applied to the end face of the shift valve overcomes spring force, moving the valve upward.
LOCK-UP CONTROL
The torque converter clutch piston in the torque converter is locked to eliminate torque converter slip to
increase power transmission efficiency. The solenoid valve is controlled by an ON-OFF duty signal sent from
the TCM. The signal is converted to an oil pressure signal which controls the torque converter clutch piston.
Conditions for Lock-Up Operation
When vehicle is driven in 3rd and 4th gear position, vehicle speed and throttle opening are detected. If the
detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.
SAT008J
Shift solenoid valveGear position
D1 , 21 , 11D2 , 22 , 12D3D4 (OD) N-P
A ON (Closed) OFF (Open) OFF (Open) ON (Closed) ON (Closed)
B ON (Closed) ON (Closed) OFF (Open) OFF (Open) ON (Closed)
SAT009J
Overdrive control switch ON OFF
Selector lever “D” position
Gear position D
4D3
Vehicle speed sensor More than set value
Throttle position sensor Less than set opening
Closed throttle position switch OFF
A/T fluid temperature sensor More than 40°C (104°F)

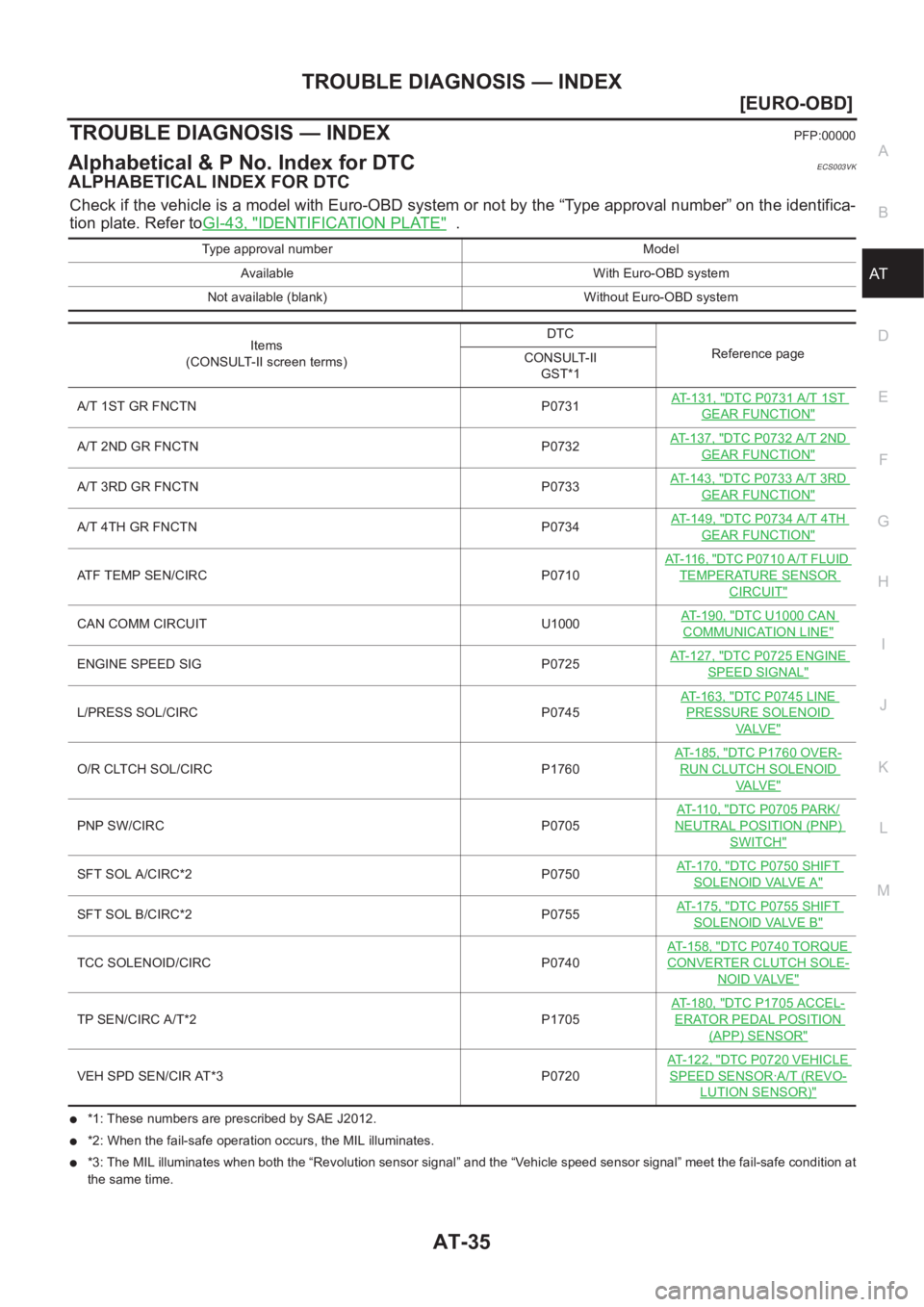

TROUBLE DIAGNOSIS — INDEX
AT-35
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
[EURO-OBD]TROUBLE DIAGNOSIS — INDEXPFP:00000
Alphabetical & P No. Index for DTCECS003VK
ALPHABETICAL INDEX FOR DTC
Check if the vehicle is a model with Euro-OBD system or not by the “Type approval number” on the identifica-
tion plate. Refer toGI-43, "
IDENTIFICATION PLATE" .
●*1: These numbers are prescribed by SAE J2012.
●*2: When the fail-safe operation occurs, the MIL illuminates.
●*3: The MIL illuminates when both the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at
the same time.Type approval number Model
Available With Euro-OBD system
Not available (blank) Without Euro-OBD system
Items
(CONSULT-II screen terms)DTC
Reference page
CONSULT-II
GST*1
A/T 1ST GR FNCTN P0731AT-131, "
DTC P0731 A/T 1ST
GEAR FUNCTION"
A/T 2ND GR FNCTN P0732AT-137, "DTC P0732 A/T 2ND
GEAR FUNCTION"
A/T 3RD GR FNCTN P0733AT-143, "DTC P0733 A/T 3RD
GEAR FUNCTION"
A/T 4TH GR FNCTN P0734AT-149, "DTC P0734 A/T 4TH
GEAR FUNCTION"
ATF TEMP SEN/CIRC P0710AT- 11 6 , "
DTC P0710 A/T FLUID
TEMPERATURE SENSOR
CIRCUIT"
CAN COMM CIRCUIT U1000AT-190, "DTC U1000 CAN
COMMUNICATION LINE"
ENGINE SPEED SIG P0725AT-127, "DTC P0725 ENGINE
SPEED SIGNAL"
L/PRESS SOL/CIRC P0745AT-163, "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
O/R CLTCH SOL/CIRC P1760AT-185, "
DTC P1760 OVER-
RUN CLUTCH SOLENOID
VA LV E"
PNP SW/CIRC P0705AT- 11 0 , "
DTC P0705 PARK/
NEUTRAL POSITION (PNP)
SWITCH"
SFT SOL A/CIRC*2 P0750AT- 1 7 0 , "DTC P0750 SHIFT
SOLENOID VALVE A"
SFT SOL B/CIRC*2 P0755AT- 1 7 5 , "DTC P0755 SHIFT
SOLENOID VALVE B"
TCC SOLENOID/CIRC P0740AT-158, "
DTC P0740 TORQUE
CONVERTER CLUTCH SOLE-
NOID VALVE"
TP SEN/CIRC A/T*2 P1705AT-180, "
DTC P1705 ACCEL-
ERATOR PEDAL POSITION
(APP) SENSOR"
VEH SPD SEN/CIR AT*3 P0720AT- 1 2 2 , "
DTC P0720 VEHICLE
SPEED SENSOR·A/T (REVO-
LUTION SENSOR)"

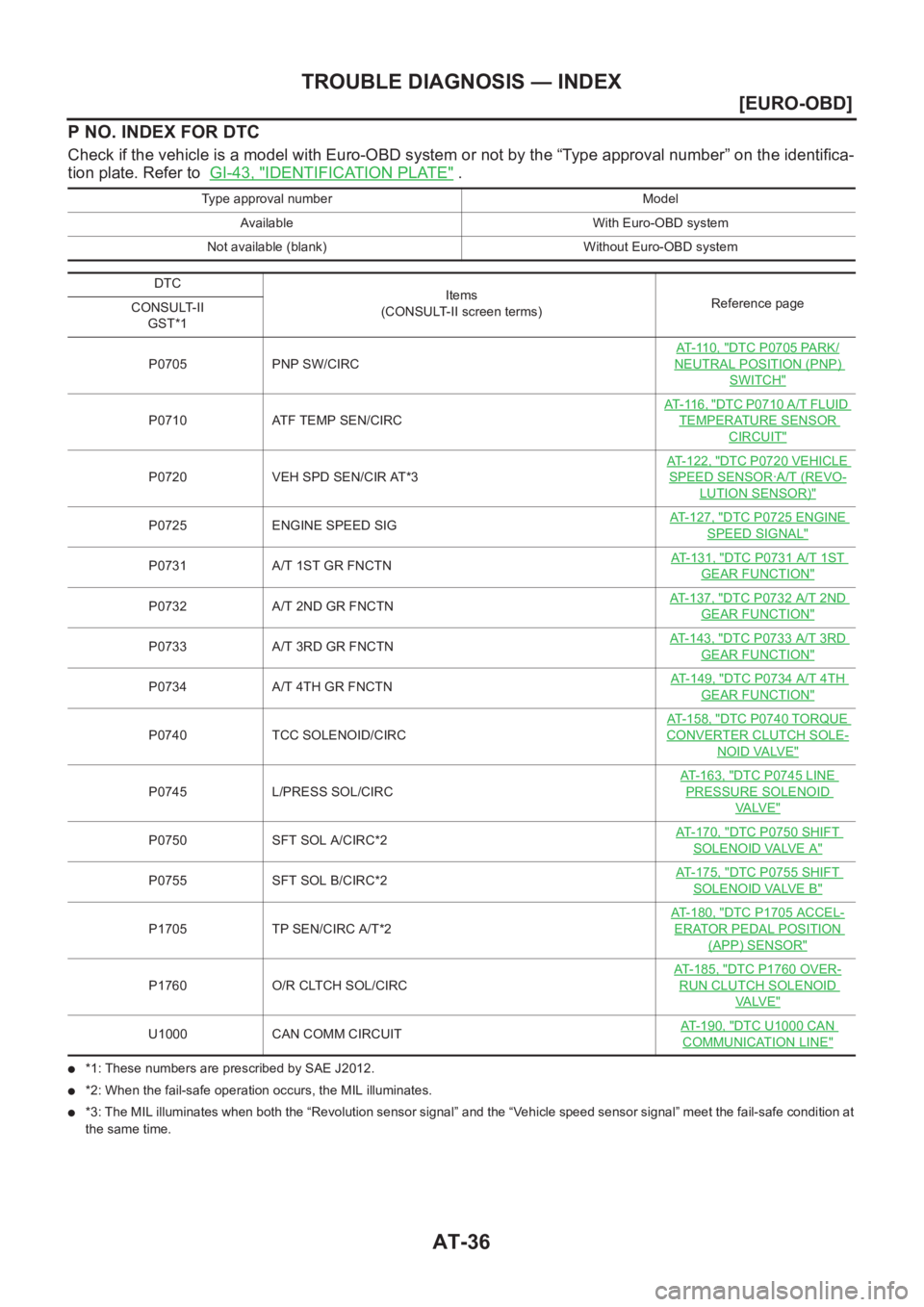

AT-36
[EURO-OBD]
TROUBLE DIAGNOSIS — INDEX
P NO. INDEX FOR DTC
Check if the vehicle is a model with Euro-OBD system or not by the “Type approval number” on the identifica-
tion plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
●*1: These numbers are prescribed by SAE J2012.
●*2: When the fail-safe operation occurs, the MIL illuminates.
●*3: The MIL illuminates when both the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at
the same time.Type approval number Model
Available With Euro-OBD system
Not available (blank) Without Euro-OBD system
DTC
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*1
P0705 PNP SW/CIRCAT-110, "
DTC P0705 PARK/
NEUTRAL POSITION (PNP)
SWITCH"
P0710 ATF TEMP SEN/CIRCAT- 11 6 , "
DTC P0710 A/T FLUID
TEMPERATURE SENSOR
CIRCUIT"
P0720 VEH SPD SEN/CIR AT*3AT-122, "
DTC P0720 VEHICLE
SPEED SENSOR·A/T (REVO-
LUTION SENSOR)"
P0725 ENGINE SPEED SIGAT-127, "DTC P0725 ENGINE
SPEED SIGNAL"
P0731 A/T 1ST GR FNCTNAT- 1 3 1 , "DTC P0731 A/T 1ST
GEAR FUNCTION"
P0732 A/T 2ND GR FNCTNAT-137, "DTC P0732 A/T 2ND
GEAR FUNCTION"
P0733 A/T 3RD GR FNCTNAT-143, "DTC P0733 A/T 3RD
GEAR FUNCTION"
P0734 A/T 4TH GR FNCTNAT-149, "DTC P0734 A/T 4TH
GEAR FUNCTION"
P0740 TCC SOLENOID/CIRCAT-158, "
DTC P0740 TORQUE
CONVERTER CLUTCH SOLE-
NOID VALVE"
P0745 L/PRESS SOL/CIRCAT- 1 6 3 , "
DTC P0745 LINE
PRESSURE SOLENOID
VA LV E"
P0750 SFT SOL A/CIRC*2AT-170, "DTC P0750 SHIFT
SOLENOID VALVE A"
P0755 SFT SOL B/CIRC*2AT-175, "DTC P0755 SHIFT
SOLENOID VALVE B"
P1705 TP SEN/CIRC A/T*2AT- 1 8 0 , "
DTC P1705 ACCEL-
ERATOR PEDAL POSITION
(APP) SENSOR"
P1760 O/R CLTCH SOL/CIRCAT-185, "
DTC P1760 OVER-
RUN CLUTCH SOLENOID
VA LV E"
U1000 CAN COMM CIRCUITAT- 1 9 0 , "DTC U1000 CAN
COMMUNICATION LINE"

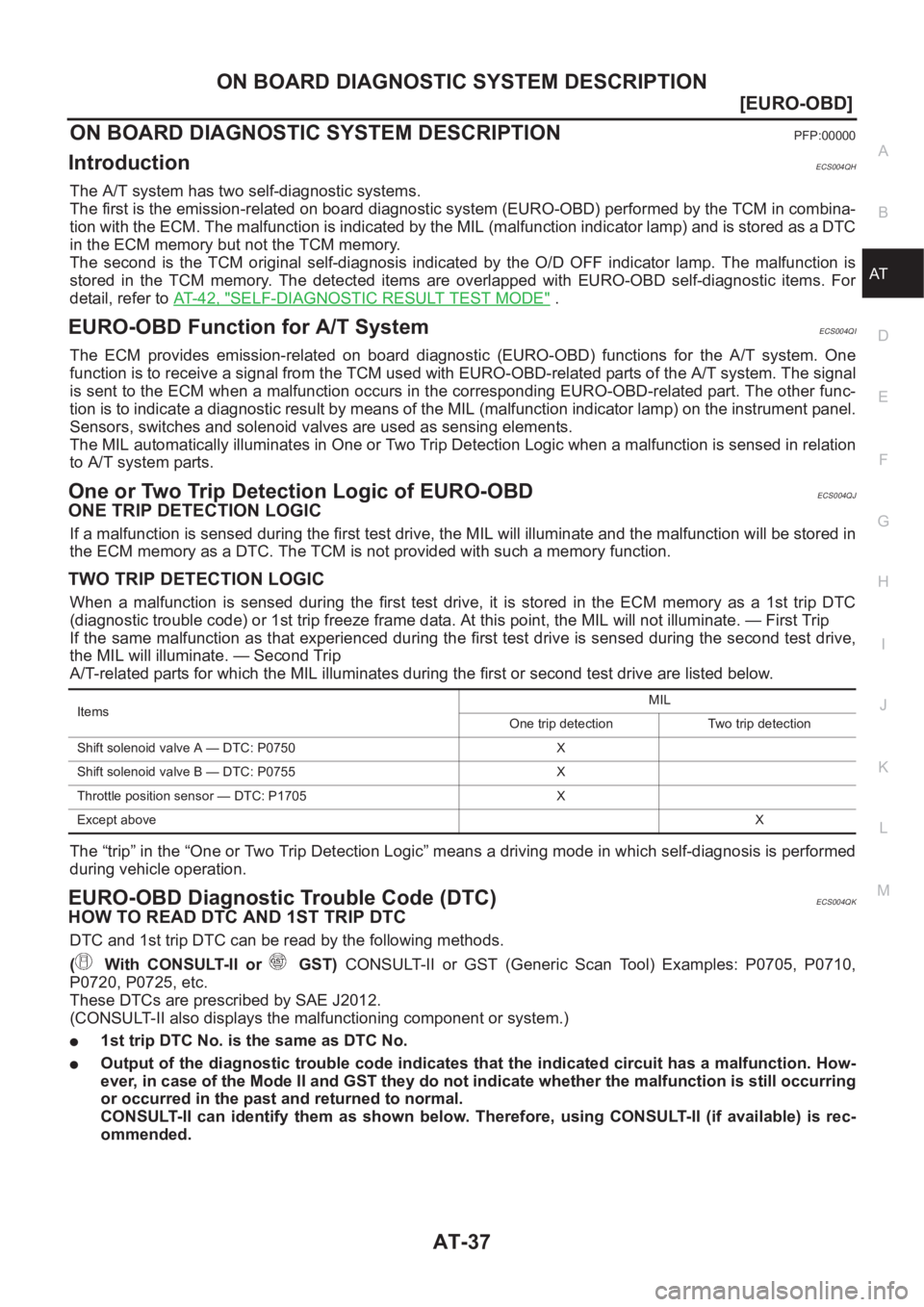

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-37
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
IntroductionECS004QH
The A/T system has two self-diagnostic systems.
The first is the emission-related on board diagnostic system (EURO-OBD) performed by the TCM in combina-
tion with the ECM. The malfunction is indicated by the MIL (malfunction indicator lamp) and is stored as a DTC
in the ECM memory but not the TCM memory.
The second is the TCM original self-diagnosis indicated by the O/D OFF indicator lamp. The malfunction is
stored in the TCM memory. The detected items are overlapped with EURO-OBD self-diagnostic items. For
detail, refer to AT-42, "
SELF-DIAGNOSTIC RESULT TEST MODE" .
EURO-OBD Function for A/T SystemECS004QI
The ECM provides emission-related on board diagnostic (EURO-OBD) functions for the A/T system. One
function is to receive a signal from the TCM used with EURO-OBD-related parts of the A/T system. The signal
is sent to the ECM when a malfunction occurs in the corresponding EURO-OBD-related part. The other func-
tion is to indicate a diagnostic result by means of the MIL (malfunction indicator lamp) on the instrument panel.
Sensors, switches and solenoid valves are used as sensing elements.
The MIL automatically illuminates in One or Two Trip Detection Logic when a malfunction is sensed in relation
to A/T system parts.
One or Two Trip Detection Logic of EURO-OBDECS004QJ
ONE TRIP DETECTION LOGIC
If a malfunction is sensed during the first test drive, the MIL will illuminate and the malfunction will be stored in
the ECM memory as a DTC. The TCM is not provided with such a memory function.
TWO TRIP DETECTION LOGIC
When a malfunction is sensed during the first test drive, it is stored in the ECM memory as a 1st trip DTC
(diagnostic trouble code) or 1st trip freeze frame data. At this point, the MIL will not illuminate. — First Trip
If the same malfunction as that experienced during the first test drive is sensed during the second test drive,
the MIL will illuminate. — Second Trip
A/T-related parts for which the MIL illuminates during the first or second test drive are listed below.
The “trip” in the “One or Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation.
EURO-OBD Diagnostic Trouble Code (DTC)ECS004QK
HOW TO READ DTC AND 1ST TRIP DTC
DTC and 1st trip DTC can be read by the following methods.
( With CONSULT-II or GST) CONSULT-II or GST (Generic Scan Tool) Examples: P0705, P0710,
P0720, P0725, etc.
These DTCs are prescribed by SAE J2012.
(CONSULT-II also displays the malfunctioning component or system.)
●1st trip DTC No. is the same as DTC No.
●Output of the diagnostic trouble code indicates that the indicated circuit has a malfunction. How-
ever, in case of the Mode II and GST they do not indicate whether the malfunction is still occurring
or occurred in the past and returned to normal.
CONSULT-II can identify them as shown below. Therefore, using CONSULT-II (if available) is rec-
ommended.
ItemsMIL
One trip detection Two trip detection
Shift solenoid valve A — DTC: P0750 X
Shift solenoid valve B — DTC: P0755 X
Throttle position sensor — DTC: P1705 X
Except aboveX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-41
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Malfunction Indicator lamp (MIL)ECS004QL
1. The malfunction indicator lamp will light up when the ignition
switch is turned ON without the engine running. This is for
checking the lamp.
●If the malfunction indicator does not light up, refer to DI-43,
"Schematic" .
(Or see MIL & CONSULT-II in EC section. Refer to EC-58,
"Malfunction Indicator (MI)" (QR25DE) or EC-790, "Malfunc-
tion Indicator (MI)" (QR20DE), EC-94, "CONSULT-II Func-
tion" (QR25DE) or EC-826, "CONSULT-II Function"
(QR20DE).
2. When the engine is started, the malfunction indicator should go
off.
If the lamp remains on, the on board diagnostic system has detected an emission-related (EURO-OBD)
malfunction. For detail, refer to EC-44, "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" (QR25DE) or EC-
777, "ON BOARD DIAGNOSTIC (OBD) SYSTEM" (QR20DE).
CONSULT-IIECS004QM
After performing “SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)” AT- 4 1 , place check marks for
results on the “DIAGNOSTIC WORKSHEET”, AT- 5 7
. Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “ENGINE” for EURO-OBD
detected items or touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 1 0 6 , "
TCM Terminals and Reference Value" . If
result is NG, refer to PG-2, "
POWER SUPPLY ROUTING" .
SAT652J
SAT014K

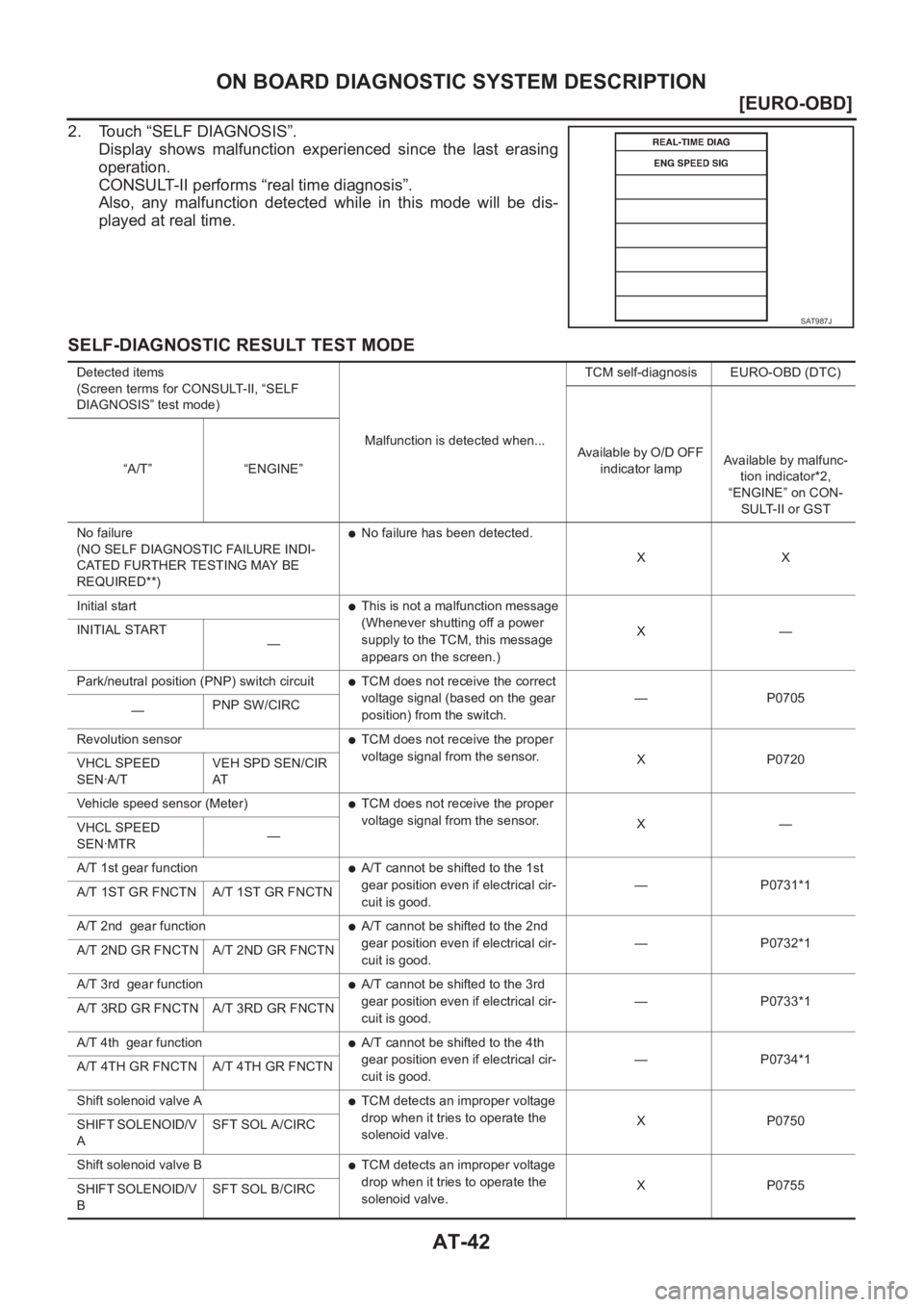

AT-42
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
2. Touch “SELF DIAGNOSIS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “real time diagnosis”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SELF-DIAGNOSTIC RESULT TEST MODE
SAT987J
Detected items
(Screen terms for CONSULT-II, “SELF
DIAGNOSIS” test mode)
Malfunction is detected when...TCM self-diagnosis EURO-OBD (DTC)
Available by O/D OFF
indicator lampAvailable by malfunc-
tion indicator*2,
“ENGINE” on CON-
SULT-II or GST “A/T” “ENGINE”
No failure
(NO SELF DIAGNOSTIC FAILURE INDI-
CATED FURTHER TESTING MAY BE
REQUIRED**)
●No failure has been detected.
XX
Initial start
●This is not a malfunction message
(Whenever shutting off a power
supply to the TCM, this message
appears on the screen.)X— INITIAL START
—
Park/neutral position (PNP) switch circuit
●TCM does not receive the correct
voltage signal (based on the gear
position) from the switch.— P0705
—PNP SW/CIRC
Revolution sensor
●TCM does not receive the proper
voltage signal from the sensor.
X P0720
VHCL SPEED
SEN·A/TVEH SPD SEN/CIR
AT
Vehicle speed sensor (Meter)
●TCM does not receive the proper
voltage signal from the sensor.
X—
VHCL SPEED
SEN·MTR—
A/T 1st gear function
●A/T cannot be shifted to the 1st
gear position even if electrical cir-
cuit is good.— P0731*1
A/T 1ST GR FNCTN A/T 1ST GR FNCTN
A/T 2nd gear function
●A/T cannot be shifted to the 2nd
gear position even if electrical cir-
cuit is good.— P0732*1
A/T 2ND GR FNCTN A/T 2ND GR FNCTN
A/T 3rd gear function
●A/T cannot be shifted to the 3rd
gear position even if electrical cir-
cuit is good.— P0733*1
A/T 3RD GR FNCTN A/T 3RD GR FNCTN
A/T 4th gear function
●A/T cannot be shifted to the 4th
gear position even if electrical cir-
cuit is good.— P0734*1
A/T 4TH GR FNCTN A/T 4TH GR FNCTN
Shift solenoid valve A
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.XP0750
SHIFT SOLENOID/V
ASFT SOL A/CIRC
Shift solenoid valve B
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.XP0755
SHIFT SOLENOID/V
BSFT SOL B/CIRC

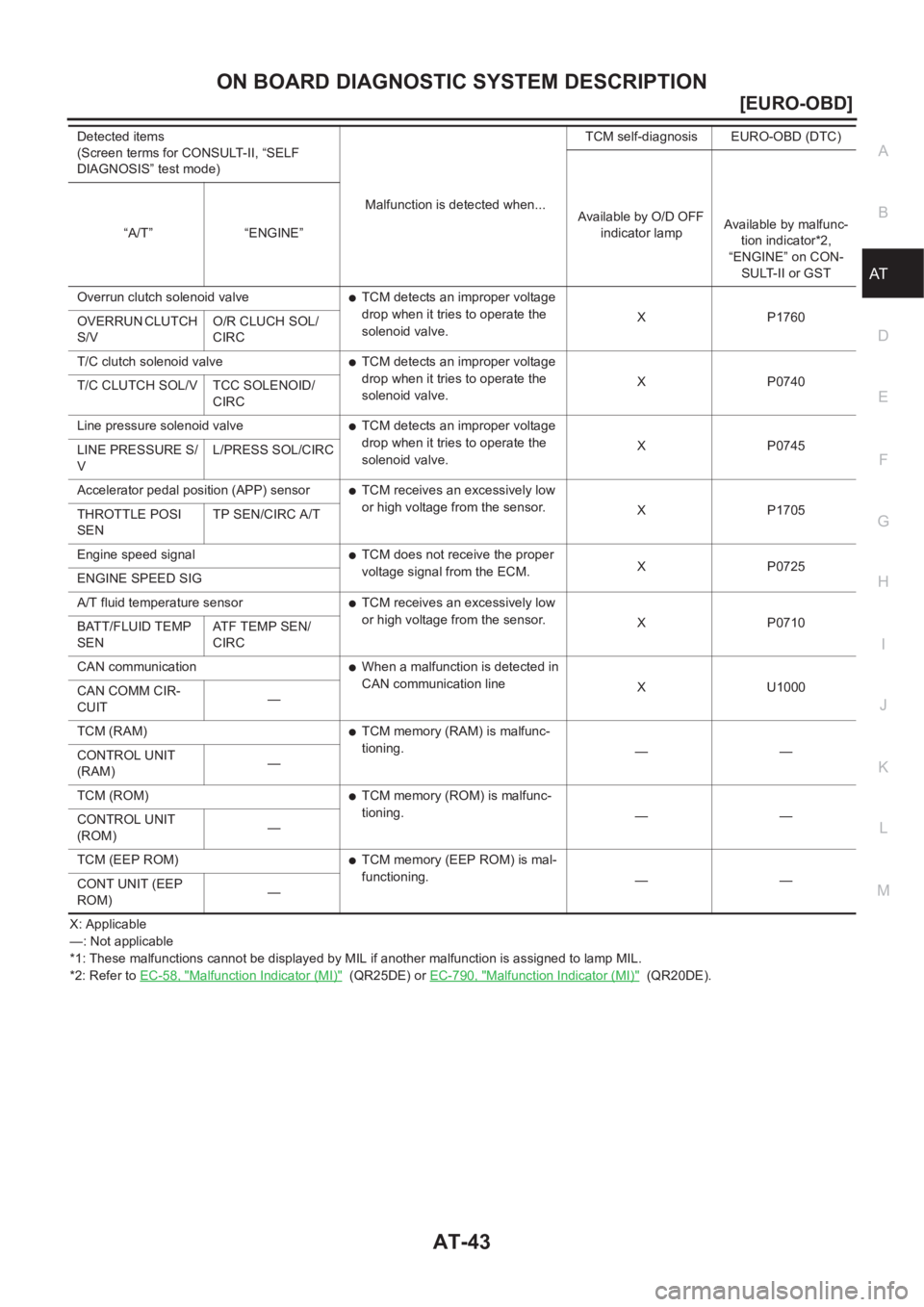

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-43
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
X: Applicable
—: Not applicable
*1: These malfunctions cannot be displayed by MIL if another malfunction is assigned to lamp MIL.
*2: Refer to EC-58, "
Malfunction Indicator (MI)" (QR25DE) or EC-790, "Malfunction Indicator (MI)" (QR20DE). Overrun clutch solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X P1760
OVERRUN CLUTCH
S/VO/R CLUCH SOL/
CIRC
T/C clutch solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X P0740
T/C CLUTCH SOL/V TCC SOLENOID/
CIRC
Line pressure solenoid valve
●TCM detects an improper voltage
drop when it tries to operate the
solenoid valve.X P0745
LINE PRESSURE S/
VL/PRESS SOL/CIRC
Accelerator pedal position (APP) sensor
●TCM receives an excessively low
or high voltage from the sensor.
X P1705
THROTTLE POSI
SENTP SEN/CIRC A/T
Engine speed signal
●TCM does not receive the proper
voltage signal from the ECM.X P0725
ENGINE SPEED SIG
A/T fluid temperature sensor
●TCM receives an excessively low
or high voltage from the sensor.
X P0710
BATT/FLUID TEMP
SENATF TEMP SEN/
CIRC
CAN communication
●When a malfunction is detected in
CAN communication line
X U1000
CAN COMM CIR-
CUIT—
TCM (RAM)
●TCM memory (RAM) is malfunc-
tioning.
——
CONTROL UNIT
(RAM)—
TCM (ROM)
●TCM memory (ROM) is malfunc-
tioning.
——
CONTROL UNIT
(ROM)—
TCM (EEP ROM)
●TCM memory (EEP ROM) is mal-
functioning.
——
CONT UNIT (EEP
ROM)— Detected items
(Screen terms for CONSULT-II, “SELF
DIAGNOSIS” test mode)
Malfunction is detected when...TCM self-diagnosis EURO-OBD (DTC)
Available by O/D OFF
indicator lampAvailable by malfunc-
tion indicator*2,
“ENGINE” on CON-
SULT-II or GST “A/T” “ENGINE”
