2001 NISSAN X-TRAIL App sensor

DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH

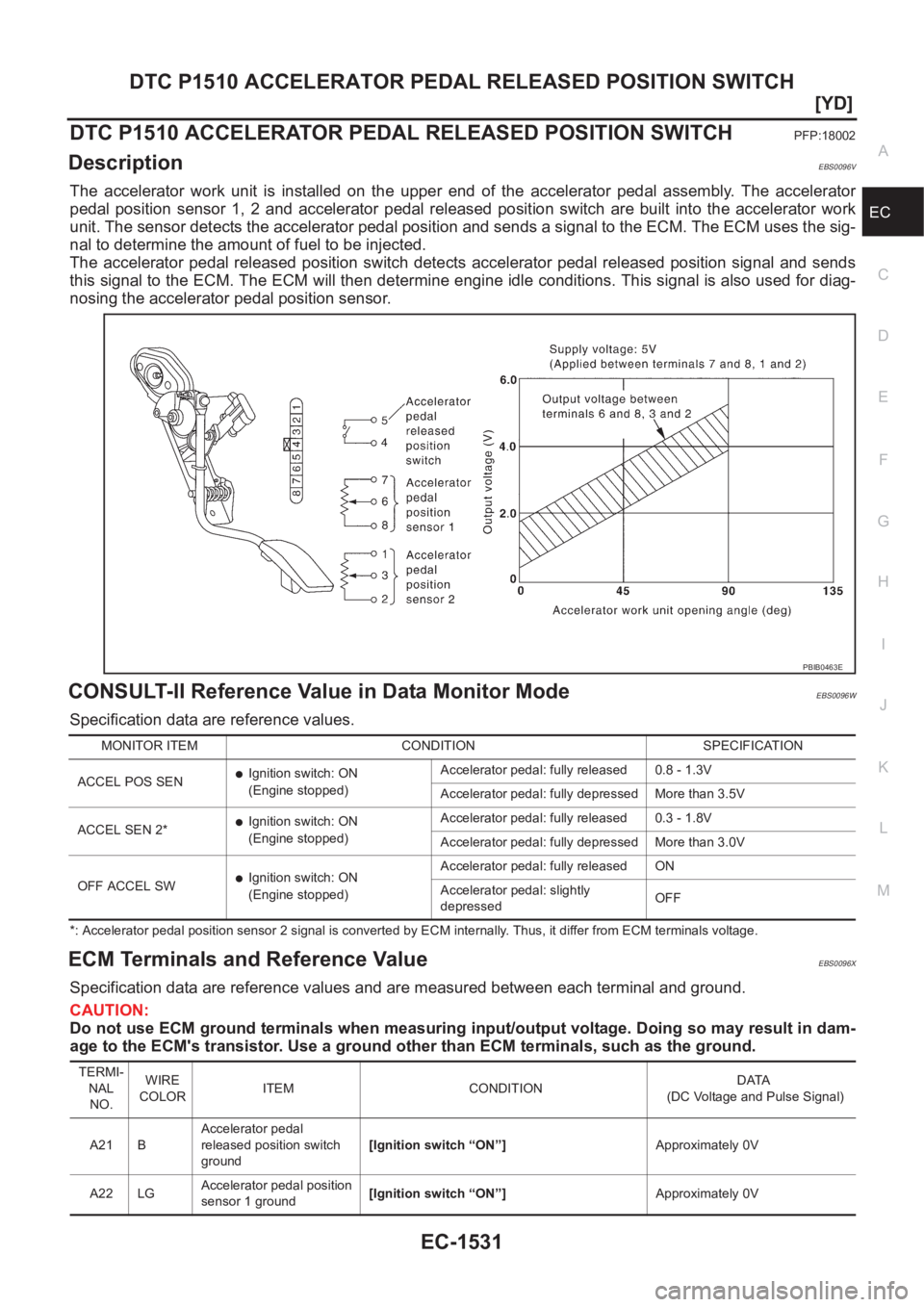

EC-1531
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCHPFP:18002
DescriptionEBS0096V
The accelerator work unit is installed on the upper end of the accelerator pedal assembly. The accelerator
pedal position sensor 1, 2 and accelerator pedal released position switch are built into the accelerator work
unit. The sensor detects the accelerator pedal position and sends a signal to the ECM. The ECM uses the sig-
nal to determine the amount of fuel to be injected.
The accelerator pedal released position switch detects accelerator pedal released position signal and sends
this signal to the ECM. The ECM will then determine engine idle conditions. This signal is also used for diag-
nosing the accelerator pedal position sensor.
CONSULT-II Reference Value in Data Monitor ModeEBS0096W
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differ from ECM terminals voltage.
ECM Terminals and Reference ValueEBS0096X
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0463E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL POS SEN
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.8 - 1.3V
Accelerator pedal: fully depressed More than 3.5V
ACCEL SEN 2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released 0.3 - 1.8V
Accelerator pedal: fully depressed More than 3.0V
OFF ACCEL SW
●Ignition switch: ON
(Engine stopped)Accelerator pedal: fully released ON
Accelerator pedal: slightly
depressed OFF
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
A21 BAccelerator pedal
released position switch
ground[Ignition switch “ON”]Approximately 0V
A22 LGAccelerator pedal position
sensor 1 ground[Ignition switch “ON”]Approximately 0V

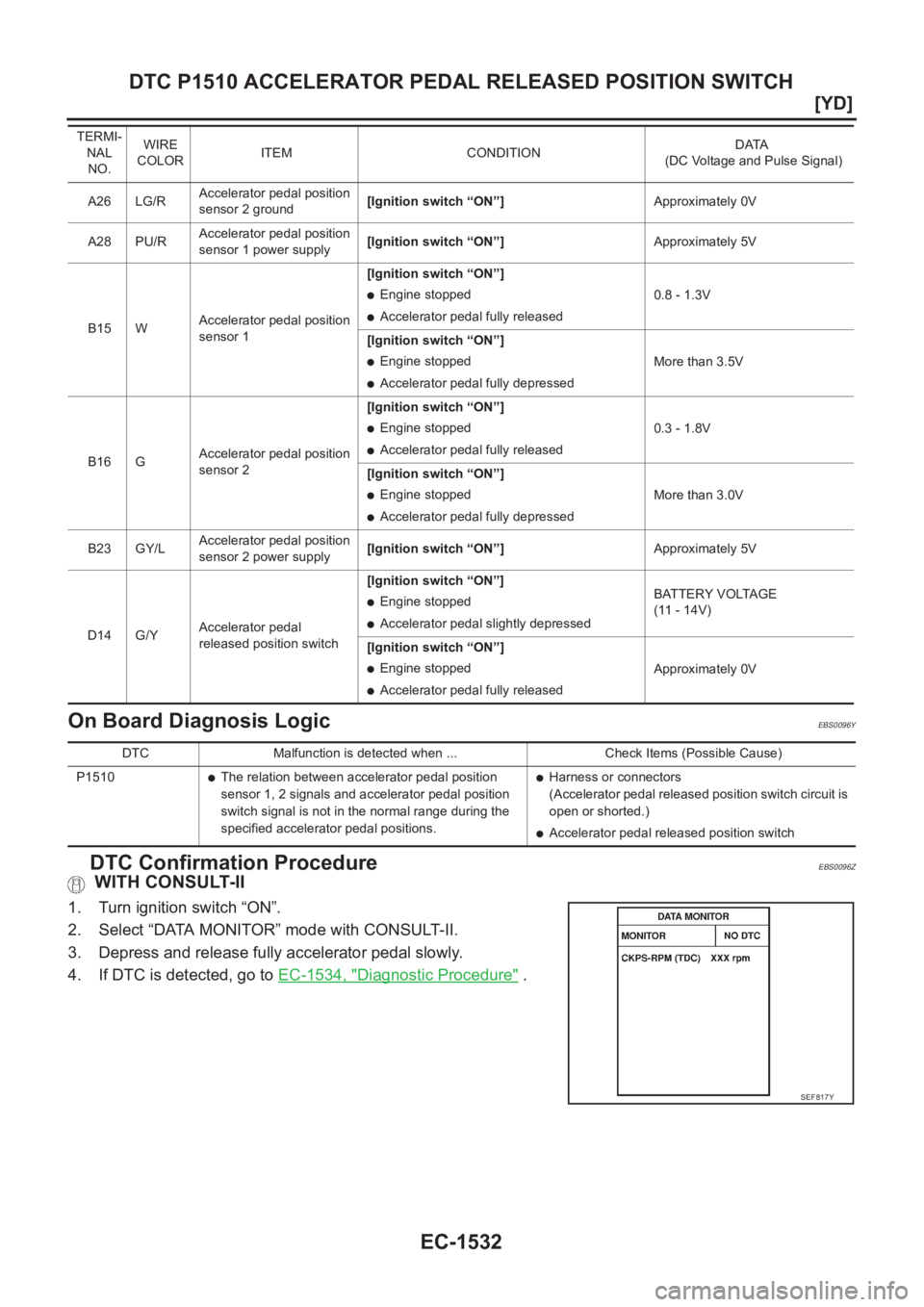

EC-1532
[YD]
DTC P1510 ACCELERATOR PEDAL RELEASED POSITION SWITCH
On Board Diagnosis Logic
EBS0096Y
DTC Confirmation ProcedureEBS0096Z
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Depress and release fully accelerator pedal slowly.
4. If DTC is detected, go to EC-1534, "
Diagnostic Procedure" .
A26 LG/RAccelerator pedal position
sensor 2 ground[Ignition switch “ON”]Approximately 0V
A28 PU/RAccelerator pedal position
sensor 1 power supply [Ignition switch “ON”]Approximately 5V
B15 WAccelerator pedal position
sensor 1[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.8 - 1.3V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 3.5V
B16 GAccelerator pedal position
sensor 2[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.3 - 1.8V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 3.0V
B23 GY/LAccelerator pedal position
sensor 2 power supply[Ignition switch “ON”]Approximately 5V
D14 G/YAccelerator pedal
released position switch[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal slightly depressedBATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully releasedApproximately 0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
DTC Malfunction is detected when ... Check Items (Possible Cause)
P1510
●The relation between accelerator pedal position
sensor 1, 2 signals and accelerator pedal position
switch signal is not in the normal range during the
specified accelerator pedal positions.●Harness or connectors
(Accelerator pedal released position switch circuit is
open or shorted.)
●Accelerator pedal released position switch
SEF817Y

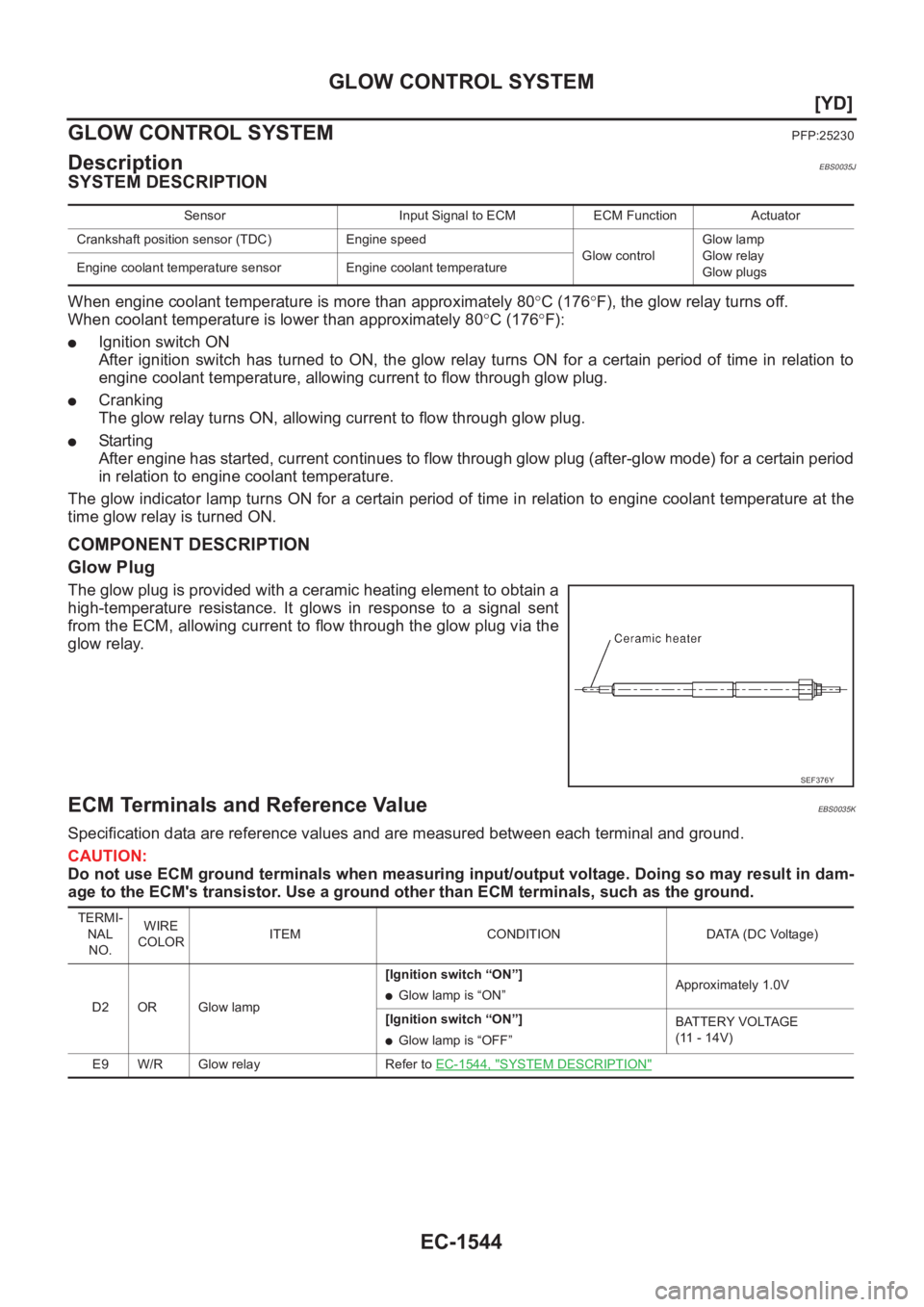

EC-1544
[YD]
GLOW CONTROL SYSTEM
GLOW CONTROL SYSTEM
PFP:25230
DescriptionEBS0035J
SYSTEM DESCRIPTION
When engine coolant temperature is more than approximately 80°C (176°F), the glow relay turns off.
When coolant temperature is lower than approximately 80°C (176°F):
●Ignition switch ON
After ignition switch has turned to ON, the glow relay turns ON for a certain period of time in relation to
engine coolant temperature, allowing current to flow through glow plug.
●Cranking
The glow relay turns ON, allowing current to flow through glow plug.
●Starting
After engine has started, current continues to flow through glow plug (after-glow mode) for a certain period
in relation to engine coolant temperature.
The glow indicator lamp turns ON for a certain period of time in relation to engine coolant temperature at the
time glow relay is turned ON.
COMPONENT DESCRIPTION
Glow Plug
The glow plug is provided with a ceramic heating element to obtain a
high-temperature resistance. It glows in response to a signal sent
from the ECM, allowing current to flow through the glow plug via the
glow relay.
ECM Terminals and Reference ValueEBS0035K
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (TDC) Engine speed
Glow controlGlow lamp
Glow relay
Glow plugs Engine coolant temperature sensor Engine coolant temperature
SEF376Y
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
D2 OR Glow lamp[Ignition switch “ON”]
●Glow lamp is “ON”Approximately 1.0V
[Ignition switch “ON”]
●Glow lamp is “OFF”BATTERY VOLTAGE
(11 - 14V)
E9 W/R Glow relay Refer to EC-1544, "
SYSTEM DESCRIPTION"

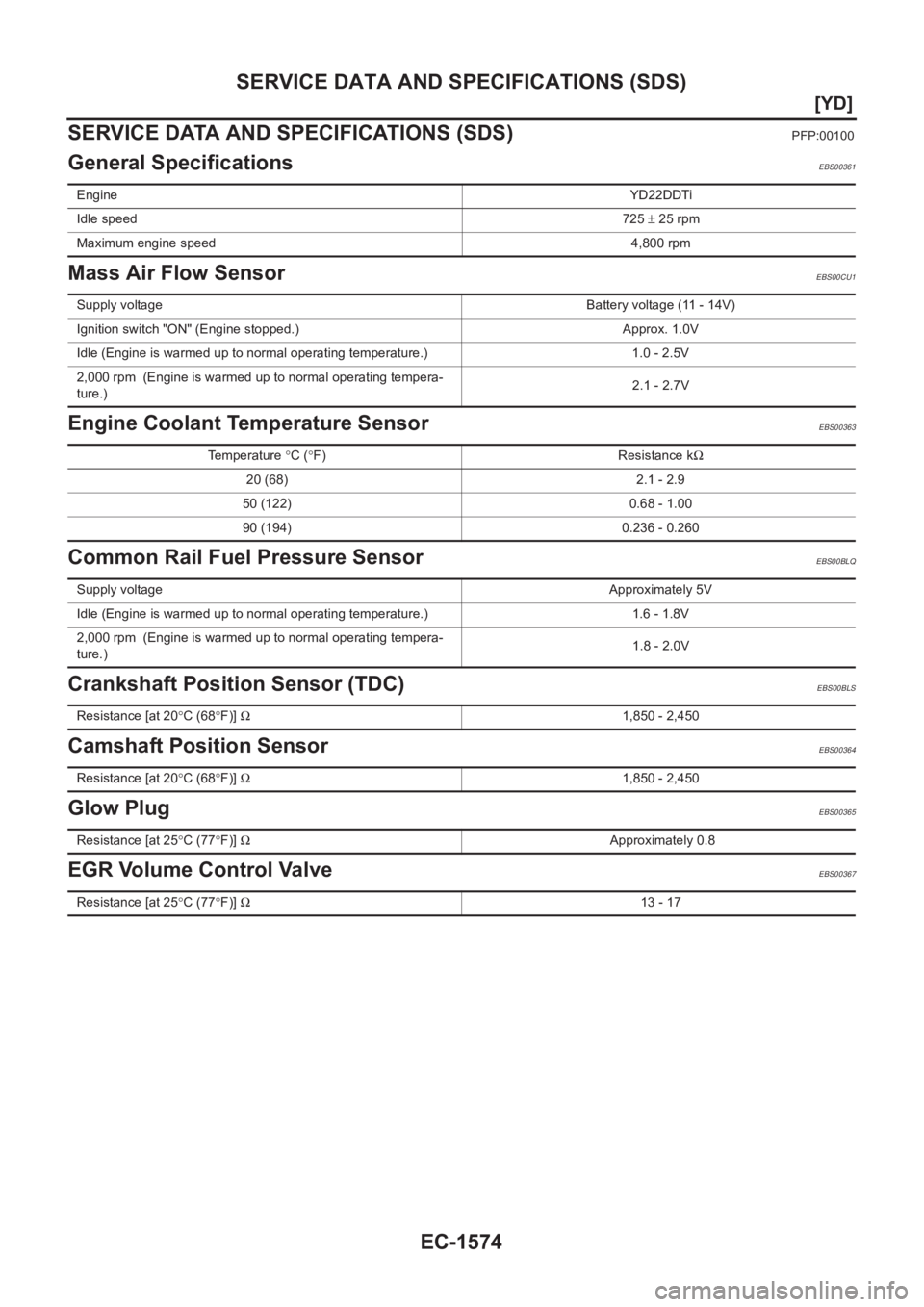

EC-1574
[YD]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00100
General SpecificationsEBS00361
Mass Air Flow SensorEBS00CU1
Engine Coolant Temperature SensorEBS00363
Common Rail Fuel Pressure SensorEBS00BLQ
Crankshaft Position Sensor (TDC)EBS00BLS
Camshaft Position SensorEBS00364
Glow PlugEBS00365
EGR Volume Control ValveEBS00367
EngineYD22DDTi
Idle speed725± 25 rpm
Maximum engine speed 4,800 rpm
Supply voltageBattery voltage (11 - 14V)
Ignition switch "ON" (Engine stopped.) Approx. 1.0V
Idle (Engine is warmed up to normal operating temperature.) 1.0 - 2.5V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)2.1 - 2.7V
Temperature °C (°F) Resistance kΩ
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Supply voltageApproximately 5V
Idle (Engine is warmed up to normal operating temperature.) 1.6 - 1.8V
2,000 rpm (Engine is warmed up to normal operating tempera-
ture.)1.8 - 2.0V
Resistance [at 20°C (68°F)] Ω1,850 - 2,450
Resistance [at 20°C (68°F)] Ω1,850 - 2,450
Resistance [at 25°C (77°F)] Ω Approximately 0.8
Resistance [at 25°C (77°F)] Ω13 - 17

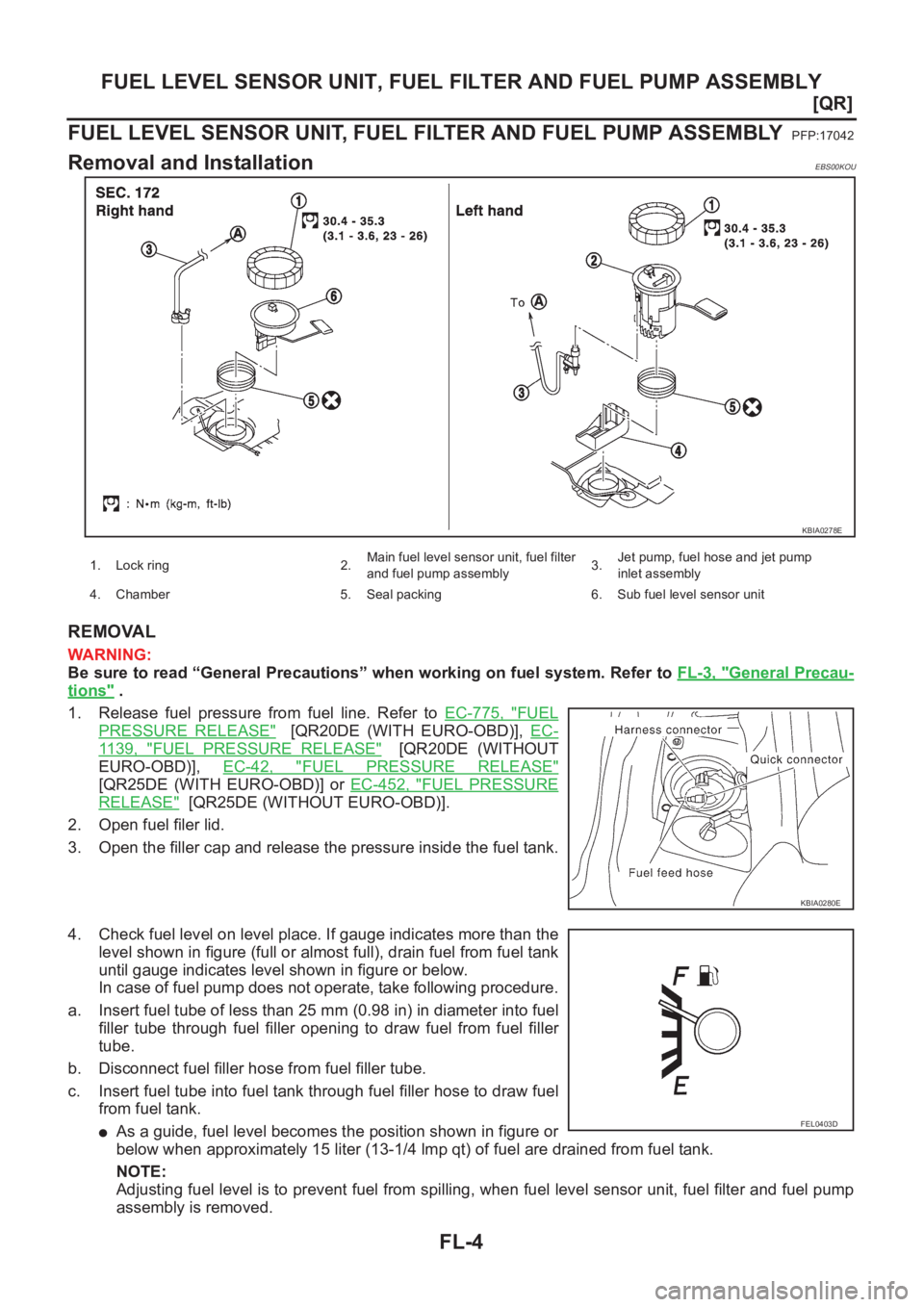

FL-4
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
PFP:17042
Removal and InstallationEBS00KOU
REMOVAL
WARNING:
Be sure to read “General Precautions” when working on fuel system. Refer to FL-3, "
General Precau-
tions" .
1. Release fuel pressure from fuel line. Refer to EC-775, "
FUEL
PRESSURE RELEASE" [QR20DE (WITH EURO-OBD)], EC-
11 3 9 , "FUEL PRESSURE RELEASE" [QR20DE (WITHOUT
EURO-OBD)],EC-42, "
FUEL PRESSURE RELEASE"
[QR25DE (WITH EURO-OBD)] or EC-452, "FUEL PRESSURE
RELEASE" [QR25DE (WITHOUT EURO-OBD)].
2. Open fuel filer lid.
3. Open the filler cap and release the pressure inside the fuel tank.
4. Check fuel level on level place. If gauge indicates more than the
level shown in figure (full or almost full), drain fuel from fuel tank
until gauge indicates level shown in figure or below.
In case of fuel pump does not operate, take following procedure.
a. Insert fuel tube of less than 25 mm (0.98 in) in diameter into fuel
filler tube through fuel filler opening to draw fuel from fuel filler
tube.
b. Disconnect fuel filler hose from fuel filler tube.
c. Insert fuel tube into fuel tank through fuel filler hose to draw fuel
from fuel tank.
●As a guide, fuel level becomes the position shown in figure or
below when approximately 15 liter (13-1/4 lmp qt) of fuel are drained from fuel tank.
NOTE:
Adjusting fuel level is to prevent fuel from spilling, when fuel level sensor unit, fuel filter and fuel pump
assembly is removed.
KBIA0278E
1. Lock ring 2.Main fuel level sensor unit, fuel filter
and fuel pump assembly3.Jet pump, fuel hose and jet pump
inlet assembly
4. Chamber 5. Seal packing 6. Sub fuel level sensor unit
KBIA0280E
FEL0403D

FL-6
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
●If necessary, remove the chamber from the bottom of the fuel tank.
●Remove the chamber by sliding toward the rear of the vehicle.
Removal of sub fuel level sensor unit.
●Raise and release the sub fuel level sensor unit to remove.
●If necessary, remove the jet pump inlet from the bottom of the fuel tank.
To remove it, pinch the tabs (2 places).
INSPECTION AFTER REMOVAL
Make sure the fuel pump strainer is free from foreign materials, If any are found, remove them.
INSTALLATION
Install in the reverse order of removal paying attention to the follow-
ing.
●When installing the chamber and jet pump, insert them fully until
a click sound of full stopper engagement is heard (Ditto for jet
pump inlet).
●Connect the quick connector as follows.
1. Check the connection for damage and foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a click is heard.
3. After connecting, make sure that the connection is secure by following the steps below.
●Visually confirm that the two retainer tabs are connected to the connector.
●Pull the tube and the connector to make sure they are securely connected.
●Install fuel level sensor unit with mating mark (triangular pro-
trusion) facing between two carved lines on fuel tank. (Figure
shows left side of fuel tank.)
NOTE:
On right side of fuel tank, there are three carved lines on fuel
tank. Set mating mark between two outer carved lines.
●Install the inspection hole cover with the front mark (arrow)
facing front of the vehicle (Both for RH and LH).
INSPECTION AFTER INSTALLATION
Make sure there is no fuel leakage at connections in the following steps.
1. Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel
leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections.
KBIA0302E
KBIA0282E

FL-8
[QR]
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
3. Separate the fuel filter and fuel level sensor unit.
a. Fit a used O-ring into space between fuel level sensor unit and
fuel filter. Undo catches and separate fuel level sensor unit and
fuel filter.
●For reference when reassembling, put a mating mark on outer
edges of fuel level sensor unit and fuel filter with some means
which cannot be erased by fuel.
b. Insert blade end screwdriver to the gap between the fuel filter
and fuel level sensor unit to separate them.
CAUTION:
Put cloth or similar one on the edge of screwdriver not to
damage the inserted portion.
4. Remove pressure regulator from fuel filter.
a. Open and remove the clip.
b. Pull the pressure regulator straight out during removal.
CAUTION:
●Avoid impacts such as falling during removal.
●Do not disassemble or adjust.
ASSEMBLY
Install in the reverse order of removal paying attention to the following.
●Install the fuel filter and fuel pump with the tabs aligned, Make sure a click sound of secure engagement is
heard.
●Securely connect the harness connector of the fuel pump.
●Install the pressure regulator O-ring as follows.
CAUTION:
●When replacing, always use a new O-ring.
●Handle it with bare hands. (Do not use gloves.)
●Visually check the O-ring, mounting parts and mating parts for foreign materials and flaws.
●Before installing, apply new engine oil.
●To avid damage, do not apply an excessive force (pulling or starching).
●Install the pressure regulator as follows.
1. Insert the clip to the groove of the pressure regulator.
2. With the clip installed, insert the pressure regulator straight by
matching the fuel filter protrusion and the clip notch.
3. Make sure that the fuel filter protrusion and clip notch are
securely engaged.
PBIC0244E
PBIC0245E

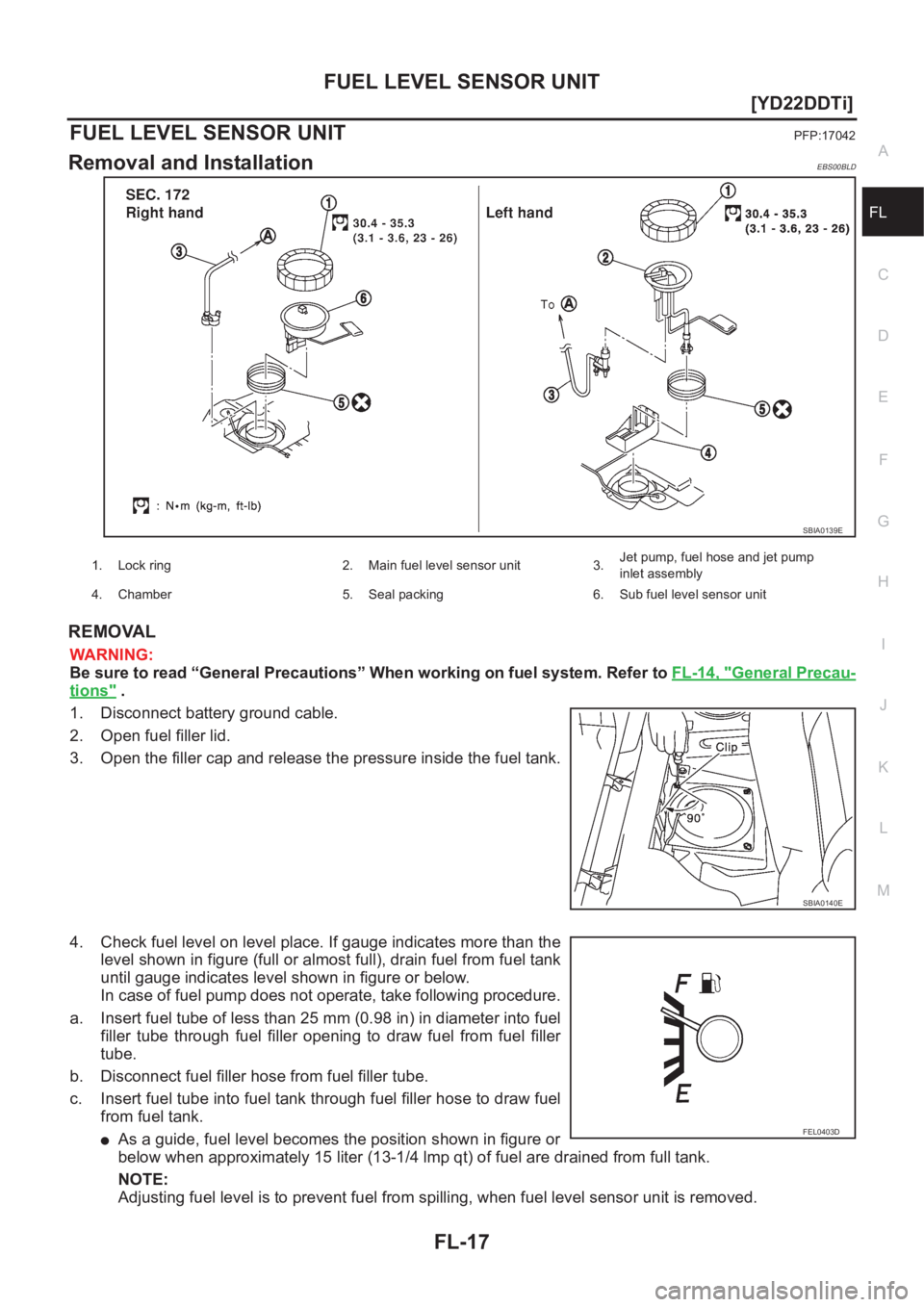

FUEL LEVEL SENSOR UNIT
FL-17
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
FL
FUEL LEVEL SENSOR UNITPFP:17042
Removal and InstallationEBS00BLD
REMOVAL
WARNING:
Be sure to read “General Precautions” When working on fuel system. Refer to FL-14, "
General Precau-
tions" .
1. Disconnect battery ground cable.
2. Open fuel filler lid.
3. Open the filler cap and release the pressure inside the fuel tank.
4. Check fuel level on level place. If gauge indicates more than the
level shown in figure (full or almost full), drain fuel from fuel tank
until gauge indicates level shown in figure or below.
In case of fuel pump does not operate, take following procedure.
a. Insert fuel tube of less than 25 mm (0.98 in) in diameter into fuel
filler tube through fuel filler opening to draw fuel from fuel filler
tube.
b. Disconnect fuel filler hose from fuel filler tube.
c. Insert fuel tube into fuel tank through fuel filler hose to draw fuel
from fuel tank.
●As a guide, fuel level becomes the position shown in figure or
below when approximately 15 liter (13-1/4 lmp qt) of fuel are drained from full tank.
NOTE:
Adjusting fuel level is to prevent fuel from spilling, when fuel level sensor unit is removed.
SBIA0139E
1. Lock ring 2. Main fuel level sensor unit 3.Jet pump, fuel hose and jet pump
inlet assembly
4. Chamber 5. Seal packing 6. Sub fuel level sensor unit
SBIA0140E
FEL0403D
