2001 NISSAN ALMERA TINO wiring diagram

RHD ModelsNLEL0514S0502

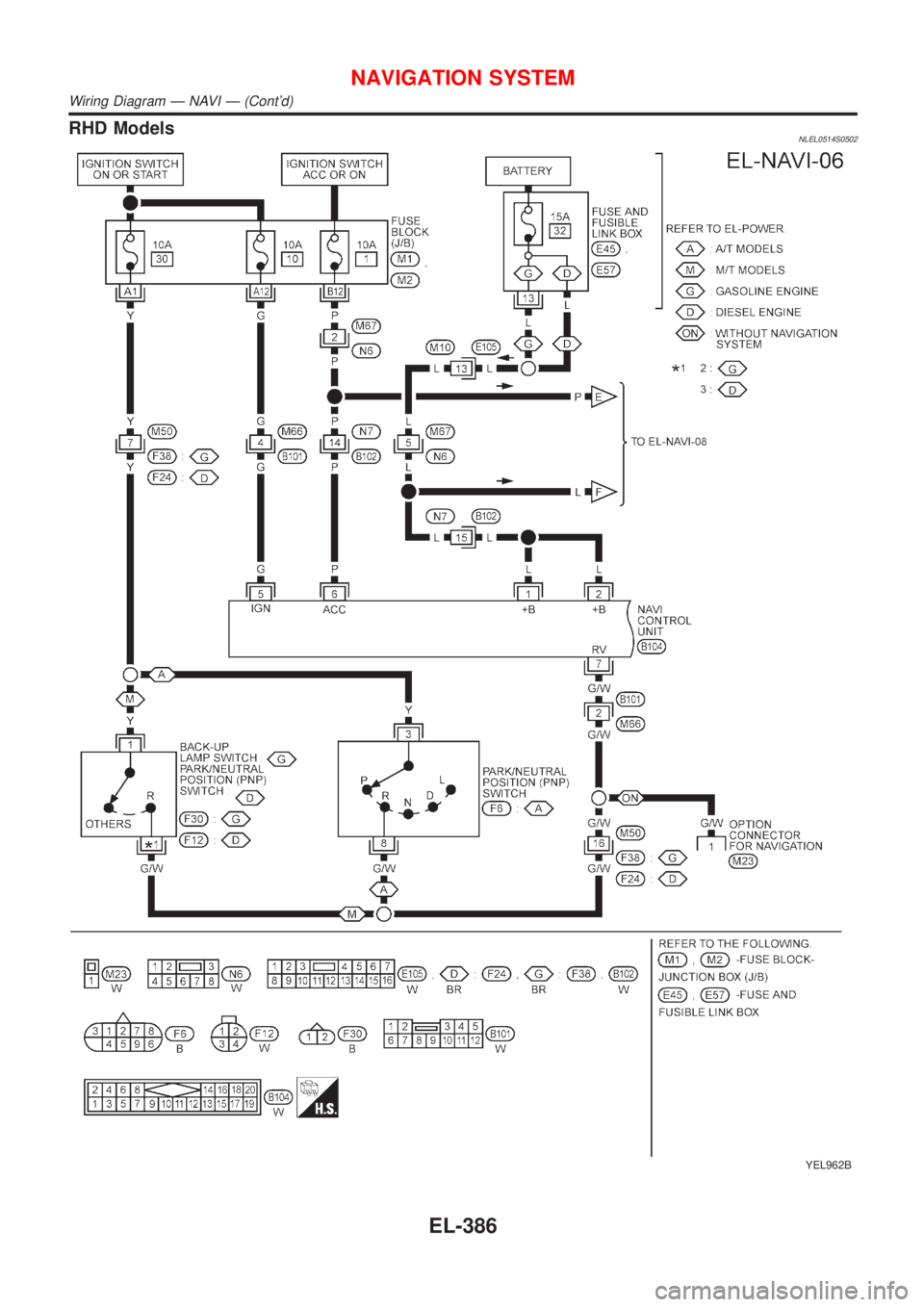

YEL962B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-386

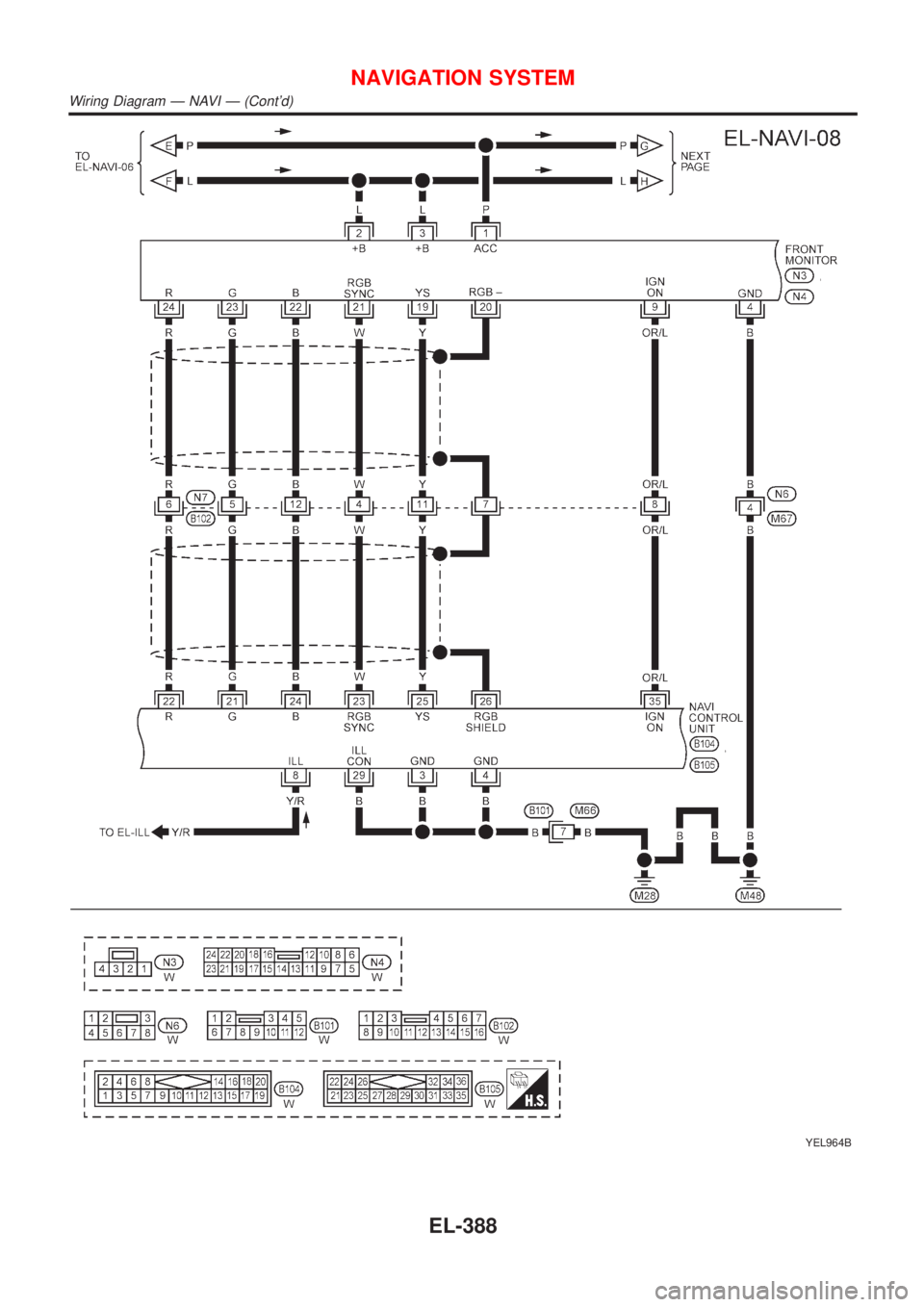

YEL963B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-387

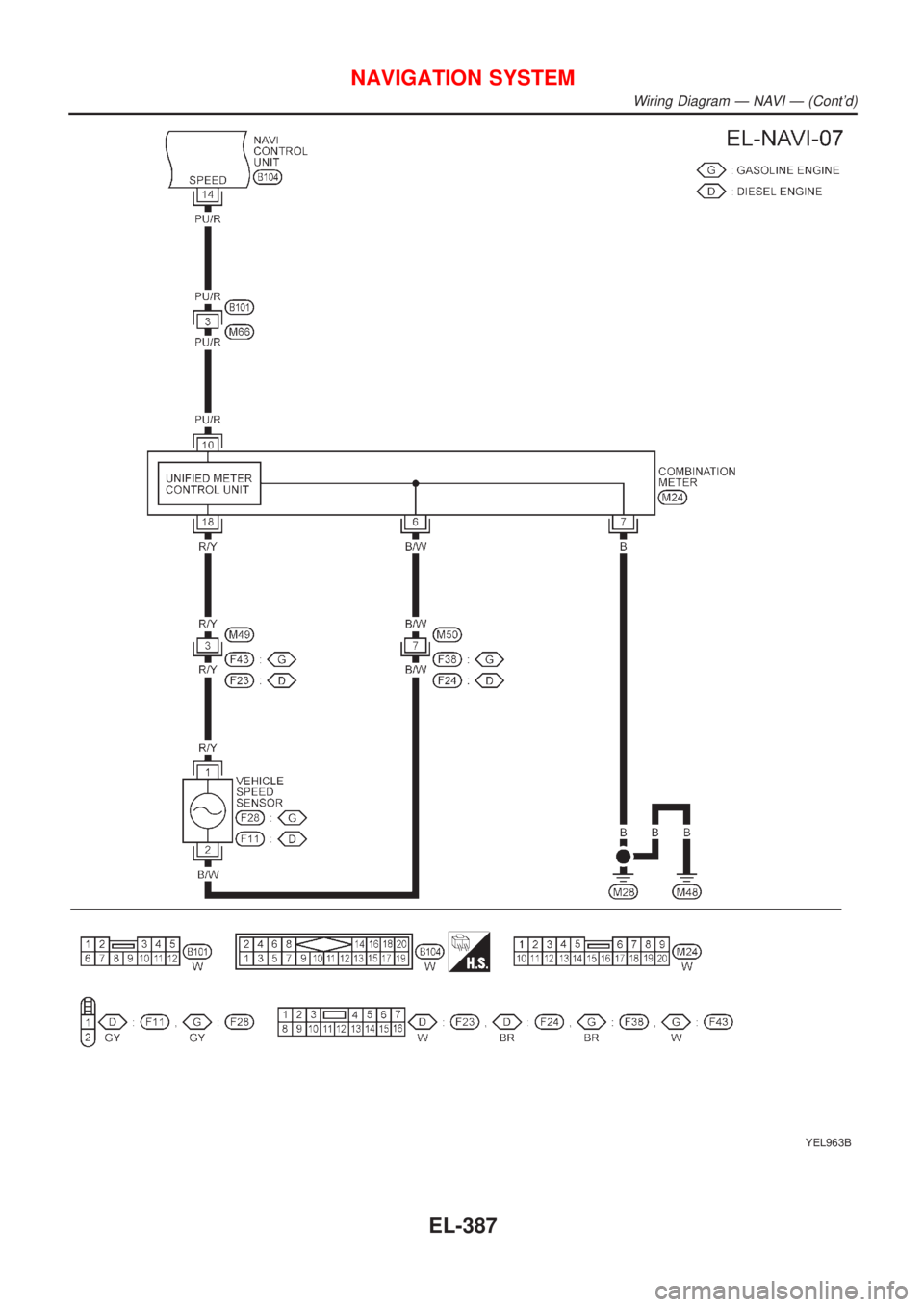

YEL964B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-388

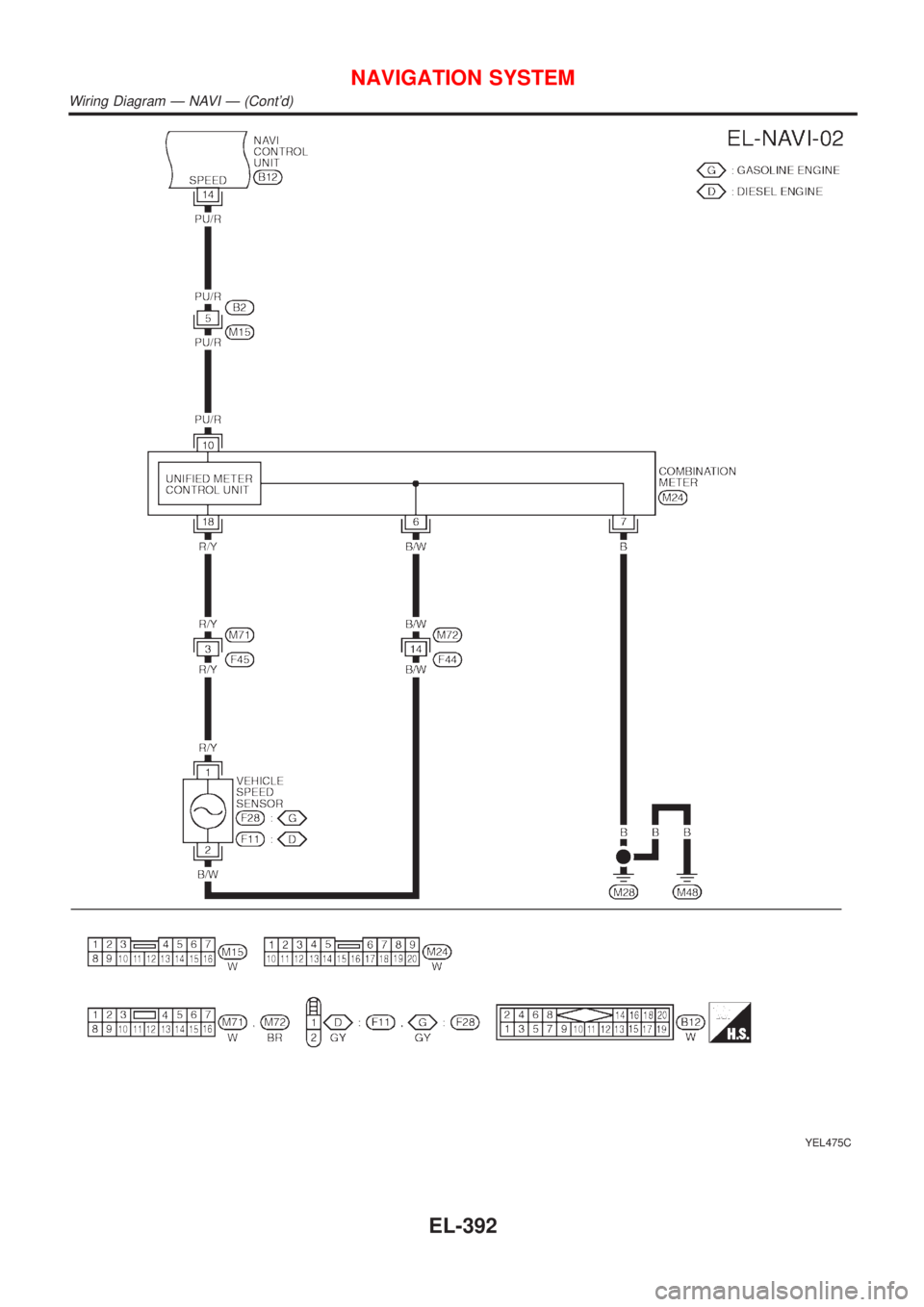

YEL965B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-389

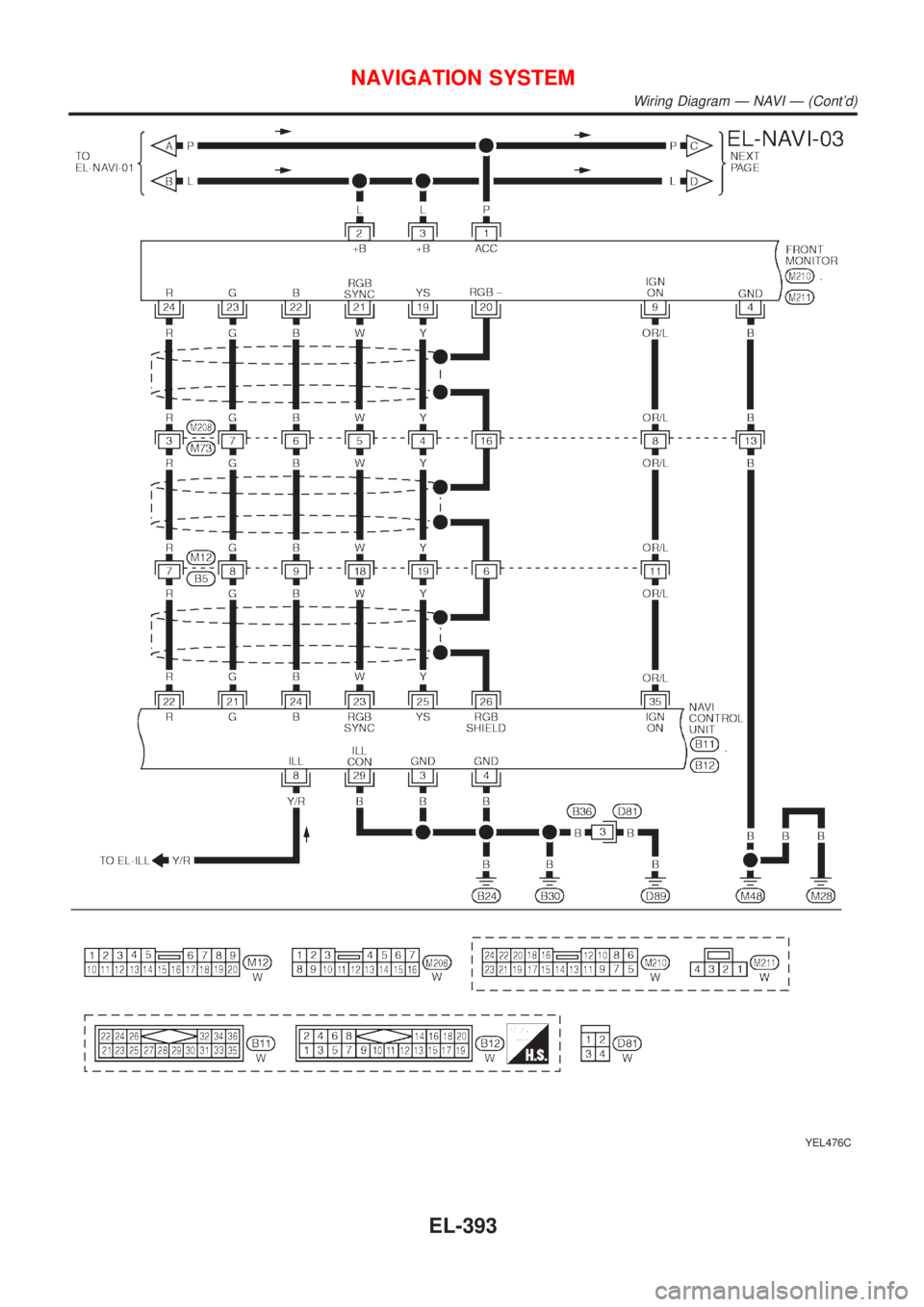

YEL966B
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-390

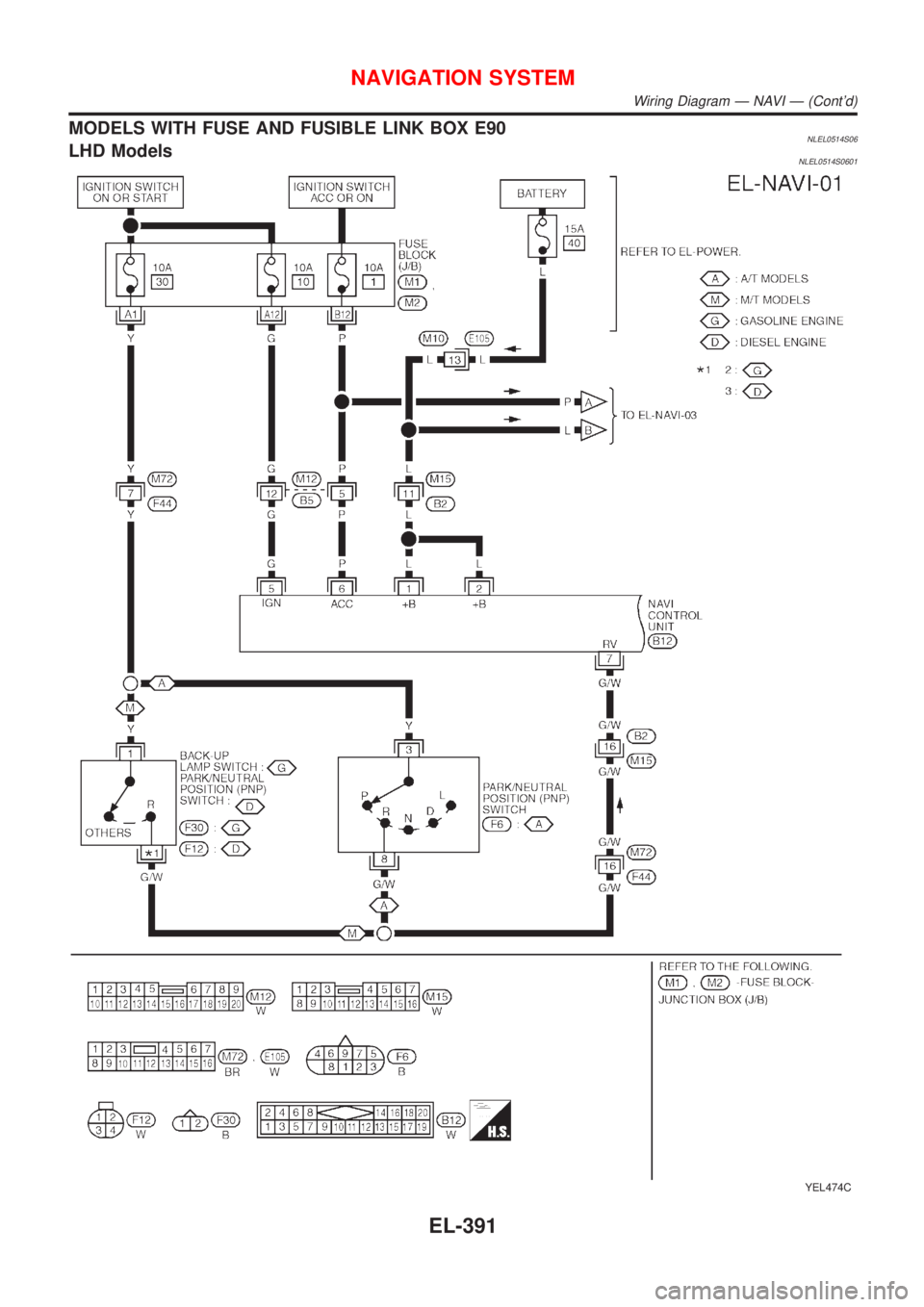

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0514S06LHD ModelsNLEL0514S0601
YEL474C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-391

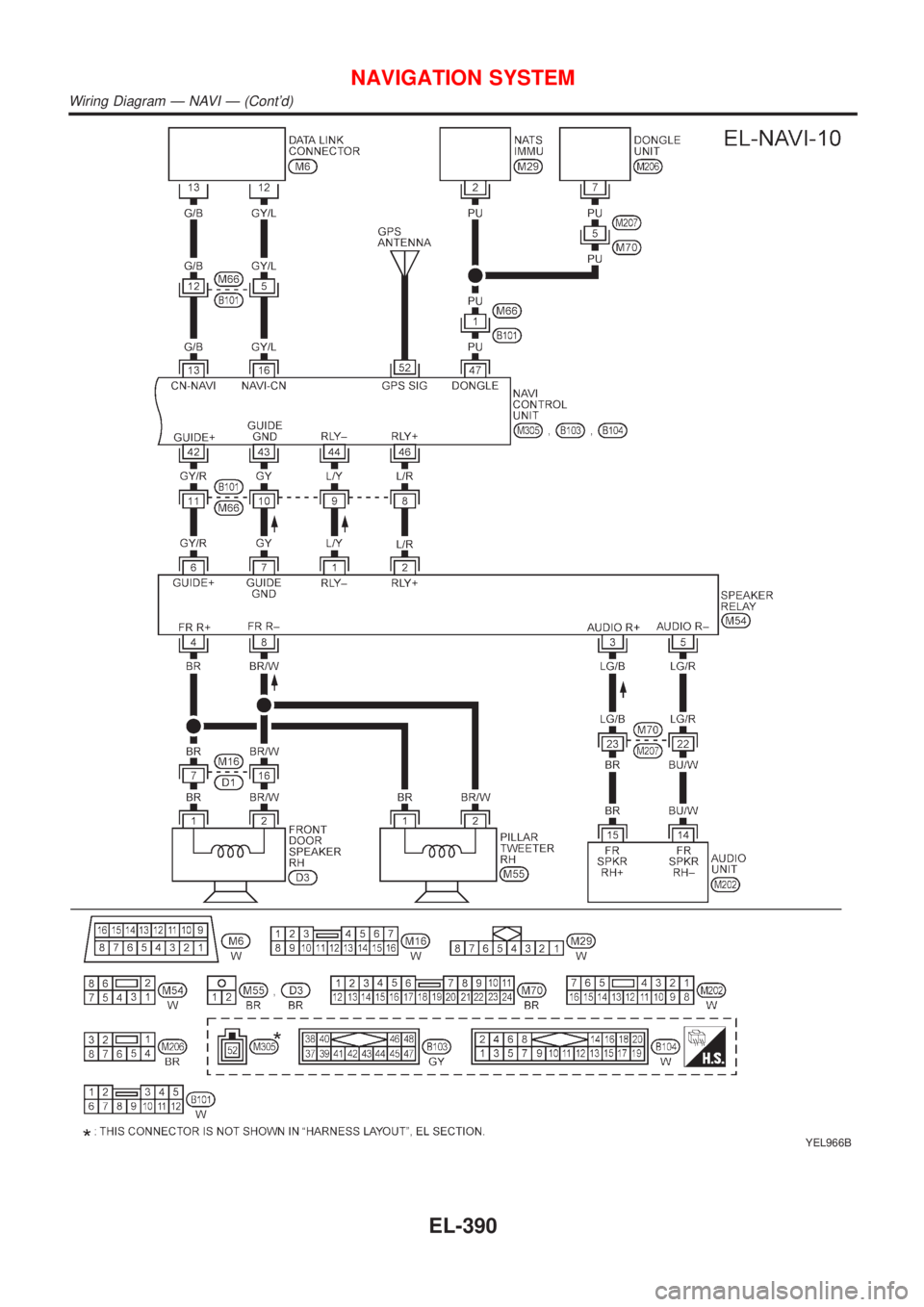

YEL475C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-392

YEL476C
NAVIGATION SYSTEM
Wiring Diagram Ð NAVI Ð (Cont'd)
EL-393
