2001 NISSAN ALMERA TINO ECU

SchematicNLEL0509MODELS WITH NATS SECURITY INDICATOR ON DASH
BOARD
NLEL0509S02
YEL951B
NATS (NISSAN ANTI-THEFT SYSTEM)
Schematic
EL-336

MODELS WITH NATS SECURITY INDICATOR IN
COMBINATION METER
NLEL0509S01
YEL468C
NATS (NISSAN ANTI-THEFT SYSTEM)
Schematic (Cont'd)
EL-337

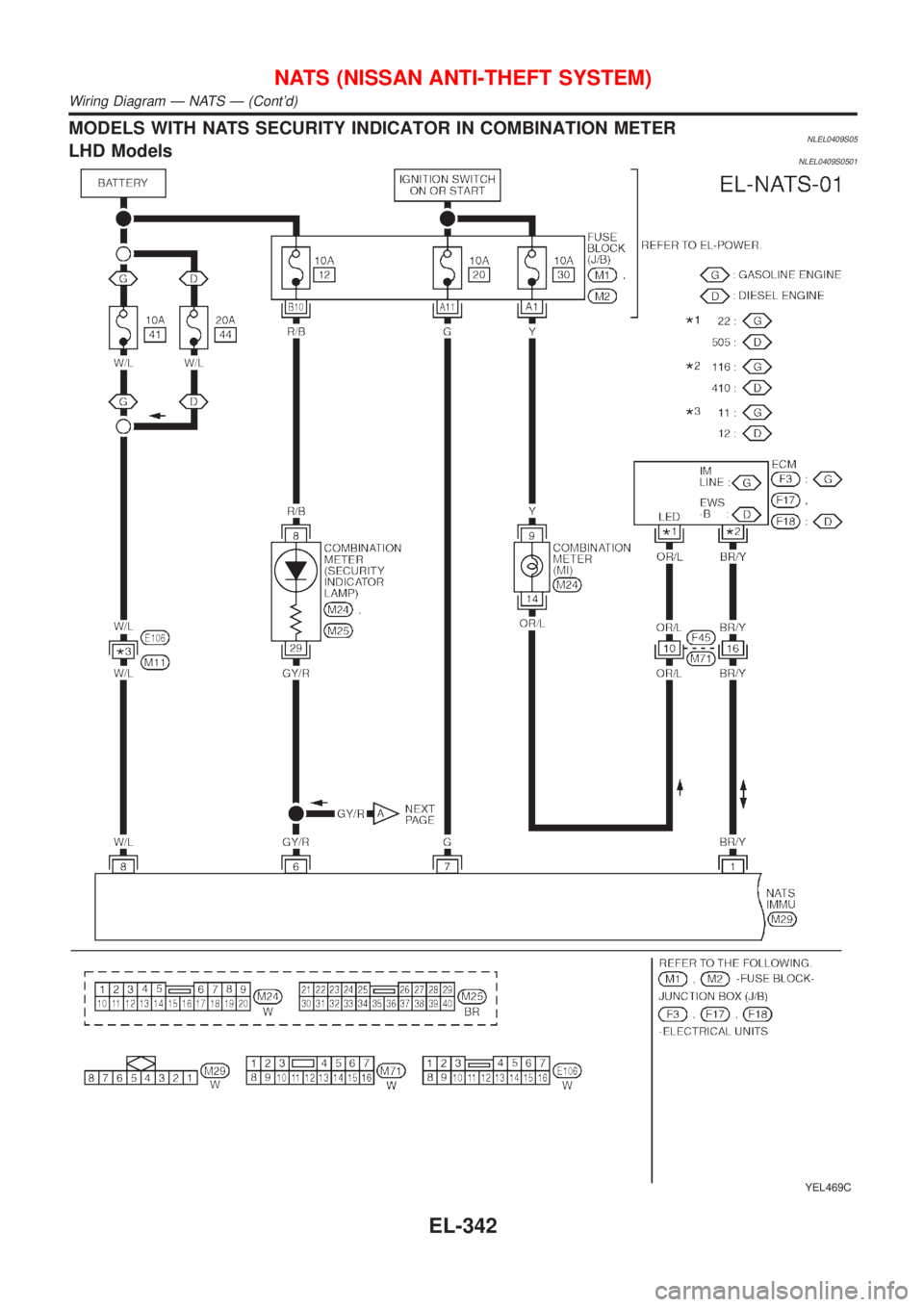

Wiring Diagram Ð NATS ÐNLEL0409MODELS WITH NATS SECURITY INDICATOR ON DASH BOARDNLEL0409S04LHD ModelsNLEL0409S0401
YEL952B
NATS (NISSAN ANTI-THEFT SYSTEM)
Wiring Diagram Ð NATS Ð
EL-338

MODELS WITH NATS SECURITY INDICATOR IN COMBINATION METERNLEL0409S05LHD ModelsNLEL0409S0501
YEL469C
NATS (NISSAN ANTI-THEFT SYSTEM)
Wiring Diagram Ð NATS Ð (Cont'd)
EL-342

NOTE:
+When any initialization is performed, all ID previously reg-
istered will be erased and all NATS ignition keys must be
registered again.
+The engine cannot be started with an unregistered key. In this
case, the system may show ªDIFFERENCE OF KEYº or
ªLOCK MODEº as a self-diagnostic result on the CONSULT-II
screen.
+When initialization is performed for RHD models for Europe,
security indicator will flash six times to demonstrate recognition
of the dongle unit ID.
+In rare case, ªCHAIN OF ECM-IMMUº might be stored as a
self-diagnostic result during key registration procedure, even if
the system is not malfunctioning.
HOW TO READ SELF-DIAGNOSTIC RESULTSNLEL0410S03
SEL151X
NATS SELF-DIAGNOSTIC RESULTS ITEM CHARTNLEL0410S04
Detected items (NATS program card
screen terms)P No. Code
(Self-diag-
nostic result
of ªENGINEºMalfunction is detected when .....
Reference page
ECM INT CIRC-IMMUNATS MAL-
FUNCTION
P1613The malfunction of ECM internal circuit of IMMU com-
munication line is detected. EL-352
CHAIN OF ECM-IMMUNATS MAL-
FUNCTION
P1612Communication impossible between ECM and IMMU
(In rare case, ªCHAIN OF ECM-IMMUº might be stored
during key registration procedure, even if the system is
not malfunctioning.)EL-353
DIFFERENCE OF KEYNATS MAL-
FUNCTION
P1615IMMU can receive the key ID signal but the result of ID
verification between key ID and IMMU is NG. EL-357
CHAIN OF IMMU-KEYNATS MAL-
FUNCTION
P1614IMMU cannot receive the key ID signal.
EL-358
NATS (NISSAN ANTI-THEFT SYSTEM)
CONSULT-II (Cont'd)
EL-347

Detected items (NATS program card
screen terms)P No. Code
(Self-diag-
nostic result
of ªENGINEºMalfunction is detected when .....
Reference page
ID DISCORD, IMM-ECMNATS MAL-
FUNCTION
P1611The result of ID verification between IMMU and ECM is
NG. System initialization is required. EL-360
LOCK MODENATS MAL-
FUNCTION
P1610When the starting operation is carried out five or more
times consecutively under the following conditions,
NATS will shift the mode to one which prevents the
engine from being started.
+Unregistered ignition key is used.
+IMMU or ECM's malfunctioning.EL-365
DON'T ERASE BEFORE
CHECKING ENG DIAGÐAll engine trouble codes except NATS trouble code has
been detected in ECM.EL-349
NATS (NISSAN ANTI-THEFT SYSTEM)
CONSULT-II (Cont'd)
EL-348

SYMPTOM MATRIX CHART 1NLEL0411S02(Self-diagnosis related item)
SYMPTOMDisplayed ªSELF-DIAG
RESULTSº on CON-
SULT-II screen.DIAGNOSTIC PROCE-
DURE
(Reference page)SYSTEM
(Malfunctioning part or mode)REFERENCE PART
NO. OF ILLUSTRA-
TION ON SYSTEM
DIAGRAM
+Security indica-
tor lighting up*
+Engine cannot
be startedECM INT CIRC-IMMUPROCEDURE 1
(EL-352)ECM B
CHAIN OF ECM-IMMUPROCEDURE 2
(EL-353)In rare case, ªCHAIN OF ECM-
IMMUº might be stored during key
registration procedure, even if the
system is not malfunctioning.Ð
Open circuit in battery voltage line
of IMMU circuitC1
Open circuit in ignition line of
IMMU circuitC2
Open circuit in ground line of
IMMU circuitC3
Open circuit in communication line
between IMMU and ECMC4
Short circuit between IMMU and
ECM communication line and bat-
tery voltage lineC4
Short circuit between IMMU and
ECM communication line and
ground lineC4
ECM B
IMMU A
DIFFERENCE OF KEYPROCEDURE 3
(EL-357)Unregistered key D
IMMU A
CHAIN OF IMMU-KEYPROCEDURE 4
(EL-358)Malfunction of key ID chip E
IMMU A
Open circuit in ground line of
dongle unit circuitC6
Open or short circuit in line
between IMMU and dongle unitC5
Dongle unit G
ID DISCORD, IMM-
ECMPROCEDURE 5
(EL-360)System initialization has not yet
been completed.F
ECM B
LOCK MODEPROCEDURE 7
(EL-365)LOCK MODE D
+MIL staying ON
+Security indica-
tor lighting up*DON'T ERASE
BEFORE CHECKING
ENG DIAGWORK FLOW
(EL-349)Engine trouble data and NATS
trouble data have been detected
in ECMÐ
*: When NATS detects trouble, the security indicator lights up while ignition key is in the ªONº position.
*: When the vehicle is equipped with a dongle unit (RHD models for Europe), the security indicator blinks 6 times just after the ignition
switch is turned to ON. Then the security indicator lights up while the ignition key is in the ªONº position.
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses (Cont'd)
EL-350

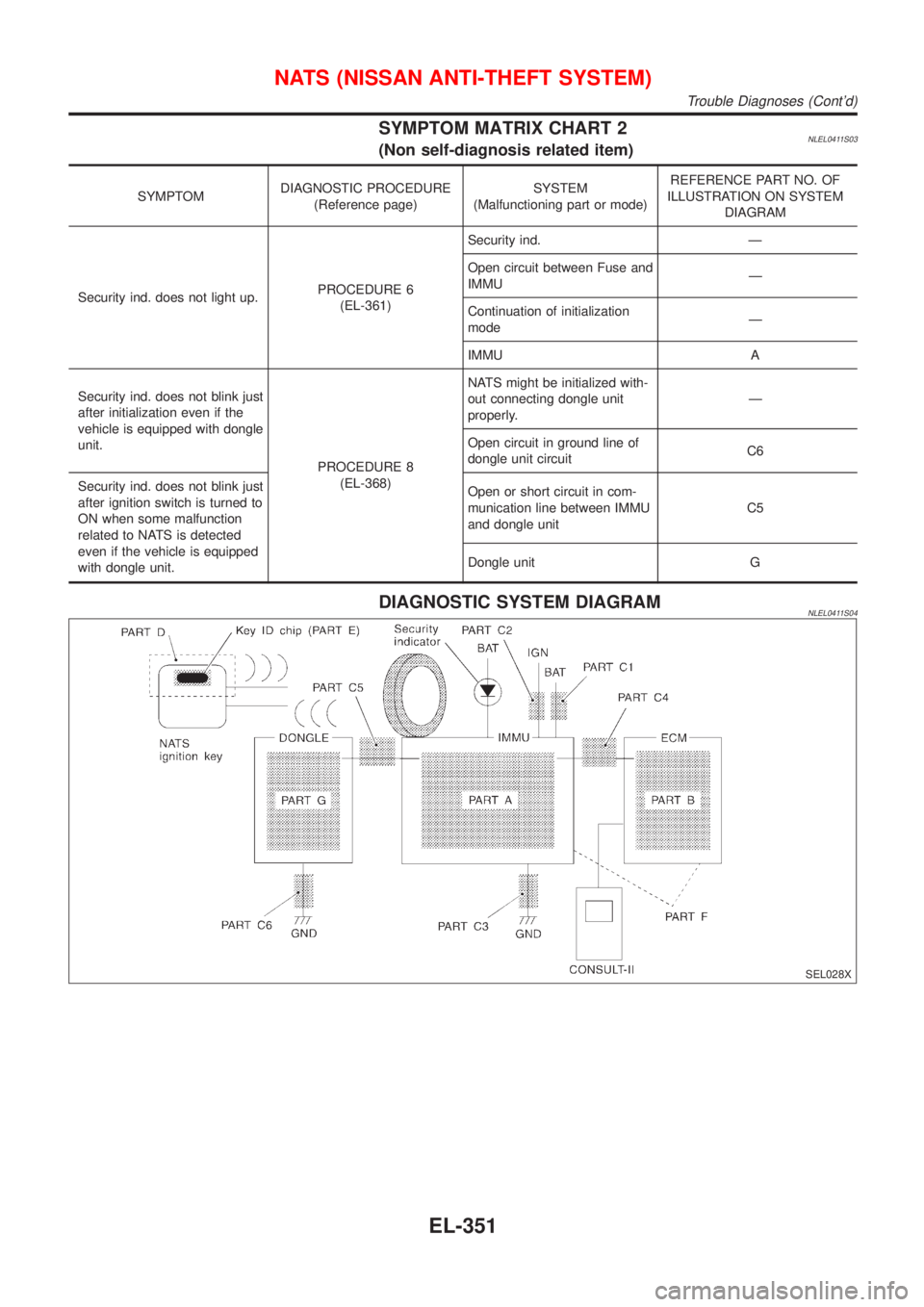

SYMPTOM MATRIX CHART 2NLEL0411S03(Non self-diagnosis related item)
SYMPTOMDIAGNOSTIC PROCEDURE
(Reference page)SYSTEM
(Malfunctioning part or mode)REFERENCE PART NO. OF
ILLUSTRATION ON SYSTEM
DIAGRAM
Security ind. does not light up.PROCEDURE 6
(EL-361)Security ind. Ð
Open circuit between Fuse and
IMMUÐ
Continuation of initialization
modeÐ
IMMU A
Security ind. does not blink just
after initialization even if the
vehicle is equipped with dongle
unit.
PROCEDURE 8
(EL-368)NATS might be initialized with-
out connecting dongle unit
properly.Ð
Open circuit in ground line of
dongle unit circuitC6
Security ind. does not blink just
after ignition switch is turned to
ON when some malfunction
related to NATS is detected
even if the vehicle is equipped
with dongle unit.Open or short circuit in com-
munication line between IMMU
and dongle unitC5
Dongle unit G
DIAGNOSTIC SYSTEM DIAGRAMNLEL0411S04
SEL028X
NATS (NISSAN ANTI-THEFT SYSTEM)
Trouble Diagnoses (Cont'd)
EL-351
