11. A/T Does Not Shift: D3®D4=NJAT0341SYMPTOM:
+A/T does not shift from D
3to D4at the specified speed.
+A/T must be warm before D
3to D4shift will occur.
1 CHECK SYMPTOM
Are 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Cannot Be Started From D1OK?
YesorNo
Ye s©GO TO 2.
No©Go to 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position and 8. Vehicle Can-
not Be Started From D
1, AT-308, 311.
2 CHECK SELF-DIAGNOSTIC RESULTS
With CONSULT-II
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
+PNP switch
+Overdrive control switch
+A/T fluid temperature sensor
+Vehicle speed sensor´A/T (revolution sensor)
+Shift solenoid valve A or B
+Vehicle speed sensor´MTR
SAT363HC
YesorNo
Ye s©+Check damaged circuit. Refer to the following items.
General and except for Euro-OBD
+VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR): AT-126
+SHIFT SOLENOID VALVE A: AT-142
+SHIFT SOLENOID VALVE B: AT-148
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-165
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-131
+21. TCM Self-diagnosis Does Not Activate (PNP, Overdrive Control and Throttle Posi-
tion Switches Circuit Checks): AT-334
Euro-OBD
+VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR): AT-195
+SHIFT SOLENOID VALVE A: AT-246
+SHIFT SOLENOID VALVE B: AT-252
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE): AT-274
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-281
+21. TCM Self-diagnosis Does Not Activate (PNP, Overdrive Control and Throttle Posi-
tion Switches Circuit Checks): AT-334
No©GO TO 3.
TROUBLE DIAGNOSES FOR SYMPTOMS
11. A/T Does Not Shift: D3®D4
AT-320

3 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-207, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 4.
NG©Repair or replace throttle position sensor.
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©GO TO 7.
5 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Shift valve B
+Overrun clutch control valve
+Shift solenoid valve B
+Pilot valve
+Pilot filter
OK or NG
OK©GO TO 6.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
11. A/T Does Not Shift: D3®D4(Cont'd)
AT-321

12. A/T Does Not Perform Lock-up=NJAT0342SYMPTOM:
A/T does not perform lock-up at the specified speed.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch solenoid valve circuit after cruise test?
SAT346H
YesorNo
Ye s©Check torque converter clutch solenoid valve circuit. Refer to AT-159 (General and
except for Euro-OBD)/AT-233 (Euro-OBD).
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-207, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor.
3 DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT-351.
2. Check following items:
+Torque converter clutch control valve
+Torque converter relief valve
+Torque converter clutch solenoid valve
+Pilot valve
+Pilot filter
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
12. A/T Does Not Perform Lock-up
AT-323

15. Engine Speed Does Not Return To Idle
(Light Braking D
4®D3)=NJAT0345SYMPTOM:
+Engine speed does not smoothly return to idle when A/T
shifts from D
4to D3.
+Vehicle does not decelerate by engine brake when turning
overdrive control switch OFF.
+Vehicle does not decelerate by engine brake when shifting
A/T from ªDº to ª2º position.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve circuit after cruise test?
SAT348H
YesorNO
Ye s©Check overrun clutch solenoid valve circuit. Refer to AT-154 (General and except for
Euro-OBD)/AT-268 (Euro-OBD).
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-207, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor. (AT-134: General and except for Euro-OBD/AT-
258: Euro-OBD)
TROUBLE DIAGNOSES FOR SYMPTOMS
15. Engine Speed Does Not Return To Idle (Light Braking D4®D3)
AT-328

16. Vehicle Does Not Start From D1NJAT0346SYMPTOM:
Vehicle does not start from D
1on Cruise test Ð Part 2.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor´A/T (revolution sensor), shift solenoid valve A, B or vehicle
speed sensor´MTR after cruise test?
SAT934FA
YesorNo
Ye s©+Check damaged circuit. Refer to the following items.
General and except for Euro-OBD
+VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR): AT-126
+SHIFT SOLENOID VALVE A: AT-142
+SHIFT SOLENOID VALVE B: AT-148
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-131
Euro-OBD
+VEHICLE SPEED SENSOR´A/T (REVOLUTION SENSOR): AT-195
+SHIFT SOLENOID VALVE A: AT-246
+SHIFT SOLENOID VALVE B: AT-252
+VHCL SPEED SEN´MTR VEHICLE SPEED SENSOR´MTR: AT-281
No©GO TO 2.
2 CHECK SYMPTOM
Check again.
OK or NG
OK©Go to 8. Vehicle Cannot Be Started From D
1, AT-311.
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
16. Vehicle Does Not Start From D1
AT-330

SAT480J
4. Usea4mm(0.157 in) pin for this adjustment.
a. Insert the pin straight into the manual shaft adjustment hole.
b. Rotate PNP switch until the pin can also be inserted straight
into hole in PNP switch.
5. Tighten PNP switch fixing bolts.
6. Remove pin from adjustment hole after adjusting PNP switch.
7. Reinstall any part removed.
8. Adjust control cable. Refer to ªControl Cable Adjustmentº,
AT-352.
9. Check continuity of PNP switch. Refer to AT-334.
SAT905DB
Differential Side Oil Seal ReplacementNJAT01131. Remove drive shaft assemblies. Refer to AX-10, ªDrive Shaftº.
2. Remove oil seals.
XAT002
3. Install oil seals.
+Apply ATF to oil seal surface before installing.
SAT027K
+Install oil seals so that dimensions ªAº and ªBº are within
specifications.
Unit: mm (in)
AB
5.5 - 6.5 (0.217 - 0.256) þ0.5 to 0.5 (þ0.020 to 0.020)
4. Reinstall any part removed.
SAT303G
Revolution Sensor ReplacementNJAT01141. Disconnect revolution sensor harness connector.
2. Remove harness bracket from A/T.
3. Remove revolution sensor from A/T.
4. Reinstall any part removed.
Always use new sealing parts.
ON-VEHICLE SERVICE
Park/Neutral Position (PNP) Switch Adjustment (Cont'd)
AT-353

SAT065K

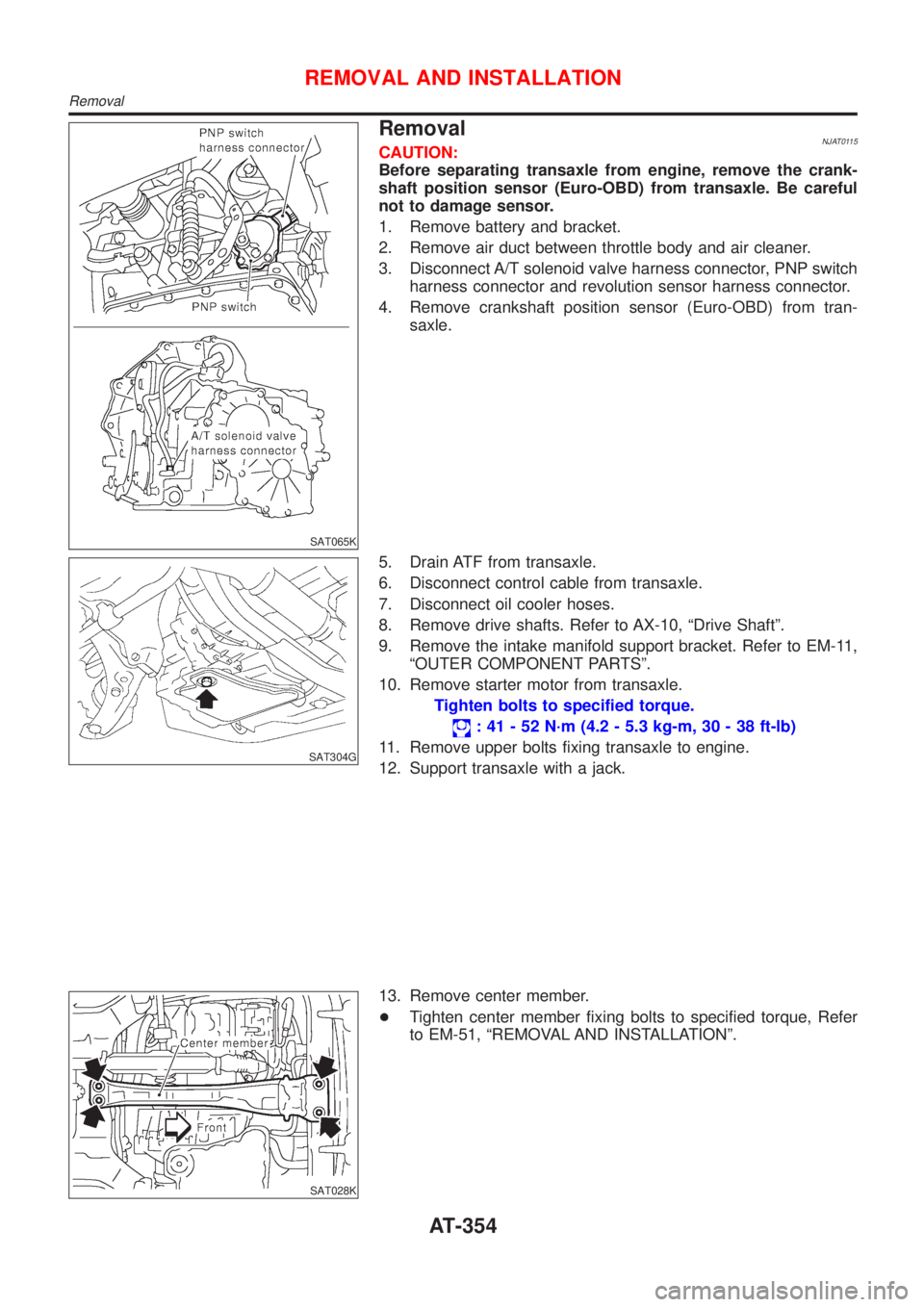

RemovalNJAT0115CAUTION:
Before separating transaxle from engine, remove the crank-
shaft position sensor (Euro-OBD) from transaxle. Be careful
not to damage sensor.
1. Remove battery and bracket.
2. Remove air duct between throttle body and air cleaner.
3. Disconnect A/T solenoid valve harness connector, PNP switch
harness connector and revolution sensor harness connector.
4. Remove crankshaft position sensor (Euro-OBD) from tran-
saxle.
SAT304G
5. Drain ATF from transaxle.
6. Disconnect control cable from transaxle.
7. Disconnect oil cooler hoses.
8. Remove drive shafts. Refer to AX-10, ªDrive Shaftº.
9. Remove the intake manifold support bracket. Refer to EM-11,
ªOUTER COMPONENT PARTSº.
10. Remove starter motor from transaxle.
Tighten bolts to specified torque.
: 41 - 52 N´m (4.2 - 5.3 kg-m, 30 - 38 ft-lb)
11. Remove upper bolts fixing transaxle to engine.
12. Support transaxle with a jack.
SAT028K
13. Remove center member.
+Tighten center member fixing bolts to specified torque, Refer
to EM-51, ªREMOVAL AND INSTALLATIONº.
REMOVAL AND INSTALLATION
Removal
AT-354

SAT311G
48. Remove revolution sensor from transmission case.
DISASSEMBLY
AT-380
