Diagnostic ProcedureNJAT0313
1 CHECK DTC WITH ECM
Perform diagnostic test mode II (self-diagnostic results) for engine control.
Refer to EC-74, ªMalfunction Indicator Lamp (MIL)º.
OK or NG
OK (With CONSULT-II)©GO TO 2.
OK (Without CONSULT-
II)©GO TO 3.
NG©Check throttle position sensor circuit for engine control. Refer to EC-207, ªDTC P0120
THROTTLE POSITION SENSORº.
2 CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Apply vacuum to the throttle opener then check the following. Refer from step 1 to 5 of ªPreparationº, ªTCM SELF-DI-
AGNOSTIC PROCEDURE (No Tools)º, AT-63.
2. Turn ignition switch to ªONº position.
(Do not start engine.)
3. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
SAT014K
4. Read out the value of ªTHRTL POS SENº.
Voltage:
Fully-closed throttle:
Approximately 0.5V
Fully-open throttle:
Approximately 4V
SAT614J
OK or NG
OK©GO TO 4.
NG©Check harness for short or open between ECM and TCM regarding throttle position sen-
sor circuit. (Main harness)
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Diagnostic Procedure
AT-263

3 CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Apply vacuum to the throttle opener then check the following. Refer to steps 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-63.
2. Turn ignition switch to ªONº position.
(Do not start engine.)
3. Check voltage between TCM terminals 41 and 42 while accelerator pedal is depressed slowly.
Voltage:
Fully-closed throttle valve:
Approximately 0.5V
Fully-open throttle valve:
Approximately 4V
(Voltage rises gradually in response to throttle position)
SAT453J
OK or NG
OK©GO TO 5.
NG©Check harness for short or open between ECM and TCM regarding throttle position sen-
sor circuit. (Main harness)
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Diagnostic Procedure (Cont'd)
AT-264

4 CHECK THROTTLE POSITION SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Apply vacuum to the throttle opener, then check the following. Refer to steps 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-63.
2. Turn ignition switch to ªONº position.
(Do not start engine.)
3. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
4. Read out ªCLOSED THL/SWº and ªW/O THRL/P-SWº depressing and releasing accelerator pedal.
Check the signal of throttle position switch is indicated properly.
MTBL0011
SAT702J
OK or NG
OK©GO TO 6.
NG©Check the following items:
+Throttle position switch Ð Refer to ªComponents Inspectionº, AT-267.
+Harness for short or open between ignition switch and throttle position switch (Main
harness)
+Harness for short or open between throttle position switch and TCM (Main harness)
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Diagnostic Procedure (Cont'd)
AT-265

5 CHECK THROTTLE POSITION SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Apply vacuum to the throttle opener, then check the following. Refer to steps 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-63.
2. Turn ignition switch to ªONº position.
(Do not start engine.)
3. Check voltage between TCM terminals 16, 17 and ground while depressing, and releasing accelerator pedal slowly.
(After warming up engine)
MTBL0137
SAT454JB
OK or NG
OK©GO TO 6.
NG©Check the following items:
+Throttle position switch Ð Refer to ªComponents Inspectionº, AT-267.
+Harness for short or open between ignition switch and throttle position switch (Main
harness)
+Harness for short or open between throttle position switch and TCM (Main harness)
6 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-259.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Diagnostic Procedure (Cont'd)
AT-266

SAT851JA

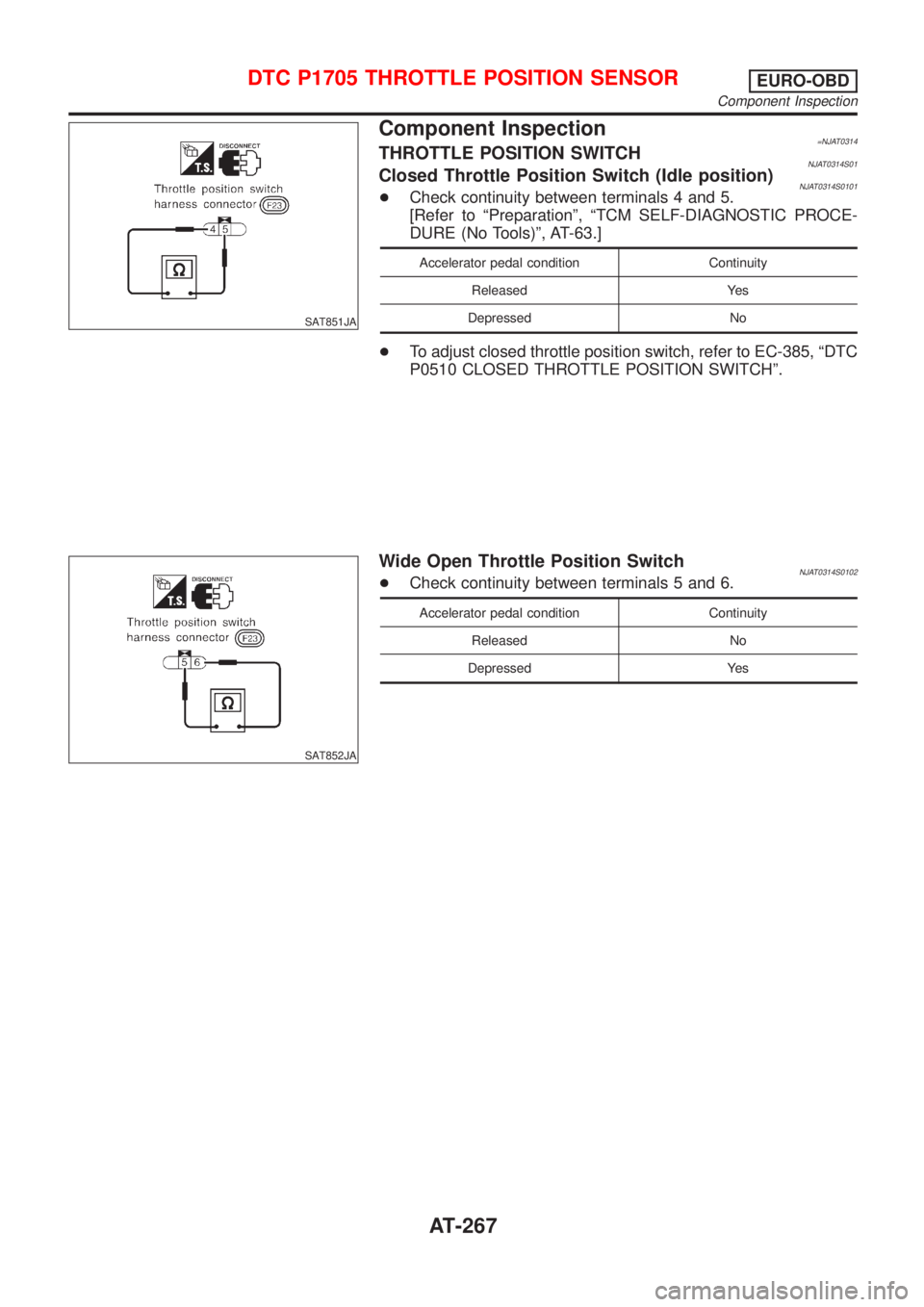

Component Inspection=NJAT0314THROTTLE POSITION SWITCHNJAT0314S01Closed Throttle Position Switch (Idle position)NJAT0314S0101+Check continuity between terminals 4 and 5.
[Refer to ªPreparationº, ªTCM SELF-DIAGNOSTIC PROCE-
DURE (No Tools)º, AT-63.]
Accelerator pedal condition Continuity
Released Yes
Depressed No
+To adjust closed throttle position switch, refer to EC-385, ªDTC
P0510 CLOSED THROTTLE POSITION SWITCHº.
SAT852JA
Wide Open Throttle Position SwitchNJAT0314S0102+Check continuity between terminals 5 and 6.
Accelerator pedal condition Continuity
Released No
Depressed Yes
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Component Inspection
AT-267

SAT322GC
DescriptionNJAT0315The overrun clutch solenoid valve is activated by the TCM in
response to signals sent from the inhibitor switch, overdrive con-
trol switch, vehicle speed and throttle position sensors. The over-
run clutch operation will then be controlled.
TCM TERMINALS AND REFERENCE VALUENJAT0315S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
20 L/BOverrun clutch
solenoid valve
When overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.1V or less
ON BOARD DIAGNOSIS LOGICNJAT0315S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: O/R CLTCH SOL/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Overrun clutch solenoid valve
: P1760
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0315S03CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve accuracy of
test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
2) Start engine.
3) Accelerate vehicle to a speed of more than 10 km/h (6 MPH)
with ªDº position (OD ªONº).
4) Release accelerator pedal completely with ªDº position (OD
ªOFFº).
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEEURO-OBD
Description
AT-268

SAT322GC
SAT021J
DescriptionNJAT0319The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0319S01Remarks: Specification data are reference values.
Monitor item Condition Specification
A/T fluid temperature sensorCold [20ÉC (68ÉF)]
¯
Hot [80ÉC (176ÉF)]Approximately 1.5V
¯
Approximately 0.5VApproximately 2.5 kW
¯
Approximately 0.3 kW
TCM TERMINALS AND REFERENCE VALUENJAT0319S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
10 BR/R Power source
When turning ignition switch to
ªONº.Battery voltage
When turning ignition switch to
ªOFFº.1V or less
19 BR/R Power source Same as No. 10
28 R/BPower source
(Memory back-up)
or
When turning ignition switch to
ªOFFº.Battery voltage
When turning ignition switch to
ªONº.Battery voltage
42 BGround
(A/T fluid tem-
perature sensor)
ÐÐ
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20ÉC
(68ÉF).Approximately
1.5V
When ATF temperature is 80ÉC
(176ÉF).Approximately
0.5V
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Description
AT-274

ON BOARD DIAGNOSIS LOGICNJAT0319S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: BATT/FLUID TEMP SEN
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+A/T fluid temperature sensor
: 8th judgement flicker
SAT014K
SAT971J
SAT335HC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0319S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Start engine.
2) Select ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº, vehicle speed higher than 20 km/h (12
MPH).
Without CONSULT-II
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº, vehicle speed higher than 20 km/h (12
MPH).
3) Perform self-diagnosis.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools),
AT-63.
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Description (Cont'd)
AT-275
