SAT322GC
DescriptionNJAT0295The torque converter clutch solenoid valve is activated, with the
gear in ªD
4º, by the TCM in response to signals sent from the
vehicle speed and throttle position sensors. Lock-up piston opera-
tion will then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is
a big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0295S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up ªOFFº
¯
Lock-up ªONºApproximately 4%
¯
Approximately 94%
TCM TERMINALS AND REFERENCE VALUENJAT0295S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement
standard
3 GY/RTorque converter
clutch solenoid
valve
When A/T performs lock-up. 8 - 15V
When A/T does not perform lock-
up.1V or less
ON BOARD DIAGNOSIS LOGICNJAT0295S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: TCC SOLENOID/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+T/C clutch solenoid valve
: P0740
DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EURO-OBD
Description
AT-233

SAT322GC
DescriptionNJAT0303Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0303S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
11 L/WShift solenoid
valve A
When shift solenoid valve A oper-
ates.
(When driving in ªD
1ºorªD4º.)Battery voltage
When shift solenoid valve A does
not operate.
(When driving in ªD
2ºorªD3º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0303S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SFT SOL A/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve A
: P0750
DTC P0750 SHIFT SOLENOID VALVE AEURO-OBD
Description
AT-246

SAT322GC
DescriptionNJAT0307Shift solenoid valves A and B are turned ªONº or ªOFFº by the TCM
in response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0307S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
12 L/YShift solenoid
valve B
When shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSIS LOGICNJAT0307S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: SFT SOL B/CIRC TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Shift solenoid valve B
: P0755
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Description
AT-252

SAT004K
DescriptionNJAT0311+Throttle position sensor
The throttle position sensor detects the throttle valve position
and sends a signal to the TCM.
+Throttle position switch
Consists of a wide open throttle position switch and a closed
throttle position switch.
The wide open throttle position switch sends a signal to the
TCM when the throttle valve is open at least 1/2 of the full
throttle position. The closed throttle position switch sends a
signal to the TCM when the throttle valve is fully closed.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0311S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Throttle position sensorFully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
TCM TERMINALS AND REFERENCE VALUENJAT0311S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
16 Y/PUClosed throttle
position switch
(in throttle position
switch)
When releasing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªTCM SELF-
DIAGNOSTIC PROCEDURE (No
Tools)º, AT-63.Battery voltage
When depressing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªTCM SELF-
DIAGNOSTIC PROCEDURE (No
Tools)º, AT-63.1V or less
17 LGWide open throttle
position switch
(in throttle position
switch)When depressing accelerator pedal
more than half-way after warming
up engine.Battery voltage
When releasing accelerator pedal
after warming up engine.1V or less
32 RThrottle position
sensor
(Power source)Ð 4.5 - 5.5V
41 GYThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle:
Approximately
0.5V
Fully-open
throttle:
Approximately
4V
42 BGround
(Throttle position
sensor)ÐÐ
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description
AT-258

ON BOARD DIAGNOSIS LOGICNJAT0311S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: TP SEN/CIRC A/T
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Throttle position sensor
+Throttle position switch
: P1705
SAT014K
SAT971J
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0311S04CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Apply vacuum to the throttle opener, then check the following.
Refer to steps from 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-63.
2) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªA/Tº with CONSULT-II.
3) Check the following.
Accelerator pedal
conditionTHRTL POS SEN CLOSED THL/SW W/O THRL/P´SW
Fully released Less than 4.7V ON OFF
Partially
depressed0.1 - 4.6V OFF OFF
Fully depressed 1.9 - 4.6V OFF ON
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-263.
If the check result is OK, go to following step.
4) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
5) Start engine and maintain the following conditions for at least
3 consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3V or less
Selector lever: D position (OD ªONº)
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-263.
If the check result is OK, go to following step.
6) Maintain the following conditions for at least 3 consecutive
seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
Accelerator pedal: Wide open throttle
Selector lever: D position (OD ªONº)
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description (Cont'd)
AT-259

With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description (Cont'd)
AT-260

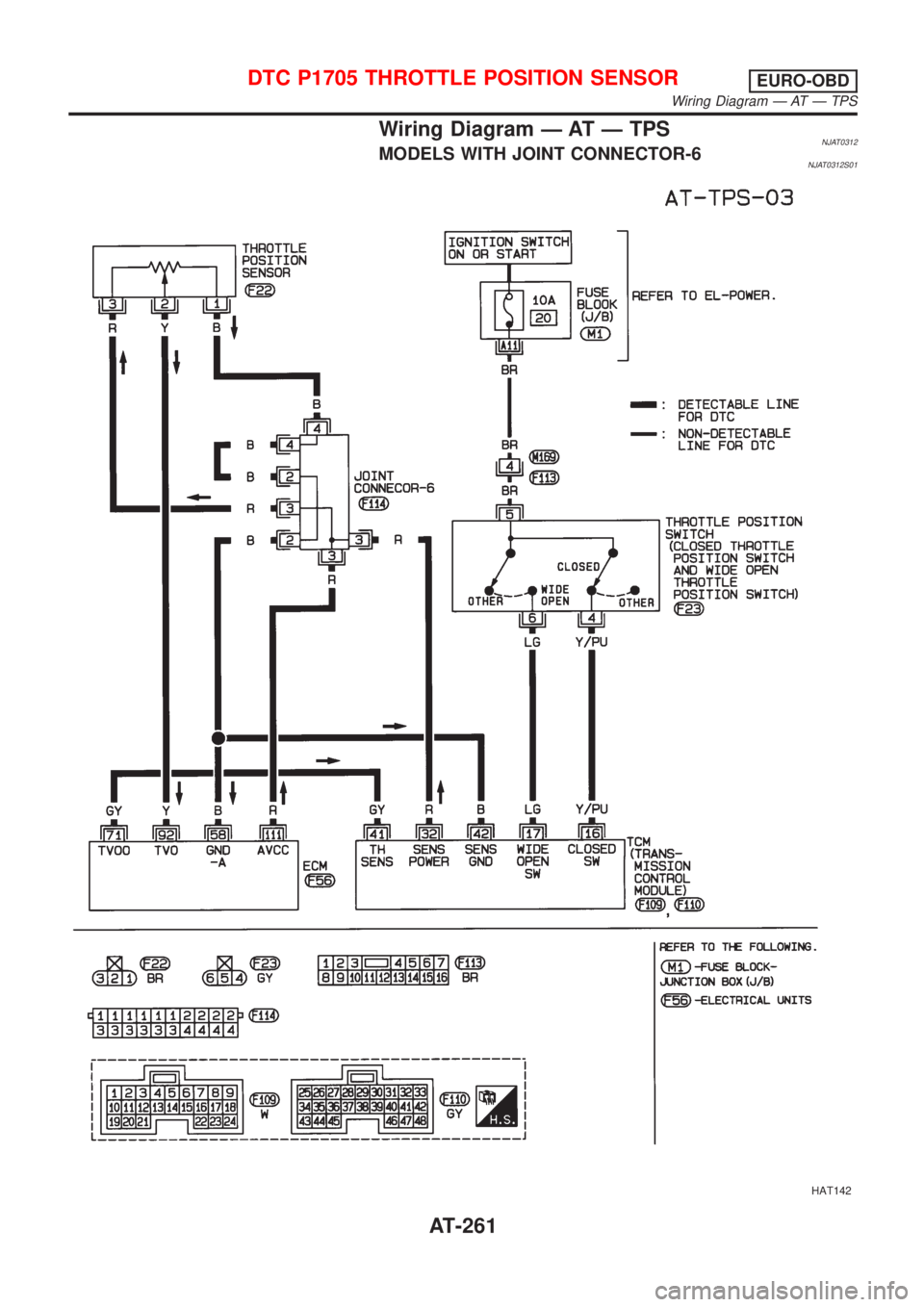

Wiring Diagram Ð AT Ð TPSNJAT0312MODELS WITH JOINT CONNECTOR-6NJAT0312S01
HAT142
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Wiring Diagram Ð AT Ð TPS
AT-261

MODELS WITH JOINT CONNECTOR-3 AND 4NJAT0312S02
HAT093
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Wiring Diagram Ð AT Ð TPS (Cont'd)
AT-262
