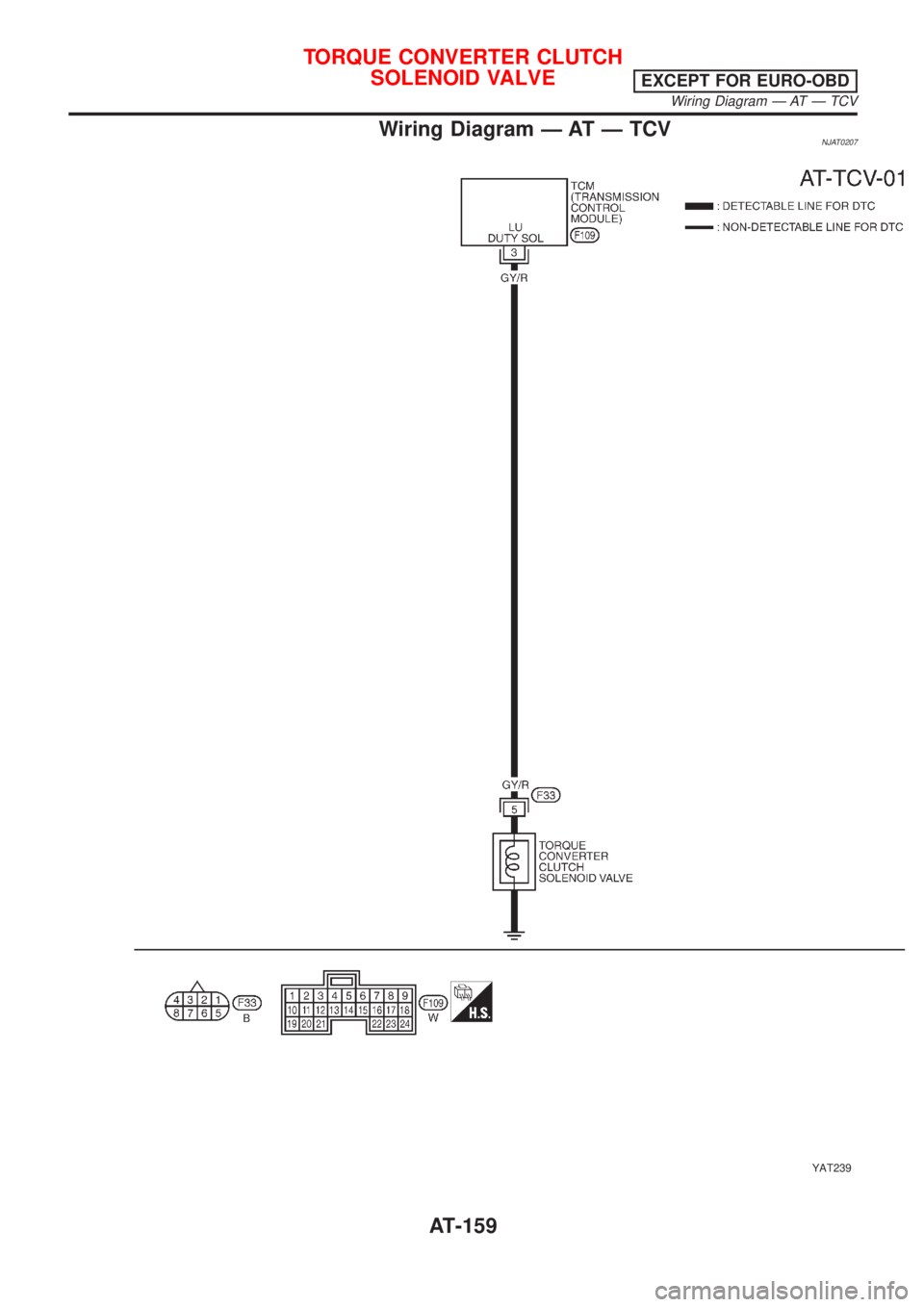

Wiring Diagram Ð AT Ð TCVNJAT0207
YAT239
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð TCV
AT-159

Diagnostic ProcedureNJAT0056
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 5 and ground.
Resistance:
5-20W
SAT889JA
OK or NG
OK©GO TO 2.
NG©1. Remove oil pan. Refer to AT-343.
2. Check the following items:
+Torque converter clutch solenoid valve
Refer to ªComponent Inspectionº, AT-162.
+Harness of terminal cord assembly for short or open
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-160

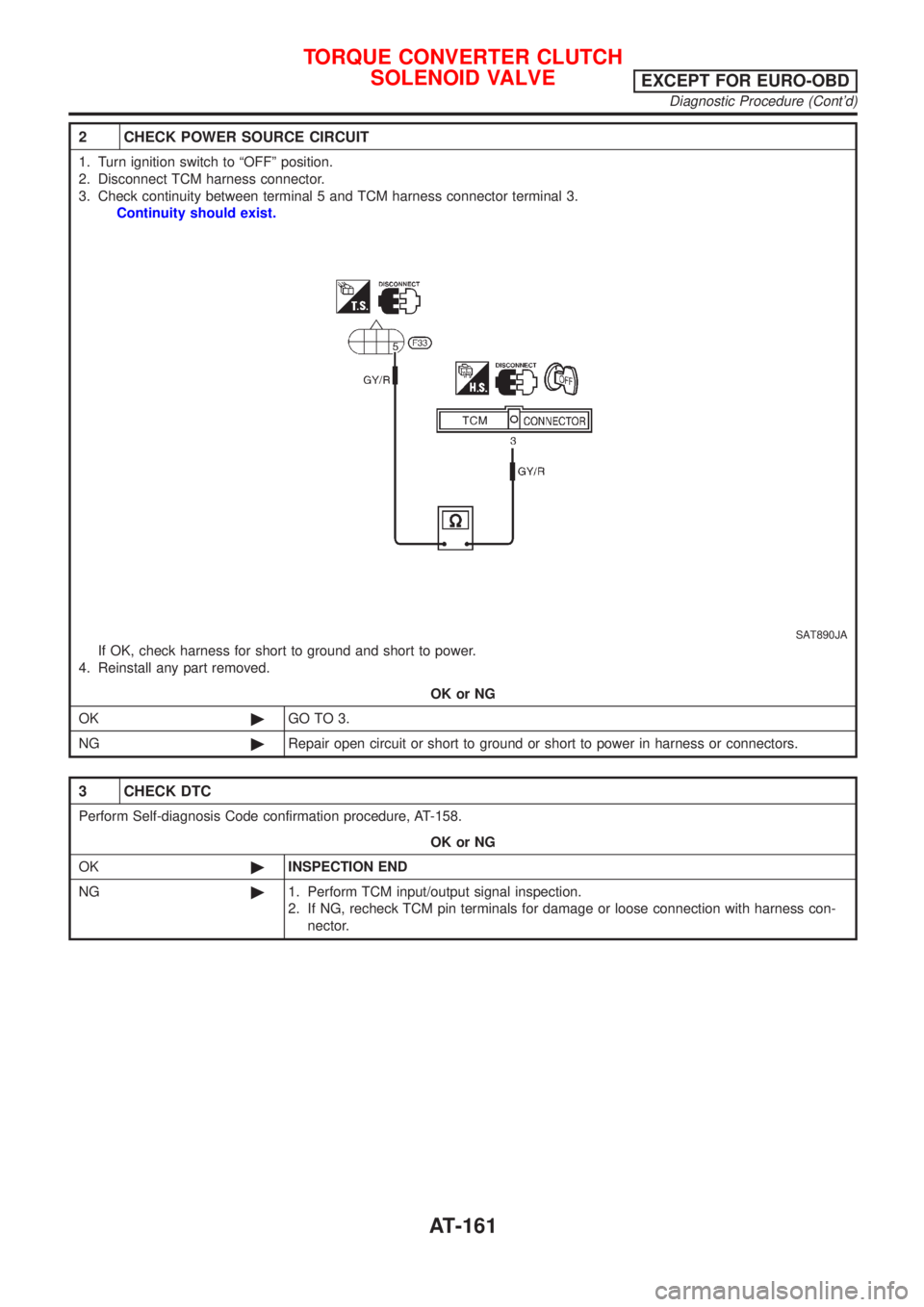

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 5 and TCM harness connector terminal 3.
Continuity should exist.
SAT890JA
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-158.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-161

SAT025K

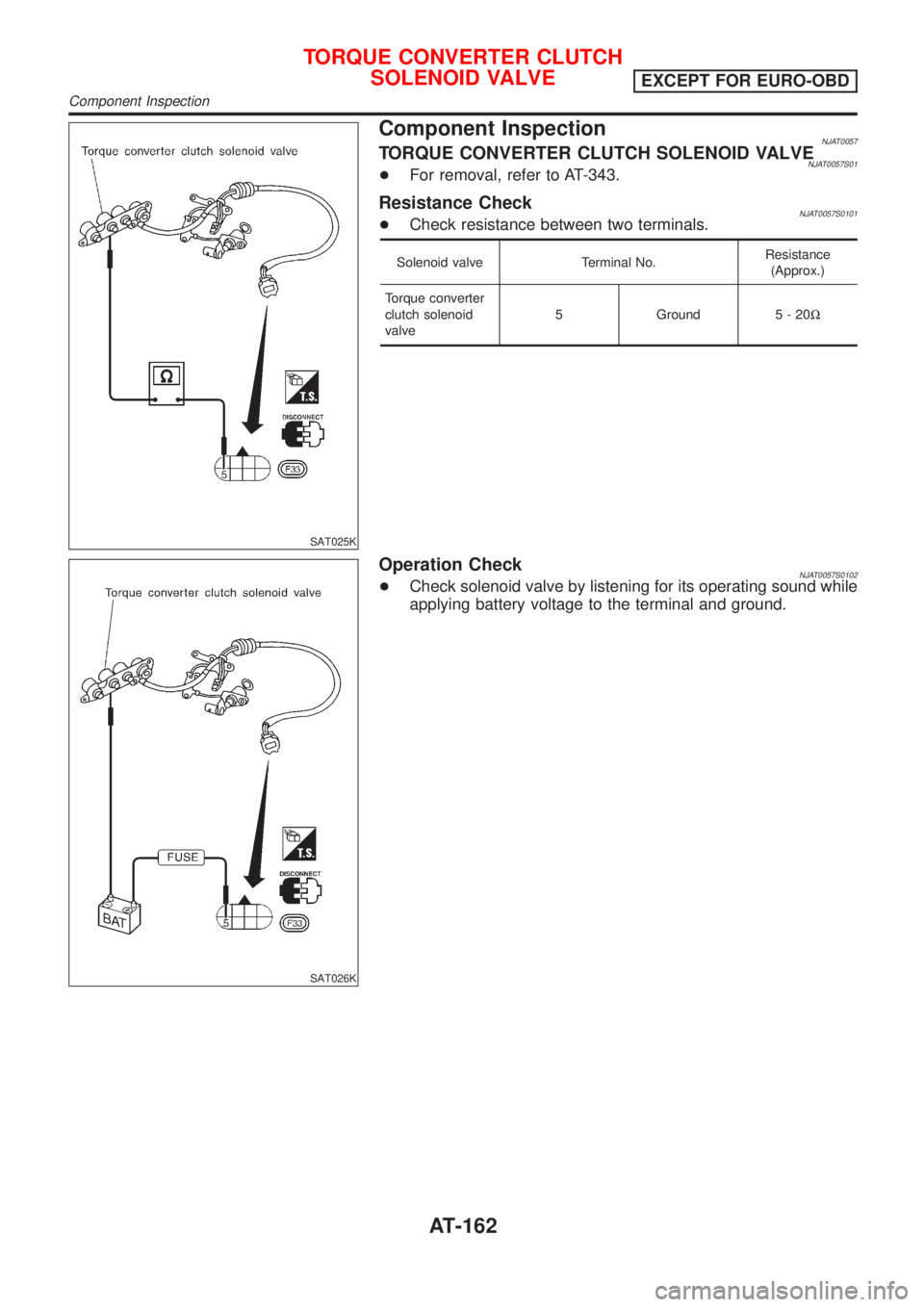

Component InspectionNJAT0057TORQUE CONVERTER CLUTCH SOLENOID VALVENJAT0057S01+For removal, refer to AT-343.
Resistance CheckNJAT0057S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Torque converter
clutch solenoid
valve5 Ground 5 - 20W
SAT026K
Operation CheckNJAT0057S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Component Inspection
AT-162

DescriptionNJAT0279+This is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
+This malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
+This malfunction is detected when the A/T does not shift into
first gear position as instructed by the TCM. This is not caused
by electrical malfunction (circuits open or shorted) but by
mechanical malfunction such as control valve sticking,
improper solenoid valve operation, etc.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0279S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
11 L/WShift solenoid
valve A
When shift solenoid valve A oper-
ates.
(When driving in ªD
1ºorªD4º.)Battery voltage
When shift solenoid valve A does
not operate.
(When driving in ªD
2ºorªD3º.)1V or less
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSTIC LOGICNJAT0279S02This diagnosis monitors actual gear position by checking the torque
converter slip ratio calculated by TCM as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (1st) supposed
by TCM, the slip ratio will be more than normal. In case the ratio
exceeds the specified value, TCM judges this diagnosis malfunc-
tion.
This malfunction will be caused when either shift solenoid valve A
is stuck open or shift solenoid valve B is stuck open.
Gear position supposed by TCM1234
In case of gear position with no malfunctions1234
In case of gear position with shift solenoid valve A stuck open 2* 2 3 3
In case of gear position with shift solenoid valve B stuck open 4* 3 3 4
*: P0731 is detected.
DTC P0731 A/T 1ST GEAR FUNCTIONEURO-OBD
Description
AT-202

DescriptionNJAT0283+This is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
+This malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
+This malfunction is detected when the A/T does not shift into
second gear position as instructed by the TCM. This is not
caused by electrical malfunction (circuits open or shorted) but
by mechanical malfunction such as control valve sticking,
improper solenoid valve operation, etc.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0283S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
12 L/YShift solenoid
valve B
When shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
ON BOARD DIAGNOSTIC LOGICNJAT0283S02This diagnosis monitors actual gear position by checking the torque
converter slip ratio calculated by TCM as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (2nd) sup-
posed by TCM, the slip ratio will be more than normal. In case the
ratio exceeds the specified value, TCM judges this diagnosis mal-
function.
This malfunction will be caused when shift solenoid valve B is stuck
open.
Gear position supposed by TCM1234
In case of gear position with no malfunctions1234
In case of gear position with shift solenoid valve B stuck open 4 3* 3 4
*: P0732 is detected.
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: A/T 2ND GR FNCTN
A/T cannot be shifted to the 2nd gear
position even if electrical circuit is good.+Shift solenoid valve B
+Each clutch
+Hydraulic control circuit
: P0732
DTC P0732 A/T 2ND GEAR FUNCTIONEURO-OBD
Description
AT-209

DescriptionNJAT0287+This is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
+This malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
+This malfunction is detected when the A/T does not shift into
third gear position as instructed by the TCM. This is not caused
by electrical malfunction (circuits open or shorted) but by
mechanical malfunction such as control valve sticking,
improper solenoid valve operation, malfunctioning servo piston
or brake band, etc.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
TCM TERMINALS AND REFERENCE VALUENJAT0287S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
11 L/WShift solenoid
valve A
When shift solenoid valve A oper-
ates.
(When driving in ªD
1ºorªD4º.)Battery voltage
When shift solenoid valve A does
not operate.
(When driving in ªD
2ºorªD3º.)1V or less
ON BOARD DIAGNOSTIC LOGICNJAT0287S02This diagnosis monitors actual gear position by checking the torque
converter slip ratio calculated by TCM as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed
by TCM, the slip ratio will be more than normal. In case the ratio
exceeds the specified value, TCM judges this diagnosis malfunc-
tion.
This malfunction will be caused when shift solenoid valve A is stuck
closed.
Gear position supposed by TCM1234
In case of gear position with no malfunctions1234
In case of gear position with shift solenoid valve A stuck closed 1 1 4* 4
*: P0733 is detected.
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: A/T 3RD GR FNCTN
A/T cannot be shifted to the 3rd gear
position even if electrical circuit is good.+Shift solenoid valve A
+Each clutch
+Hydraulic control circuit
: P0733
DTC P0733 A/T 3RD GEAR FUNCTIONEURO-OBD
Description
AT-215

DescriptionNJAT0291+This is an OBD-II self-diagnostic item and not available in TCM
self-diagnosis.
+This malfunction will not be detected while the O/D OFF indi-
cator lamp is indicating another self-diagnosis malfunction.
+This malfunction is detected when the A/T does not shift into
fourth gear position or the torque converter clutch does not
lock up as instructed by the TCM. This is not caused by elec-
trical malfunction (circuits open or shorted) but by mechanical
malfunction such as control valve sticking, improper solenoid
valve operation, malfunctioning oil pump or torque converter
clutch, etc.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0291S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Line pressure solenoid valve dutySmall throttle opening
(Low line pressure)
¯
Large throttle opening
(High line pressure)Approximately 24%
¯
Approximately 95%
TCM TERMINALS AND REFERENCE VALUENJAT0291S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
1 R/WLine pressure
solenoid valve
When releasing accelerator pedal
after warming up engine.1.5 - 2.5V
When depressing accelerator pedal
fully after warming up engine.0.5V or less
2 P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0.5V or less
11 L/WShift solenoid
valve A
When shift solenoid valve A oper-
ates.
(When driving in ªD
1ºorªD4º.)Battery voltage
When shift solenoid valve A does
not operate.
(When driving in ªD
2ºorªD3º.)1V or less
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in ªD
1ºorªD2º.)Battery voltage
When shift solenoid valve B does
not operate.
(When driving in ªD
3ºorªD4º.)1V or less
DTC P0734 A/T 4TH GEAR FUNCTIONEURO-OBD
Description
AT-221
