2001 CHRYSLER VOYAGER sensor

BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAYCAV CIRCUIT FUNCTION
1 G23 20VT/DB (POWER
SLIDING DOOR)SLIDING DOORS OVERHEAD SWITCH MUX
2 D23 20WT/BR FLASH PROGRAM ENABLE
3 G152 20VT/GY (POWER
SLIDING DOOR)RIGHT SLIDING DOOR WAKE UP SIGNAL
4 G151 20VT/BR (POWER
SLIDING DOOR)LEFT SLIDING DOOR WAKE UP SIGNAL
5 G76 20VT/YL RIGHT SLIDING DOOR AJAR SWITCH SENSE
6 G75 20VT (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
6 G74 20VT/WT (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
7 G75 20VT (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
7 G74 20VT/WT (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
8 G77 20VT/GY LEFT SLIDING DOOR AJAR SWITCH SENSE
9 E10 20OR/GY (ATC ) (3
ZONE HVAC)PANEL LAMPS DRIVER (REAR BLOWER SWITCH)
10 - -
11 L162 20WT/VT (BUILT-UP-
EXPORT)RIGHT SIDE REPEATER LAMP FEED
12 G42 20VT/YL (POWER
SLIDING DOOR)RIGHT SLIDING DOOR PILLAR SWITCH MUX
13 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
14 G163 20VT/LB LEFT CYLINDER LOCK SWITCH MUX
15 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX
16 - -
17 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
18 G41 20VT/DG (POWER
SLIDING DOOR)LEFT SLIDING DOOR PILLAR SWITCH MUX
19 L163 20WT/BR (BUILT-UP-
EXPORT)LEFT SIDE REPEATER LAMP FEED
20 N4 18DB/WT FUEL LEVEL SENSOR SIGNAL
21 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
21 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
22 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
22 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
23 D25 20WT/VT PCI BUS
24 - -
25 M11 20YL/VT COURTESY LAMPS DRIVER
26 P31 20TN/YL (POWER RE-
LEASE) (EXCEPT BUILT-
UP-EXPORT LHD SWB
GAS)LIFTGATE RELEASE DRIVER
26 P31 20TN/DG (POWER
RELEASE) (BUILT-UP-
EXPORT LHD SWB GAS)LIFTGATE RELEASE DRIVER
27 - -
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 G70 20VT/LB HOOD AJAR SWITCH SENSE
31 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
32 - -
33 M21 20YL/BR COURTESY LAMPS DRIVER
34 M27 20YL/LB READING LAMPS DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1015
CONNECTOR PINOUTS

CONTROLLER ANTILOCK BRAKE - BLACK 24 WAYCAV CIRCUIT FUNCTION
1 Z107 12BK/TN (EXCEPT
BUILT-UP-EXPORT/ 2.4L)GROUND
1 Z107 12BK/DG (OTHER) GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
24 A107 12TN/RD FUSED B(+)
DATA LINK CONNECTOR - BLACK 16 WAYCAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT (EXCEPT
BUILT-UP-EXPORT)GROUND
5 Z111 20BK/WT (BUILT-UP-
EXPORT)GROUND
6 D20 20WT/LG (GAS) SCI RECEIVE
7 D21 20WT/BR SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR (GAS) SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1035
CONNECTOR PINOUTS

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAYCAV CIRCUIT FUNCTION
1 Z130 14BK/BR GROUND
2 Z131 14BK/DG GROUND
3 K20 14BR/GY GENERATOR FIELD CONTROL
4 K342 14BR/WT ECM/PCM RELAY OUTPUT
5 K342 14BR/WT ECM/PCM RELAY OUTPUT
6- -
7 D25 20WT/VT PCI BUS
8 K944 20BK/GY CAMSHAFT POSITION SENSOR SHIELD GROUND
9 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
10 - -
11 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
12 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
13 K78 20GY FUEL PRESSURE SENSOR SIGNAL
14 - -
15 K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
16 K80 20DB/TN FUEL PRESSURE SENSOR GROUND
17 - -
18 - -
19 N1 20DB/OR FUEL HEATER RELAY OUTPUT
20 Z138 20BK/OR GROUND
21 K900 20DB/DG SENSOR GROUND
22 F202 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
23 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
24 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
25 - -
26 - -
27 - -
28 - -
29 - -
30 G6 20VT/GY ENGINE OIL PRESSURE SENSOR SIGNAL
31 F853 20LG/PK WATER IN FUEL SENSOR SIGNAL
32 K25 20BR/TN BATTERY TEMPERATURE SENSOR SIGNAL
33 - -
34 K167 20BR/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
35 K853 20DB/BR ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY
36 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
37 K89 20DB/WT ENGINE OIL TEMPERATURE SENSOR SIGNAL
38 V37 20VT/TN SPEED CONTROL SWITCH SIGNAL
39 - -
40 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
41 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
42 Z122 18WT GROUND (DRAIN)
43 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
44 - -
45 - -
46 - -
47 L50 20WT/TN PRIMARY BRAKE SWITCH SIGNAL
48 B29 20DG/WT SECONDARY BRAKE SWITCH SIGNAL
49 T751 20YL IGNITION SWITCH OUTPUT (START)
50 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1039
CONNECTOR PINOUTS

ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - CONTINUEDCAV CIRCUIT FUNCTION
51 - -
52 K121 20DB BOOST PRESSURE SENSOR GROUND
53 - -
54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
55 N7 20DB/OR VEHICLE SPEED SENSOR SIGNAL
56 C918 20BK/LB A/C PRESSURE SENSOR GROUND
57 - -
58 K4 20BK/LB LOW IDLE POSITION SWITCH GROUND
59 - -
60 K9 20LB FUEL PRESSURE SENSOR 5 VOLT SUPPLY
61 K51 20BR/WT ECM/PCM RELAY CONTROL
62 - -
63 D21 20WT/BR SCI TRANSMIT
64 K151 20WT LOW IDLE POSITION SWITCH SENSE
65 - -
66 K936 20BR/YL ENGINE OIL PRESSURE SENSOR GROUND
67 - -
68 - -
69 C13 20LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
70 N210 20DB/DG LOW SPEED RADIATOR FAN RELAY CONTROL
71 - -
72 N21 20DB/TN LIFT PUMP RELAY CONTROL
73 - -
74 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL
75 - -
76 - -
77 K152 20DB/WT GLOW PLUG RELAY CONTROL
78 N122 20DB/YL HIGH SPEED RADIATOR FAN DUAL RELAY CONTROL
79 - -
80 K87 20BR FUEL PRESSURE SOLENOID CONTROL
81 K87 20BR FUEL PRESSURE SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1040
CONNECTOR PINOUTS

ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAYCAV CIRCUIT FUNCTION
82 - -
83 - -
84 - -
85 - -
86 T753 20DG/YL IGNITION SWITCH OUTPUT (START)
87 - -
88 K35 20GY/YL EGR SOLENOID CONTROL
89 K35 20GY/YL EGR SOLENOID CONTROL
90 - -
91 - -
92 - -
93 - -
94 - -
95 - -
96 - -
97 - -
98 - -
99 - -
100 - -
101 - -
102 - -
103 - -
104 - -
105 - -
106 - -
107 - -
108 - -
109 - -
110 - -
111 - -
112 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
113 - -
114 - -
115 K14 14LB/BR FUEL INJECTOR NO. 4 CONTROL
116 K111 14DB/LB COMMON INJECTOR DRIVER
117 - -
118 K11 14WT/DB FUEL INJECTOR NO. 1 CONTROL
119 K12 14TN FUEL INJECTOR NO. 2 CONTROL
120 K13 14BR/LB FUEL INJECTOR NO. 3 CONTROL
121 - -
EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG SENSOR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1041
CONNECTOR PINOUTS

INSTRUMENT CLUSTER - BLACK 13 WAYCAV CIRCUIT FUNCTION
1 E13 20OR/YL PANEL LAMPS DRIVER
2 L160 20WT/TN (LOW
LINE)RIGHT TURN INDICATOR DRIVER
3 G7 20VT/GY (HIGH LINE) LOW OIL PRESSURE INDICATOR DRIVER
4 G3 20VT/LB (HIGH LINE) MALFUNCTION INDICATOR LAMP DRIVER
5 L134 20WT/GY (HIGH
LINE)HIGH BEAM INDICATOR DRIVER
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 Z108 18BK/LG GROUND
8 L161 20WT/LG (LOW
LINE)LEFT TURN INDICATOR DRIVER
9 D25 20WT/VT PCI BUS
10 B25 20DG/WT (RHD) PARK BRAKE SWITCH SENSE
10 B25 16DG/WT (LHD) PARK BRAKE SWITCH SENSE
11 G26 20VT/OR CHIME DRIVER
12 G150 20VT/BR INSTRUMENT CLUSTER WAKE UP SENSE
13 Z18 18BK/LB GROUND
INTELLIGENT POWER MODULE C1 - LT. GREEN/RED 20 WAYCAV CIRCUIT FUNCTION
1 F301 18VT/PK FUSED ACCESSORY RELAY OUTPUT
2- -
3- -
4 L43 18WT/DB LEFT LOW BEAM DRIVER
5 Z344 16BK/TN GROUND
6 L34 16WT/GY RIGHT HIGH BEAM DRIVER
7 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
8 L33 18WT/LG LEFT HIGH BEAM DRIVER
9 G31 18VT/LG (EXCEPT
BASE)AMBIENT TEMPERATURE SENSOR SIGNAL
10 L44 16WT/TN RIGHT LOW BEAM DRIVER
11 F300 18OR/PK FUSED ACCESSORY RELAY OUTPUT
12 - -
13 Z343 18BK/LG GROUND
14 - -
15 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
16 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
17 - -
18 G931 18VT/BR (EXCEPT
BASE)AMBIENT TEMPERATURE SENSOR RETURN
19 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
20 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1044
CONNECTOR PINOUTS

LEFT POWER MIRROR - BLACK 12 WAYCAV CIRCUIT FUNCTION
1 P171 20TN/YL (BUILT-UP-
EXPORT)LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 20TN/OR (EXCEPT
BUILT-UP-EXPORT/
MEMORY)MIRROR B(+)
3 P114 20TN/WT (EXCEPT
BUILT-UP-EXPORT/
MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-
EXPORT/RHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-
EXPORT/LHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z215 20BK/LG GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR HORIZONTAL DRIVER
12 P75 20TN/LG LEFT MIRROR VERTICAL DRIVER
LEFT REAR PILLAR SPEAKER - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 X157 20DG LEFT REAR PILLAR SPEAKER (+)
2 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAYCAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT REAR SPEAKER - BLACK/RED 6 WAYCAV CIRCUIT FUNCTION
1 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG AMPLIFIED SPEAKER GROUND
3 X157 20DG LEFT REAR PILLAR SPEAKER (+)
4 X51 20DG/DB LEFT REAR SPEAKER (+)
5 X13 16DG/GY RADIO CHOKE OUTPUT
6 X57 20DG/OR LEFT REAR SPEAKER (-)
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1052
CONNECTOR PINOUTS

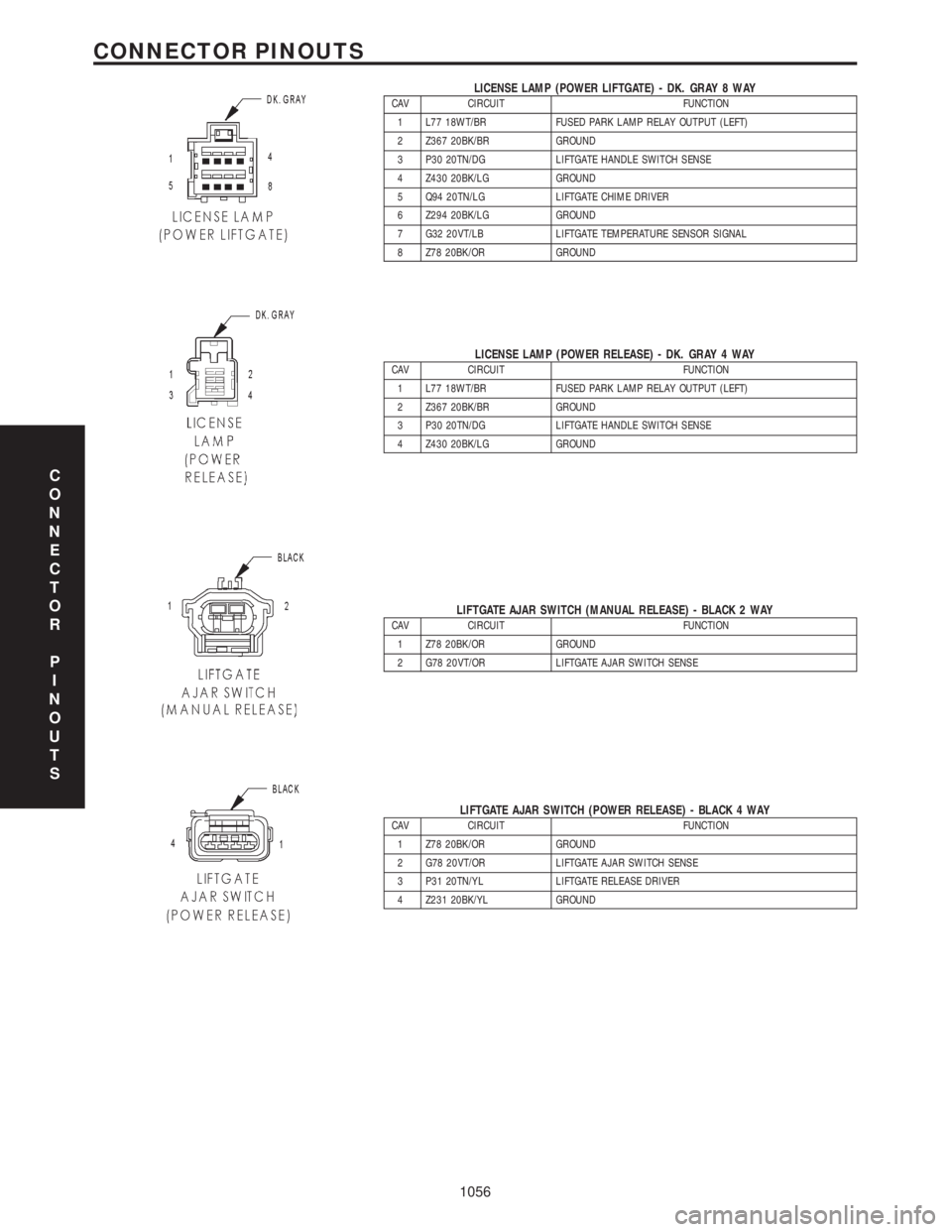

LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAYCAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAYCAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1056
CONNECTOR PINOUTS
