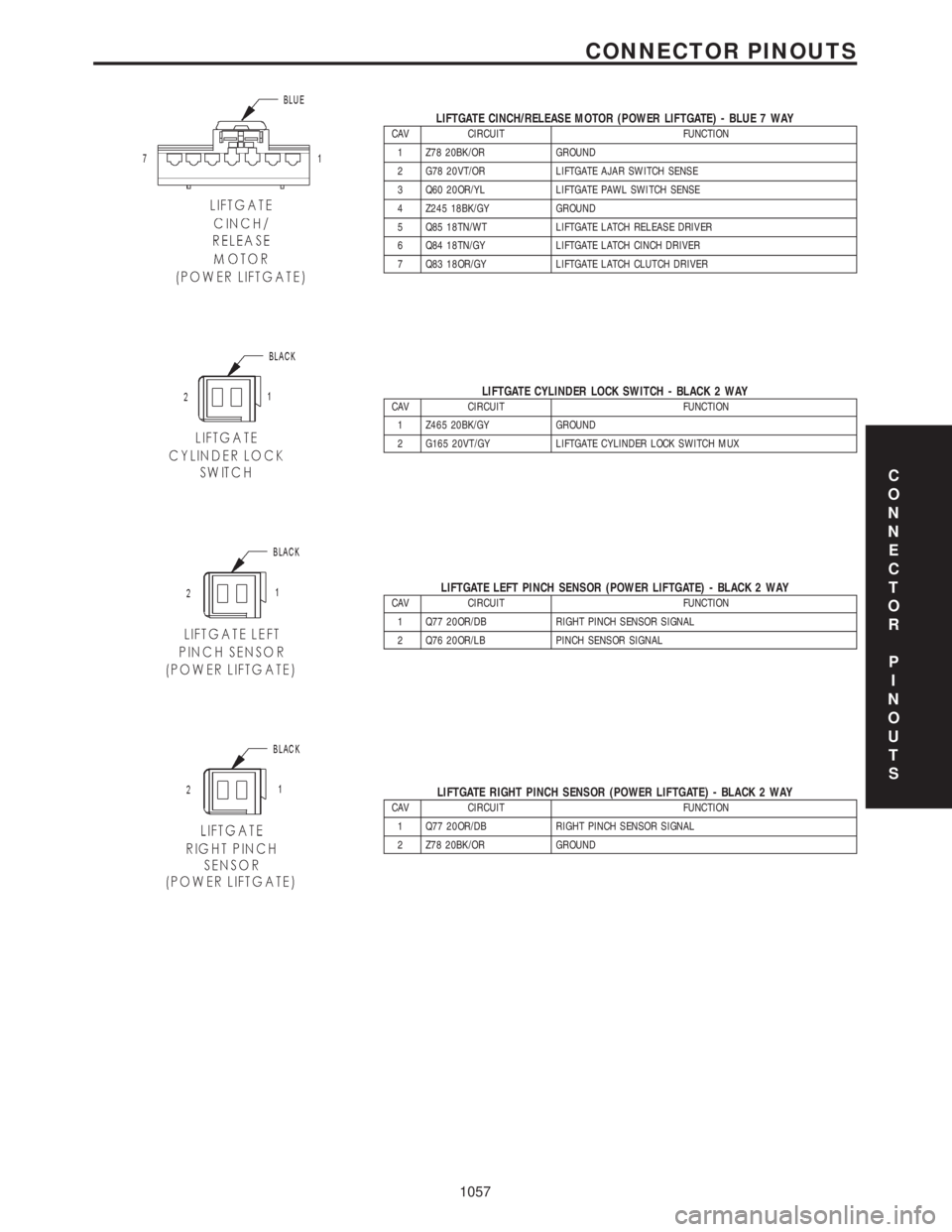

LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAYCAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
4 Z245 18BK/GY GROUND
5 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
6 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
7 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
LIFTGATE CYLINDER LOCK SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z465 20BK/GY GROUND
2 G165 20VT/GY LIFTGATE CYLINDER LOCK SWITCH MUX
LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1057
CONNECTOR PINOUTS

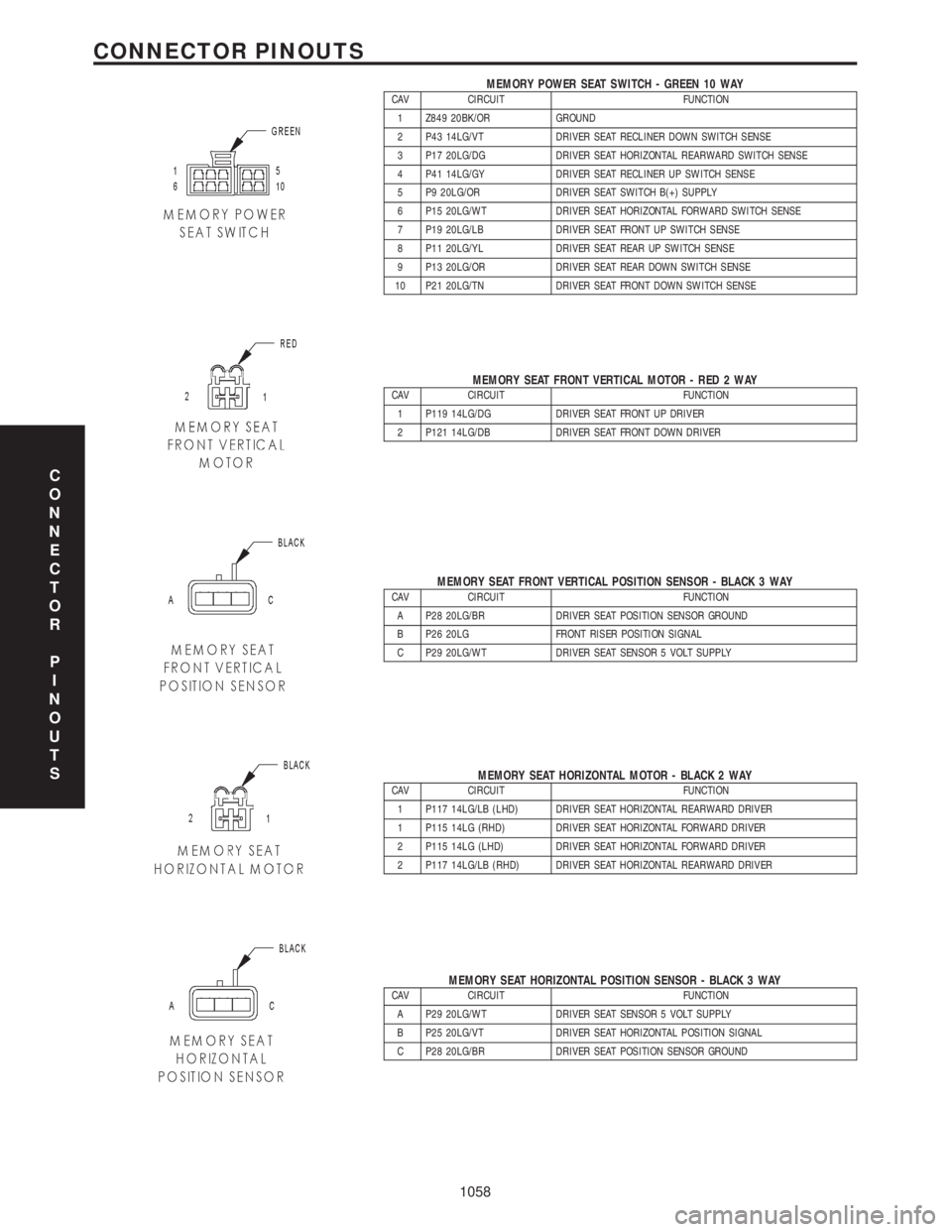

MEMORY POWER SEAT SWITCH - GREEN 10 WAYCAV CIRCUIT FUNCTION
1 Z849 20BK/OR GROUND
2 P43 14LG/VT DRIVER SEAT RECLINER DOWN SWITCH SENSE
3 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH SENSE
4 P41 14LG/GY DRIVER SEAT RECLINER UP SWITCH SENSE
5 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
6 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH SENSE
7 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
8 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
9 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
MEMORY SEAT FRONT VERTICAL MOTOR - RED 2 WAYCAV CIRCUIT FUNCTION
1 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
2 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
MEMORY SEAT FRONT VERTICAL POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P26 20LG FRONT RISER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
MEMORY SEAT HORIZONTAL MOTOR - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 P117 14LG/LB (LHD) DRIVER SEAT HORIZONTAL REARWARD DRIVER
1 P115 14LG (RHD) DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 P115 14LG (LHD) DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 P117 14LG/LB (RHD) DRIVER SEAT HORIZONTAL REARWARD DRIVER
MEMORY SEAT HORIZONTAL POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
B P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
C P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1058
CONNECTOR PINOUTS

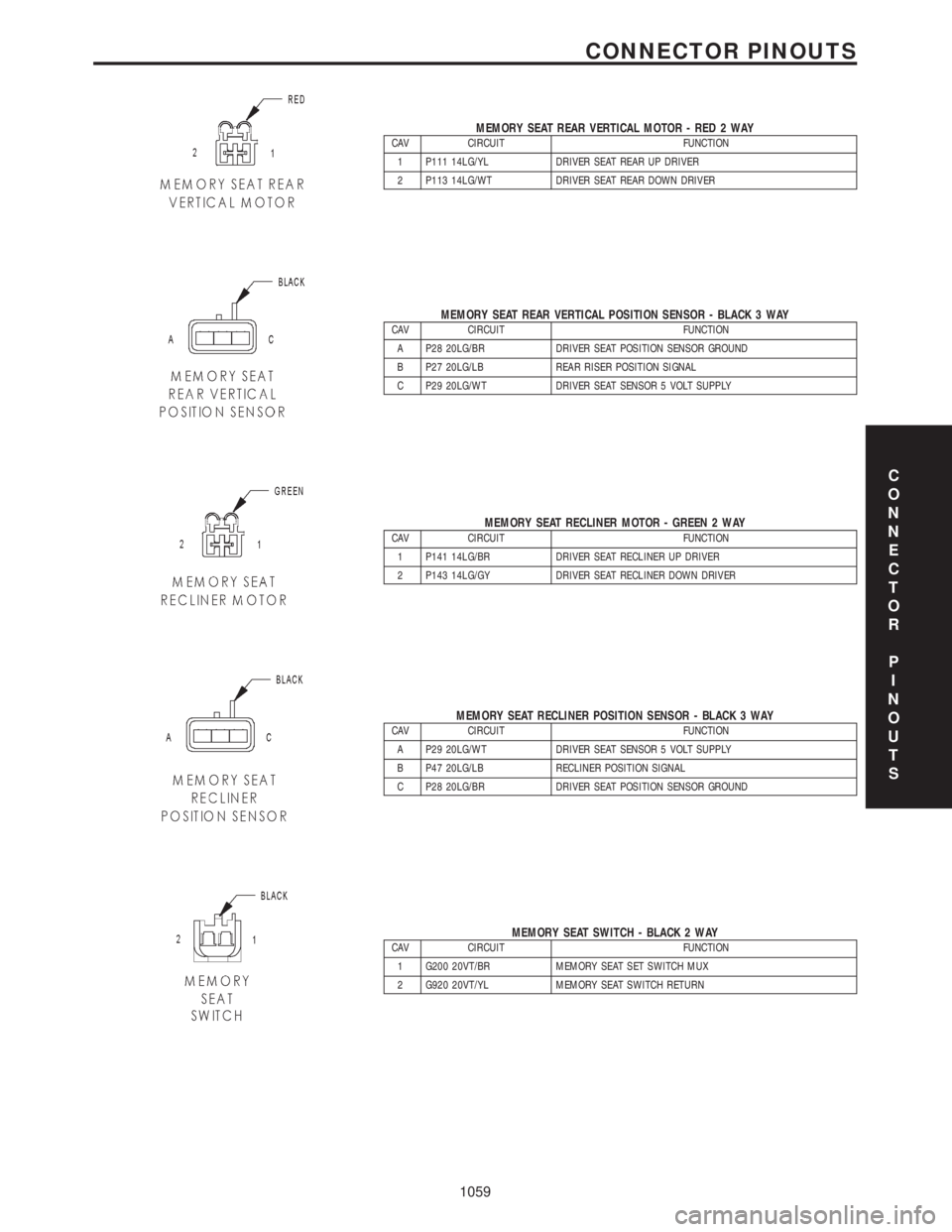

MEMORY SEAT REAR VERTICAL MOTOR - RED 2 WAYCAV CIRCUIT FUNCTION
1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
2 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
MEMORY SEAT REAR VERTICAL POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
B P27 20LG/LB REAR RISER POSITION SIGNAL
C P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
MEMORY SEAT RECLINER MOTOR - GREEN 2 WAYCAV CIRCUIT FUNCTION
1 P141 14LG/BR DRIVER SEAT RECLINER UP DRIVER
2 P143 14LG/GY DRIVER SEAT RECLINER DOWN DRIVER
MEMORY SEAT RECLINER POSITION SENSOR - BLACK 3 WAYCAV CIRCUIT FUNCTION
A P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
B P47 20LG/LB RECLINER POSITION SIGNAL
C P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
MEMORY SEAT SWITCH - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 G200 20VT/BR MEMORY SEAT SET SWITCH MUX
2 G920 20VT/YL MEMORY SEAT SWITCH RETURN
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1059
CONNECTOR PINOUTS

MEMORY SEAT/MIRROR MODULE C1 - GRAY 2 WAYCAV CIRCUIT FUNCTION
1 Z849 14BK/OR GROUND
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
MEMORY SEAT/MIRROR MODULE C2 - GRAY 26 WAYCAV CIRCUIT FUNCTION
1 P69 20TN/WT LEFT MIRROR SENSOR GROUND
2 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
3 P27 20LG/LB REAR RISER POSITION SIGNAL
4- -
5- -
6 P67 20OR RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P64 20TN/OR LEFT MIRROR VERTICAL POSITION SIGNAL
8 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
9 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
10 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH SENSE
11 P43 14LG/VT DRIVER SEAT RECLINER DOWN SWITCH SENSE
12 - -
13 - -
14 P66 20WT RIGHT MIRROR SENSOR GROUND
15 P26 20LG FRONT RISER POSITION SIGNAL
16 P47 20LG/LB RECLINER POSITION SIGNAL
17 - -
18 - -
19 P68 20YL RIGHT MIRROR HORIZONTAL POSITION SIGNAL
20 P65 20TN/YL LEFT MIRROR HORIZONTAL POSITION SIGNAL
21 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
22 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
23 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH SENSE
24 P41 14LG/GY DRIVER SEAT RECLINER UP SWITCH SENSE
25 - -
26 D25 20WT/VT PCI BUS
MEMORY SEAT/MIRROR MODULE C3 - GRAY 16 WAYCAV CIRCUIT FUNCTION
1- -
2- -
3 P73 18TN/LB LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
4 P75 18DB LEFT MIRROR HORIZONTAL DRIVER
5 P71 18TN/GY LEFT MIRROR VERTICAL DRIVER
6 P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
7- -
8- -
9- -
10 - -
11 P70 18LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
12 P74 18TN/DB RIGHT MIRROR HORIZONTAL DRIVER
13 P72 18GY RIGHT MIRROR VERTICAL DRIVER
14 - -
15 - -
16 P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1060
CONNECTOR PINOUTS

OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAYCAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
4 R64 18LB/WT PASSENGER SQUIB 2 LINE 1
5 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
6 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
7 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
8 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
9 R61 18LG/VT DRIVER SQUIB 2 LINE 1
10 R63 18LG/WT DRIVER SQUIB 2 LINE 2
11 R43 18LG/BR DRIVER SQUIB 1 LINE 1
12 R45 18LG/OR DRIVER SQUIB 1 LINE 2
13 - -
14 F201 18PK/OR FCM OUTPUT (RUN-START)
15 F100 18PK/VT FCM OUTPUT (RUN)
16 Z12 18BK/OR GROUND
17 R59 18LG/TN DRIVER SEAT BELT SWITCH LINE 1
18 R57 18LG/GY DRIVER SEAT BELT SWITCH LINE 2
19 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
20 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
21 D25 18WT/VT PCI BUS
22 - -
23 - -
OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAYCAV CIRCUIT FUNCTION
1 G23 20VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 20VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT
BUILT-UP-EXPORT)
(PREMIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/
LUXURY)BACK-UP LAMP FEED
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1062
CONNECTOR PINOUTS

FRONT CONTROL MODULE - BLACK 49 WAYCAV CIRCUIT FUNCTION
1 A1 B(+)
2 A1 B(+)
3 L43 LEFT LOW BEAM DRIVER
4 L34 RIGHT HIGH BEAM DRIVER
5 L33 LEFT HIGH BEAM DRIVER
6 L44 RIGHT LOW BEAM DRIVER
7 - NOT USED
8 Z117, Z118, Z343, Z344 GROUND
9 A1 B(+)
10 FCM 10 HORN RELAY CONTROL
11 FCM 11 NAME BRAND SPEAKER RELAY CONTROL
12 - SPARE
13 FCM 13 PARK LAMP RELAY CONTROL
14 FCM 14 FRONT WIPER ON/OFF RELAY CONTROL
15 C41 (DIESEL) CABIN HEATER ASSIST CONTROL
16 W7 FRONT WIPER PARK SWITCH SENSE
17 X3 HORN SWITCH SENSE
18 W1 WASHER FLUID LEVEL SWITCH SENSE
19 FCM 19 (GAS) IGNITION SWITCH OUTPUT (START)
20 A114 FUSED B(+) (I.O.D.)
21 L78 FUSED PARK LAMP RELAY OUTPUT (RIGHT)
22 D25 PCI BUS
23 G931 AMBIENT TEMPERATURE SENSOR RETURN
24 - SPARE
25 G31 AMBIENT TEMPERATURE SENSOR SIGNAL
26 L13 (RG) HEADLAMP ADJUST SIGNAL
27 F1, F2 FCM OUTPUT (UNLOCK-RUN-START)
28 F214 FCM OUTPUT (RUN-START) (SIACM)
29 F100 FCM OUTPUT (RUN) (ORC)
30 FCM 30 FRONT/REAR BLOWER MOTOR RELAY CONTROL
31 FCM 31 REAR WINDOW DEFOGGER RELAY CONTROL
32 FCM 32 (BUILT-UP-
EXPORT))HEADLAMP WASHER RELAY CONTROL
33 FCM 33 FRONT FOG LAMP RELAY CONTROL
34 FCM 34 FRONT WIPER HIGH/LOW RELAY CONTROL
35 FCM 35 ACCESSORY RELAY CONTROL (RUN-ACC)
36 B20 BRAKE FLUID LEVEL SWITCH SENSE
37 F20 IGNITION SWITCH OUTPUT (RUN-START)
38 A1 B(+)
39 T2 TRS REVERSE SENSE
40 T753 (DIESEL) IGNITION SWITCH OUTPUT (START)
41 L77 FUSED PARK LAMP RELAY OUTPUT (LEFT)
42 D23 FLASH PROGRAM ENABLE
43 Z116 GROUND
44 L50 PRIMARY BRAKE SWITCH SIGNAL
45 W10 FRONT WASHER PUMP MOTOR CONTROL
46 W20 REAR WASHER PUMP MOTOR CONTROL
47 K32 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID CONTROL
48 F201 FCM OUTPUT (RUN-START) (ORC)
49 - NOT USED
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1067
CONNECTOR PINOUTS

POWER FOLDING MIRROR SWITCH (BUILT-UP-EXPORT) - BLACK 2 WAYCAV CIRCUIT FUNCTION
1 Z888 20BK/YL GROUND
2 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
POWER LIFTGATE MODULE C1 - BLACK 8 WAYCAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 16TN/BR (EXCEPT
BUILT-UP-EXPORT)LIFTGATE OPEN DRIVER
2 Q88 14TN/BR (BUILT-UP-
EXPORT)LIFTGATE OPEN DRIVER
3 Q89 16TN/OR (EXCEPT
BUILT-UP-EXPORT)LIFTGATE CLOSE DRIVER
3 Q89 14TN/OR (BUILT-UP-
EXPORT)LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAYCAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL
2- -
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 20OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
18 Q94 20TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/YL LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1069
CONNECTOR PINOUTS

POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAYCAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
1071
CONNECTOR PINOUTS
