1999 SUBARU LEGACY sensor

B: INSTALLATION
CAUTION:
Leave fuel filler cap open when tightening nuts,
to prevent fuel from flowing out through fuel
delivery and return pipes. Close fuel filler cap
after tightening nuts.
Installation is in the reverse order of removal. Do
the following:
(1) Always use new gaskets.
(2) Ensure sealing portion is free from fuel or for-
eign particles before installation.
(3) Tighten nuts in alphabetical sequence shown
in figure to specified torque.
Tightening torque:
4.4
±1.5 N´m (0.45±0.15 kg-m, 3.3±1.1 ft-lb)
B2M0955C
9. Fuel Tank Pressure Sensor
A: REMOVAL AND INSTALLATION
1) Release fuel pressure.
2) Open fuel flap lid, and remove fuel filler cap.
B2M1746
3) Disconnect battery ground cable.
B2M1723
4) Drain fuel from fuel tank.
G2M0345
5) Remove fuel tank.
S2M0169A
12
2-1[W8B0]SERVICE PROCEDURE

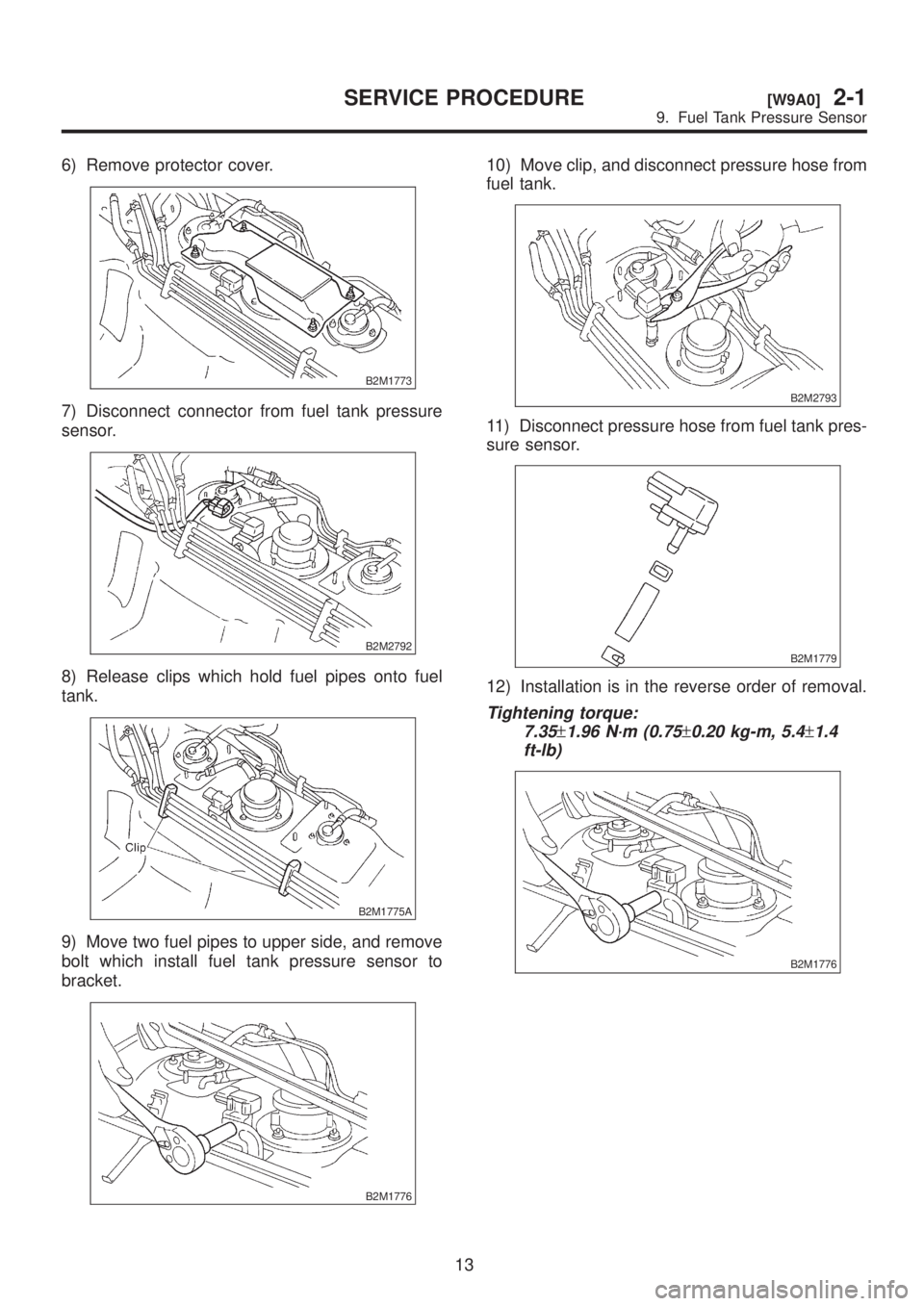

9. Fuel Tank Pressure Sensor

6) Remove protector cover.
B2M1773
7) Disconnect connector from fuel tank pressure
sensor.
B2M2792
8) Release clips which hold fuel pipes onto fuel
tank.
B2M1775A
9) Move two fuel pipes to upper side, and remove
bolt which install fuel tank pressure sensor to
bracket.
B2M1776
10) Move clip, and disconnect pressure hose from
fuel tank.
B2M2793
11) Disconnect pressure hose from fuel tank pres-
sure sensor.
B2M1779
12) Installation is in the reverse order of removal.
Tightening torque:
7.35
±1.96 N´m (0.75±0.20 kg-m, 5.4±1.4
ft-lb)
B2M1776
13
[W9A0]2-1SERVICE PROCEDURE
9. Fuel Tank Pressure Sensor

4) Connect connector to vent control solenoid
valve.
B2M0964
5) Connect two hoses to air filter.
B2M1888A
6) Install canister.
B2M1780
7) Lower the vehicle.
8) Connect battery ground cable.
B2M1723
12. Main Fuel Level Sensor
A: REMOVAL
1) Release fuel pressure.
2) Open fuel flap lid, and remove fuel filler cap.
B2M1746
3) Disconnect battery ground cable.
B2M1723
4) Disconnect fuel delivery hose (A), return hose
(B) and jet pump hose (C).
B2M0954E
17
[W12A0]2-1SERVICE PROCEDURE
12. Main Fuel Level Sensor

4) Connect connector to vent control solenoid
valve.
B2M0964
5) Connect two hoses to air filter.
B2M1888A
6) Install canister.
B2M1780
7) Lower the vehicle.
8) Connect battery ground cable.
B2M1723
12. Main Fuel Level Sensor
A: REMOVAL
1) Release fuel pressure.
2) Open fuel flap lid, and remove fuel filler cap.
B2M1746
3) Disconnect battery ground cable.
B2M1723
4) Disconnect fuel delivery hose (A), return hose
(B) and jet pump hose (C).
B2M0954E
17
[W12A0]2-1SERVICE PROCEDURE
12. Main Fuel Level Sensor

5) Remove nuts which install fuel pump assembly
onto fuel tank.
B2M0955
6) Take off fuel pump assembly from fuel tank.
B2M0956
7) Disconnect connector from fuel pump bracket.
S2M0145
8) Remove bolt which installs fuel level sensor on
mounting bracket.
S2M0855
B: INSTALLATION
CAUTION:
Leave fuel filler cap open when tightening nuts,
to prevent fuel from flowing out through fuel
delivery and return pipes. Close fuel filler cap
after tightening nuts.
Installation is in the reverse order of removal. Do
the following:
(1) Install the fuel level sensor onto the mounting
bracket.
S2M0855
(2) Always use new gaskets.
(3) Ensure sealing portion is free from fuel or for-
eign particles before installation.
(4) Tighten nuts in alphabetical sequence shown
in figure to specified torque
Tightening torque:
4.4
±1.5 N´m (0.45±0.15 kg-m, 3.3±1.1 ft-lb)
B2M0955C
18
2-1[W12B0]SERVICE PROCEDURE
12. Main Fuel Level Sensor

14. Sub Fuel Level Sensor
A: REMOVAL AND INSTALLATION
1) Release fuel pressure.
2) Open fuel flap lid, and remove fuel filler cap.
B2M1746
3) Disconnect battery ground cable.
B2M1723
4) Remove service hole cover.
G2M0863
5) Disconnect connector from fuel sub meter, and
disconnect jet pump hose.
S2M0151
6) Remove bolts which install sub fuel level sensor
on fuel tank.
S2M0152
7) Remove sub fuel level sensor.
S2M0153
8) Installation is in the reverse order of removal.
Tightening torque:
T: 4.4
±1.5 N´m (0.45±0.15 kg-m, 3.3±1.1
ft-lb)
S2M0152A
20
2-1[W14A0]SERVICE PROCEDURE
14. Sub Fuel Level Sensor

(1) Remove air intake duct A and B as a unit.
B2M2012
(2) Remove resonator chamber.
B2M2013
(3) Disconnect spark plug cords from spark
plugs (#1 and #3 cylinders).
B2M2014
(4) Disconnect blow-by hose from rocker
cover (RH).
B2M2015
(5) Lift-up the vehicle.
(6) Remove under cover (RH).
(7) Place suitable container under the
vehicle.(8) Lower the vehicle.
(9) Remove the timing belt cover (RH) bolt.
B2M2016
(10) Remove rocker cover bolts, then
remove rocker cover (RH).
B2M2017
IExcept low emission vehicle:
(1) Disconnect connector from mass air flow
sensor.
B2M2018
(2) Loosen clamp which connects air intake
duct and air intake chamber.
B2M2019
8
2-2[W7A1]SERVICE PROCEDURE

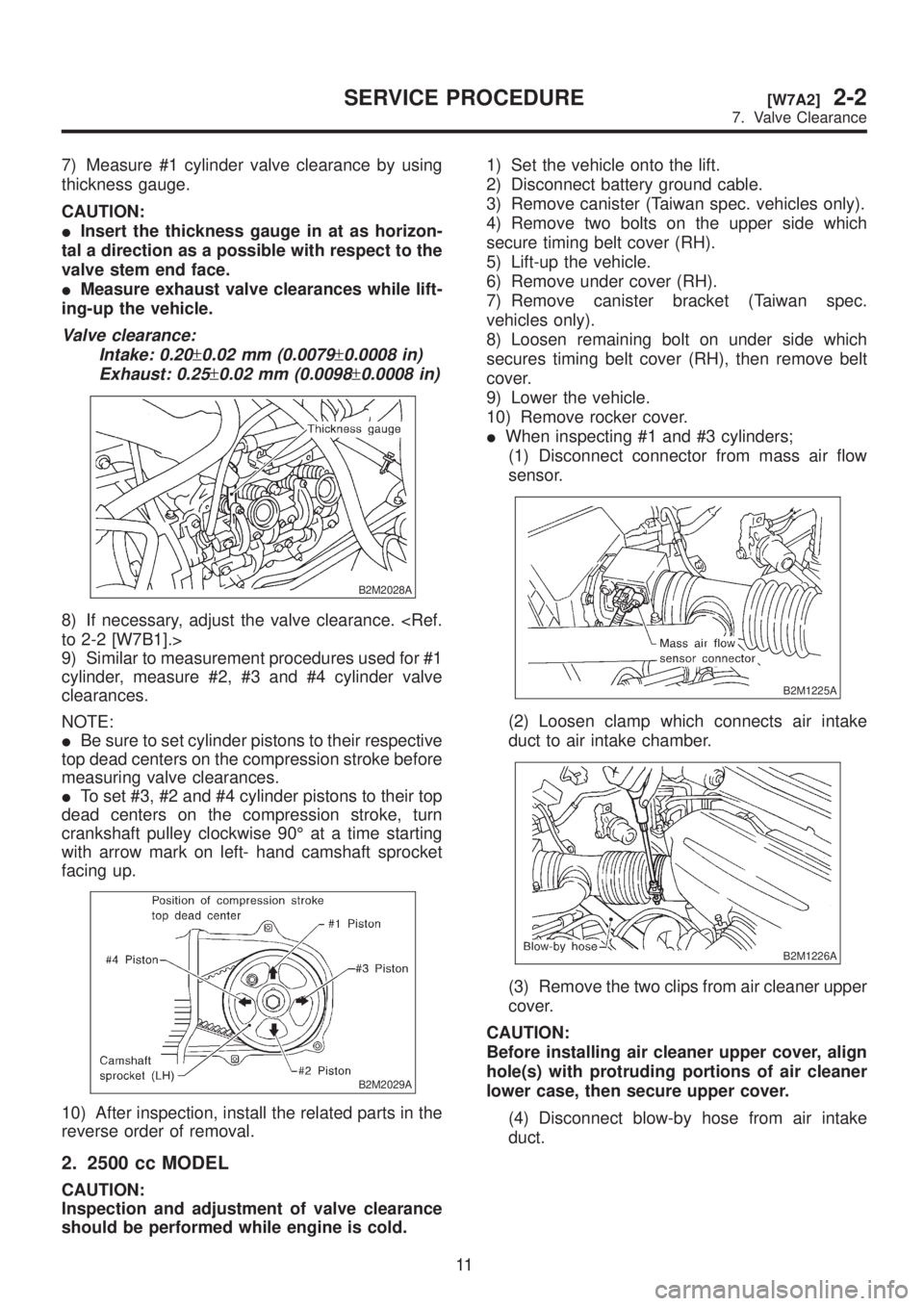

7. Valve Clearance

7) Measure #1 cylinder valve clearance by using
thickness gauge.
CAUTION:
IInsert the thickness gauge in at as horizon-
tal a direction as a possible with respect to the
valve stem end face.
IMeasure exhaust valve clearances while lift-
ing-up the vehicle.
Valve clearance:
Intake: 0.20
±0.02 mm (0.0079±0.0008 in)
Exhaust: 0.25
±0.02 mm (0.0098±0.0008 in)
B2M2028A
8) If necessary, adjust the valve clearance. to 2-2 [W7B1].>
9) Similar to measurement procedures used for #1
cylinder, measure #2, #3 and #4 cylinder valve
clearances.
NOTE:
IBe sure to set cylinder pistons to their respective
top dead centers on the compression stroke before
measuring valve clearances.
ITo set #3, #2 and #4 cylinder pistons to their top
dead centers on the compression stroke, turn
crankshaft pulley clockwise 90É at a time starting
with arrow mark on left- hand camshaft sprocket
facing up.
B2M2029A
10) After inspection, install the related parts in the
reverse order of removal.
2. 2500 cc MODEL
CAUTION:
Inspection and adjustment of valve clearance
should be performed while engine is cold.1) Set the vehicle onto the lift.
2) Disconnect battery ground cable.
3) Remove canister (Taiwan spec. vehicles only).
4) Remove two bolts on the upper side which
secure timing belt cover (RH).
5) Lift-up the vehicle.
6) Remove under cover (RH).
7) Remove canister bracket (Taiwan spec.
vehicles only).
8) Loosen remaining bolt on under side which
secures timing belt cover (RH), then remove belt
cover.
9) Lower the vehicle.
10) Remove rocker cover.
IWhen inspecting #1 and #3 cylinders;
(1) Disconnect connector from mass air flow
sensor.
B2M1225A
(2) Loosen clamp which connects air intake
duct to air intake chamber.
B2M1226A
(3) Remove the two clips from air cleaner upper
cover.
CAUTION:
Before installing air cleaner upper cover, align
hole(s) with protruding portions of air cleaner
lower case, then secure upper cover.
(4) Disconnect blow-by hose from air intake
duct.
11
[W7A2]2-2SERVICE PROCEDURE
7. Valve Clearance
