1997 TOYOTA CELICA Owners Manual

123

Do not place anything on the filler
panel behind the rear seatback or
luggage cover. Such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or an accident.

Do not drive with objects left on
top of the instrument panel. They
may interfere with the driver's
field of view. Or they may move
during sharp vehicle acceleration
or turning, and impair the driver's
control of the vehicle. In an acci-
dent they may injure the vehicle
occupants.
Do not load the vehicle beyond the
vehicle capacity weight specified in
Part 8.
NOTICE
The vehicle identification number
(VIN) is the legal identifier for your ve-
hicle. This number is on the left top of
the instrument panel, and can be seen
through the windshield from outside.
This is the primary identification number
for your T oyota. It is used in registering the
ownership of your vehicle.The vehicle identification number (VIN) is
also on the Certification Label.
Your Toyota's identification-
-V ehicle identification number
ProCarManuals.com

124
7A-FE engine
5S-FE engineThe engine number is stamped on the
engine block as shown.
Your new vehicle carries theft preven-
tion labels which are approximately 56
mm (2.20 in.) by 16 mm (0.63 in.).
The purpose of these labels is to reduce
the incidence of vehicle thefts by facilitat-
ing the tracing and recovery of parts from
stolen vehicles. The label is designed so
that
once it is applied to a surface, any at-
tempt to remove it will result in destroying
the integrity of the label. Transferring
these labels intact from one part to anoth-
er, will be impossible.
NOTICE
You should not attempt to remove the theft prevention labels as it may
violate certain state or federal laws.
Theft prevention labels
(except for Canada)
ÐEngine number
ProCarManuals.com

125

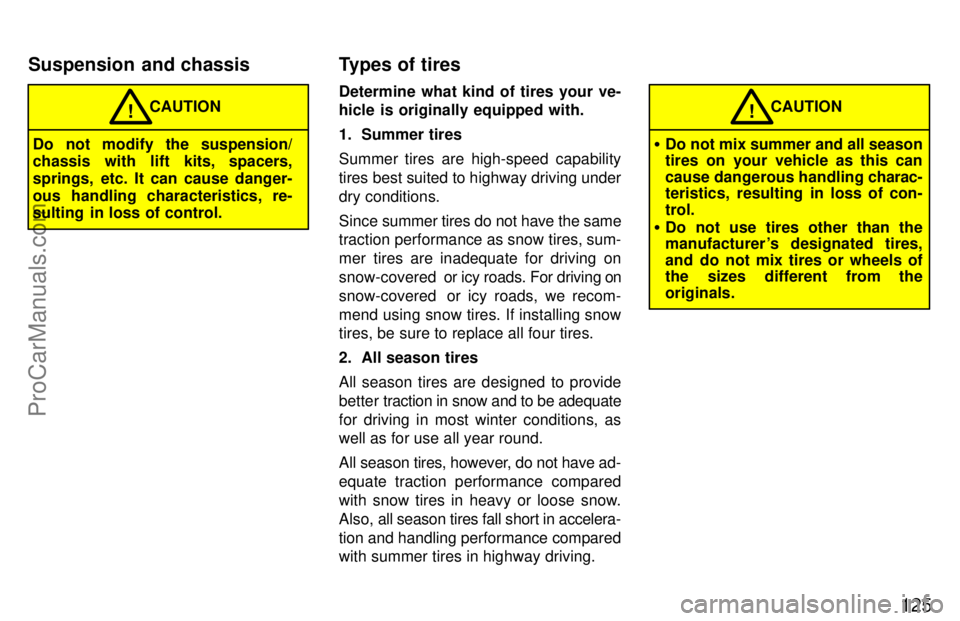

CAUTION!
Do not modify the suspension/
chassis with lift kits, spacers,
springs, etc. It can cause danger-
ous handling characteristics, re-
sulting in loss of control.Determine what kind of tires your ve-
hicle is originally equipped with.
1. Summer tires
Summer tires are high-speed capability
tires best suited to highway driving under
dry conditions.
Since
summer tires do not have the same
traction performance as snow tires, sum-
mer tires are inadequate for driving on
snow-covered or icy roads. For driving on
snow-covered or icy roads, we recom-
mend using snow tires. If installing snow
tires, be sure to replace all four tires.
2. All season tires
All season tires are designed to provide
better traction in snow and to be adequate
for driving in most winter conditions, as
well as for use all year round.
All season tires, however, do not have ad-
equate traction performance compared
with snow tires in heavy or loose snow.
Also, all season tires fall short in accelera-
tion and handling performance compared
with summer tires in highway driving.
CAUTION!

Do not mix summer and all season
tires on your vehicle as this can
cause dangerous handling charac-
teristics, resulting in loss of con-
trol.

Do not use tires other than the
manufacturer 's designated tires,
and do not mix tires or wheels of
the sizes different from the
originals.
Suspension and chassis Types of tires
ProCarManuals.com

126ProCarManuals.com

Part 3How to start the engineÐ
(a) Before cranking
Before starting the engine
127
STARTING AND
DRIVING

Before starting the engine

How to start the engine

Tips for driving in various
conditions

Winter driving tips

Trailer towing

How to save fuel and make your
vehicle last longer, too
1. Check the area around the vehicle be-
fore entering it.
2. Adjust seat position, seatback angle,
head restraint height and steering wheel
angle.
3. Adjust inside and outside rear view
mirrors.
4. Lock all doors.
5. Fasten seat belts. 1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3.
Manual transmission: Press the
clutch pedal to the floor and shift the trans-
mission into neutral. Hold the clutch pedal
to the floor until the engine is started. A
starter safety device will prevent the start-
er from operating if the clutch pedal is not
fully depressed.
Automatic transmission: Put the selec-
tor lever in Pº. If you need to restart the
engine while the vehicle is moving, put the
selector lever in Nº. A starter safety de-
vice will prevent the starter from operating
if the selector lever is in any drive position.
4. Automatic transmission only: De-
press the brake pedal and hold it to the
floor until driving off.
ProCarManuals.com

128
Before starting the engine, be sure to fol-
low the instructions in (a) Before crank-
ingº.
Normal starting procedure
The multiport fuel injection system/se-
quential multiport fuel injection system in
your engine automatically controls the
proper air-fuel mixture for starting. You
can start a cold or hot engine as follows:
1. With your foot off the accelerator ped-
al, crank the engine by turning the key to
STARTº. Release it when the engine
starts.
2. After the engine runs for about 10
seconds, you are ready to drive.
If the weather is below freezing, let the en-
gine warm up for a few minutes before
driving.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start-
See If your vehicle will not startº in Part 4.NOTICE
Do not crank for more than 15 sec- onds at a time. This may overheat
the starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult tostart or stalls frequently, have theengine checked immediately.

Always slow down in gusty cross-
winds. This will allow you much better
control.

Drive slowly onto curbs and, if pos-
sible, at a right angle. Avoid driving
onto high, sharp-edged objects and
other road hazards. Failure to do so
can lead to severe tire damage result-
ing in tire bursts.

When parking on a hill, turn the front
wheels until they touch the curb so that
the vehicle will not roll. Apply the park-
ing brake, and place the transmission
in Pº (automatic) or in first or reverse
(manual). If necessary, block the
wheels.

Washing your vehicle or driving
through deep water may get the
brakes wet. To see whether they are
wet, check that there is no traffic near
you, and then press the pedal lightly. If
you do not feel a normal braking force,
the brakes are probably wet. To dry
them, drive the vehicle cautiously
while lightly pressing the brake pedal
with the parking brake pulled. If they
still do not work safely, pull to the side
of the road and call a T oyota dealer for
assistance.
(b) Starting the engine Tips for driving in various
conditions
ProCarManuals.com

129
CAUTION

Before driving off, make sure that
the parking brake if fully released
and the parking brake reminder
light is off.

Do not leave your vehicle unat-
tended while the engine is running.

Do not rest your foot on the brake
pedal while driving. It can cause
dangerous overheating, needless
wear, and poor fuel economy.

To drive down a long or steep hill,
reduce your speed and downshift.
Remember, if you ride the brakes
excessively, they may overheat and
not work properly.

Be careful when accelerating, up-
shifting, down shifting or braking
on a slippery surface. Sudden ac-
celeration or engine braking, could
cause the vehicle to spin or skid.!
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has high-speed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are high-speed capability tires or
not before driving at such speeds.

Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a lon-
ger stopping distance, and it may
pull to one side when the brakes are
applied. Also, the parking brake
will not hold the vehicle securely. Make sure you have ethylene-glycol
antifreeze in the radiator.
Do not use alcohol type antifreeze.
NOTICE
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape to
provide enough power for winter starting.
Chapter 7-3 tells you how to visually in-
spect the battery. Your Toyota dealer and
most service stations will be pleased to
check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See Chapter 7-2 for recommended vis-
cosity.
Leaving a heavy summer oil in your
vehicle during winter months may cause
harder starting. If you are not sure about
which oil to use, call your Toyota dealer-
he will be pleased to help.
Keep the door locks from freezing.
Squirt lock de-icer or glycerine into the
locks to keep them from freezing. To open
a frozen lock, try heating the key before in-
serting it.
Winter driving tips
ProCarManuals.com

130
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer's directions for how
much to mix with water.
Do not use engine antifreeze or anyother substitute because it may
damage your vehicle's paint.
NOTICE
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
Pº (automatic) or into first or reverse
(manual) and block the rear wheels. Do
not use the parking brake, or snow or wa-
ter accumulated in and around the parking
brake mechanism may freeze, making it
hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally. Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the ve-
hicle are tire chains, window scraper, bag
of sand or salt, flares, small shovel, jump-
er cables, etc.
Your vehicle is designed primarily as a
passenger-carrying vehicle. Towing a
trailer will have an adverse effect on han-
dling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction
depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Toyota
warranties do not apply to damage or mal-
function caused by towing a tailer for com-
merical purposes. Ask your local Toyota
dealer for further details before towing.
WEIGHT LIMITS
Before towing, make sure the total trailer
weight, gross vehicle weight, gross axle
weight and trailer tongue load are all with-
in the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station,
building supply company, trucking com-
pany, junk yard, etc.
Trailer towing
ProCarManuals.com
