1997 TOYOTA CELICA Owners Manual

13
2. In front of the vehicle, pull up on the
auxiliary catch lever and lift the hood.3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip-
this prevents rattles. Then lower the hood
and make sure it locks into place. If neces-
sary, press down gently on the front edge
to lock it.
After inserting the support rod into
the slot, make sure the rod supports
the hood security.
CAUTION!
1. To open the fuel filler door, pull the
lever up.
CAUTION!

Do not smoke, cause sparks or al-
low open flames when refuelling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot
weather, fuel under pressure
could cause injury by spraying out
of the filler neck if the cap is sud-
denly removed.
Fuel tank cap
ProCarManuals.com

14
2. To remove the fuel tank cap, turn the
cap slowly counterclockwise, then
pause slightly before removing it. Af-
ter removing the cap, hang it on the
cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.

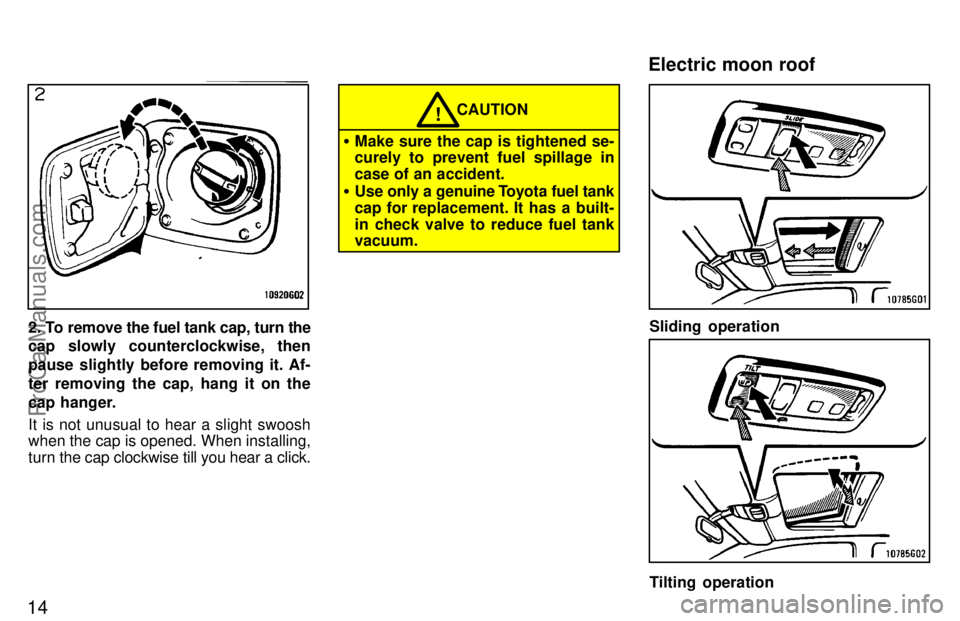

CAUTION!

Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
vacuum.
Sliding operation
Tilting operation
Electric moon roof
ProCarManuals.com

15
To operate the moon roof, use the
switches beside the interior light.
The moon roof works when the ignition
switch is in the ONº position. However,
if both side doors are closed, it works for
60 seconds even after the ignition switch
is turned off. It stops working when either
side door is opened.
Sun shade operationÐ
The sun shade can be opened or closed
by hand.
Sliding operationÐ
To open: Push the switch on the SLIDEº
side.
The sun shade will be opened together
with the roof.
To close: Push the switch on the opposite
side of the SLIDEº side.
As a precaution when closing, the roof
stops at the three-quarters closed posi-
tion before fully closing. Therefore, re-
lease the switch and then push it again to
close it completely.
Tilting operationÐ
To tilt up: Push the switch on the UPº
side.
To lower: Push the switch on the ºopposite
of the UPº side.
You may stop the moon roof at any desired
position. The roof will move while the switch

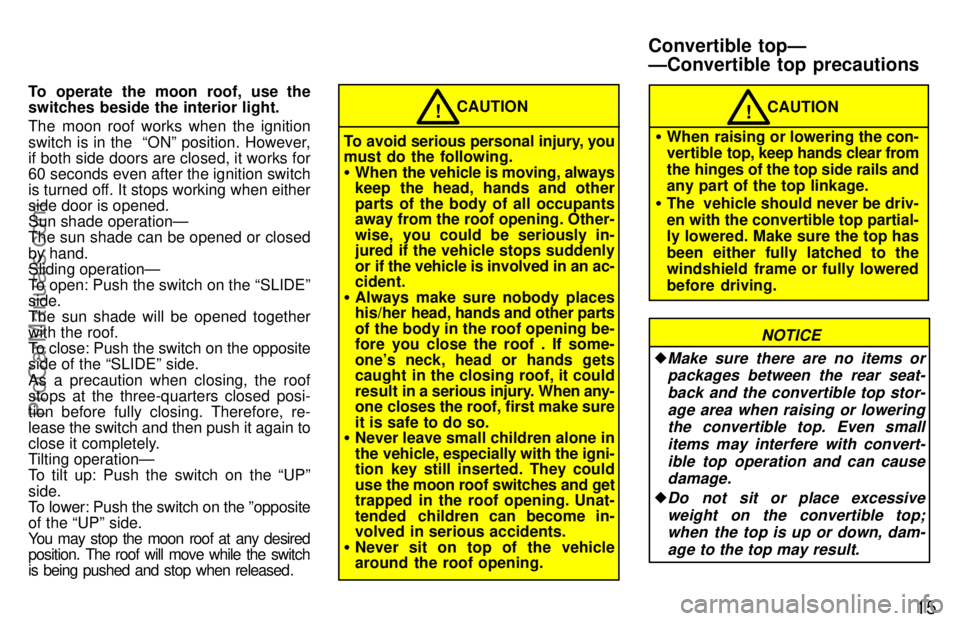

is being pushed and stop when released .CAUTION!
To avoid serious personal injury, you
must do the following.

When the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants
away from the roof opening. Other-
wise, you could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an ac-
cident.

Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof . If some-
one's neck, head or hands gets
caught in the closing roof, it could
result in a seri ous injury. When any-
one closes the roof, first make sure
it is safe to do so.

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can become in-
volved in serious accidents.

Never sit on top of the vehicle
around the roof opening.
CAUTION!

When raising or lowering the con-
vertible top, keep hands clear from
the hinges of the top side rails and
any part of the top linkage.

The vehicle should never be driv-
en with the convertible top partial-
ly lowered. Make sure the top has
been either fully latched to the
windshield frame or fully lowered
before driving.
NOTICE
Make sure there are no items or
packages between the rear seat-
back and the convertible top stor-age area when raising or loweringthe convertible top. Even small
items may interfere with convert-ible top operation and can causedamage.
Do not sit or place excessive
weight on the convertible top;when the top is up or down, dam-
age to the top may result.
Convertible topÐ
ÐConvertible top precautions
ProCarManuals.com

16
Do not raise or lower the convert-ible top when the temperature is
below 5
C (41 F), or damage to the
top material or rear window may re- sult. If necessary to do so, warm
the vehicle in a heated garage priorto operating the convertible topmechanism.
Do not lower the convertible top if
the top is damp or wet. Possible in-terior water damage, water stains
or mildew of the top material mayresult.
When the convertible top is com-pletely lowered, keep the rear win-dow defogger turned off to avoiddamage to the convertible top.LOWERING THE CONVERTIBLE TOP
The ignition switch must be in the ONº
position to operate the convertible top.
1. Lower all the side windows, quarter
windows, and sun visors. Then pull
the latch handles fully backward.
Before operating, make sure the manual
control switch is not in the MANUALº
position. (See If the convertible top does
not raise or lowerº in Part 4.)2. Push and hold the convertible top
control switch on the OPENº side un-
til the convertible top is completely
lowered. Raise the sun visor.
ÐLowering the convertible top
ProCarManuals.com

17
INSTALLING THE TOP BOOT
The top boot is used to cover and conceal
the completely lowered convertible top. It
is in the trunk, and is stored in a plastic
bag.
3. Place the top boot over the lowered
convertible top. Then tuck its outer
edge under the body moldings.4. Secure the top boot snaps to the
ones on the quarter trim.5. Attach the fastener tape on the top
boot to that on the rear seatback.
ProCarManuals.com

18
REMOVING THE TOP BOOT
1. Push the top boot backward to sep-
arate its fastener tape from the tape be-
hind the rear seatback.2. Release the top boot snaps from the
quarter trim.3. Pull out the outer edge of the top
boot from under the body moldings.
Put the removed top boot in the plastic
bag and store it in the trunk.
ÐRaising the convertible top
ProCarManuals.com

19
RAISING THE CONVERTIBLE TOP
The ignition switch must be in the ONº
position to operate the convertible top.
4. Lower the sun visors. Check that all
the side windows and quarter win-
dows are lowered. Then push and hold
the convertible top control switch on
the CLOSEº side until the top
touches the windshield frame.5. Push the latch handles fully forward
till they are hooked.
Visually check that the latch handles are
fully seated in the strikers. Also, pull on
the convertible top side rails to make sure
the top is securely hooked.
6. Raise all the side windows, quarter
windows, and sun visors.
