1997 SUBARU LEGACY steering

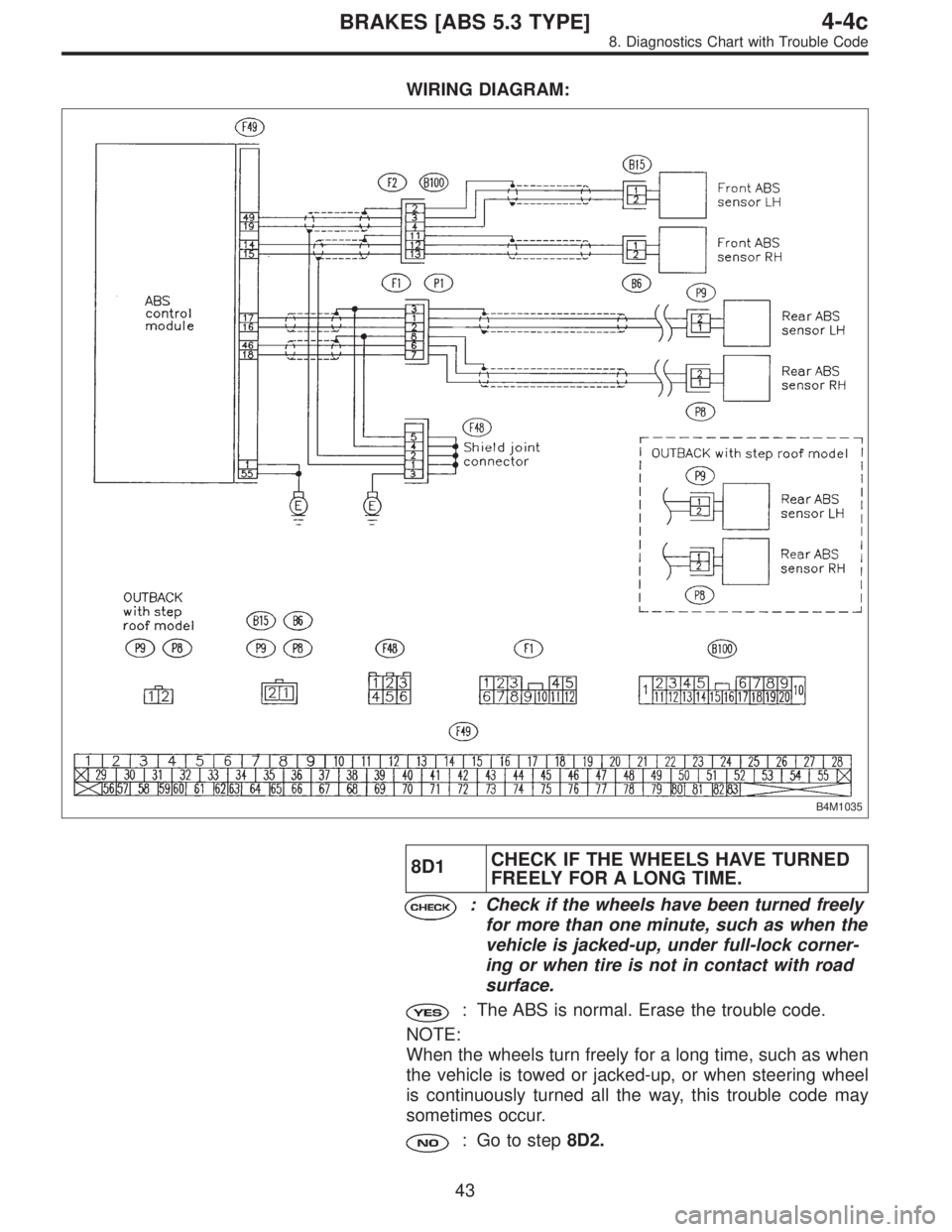

WIRING DIAGRAM:
B4M1035
8D1CHECK IF THE WHEELS HAVE TURNED
FREELY FOR A LONG TIME.
: Check if the wheels have been turned freely
for more than one minute, such as when the
vehicle is jacked-up, under full-lock corner-
ing or when tire is not in contact with road
surface.
: The ABS is normal. Erase the trouble code.
NOTE:
When the wheels turn freely for a long time, such as when
the vehicle is towed or jacked-up, or when steering wheel
is continuously turned all the way, this trouble code may
sometimes occur.
: Go to step8D2.
43
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

B4M0922
10H1CHECK OUTPUT OF ABS SENSOR
USING SELECT MONITOR.
Read the ABS sensor output corresponding to the faulty
system in the select monitor function mode.
NOTE:
The select monitor display shows that the front right wheel
is rotating at 30 km/h.
: Does the speed indicated on the display
change in response to the speedometer
reading during acceleration/deceleration
when the steering wheel is in the straight-
ahead position?
: Go to step10H2.
: Go to step10H5.
10H2CHECK ABS SENSOR MECHANICAL
TROUBLE.
: Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
Are the ABS sensor installation bolts tight-
ened securely?
: Go to next.
: Tighten ABS sensor installation bolts securely.
: Tightening torque:
13±3 N⋅m (1.3±0.3 kg-m, 9±2.2 ft-lb)
Are the tone wheel installation bolts tight-
ened securely?
: Go to next step.
: Tighten tone wheel installation bolts securely.
G4M0700
1) Measure tone wheel-to-pole piece gap over entire
perimeter of the wheel.
: Is the gap within the specifications shown
in the following table?
SpecificationsFront wheel Rear wheel
0.9—1.4 mm
(0.035—0.055 in)0.7—1.2 mm
(0.028—0.047 in)
135
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

B4M0922
10L1CHECK OUTPUT OF ABS SENSOR
USING SELECT MONITOR.
Read the ABS sensor output corresponding to the faulty
system in the select monitor function mode.
NOTE:
The select monitor display shows that the front right wheel
is rotating at 30 km/h.
: Does the speed indicated on the display
change in response to the speedometer
reading during acceleration/deceleration
when the steering wheel is in the straight-
ahead position?
: Go to step10L2.
: Go to step10L3.
10L2CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND ABS SEN-
SOR.
: Is there poor contact in connectors between
ABSCM and ABS sensor?
: Repair connector.
: Go to step10L3.
10L3
CHECK SOURCES OF SIGNAL NOISE.
: Is the car telephone or the wireless trans-
mitter properly installed?
: Go to next.
: Properly install the car telephone or the wireless
transmitter.
: Are noise sources (such as an antenna)
installed near the sensor harness?
: Install the noise sources apart from the sensor
harness.
: Go to step10L4.
144
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

WIRING DIAGRAM:
B4M1035
10M1CHECK IF THE WHEELS HAVE TURNED
FREELY FOR A LONG TIME.
: Check if the wheels have been turned freely
for more than one minute, such as when the
vehicle is jacked-up, under full-lock corner-
ing or when tire is not in contact with road
surface.
: The ABS is normal. Erase the trouble code.
NOTE:
When the wheels turn freely for a long time, such as when
the vehicle is towed or jacked-up, or when steering wheel
is continuously turned all the way, this trouble code may
sometimes occur.
: Go to step10M2.
153
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor

When ABS warning light illuminates, read and record
trouble code indicated by ABS warning light.
B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE ABS WARNING LIGHT
ABS warning light
comes on.Always
Sometimes
Only once
Does not come on

When /how long does it come on?:
Ignition key positionLOCK
ACC
ON (before starting engine)
START
On after starting (Engine is running)
On after starting (Engine is stop)
TimingImmediately after ignition is ON.
Immediately after ignition starts.
When advancing km/h to km/h
MPH to MPH
While traveling at a constant speed km/h MPH
When decelerating km/h to km/h
MPH to MPH
When turning to right Steering angle : deg
Steering time : sec
When turning to left Steering angle : deg
Steering time : sec
When moving other electrical parts

Parts name :

Operating condition :
2. SYMPTOMS
ABS operating
conditionPerforms no work.
Operates only when abruptly applying brakes. Vehicle speed : km/h
MPH

How to step on brake pedal :
a) Operating time :sec
b) Operating noise :Produce /Does not produce

What kind of noise?Knock
Gong gong
Bong
Buzz
Gong gong buzz
Others :
c) Reaction force of brake pedal
Stick
Press down once with a clunk
Press and released
Others :
11
4-4dBRAKES [ABS 5.3i TYPE]
6. Diagnostics Chart for On-board Diagnosis System

Behavior of vehicle a) Directional stability cannot be obtained or steering arm refuses to work when applying brakes :
Ye s /No

When :Vehicle turns to right
Vehicle turns to left
Spins
Others :
b) Directional stability cannot be obtained or steering arm refuses to work when accelerating :
Ye s /No

When :Vehicle turns to right
Vehicle turns to left
Spins
Others :
c) Brakes are out of order :Ye s /No

What :Braking distance is long
Brakes lock or drag
Pedal stroke is long
Pedal sticks
Others :
d) Poor acceleration :Ye s /No

What :Fails to accelerate
Engine stalls
Others :
e) Occurrence of vibration :Ye s /No

Where

What kind :
f) Occurrence of abnormal noise :Ye s /No

Where

What kind :
g) Occurrence of other phenomena :Ye s /No

What kind :
3. CONDITIONS UNDER WHICH TROUBLE OCCURS
Environment a) WeatherFine
Cloudy
Rainy
Snowy
Various/Others :
b) Ambient temperatureF(°C)
c) RoadUrban area
Suburbs
Highway
General road
Ascending slope
Descending slope
Paved road
Gravel road
Muddy road
Sandy place
Others :
d) Road surfaceDry
Wet
New-fallen snow
Compressed snow
Frozen slope
Others :
12
4-4dBRAKES [ABS 5.3i TYPE]
6. Diagnostics Chart for On-board Diagnosis System

8J1CHECK IF THE WHEELS HAVE TURNED
FREELY FOR A LONG TIME.
: Check if the wheels have been turned freely
for more than one minute, such as when the
vehicle is jacked-up, under full-lock corner-
ing or when tire is not in contact with road
surface.
: The ABS is normal. Erase the trouble code.
NOTE:
When the wheels turn freely for a long time, such as when
the vehicle is towed or jacked-up, or when steering wheel
is continuously turned all the way, this trouble code may
sometimes occur.
: Go to step8J2.
8J2
CHECK TIRE SPECIFICATIONS.
: Are the tire specifications correct?
: Go to step8J3.
: Replace tire.
8J3
CHECK WEAR OF TIRE.
: Is the tire worn excessively?
: Replace tire.
: Go to step8J4.
8J4
CHECK TIRE PRESSURE.
: Is the tire pressure correct?
: Go to step8J5.
: Adjust tire pressure.
8J5CHECK INSTALLATION OF ABS SEN-
SOR.
Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
: Are the ABS sensor installation bolts tight-
ened securely?
: Go to step8J6.
: Tighten ABS sensor installation bolts securely.
43
4-4dBRAKES [ABS 5.3i TYPE]
8. Diagnostics Chart with Trouble Code by ABS Warning Light

B4M0922
10H1CHECK OUTPUT OF ABS SENSOR
USING SELECT MONITOR.
Read the ABS sensor output corresponding to the faulty
system in the select monitor function mode.
NOTE:
The select monitor display shows that the front right wheel
is rotating at 30 km/h.
: Does the speed indicated on the display
change in response to the speedometer
reading during acceleration/deceleration
when the steering wheel is in the straight-
ahead position?
: Go to step10H2.
: Go to step10H9.
10H2CHECK INSTALLATION OF ABS SEN-
SOR.
Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
: Are the ABS sensor installation bolts tight-
ened securely?
: Go to step10H3.
: Tighten ABS sensor installation bolts securely.
10H3CHECK INSTALLATION OF TONE
WHEEL.
Tightening torque:
13±3 N⋅m (1.3±0.3 kg-m, 9±2.2 ft-lb)
: Are the tone wheel installation bolts tight-
ened securely?
: Go to step10H4.
: Tighten tone wheel installation bolts securely.
101
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
