1997 FORD THUNDERBIRD Owners Manual

176
*
[ER09800( ALL)02/96]
NOTE: Extended use of other than
conventional spare tires on a
Traction-Lok rear axle could result in a
permanent reduction in effectiveness.
This loss of effectiveness does not
affect normal driving and should not
be noticeable to the driver.
*
[ER09900( ALL)02/96]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
*
[ER10000( ALL)02/96]
When you drive with the temporary spare tire,
DO NOT:
*
[ER10100( ALL)02/96]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[ER10200( ALL)02/96]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[ER10300( ALL)02/96]
q
tow a trailer.
*
[ER10400( ALL)02/96]
q
use tire chains on this tire.
*
[ER10500( ALL)02/96]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[ER10600( ALL)02/96]
q
use the wheel for any other type of vehicle.
*
[ER10700(MBCG )02/96]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

177 %
*
[ER11000( ALL)02/96]
Spare Tire Location
[ER11100( ALL)02/96]
The spare is stored in the trunk.
[ER11300( BC )03/96]
two third page art:0010339-F
The spare tire location
%*
[ER11500( ALL)03/96]
To remove the spare tire:
*
[ER12000( BC )03/96]
1. Remove the spare tire cover.
*
[ER12100( BC )03/96]
2. Unscrew the wing-nut holding down the
spare tire.
*
[ER12200( BC )03/96]
NOTE: Wing-nut is not removable.
[ER12300( BC )03/96]
3. Lift out the spare tire, jack, and lug wrench.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

178 %
*
[ER12700( ALL)03/96]
Preparing to Change the Tire
*
[ER12900( BCGV)03/96]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
*
[ER13100( BCGV)03/96]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park). To prevent the
vehicle from moving when you change a tire, be
sure the parking brake is set, then block the
wheel (both directions) that is diagonally
opposite (other side and end of the vehicle) to
the tire being changed.
*
[ER13200( ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[ER13600( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[ER13700( ALL)01/96]
2. Get out the spare tire and jack.
[ER13900( BC )12/95]
3. Remove any optional wheel covers or
hubcaps with the tapered end of a wheel nut
wrench. Insert the handle of the wrench and
twist it against the inner wheel cover flange.
For more about removing wheel covers, see
the information later in this chapter.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

179
*
[ER14200(MBC )12/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts. SeeAnti-Theft Wheel Lug
Nutslater in this chapter for information on
removing anti-theft lug nuts.
%*
[ER14400( ALL)01/96]
Removing and Replacing the Tire
[ER14600( BC )12/95]
1. Find the underbody notches closest to the
wheel to be removed. Center the jack
between (2) underbody notches and turn the
handle of the jack clockwise until the wheel
is completely off the ground.
*
[ER14800( ALL)01/96]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

180 [ER15000( ALL)12/95]
half page art:0010759-AThe improper lift point
*
[ER15100( ALL)05/96]
NOTE: Never use the differential housing as a
lift point.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

181 % [ER15200( BC )12/95]
half page art:0010346-C
The notches for the jack
*
[ER15600( ALL)12/95]
2. Turn the jack handle clockwise until the
wheel clears the ground. Remove the wheel
lug nuts.
*
[ER15700(MBC )03/96]
3. Replace the flat tire with the spare tire,
making sure that the air valve stem is facing
outward.
*
[ER15800(MBC )03/96]
4. Reinstall the lug nuts, tightening until the
wheel is snug against the hub. The beveled
edges on the lug nuts face inward. Do not
fully tighten the lug nuts until you lower the
vehicle. If you do, you could force the
vehicle off the jack.
*
[ER15900(MBC )03/96]
5. Lower the vehicle by turning the jack handle
counterclockwise.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

182
*
[ER16000(MBC )03/96]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration. As soon as possible, have your
dealer or a qualified service technician check
the lug nuts for proper torque specifications.
% [ER16100( ALL)12/95]
quarter page art:0010350-A
The lug nuts on the wheel
*
[ER16200(MBC )03/96]
7. Place any wheel covers and ornaments in the
trunk.
*
[ER16300(MBC )03/96]
8. Put the tire, jack, and wrench away. Make
sure the jack is securely fastened so it does
not rattle when you drive.
*
[ER16400(MBC )03/96]
9. Unblock the wheels.
% [ER16600(MBC )12/95]
Aluminum Road Wheel Ornaments
(If equipped)
[ER16700(MBC )12/95]
To remove the ornament, stick the tapered end
of the jack handle between the ornament and
wheel and pry off the ornament.
[ER16800(MBC )12/95]
To replace the ornament, stick one side of the
ornament into the center of the wheel and strike
the other side with the palm of your hand.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996

183 % [ER16900( BC )04/96]
Center Wheel Cover
[ER17000( BC )04/96]
To remove the wheel cover:
[ER17100( BC )12/95]
1. Pry the center ornament from the wheel
cover using the tapered end of the jack
handle. Do not use a screwdriver or any
other tool. If you do, you may damage the
cover. The wheel, with the wheel cover still
attached, may now be removed from the
vehicle by removing the five lug nuts.
[ER17200( BC )12/95]
2. If the tire needs to be removed from the
wheel, remove the five screws, using a
Phillips head screwdriver. Then pull the
wheel cover off the wheel.
[ER17300( BC )12/95]

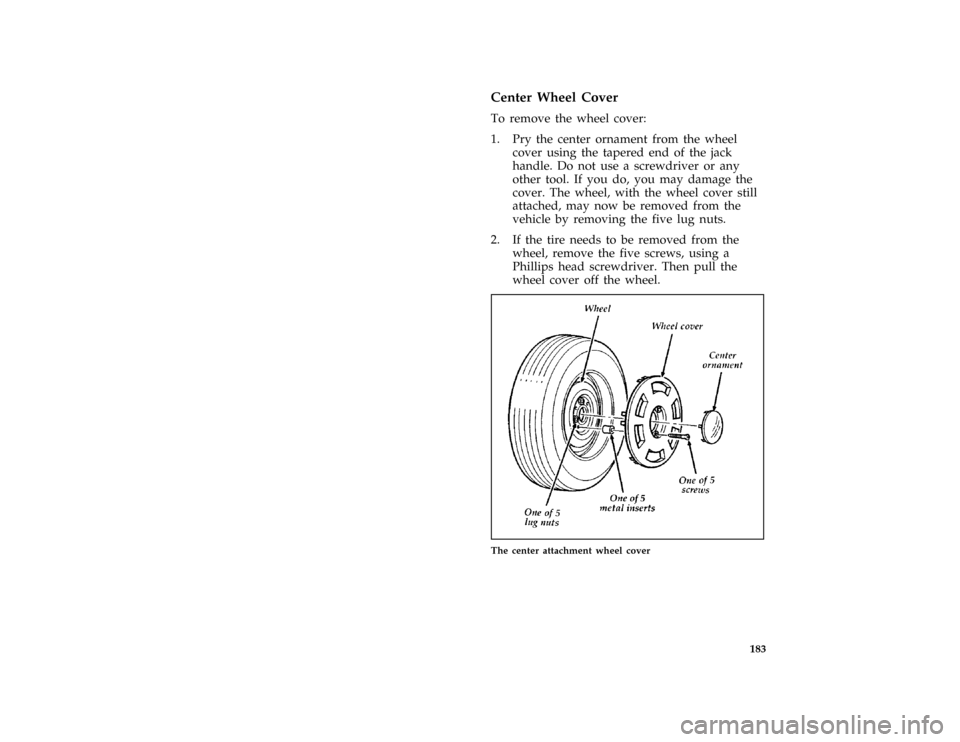

half page art:0010353-B
The center attachment wheel cover
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996
