1997 FORD THUNDERBIRD Owners Manual

127
*
[SS32200( ALL)01/96]
7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place. See Figure 7.
*
[SS32300( ALL)04/96]
half page art:0011244-B
Checking that the seat is secure
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

128
*
[SS32400( ALL)01/96]
8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See
Figure 8.
*
[SS32500( ALL)04/96]
half page art:0011245-C
Checking the retractor
*
[SS32600( ALL)01/96]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

129 %
*
[SS32800( BC )05/96]
Installing Child Safety Seats in the Rear
Outboard Seating Positions
*
[SS32900( BC )05/96]
Your rear outboard seating positions are
equipped with a cinch tongue on the safety
belts. Use the following procedure for installing
a child safety seat in these locations.
*
[SS33000( BC )05/96]
1. Grasp the belt webbing below the tongue
and pull as much of the belt out of the
retractor as possible. Hold the belt out. See
Figure 1.
[SS33100( BC )05/96]
half page art:0011363-A*
[SS33200( BC )05/96]
NOTE: The belt webbing below the tongue is
the lap belt portion of the combination
lap/shoulder belt, and the belt webbing
above the tongue is the shoulder belt
portion of the combination
lap/shoulder belt.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

130
*
[SS33300( BC )05/96]
2. With your other hand, grasp the tip (metal
portion) of the tongue (not the cover) and
slide the tongue up the webbing as far as it
will go. See Figure 1. Release the tongue, but
do not let go of the lap portion of the belt
webbing.
*
[SS33400( BC )05/96]
3. While still holding the belt webbing below
the tongue in one hand, use your other hand
to grasp the tip (metal portion) of the tongue
and belt webbing together, and again pull
out as much of the belt as possible. Then, let
go of the lap portion of the belt webbing.
*
[SS33500( BC )05/96]

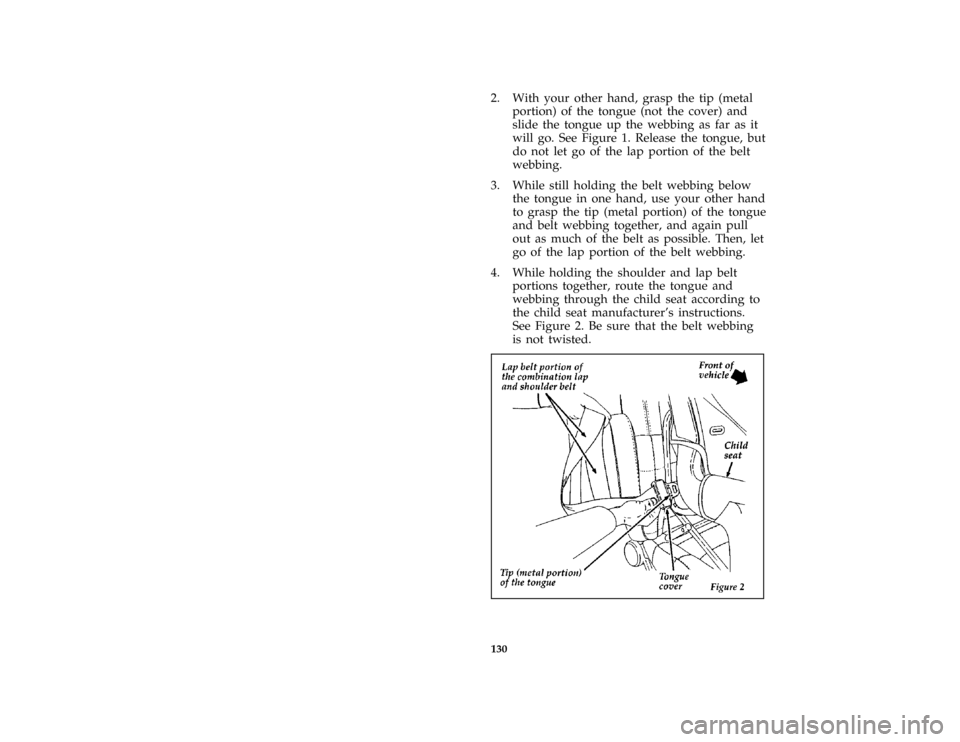

4. While holding the shoulder and lap belt
portions together, route the tongue and
webbing through the child seat according to
the child seat manufacturer's instructions.
See Figure 2. Be sure that the belt webbing
is not twisted.
[SS33600( BC )04/96]
half page art:0011364-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

131
*
[SS33700( BC )05/96]

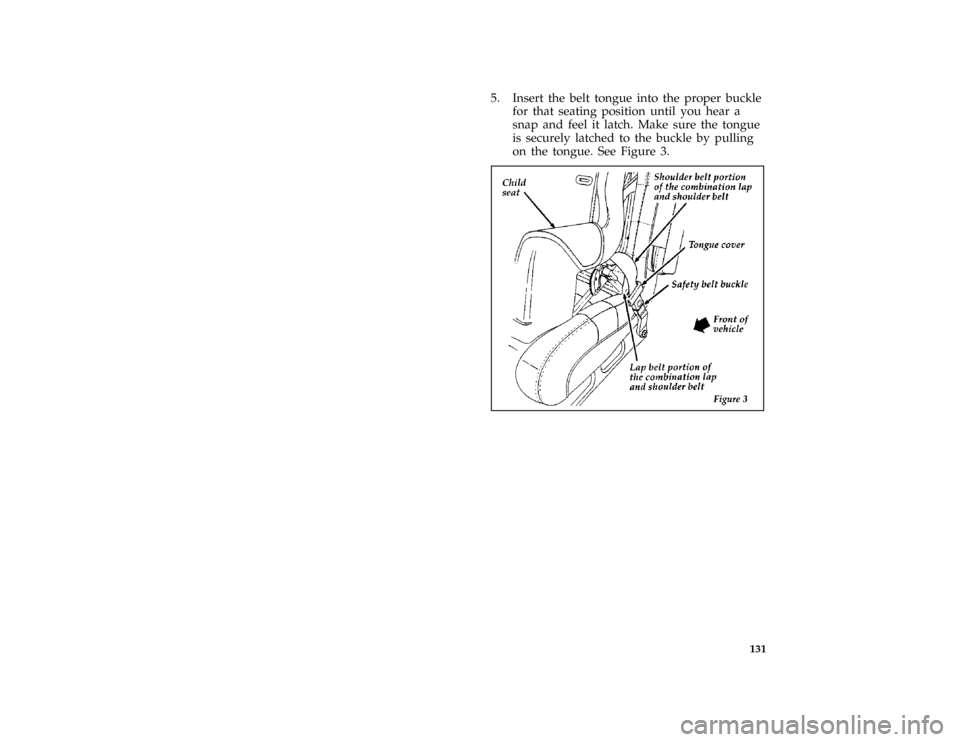

5. Insert the belt tongue into the proper buckle
for that seating position until you hear a
snap and feel it latch. Make sure the tongue
is securely latched to the buckle by pulling
on the tongue. See Figure 3.
[SS33800( BC )04/96]
half page art:0011365-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

132
*
[SS33900( BC )05/96]

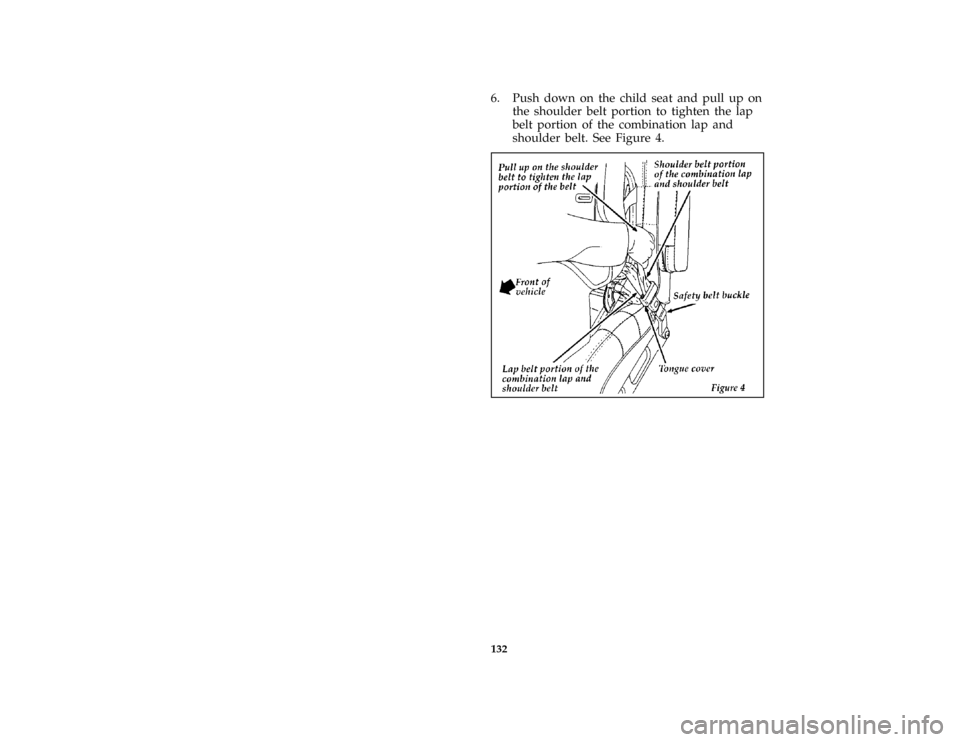

6. Push down on the child seat and pull up on
the shoulder belt portion to tighten the lap
belt portion of the combination lap and
shoulder belt. See Figure 4.
[SS34000( BC )04/96]
half page art:0011366-AFile:06rcssb.ex
Update:Thu May 30 10:58:44 1996

133
*
[SS34100( BC )05/96]

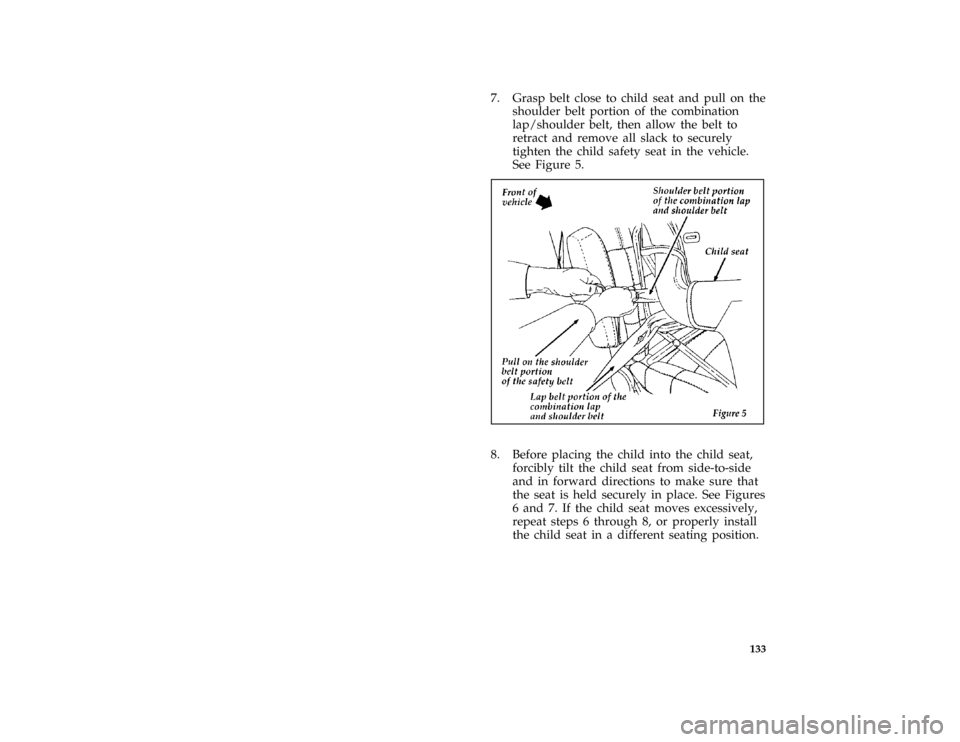

7. Grasp belt close to child seat and pull on the
shoulder belt portion of the combination
lap/shoulder belt, then allow the belt to
retract and remove all slack to securely
tighten the child safety seat in the vehicle.
See Figure 5.
[SS34200( BC )04/96]
half page art:0011367-A*
[SS34300( BC )05/96]

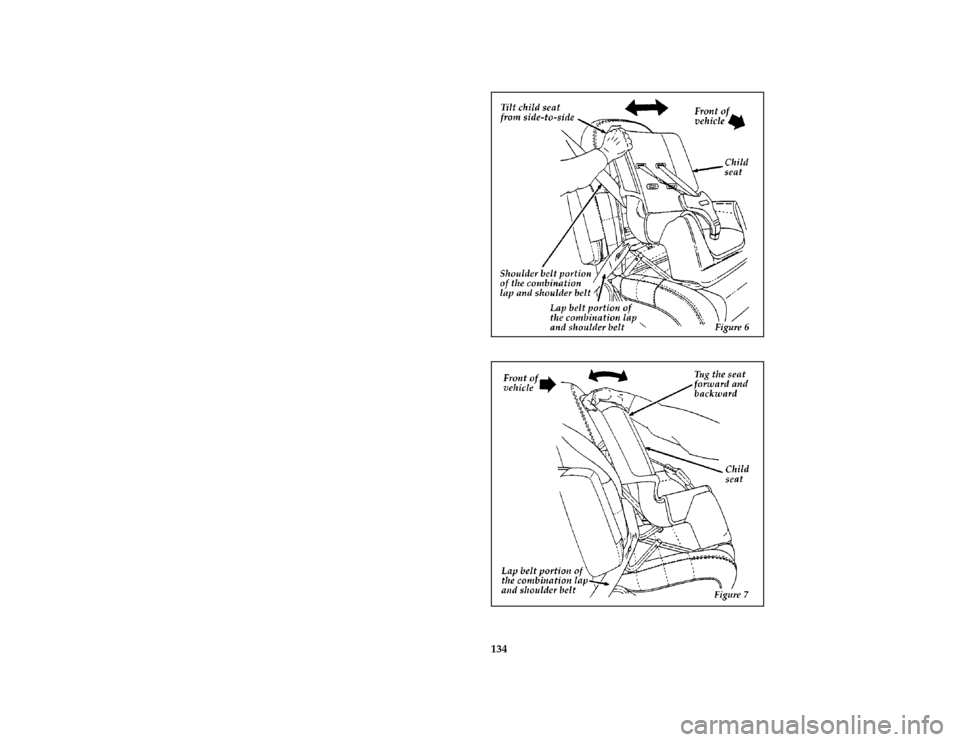

8. Before placing the child into the child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to make sure that
the seat is held securely in place. See Figures
6 and 7. If the child seat moves excessively,
repeat steps 6 through 8, or properly install
the child seat in a different seating position.
File:06rcssb.ex
Update:Thu May 30 10:58:44 1996

134 [SS34400( BC )12/95]
half page art:0011368-A
[SS34500( BC )04/96]
half page art:0011369-AFile:06rcssb.ex
