1997 FORD THUNDERBIRD Owners Manual

87
%*
[CF40800( ALL)02/96]
Doors
%*
[CF41800( ALL)01/96]
Power Door Locks (If equipped)
[CF41900( ALL)12/95]
If your vehicle has power door locks, the
controls to lock the doors are on the trim panel
of the front door. When you close the doors
after you set the door locks, the doors remain
locked. If the power mechanism fails, the manual
door locks will override the power controls.
Pulling on a front inside door handle will
automatically override and release the front door
lock.
[CF42000( BC )12/95]
Power door locks on vehicles equipped with
keyless entry will activate when the interior
courtesy/dome lamps are turned on or off using
the instrument panel dimmer or thumbwheel
control.
[CF42200( BC )05/96]

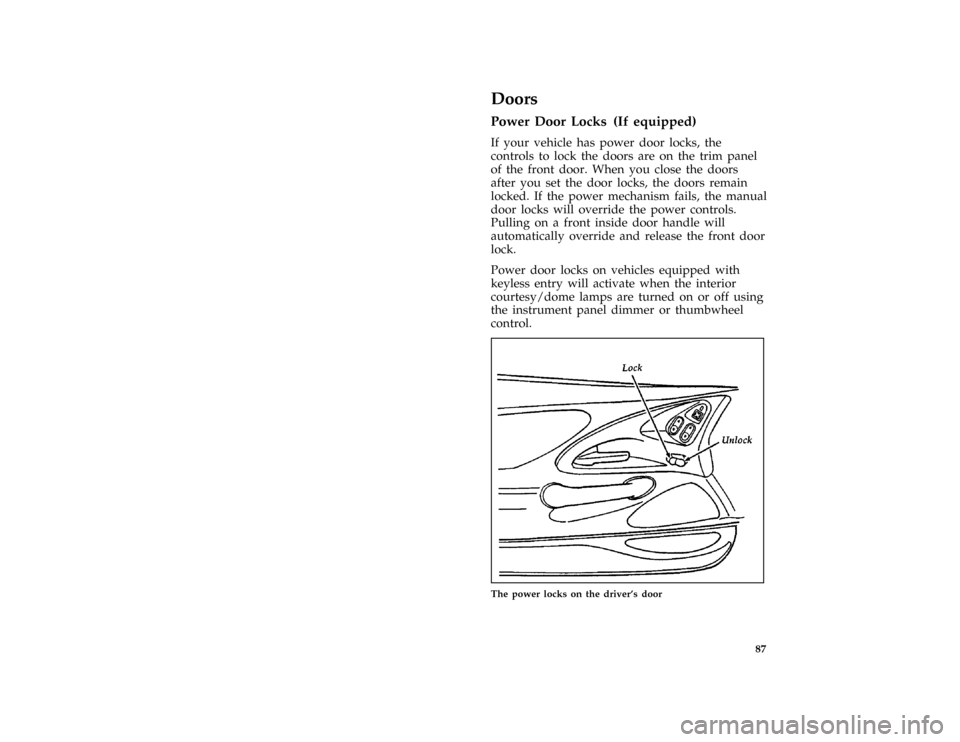

half page art:0010223-E
The power locks on the driver's door
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

88 %
*
[CF42400( BCGV)12/95]
Using the Illuminated Entry System
(If equipped)
[CF42600( BC )05/96]
The interior lights turn on when you lift the
outside door handle on the driver's side door or
when you press UNLOCK, TRUNK, or PANIC
on a programmed remote entry transmitter if
your vehicle is equipped with remote entry.
[CF42700( BCGV)05/96]
These lights automatically turn off after 25
seconds or when you turn the ignition key to
ON or ACC. The inside lights will not turn off if
you have turned them on manually or if a door
is opened.
%
*
[CF43405( ALL)04/96]
Windows
%*
[CF43415( BCGV)12/95]
Using the Power Windows
[CF43420(MBC )12/95]
Each door has a power control that opens and
closes the window on that door. The driver's
door has a master control panel that operates the
windows.
*
[CF43430( ALL)12/95]
Power windows can only be opened or closed
when the ignition switch is in the ON or ACC
position.
*
[CF43435( ALL)01/96]
RWARNING
Do not let children play with the power
windows.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

89 [CF43445( BC )05/96]
half page art:0010233-H
The master controls on the driver's door
% [CF43600( BCGV)03/96]
Adjusting the Dual Electric
Remote Control Mirrors
[CF43800( MBC )12/95]
The switch for controlling the dual electric
remote control mirrors is located on the driver's
door.
%*
[CF44000( ALL)12/95]
Do not clean the housing or glass of any mirror
with harsh abrasives, fuel or other
petroleum-based cleaning products.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

90 [CF44200( BC )05/96]

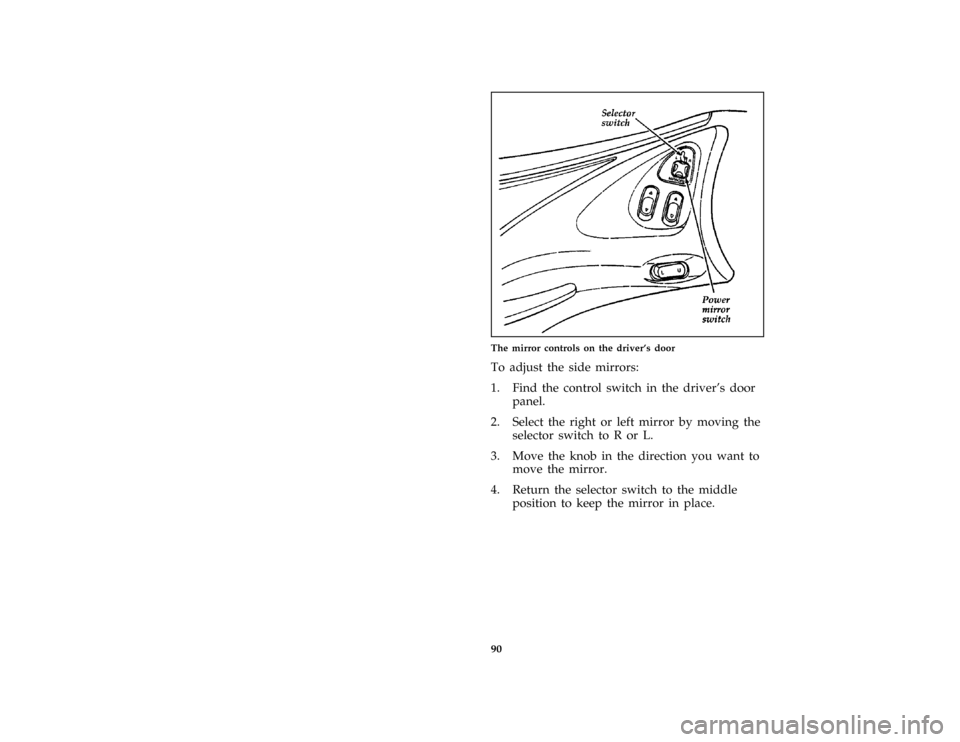

half page art:0010269-EThe mirror controls on the driver's door
*
[CF44400( ALL)01/96]
To adjust the side mirrors:
*
[CF44500( ALL)05/96]
1. Find the control switch in the driver's door
panel.
*
[CF44600( ALL)05/96]
2. Select the right or left mirror by moving the
selector switch to R or L.
[CF44750( BC )05/96]
3. Move the knob in the direction you want to
move the mirror.
*
[CF44800( ALL)05/96]
4. Return the selector switch to the middle
position to keep the mirror in place.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

91 [CF44900( ALL)12/95]
The Right Side Convex Mirror
*
[CF45000( ALL)12/95]
The side view mirror on the right is a convex
mirror. This mirror gives you a wider view of
the lanes on your right and behind you.
*
[CF45100( ALL)05/96]
RWARNING
The right side view mirror makes objects
appear smaller and farther away than they
actually are.
%
*
[CF46100(MBC )01/96]
Console
[CF46200(MBC )12/95]
Your vehicle has a full console. The full console
has the features shown in the illustration below.
[CF46400( BC )05/96]

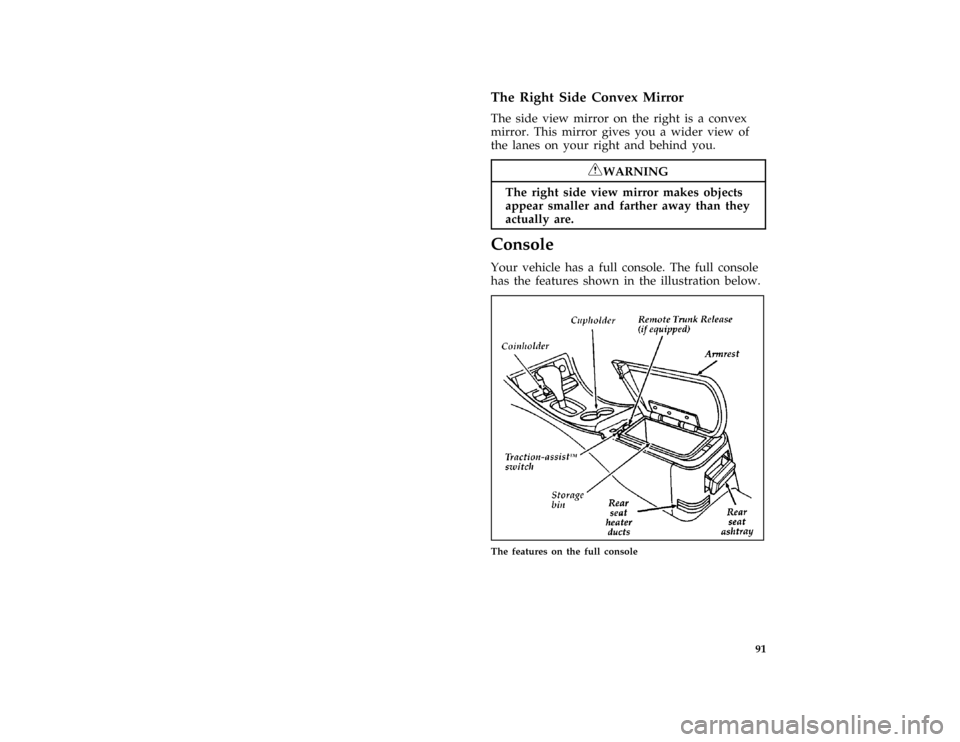

half page art:0010282-F
The features on the full console
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

92
% [CF51000( ALL)12/95]
Positive Location Floor Mat
[CF51100(MBC )12/95]
When installing or removing the driver's side
floor mat you must attach/detach the positive
location grommet from the hook on the floor.
The hook is just forward of the left hand track
of the driver's seat.
[CF51300(MBC )12/95]
half page art:0010758-A
The positive location floor mat hook
%*
[CF53200( BC )03/96]
Anti-Theft Alarm System
(If equipped)
*
[CF53300(MBC )01/96]
When armed, this system helps protect your
vehicle against break-ins or theft.
%*
[CF53400(MBC )01/96]
When an unauthorized entry occurs, the system
triggers and will:
*
[CF53500(MBC )03/96]
q
flash the parking lamps, and alarm indicator
lamp
*
[CF53600(MBC )01/96]
q
honk the horn
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

93
*
[CF53700(MBC )01/96]
q
disable the starting circuit to prevent the
vehicle from being started
[CF53900(MBC )12/95]
To tell the difference between a PANIC alarm
and a triggered Anti-theft alarm:
[CF54000(MBC )12/95]
q
only the Anti-Theft alarm will cause the
alarm indicator lamp (located in the
instrument cluster) to flash on and off.
[CF54100(MBC )12/95]
q
only the Anti-Theft alarm will disable the
start circuit so that the vehicle can not be
started.
[CF54200(MBC )05/96]
q
the Anti-Theft alarm will not stop by pushing
the PANIC control on the Remote Entry
transmitter.
*
[CF54300(MBC )12/95]
For more information on the PANIC alarm, see
Remote Entry Systemin the Index.
%*
[CF54400(MBC )03/96]
Arming the system
[CF54500(MBC )12/95]
To arm the system, do the following steps in
sequence:
*
[CF54600(MBC )01/96]
1. Remove the key from the ignition. The hood
must be closed to arm the system.
[CF54700( BC )03/96]
At this point, the anti-theft system automatically
monitors the ignition keylock cylinder. If the
lock cylinder is forcibly removed, the anti-theft
alarm system will trigger. To arm the remaining
portion of the system, follow steps 2-4.
*
[CF54800(MBC )05/96]
2. Open any door. The alarm indicator light
will start flashing to remind you to arm the
system.
[CF54900(MBC )05/96]
3. Lock the doors by using the power door
lock switch or by pressing the remote entry
transmitter LOCK control.
[CF55000(MBC )12/95]
The alarm indicator will now glow steadily.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

94 [CF55100(MBC )12/95]4. Close all doors. The alarm indicator light
will then remain on steadily for
approximately 30 seconds and then go out.
When the light goes out, the system is
armed.
*
[CF55200(MBC )01/96]
NOTE: Be sure to close all doors completely. If
not, the alarm indicator light will
remain on. Remember, your anti-theft
system is armed only after the alarm
indicator light remains on steadily for
approximately 30 seconds after the last
door is closed, and then goes out.
[CF55300(MBC )12/95]
You can also arm the anti-theft system by
following this sequence:
[CF55400(MBC )12/95]
1. Remove key from ignition.
*
[CF55500(MBC )01/96]
2. Close all of the doors.
[CF55600(MBC )05/96]
3. Press the remote entry transmitter LOCK
control. The alarm indicator will come on for
30 seconds to show the alarm is arming and
then turn off to show that the alarm has
armed.
*
[CF55800(MBC )01/96]
The anti-theft system is designed to work with
the factory installed remote entry system. It may
not work with other remote entry systems.
%*
[CF55900(MBC )03/96]
Disarming an Untriggered Anti-Theft
System
*
[CF56000(MBC )12/95]
You can disarm the system by:
[CF56100(MBC )12/95]
q
unlocking a door with the key (turn the key
all the way to the end of travel or the system
may not disarm.
*
[CF56200(MBC )04/96]
q
using the UNLOCK control on the remote
entry transmitter
[CF56300(MBC )12/95]
q
if remaining in the vehicle, turn the ignition
switch to ON or ACC
