1997 FORD ASPIRE Owners Manual

14 %
*
[IS05825(ALL)03/96]
Air Bag Readiness Light
*
[IS05850(ALL)03/96]
This light illuminates for six seconds when the
ignition is turned to the ON position. If the light
fails to illuminate, continues to flash, remains on,
or if a series of five beeps is heard, have the
system serviced as soon as possible.
[IS05875(ALL)01/96]
one inch art:0032124-A
Air bag readiness light
[IS05900(ALL)01/96]
Rear Window Defroster Indicator Light
(If equipped)
[IS05925(ALL)01/96]
When the rear window defroster is activated, the
indicator light in the instrument cluster
illuminates. After the rear window is clear, push
the defroster switch to turn off the defroster. The
light in the cluster goes out.
[IS05950(ALL)01/96]
one inch art:0032125-A
Rear window defroster indicator light
File:03icisf.ex
Update:Tue Mar 4 08:51:24 1997

15 %
*
[IS05975(ALL)01/96]
Anti-lock Brake System Warning Light
(If equipped)
[IS06000(ALL)04/96]
When the ignition switch is turned to the ON
position, the anti-lock brake system warning
light illuminates. When the engine is started, the
Anti-lock Brake System (ABS) control unit
determines if all components of the system are
operating correctly. The warning light could
remain on up to 60 seconds.
[IS06025(ALL)01/96]
one inch art:0032123-B
Anti-lock brake system light
*
[IS06050(ALL)03/96]
WARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[IS06060(ALL)03/96]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
File:03icisf.ex
Update:Tue Mar 4 08:51:24 1997

16
*
[IS06075(ALL)01/96]
NOTE: If your vehicle must be jump-started
because of a low battery, the Anti-Lock
Brake System warning light could
remain on. This is due to low battery
voltage and does not indicate a
malfunction in the system. Under these
circumstances, you should drive your
vehicle only after the battery has had
time to charge and the light has gone
out.
[IS06090(ALL)02/96]
After starting the engine, check all the warning
lights to make sure that they are off. If any one
of them is still lit, it indicates a situation that
needs your attention. When you release the
parking brake, the brake warning light should
go off.
%*
[IS06100(ALL)01/96]
Ignition Key Chime
*
[IS06105(ALL)01/96]
If the driver or passenger door is open while the
key is still in the ignition, a warning chime
sounds.
[IS06115(ALL)02/96]
Headlamps On Chime
[IS06120(ALL)01/96]
This chime will sound when a door is opened
while the headlamps or parking lamps are on.
*
[IS06200(ALL)04/96]
Gauges
%*
[IS06300(ALL)03/96]
Fuel Gauge
*
[IS06325(ALL)01/96]
The fuel gauge displays approximately how
much fuel you have in the fuel tank.
*
[IS06350(ALL)01/96]
The ignition must be turned off while putting
fuel in the tank in order to get a correct fuel
gauge reading after the ignition is turned on.
*
[IS06375(ALL)01/96]
The fuel gauge indicator may vary slightly while
the vehicle is in motion. This is the result of fuel
movement within the tank. You can get a more
accurate reading with the vehicle on smooth,
level ground.
File:03icisf.ex
Update:Tue Mar 4 08:51:24 1997

17 %
*
[IS06400(ALL)03/96]
Engine Coolant Temperature Gauge
*
[IS06500(ALL)02/96]
This gauge indicates the temperature of the
engine coolant, not the coolant level. If the
coolant is not at its proper level or mixture, the
gauge indication will not be accurate.
[IS06600(ALL)04/96]
The pointer normally moves from C (cold) into
the normal band as your vehicle warms up.
Under most driving conditions, the pointer
should stay in the normal band. If you are
driving in heavy traffic or on an extended grade
in hot weather, the pointer may reach to the top
of the normal band.
*
[IS06700(ALL)04/96]
If, under any circumstances, the pointer moves
above the normal band, the engine is
overheating and continued operation may cause
engine damage.
*
[IS06800(ALL)03/96]
If your engine overheats:
*
[IS06900(ALL)03/96]
1. Pull off the road as soon as safely possible.
*
[IS07000(ALL)01/96]
2. Turn off the engine.
*
[IS07100(ALL)01/96]
3. Let the engine cool.
*
[IS07200(ALL)01/96]
4. Check the coolant level following the
instructions on checking and adding coolant
to your engine. (SeeEngine coolantin the
Index.) If you do not follow these
instructions, you or others could be injured.
*
[IS07300(ALL)04/96]
5. Refer toAdding Engine Coolantin the
Maintenance and Carechapter. Add as much
coolant as your engine needs. If the engine
continues to overheat, have the cooling
system serviced.
File:03icisf.ex
Update:Tue Mar 4 08:51:24 1997

18 %
*
[IS07500(ALL)03/96]
Speedometer
*
[IS07600(ALL)03/96]
The speedometer tells you how many miles
(kilometers) per hour your vehicle is moving.
%*
[IS07700(ALL)03/96]
Odometer
*
[IS07800(ALL)01/96]
The odometer tells you the total number of miles
(kilometers) your vehicle has been driven.
%*
[IS07900(ALL)01/96]
Trip Odometer
%*
[IS07920(ALL)01/96]
The trip odometer records the distance of
individual trips. Before each trip, set the trip
odometer to zero by pushing the reset button.
File:03icisf.ex
Update:Tue Mar 4 08:51:24 1997

19
Electronic Sound Systems
[AS21330(ALL)02/96]
full page art:0032283-A

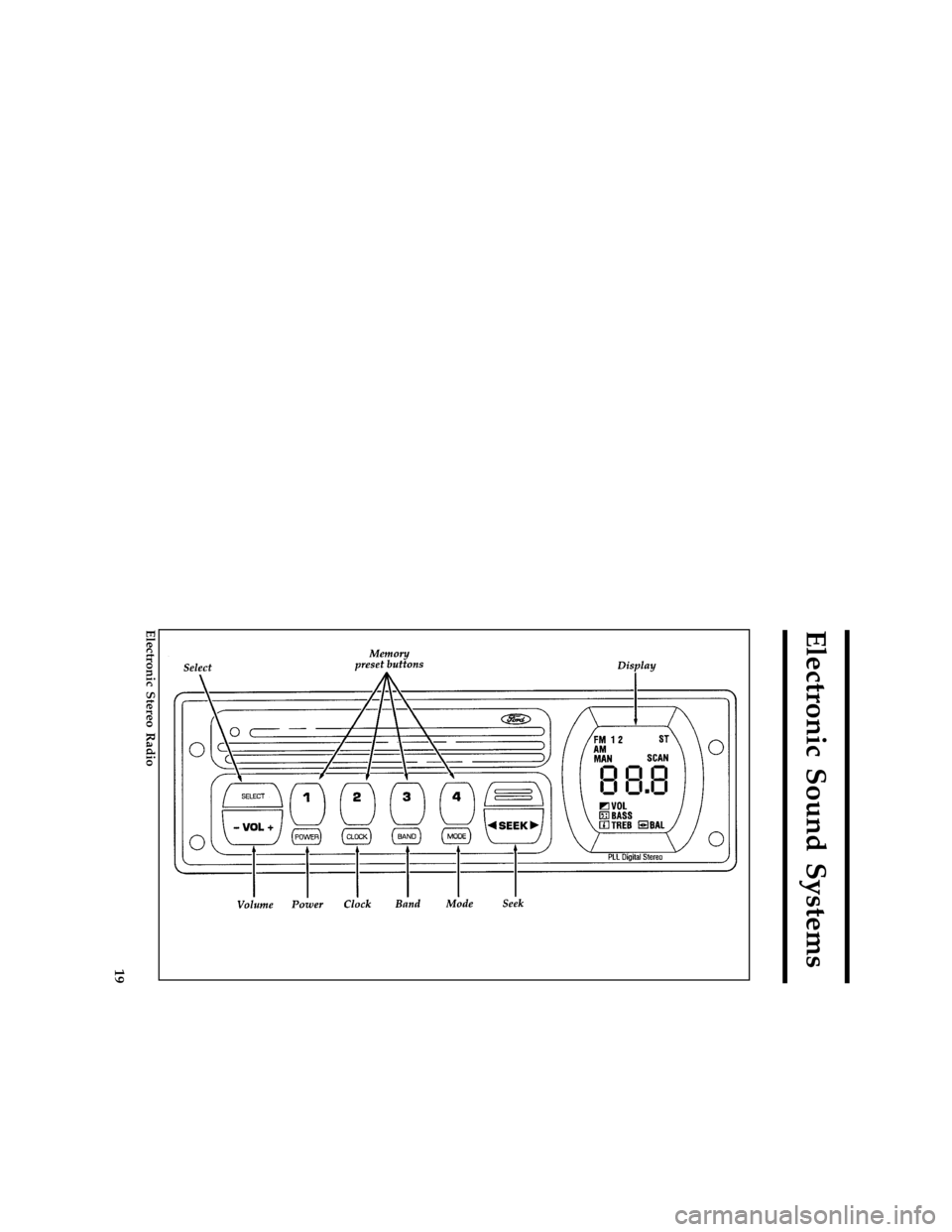

Electronic Stereo Radio
File:04icasf.ex
Update:Tue Mar 4 08:51:43 1997

20 [AS21360(ALL)02/96]

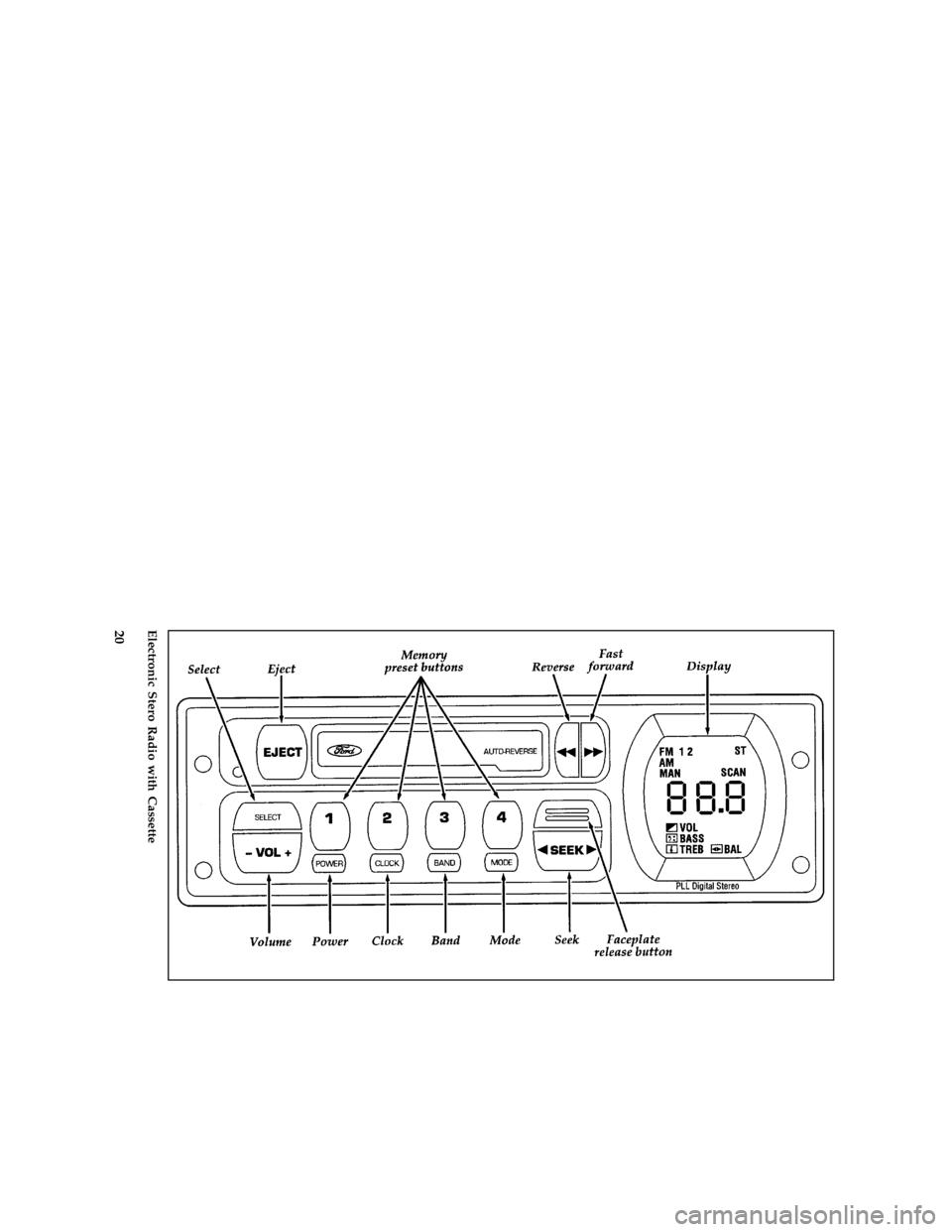

full page art:0032284-AElectronic Stero Radio with Cassette
File:04icasf.ex
Update:Tue Mar 4 08:51:43 1997

21
%*
[AS21380(ALL)09/95]
Electronic Stereo and Stereo
Cassette Radios
*
[AS21400(ALL)03/96]
Using the Controls on Your New Radio
*
[AS21500(ALL)08/95]
How to turn the radio on and adjust the
volume
*
[AS21600(ALL)10/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
[AS22050(ALL)02/96]
Press the right (+) side of the ªVOLº button to
increase the volume. Press the left (S) side of
the button to decrease the volume.
[AS22075(ALL)04/96]
If the volume is set above a certain level when
the ignition is turned off, the volume level will
reset to a ªnominalº listening level when the
ignition switch is turned back on.
*
[AS22100(ALL)03/96]
Selecting the AM or FM frequency band
[AS22210(ALL)02/96]
Push the ªBANDº button to select the desired
frequency band. Pushing the button more than
once will alternate between AM, FM1 and FM2.
These functions are used with the station
memory buttons described underHow to tune
radio stations.
%*
[AS22300(ALL)03/96]
How to tune radio stations
[AS22405(ALL)04/96]
There are four ways for you to tune in a
particular station. You can manually locate a
station, ªSEEKº to the next station, ªSCANº for
listenable stations, or select the station using the
memory preset buttons, which you can set to
any desired frequency.
[AS22450(ALL)02/96]
q
Using the manual mode to tune your radio
[AS22500(ALL)02/96]
You can change the frequency up or down
one increment at a time by first pressing the
mode button until ªMANº appears above the
frequency display. Then, press either the right
(
a) or left (
b) side of the ªSEEKº button.
