1997 FORD ASPIRE Owners Manual

78instrument panel, or lean over near the air bag
cover when the vehicle is moving. All occupants
should sit with their backs against the seatback,
move the seat to the most rearward position if
possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should
use child or infant seats.
%*
[SS16650(ALL)05/96]
WARNING
When using forward-facing child seats
move the passenger seat as far back from
the instrument panel as possible. Never
secure rear-facing child seats or infant
carriers in the front seat.
*
[SS16651(ALL)05/96]
The force of the rapidly inflating passenger air
bag could push the top of the rear-facing seat
against the vehicle seatback, armrests or console.
Rear-facing infant seats must always be secured
in the rear seat.
*
[SS16699(ALL)05/96]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SS16700(ALL)03/96]
WARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
*
[SS16800(ALL)03/96]
WARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

79
*
[SS16940(ALL)05/96]
WARNING
Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration.
[SS16960(ALL)01/96]
half page art:0032255-B
Safety belt buckle placement for child seats
[SS16980(ALL)01/96]
Using the Dual Locking Mode Retractor
When Installing a Child Safety Seat
*
[SS17000(ALL)02/96]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the front passenger seat and both rear seats. The
automatic locking modemust be usedwhen
installing a child seat or infant carrier in the
front passenger seat or rear seats.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

80
*
[SS17010(ALL)03/96]
WARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SS17025(ALL)01/96]
If you choose to install a child safety seat in the
front seat, move the seat as far back as possible.
[SS17050(ALL)04/96]
1. Position the child seat on the passenger seat
of the vehicle.
*
[SS17075(ALL)02/96]
2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. See
Figure 1.
[SS17125(ALL)02/96]
half page art:0032244-C
Grasping the shoulder and lap belt together
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

81
*
[SS17127(ALL)01/96]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure the belt webbing is not twisted, and
insert the tongue into the buckle. See Figure
3.
[SS17135(ALL)01/96]
half page art:0032269-A
Routing the lap/shoulder belt
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

82 [SS17160(ALL)03/96]
half page art:0032270-BBuckling the belt
*
[SS17190(ALL)01/96]
WARNING
Failure to follow all instructions on the
proper use of child seats or the vehicle
restraint systems can result in serious
injury or death in the event of a sudden
stop or collision.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

83
*
[SS17225(ALL)01/96]
4. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). See
Figure 4.
[SS17275(ALL)01/96]
half page art:0032271-A
Setting the retractor to automatic locking mode
*
[SS17280(ALL)02/96]
5. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. See Figures 5 and 6.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

84 [SS17281(ALL)01/96]

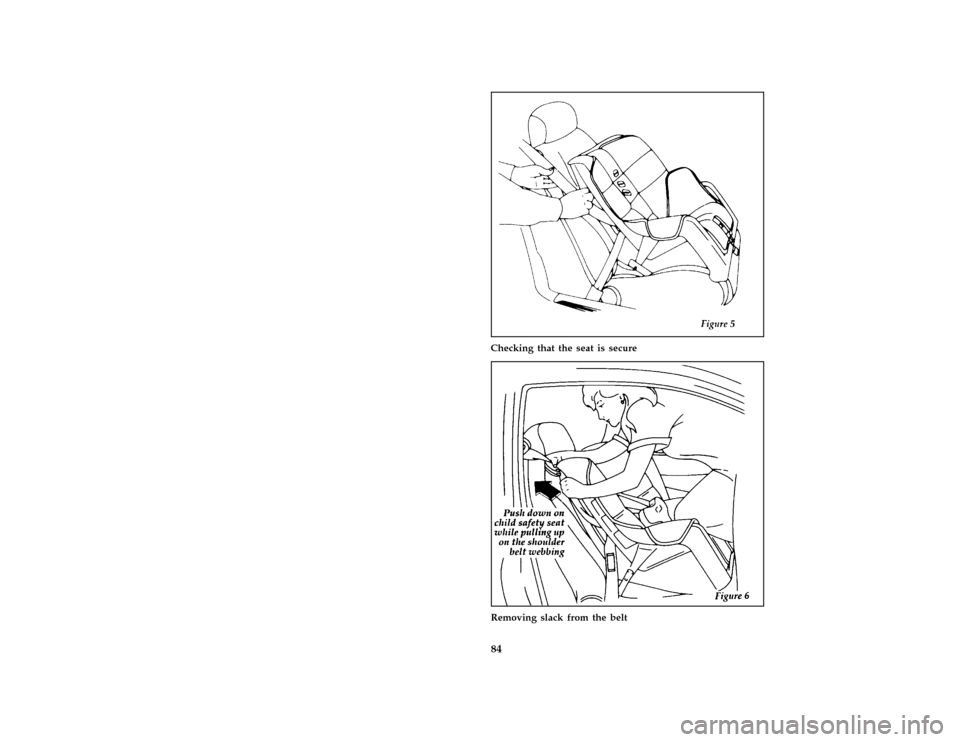

half page art:0032272-BChecking that the seat is secure
[SS17300(ALL)01/96]
half page art:0032273-A
Removing slack from the belt
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997

85 [SS17400(ALL)01/96]
half page art:0032246-C
Removing slack from the belt
*
[SS17450(ALL)05/96]
WARNING
Rear-facing child seats or infant carriers
should never be placed in the front seats.
*
[SS17500(ALL)02/96]

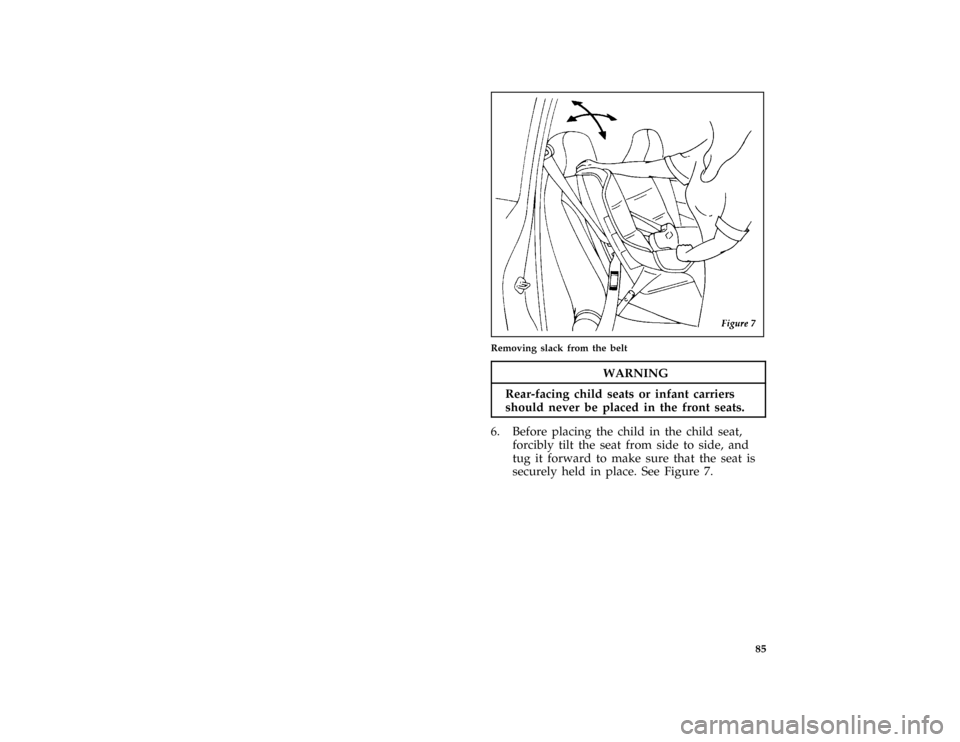

6. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place. See Figure 7.
File:06icssf.ex
Update:Tue Mar 4 08:54:10 1997
