1997 FORD ASPIRE Owners Manual

199
Capacities and
Specifications
*
[CS00500(ALL)01/96]
Refill Capacities, Motorcraft Parts,
and Lubricant Specifications
%*
[CS10000(ALL)01/96]

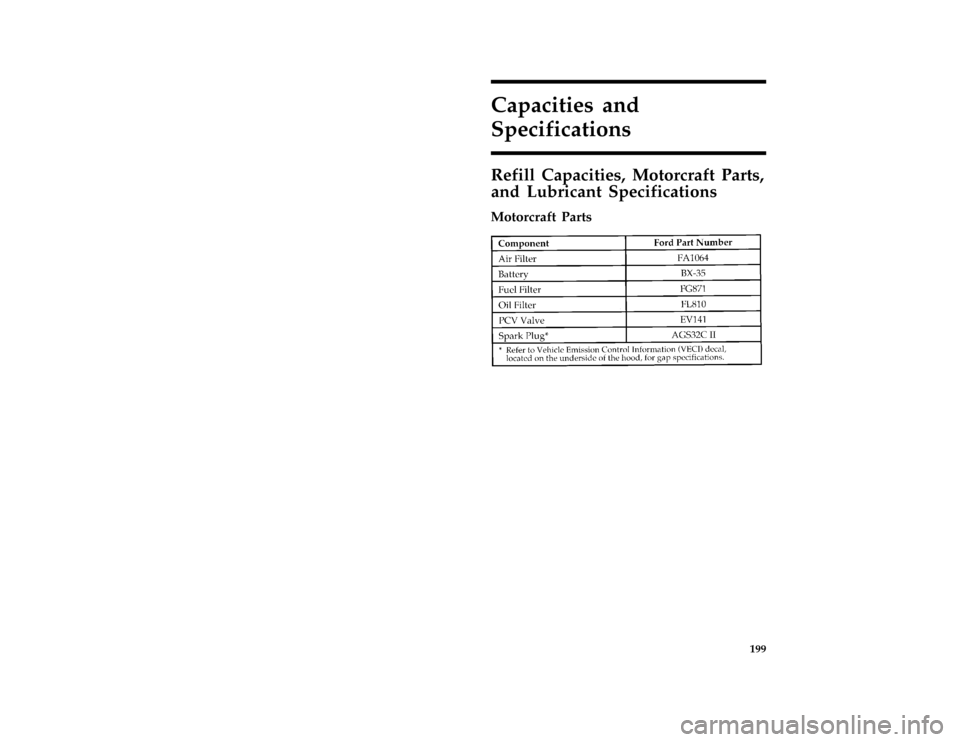

Motorcraft Parts
[CS10100(ALL)01/96]
twelve pica chart:0030288-HFile:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

200
*
[CS43160(ALL)02/96]

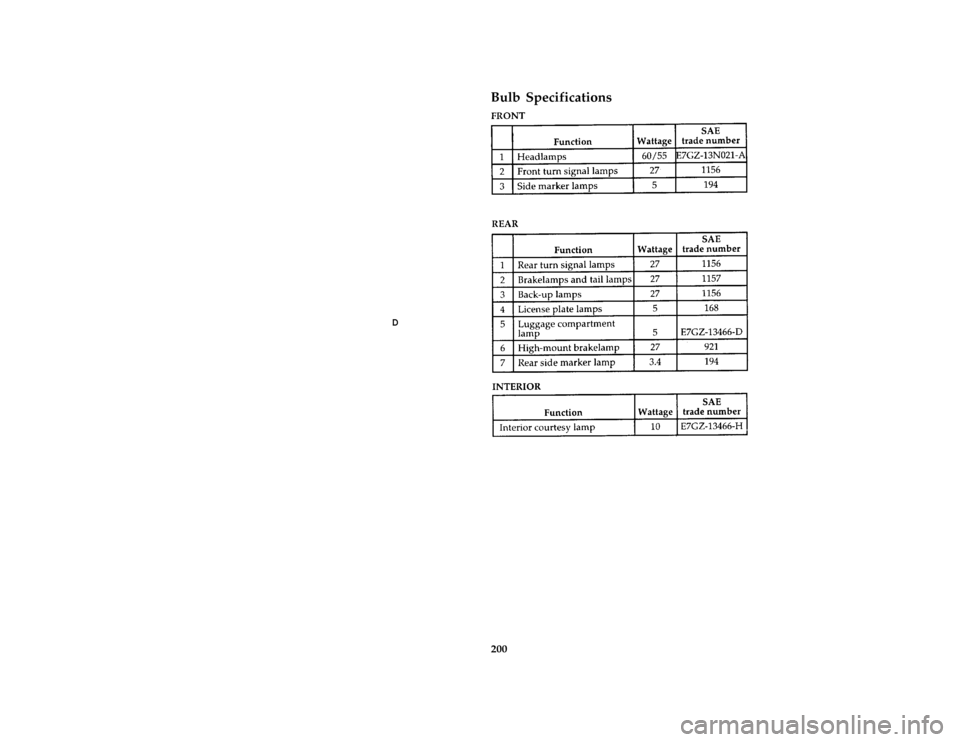

Bulb Specifications
[CS43170(ALL)01/96]
twenty-eight pica chart:0032221-DFile:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

201
*
[CS49100(ALL)01/96]

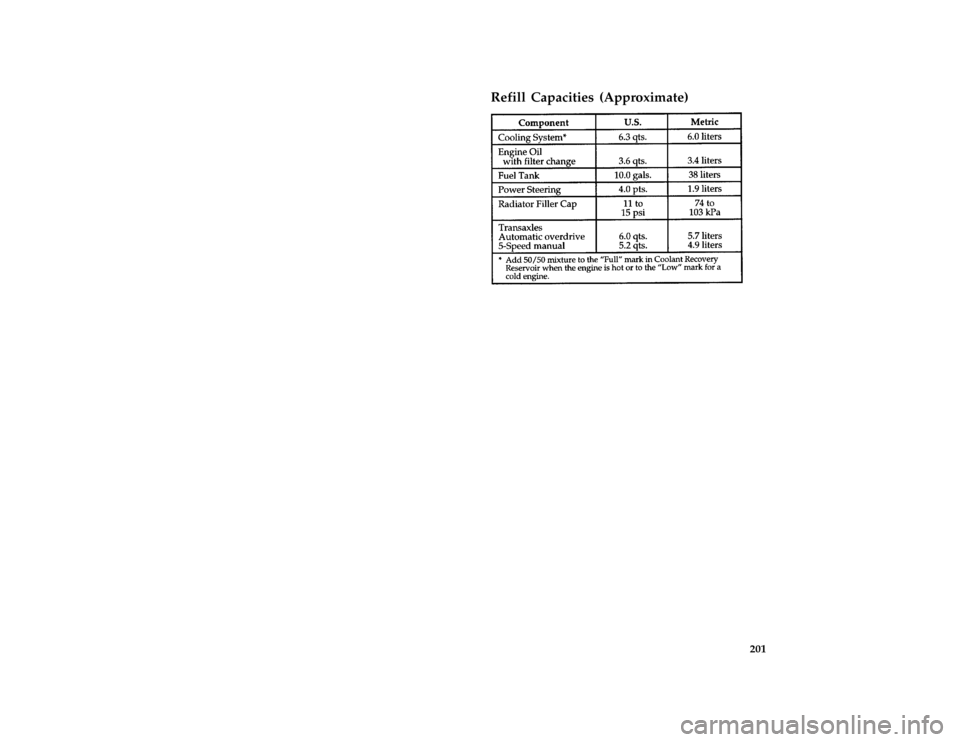

Refill Capacities (Approximate)
[CS49400(ALL)04/96]
fourteen pica chart:0032222-IFile:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

202
*
[CS49900(ALL)01/96]
Lubrication Specifications
*
[CS50000(ALL)02/96]
The transaxle and steering systems in your
vehicle are filled at the factory with high-quality,
long-lasting lubricants or fluids that do not
require periodic draining or refilling except
under severe-duty conditions. However, when
refilling or adding is required, it should be with
the proper lubricant or fluid meeting Ford
technical specifications. See theMaintenance
Schedulebooklet for instructions on maintaining
proper fluid levels.
File:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

203
*
[CS50025(ALL)01/96]

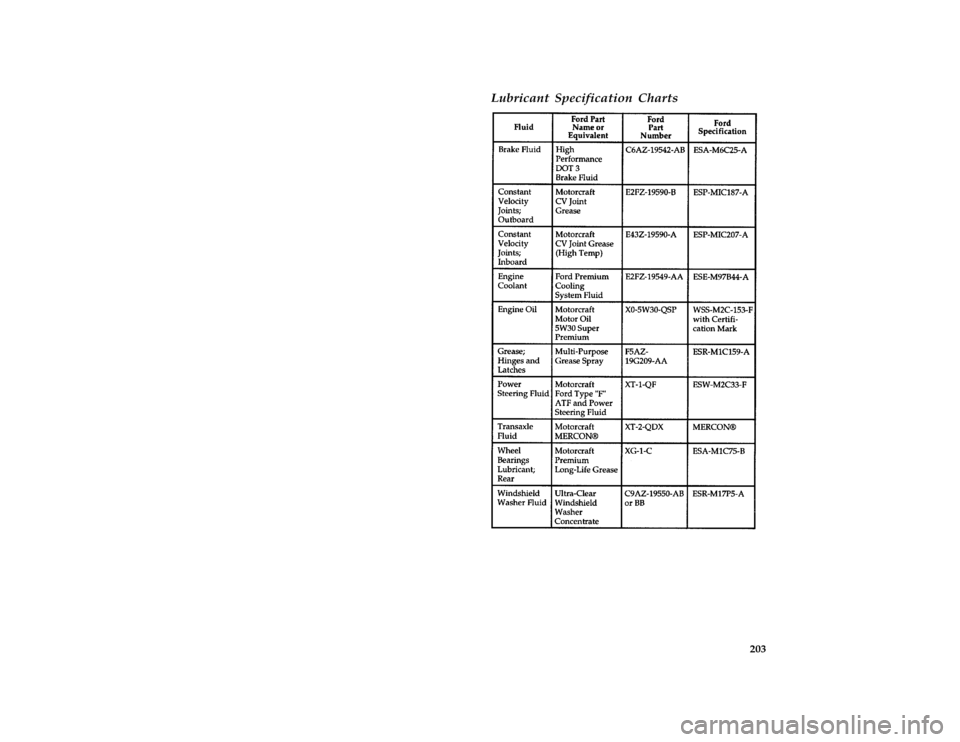

Lubricant Specification Charts
[CS50500(ALL)04/96]
thirty-six pica chart:0032289-AFile:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

204
[CS55000(ALL)02/96]
Your Engine Type
[CS55100(ALL)02/96]
Your vehicle has a 1.3L (81 CID), fuel injected,
overhead cam, four-cylinder engine.
[CS55200(ALL)02/96]
The following page shows you a diagram of the
engine and where to find items you should
regularly service.
File:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

205 [CS55300(ALL)02/96]
full page art:0032216-C

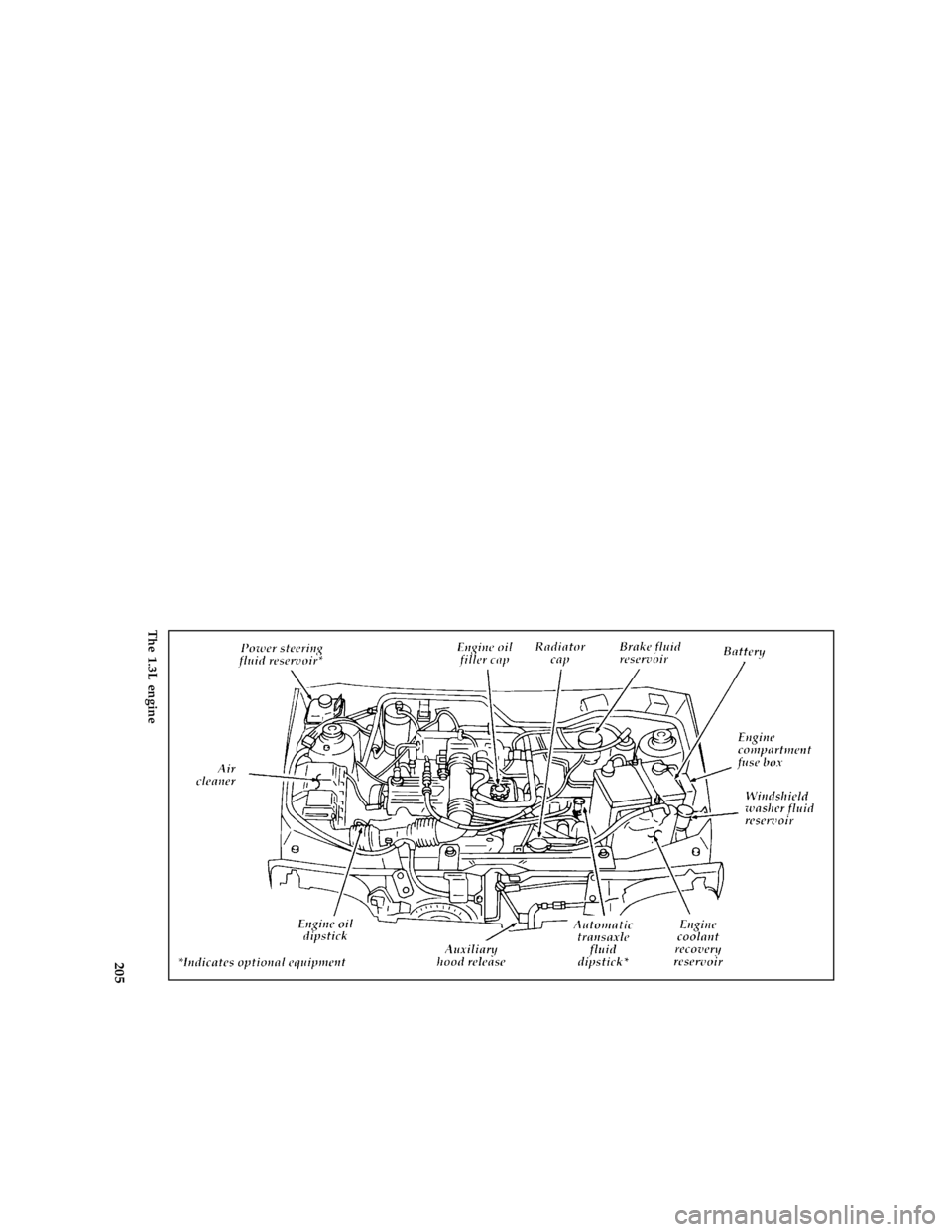

The 1.3L engine
File:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997

206
%*
[CS60000(ALL)01/96]
Your Vehicle Identification
Number (VIN)
[CS60010(ALL)01/96]
one inch art:0030500-A
Vehicle Identification Number (VIN/Serial Number)
*
[CS60200(ALL)04/96]
You should include your Vehicle Identification
Number (VIN) any time you write to Ford
Motor Company about your vehicle.
*
[CS60300(ALL)03/96]
The Vehicle Identification Number is attached to
your vehicle in the following places:
[CS60400(ALL)03/96]

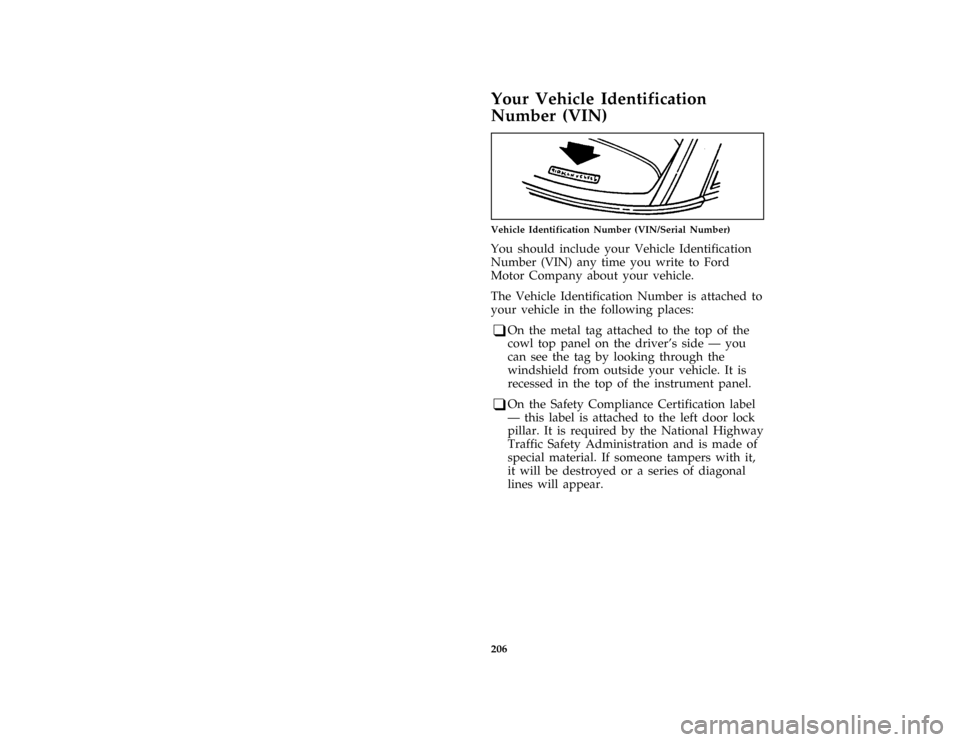

q
On the metal tag attached to the top of the
cowl top panel on the driver's side Ð you
can see the tag by looking through the
windshield from outside your vehicle. It is
recessed in the top of the instrument panel.
[CS60500(ALL)03/96]
q
On the Safety Compliance Certification label
Ð this label is attached to the left door lock
pillar. It is required by the National Highway
Traffic Safety Administration and is made of
special material. If someone tampers with it,
it will be destroyed or a series of diagonal
lines will appear.
File:12iccsf.ex
Update:Tue Mar 4 08:57:46 1997
