1996 GMC SIERRA Owners Manual

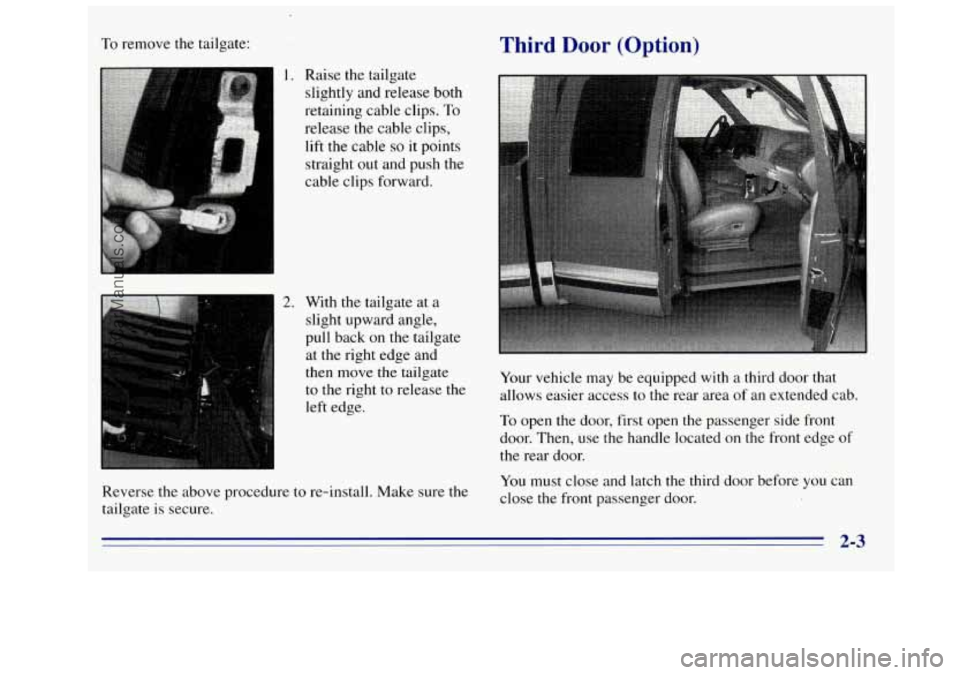

To remove the tailgate:
1. Raise the tailgate
slightly and release both
retaining cable clips.
To
release the cable clips,
lift the cable
so it points
straight
out and push the
cable clips forward.
2. With the tailgate at a
slight upward angle,
pull back on the tailgate
at the right edge and
then move the tailgate
to the right to release the
left edge.
Reverse the above procedure
to re-install. Make sure the
tailgate is secure.
Third Door (Option)
Your vehicle may be equipped with a third door that
allows easier access
to the rear area of an extended cab.
To open the door, first open the passenger side front
door. Then, use
the handle located on the front edge of
the rear door.
You must close and latch the third door before you can
close the front passenger
door.
2-3
ProCarManuals.com

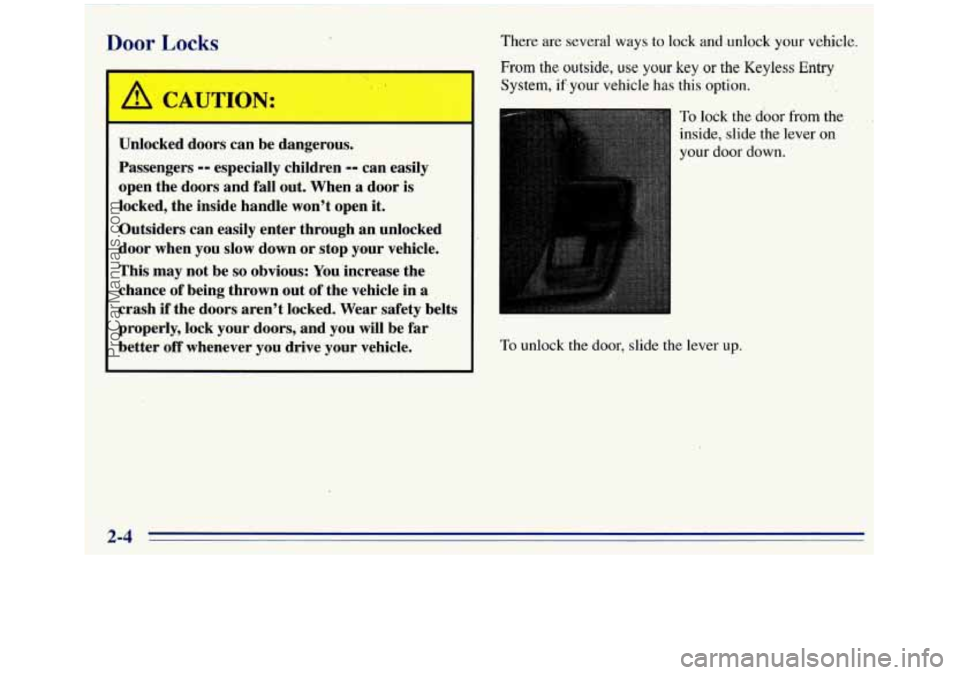

~ Door Locks There
are several ways to lock and .unlock your vehicle. I
I
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in
a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you
will be far
better off whenever you drive your vehicle.
From the outside, use your key or the Keyless Entry
System, if.your vehicle has this option.
To lock the door from the
inside, slide the lever
on
your door down.
To unlock the door, slide the lever up.
2-4 I' II
ProCarManuals.com

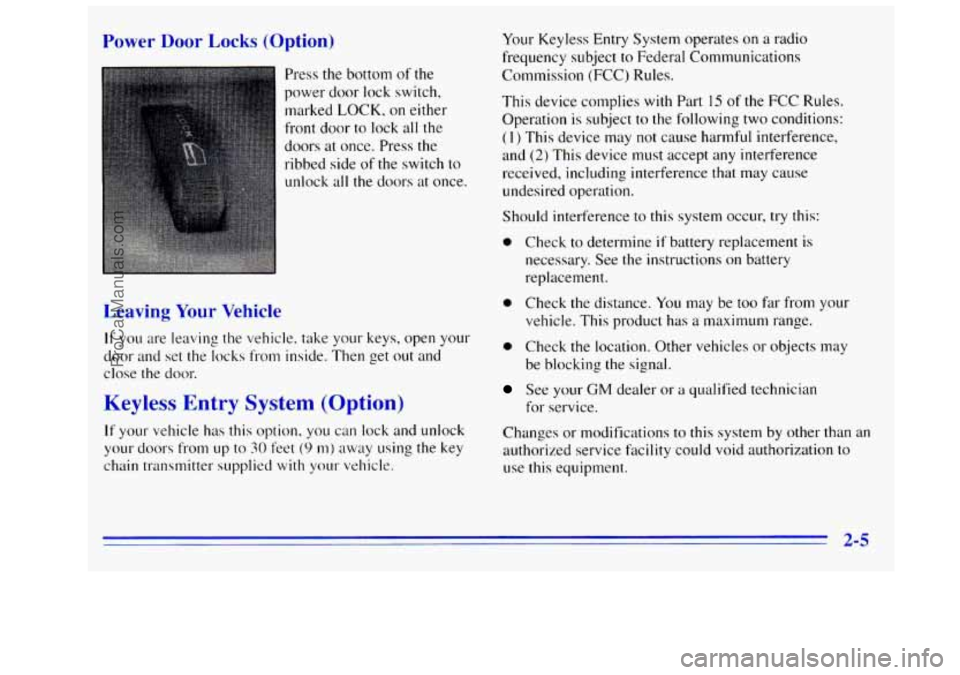

Power Door Locks (Option)
Press the bottom of the
power door lock switch,
marked
LOCK, on either
front door to lock
all the
doors at once. Press the
ribbed side of the switch to
unlock
all the doors at once.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close
the door.
Keyless Entry System (Option)
If your vehicle has this option, you can lock and unlock
your doors from up to
30 feet (9 111) away using the key
chain transmitter supplied with your vehicle. Your
Keyless Entry System operates
on a radio
frequency subject
to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation
is subject to the following two conditions:
(1 ) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Should interference to
this system occur, try this:
0 Check to determine if battery replacement is
necessary. See the instructions
on battery
replacement.
vehicle. This product has
a maximum range.
0 Check the distance. You may be too far from your
0 Check the location. Other vehicles or objects may
be blocking the signal.
See your GM dealer or a qualified technician
for service.
Changes or modifications
to this system by other than an
authorized service facility could void authorization to
use
this equipment.
2-5
ProCarManuals.com

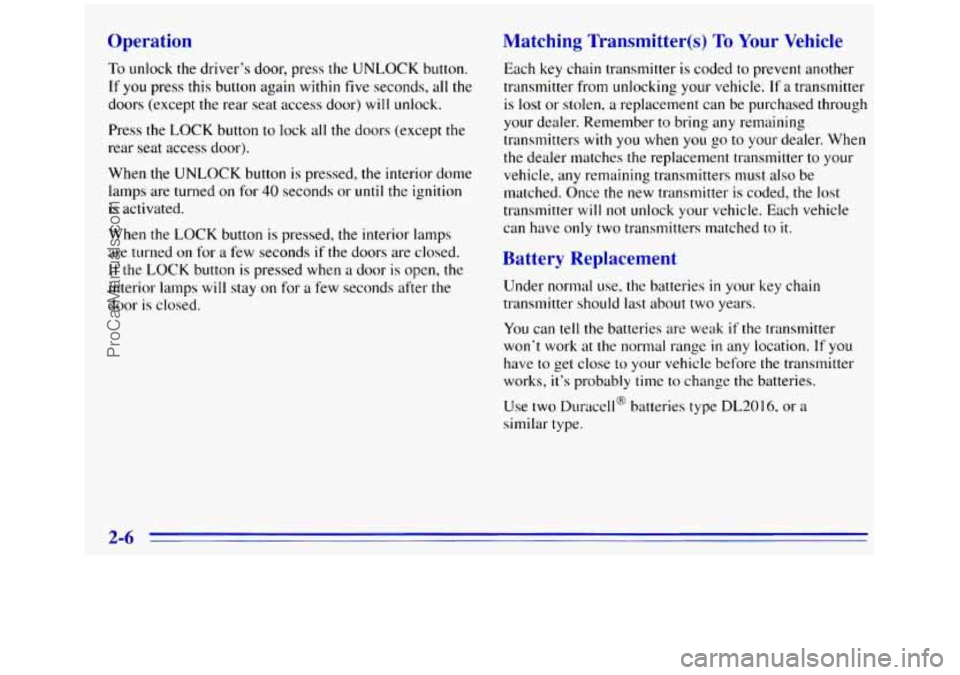

Operation
To unlock the driver’s door, press the UNLOCK button.
If you press this button again within five seconds, all the
doors (except the rear seat access door)
will unlock.
Press the
LOCK button to lock all the doors (except the
rear seat access door).
When the UNLOCK button is pressed, the interior dome
lamps are turned on for
40 seconds or until the ignition
is activated.
When the LOCK button is pressed, the interior lamps
are turned on for
a few seconds if the doors are closed.
If the LOCK but.ton is pressed when a door is open, the
interior lamps
will stay on for a few seconds after the
door
is closed.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen, a replacement can be purchased through
your dealer. Remember to bring any remaining
transmitters
with you when you go to your dealer. When
the dealer matches
the replacement transmitter to your
vehicle, any remaining transmitters must also be
matched. Once the new transmitter
is coded, the lost
transmitter will
not unlock your vehicle. Each vehicle
can have only two transmitters matched to
it.
Battery Replacement
Under normal use. the batteries in your key chain
transmitter should last
about two years.
You can tell the batteries are weak
if the transmitter
won’t work at the normal range
in any location. If you
have to get close to your vehicle before the transmitter
works,
it’s probably time to change the batteries.
Use two Duraeell@ batteries type
DL2014, or a
similar type.
2-6
ProCarManuals.com

To replace the batteries: rheft
1. Insert a dime in the side seam of the transmitter
housing, near
the key ring hole.
2. Twist the dime to separate the two halves of the
transmitter housing. Separate the housing, bottom
half first.
3. Remove and replace the batteries. Put the new
batteries
in with the printed side down.
4. Align the housing and snap the halves together. Vehicle theft is big business, especially
in some cities.
Although your vehicle has
a number of theft-deterrent
features, we know that nothing
we put on it can make it
impossible to steal. However, there are ways you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for joy riders or professional thieves
-- so
don’t do
it.
When you park your vehicle and open the driver’s door,
you’ll hear a tone reminding you to remove your key
from the ignition and take
it with you. Always do this.
Your steering wheel
will be locked, and so will your
ignition.
If you have an automatic transmission, taking
your key out also locks
your transmission. And
remember to lock
the doors.
2-7
ProCarManuals.com

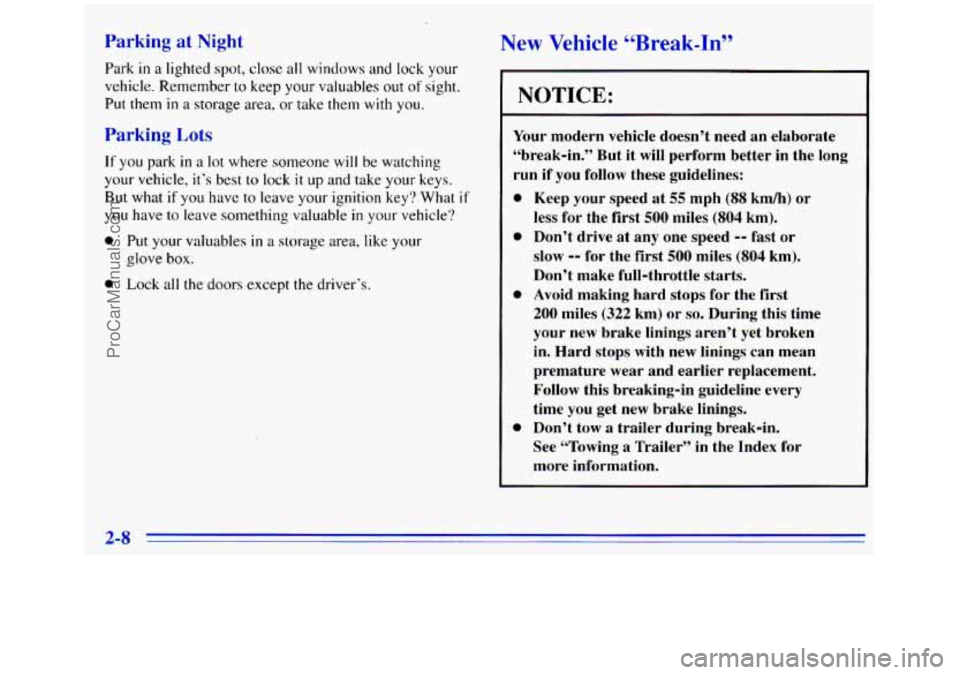

Parking at Night New Vehicle “Break-In”
Park in a lighted spot, close all windows and lock your
vehicle. Remember
to keep your valuables out of sight.
Put
them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best
to lock it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
0 Put your valuables in a storage area, like your
glove
box.
0 Lock all the doors except the driver‘s.
NOTICE:
Your modern vehicle doesn’t need an elaborate
“break-in.” But it
will perform better in the long
run
if you follow these guidelines:
0
0
0
0
Keep your speed at 55 mph (88 km/h) or
less for the first
500 miles (804 km).
Don’t drive at any one speed
-- fast or
slow
-- for the first 500 miles (804 km).
Don’t make full-throttle starts.
Avoid making hard stops for the
first
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
Don’t tow a trailer during break-in.
See “Towing
a Trailer” in the Index for
more information.
2-8
ProCarManuals.com

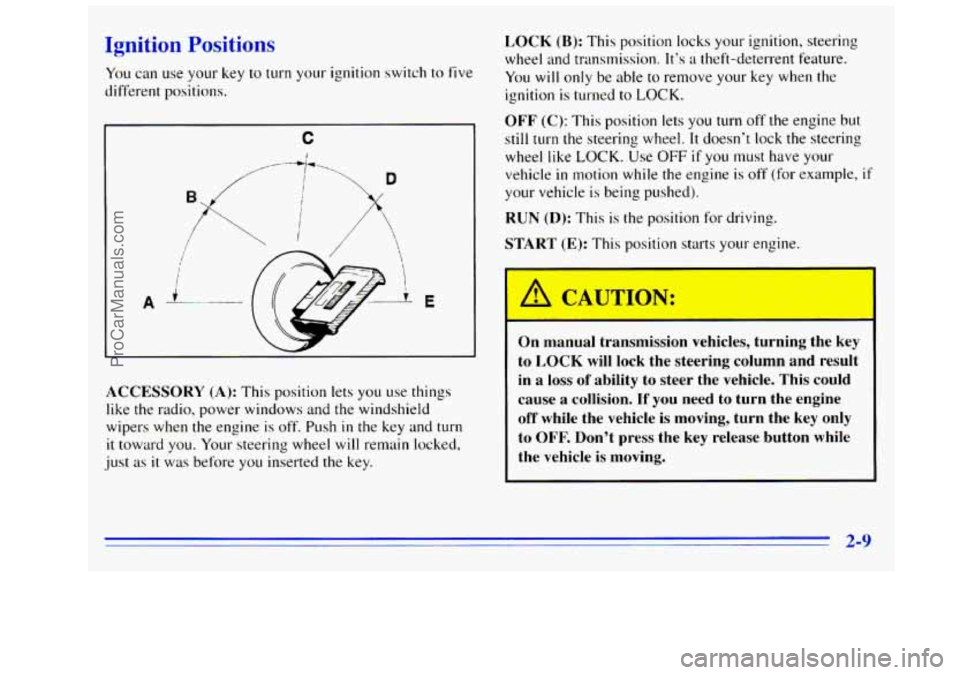

Ignition Positions
You can use your Key to turn your ignition switch to five
different positions.
C
1
E
W
LCCESSORY (A): This position lets you use things
like the radio, power windows and the windshield
wipers when the engine is off. Push
in the key and turn
it toward you. Your steering wheel will remain locked,
just
as it was before you inserted the key. LOCK
(B): This
position locks your ignition, steering
wheel
and transmission. It's a theft-deterrent feature.
You will only be able to remove your key when the
ignition is turned to
LOCK.
OFF (C): This position lets you turn off the engine but
still
turn the steering wheel. It doesn't lock the steering
wheel like
LOCK. Use OFF if you must have your
vehicle in motion while the engine is off (for example, if
your vehicle is being pushed).
RUN
(D): This is the position for driving.
START
(E): This position starts your engine.
I
I A CAUTION:
On manual transmission vehicles, turning the key
to LOCK will lock the steering column and result
in
a loss of ability to steer the vehicle. This could
cause
a collision. If you need to turn the engine
off' while the vehicle is moving, turn the key only
to
OFF. Don't press the key release button while
the vehicle is moving.
ProCarManuals.com

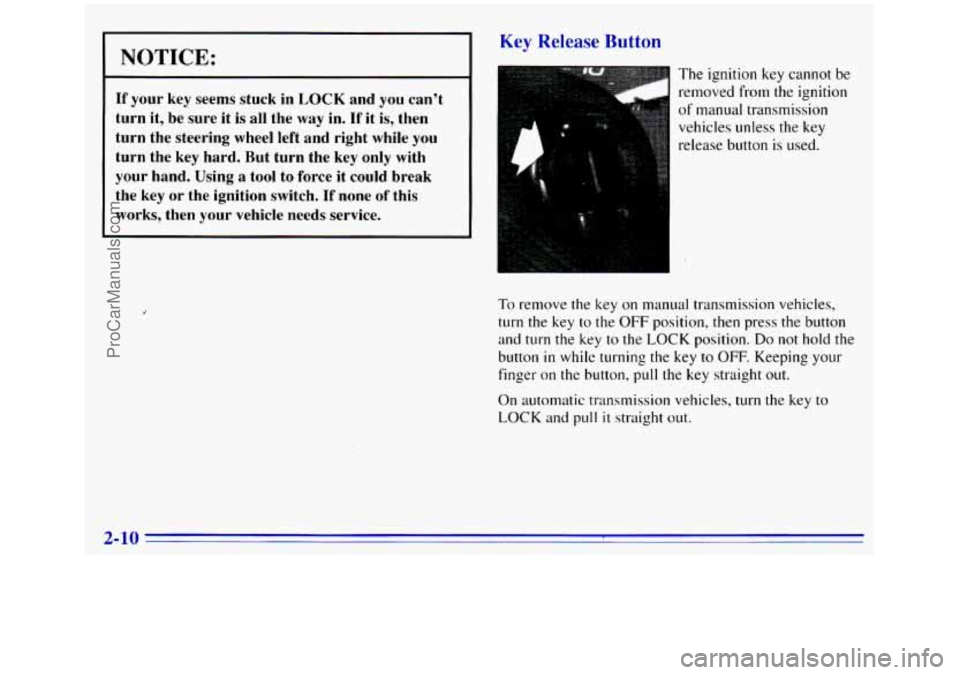

NOTICE:
If your key seems stuck in LOCK and you can’t
turn it, be sure it is
all the way in. If it is, then
turn the steering wheel left and right while
you
turn the key hard. But turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch.
If none of this
works, then your vehicle needs service.
Key Release Button
The ignition key cannot be
removed from the ignition
of manual transmission
vehicles unless the key
release button
is used.
To remove the key on manual transmission vehicles,
turn the key to the
OFF position, then press the button
and
turn the key to the LOCK position. Do not hold the
button
in while turning the key to OFF. Keeping your
finger on the button,
pull the key straight out.
On automatic transmission vehicles, turn the key to
LOCK and
pull it straight out.
2-10
