1996 GMC SIERRA Owners Manual

Automatic Transmission Check
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look
for any other loose or damaged
safety belt system parts.
If you see anything that might
keep a safety belt system from doing its job, have
it
repaired. Have any torn or frayed safety belts replaced.
Also
look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag
system
does not need regular maintenance.)
Air Cleaner Filter Restriction Indicator Check
Your vehicle has an indicator on the engine that lets you
know when the air cleaner filter is dirty and needs to be
changed. Check indicator at least twice
a year or when
your
oil is changed. See “Air Cleaner” in the Index for
more information.
Manual Transmission Check
Check the transmission fluid level; add if needed. See
“Manual Transmission” in
the Index. A fluid loss may
indicate
a problem. Check the system and repair if needed. Check the transmission
fluid level; add if needed. See
“Automatic Transmission”
in the Index. A fluid loss
may indicate a problem. Check the system and repair
if needed.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid”
in the Index. A fluid loss in
this system could indicate a problem. Have the system
inspected and repaired
at once.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication Service
Lubricate all fuel doors, body hood and body door
hinges, tailgate and tailgate handle pivot points, latches,
locks and folding seat hardware. Part
D tells you what to
use. More frequent lubrication may be required when
exposed to a corrosive environment.
ProCarManuals.com

Starter Switch Check When
you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake
(see “Parking
Brake” in the Index if necessary) and the regular brake.
NOTE: Do not use the accelerator pedal, and be
ready
to turn off the engine immediately if it starts.
On automatic transmission vehicles, try
to start the
engine in each gear. The starter should work only in
PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL (N), push.the clutch down halfway
and
try to start the engine. The starter should work
only when the clutch is pushed down
all the way to
the floor.
If the starter works when the clutch isn’t
pushed all the way down, your vehicle needs service.
Brake-Transmission Shift Interlock (BTSI)
Check (Automatic Transmission)
I A CAUTION:
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough
room around the vehicle. It should be parked
on
a level surface.
Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to
apply the regular brake
immediately
if the vehicle begins to move.
With the engine off,
turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try
to move the shift lever out of
PARK (P) with normal effort. If the shift lever moves
out of PARK
(P), your vehicle’s BTSI needs service.
7-44
ProCarManuals.com

Steering Column Lock Check
While parked, and with
the parking brake set, try to turn
the key
to LOCK in each shift lever position.
With an automatic transmission, the key should turn
With a manual transmission, the key should turn
to LOCK only when the shift lever is in PARK (P).
to LOCK only when the shift lever is in
REVERSE
(R).
On vehicles with a key release button, try to turn the key
to LOCK without pressing the button. The key should
turn to LOCK
only when you press the key button.
On all vehicles, the key should come out
only in LOCK. Parking Brake and Automatic Transmission
PARK
(P) Mechanism Check
I CAUTION:
When
you are doing this check, your vehicle
could begin to move.
You or others could be
injured and property could be damaged.
Make
sure there is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park
on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake, set
the parking brake.
0 To check the parking brake: With the engine running
and transmission in NEUTRAL
(N), slowly remove
foot pressure from the regular brake pedal.
Do this
until the vehicle
is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift
to PARK (P). Then
release all brakes.
7-45
--- -
ProCarManuals.com

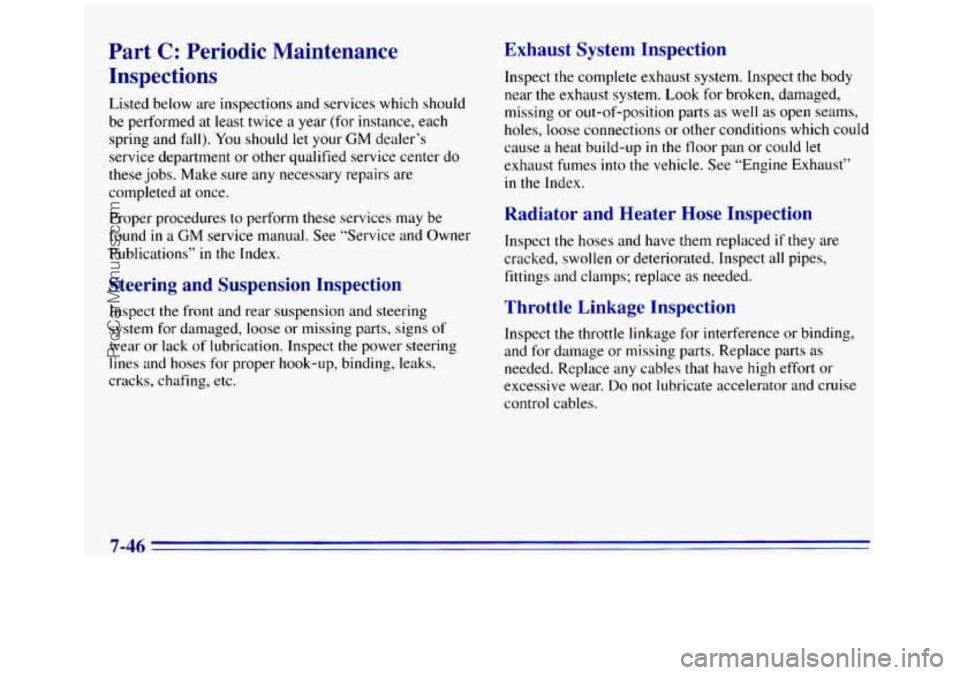

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures
to perform these services may be
found
in a GM service manual. See “Service and Owner
Publications” in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs
of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well
as open seams,
holes, loose connections or other conditions which could
cause
a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace
as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
ProCarManuals.com

Drive Axle Service
Check readfront axle fluid level and add its needed.
Check constant velocity joints and axle seals for leaking.
Transfer Case (Four-wheel Drive)
Inspection
Every 12 months or at oil change intervals, check front
axle and transfer case and add lubricant
when necessary.
Oil
the control lever pivot point and all exposed control
linkage. Check
vent hose at transfer case for kinks and
proper installation. More frequent lubrication
may be
required
on off-road use.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. For vehicles with rear drum
brakes, also inspect drum brake linings for wear and
cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc. Check
parking brake adjustment. You may need to have your
brakes inspected more often
if your driving habits or
conditions result
in frequent braking.
ProCarManuals.com

Part D: Rea
Lubricants
NOTE: Fluids and
part number
or spe
GM dealer.
I USAGE
Engine Oil
(Gasoline
Engine)
mended Fluids and
ubricants identified below by name,
ification may
be obtained from your
FLUID/LUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and GM
Goodwrench@ DEX-COOL” or
Havoline@
DEX-COOL TM
(orange-colored, silicate-free)
antifreeze conforming
to GM
Specification 6277M. See “Engine
Coolant” in the Index.
USAGE
Coolant
Supplement
Sealer
Hydraulic Brake
System
Hydraulic Clutch
System
~~
Parking Brake Cable Guides
~
Power Steering
System
FLUIDLUBRICANT
GM Part No. 3634621 or
equivalent with a complete flush
and refill.
Delco Supreme
1 l@ Brake Fluid
(GM Part
No. 1052535 or
equivalent
DOT-3 brake fluid).
Hydraulic Clutth Fluid (GM Part
No. 12345347 or equivalent).
Chassis lubricant
(GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of
NLGI Grade 2, Category LB
or GC-LB.
GM Power Steering Fluid
(GM Part No. 1052884 - 1 pt.,
1050017
- 1 qt., or equivalent).
ProCarManuals.com

USAGE
Manual
Transmission (5-Speed
with
Low Gear, RPO
MW3)
Manual
Transmission
(5-Speed without
Low Gear, RPO
MG5)
Automatic
Transmission
Key Lock
Cylinders
Floor Shift
Linkage
FLUID/LUIBRICANT
GM Goodwrench Synthetic
Manual Transmission Gear Oil
(GM Part No. 12346 190
- 1 qt.),
Castrol Syntorq@
LT or equivalent
SAE 75W-90 GL-4 gear oil.
Synchromesh Transmission Fluid
(GM Part
No. 12345349 or
equivalent).
~~ ~~
DEXRON@-I11 Automatic
Transmission
Fluid.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 1234624
1 or equivalent),
Lubriplate Lubricant aerosol (GM
Part
No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI Grade 2 Category LB or
GC-LB.
I USAGE
Chassis
Lubrication
Front Wheel
Bearings
Differential,
Front and Rear
Axle
I
Differential, C3
(3500 HD)
Trucks With
Dana Rear Axle
I Transfer Case
FLUID/LUBRICANT
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements of
NLGI Grade
2, Category LB or
Wheel bearing lubricant meeting
requirements of NLGI Grade 2,
Category GC or GC-LB (GM Part
No. 105 1344 or equivalent).
Axle Lubricant
(GM Part
No. 105227 1) or SAE 80W-90
GL-5 Gear Lubricant.
SAE 75W-
I40 Synthetic Gear
Lubricant. GC-LB.
~~
DEXRON@-I11
Automatic
Transmission Fluid.
~~ ~ ~ -~ -
7-49
ProCarManuals.com

USAGE
Windshield
Washer Solvent
Propeller Shaft
SplineRJniversal
Joint and
Propeller Shaft
Hood Latch
Assembly,
Pivots, Spring
Anchor
and
Release Pawl ~~
Hood and Door
Hinges
FLUIDLUBRICANT ~~
GM Optikleen@ Washer Solvent
(GM Part No. 105 15 15) or
equivalent.
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of
NLGI Grade 2, Category LB or
GC-LB.
Lubriplate lubricant aerosol (GM
Part No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI Grade 2, Category LB or
GC-LB.
Multi-pu ose lubricant,
Superlube
% (CM Part
No. 1234624 1 or equivalent).
USAGE
Body Door
Hinge Pins,
Tailgate Hinge
and Linkage,
Folding Seat,
Fuel Door Hinge
Tailgate Handle
Pivot Points,
Hinges, Latch
Bolt and Linkage
Weatherstrip Conditioning
Weatherstrip Squeaks
Gas Line
FLUIDLUBRICANT
~~ ~~ ~
Multi-pu ose lubricant,
Superlube
(GM Part
No. 1234624 1 or equivalent). I%
Multi-pu ose lubricant,
Superlube (GM Part
No. 12346241 or equivalent).
~~
%
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
Multi-pu ose lubricant,
Superlube (GM Part
No. 12346241 or equivalent).
%
Gas Line De-Icer (GM Part
No. 105 1516).
See “Replacement Parts”
in the Index for recommended
replacement filters, valves and spark plugs.
I
7-50 ..
ProCarManuals.com
