1996 GMC SIERRA Owners Manual

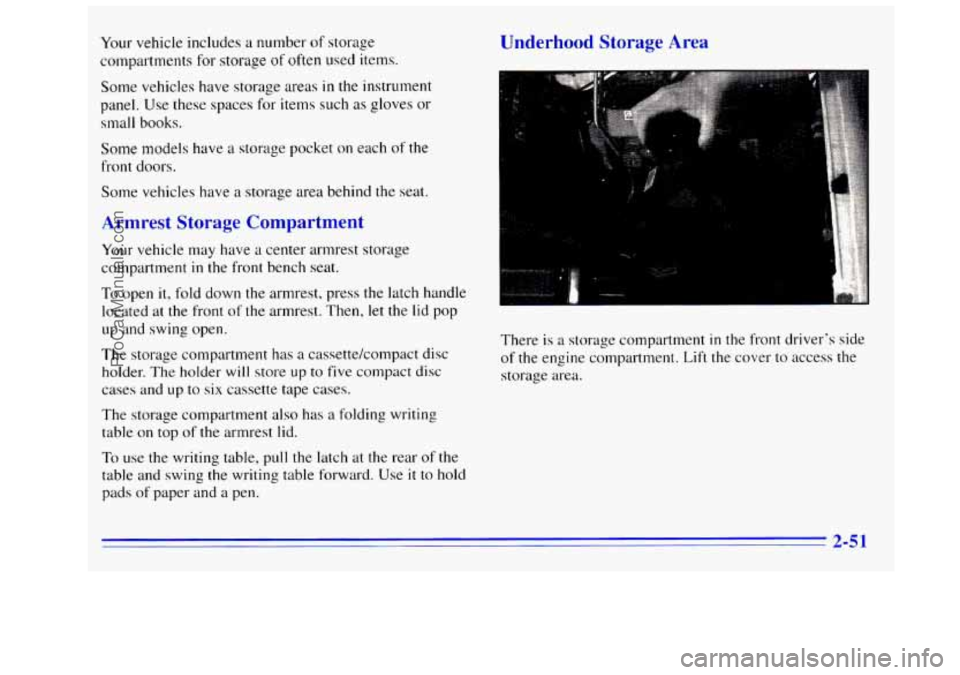

Your vehicle includes a number of storage
compartments for storage
of often used items.
Some vehicles have storage areas
in the instrument
panel. Use these spaces for items such
as gloves or
small books.
Some models
have a storage pocket on each of the
front doors.
Some vehicles have a storage area behind the seat.
Armrest Storage Compartment
Your vehicle may have a center armrest storage
compartment
in the front bench seat.
To open it, fold down the armrest, press the latch handle
located at
the front of the armrest. Then, let the lid pop
up and swing open.
The storage compartment
has a cassettekompact disc
holder. The holder
will store up to five compact disc
cases and
up to six cassette tape cases.
The storage compartment
also has a folding writing
table
on top of the armrest lid.
To use the writing table, pull the latch at the rear of the
table and swing the writing table forward. Use it to hold
pads
of paper and a pen.
Underhood Storage Area
There is a storage compartment in the front driver's side
of the engine compartment. Lift the cover to access the
storage area.
2-5 1
ProCarManuals.com

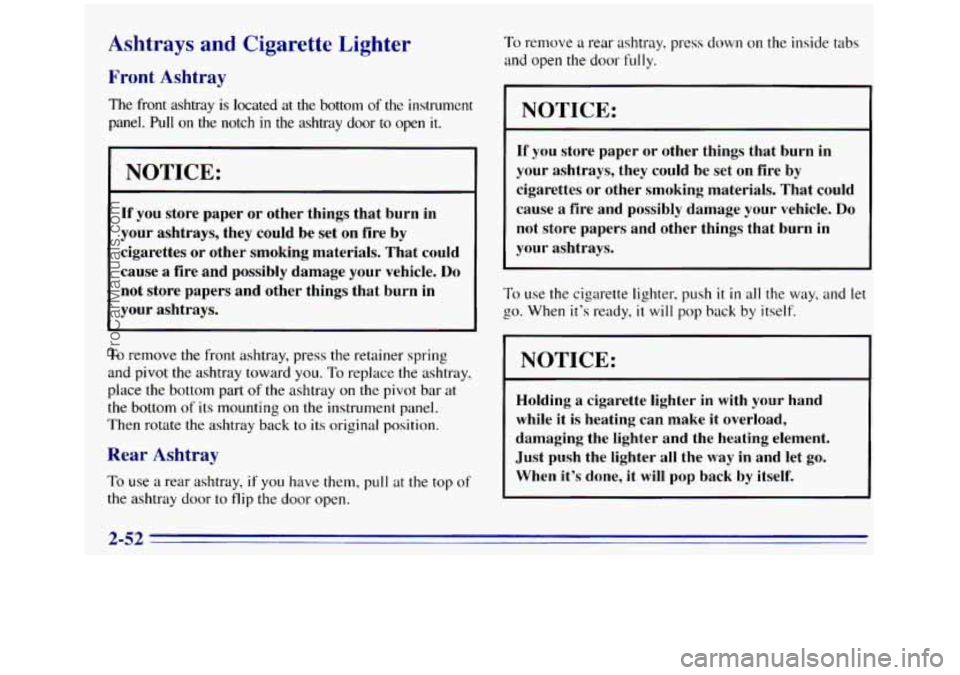

Ashtrays and Cigarette Lighter
Front Ashtray
The front ashtray is located at the bottom of the instrument
panel. Pull
on the notch in the ashtray door to open it.
NOTICE:
If you store paper or other things that burn in
your ashtrays, they could be set on fire by
cigarettes
or other smoking materials. That could
cause
a fire and possibly damage your vehicle. Do
not store papers and other things that burn in
your ashtrays.
To remove the front ashtray, press the retainer spring
and pivot
the ashtray toward you. To replace the ashtray.
place
the bottom part of the ashtray on the pivot bar at
the bottom
of its mounting on the instrument panel.
Then rotate the ashtray
back to its original position.
Rear Ashtray
To use a rear ashtray, if you have them, pull at the top of
the ashtray door to flip the door open.
To remove a rear ashtray. press down on the inside tabs
and open the door fully.
NOTICE:
If you store paper or other things that burn in
your ashtrays, they could be
set on fire by
cigarettes or other smoking materials. That could
cause a fire and possibly damage your vehicle.
Do
not store papers and other things that burn in
your ashtrays.
To use the cigarette lighter, push it in all the way, and let
go. When it’s ready, it will pop back by itself.
NOTICE:
Holding a cigarette lighter in with your hand
while it is heating can make it overload,
damaging the lighter and the heating element.
Just
push the lighter all the way in and let go.
When it’s done, it
will pop back by itself.
2-52
ProCarManuals.com

Accessory Power Outlets
Two auxiliary power outlets are located near the
cigarette lighter. Use these outlets to power mobile
telephones or other devices designed
to operate with
vehicle electrical systems.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them out to help block glare at the front
and side windows.
Your visor may have a strap
to hold small items, such
as maps.
Some visors have an
extender on the inside
edge. When the visor is
down, pull the extender
out for extra glare coverage
at the front or side.
Some visors have mirrors with lamps. If the mirror has
lamps, they will come on when
you lift the mirror cover.
2-53
ProCarManuals.com

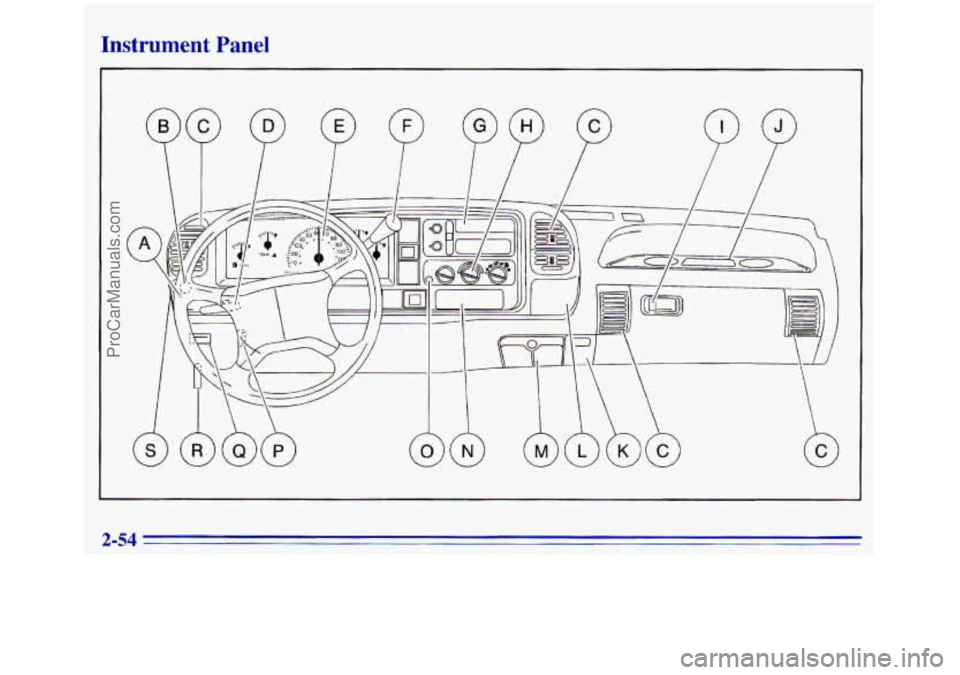

Instrument Panel
Q I
I P P P
2-54
ProCarManuals.com

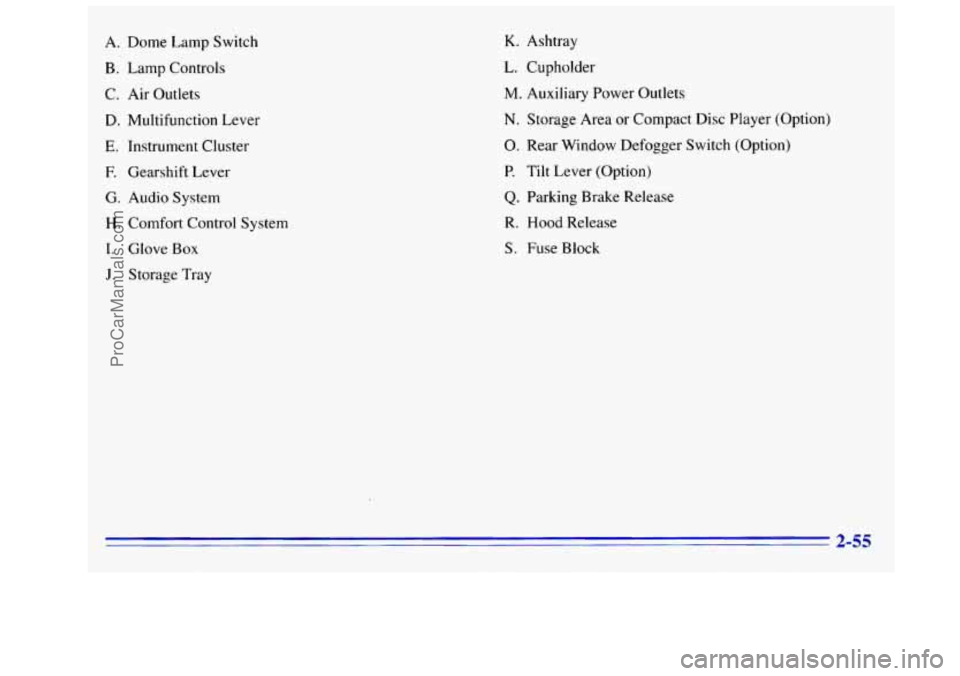

A. Dome Lamp Switch
B. Lamp Controls
C.
Air Outlets
D. Multifunction Lever
E. Instrument Cluster
E Gearshift Lever
G. Audio System
H. Comfort Control System
I. Glove Box
J. Storage Tray
K. Ashtray
L. Cupholder
M. Auxiliary Power Outlets
N. Storage Area or Compact Disc Player (Option)
0. Rear Window Defogger Switch (Option)
P. Tilt Lever (Option)
Q. Parking Brake Release
R. Hood Release
S. Fuse Block
2-55
ProCarManuals.com

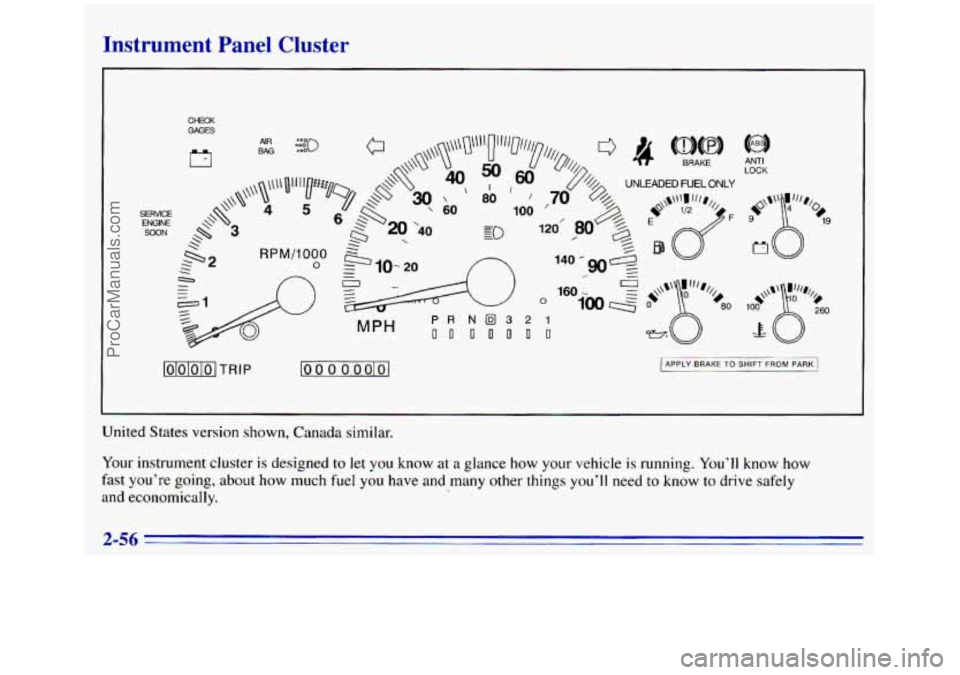

Instrument Panel Cluster
CHECK GAGES
SERVICE ENGINE SOON ANTI
LOCK
TRIP loo 0 0 oolol 1 APPLY TO SHIFT FROM PARK
United
States version shown, Canada similar.
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how
fast you're going, about how much fuel you have and many other things you'll need to
know to drive safely
and economically.
2-56
ProCarManuals.com

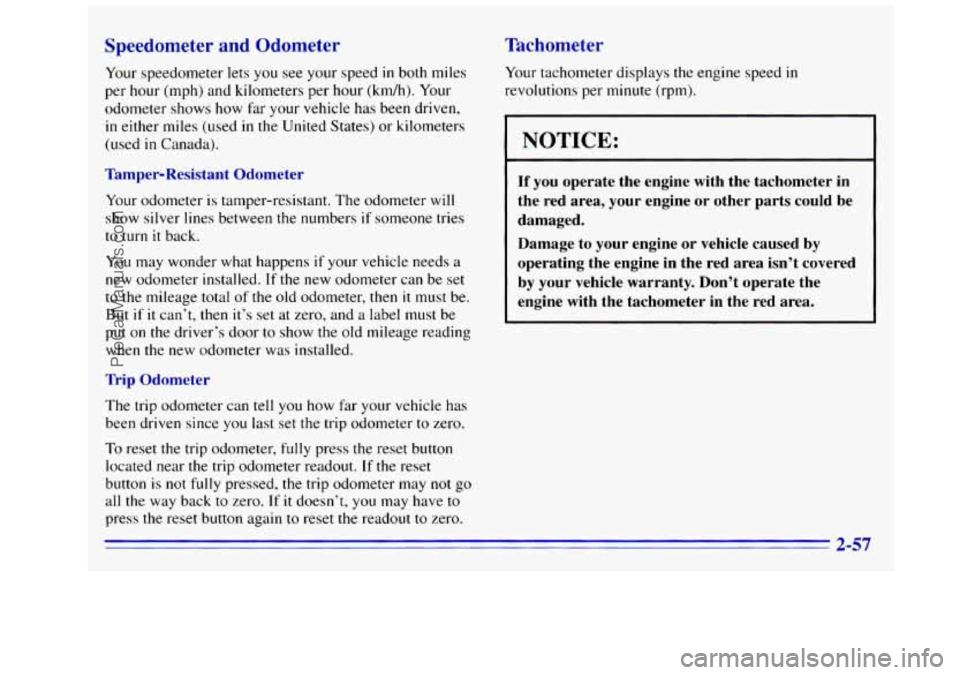

lee leter and Odometer
lour
speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows
how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used
in Canada).
Tamper-Resistant Odometer
Your odometer is tamper-resistant. The odometer will
show silver lines between the numbers if someone tries
to turn
it back.
You may wonder what happens if your vehicle needs a
new odometer installed.
If the new odometer can be set
to the mileage total of the old odometer, then it must be.
But
if it can’t, then it’s set at zero, and a label must be
put
on the driver’s door to show the old mileage reading
when the new odometer was installed.
Trip Odometer
The trip odometer can tell you how far your vehicle has
been driven since
you last set the trip odometer to zero.
To reset the trip odometer, fully press the reset button
located near
the trip odometer readout. If the reset
button
is not fully pressed, the trip odometer may not go
all the way back to zero,
If it doesn‘t, you may have to
press the reset button again to reset the readout to zero.
Tachometer
Your tachometer displays the engine speed in
revolutions per minute (rpm).
I NOTICE:
If you operate the engine with the tachometer in
the red area, your engine or other parts could be
damaged.
Damage
to your engine or vehicle caused by
operating the engine in the red area isn’t covered
by your vehicle warranty. Don’t operate the
engine with the tachometer in the red area.
2-57
ProCarManuals.com

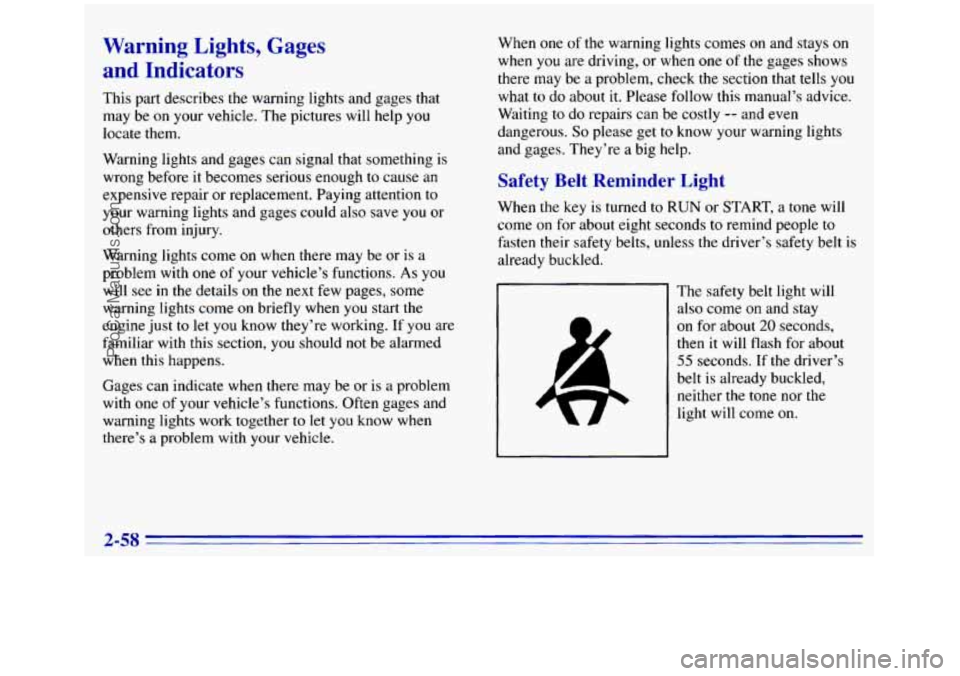

Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help
you
locate them.
Warning lights and gages can signal
that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save
you or
others from injury.
Warning lights come on when there may be
or is a
problem with one of your vehicle’s functions.
As you
will see in the details on the next few pages, some
warning lights come
on briefly when you start the
engine just
to let you know they’re working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one
of your vehicle’s functions. Often gages and
warning lights work together
to let you know when
there’s a problem with your vehicle. When
one of the warning lights comes on and stays on
when
you are driving, or when one of the gages shows
there may be a problem, check the section that
tells you
what to do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Safety Belt Reminder Light
When the key is turned to RUN or START, a tone will
come on for about eight seconds to remind people
to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
-
The safety belt light will
on for about 20 seconds,
also
come
on and stay
then
it will flash for about
belt is already buckled,
55 seconds. If the driver’s
neither the tone nor
the
light will come on.
2-58
-
