1996 GMC SIERRA Owners Manual

Hood Release
To open the hood, first pull
the handle inside the vehicle.
Then
go to the front of the vehicle and pull up on the
secondary hood release, located just
to the passenger
side
of the center of the grill.
Lift the
l~ood.
Before closing the hood, be sure all filler caps are on
properly.
Pull down the hood and close it firmly.
6-7
ProCarManuals.com

“VORTEC” 4300,5000,5700 Engine

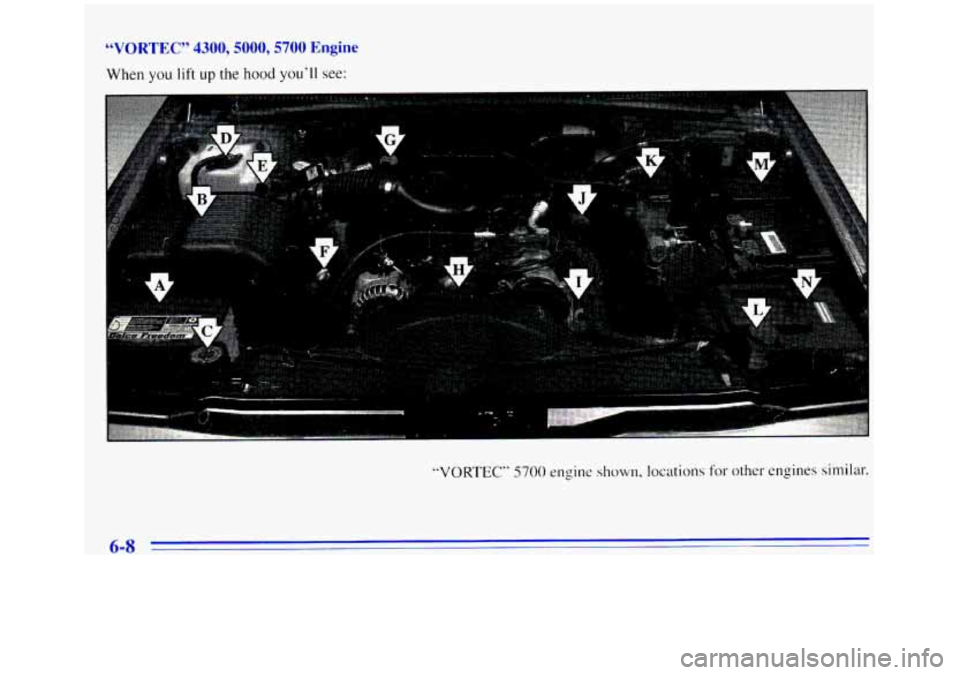

When you lift up the hood you’ll see:
“VORTEC” 5700 engine shown, locations for other engines similar.
ProCarManuals.com

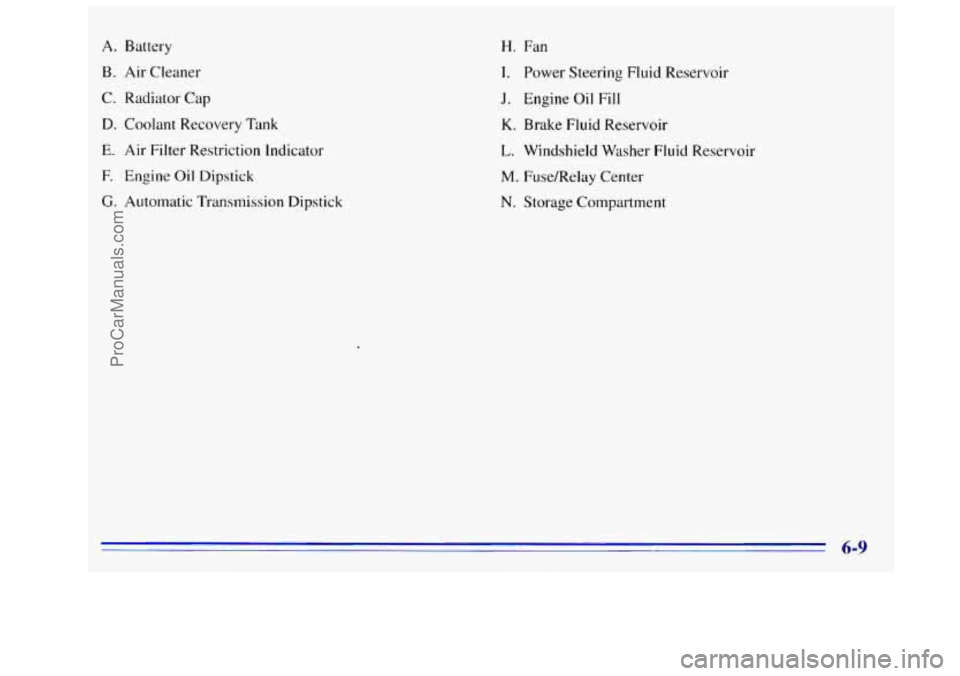

A. Battery
B. Air Cleaner
C. Radiator Cap
D. Coolant Recovery Tmk
E. Air Filter Restriction Indicator
E Engine Oil Dipstick
G. Automatic Transmission Dipstick
H. Fan
I. Power Steering Fluid Reservoir
J. Engine Oil Fill
K. Brake Fluid Reservoir
L. Windshield Washer Fluid Reservoir
M. FuseIRelay Center
N. Storage Compartment
ProCarManuals.com

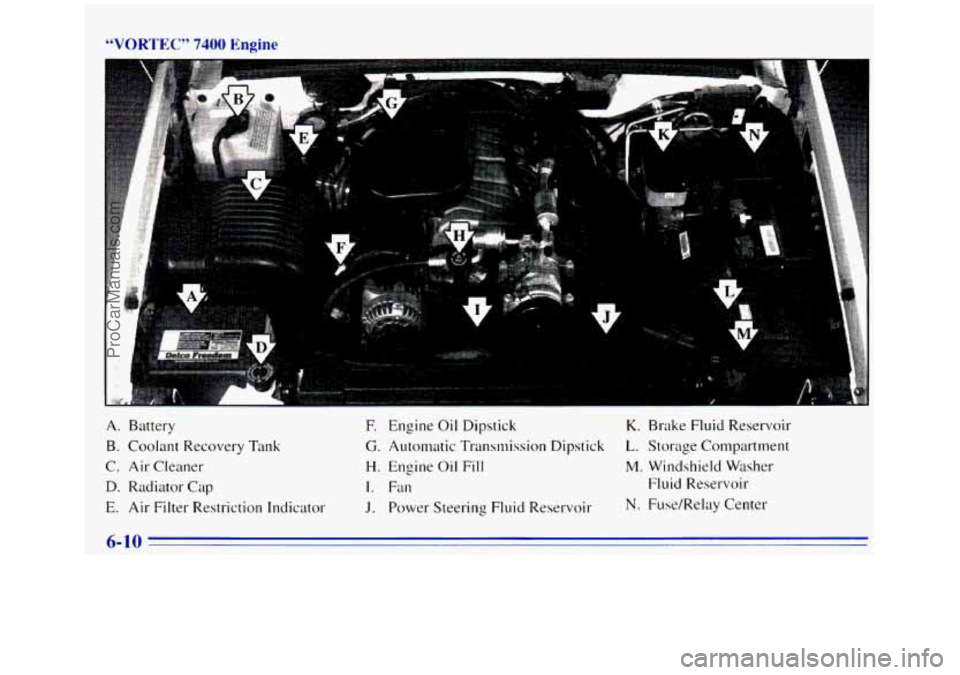

“VORTEC” 7400 Engine
I
A. Battery
B. Coolant Recovery Tank
C. Air Cleaner
D. Radiator Cap
E. Air Filter Restriction Indicator
E Engine Oil Dipstick K. Brake Fluid Reservoir
G. Automatic Transmission Dipstick L. Storage Compartment
H. Engine Oil Fill M. Windshield Washer
I. Fan Fluid
Reservoir
J. Power Steering Fluid Reservoir Ne Fuse/RelaY Center
ProCarManuals.com

Noise Control System
The following information relates to compliance with
Federal noise emission standards for vehicles with
a
Gross Vehicle Weight Rating (GVWR) of more than
10,000 Ibs. (4 536 kg). The Maintenance Schedule
booklet provides information on maintaining
the noise
control system to minimize degradation
of the noise
emission control system during
the life of your vehicle.
The noise control system warranty is given
in your
Warranty booklet.
These standards apply only to vehicles
sold in the
United States.
Tampering With Noise Control
System Prohibited
Federal law prohibits the following acts or the
causing thereof:
1. The removal or rendering inoperative by any person,
other than for purposes of maintenance, repair or
replacement, of any device or element of design
incorporated into any new vehicle for the purpose
of
noise control. prior to its sale or delivery to the
ultimate purchaser or while
it is in use; or
2. The use of the vehicle after such device or element
of design has been removed or rendered inoperative
by any person.
Among those acts presumed
to constitute tampering are
the acts listed below.
Insulation:
Removal of noise shields or underhood insulation.
Engine:
Removal or rendering engine speed governor (if so
equipped) inoperative so as to allow engine speed to
exceed manufkcturer specifications.
Fan and Drive:
0 Removal of fan clutch (if so equipped) or rendering
clutch inoperative.
Removal of fan shroud (if so equipped).
Air Intake:
Removal of air cleaner silencer
@ Reversing air cleaner cover.
Exhaust:
Removal of muffler and/or resonator.
Removal of exhaust pipes and exhaust pipe clamps.
6-11
ProCarManuals.com

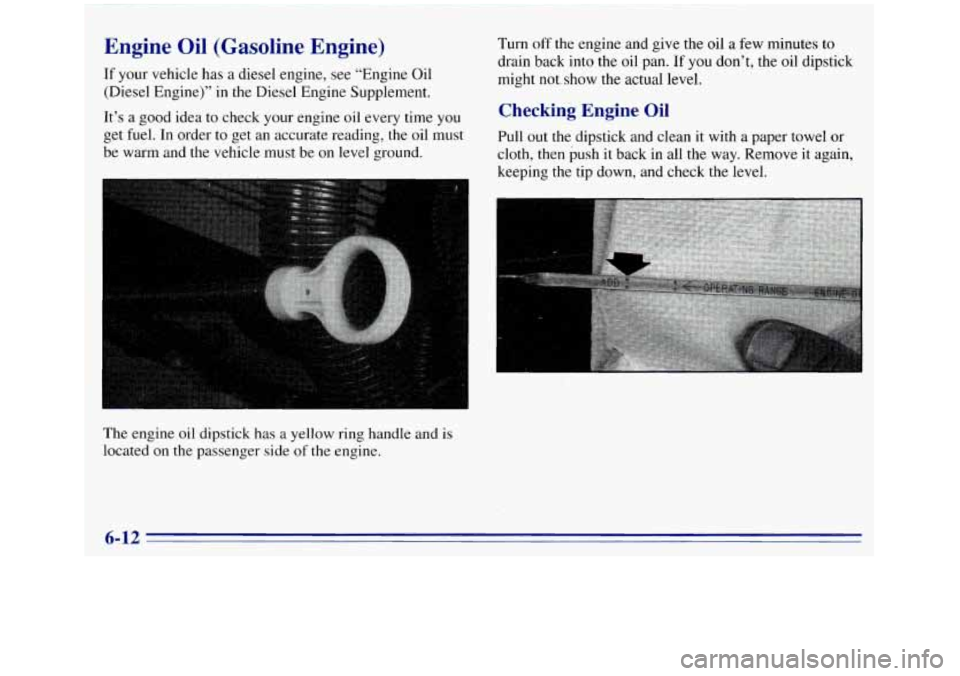

Engine Oil (Gasoline Engine)
If your vehicle has a diesel engine, see “Engine Oil
(Diesel Engine)” in the Diesel Engine Supplement.
It’s a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the
oil must
be warm and the vehicle must
be on level ground. Turn
off the
engine and give the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not.show the actual level.
Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then
push it back in all the way. Remove it again,
keeping the tip down, and check the level.
The engine oil dipstick has a yellow ring handle and is
located on the passenger side
of the engine.
6-12
ProCarManuals.com

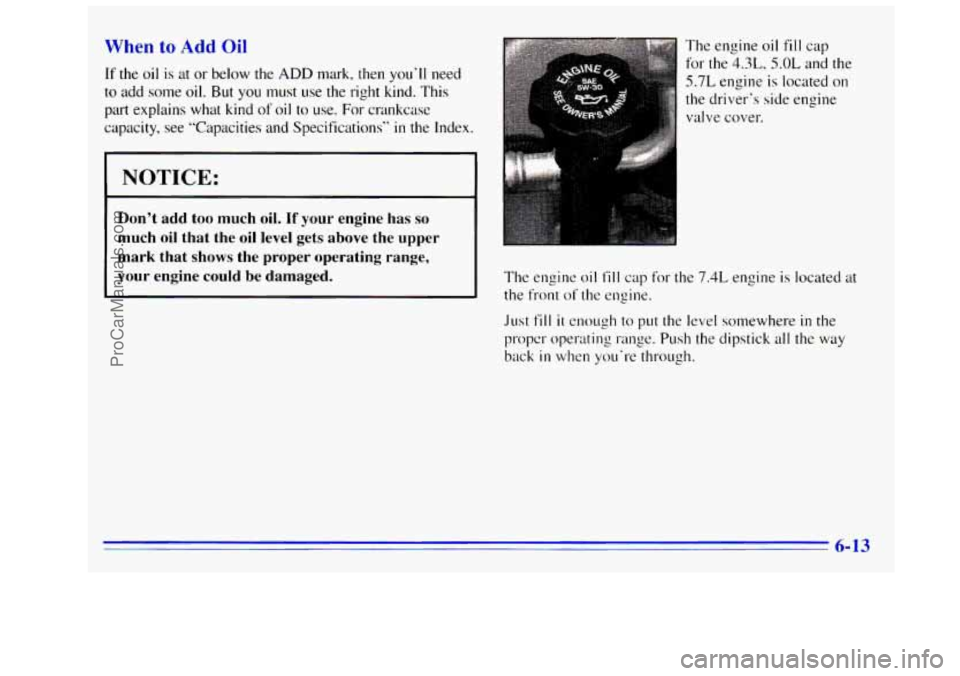

When to Add Oil
If the oil is at or below the ADD mark, then you'll need
to add some oil. But you must use the right kind. This
part explains what kind
of oil to use. For crankcase
capacity, see "Capacities and Specifications"
in the Index
NOTICE:
Don't add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark that shows the proper operating range,
your engine could be damaged.
The engine oil fill cap
for the 4.3L, S.OL and the
S.7L engine is located on
the driver's side engine
valve cover.
The engine oil
fill cap for the 7.4L engine is located at
the front
of the engine.
Just fill it enough to put the level somewhere in the
proper operating range. Push the dipstick all the way
hack in when you're through.
6- 13
ProCarManuals.com

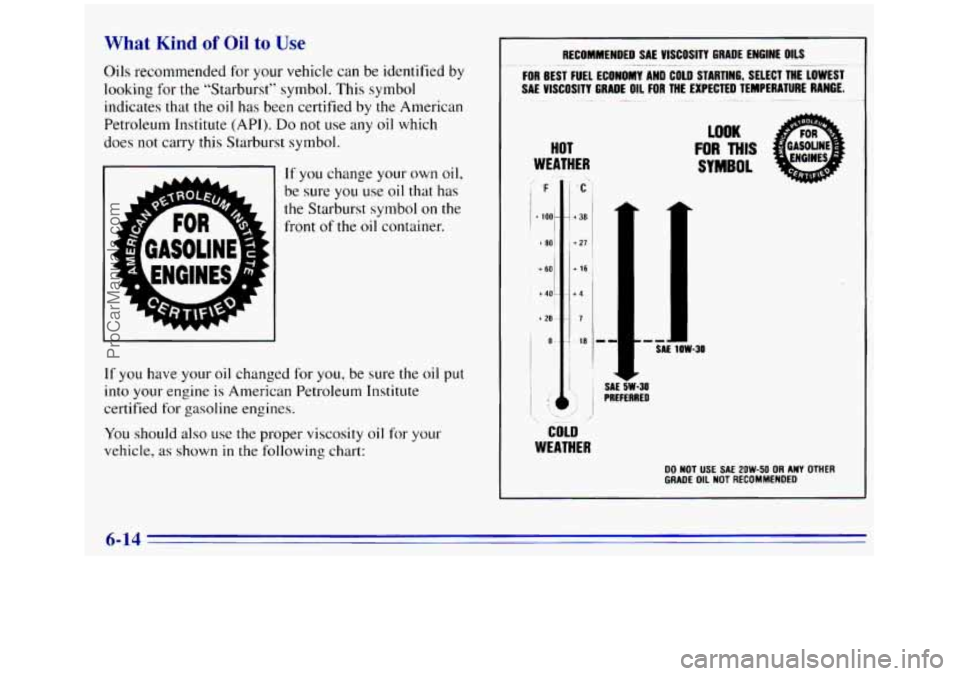

What Kind of Oil to Use
Oils recommended for your vehicle can be identified by
looking for the “Starburst” symbol. This symbol
indicates that the
oil has been certified by the American
Petroleum Institute
(API). Do not use any oil which
does not carry this Starburst symbol.
If you change your own oil,
be sure you use oil that has
the Starburst symbol on the
front of
the oil container.
If you have your oil changed for you, be sure the oil put
into your engine is American Petroleum Institute
certified for gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown
in the following chart:
RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS ~~ . . - . . -.
FOR BEST FUEL E Y AND COLD STARTING, SELECT THE LOWEST
~ ~~~ ~ ~
SAE VISCOSITY Gnnvr ulL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
C
I +3*
+ 27
i SAE SW-30
’I PREFERRED
LOOK
FOR THIS
SYMBOL
COLD
WEATHER
DO NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
6-14
