1996 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine c

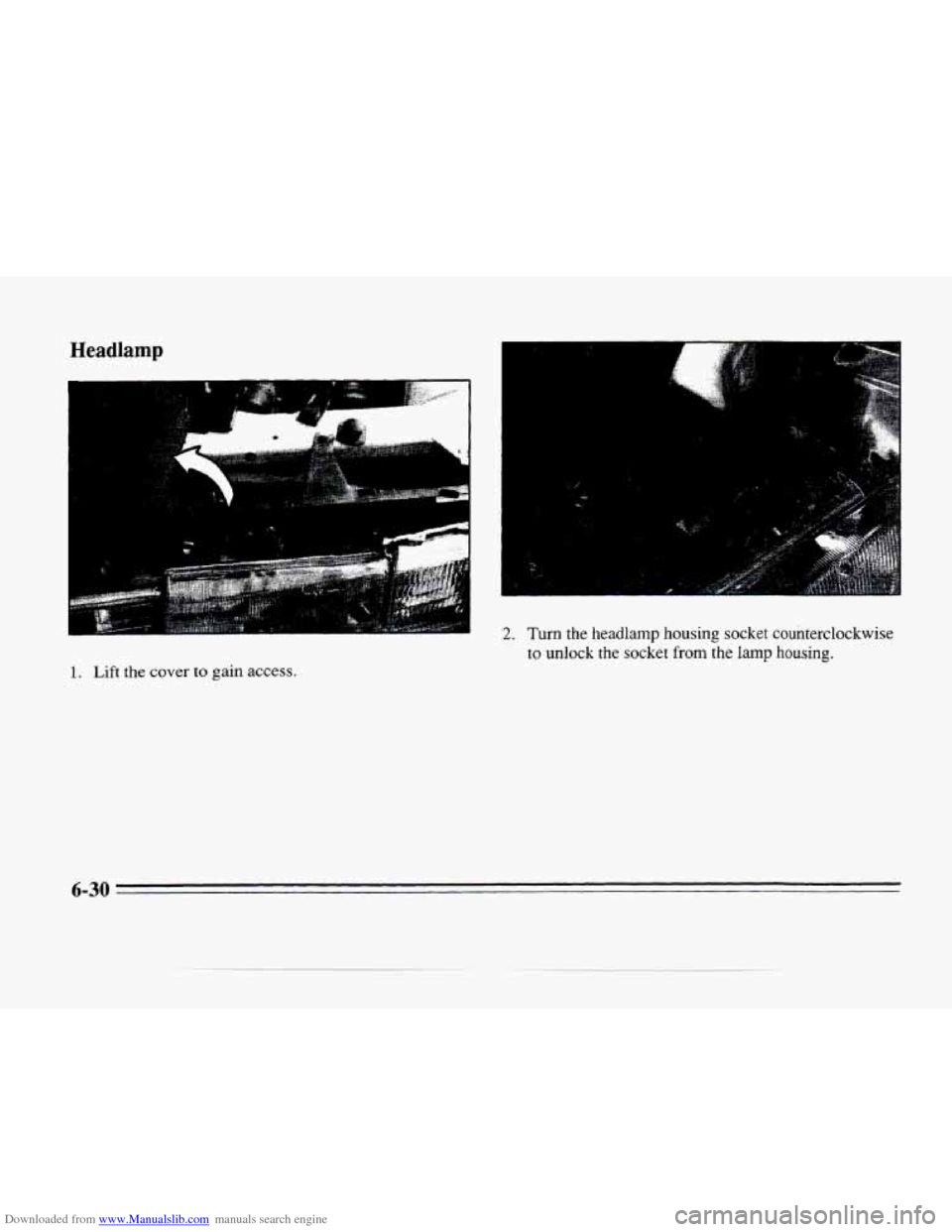

Headlamp
..
2. Turn the headlamp housing socket counterclockwise
to unlock the socket from the lamp housing.
1. Lift the cover to gain access.
6-30
L-

Downloaded from www.Manualslib.com manuals search engine I i I
r"

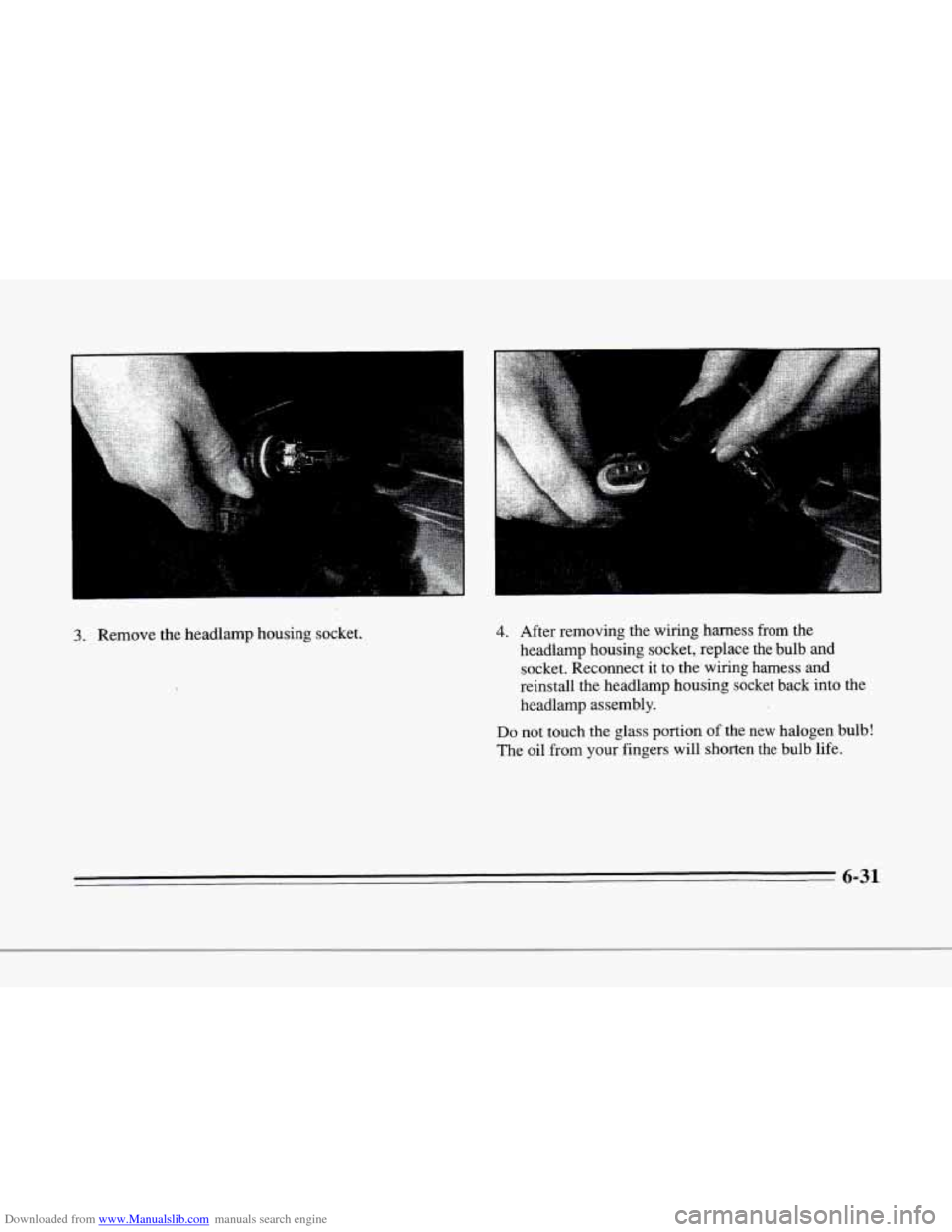

3. Remove the headlamp housing socket.
P
4. After removing the wiring harness from the
headlamp housing socket, replace the bulb and
socket. Reconnect it to the wiring harness and
reinstall the headlamp housing socket back into the
headlamp assembly.
Do not touch the glass portion of the new halogen bulb!
The oil from
your fingers will shorten the bulb life.
6-31

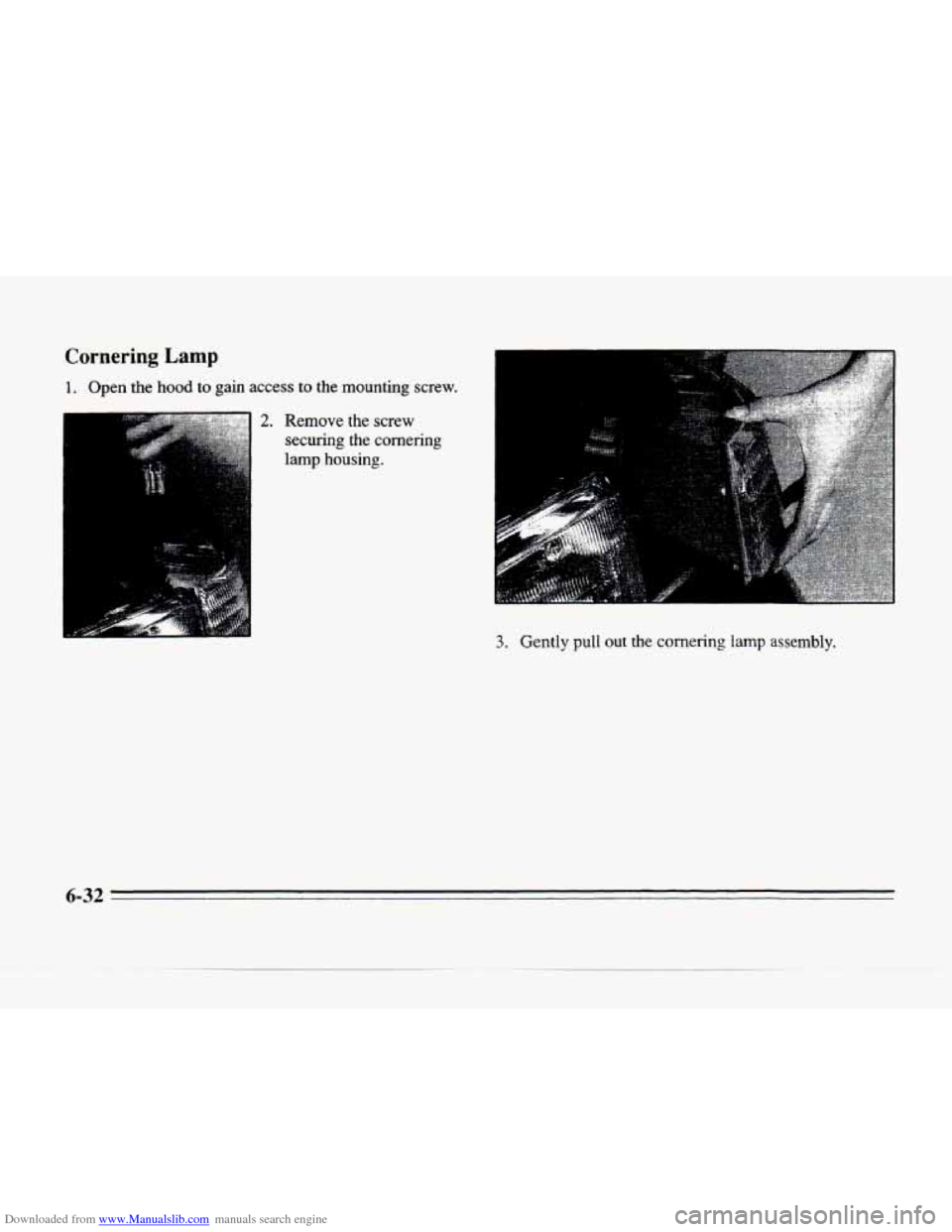

Downloaded from www.Manualslib.com manuals search engine Lornermg Lamp
1. Open the hood to gain access to the mounting screw.
2. Remove the screw
securing the cornering
~ lamp housing.
3. Gently pull out the cornering lamp assembly.
c
6-32

Downloaded from www.Manualslib.com manuals search engine r
I
r*.
I i

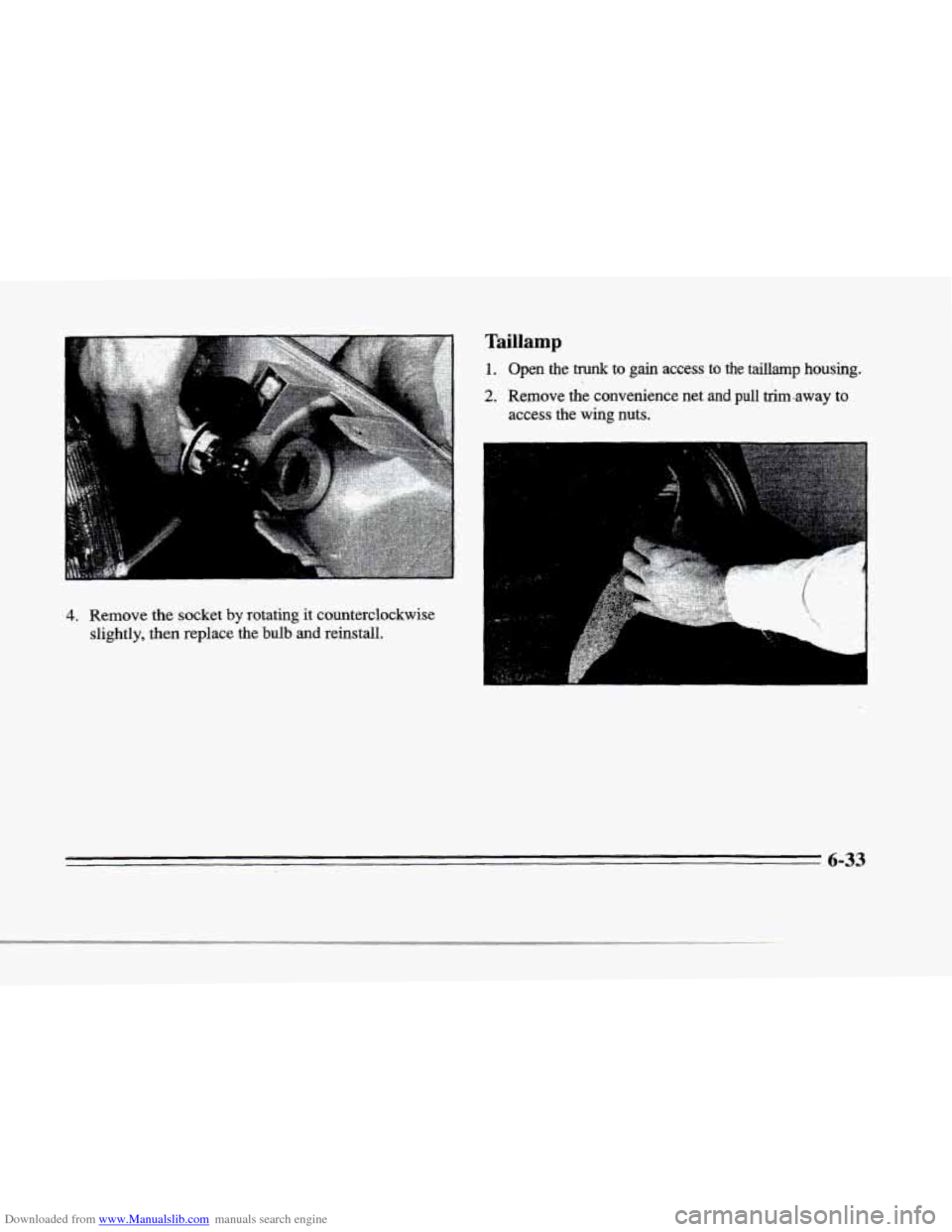

4. Remove the socket by rotating it counterclockwise
slightly, then replace the bulb
and reinstall.
Taillamp
1. Open the trunk to gain access to the taillamp housing.
2. Remove the convenience net.and pull trim.away to
access the wing nuts.
I
- '4
6-33

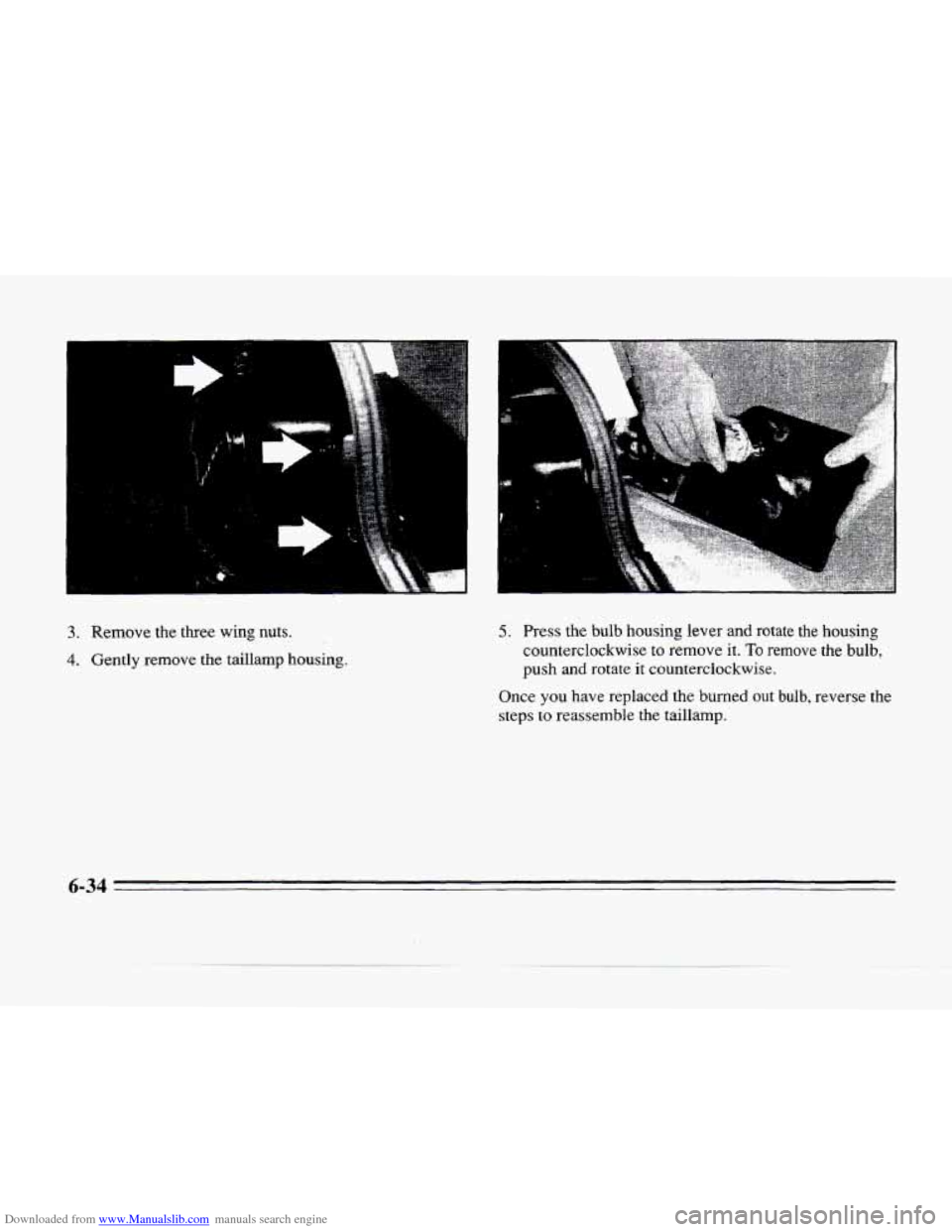

Downloaded from www.Manualslib.com manuals search engine 3. Remove the three wing nuts.
4. Gently remove the taillamp housing.
P
5. Press the bulb housing lever and rotate the housing
counterclockwise
to remove it. To remove the bulb,
push
and rotate it counterclockwise.
Once
you have replaced the burned out bulb, reverse the
steps
to reassemble the taillamp.
6-34

Downloaded from www.Manualslib.com manuals search engine L-
C

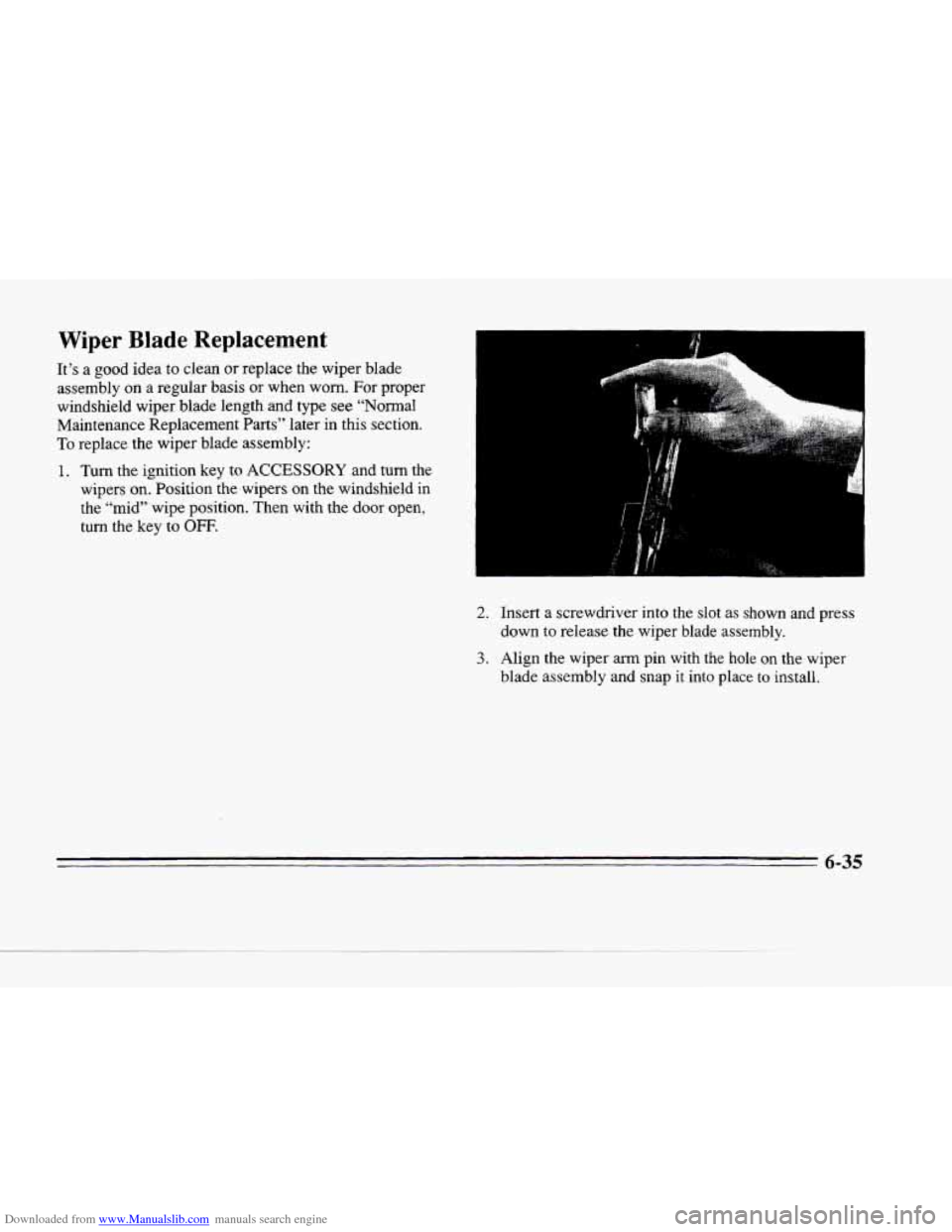

Wiper Blade Replacement
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis
or when worn. For proper
windshield wiper blade length and type
see “Normal
Maintenance Replacement Parts” later in this section.
To replace the wiper blade assembly:
1. Turn the ignition key to ACCESSORY and turn the
wipers on. Position the wipers on the windshield
in
the “mid” wipe position. Then with the door open,
turn the key to
OW.
2. Insert a screwdriver into the slot as shown and press
down to release
the wiper blade assembly.
3. Align the wiper am pin with the hole on the wiper
blade assembly and snap it into place to install.
6-35

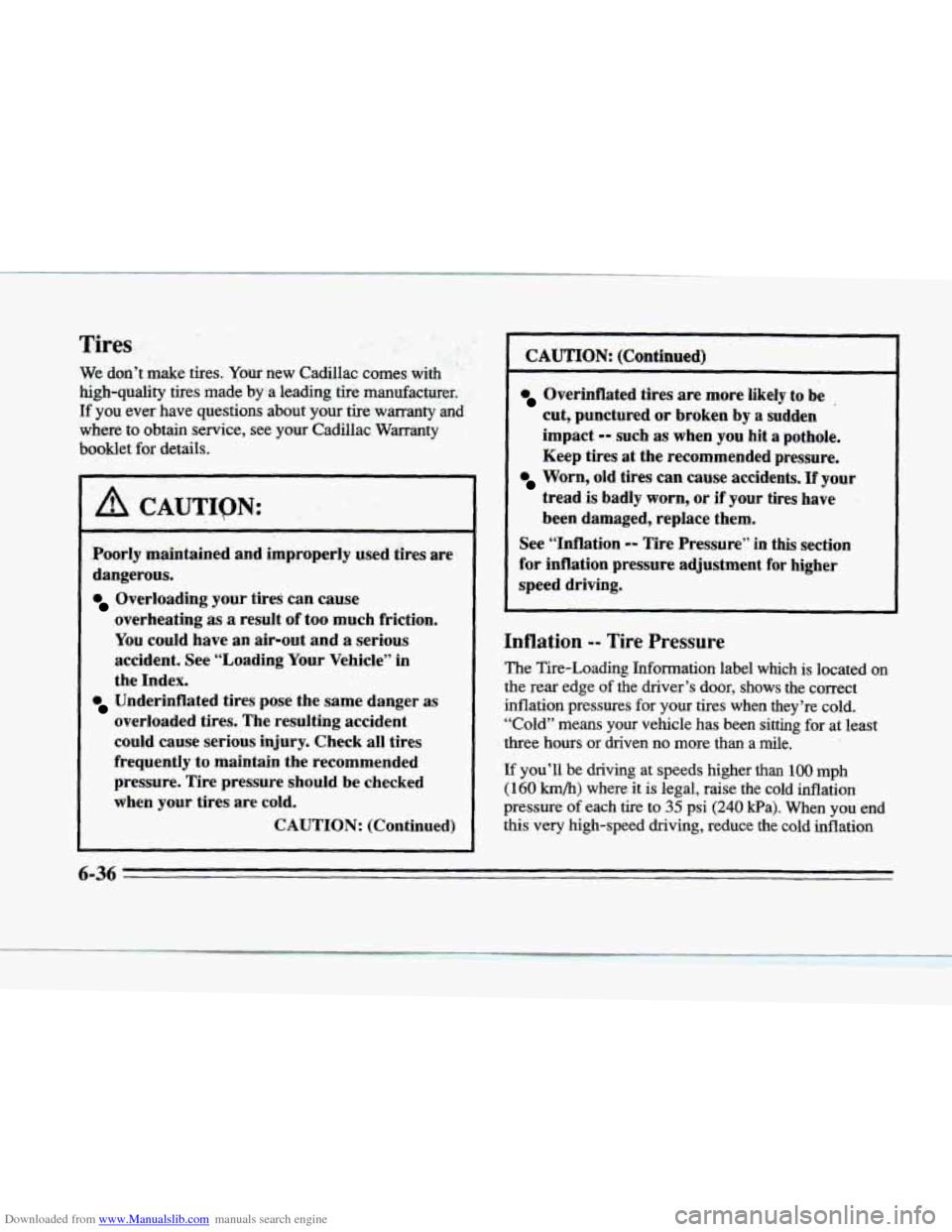

Downloaded from www.Manualslib.com manuals search engine Tires
c4; f **I- *.: C
We don’t make tires. Your new Cadillac comes with
high-quality tires made by
a leading tire manufacturer.
If you ever have questions about your tire warranty and
where
to obtain service, see your Cadillac Warranty
booklet for details.
A CAUTION:
Poorly maintained and improperly used tires are
dangerous.
Overloading your tires can cause
overheating
as a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in
the Index.
Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently
to maintain the recommended
pressure. Tire pressure should
be checked
when your tires are cold.
CAUTION: (Continued)
CAUTION: (Continued)
Overinflated tires are more likely to be
cut, punctured or broken
by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
See “Inflation
-- Tire Pressure” in this section
for inflation pressure adjustment
for higher
speed driving.
Inflation -- Tire Pressure
The Tire-Loading Information label which is located on
the
rear edge of the driver’s door, shows the correct
inflation pressures for your tires when they’re cold.
“Cold” means your vehicle has been sitting for at least
three hours or driven no more than a mile.
If you’ll be driving at speeds higher than 100 mph
(160’km/h) where it is legal, raise the cold inflation
pressure of each tire to
35 psi (240 Wa). When you end
this very high-speed driving, reduce the cold inflation
6-36

Downloaded from www.Manualslib.com manuals search engine c
rc

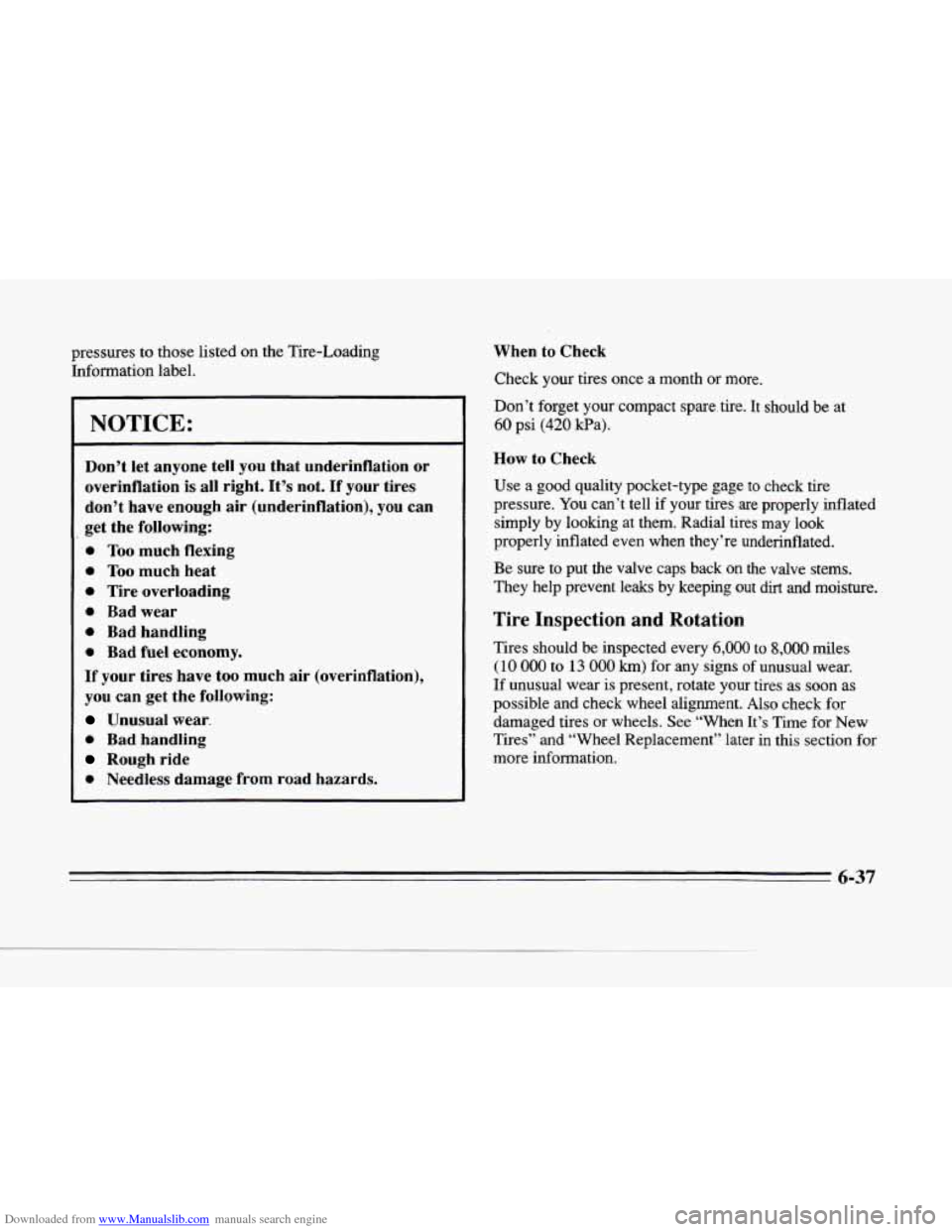

pressures to those listed on the Tire-Loading
Information label.
NOTICE:
Don’t let anyone tell you that underinflation or
overinflation
is all right. It’s not. If your tires
don’t have enough
air (underinflation), you can
get the following:
0 Too much flexing
0 Too much heat
0 Tire overloading
0 Bad wear
0 Bad handling
0 Bad fuel economy.
If your tires have too much air (overinflation),
you can get the following:
Unusual wear.
0 Bad handling
Rough ride
0 Needless damage from road hazards. When to
Check
Check
your tires once a month or more.
Don’t forget your compact spare.
tire. It should be at
60 psi (420 kPa).
How
to Check
Use a mod quality pocket-type gage to check tire
pressure. You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure to put the valve caps back
on the valve stems.
They help prevent leaks by keeping out dirt
and moisture.
Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles
( 10 000 to 13 000 km) for any signs of unusual wear.
If unusual wear is present, rotate your tires as soon as
possible and check wheel alignment. Also check for
damaged tires or wheels. See
“When It’s Time for New
Tires” and “Wheel Replacement” later
in this section for
more information.
6-37
