1996 CADILLAC SEVILLE Owners Manual

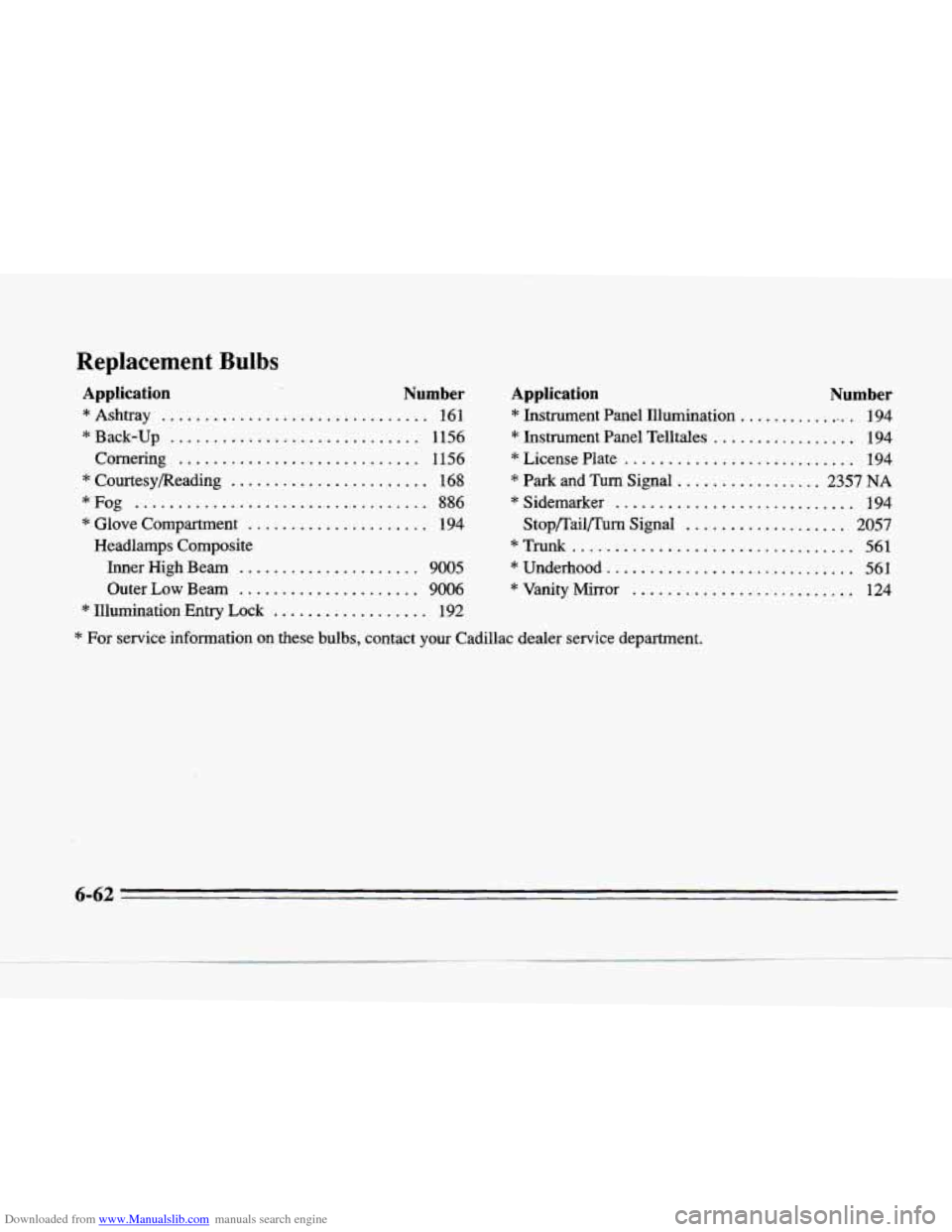

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
* Ashtray ............................... 161
* Back-up ............................. 1156
Cornering
............................ 1 156
* Courtesy/Reading ....................... 168
* Glove Compartment ..................... 194
Inner High Beam
..................... 9005
Outer
Low Beam ..................... 9006
Application Number
*Fog .................................. 886
Headlamps Composite
* Illumination Entry Lock .................. 192
* For service information on these bulbs, contact your Cadillac dealer service department.
Application Number
* hstrument Panel Illumination ............... 194
* Instrument Panel Telltales 194
* License Plate ........................... 194
* Park and Turn Signal ................. 2357 NA
* Sidemarker
194
Stop/Tail/Turn Signal
................... 2057
*Trunk................................. 561
*Underhood............................. 561
* Vanity Mirror .......................... 124
.................
............................
6-62

Downloaded from www.Manualslib.com manuals search engine c

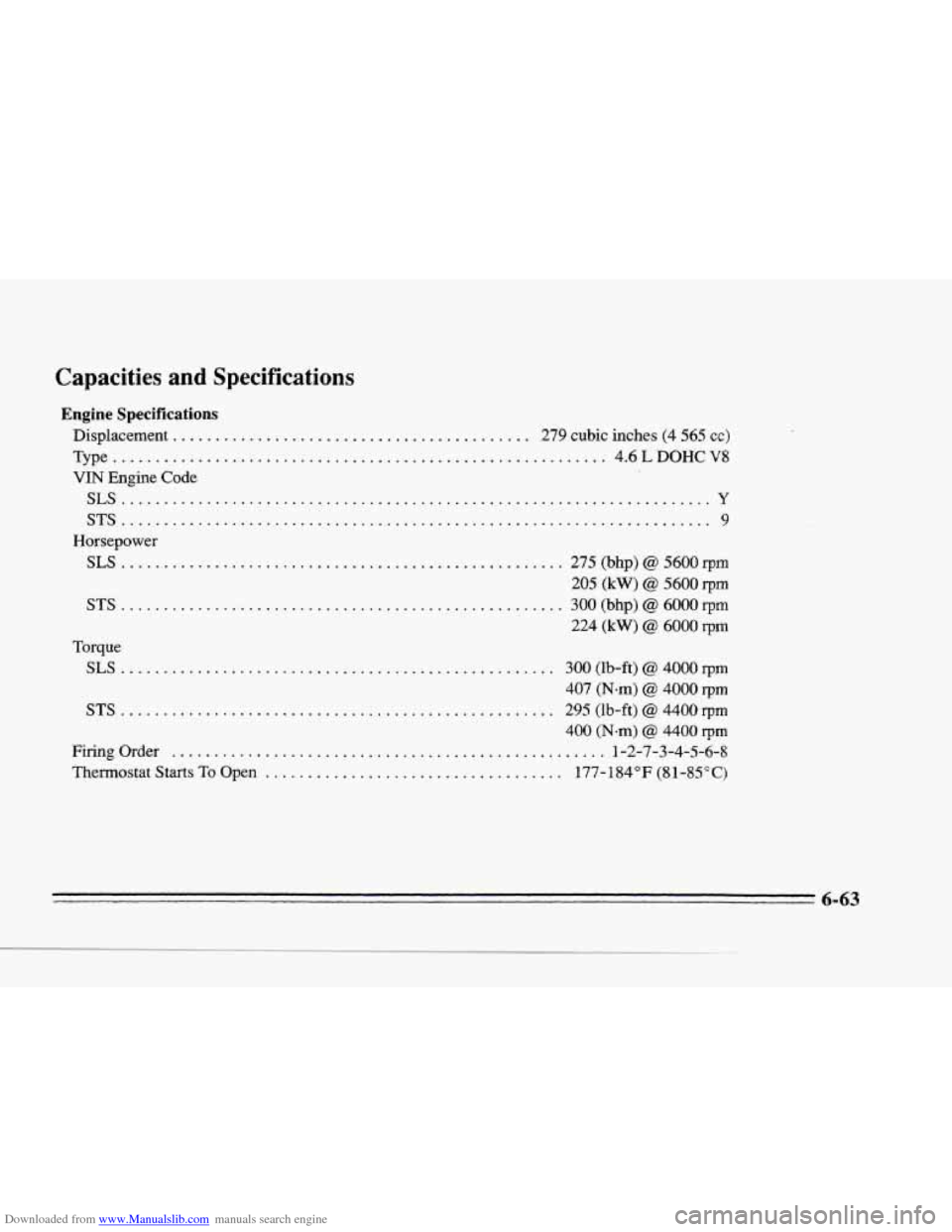

c Capacities and Specifications
Engine Specifications
Displacement. ......................................... 279 cubic inches (4 565 cc)
Type .......................................................... 4.6LDOHCV8
VIN Engine Code
SLS ..................................................................... Y
STS ..................................................................... 9
Horsepower
SLS .................................................... 275(bhp)@5600rpm
205 (kW) @ 5600 rpm
STS .................................................... 300(bhp)@600Orpm
224 (kW) @ 6000 rpm
Torque
SLS ................................................... 300(1b-ft)@4000rp111 407
(Nmm) @ 4000 rpm
STS ................................................... 295 (lb-ft) @ 4400 rpm
400 (N-m) @ 4400 rpm
Firingorder ................................................... 1-2-7-3-4-5-6-8
Thermostat
Starts To Open ................................... 177-184°F (81-85°C)
6-63

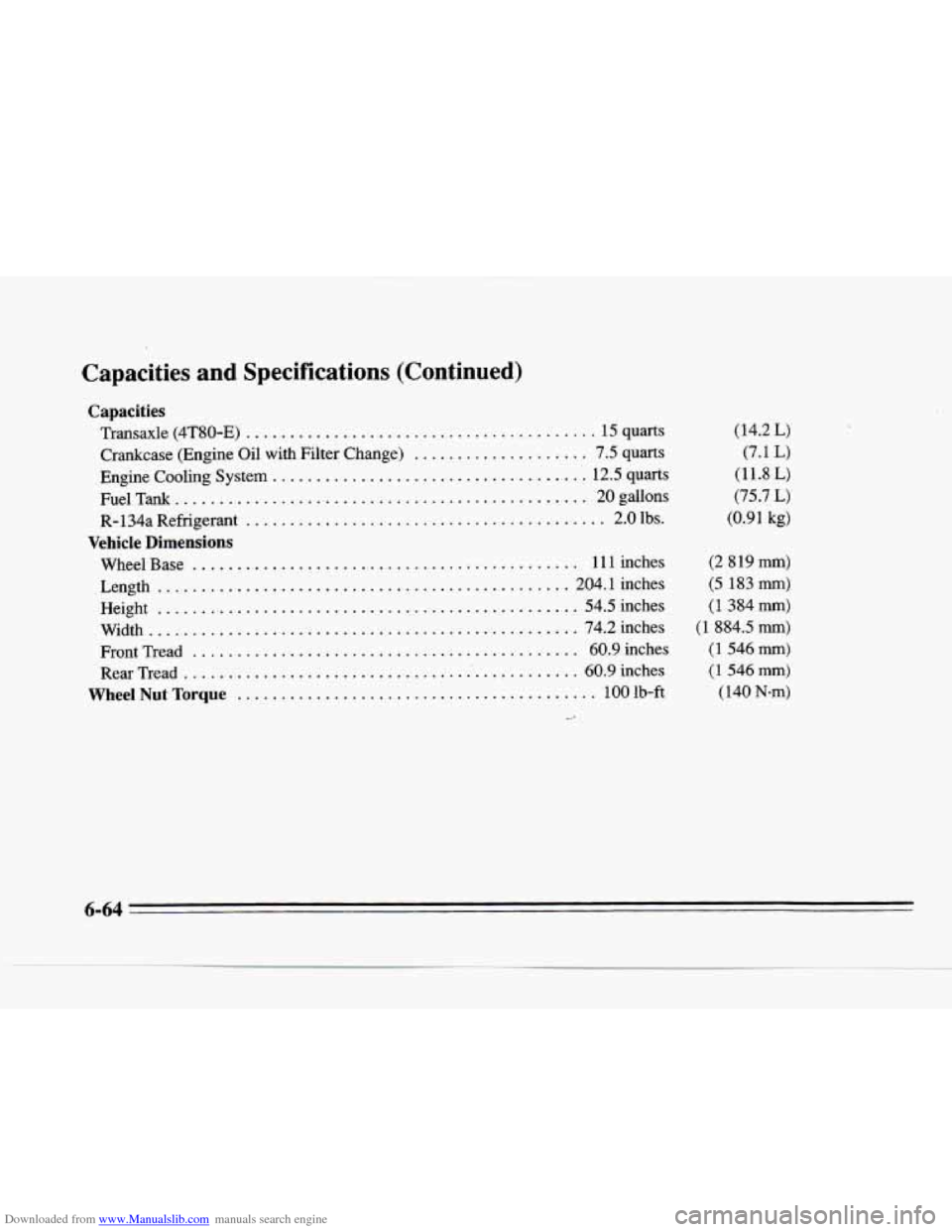

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications (Continued)
Capacities
Transaxle (4T80-E) ........................................ 15 quarts
Crankcase (Engine Oil with Filter Change)
.................... 7.5 quarts
Engine Cooling System
.................................... 12.5 quarts
R-134a Refrigerant ......................................... 2.0 lbs.
Wheel Base
............................................ 11 1 inches
Length
............................................... 204.1inches
Height
................................................ 54.5 inches
Width
................................................. 74.2 inches
Front Tread
............................................ 60.9 inches
Wheel Nut Torque .......................................... 100 lb-ft
FuelTank
............................................... 20gallons
Vehicle Dimensions
Rear Tread .............................................. 60.9 inches
-.
(14.2 L)
(7.1 L)
(11.8
L)
(75.7 L)
(0.91 kg)
(2 819 mm)
(5 183 mm)
(1 384 mm)
(1 884.5 mm)
(1 546 mm)
(1 546 mm)
( 140 N-m)
6-64

Downloaded from www.Manualslib.com manuals search engine c
LI

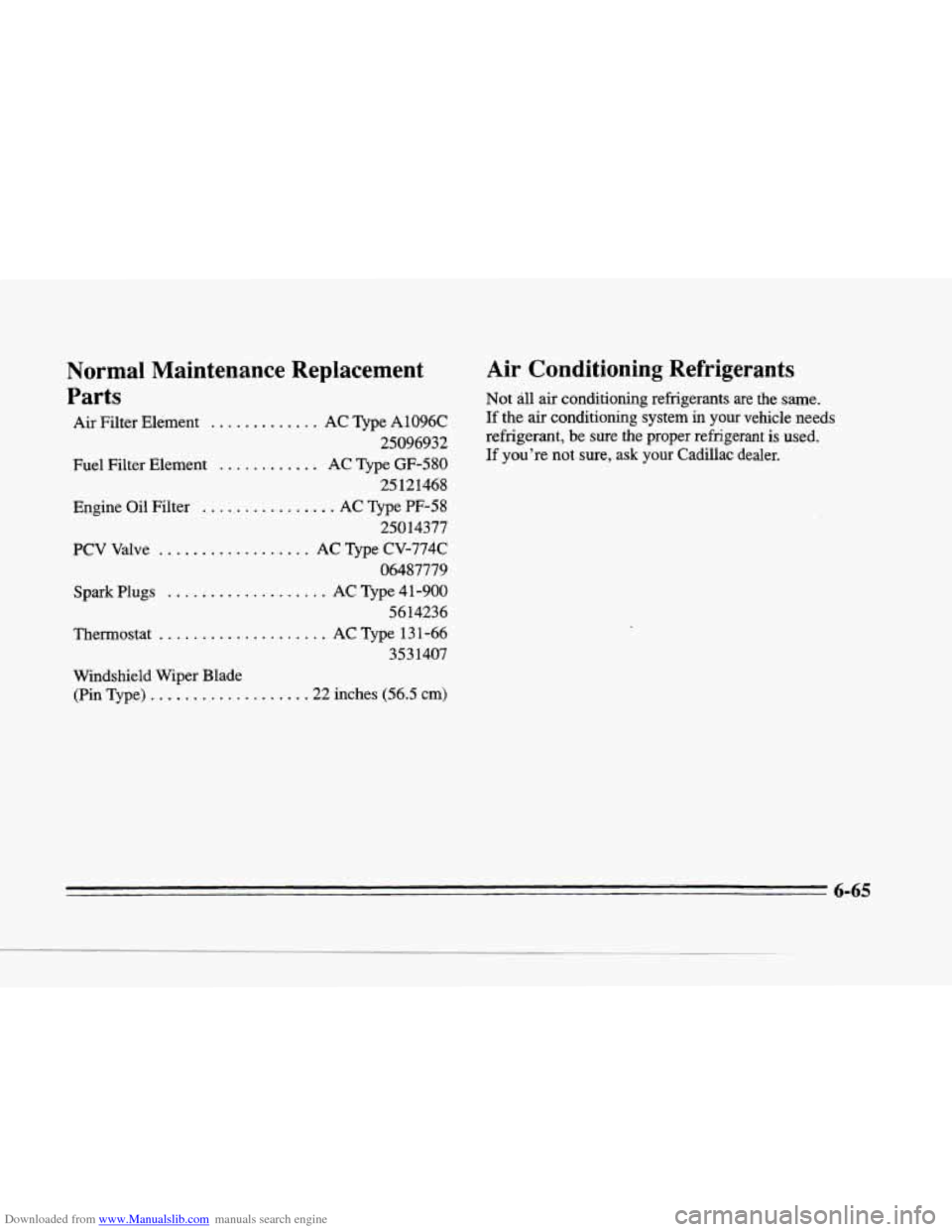

Normal Maintenance Replacement Parts
Air Filter Element .............
Fuel Filter Element ............
AC Type A1096C
25096932
AC Type GF-580 25121468
Engine Oil Filter
................ AC Type PF-58
25014377
PCV Valve
.................. AC Type CV-774C
06487779
Spark
Plugs ................... AC Type 4 1-900
5614236
Thermostat
.................... AC Type 13 1-66
3531407
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used.
If you’re not sure, ask your Cadillac dealer.
Windshield Wiper Blade
(Pin Type)
.................. .22 inches (56.5 cm)
6-65

Downloaded from www.Manualslib.com manuals search engine NOTES
t
6-66

Downloaded from www.Manualslib.com manuals search engine NOTES
6-67

Downloaded from www.Manualslib.com manuals search engine NOTES

Downloaded from www.Manualslib.com manuals search engine c
,-"' %-,

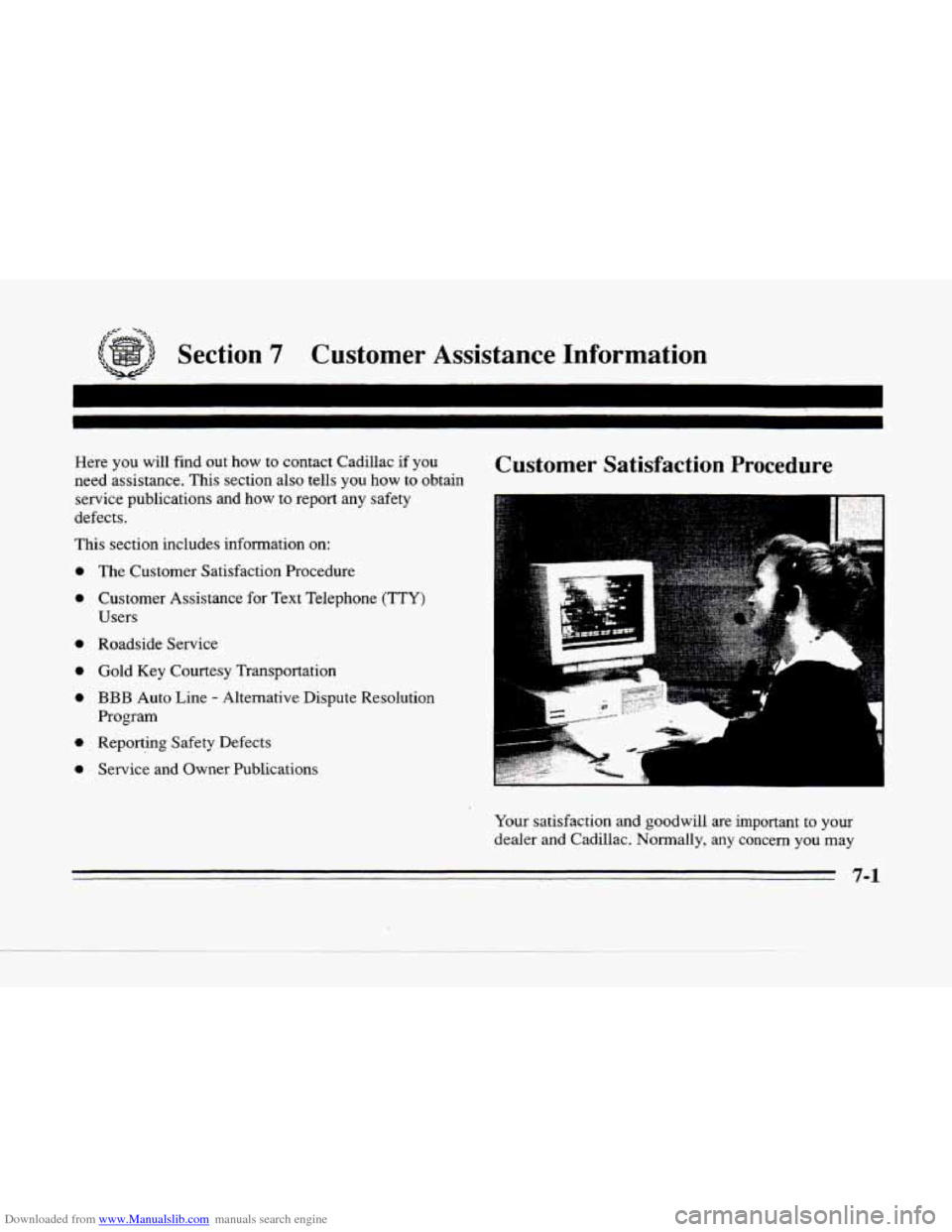

Section 7 Customer Assistance Information
Here you will find out how to contact Cadillac if you
need assistance. This section also tells you how to obtain
service publications and
how to report any safety
defects.
This section includes information on:
0 The Customer Satisfaction Procedure
0 Customer Assistance for Text Telephone (TTY)
Users
0 Roadside Service
0 Gold Key Courtesy Transportation
0 BBB Auto Line - Alternative Dispute Resolution
Program
0 Reporting Safety Defects
0 Service and Owner Publications
Customer Satisfaction Procedure
.
Your satisfaction and goodwill are important to your
dealer and Cadillac. Normally, any concern
you may
7-1
