1996 CADILLAC SEVILLE Owners Manual

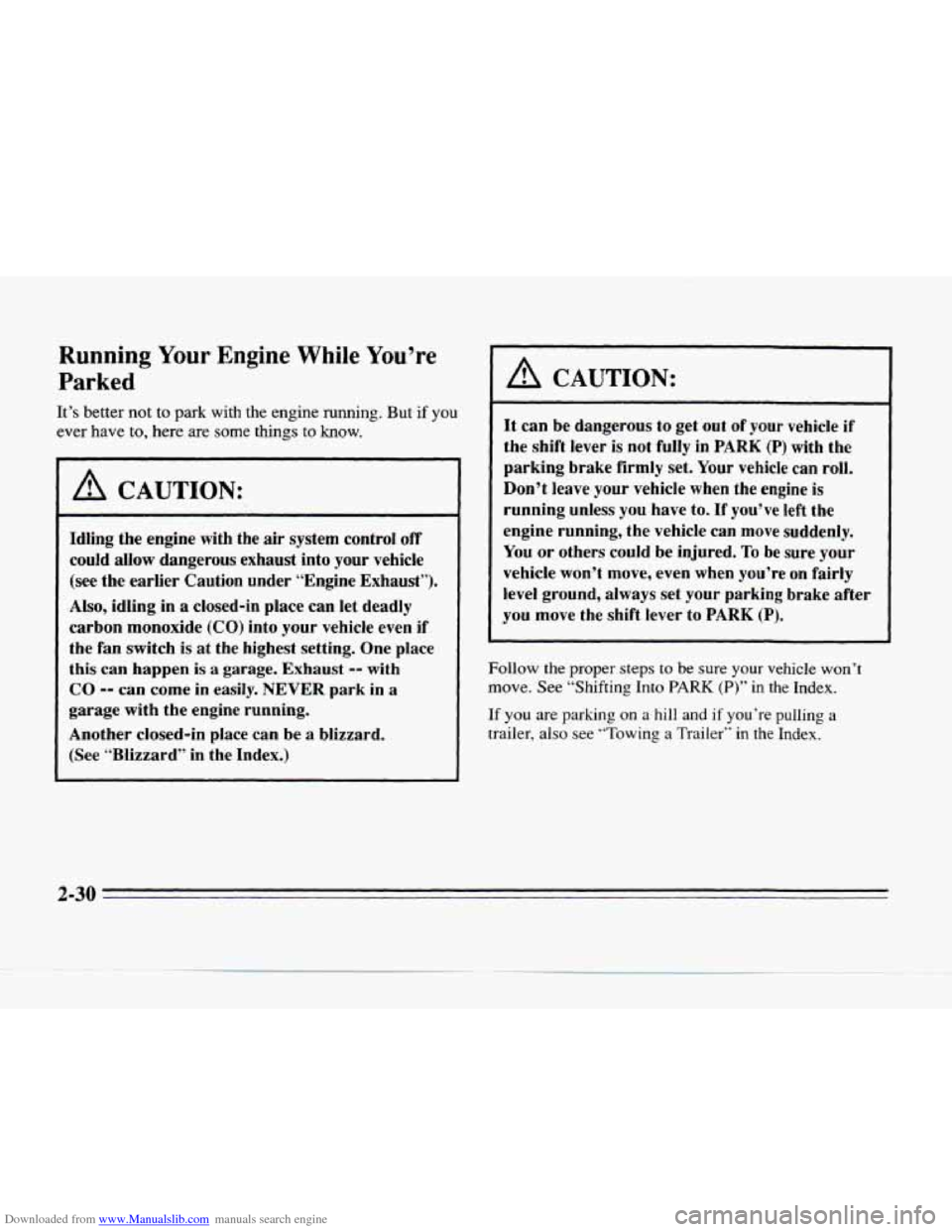

Downloaded from www.Manualslib.com manuals search engine Running Your Engine While You’re
Parked
It’s better not to park with the engine running. But if you
ever have to, here are some things to know.
A CAUTION:,
Idling the engine with the air system control off
could allow dangerous exhaust into your vehicle
(see the earlier Caution under “Engine Exhaust”).
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the fan switch is at the highest setting. One place
this
can happen is a garage. Exhaust -- with
CO -- can come in easily. NEVER park in a
garage with the engine running.
Another closed-in place can be
a blizzard.
(See “Blizzard” in the Index.)
I A CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in
PARK (P). with the
parking brake firmly set.
Your vehicle can roll.
Don’t leave your vehicle when the engine is
running unless you have to. If you’ve left the
engine running, the vehicle can move suddenly.
You
or others could be injured. To be sure your
vehicle won’t move, even when you’re on fairly
level ground, always set your parking brake after
you move the shift lever to
PARK (P).
Follow the proper steps to be sure your vehicle won’t
move.
See “Shifting Into PARK (P)” in the Index.
If you are parking on a hill and if you’re pulling a
trailer, also see “Towing a Trailer“ in the Index.
c

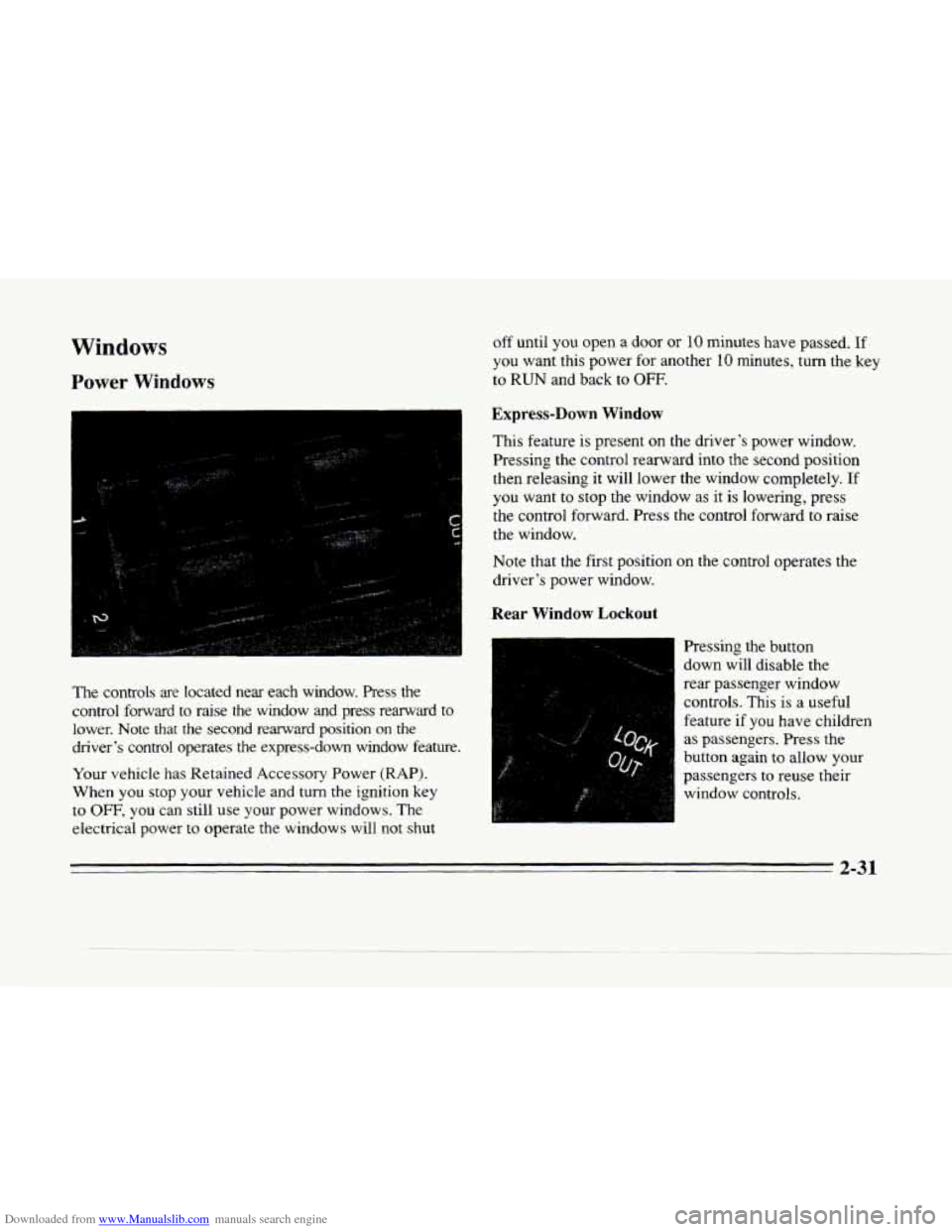

Downloaded from www.Manualslib.com manuals search engine Windows
Power Windows
The controls are located near each window. hess the
control forward
to raise the window and press rearward to
lower. Note that the second rearward position on the
driver‘s control operates the express-down window feature.
Your vehicle has Retained Accessory Power (RAP).
When you stop your vehicle and turn
the ignition key
to OFF, you can still use your power windows. The
electrical power
to operate the windows will not shut
off until you open a door or 10 minutes have passed. If
you want this power for another 10 minutes, turn the key
to
RUN and back to OFF.
Express-Down Window
This feature is present on the driver’s power window.
Pressing the control rearward into the second position
then releasing it will lower the window completely. If
you want to stop the window as it is lowering, press
the control forward. Press the control forward
to raise
the window.
Note that the first position on the control operates the
driver’s power window.
Rear Window Lockout
I Pressing the button
down will disable the
rear passenger window
controls. This is a useful
feature if
you have children
as passengers. Press the
button again to allow your
passengers to
reuse their
window controls.

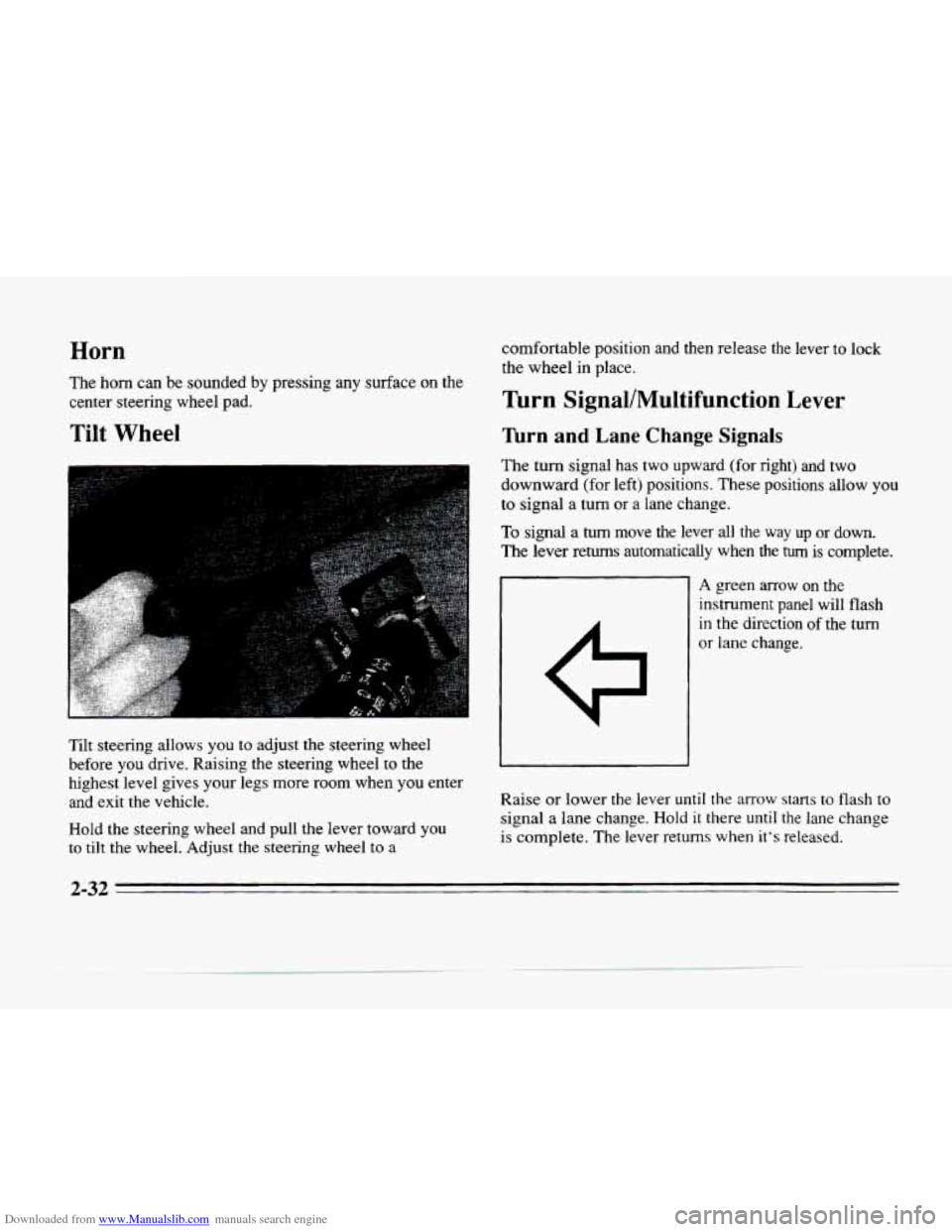

Downloaded from www.Manualslib.com manuals search engine Horn
The horn can be sounded by pressing any surface on the
center steering wheel pad.
Tilt Wheel
Tilt steering allows you to adjust the steering wheel
before
you drive. Raising the steering wheel to the
highest level gives your legs more room when you enter
and exit the vehicle.
Hold the steering wheel and pull the lever toward you
to tilt the wheel. Adjust the steering wheel to a
comfortable position and then release the lever to lock
the wheel in place.
Turn Signal/Multifunction Lever
Turn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal
a turn or a lane change.
To signal a turn move the lever all the way up or down.
The lever returns automatically when the turn is complete.
A green arrow on the
instrument panel will flash
in the direction of the turn
or lane change.
Raise or lower the lever
until the arrow starts to flash to
signal a lane change. Hold it there until the lane change
is complete. The lever returns when it's released.
2-32

Downloaded from www.Manualslib.com manuals search engine rrr
xz
e

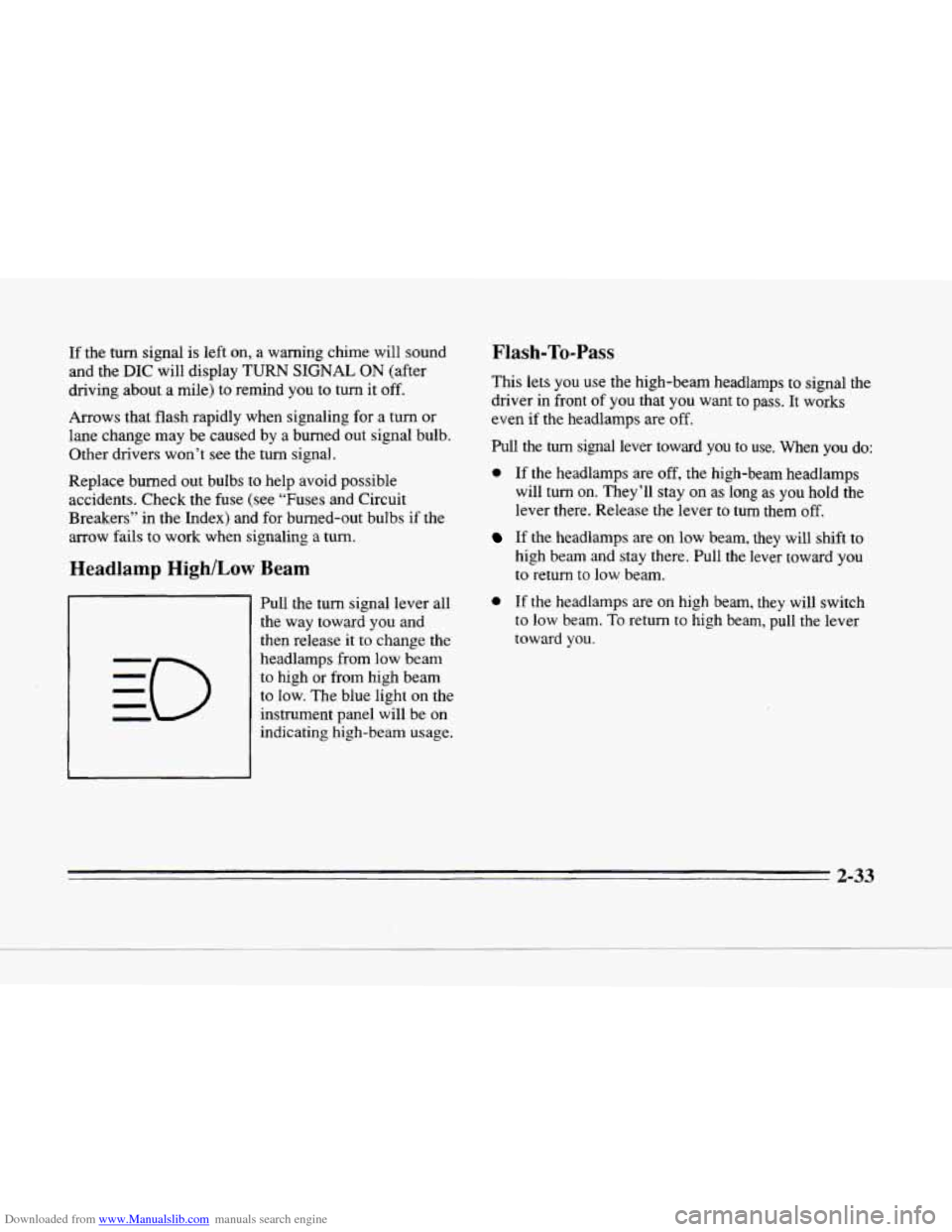

If the turn signal is left on, a warning chime will sound
and the
DIC will display TURN SIGNAL ON (after
driving about a mile) to remind you to turn it off.
Arrows that
flash rapidly when signaling for a turn or
lane change may be caused by
a burned out signal bulb.
Other drivers won’t see the turn signal.
Replace burned
out bulbs to help avoid possible
accidents. Check the fuse (see “Fuses and Circuit
Breakers”
in the Index) and for burned-out bulbs if the
arrow fails
to work when signaling a turn.
Headlamp High/Low Beam
Pull the turn signal lever all
the way toward you and
then release
it to change the
headlamps from low beam
to high or from high beam
to low. The blue light on the
instrument panel will be on
indicating high-beam usage.
Flash-To-Pass
This lets you use the high-beam headlamps to signal the
driver in front
of you that you want to pass. It works
even if
the headlamps are off.
Pull the turn signal lever toward you to use. When you do:
0 If the headlamps are off, the high-beam headlamps
will turn on. They’ll stay on as
long as you hold the
lever there. Release the lever to turn them off.
If the headlamps are on low beam, they will shift to
high beam and stay there. Pull
the lever toward you
to return to low beam.
0 If the headlamps are on high beam, they will switch
to low beam. To return to high beam, pull the lever
toward
you.
2-33

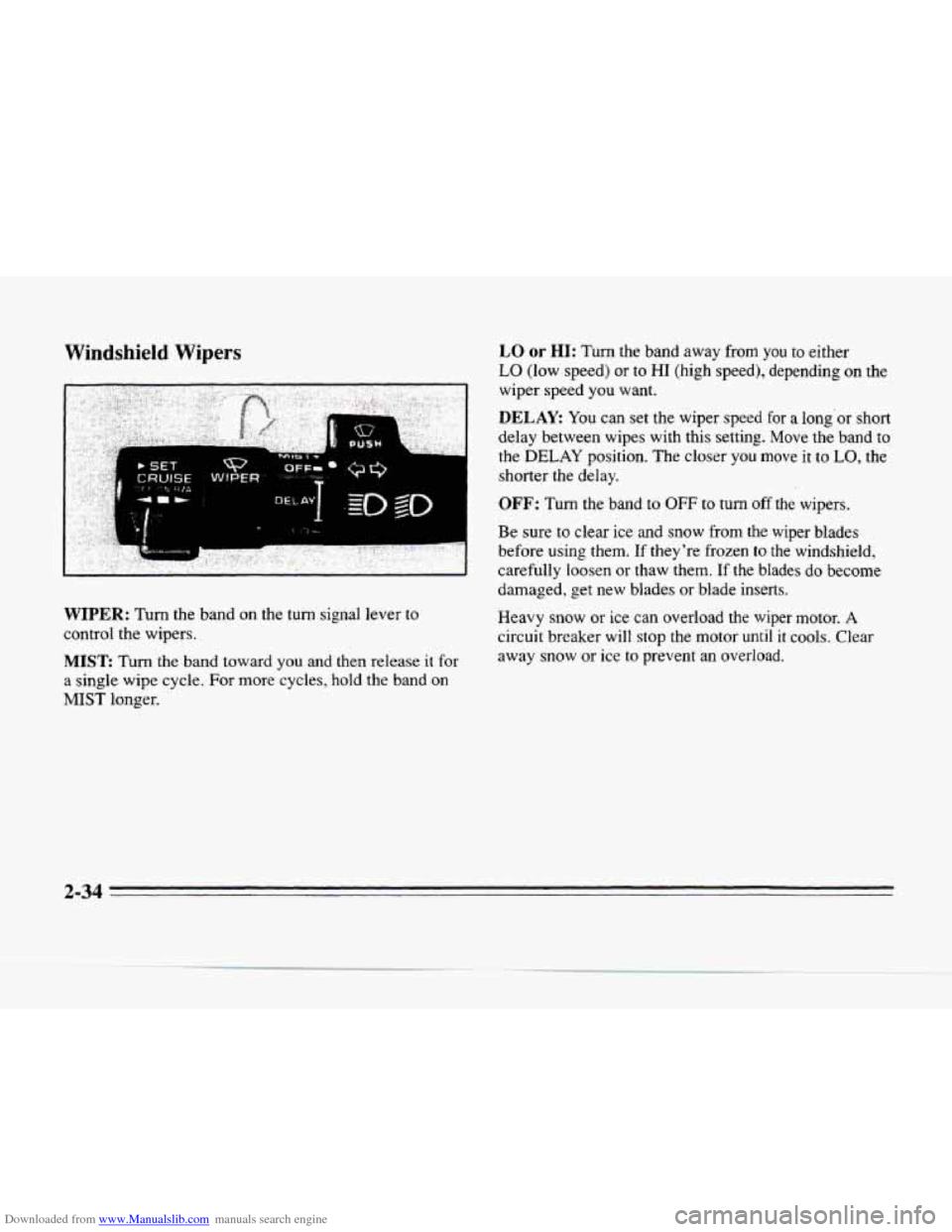

Downloaded from www.Manualslib.com manuals search engine Windshield Wipers
WIPER: Turn the band on the turn signal lever to
control the wipers.
MISE Turn the band toward you and then release it for
a single wipe cycle. For more cycles, hold the band on
MIST longer.
LO or HI: Turn the band away from you to either
LO (low speed) or to HI (high speed), depending on the
wiper speed you want.
DELAY You can set the wiper speed for a long'or short
delay between wipes with this setting. Move the band to
the DELAY position. The closer you move it to LO, the
shorter the delay.
OFF: Turn the band to OFF to turn off the wipers.
Be sure to clear ice and snow from the wiper blades
before using them.
If they're frozen to the windshield,
carefully loosen
or thaw them. If the blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload the wiper motor.
A
circuit breaker will stop the motor until it cools. Clear
away snow
or ice to prevent an overload.
c

Downloaded from www.Manualslib.com manuals search engine II
c

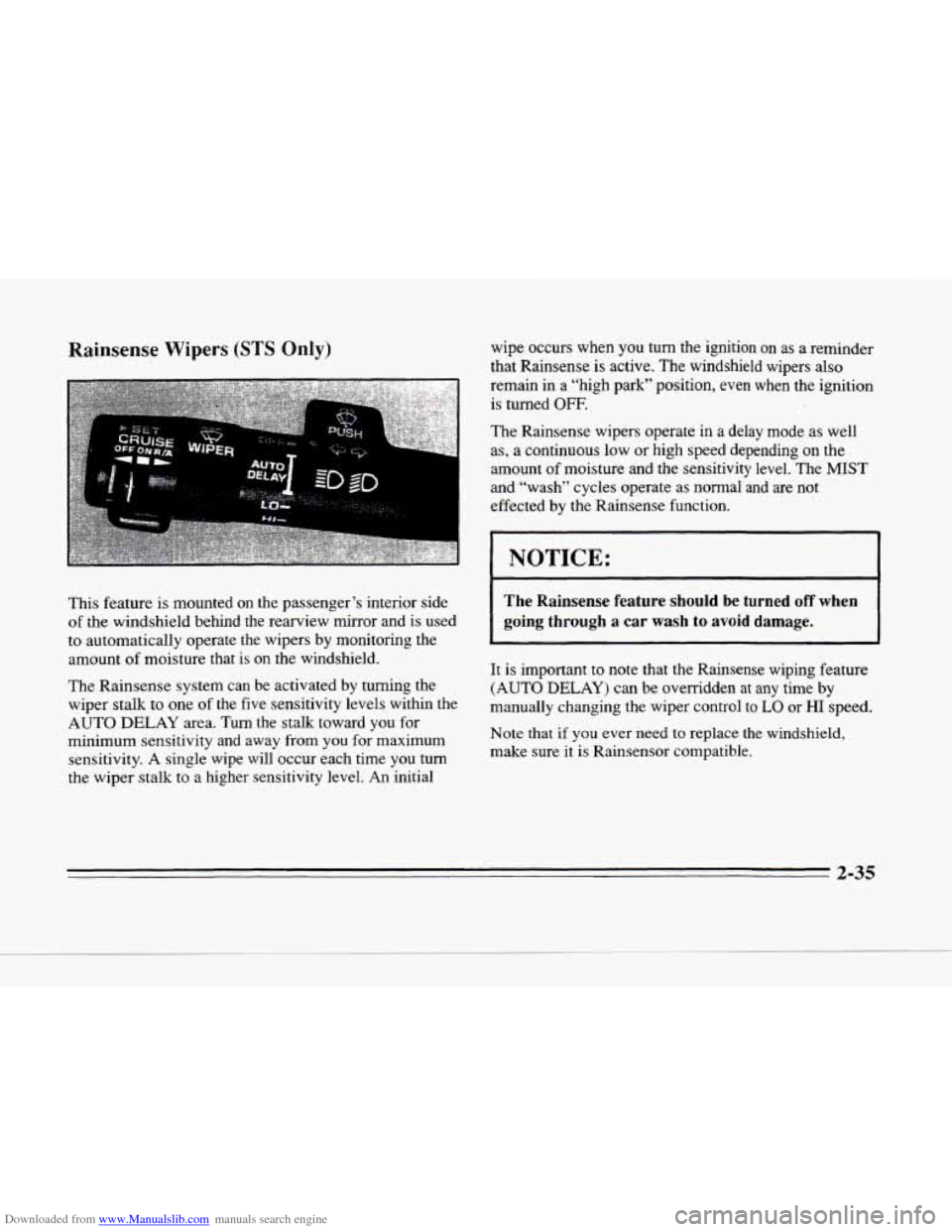

Rainsense Wipers (STS Only)
I
:-
This feature is mounted on the passenger’s interior side
of the windshield behind the rearview mirror and is used
to automatically operate the wipers by monitoring the
amount of moisture that is on the windshield.
The Rainsense system can be activated by turning the
wiper stalk
to one of the five sensitivity levels within the
AUTO DELAY area. Turn
the stalk toward you for
minimum sensitivity and away from you for maximum
sensitivity. A single wipe will occur each time
you turn
the wiper stalk to a higher sensitivity level. An initial wipe occurs when
you turn the ignition on as a
reminder
that Rainsense
is active. The windshield wipers also
remain in a “high park” Position,
even when the ignition
is turned OFF.
The Rainsense wipers operate in a delay mode as well
as, a continuous low
or high speed depending on the
amount of moisture and the sensitivity level. The MIST
and “wash” cycles operate as normal and are not
effected by the Rainsense function.
I NOTICE:
The Rainsense feature should be turned off when
going
through a car wash to avoid damage.
It is important to note that the Rainsense wiping feature
(AUTO DELAY) can be overridden at any time
by
manually changing the wiper control to LO or HI speed.
Note that
if you ever need to replace the windshield,
make sure it is Rainsensor compatible.
2-35

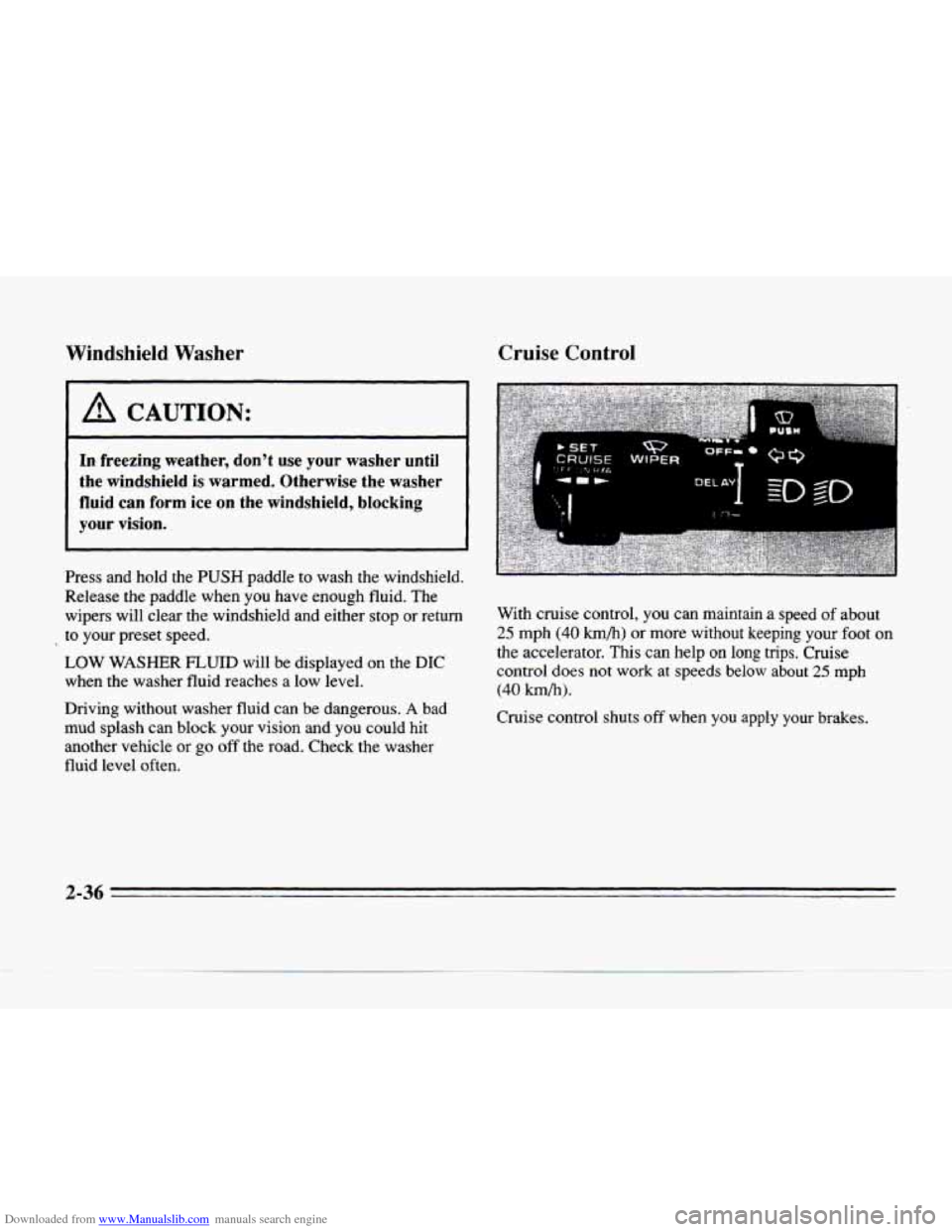

Downloaded from www.Manualslib.com manuals search engine Windshield Washer
I A CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Press and hold the PUSH paddle to wash the windshield.
Release the paddle when you have enough fluid.
The
wipers will clear the windshield and either stop or return
to your preset speed.
LOW WASHER FLUID will be displayed on the DIC
when the washer fluid reaches a low level.
Driving without washer fluid can be dangerous.
A bad
mud splash can block your vision and you could hit
another vehicle
or go off the road. Check the washer
fluid level often.
Cruise Control
With cruise control, you can maintain a speed of about
25 mph (40 h/h) or more without keeping your foot on
the accelerator. This can help on long trips. Cruise
control does not
work at speeds below about 25 mph
(40 km/h).
Cruise control shuts off when you apply your brakes.
2-36

Downloaded from www.Manualslib.com manuals search engine h

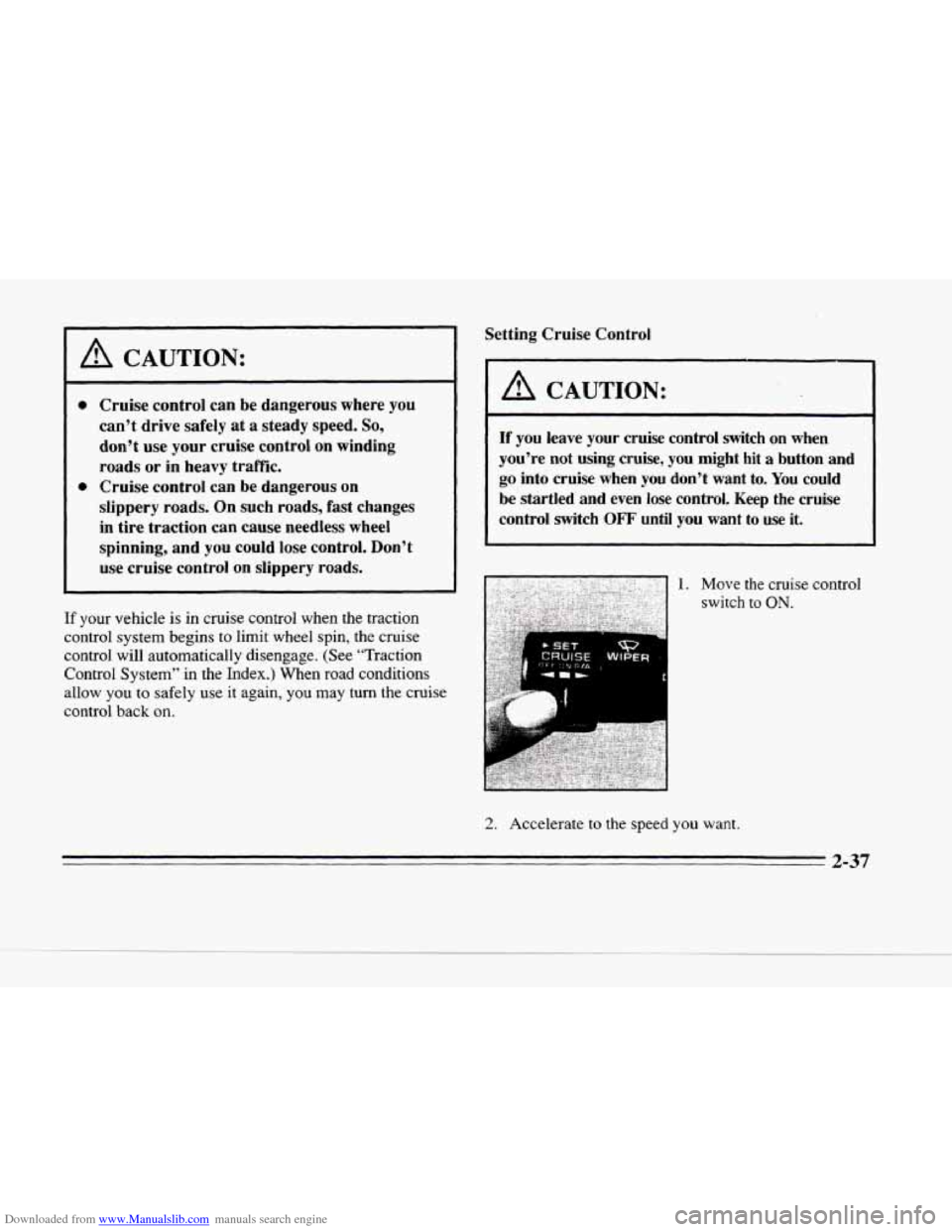

A CAUTION:
Cruise control can be dangerous where you
can’t drive safely at
a steady speed. So,
don’t use your cruise control on winding
roads or
in heavy traffic.
Cruise control can
be dangerous on
slippery roads. On such roads, fast changes in tire traction can cause needless wheel
spinning, and you could lose control. Don’t
use cruise control on slippery roads.
If your vehicle is in cruise control when the traction
control system begins to limit wheel spin, the cruise
control will automatically disengage. (See “Traction
Control System” in the Index.) When road conditions
allow you
to safely use it again, you may turn the cruise
control back
on.
Setting Cruise Control
A CAUTION:
If you leave your cruise control switch on when
you’re not using cruise,
you might hit a button and
go into cruise when you don’t want to. You could
be startled and even lose control.
Keep the cruise
control switch
OFF until you want to use it.
n ‘ .,...., -
1. Move the cruise control
switch to ON.
2. Accelerate to the speed you want.
2-37
