1996 CADILLAC SEVILLE Owners Manual

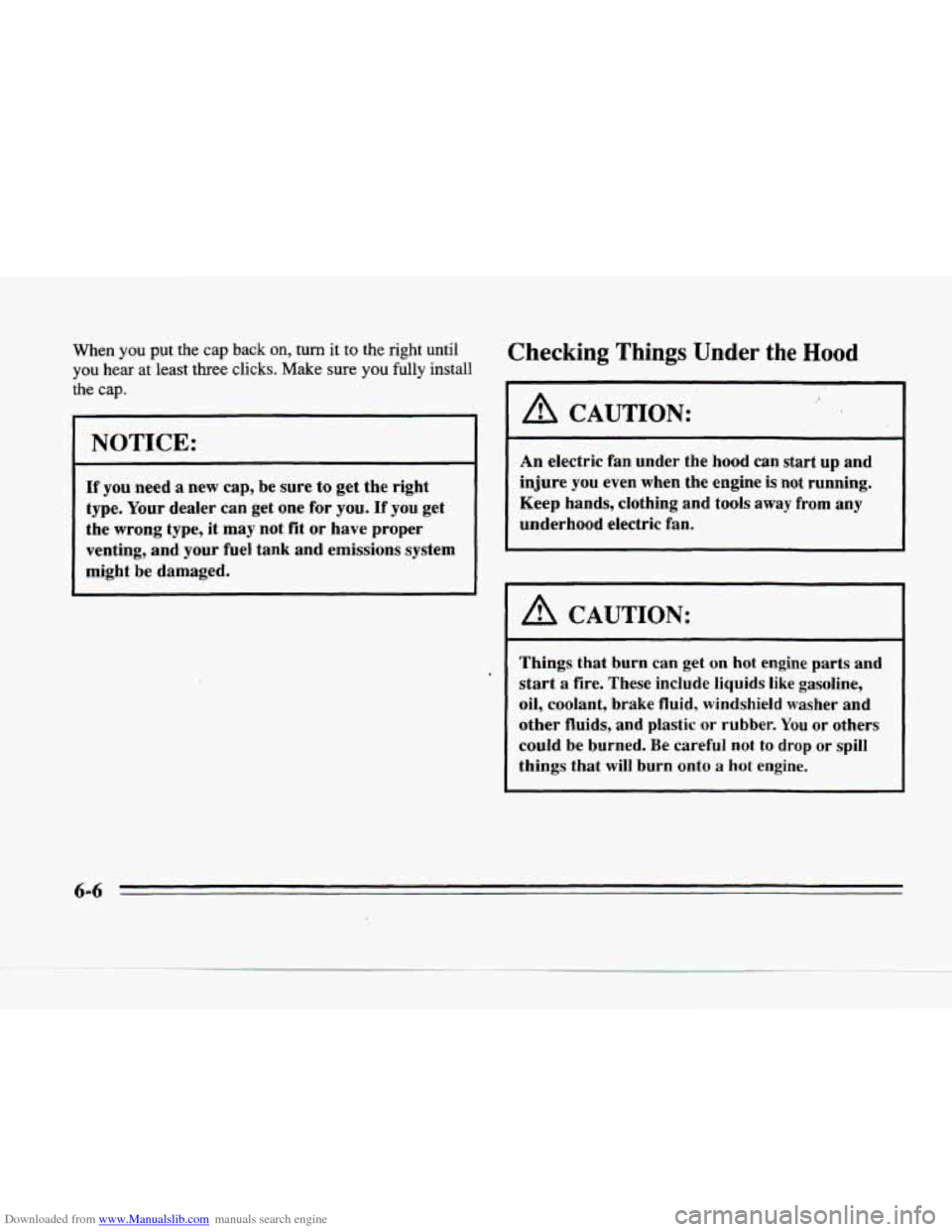

Downloaded from www.Manualslib.com manuals search engine When you put the cap back on, turn it to the right until
you hear at least three clicks. Make sure you fully install
the
cap.
I NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one for you. If you get
the wrong type, it may not fit
or have proper
venting, and your fuel tank and emissions system
might be damaged.
Checking Things Under the Hood
A CAUTION:
..
An electric fan under the hood can start up and
injure you even when the engine
is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
A CAUTION:
Things that burn can get on hot engine parts and
start
a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids,
and plastic or rubber. You or others
could be burned.
Be careful not to drop or spill
things that will
burn onto a hot engine.
6-6

Downloaded from www.Manualslib.com manuals search engine c

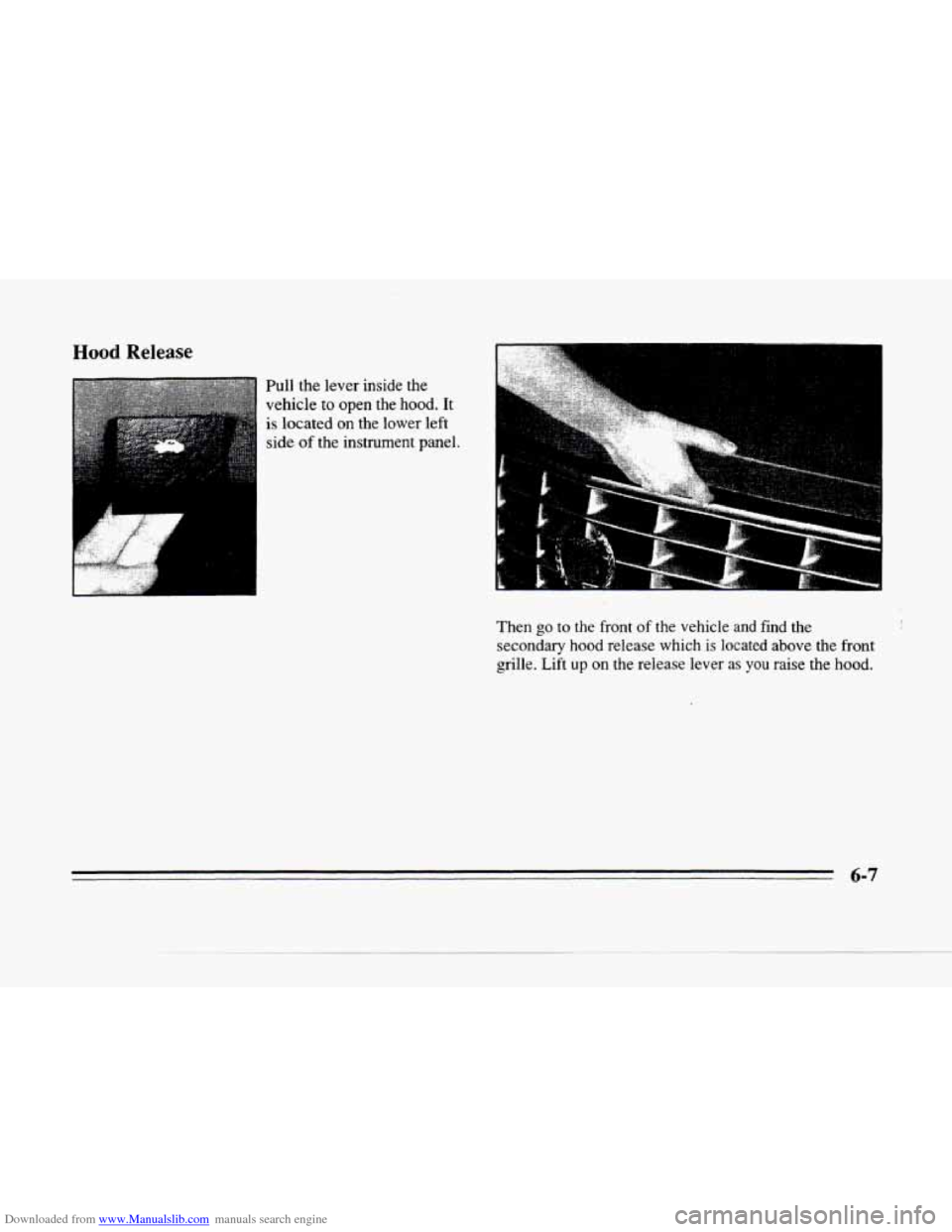

Hood Release
Pull the lever inside the
vehicle to open the hood.
It
is located on the lower left
side of the instrument panel.
Then go
to the front of the vehicle and find the
secondary
hood release which is located above the front
grille. Lift up on the release lever
as you raise the hood.

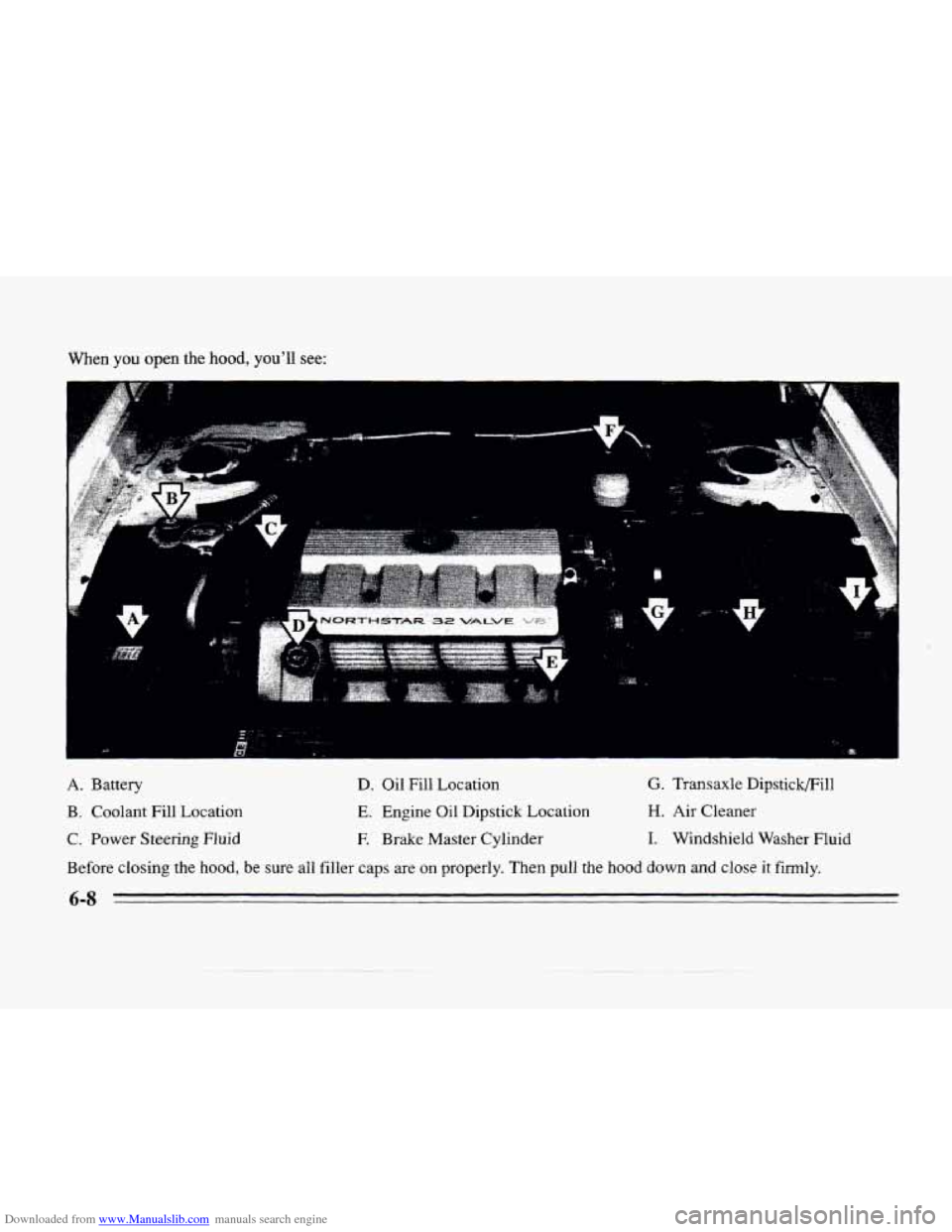

Downloaded from www.Manualslib.com manuals search engine When you open the hood, you'll see:
.. .
A. Battery D. Oil Fill Location G. Transaxle Dipstick/Fill
B. Coolant Fill Location
E. Engine Oil Dipstick Location H. Air Cleaner
C. Power Steering Fluid E Brake Master Cylinder I. Windshield Washer Fluid
Before closing the hood, be sure all filler caps are on properly. Then
pull the hood down and close it firmly.
6-8

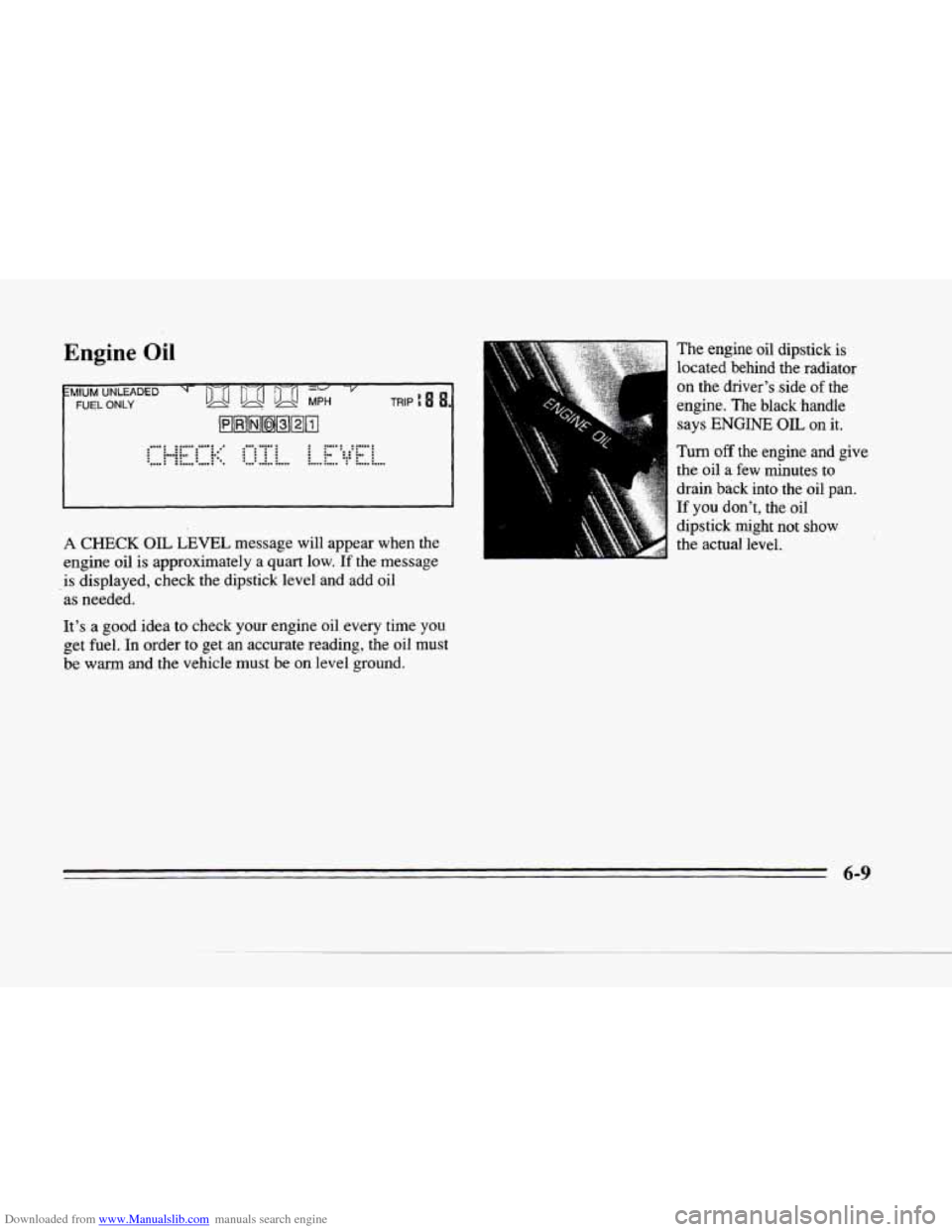

Downloaded from www.Manualslib.com manuals search engine Engine Oil
iMlUM UNLEADED
FUEL ONLY TRIP fl 8
mB8DBam
..U : ..................... ......... .......... : 2."': ::"..:
.... : :.. : : : : ..... . ." ........ .... .... .... .. .. ........... "... ......................... ."....... ;" i
A CHECK OIL LEVEL message will appear when the
engine oil is approximately a quart low.
If the message
is displayed, check the dipstick level and add oil
as needed.
It's a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be
warm and the vehicle must be on level ground. The
engine oil dipstick is
located behind the radiator
on the
driver's side of the
engine. The black .handle
says
ENGINE OIL on it.
Turn
off the engine and give
the
oil a few minutes to
drain
back into the oil pan.
If you don't, the oil
dipstick might not show
the actual level.
6-9

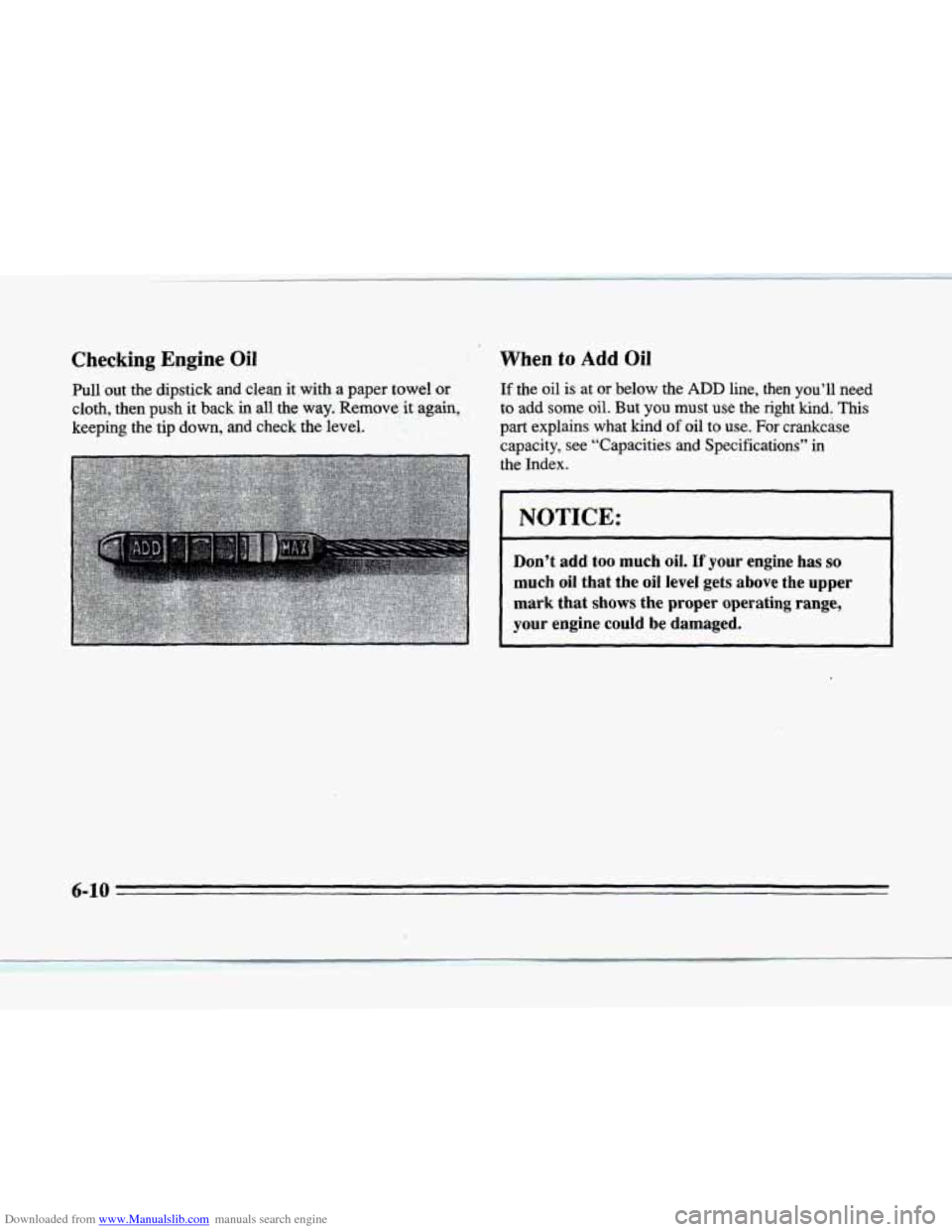

Downloaded from www.Manualslib.com manuals search engine Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
When to Add Oil
If the oil is at or below the ADD line, then you’ll need
to add some oil.
But you must use the right kind. This
part explains what kind of oil to use. For crankcase
capacity, see “Capacities and Specifications” in
the Index.
NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark
that shows the proper operating range,
your engine could be damaged.
6-10

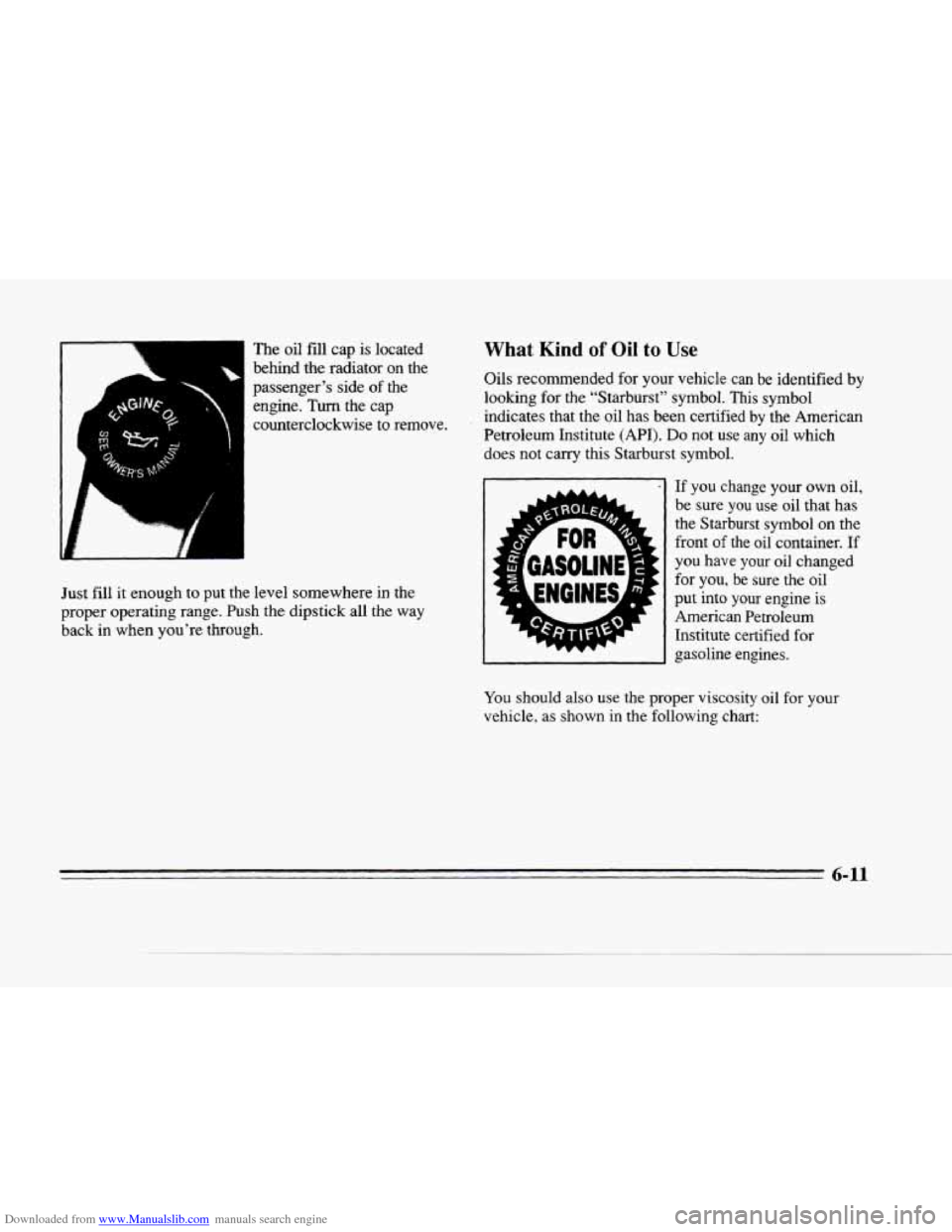

Downloaded from www.Manualslib.com manuals search engine The oil fill cap is located What Kind of Oil to Use
behind the radiator on the
passenger’s side
of the
engine. Turn the cap
counterclockwise to remove.
Just
fill it enough to put the level somewhere in the
proper operating range. Push the dipstick all the way
back in when you’re throtlgh. Oils recommended for
your vehicle
can be identified by
looking for the “Starburst” symbol.
This symbol
indicates that the oil
has been certified by the American
Petroleum Institute
(APT). Do not use any oil which
does not carry this Starburst symbol.
_- .. U you change your own oil,
be sure you use oil that has
the Starburst symbol on the front
of the oil container. If
you
have your oil changed
for you, be sure the oil
put into your engine is
American Petroleum
Institute certified for
gasoline engines.
You should also
use the proper viscosity oil for your
vehicle,
as shown in the following chart:
6-11

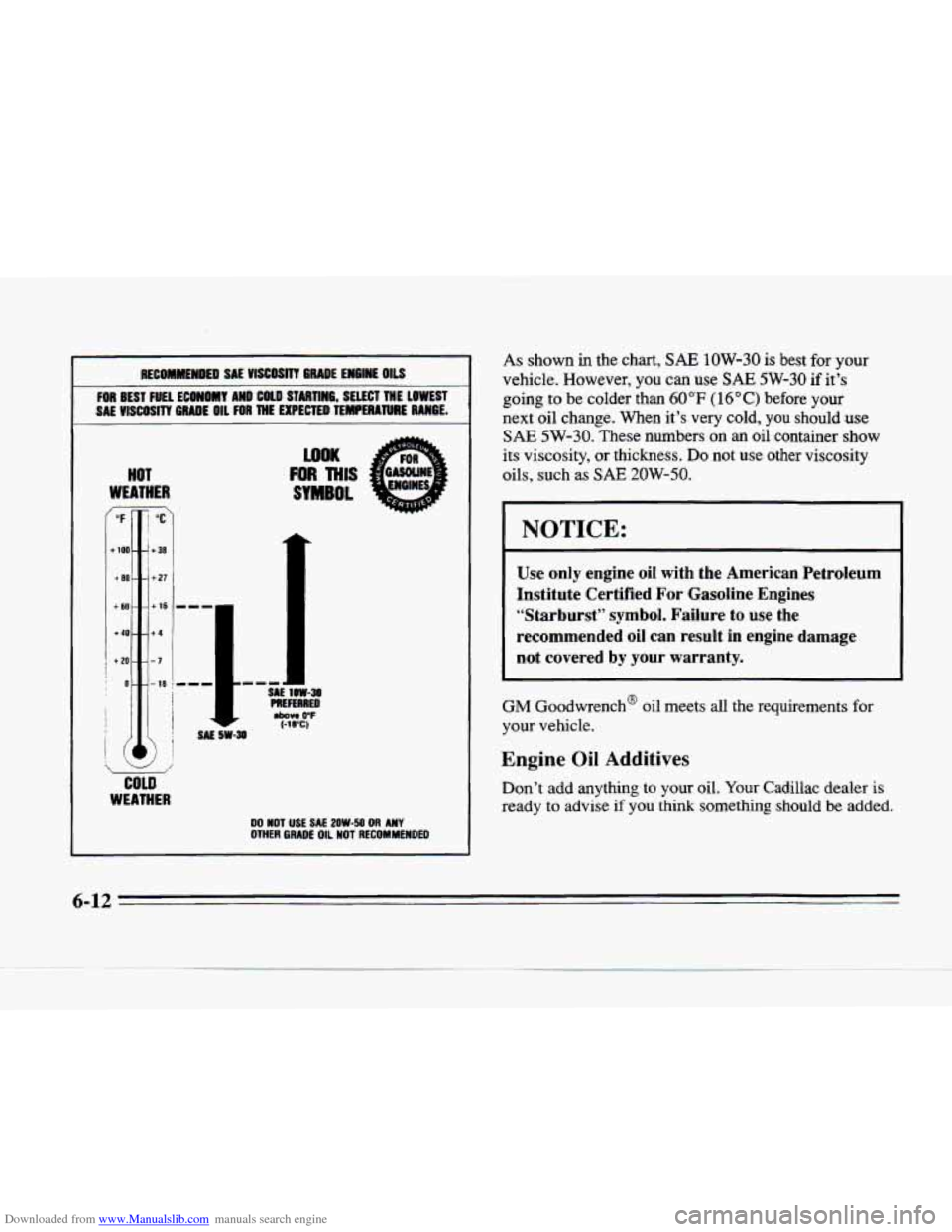

Downloaded from www.Manualslib.com manuals search engine I RECOMMENDED SAE VISCOSIT! GRADE ENGINE OILS I
FOR BEST FUEL ECONOMY AND COLD F------l6, SELECT THE LOWEST
SAE VISCOSITY GRADE OIL FOR THE ELLYIC~ TEMPERATURE RANGE. ’
HOT
WEATHER
+BO- - +27
+60--+16
+40- --+4
! 0---18
COLD
WEATHER
LQOK
FOR THIS
SYMBOL 7
---
I- SAL I 1DW-38
PRERRREO above 0°F (-1rc)
00 NOT USE SAE 2OW-50 OR ANY
OTHER GRADE OIL NOT RECOMMENDED
As shown in the chart, SAE 1OW-30 is best for your
vehicle. However, you can
use SAE 5W-30 if it’s
going to be colder than 60°F (16” C) before your
next oil change. When it’s very cold, you should use
SAE 5W-30. These numbers on an oil container show
its viscosity, or thickness. Do not use other viscosity
oils, such as
SAE 2OW-50.
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
“Starburst” symbol. Failure
to use the
recommended oil can result in engine damage
not covered
by your warranty.
GM Goodwrench@ oil meets all the requirements for
your vehicle.
Engine Oil Additives
Don’t add anything to your oil. Your Cadillac dealer is
ready to advise if you think something should be added.
6-12

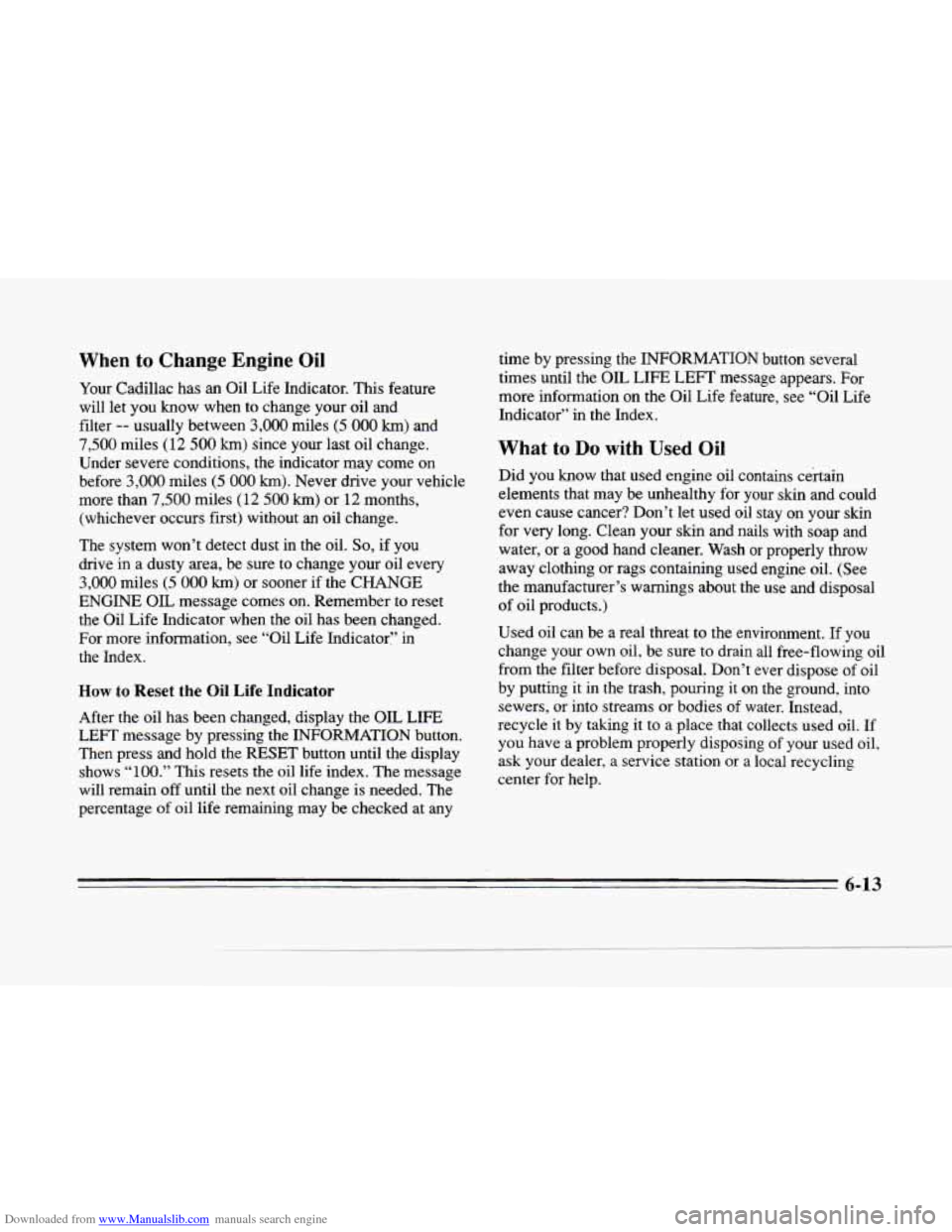

Downloaded from www.Manualslib.com manuals search engine When to Change Engine Oil
Your Cadillac has an Oil Life Indicator. This feature
will let you
know when to change your oil and
filter
-- usually between 3,000 miles (5 000 km) and
7,500 miles (12 500 km) since your last oil change.
Under severe conditions, the indicator may come
on
before 3,000 miles (5 000 km). Never drive your vehicle
more than
7,500 miles (12 500 km) or 12 months,
(whichever occurs first) without an oil change.
The system won’t detect dust in the oil.
So, if you
drive in a dusty area, be sure to change your oil every
3,000 miles (5 000 km) or sooner if the CHANGE
ENGINE
OIL message comes on. Remember to reset
the Oil Life Indicator when the oil has been changed.
For more information, see “Oil Life Indicator’’ in
the Index.
How to Reset the Oil Life Indicator
c”
After the oil has been changed, display the OIL LIFE
LEFT message by pressing the INFORMATION button.
Then press and hold the RESET button until the display
shows
“100.” This resets the oil life index. The message
will remain
off until the next oil change is needed. The
percentage of oil
life remaining may be checked at any time
by pressing the INFORMATION button
several
times until the OIL LIFE LEFT message appears. For
more information on the Oil Life feature, see “Oil Life
Indicator’’ in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay on your
skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil..(See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment. If you
change your own oil, be sure to
drain all free-flowing oil
from the filter before disposal. Don’t ever dispose
of oil
by putting it in the trash, pouring it on the ground. into
sewers, or into streams
or bodies of water. Instead,
recycle it by taking
it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer,
a service station or a local recycling
center for help.
6-13
