1996 ACURA RL KA9 lock

Oil Pan

Installation

Install the oil pan in the reverse order of removal:

• Always use new O-rings.

• Oil pan and cylinder block mating surface must be

clean.

1. Apply liquid gasket to the cylinder block, then install

the oil
pan.

NOTE:

• Use liquid gasket, Part No. 08718 - 0001 or 08718

0003.

• Check that the mating surfaces are clean and dry

before applying liquid gasket.

• Apply liquid gasket evenly, being careful to cover

all the mating surface.

• Do not apply liquid gasket to O-ring grooves.

• To prevent oil leakage, apply liquid gasket to the

inner threads of the bolt holes.

• Do not install the parts if 5 minutes or more have

elapsed since applying liquid gasket.

Instead, reapply liquid gasket after removing old

residue.

•
After assembly,
wait
at
least
30
minutes before
fill-

ing the engine with oil.

CYLINDER

BLOCK

O-RING GROOVE

Apply liquid gasket

along the broken line.
NOTE: Use new O-rings. Apply oil to the O-rings

before installation.

DOWEL PIN
O-RINGS

Replace.

DOWEL PIN

OIL PAN

ASSEMBLY

8 x
1.25
mm

22 N-m (2.2 kgf-m,

16 Ibf-ft)

2. Tighten the oil pan bolts as shown.

OIL PAN BOLT TORQUE SEQUENCE

8 x 1.25 mm: 22 N-m (2.2 kgf-m, 16 Ibf-ft)ProCarManuals.com

3. Instal l th e differentia l assembly .
Selec t th e appropriat e 2 6 m m shi m wheneve r th e
oi l pa n o r th e cylinde r bloc k i s replaced .
Refe r t o sectio n 1 5 fo r selectio n o f th e correc t
26 m m shim .
4. Appl y greas e t o th e splin e o f th e extensio n shaft ,
the n instal l th e ne w se t rin g wit h th e ope n sid e fac -
ing up .
EXTENSIO N SHAF T
INSTALLE R
07MA F-PY4010 1SET RIN GReplace .
6. Fil l th e cavit y wit h Hig h Tem p Ure a Greas e (P/ N
0879 8 - 9002) .
7 . Reinstal l th e 3 6 m m sealin g bol t an d th e secondar y
cover .
Appl y liqui d gaske t (P/ N 0871 8 - 0001 ) t o th e sealin g
bol t threads .
11.5 ± 0. 3 m m(0.4 5 ± 0.01 in)12 -1 4 g (0.4-0. 5 oz )
36 m m SEALIN G BOL T
7 8 N- m (8. 0 kgf-m , 5 8 Ibf-ft )
8. Chec k th e followin g afte r reassembly .
• Refil l th e differentia l wit h differentia l oil .
• Refil l th e engine with engin e oil .
• Mak e sur e th e se t ring s o n th e driveshaft s ar e
completel y inserte d int o th e groove s o f th e dif -
ferentia l o r intermediat e shaft .
• Adjus t th e A/ C compresso r bel t tension .
• Adjus t th e P/ S pum p bel t tension .
36 m m SEALIN G BOL T
7 8 N- m (8. 0 kgf-m , 5 8 Ibf-ft )
EXTENSIO N SHAF TINSTALLE R07MAF-PY4010 1
5. Instal l th e extensio n shaf t wit h th e specia l tool .
NOTE : Mak e sur e th e extensio n shaf t lock s in place .
SET RIN G
Replace .
ProCarManuals.com

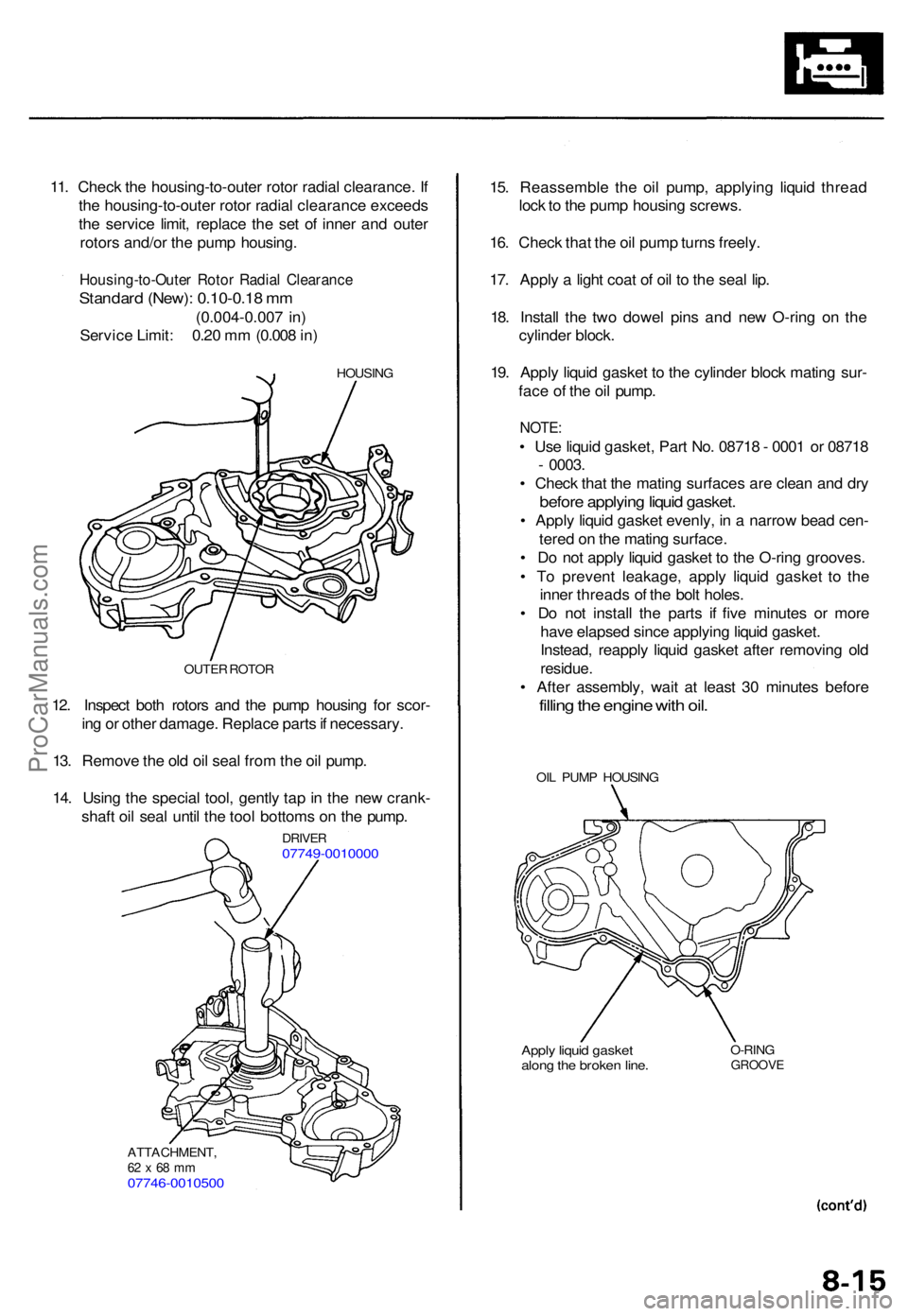

11. Chec k th e housing-to-oute r roto r radia l clearance . I f
th e housing-to-oute r roto r radia l clearanc e exceed s
th e servic e limit , replac e th e se t o f inne r an d oute r
rotor s and/o r th e pum p housing .
Housing-to-Oute r Roto r Radia l Clearanc e
Standard (New) : 0.10-0.1 8 m m
(0.004-0.00 7 in )
Servic e Limit : 0.2 0 m m (0.00 8 in )
HOUSIN G
12. Inspec t bot h rotor s an d th e pum p housin g fo r scor -
in g o r othe r damage . Replac e part s if necessary .
13 . Remov e th e ol d oi l sea l fro m th e oi l pump .
14 . Usin g th e specia l tool , gentl y ta p in th e ne w crank -
shaf t oi l sea l unti l th e too l bottom s o n th e pump .
OUTER ROTO R
DRIVE R07749-001000 0
ATTACHMENT ,62 x 68 m m07746-001050 0
Apply liqui d gaske talong th e broke n line .O-RIN GGROOV E
OIL PUM P HOUSIN G
15. Reassembl e th e oi l pump , applyin g liqui d threa d
loc k to th e pum p housin g screws .
16 . Chec k tha t th e oi l pum p turn s freely .
17 . Appl y a ligh t coa t o f oi l t o th e sea l lip .
18 . Instal l th e tw o dowe l pin s an d ne w O-rin g o n th e
cylinde r block .
19 . Appl y liqui d gaske t t o th e cylinde r bloc k matin g sur -
fac e o f th e oi l pump .
NOTE:
• Us e liqui d gasket , Par t No . 0871 8 - 000 1 o r 0871 8
- 0003 .
• Chec k tha t th e matin g surface s ar e clea n an d dr y
befor e applyin g liqui d gasket .
• Appl y liqui d gaske t evenly , i n a narro w bea d cen -
tere d o n th e matin g surface .
• D o no t appl y liqui d gaske t t o th e O-rin g grooves .
• T o preven t leakage , appl y liqui d gaske t t o th e
inne r thread s o f th e bol t holes .
• D o no t instal l th e part s i f fiv e minute s o r mor e
hav e elapse d sinc e applyin g liqui d gasket .
Instead , reappl y liqui d gaske t afte r removin g ol d
residue .
• Afte r assembly , wai t a t leas t 3 0 minute s befor e
filling th e engin e wit h oil .
ProCarManuals.com

Oil Pum p
Removal/lnspection/lnstallatio n (cont'd )
20. Instal l th e oi l pum p to th e cylinde r block .
OIL PUM PO-RING SReplace .DOWE
L PI N
DOWE L PI N
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
21. Instal l th e oi l pa n (se e pag e 8-10 ).
22 . Appl y engin e oi l t o th e balance r shaft , the n inser t
the balance r shaft .
NOTE : Tak e car e no t t o damag e th e journal s whe n
installin g th e balance r shaft .
BALANCE RSHAFT
O-RING
Replace .
BALANCE R SHAF TREAR COVE R
6 x 1. 0 m m12 N- m (1. 2 kgf-m ,
8. 7 Ibf-ft )
23. Instal l th e balance r shaf t holde r (se e pag e 7-3 ).
NOTE : Appl y liqui d gaske t aroun d th e oi l hol e t o
th e bloc k matin g surface .
24 . Instal l th e rea r balance r weight .
25 . Hol d th e balance r shaf t a s show n below , the n tighte n
the bolt .
8 x 1.2 5 mm25 N- m (2. 5 kgf-m ,
1 8 Ibf-ft )
26. Instal l th e balance r shaf t rea r cover .
ProCarManuals.com

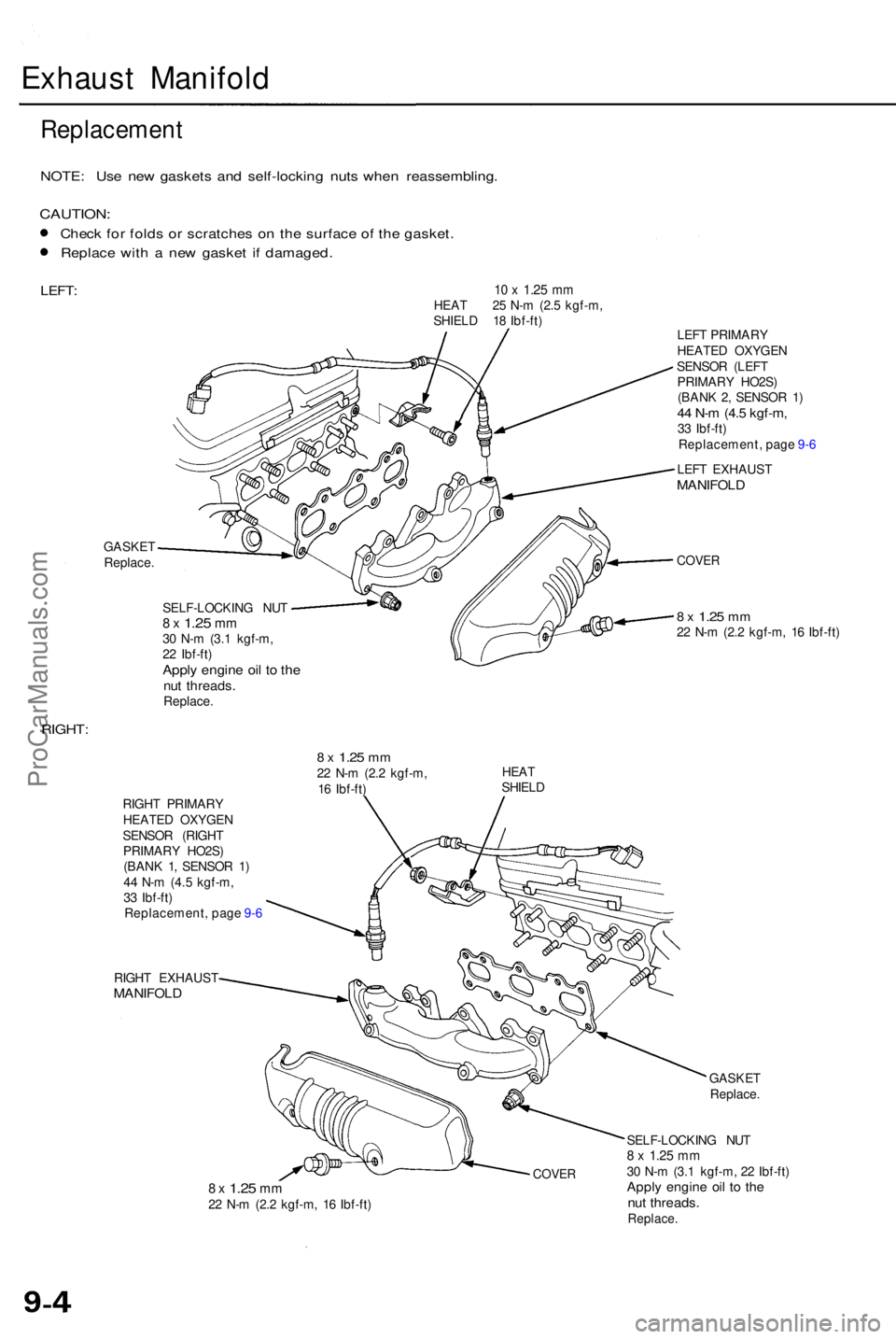

Exhaust Manifol d
Replacemen t
NOTE: Us e ne w gasket s an d self-lockin g nut s whe n reassembling .
CAUTION:
Check fo r fold s o r scratche s o n th e surfac e o f th e gasket .
Replac e wit h a ne w gaske t i f damaged .
LEFT:10 x 1.2 5 mmHEA T 2 5 N- m (2. 5 kgf-m ,
SHIEL D 1 8 Ibf-ft )
GASKE T
Replace .
SELF-LOCKIN G NU T
8 x 1.2 5 mm30 N- m (3. 1 kgf-m ,
2 2 Ibf-ft )
Apply engin e oi l t o th enut threads .Replace. LEF
T PRIMAR Y
HEATE D OXYGE N
SENSO R (LEF T
PRIMAR Y HO2S )
(BAN K 2 , SENSO R 1 )
44 N- m (4. 5 kgf-m ,33 Ibf-ft )
Replacement , pag e 9- 6
LEF T EXHAUS T
MANIFOLD
COVER
8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft )
RIGHT :
8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft ) HEA
T
SHIEL D
RIGH T PRIMAR Y
HEATE D OXYGE N
SENSO R (RIGH T
PRIMAR Y HO2S )
(BAN K 1 , SENSO R 1 )
4 4 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )
Replacement , pag e 9- 6
RIGH T EXHAUS T
MANIFOLD
COVER8 x 1.2 5 mm22 N- m (2. 2 kgf-m , 1 6 Ibf-ft ) GASKE
T
Replace .
SELF-LOCKIN G NU T
8 x 1.2 5 mm30 N- m (3. 1 kgf-m , 2 2 Ibf-ft )Apply engin e oi l t o th enut threads .Replace .
ProCarManuals.com

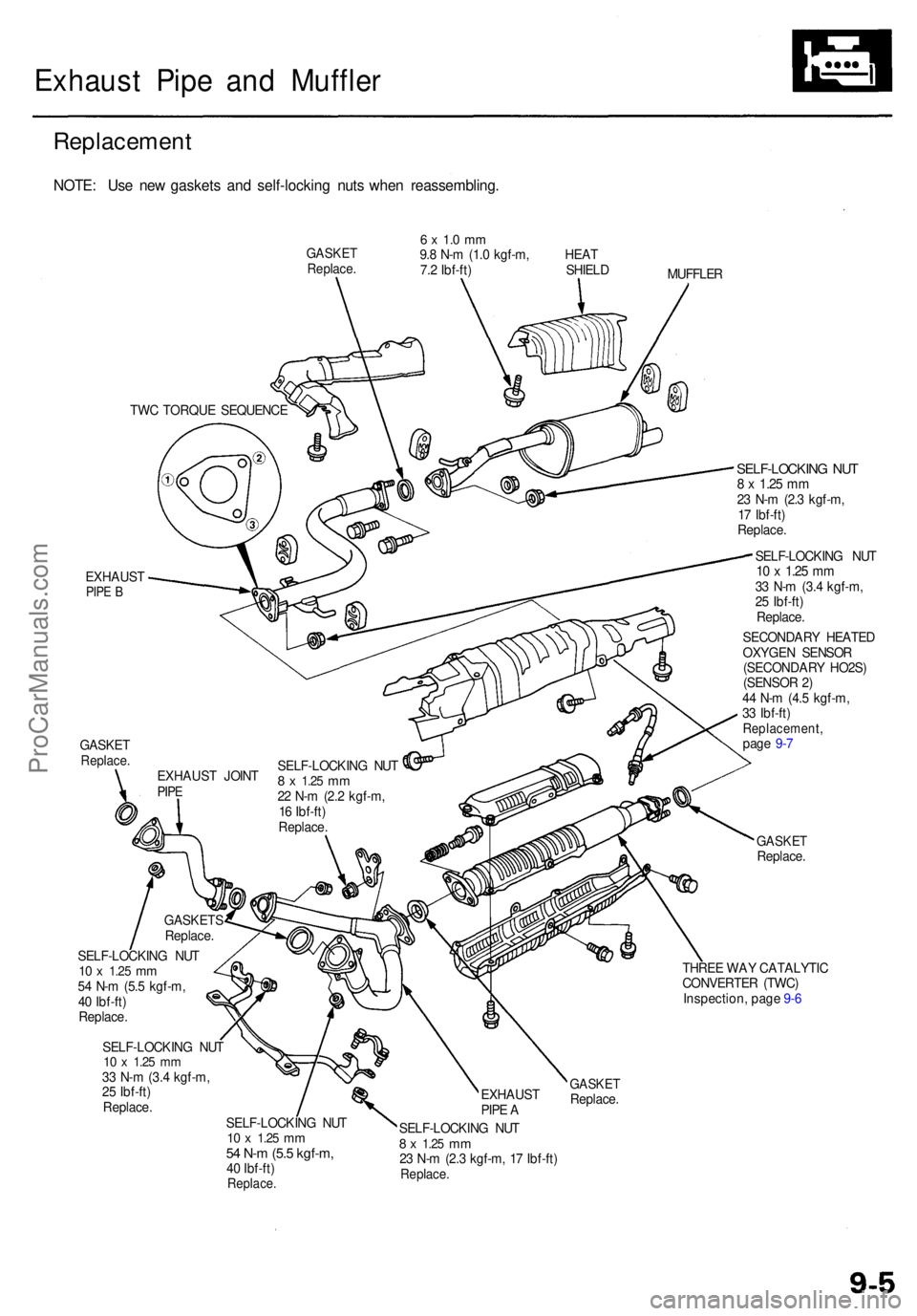

Exhaust Pip e an d Muffle r
Replacemen t
NOTE: Us e ne w gasket s an d self-lockin g nut s whe n reassembling .
GASKETReplace .
6 x 1. 0 m m9.8 N- m (1. 0 kgf-m , HEA T
7. 2 Ibf-ft ) SHIEL D
MUFFLER
TW C TORQU E SEQUENC E
EXHAUS T
PIPE B
GASKE TReplace .
GASKET S
Replace .
SELF-LOCKIN G NU T
10 x 1.2 5 mm54 N- m (5. 5 kgf-m ,
4 0 Ibf-ft )
Replace .
SELF-LOCKIN G NU T
10 x 1.2 5 mm33 N- m (3. 4 kgf-m ,
2 5 Ibf-ft )
Replace .
SELF-LOCKIN G NU T8 x 1.2 5 mm23 N- m (2. 3 kgf-m ,
1 7 Ibf-ft )
Replace .
SELF-LOCKIN G NU T
10 x 1.2 5 mm33 N- m (3. 4 kgf-m ,
2 5 Ibf-ft )
Replace .
SECONDAR Y HEATE D
OXYGE N SENSO R
(SECONDAR Y HO2S )
(SENSO R 2 )
4 4 N- m (4. 5 kgf-m ,
3 3 Ibf-ft )
Replacement,page 9- 7
GASKE TReplace .
THRE E WA Y CATALYTI C
CONVERTE R (TWC )
Inspection , pag e 9- 6
SELF-LOCKIN G NU T
10 x 1.2 5 mm54 N- m (5. 5 kgf-m ,40 Ibf-ft )Replace .
EXHAUS T
PIP E A
SELF-LOCKIN G NU T
8 x 1.2 5 mm23 N- m (2. 3 kgf-m , 1 7 Ibf-ft )Replace .
GASKETReplace .
EXHAUS
T JOIN T
PIPE
SELF-LOCKIN G NU T8 x 1.2 5 mm22 N- m (2. 2 kgf-m ,
1 6 Ibf-ft )
Replace .
ProCarManuals.com

Radiator
Illustrate d Inde x
Syste m is unde r hig h pressur e whe n th e
engin e i s hot . T o avoi d dange r o f releasin g scaldin g
coolant , remov e th e ca p onl y whe n th e engin e is cool .
Tota l Coolin g Syste m Capacit y (Includin g heate r an d
reservoir )
8.6 (9. 1 US qt , 7. 6 Im p qt )
Reservoi r capacity : 0.6 5 (0.6 9 U S qt , 0.5 7 Im p qt ) CAUTION
: Whe n pourin g engin e coolant , b e sur e t o
shu t th e rela y bo x li d an d no t t o spil l coolan t o n th e elec -
trica l part s o r th e painte d portion . I f an y coolan t spills ,
rins e it of f immediately .
NOTE:
Check al l coolin g syste m hose s fo r damage , leak s o r
deterioratio n an d replac e if necessary .
Chec k al l hos e clamp s an d retighte n i f necessary .
Us e ne w O-ring s whe n reassembling .
AUTOMATIC TRANSMISSIO NFLUID (ATF ) COOLE R HOSE SRefer t o sectio n 1 4 whe ninstalling .
RADIATO R CA PPressur e testing , pag e 10-7
6 x 1. 0 m m9 N- m (0. 9 kgf-m ,7 Ibf-ft )
RADIATO REngine coolan tRefilling an d bleeding , pag e 10-6Lea k test , pag e 10-7Inspec t soldere d joint s an dseam s fo r leaks .Blow ou t dir t fro m betwee ncore fin s wit h compresse d air .If insects , etc. , ar e cloggin gradiator, was h the m of f wit hlow-pressur e water .
CONDENSE RFAN SHROU D
6 x 1. 0 m m7 N- m (0. 7 kgf-m ,5 Ibf-ft )
O-RIN GReplace .
RADIATO R FA NCONTRO L SENSO R27 N- m (2. 8 kgf-m ,20 Ibf-ft )
FAN MOTO RRADIATO R FA NSHROU D
RADIATO RFAN
LOWE R RADIATO RHOSE
SELF-LOCKIN G NU T5.4 N- m (0.5 5 kgf-m , 3. 3 Ibf-ft )
O-RIN GReplace .
DRAINPLUG
UPPE R RADIATO RHOSE
ProCarManuals.com

Engine Coolan t Refillin g an d Bleedin g
'96 -0 0 models :
CAUTION : Whe n pourin g engin e coolant , b e sur e t o
shu t th e rela y bo x li d an d no t t o le t coolan t spil l o n th e
electrica l part s o r th e paint . I f an y coolan t spills , rins e it
of f immediately .
NOTE:
Perfor m thi s procedur e whe n th e engin e is cool .
Befor e replacin g th e coolant , tur n th e ignitio n O N (II) ,
slowl y tur n th e climat e contro l temperatur e kno b t o
90° , an d tur n of f th e ignition . Thi s wil l allo w th e
coolan t i n th e heate r t o drai n ou t wit h th e res t o f th e
system .
Whe n th e radiato r i s cool , remov e th e radiato r cap .
Loose n th e drai n plug , an d drai n th e coolant .
DRAINPLUG
DRAI N CA P
2. Remov e th e drai n cap from th e coolan t drai n pip e
t o drai n th e block .
3 . Pu t th e drai n ca p bac k i n place , the n reinstal l th e
cli p o n th e drai n ca p securely .
4 . Tighte n th e radiato r drai n plu g securely .
5 . Remove , drai n an d reinstal l th e reservoir . Fil l th e
tan k halfwa y t o th e MA X mar k wit h water , the n u p
t o th e MA X mar k wit h antifreeze . 6
. Mi x th e recommende d antifreez e wit h a n equa l
amoun t o f wate r i n a clea n container .
NOTE:
Alway s us e onl y genuin e Hond a antifreeze /
coolant .
Fo r bes t corrosio n protection , th e coolan t con -
centratio n mus t b e maintaine d year-roun d a t
50 % minimum . Coolan t concentration s les s tha n
50% ma y no t provid e sufficien t protectio n
against corrosio n o r freezing .
Coolan t concentration s greate r tha n 60 % wil l
impai r coolin g efficienc y an d ar e no t recom -
mended .
CAUTION :
Do no t mi x differen t brand s o f antifreeze/coolants .
D o no t us e additiona l rus t inhibitor s o r anti-rus t
products ; the y ma y no t b e compatibl e wit h th e
coolant .
Engine Coolan t Refil l Capacit y [Includin g reservoi r
(0.65 (0.6 9 U S qt , 0.5 7 Im p qt))] :
6.1 (6. 4 US qt , 5. 4 Im p qt )
7. Remov e th e engin e cove r (se e pag e 5-3 ).
8 . Loose n th e ai r blee d bol t i n th e wate r passage , the n
fill th e radiato r to th e botto m of th e fille r nec k with
the coolan t mixture . Tighte n th e blee d bol t a s soo n
a s coolan t start s t o ru n ou t i n a stead y strea m with -
ou t bubbles .
9 . Wit h th e radiato r ca p off , star t th e engin e an d le t i t
ru n unti l i t i s warme d u p (radiato r fa n come s o n a t
leas t twice) . Then , i f necessary , ad d mor e coolan t mi x
t o brin g th e leve l bac k u p t o th e botto m o f th e fille r
neck .
10. Pu t th e radiato r ca p o n tightly , the n ru n th e engin e
agai n an d chec k fo r leaks .
BLEE D BOL T9.8 N- m (1. 0 kgf-m , 7. 2 Ibf-ft )
ProCarManuals.com
