4. Remove the bolts, then remove the camshaft hold-

ers from the cylinder head.

5. Lift the camshaft out of the cylinder head, wipe it

clean, then inspect the lift ramps. Replace the

camshaft if any lobes are pitted, scored, or excessively

worn.

6. Clean the camshaft bearing surfaces in the cylinder

head, then set the camshaft back in place.

7. Place a plastigage strip across each journal.

8. Install the camshaft holders, then tighten the bolts

to the specified torque shown on the previous page.

9. Remove the camshaft holders. Measure the widest

portion of plastigage on each journal.

PLASTIGAGE STRIP
If camshaft-to-holder oil clearance is out of toler-

ance:

And the camshaft has already been replaced,

you must replace the cylinder head.

If the camshaft has not been replaced, first check

the total runout with the camshaft supported on

V-blocks.

Rotate camshaft

while measuring.

If the total runout of the camshaft is within toler-

ance, replace the cylinder head.

If the total runout is out of tolerance, replace the

camshaft and recheck. If the oil clearance is still

out of tolerance, replace the cylinder head.

11. Check cam lobe height wear.

Check this area for wear.
Cam Lobe Height Standard (New):

INTAKE 40.175 mm (1.5817 in)

EXHAUST 37.878 mm (1.4913 in)
Camshaft Total Runout:

Standard (New): 0.03 mm (0.001 in) max.

Service Limit: 0.04 mm (0.002 in)

Camshaft-to-Holder Oil Clearance:

Standard (New): 0.050 - 0.089 mm

(0.0020 - 0.0035 in)

Service Limit: 0.10 mm (0.004 in)ProCarManuals.com

Valve Guides
Reaming
NOTE: Fo r ne w valv e guide s only .
1 . Coa t bot h th e reame r an d valv e guid e wit h cuttin g
oil.
2. Rotat e th e reame r clockwis e th e ful l lengt h o f th e
valv e guid e bore .
REAME R HANDL EVALVE GUID EREAMER , 5. 5 m m
07HAH-PJ7010 B
Tur n reame r i n
clockwis e directio nonly.
3. Continu e t o rotat e th e reame r clockwis e whil e
removin g i t fro m th e bore .
4 . Thoroughl y was h th e guid e i n detergen t an d wate r
t o remov e an y cuttin g residue .
5 . Chec k th e clearanc e wit h a valv e (se e pag e 6-31 ).
Verif y tha t th e valv e slide s i n th e valv e guid e with -
ou t exertin g pressure .
ProCarManuals.com

Cylinder Heads

Installation (cont'd)

4. Install the cylinder heads on the cylinder block.

5. Tighten the cylinder head bolts sequentially in 2 or

3 steps.

Specified Torque:

76 N-m (7.8 kgf-m, 56 Ibf-ft)

NOTE:

We recommend using a beam-type torque wrench.

When using a preset-type torque wrench, be sure

to tighten slowly and not to overtighten.

If a bolt makes any noise while you are torquing

it, loosen the bolt and retighten it.

CYLINDER HEAD BOLTS TORQUE SEQUENCE

CYLINDER HEAD BOLTS

Apply engine oil to the bolt

threads.
6. Install the head cover gasket in the groove of the

cylinder head cover. Seat the recesses for the cam-

shaft first, then work it into the groove around the

outside edges.

NOTE:

Before installing the cylinder head cover gasket,

thoroughly clean the seal and the groove.

When installing, make sure the head cover gasket

is seated securely in the corners of the recesses

with no gap.

CORNERS OF

THE RECESS
HEAD COVER

GASKET

Clean.
CORNERS OF

THE RECESS

CYLINDER

HEAD COVER

7. Apply liquid gasket to the head cover gasket at the

four corners of the recesses.

NOTE:

Use liquid gasket, Part No. 08718 - 0001 or 08718

- 0003.

Check that the mating surfaces are clean and dry

before applying liquid gasket.

Do not install the parts if five minutes or more have

elapsed since applying liquid gasket. Instead, reap-

ply liquid gasket after removing old residue.

After assembly, wait at least 30 minutes before

filling the engine with oil.

Apply liquid gasket to

the shaded areas.ProCarManuals.com

Illustrated Index

Lubricate all internal parts with engine oil during reassembly.

NOTE: Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.

BALANCER

SHAFT

O-RING

Replace.

DOWEL

PIN

BALANCER GEAR

CASE

Apply liquid gasket to

the block mating

surface.
BALANCER SHAFT

HOLDER

Apply liquid gasket around

the oil hole to the block

mating surface.

O-RING

Replace.
6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)
BALANCER SHAFT

REAR COVER

6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)

8 x
1.25
mm

25 N-m (2.5 kgf-m,

18 Ibf-ft)

REAR BALANCER

WEIGHT

O-RING

Replace.

OUTER PIPE

O-RING

Replace.
ENGINE OIL PRESSURE

SWITCH

18 N-m (1.8 kgf-m, 13 Ibf-ft)

1/8 in. BSPT (British

Standard Pipe Taper)

28 threads/inch. Use

proper liquid sealant.
6 x 1.0 mm

12 N-m (1.2 kgf-m,

8.7 Ibf-ft)
O-RING

Replace.ProCarManuals.com

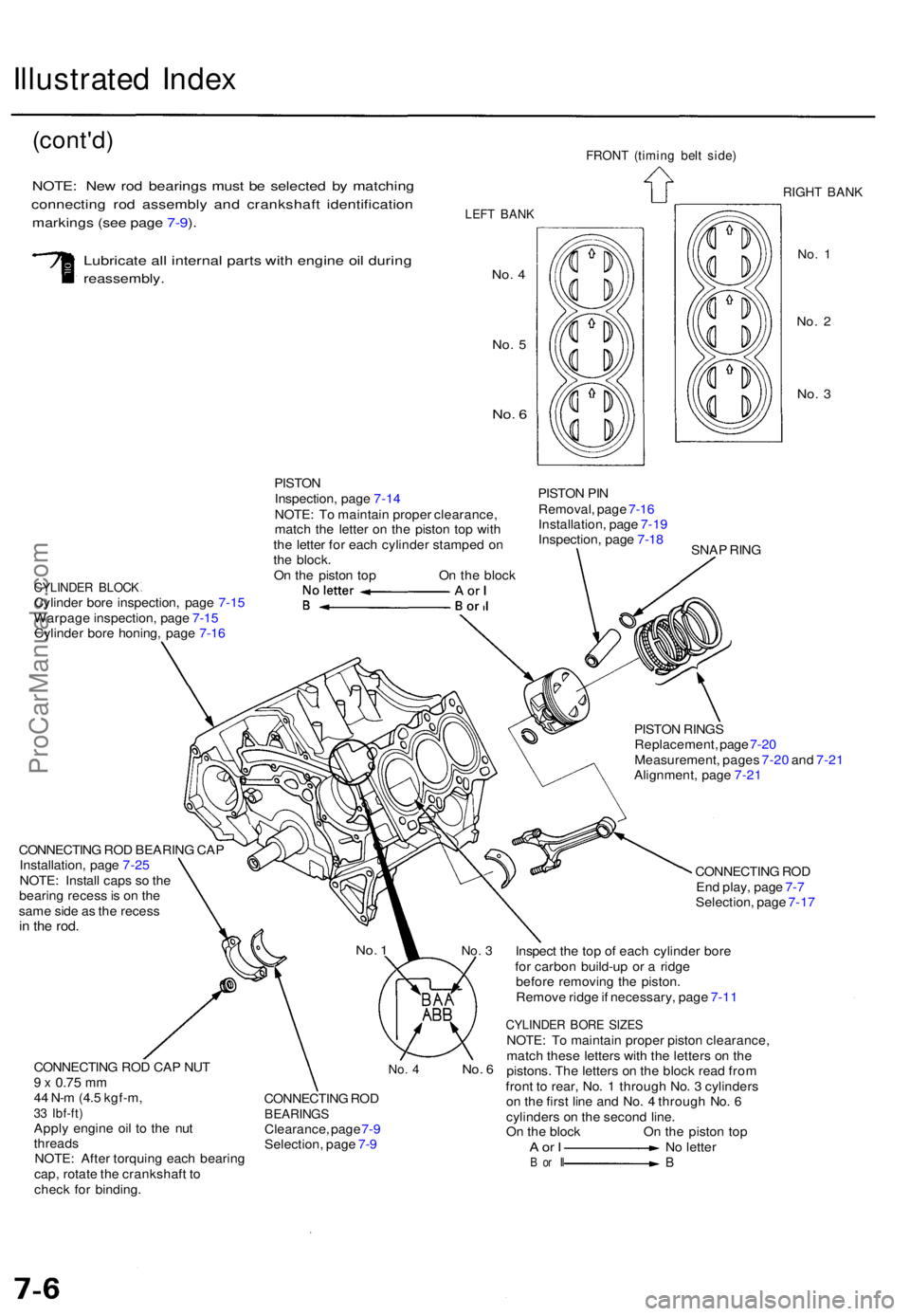

Illustrated Inde x
(cont'd )
NOTE: Ne w ro d bearing s mus t b e selecte d b y matchin g
connectin g ro d assembl y an d crankshaf t identificatio n
markings (se e pag e 7-9 ).
Lubricat e al l interna l part s wit h engin e oi l durin g
reassembly .
PISTONInspection , pag e 7-1 4
NOTE : T o maintai n prope r clearance ,
matc h th e lette r o n th e pisto n to p wit h
th e lette r fo r eac h cylinde r stampe d o n
th e block .
O n th e pisto n to p O n th e bloc k
CYLINDE R BLOC KCylinde r bor e inspection , pag e 7-1 5
Warpag e inspection , pag e 7-1 5
Cylinde r bor e honing , pag e 7-1 6 PISTO
N PI N
Removal , pag e 7-1 6
Installation , pag e 7-1 9
Inspection , pag e 7-1 8
PISTO N RING S
Replacement , pag e 7-2 0
Measurement , page s 7-2 0 an d 7-2 1
Alignment , pag e 7-2 1
SNA
P RIN G
CONNECTIN G RO D
En d play , pag e 7- 7
Selection , pag e 7-1 7
Inspec t th e to p o f eac h cylinde r bor e
fo r carbo n build-u p o r a ridg e
befor e removin g th e piston .
Remov e ridg e if necessary , pag e 7-1 1
CYLINDE R BOR E SIZE SNOTE : T o maintai n prope r pisto n clearance ,
matc h thes e letter s wit h th e letter s o n th e
pistons . Th e letter s o n th e bloc k rea d fro m
fron t t o rear , No . 1 throug h No . 3 cylinder s
o n th e firs t lin e an d No . 4 throug h No . 6
cylinder s o n th e secon d line .
O n th e bloc k O n th e pisto n to p
CONNECTIN
G RO D
BEARING SClearance , pag e 7- 9
Selection , pag e 7- 9
CONNECTIN
G RO D CA P NU T
9 x 0.7 5 mm44 N- m (4. 5 kgf-m ,33 Ibf-ft )Apply engin e oi l t o th e nu tthread sNOTE: Afte r torquin g eac h bearin g
cap , rotat e th e crankshaf t t o
chec k fo r binding .
CONNECTIN
G RO D BEARIN G CA P
Installation , pag e 7-2 5
NOTE : Instal l cap s s o th e
bearin g reces s is o n th e
sam e sid e a s th e reces s
in th e rod .
FRON T (timin g bel t side )
RIGH T BAN K
No. 1
No . 2
No . 3
No . 4
No . 5
No . 6
LEF T BAN K
No. 1No . 3
No . 6No . 4
N o lette rBA o r IB o r I l
