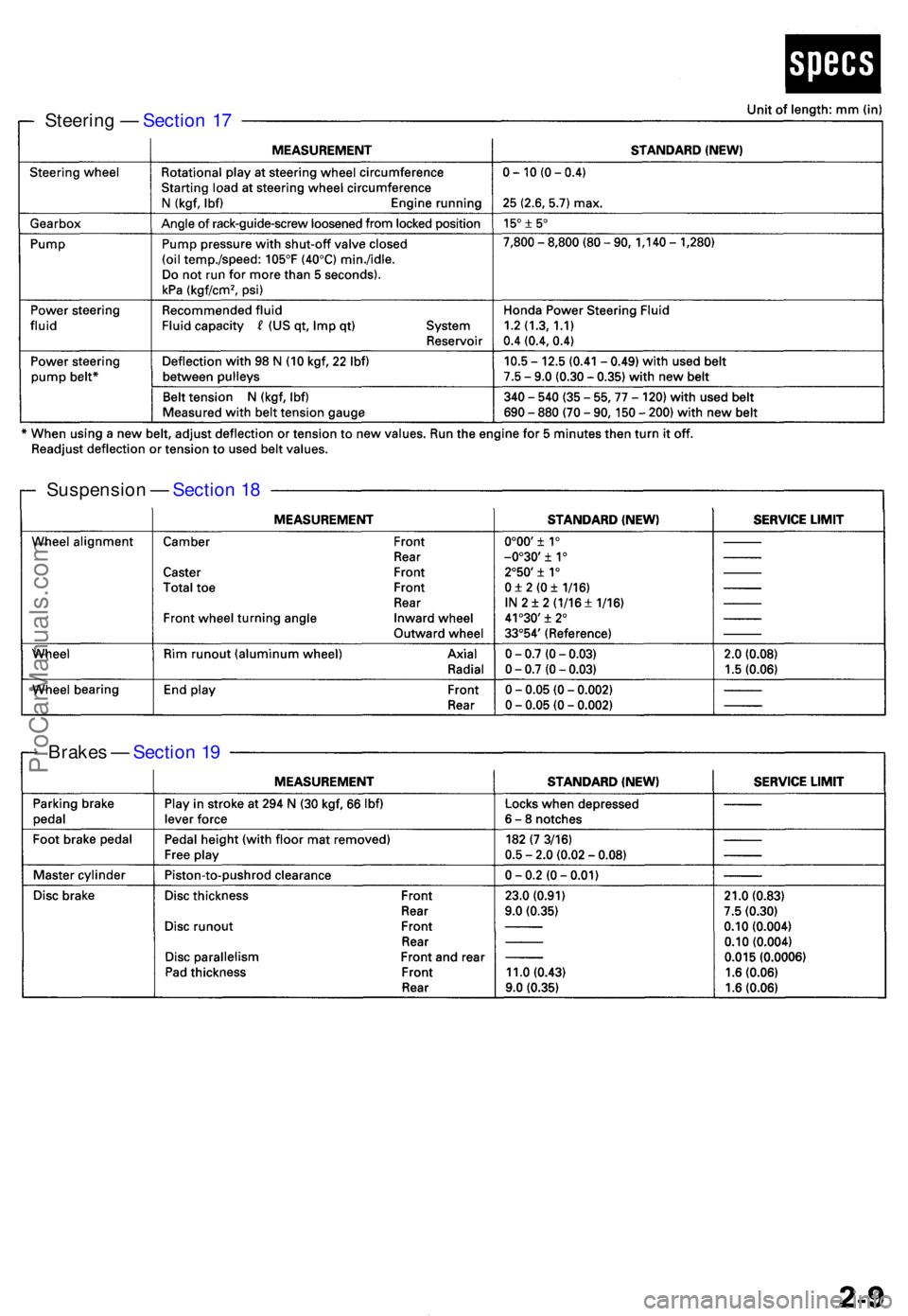

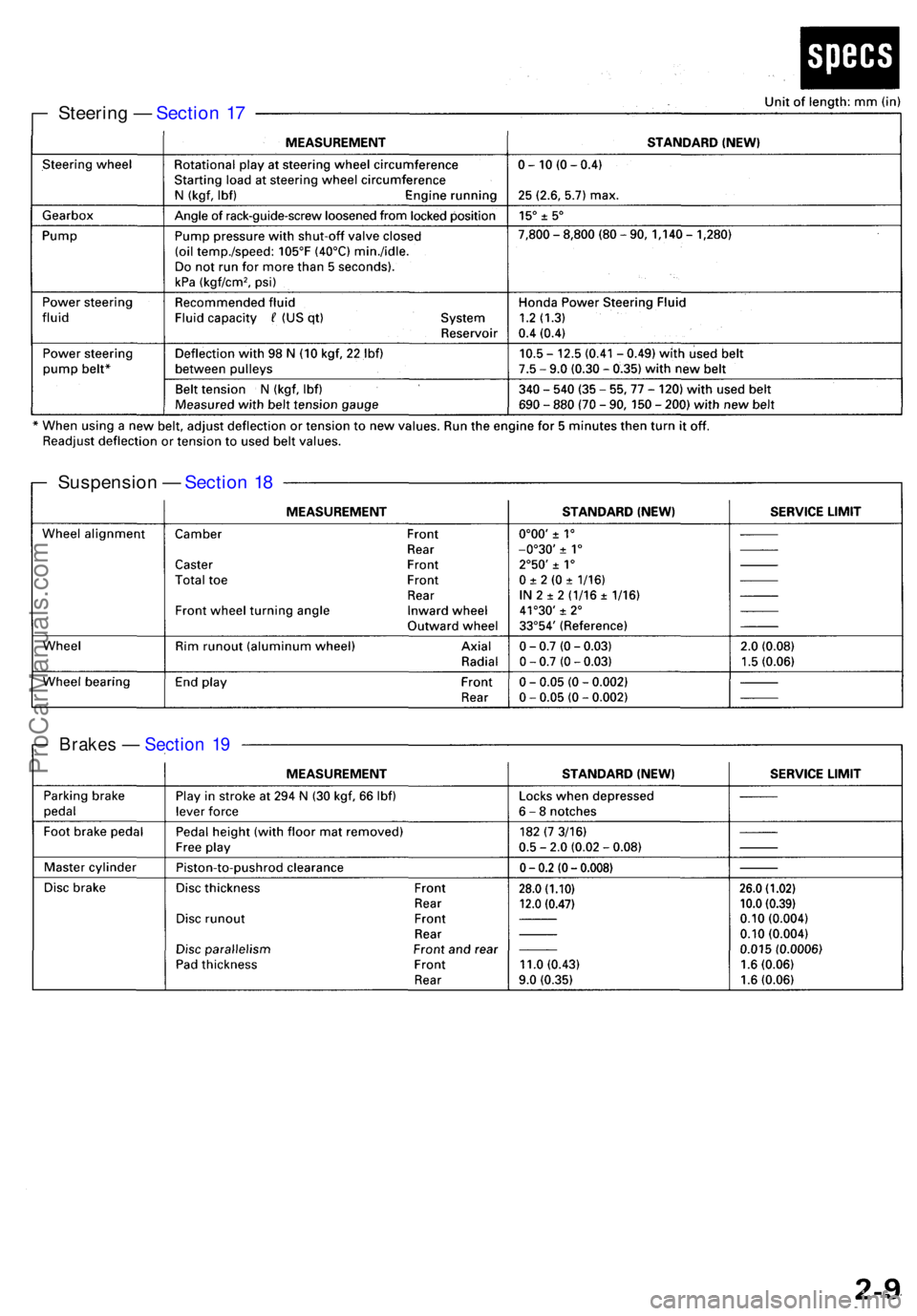

Steering — Sectio n 1 7
Suspensio n — Sectio n 1 8
Brake s — Sectio n 1 9
ProCarManuals.com

Steering Angl e Senso r
Neutral Positio n Chec k an d Memorizin g
Check
1. Connec t th e SC S servic e connecto r t o th e servic e chec k connecto r (2P ) locate d unde r th e glov e box .
2 . Tur n th e ignitio n switc h O N (II) . Th e VS A activatio n indicato r come s o n the n goe s off .
3 . Pres s th e VS A of f switc h on e tim e befor e th e VS A activatio n indicato r come s o n again .
4 . Chec k tha t th e VS A activatio n indicato r come s o n whe n th e steerin g whee l i s i n th e straigh t ahea d positio n (neutra l
position) , an d th e indicato r goe s of f whe n th e steerin g whee l turn s t o th e righ t o r lef t mor e tha n 2. 5 degrees .
5 . I f th e VS A activatio n indicato r doe s no t com e o n o r g o off , perfor m th e neutra l positio n memorizin g procedure .
ProCarManuals.com

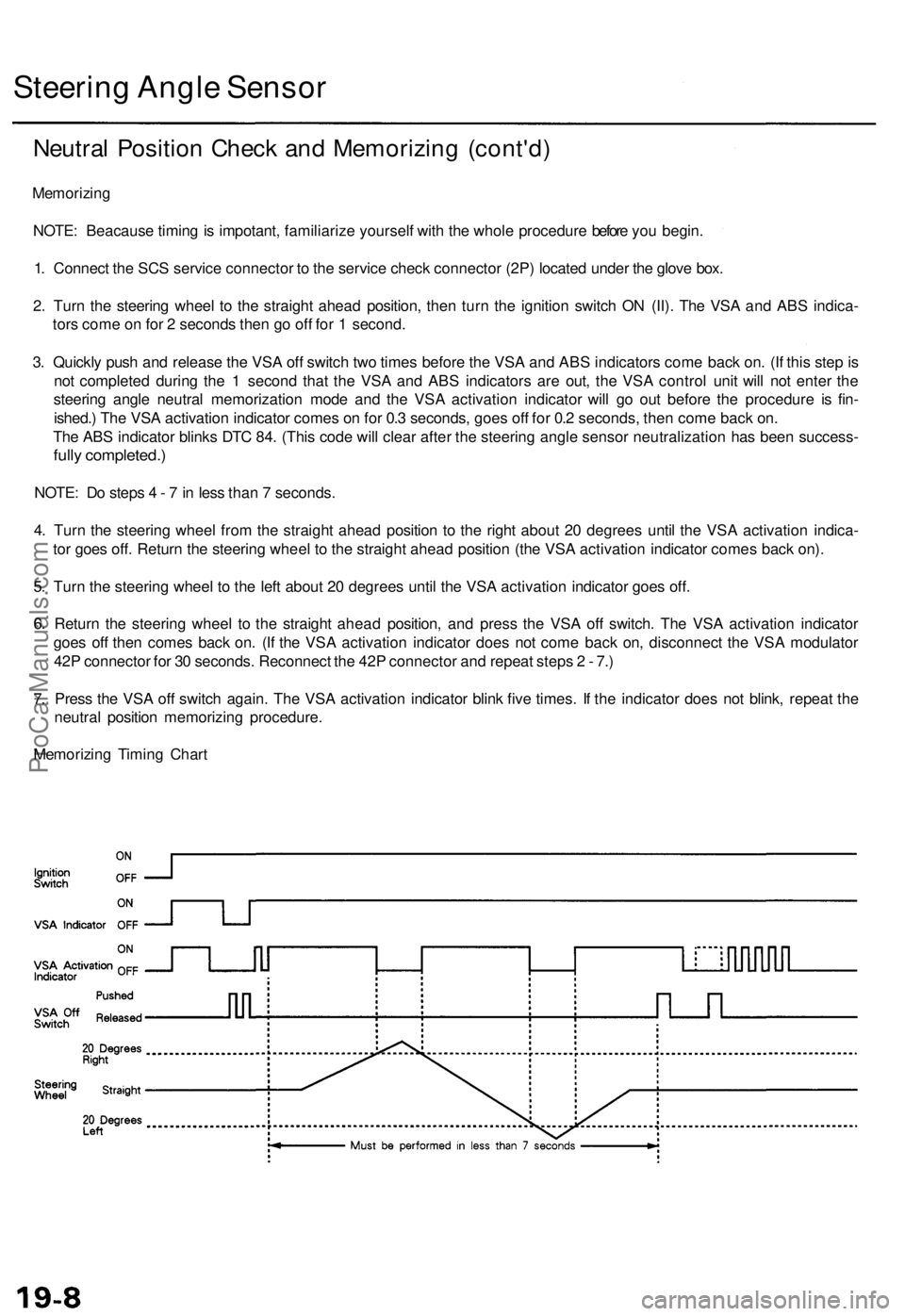

Steering Angl e Senso r
Neutral Positio n Chec k an d Memorizin g (cont'd )
Memorizin g
NOTE : Beacaus e timin g is impotant , familiariz e yoursel f wit h th e whol e procedur e befor e yo u begin .
1 . Connec t th e SC S servic e connecto r t o th e servic e chec k connecto r (2P ) locate d unde r th e glov e box .
2 . Tur n th e steerin g whee l t o th e straigh t ahea d position , the n tur n th e ignitio n switc h O N (II) . Th e VS A an d AB S indica -
tor s com e o n fo r 2 second s the n g o of f fo r 1 second .
3 . Quickl y pus h an d releas e th e VS A of f switc h tw o time s befor e th e VS A an d AB S indicator s com e bac k on . (I f thi s ste p is
no t complete d durin g th e 1 secon d tha t th e VS A an d AB S indicator s ar e out , th e VS A contro l uni t wil l no t ente r th e
steerin g angl e neutra l memorizatio n mod e an d th e VS A activatio n indicato r wil l g o ou t befor e th e procedur e i s fin -
ished. ) Th e VS A activatio n indicato r come s o n fo r 0. 3 seconds , goe s of f fo r 0. 2 seconds , the n com e bac k on .
Th e AB S indicato r blink s DT C 84 . (Thi s cod e wil l clea r afte r th e steerin g angl e senso r neutralizatio n ha s bee n success -
fully completed. )
NOTE: D o step s 4 - 7 in les s tha n 7 seconds .
4 . Tur n th e steerin g whee l fro m th e straigh t ahea d positio n t o th e righ t abou t 2 0 degree s unti l th e VS A activatio n indica -
to r goe s off . Retur n th e steerin g whee l t o th e straigh t ahea d positio n (th e VS A activatio n indicato r come s bac k on) .
5 . Tur n th e steerin g whee l t o th e lef t abou t 2 0 degree s unti l th e VS A activatio n indicato r goe s off .
6 . Retur n th e steerin g whee l t o th e straigh t ahea d position , an d pres s th e VS A of f switch . Th e VS A activatio n indicato r
goe s of f the n come s bac k on . (I f th e VS A activatio n indicato r doe s no t com e bac k on , disconnec t th e VS A modulato r
42 P connecto r fo r 3 0 seconds . Reconnec t th e 42 P connecto r an d repea t step s 2 - 7. )
7 . Pres s th e VS A of f switc h again . Th e VS A activatio n indicato r blin k fiv e times . I f th e indicato r doe s no t blink , repea t th e
neutra l positio n memorizin g procedure .
Memorizin g Timin g Char t
ProCarManuals.com

Steering — Sectio n 1 7
Suspensio n — Sectio n 1 8
Brake s — Sectio n 1 9
ProCarManuals.com

Navigation System

System Description (cont'd)

Overview

The Acura Navigation System is a highly-sophisticated, hybrid locating system that uses satellites and a map database to

show you where you are and to help guide you to a desired destination.

The navigation system receives signals from the Global Positioning System (GPS), a network of 24 satellites in orbit

around the earth. By receiving signals from serveral of these satellites, the navigation system can determine the latitude,

longitude, and elevation of the vehicle. In addition, signals from the system's yaw rate sensor and the PCM (vehicle

speed pulse) enable the system to keep track of the vehicle's direction and speed of travel.

This hybrid system has advantages over a system that is either entirely self-contained or one that relies totally on the

GPS. For example, the self-contained portion of the system can keep track of vehicle position even when satellite signals

cannot be received. When the navigation system is on, the GPS can keep track of the vehicle position even when the vehi-

cle is transported by ferry.

The navigation system applies all this location, direction, and speed information to the maps and calculates a route to the

destination entered. As you drive to that destination, the system provides both visual and audio guidance.

This navigation system also has voice recognition that allows voice control of most of the navigation functions. The TALK

and BACK buttons on the steering wheel activate the voice control.

The illumination signal is used for two purposes. The display unit uses the signal to light up the hard buttons surrounding

the display. In addition the signal is used by the navigation unit to automatically switch from the "Day" to "Night" display

mode when the headlights are on. This automatic switching occurs only if the "Display" setting in setup screen 1 is set to

"AUTO". If the headlights are on and the customer has the dash light brightness control to "full bright," then this overrides

the "Night" mode.

The use of the audio speakers follows a hierarchy. The highest priority is the OnStar voice, followed by the navigation voice,

and finally the radio/CD. The audio unit enforces this hierarchy. The GA-Net bus is used to pass commands to mute the speak-

ers, and to disable the voice control system. Prior systems used dedicated wires to accomplish this function.

• If On-Star is in use, the audio unit passes a command on the GA-Net bus to the navigation unit to disable the voice control

system. The navigation unit then ignores the voice control switch, and temporarily ceases voice route guidance prompts.

• When the navigation system issues route guidance, the navigation unit uses the GA-Net bus to tell the audio unit to mute just

the front speakers. When the voice control system is being used (the TALK/BACK buttons), the navigation unit uses the GA-

Net bus to tell the audio unit to mute all speakers.ProCarManuals.com

System Description (cont'd)

Navigation Function

The navigation system is composed of the navigation unit, the PCM (vehicle speed signal), the GPS antenna, microphone,

steering buttons, audio unit and the display unit.
Navigation SystemProCarManuals.com

Navigation System

System Diagnosis Mode (cont'd)

GPS Offset Time

This screen is for factory use only. It allows adjustment

of the GPS time. This display updates in real time.

• "GPS Time" is the time as received from the GPS

satellites. It is in Greenwich Mean Time (GMT).

• "System Time" is the internal time used by the navi-

gation unit to calculate your position on the map.

It is also in Greenwich Mean Time (GMT).

• "Display Time" is the time shown on Setup screen 2

"Adjust Time Zone/Clock", and reflects any changes

due to daylight savings time or time adjustments

entered by the customer.

• Date, Hour, Minute, and "Set" buttons should not be

used.
Mic Level

This diagnostic allows you to independently test the

microphone and the TALK and BACK buttons on the

steering wheel (voice control switch). The microphone

and voice control switch are used to activate the voice

control system. The microphone is located near the map

light in the ceiling. It is directional, and works best if the

voice is coming from the drivers seat.

• Press the TALK button on the steering wheel, and in a

normal voice say "testing". The TALK indicator on

the screen should momentarily become green, and

the text "Now Recording..." should appear in yellow.

In addition, the Mic Level indicator should move at

least to the 6th bar. If the Talk indicator on the screen

does not briefly become green, then check the wiring

from the steering wheel talk button to the navigation

unit. If there is no "Mic Level" movement when you

speak, then you should check the wire running from

the microphone to the control unit.

• Press the BACK button on the steering wheel. This

should cause the Cancel indicator on the screen to

momentarily become green. If it does not briefly

change to green, then check the wiring from the

steering wheel BACK button to the navigation unit.ProCarManuals.com
