KV31101300 NAT064 ASSEMBLY
Adjustment 1(Cont'd)
OUTPUT SHAFTENDPLAY
- Model 34X81-

• Measure clearance betweensidecover andtheend ofthe
output shaftbearing.
• Select proper thickness ofadjusting shimsothat clearance
is within specifications.
1. Install bearing retainer foroutput shaft.
2. Install output shaftthrust needle bearing onbearing •
retainer.
3. Install output shaftontransmission case.
4. Measure dimensions"
£1"
and"
£2"
atside cover andthen
calculate dimension "A".

• Measure dimension
"f/'
and
"f
2"
inat least twoplaces.

"A":
Distance betweentransmission casefitting surface
and adjusting shimmating surface.

A
= f
1-£2 £2:
Height ofgauge
AT-145

SAT440DASSEMBLY
Adjustment 1(Cont'd)

5. Measure dimensions
"f
2"
and
"f
3"
andthen calculate
dimension "8".
• Measure"
f
2"
and"
fa"
inat least twoplaces.
"B": Distance betweentheend ofoutput shaftbearing
outer raceandtheside cover fitting surface of
transmission case.
B
=
£2-
fa
f
2:
Height ofgauge
6. Select proper thickness ofadjusting shimsothat output
shaft endplay (clearance betweensidecover andoutput
shaft bearing) iswithin specifications.
Output shaftendplay (A-B):

o -
0.5
mm
(0-0.020
in)
Output shaftendplay adjusting shim:
Refer to50S,
AT-H2.

7. Install adjusting shimonoutput shaftbearing.

3 -5 (0.12 -0.20)

~
.... Locking

lide sealant

SAT441D
SAT442D
8.
Apply locking sealant totransmission caseasshown in
illustration.
9. Install sidecover ontransmission case.
• Apply locking sealant tothe mating surface oftransmission
case.
10. Tighten sidecover fixingboltstospecified torque.
• Donot mix bolts
@
and
CID.

• Always replace bolts
@
asthey areself-sealing bolts.

AT-146

SEC.465

iii :
N'm (kg-m, in-Ib)
~ :N'm (kg-m, ft-Ib)
BRAKE
PEDALANDBRACKET
Removal andInstallation

Sloplamp sWitch

SBR205D

o
Inspection

Check brakepedalforfollowing items:
• Brake pedalbend
• Clevis pindeformation
• Crack ofany welded portion
• Crack ordeformation ofclevis pinstopper

•

SBR997
Adjustment

Check brakepedalfreeheight fromdash reinforcement panel
(RHD) anddash lower panel (LHD). Adjust ifnecessary.

H: Freeheight
Refer to
50S
(BR-SS).
0: Depressed height
Refer to
50S
(BR-SS).
Under forceof
490
N
(50
kg,
110
Ib)
with engine running

1. Loosen locknutand adjust pedalfreeheight byturning
brake booster inputrod.Then tighten locknut.
2. Check pedalfreeplay.

Make surethatstop lamps gooff when pedal isreleased.

3. Check brakepedal's depressed heightwhileengine isrun-
ning. If lower thanspecification, checkforleaks, airinsystem or
damage tocomponents (mastercylinder, wheelcylinder,
etc.). Then make necessary repairs.

SBR034D BR-11

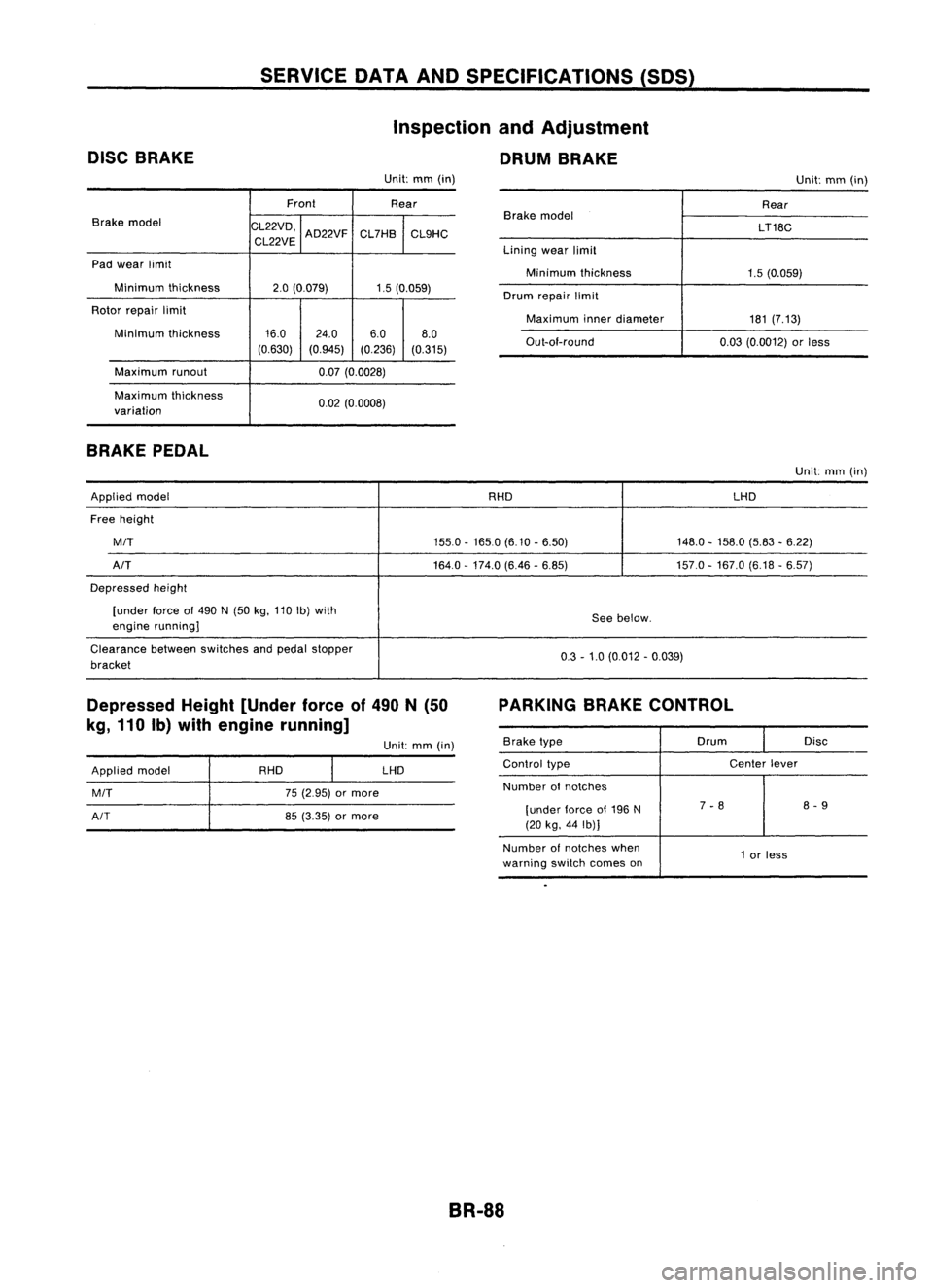

DISCBRAKE SERVICE
DATAANDSPECIFICATIONS (SDS)
Inspection andAdjustment
DRUM BRAKE

Unit: mm(in)
Unit:mm(in)
Front Rear
Brake model
CL22VD,
CL22VE AD22VF
CL7HB
CL9HC
Pad wear limit
Minimum thickness
2.0(0.079) 1.5(0.059)
Rotor repair limit
Minimum thickness 16.0
24.0 6.08.0
(0.630) (0.945) (0.236)(0.315)
Maximum runout 0.07(0.0028)
Maximum thickness
0.02(0.0008)
variation

BRAKE PEDAL
Brake
model
Lining wearlimit
Minimum thickness
Drum repair limit
Maximum innerdiameter
Out-ai-round Rear
LT18C
1.5 (0.059)
181 (7.13)
0.03 (0.0012) orless
Unit: mm(in)
Applied model RHDLHD
Free height

MIT
155.0-1650 (6.10-6.50) 148.0-158.0 (5.83-6.22)

AIT
164.0-174.0 (6.46-6.85) 157.0-167.0 (6.18-6.57)
Depressed height
[under force
01
490 N(50 kg,110 Ib)with
Seebelow.
engine running]
Clearance betweenswitches andpedal stopper
0.3-1.0 (0.012 -0.039)
bracket

Depressed Height[Under forceof490 N(50
kg, 110 Ib)with engine running] PARKING
BRAKECONTROL

Applied model

MIT
AIT
RHD
75(2.95) ormore
85 (3.35) ormore Unit:
mm(in)

LHD
Brake
type Drum
Disc
Control type Center
lever
Number
01
notches
[under lorceof196 N 7
-8 8
-9
(20 kg, 44Ib)]
Number ofnotches when
1or less
warning switchcomes on

BR-88

INSPECTIONANDADJUSTMENT

Pedal stopper
Dash lower
panel (except
CD20 engine //
model)

/L
Floor car-pet

L
Dash reinforcement panel
(CD20 engine model)
Adjusting

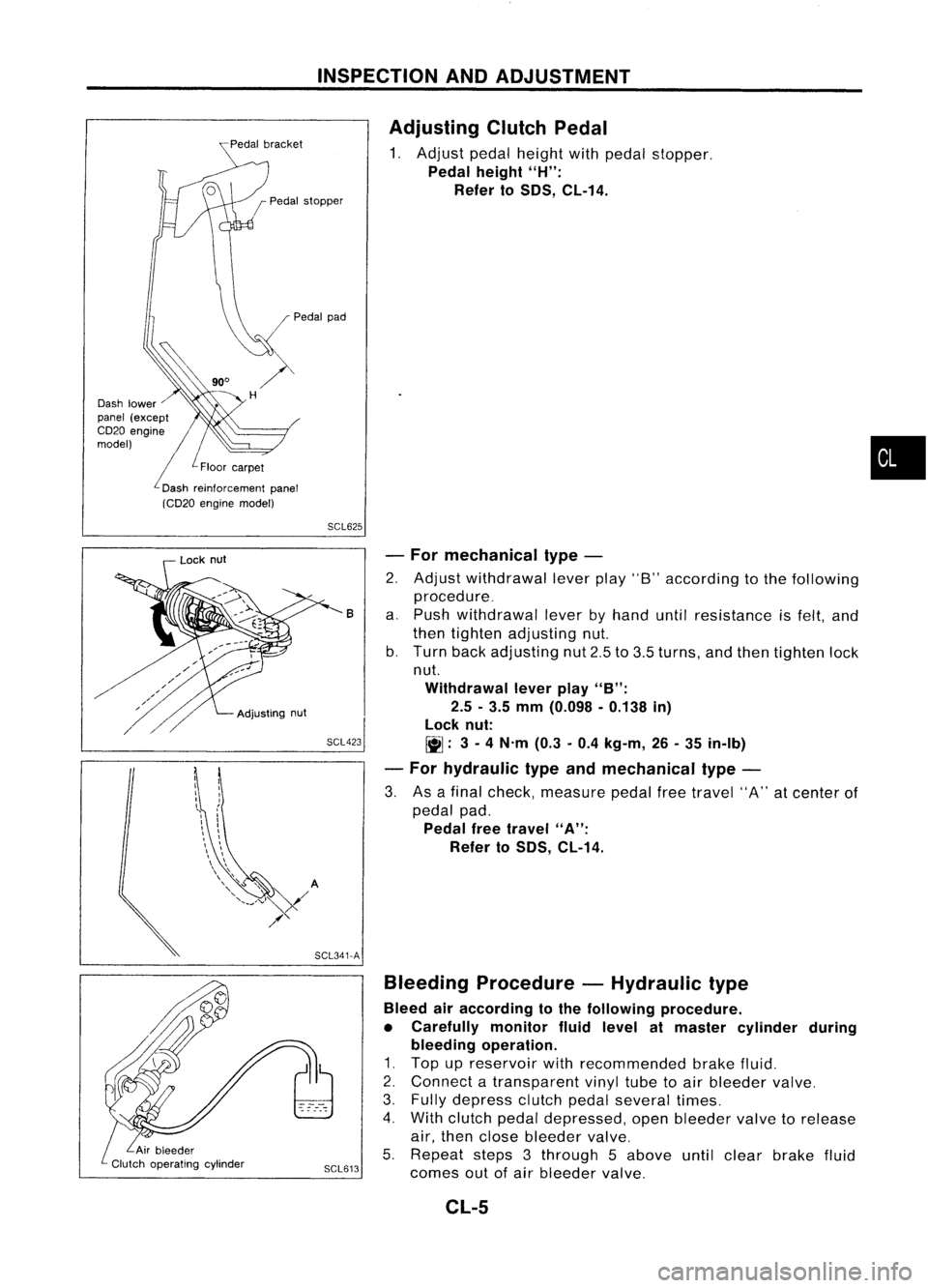

ClutchPedal

1. Adjust pedalheight withpedal stopper.

Pedal height
"H":

Refer to
50S,
CL-14.

•

SCL625
SCL423 -
For mechanical type-

2. Adjust withdrawal leverplay"8"according tothe following
procedure_
a. Push withdrawal leverbyhand untilresistance isfelt, and
then tighten adjusting nut.
b. Turn backadjusting nut2.5to3.5 turns, andthen tighten lock
nut.

Withdrawal leverplay
"B":

2.5 -3.5 mm (0.098 -0.138 in)
lock nut:

~: 3-
4 N'm (0.3-0.4 kg-m, 26-35 in-Ib)
- For hydraulic typeandmechanical type-

3. Asafinal check, measure pedalfreetravel "A"atcenter of
pedal pad.

Pedal freetravel
"A":

Refer to
50S,
CL-14.
B
Bleeding Procedure -Hydraulic type
Bleed airaccording tothe following procedure.
• Carefully monitorfluidlevel atmaster cylinder during
bleeding operation.

1. Top upreservoir withrecommended brakefluid.
2. Connect atransparent vinyltubetoair bleeder valve.
3. Fully depress clutchpedalseveral times.
4. With clutch pedaldepressed, openbleeder valvetorelease
air, then close bleeder valve.
5. Repeat steps3through 5above untilclear brake fluid

SCL613
comesoutofair bleeder valve.

SCL341-A

Adjusting
nut
Lock
nut

CL-5

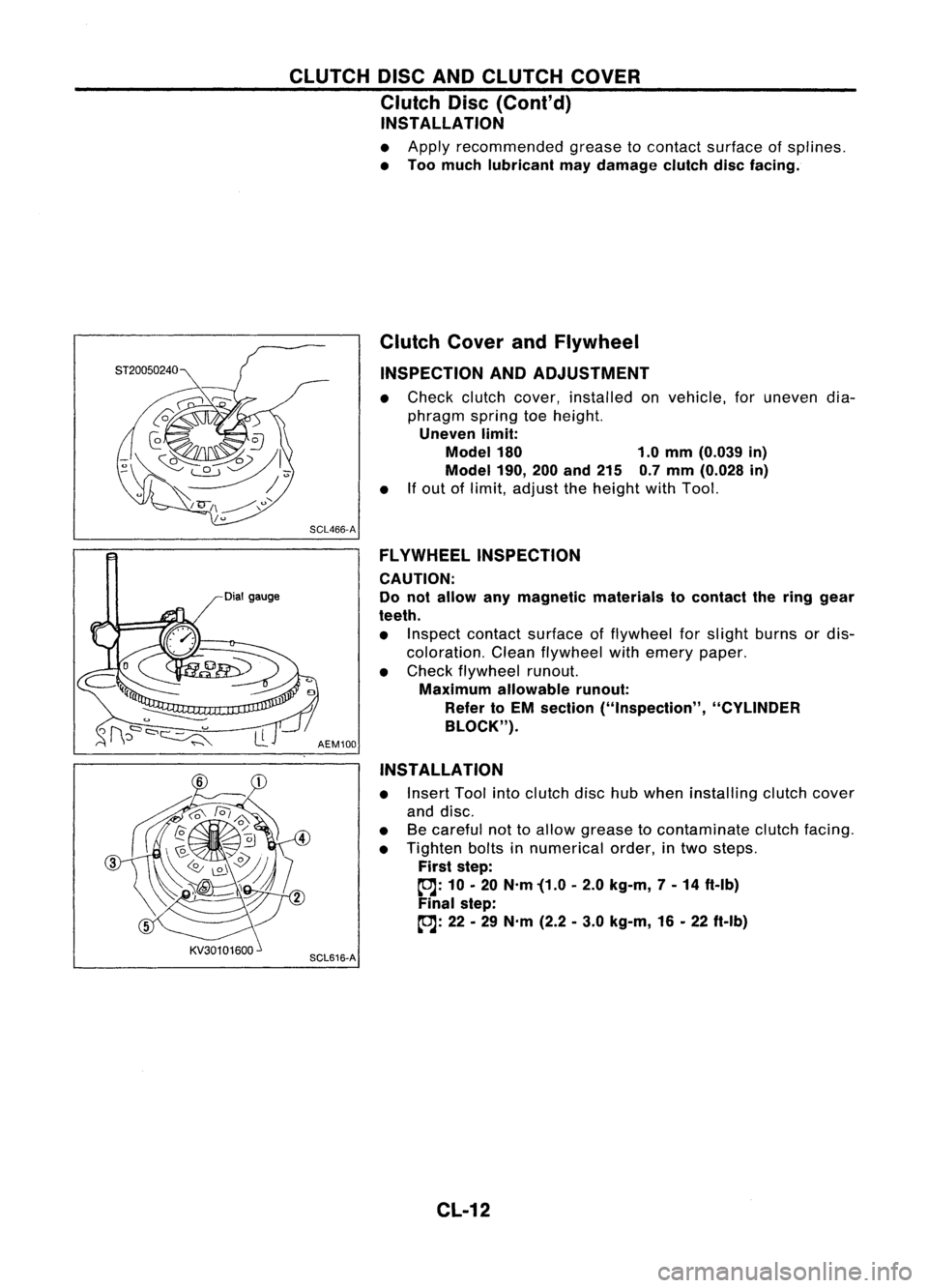

CLUTCHDISCANDCLUTCH COVER
Clutch Disc(Cont'd)
INSTALLATION

• Apply recommended greasetocontact surface ofsplines.

• Too much lubricant maydamage clutchdiscfacing.
Dial gauge Clutch
CoverandFlywheel
INSPECTION ANDADJUSTMENT

• Check clutchcover, installed onvehicle, foruneven dia-
phragm springtoeheight.

Uneven limit:
Model 180 1.0mm (0.039 in)

Model 190,
200and 215 0.7mm (0.028 in)

• Ifout oflimit, adjust theheight withTool.

SCL466-A FLYWHEEL INSPECTION
CAUTION:
Do not allow anymagnetic materials tocontact thering gear
teeth.

• Inspect contact surface offlywheel forslight burns ordis-
coloration. Cleanflywheel withemery paper.
• Check flywheel runout.

Maximum allowable runout:
Refer toEM section ("Inspection", "CYLINDER
BLOCK").
AEM100
INSTALLATION

• Insert Toolintoclutch dischubwhen installing clutchcover
and disc.
• Becareful nottoallow grease tocontaminate clutchfacing.
• Tighten boltsinnumerical order,intwo steps.

First step:
~: 10•20 N'm '(1.0 •2.0 kg-m, 7-14 ft-Ib)
Final step:
~: 22•29 N'm (2.2•3.0 kg-m, 16•22 ft-Ib)
SCL616-A
CL-12

SERVICEDATAANDSPECIFICATIONS (SOS)
Inspection andAdjustment
CLUTCH PEDAL

Unit:mm(in)
Except forCD20 engine models
CD20engine models
Applied model
RHOLHD
RHO LHD
Pedal height "H"
159-169 (6.26 -6.65)'1 153-163 (6.02 -6.42)*2 156-166 (6.14 -6.54)'1
149-159 (5.87 -6.26)'2
Pedal freetravel "A"
11-15 (0.43 -0.59)
9-16 (0.35 -0.63)
(at pedal pad)
Withdrawal leverplay"8" 2.5-3.5 (0.098 -0.138)

-

'1: Measured fromsurface ofdash reinforcement paneltosurface ofpedal pad.
'2: Measured fromsurface ofdash lower paneltosurface ofpedal pad.

CLUTCH DISC

Unit:mm(in)
Disc model
180190

I
200
215
Wear limitoffacing surface torivet head
0.3(0.012)
Runout limitoffacing 1.0(0.039)
Distance ofrunout checkpoint(from hub
85(3.35) 90(3.54)

I
95
(3.74) 102.5(4.04)
center)
Maximum backlashofspline (atouter edgeof
0.7(0.028) 0.8(0.031)
0.9(0.035)
disc)

CLUTCH COVER

Cover model
Uneven limitofdiaphragm springtoeheight 180
1.0 (0.039)

CL-14 190

I
200
0.7 (0.028)
I
Unit:
mm(in)
215

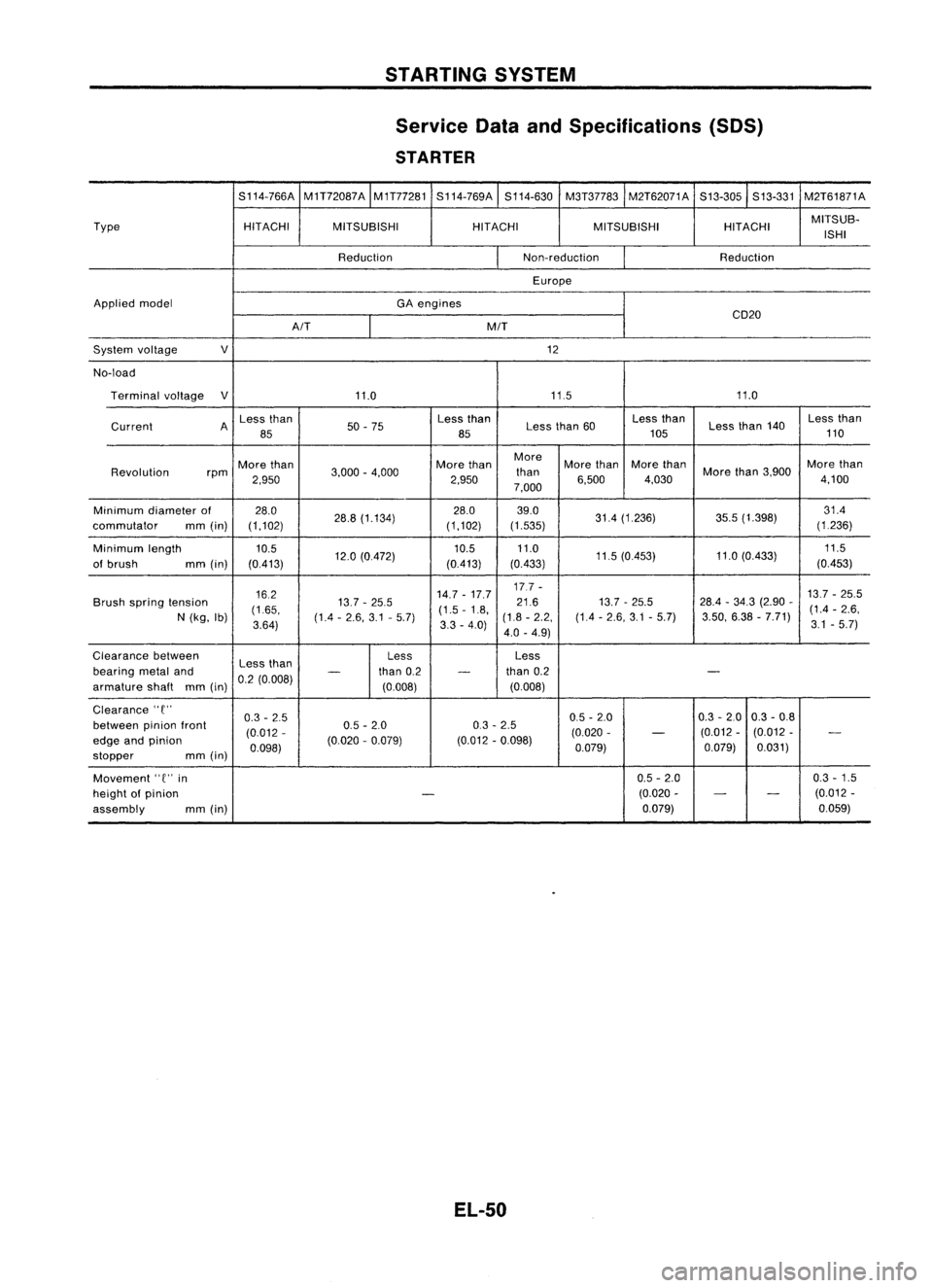

STARTINGSYSTEM
Service DataandSpecifications (SDS)
STARTER
S114-766A M1T72087A
M1T77281S114-769A S114-630M3T37783 M2T62071A S13-305S13-331M2T61871A
Type HITACHIMITSUBISHI HITACHI
MITSUBISHI HITACHIMITSUB-
ISHI
Reduction Non-reduction
Reduction
Europe
Applied model
GAengines
CD20
A/T MIT
System voltage
V

12
No-load Terminal voltage
V
11.0 11511.0
Less than
50-75 Less
than
Lessthan60 Less
than
Lessthan140 Less
than
Current A
85 85105110
More than Morethan More
Morethan More
than Morethan
Revolution rpm
2,950 3,000
-4,000
2,950than
6,500 4,030More
than3,900
4,100
7,000
Minimum diameterof 28.0
28.8(1.134) 28.0
39.0
31.4(1.236) 35.5(1.398) 31.4
commutator mm(in) (1,102) (1,102)(1.535) (1236)
Minimum length
10.5 10.511.0
11.5(0.453) 11.0
(0.433) 11.5
of brush mm(in) (0.413) 12.0
(0.472)
(0.413)(0.433) (0.453)
16.2 14.7
-17.7 17.7
-
13.7-25.5
Brush spring tension
(1.65, 13.7
-25.5
(1.5-1.8, 21.6
13.7-25.5 28.4
-34.3 (2.90 -
(1.4 -2.6,
N (kg, Ib)
3.64) (1.4
-2.6, 3.1-5.7)
3.3-4.0) (1.8
-2.2, (1.4-2.6, 3.1-5.7) 3.50,
6.38-7.71)
3.1-5.7)
4.0 -4.9)
Clearance between
Lessthan Less
Less
bearing metaland
-
than0.2
-
than
0.2
-

armature shaftmm(in) 0.2
(0.008)
(0.008) (0.008)
Clearance
'T'

0.3-2.5 0.5
-2.0 0.3-2.0 0.3
-0.8
between pinionfront
(0.012- 0.5
-2.0 0.3-2.5
(0.020- (0.012
-(0.012 -

- -

edge andpinion
0.098)(0.020
-0.079) (0.012
-0.098)
0.079) 0.079)0.031)
stopper mm
(in)
Movement
'T'
in 0.5
-2.0 0.3
-1.5
height ofpinion

-
(0.020
-
-
-
(0.012
-
assembly mm(in) 0.079)0.059)
EL-50
