SAT259EA ON-VEHICLE
SERVICE
Differential SideOilSeal Replacement (Cont'd)

3. Install oilseals.

• Apply ATFtooil seal surface beforeinstalling.
Converter housing
side •
Install oilseals sothat dimensions
"A"
and
"8"
arewithin
specifications.
Transmission
case side

B

Oil
seal Oil
seal

A
SAT639D
A

5.5 -6.5 (0.217 -0.256)

4. Reinstall anypart removed.

AT-38
Unit:
mm(in)

B
0.5 (0.020)
or
less

KV38105710

Transmission
case
NAT033
Reduction
pinion

gear

SAT332DA
D

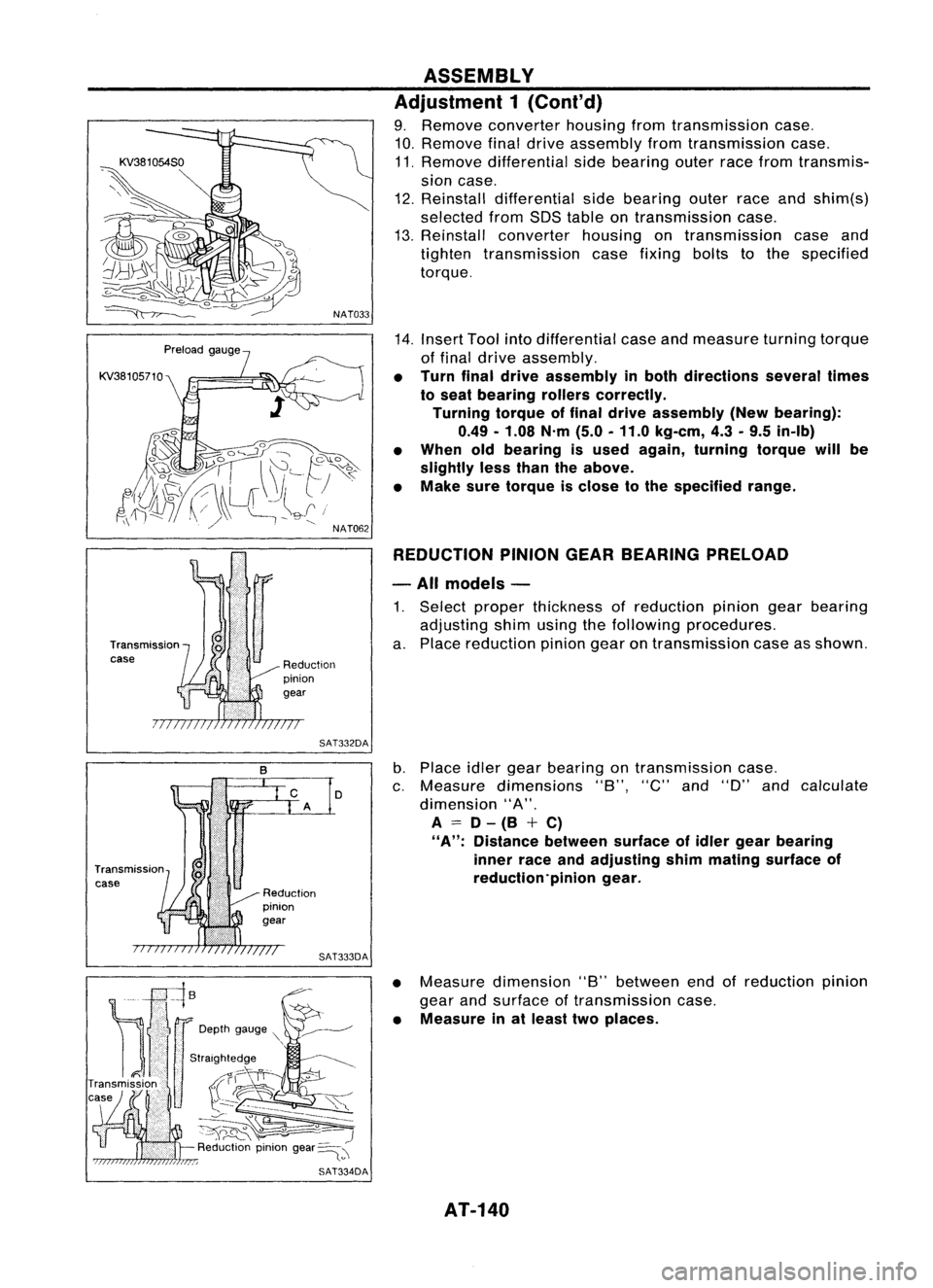

SAT333DA ASSEMBLY
Adjustment 1(Cont'd)

9. Remove converter housingfromtransmission case.
10. Remove finaldrive assembly fromtransmission case.
11. Remove differential sidebearing outerracefrom transmis-
sion case.
12. Reinstall differential sidebearing outerraceandshim(s)
selected fromSDStable ontransmission case.
13. Reinstall converter housingontransmission caseand
tighten transmission casefixing boltstothe specified
torque.
14. Insert Toolintodifferential caseandmeasure turningtorque
of final drive assembly.

• Turn finaldrive assembly inboth directions severaltimes
to seat bearing rollerscorrectly.
Turning torqueoffinal drive assembly (Newbearing):
0.49 -1.08 N'm(5.0-11.0 kg-em, 4.3-9.5 in-Ib)
• When oldbearing isused again, turning torquewillbe
slightly lessthan theabove.
• Make suretorque isclose tothe specified range.
REDUCTION PINIONGEARBEARING PRELOAD
- All models -

1. Select proper thickness ofreduction piniongearbearing
adjusting shimusing thefollowing procedures.
a. Place reduction piniongearontransmission caseasshown.
b. Place idlergear bearing ontransmission case.
c. Measure dimensions "8","C"and"D" andcalculate
dimension "A".

A
=
D-(8 +C)

"A":
Distance betweensurfaceofidler gear bearing
inner raceandadjusting shimmating surface of
reduction'pinion gear.

• Measure dimension "8"between endofreduction pinion
gear andsurface oftransmission case.

• Measure inat least twoplaces.
AT-140

~245 -275 N.m
(25 -28 kg-m, 181-203 ft-Ib)

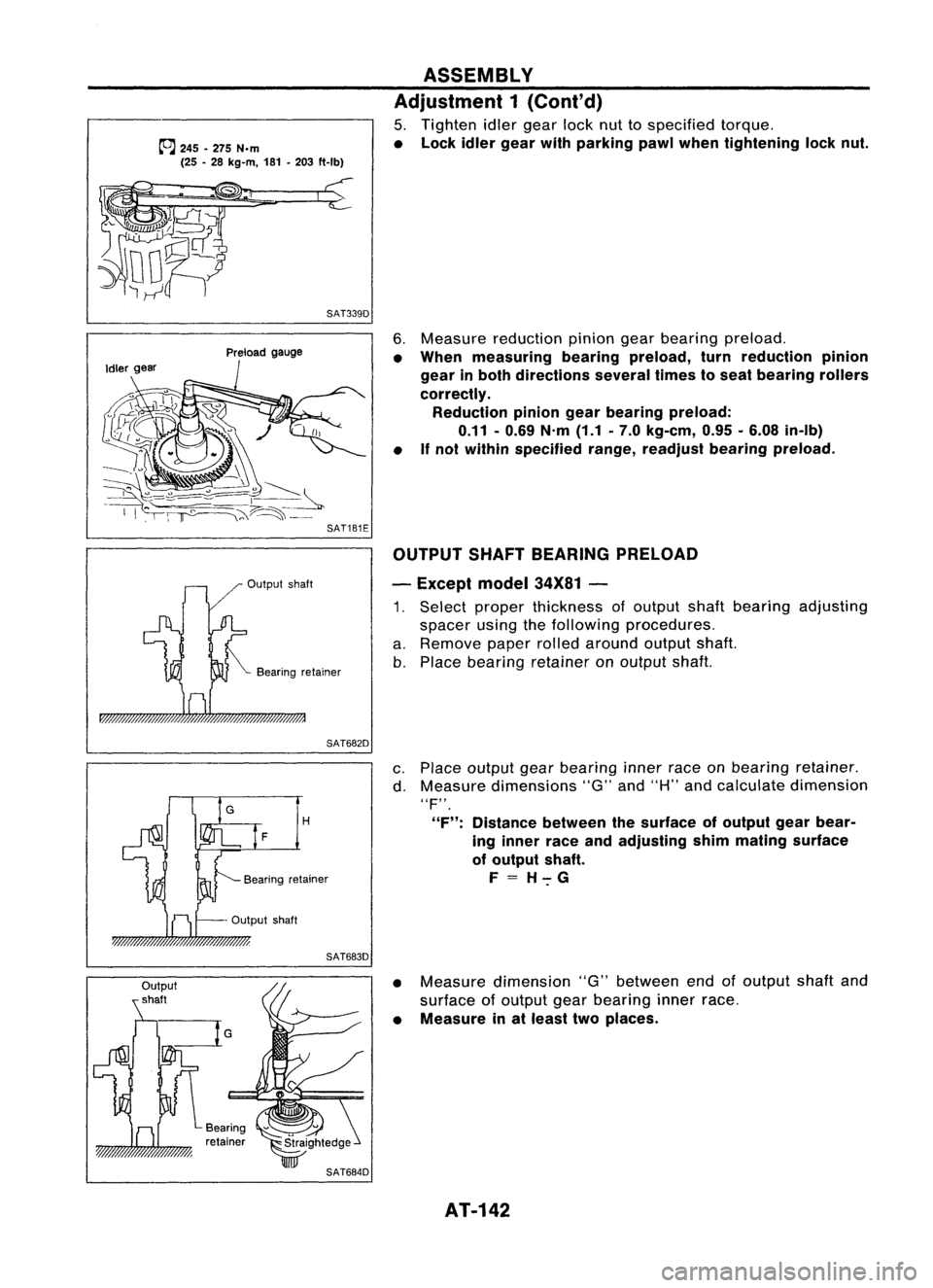

SAT339D ASSEMBLY

Adjustment 1(Cont'd)

5. Tighten idlergear locknuttospecified torque.
• Lock idlergear withparking pawlwhen tightening locknut.

Output shaft

Preload
gauge

Bearing retainer
6.
Measure reduction piniongearbearing preload.
• When measuring bearingpreload, turnreduction pinion
gear inboth directions severaltimestoseat bearing rollers
correctly. Reduction piniongearbearing preload:
0.11 -0.69 N.m(1.1.7.0 kg-em, 0.95•6.08 in-Ib)

• If
not within specified range,readjust bearingpreload.

OUTPUT SHAFTBEARING PRELOAD
- Except model34X81-

1. Select proper thickness ofoutput shaftbearing adjusting
spacer usingthefollowing procedures.
a. Remove paperrolledaround outputshaft.
b. Place bearing retainer onoutput shaft.

SAT682D
H

F

Output shaft

SAT683D
c.
Place output gearbearing innerraceonbearing retainer.
d. Measure dimensions "G"and"H" andcalculate dimension

"F".
"F": Distance betweenthesurface ofoutput gearbear-
ing inner raceandadjusting shimmating surface
of output shaft.

F=H-:-G

• Measure dimension "G"between endofoutput shaftand
surface ofoutput gearbearing innerrace.
• Measure inat least twoplaces.

AT-142

SAT341D
SAT438D
SAT439D
KV31101300 NAT064 ASSEMBLY
Adjustment 1(Cont'd)
OUTPUT SHAFTENDPLAY
- Model 34X81-

• Measure clearance betweensidecover andtheend ofthe
output shaftbearing.
• Select proper thickness ofadjusting shimsothat clearance
is within specifications.
1. Install bearing retainer foroutput shaft.
2. Install output shaftthrust needle bearing onbearing •
retainer.
3. Install output shaftontransmission case.
4. Measure dimensions"
£1"
and"
£2"
atside cover andthen
calculate dimension "A".

• Measure dimension
"f/'
and
"f
2"
inat least twoplaces.

"A":
Distance betweentransmission casefitting surface
and adjusting shimmating surface.

A
= f
1-£2 £2:
Height ofgauge
AT-145

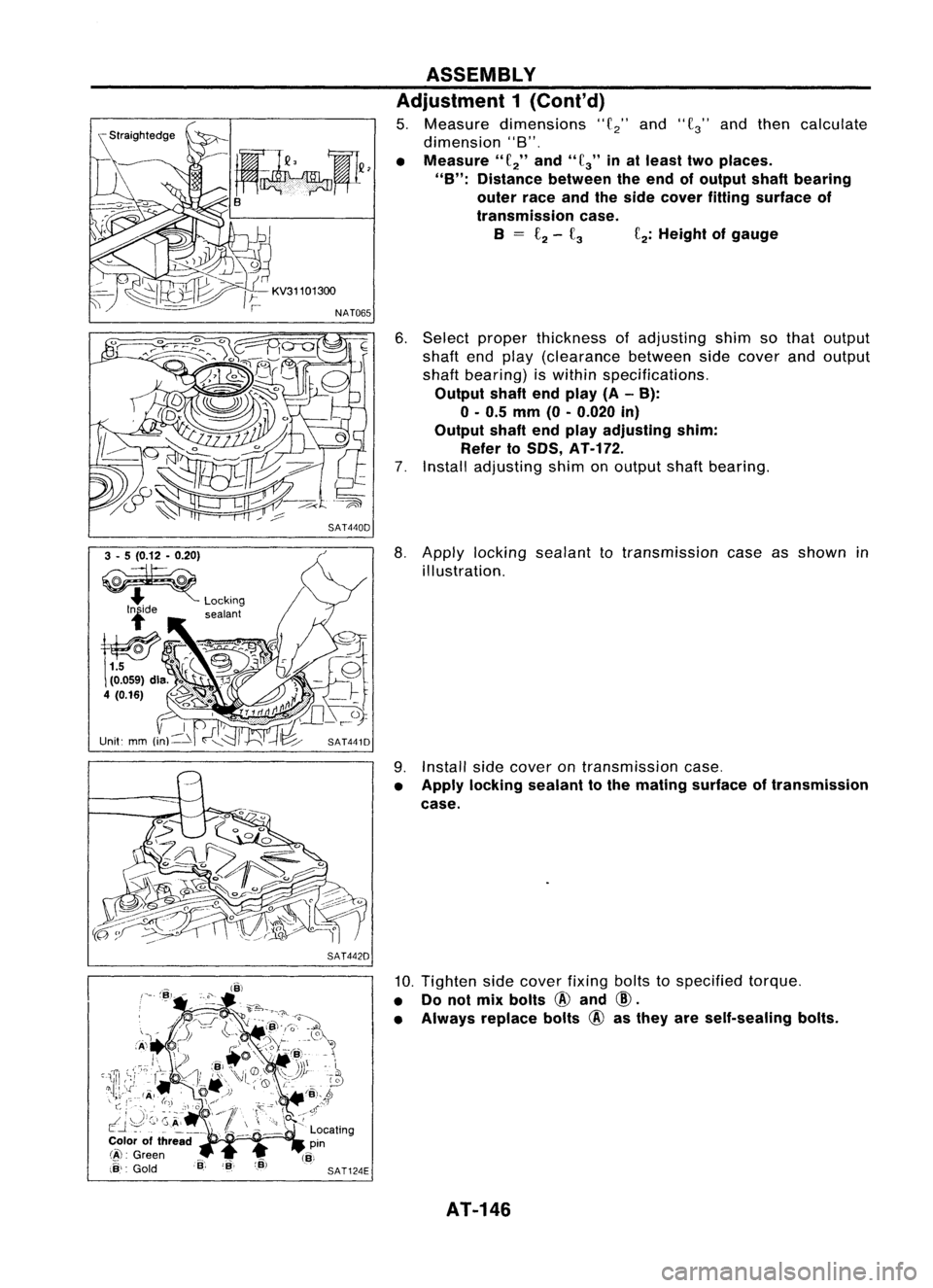

SAT440DASSEMBLY
Adjustment 1(Cont'd)

5. Measure dimensions
"f
2"
and
"f
3"
andthen calculate
dimension "8".
• Measure"
f
2"
and"
fa"
inat least twoplaces.
"B": Distance betweentheend ofoutput shaftbearing
outer raceandtheside cover fitting surface of
transmission case.
B
=
£2-
fa
f
2:
Height ofgauge
6. Select proper thickness ofadjusting shimsothat output
shaft endplay (clearance betweensidecover andoutput
shaft bearing) iswithin specifications.
Output shaftendplay (A-B):

o -
0.5
mm
(0-0.020
in)
Output shaftendplay adjusting shim:
Refer to50S,
AT-H2.

7. Install adjusting shimonoutput shaftbearing.

3 -5 (0.12 -0.20)

~
.... Locking

lide sealant

SAT441D
SAT442D
8.
Apply locking sealant totransmission caseasshown in
illustration.
9. Install sidecover ontransmission case.
• Apply locking sealant tothe mating surface oftransmission
case.
10. Tighten sidecover fixingboltstospecified torque.
• Donot mix bolts
@
and
CID.

• Always replace bolts
@
asthey areself-sealing bolts.

AT-146

Transmissioncase SAT375DASSEMBLY
Adjustment 2(Cont'd)

1. Measure dimensions "K"and"L"and then calculate
dimension
"J".

Transmission case
Depth
gauge
/Needle bearing SAT376D
SAT377D
a.
Measure dimension "K".
b. Measure dimension "L",
c. Calculate dimension
"J".

• "J":
Distance betweenoilpump fitting surface oftransmis-
sion case andneedle bearing matingsurface ofhigh
clutch drum.

J=K-L

2. Measure dimension "M".
a. Place bearing raceandneedle bearing onoil pump assem-

bly.

SAT378D
Straightedge
Straightedge SAT379D
b.
Measure dimension "M".

• "M":
Distance betweentransmission casefitting surface
and needle bearing onoilpump cover.
• M
1:
Indication ofgauge.
AT-152

ASSEMBLY
Adjustment 2(Cont'd)

c. Measure thickness ofstraightedge "t".
M
=
M
1 -
t

3. Adjust totalendplay "T
3'"

T
3
=
J-
M

Total endplay
"T
3":

0.25 -0.55 mm(0.0098 -0.0217 in)

• Select proper thickness ofbearing racesothat total end
play iswithin specifications.

Bearing races:
Refer toSOS, AT-173.
Transmission case SAT380D
SAT381D REVERSE
CLUTCHENDPLAY

• Measure clearance betweenoilpump cover andthrust
washer forreverse clutchdrum.
• Select proper thickness ofthrust washer sothat endplay is
within specifications.
1. Measure dimensions "0"and"P"andthen calculate
dimension "N".
•

a. Place thrust washer onreverse clutchdrum.
b. Measure dimension "0".

AT-153

-Straightedge
Depth
gauge ASSEMBLY
Adjustment 2(Cont'd)

c. Measure dimension "P".
d. Calculate dimension "N".
• "N": Distance betweenoilpump fittingsurface oftransmis-
sion case andthrust washer onreverse clutchdrum.

N=O-P

Transmission case

pack

SAT383D

2.Measure dimensions "R"and "S"andthen calculate
dimension
"Q".

R

SAT384D
Straightedge
a.
Measure dimension "R".
b. Measure dimension "S".
c. Calculate dimension
"Q".

• "0": Distance betweentransmission casefitting surface
and thrust washer matingsurface.

O=R-S

3. Adjust reverse clutchendplay "T
4".

T
4
=
N-0
Reverse clutchendplay:

0.65 -1.00
mm
(0.0256 -0.0394
in)
• Select proper thickness ofthrust washer sothat reverse
clutch endplay iswithin specifications.
Thrust washer:
Refer toSDS, AT-173.

AT-154
