1995 CADILLAC ELDORADO Owners Manual

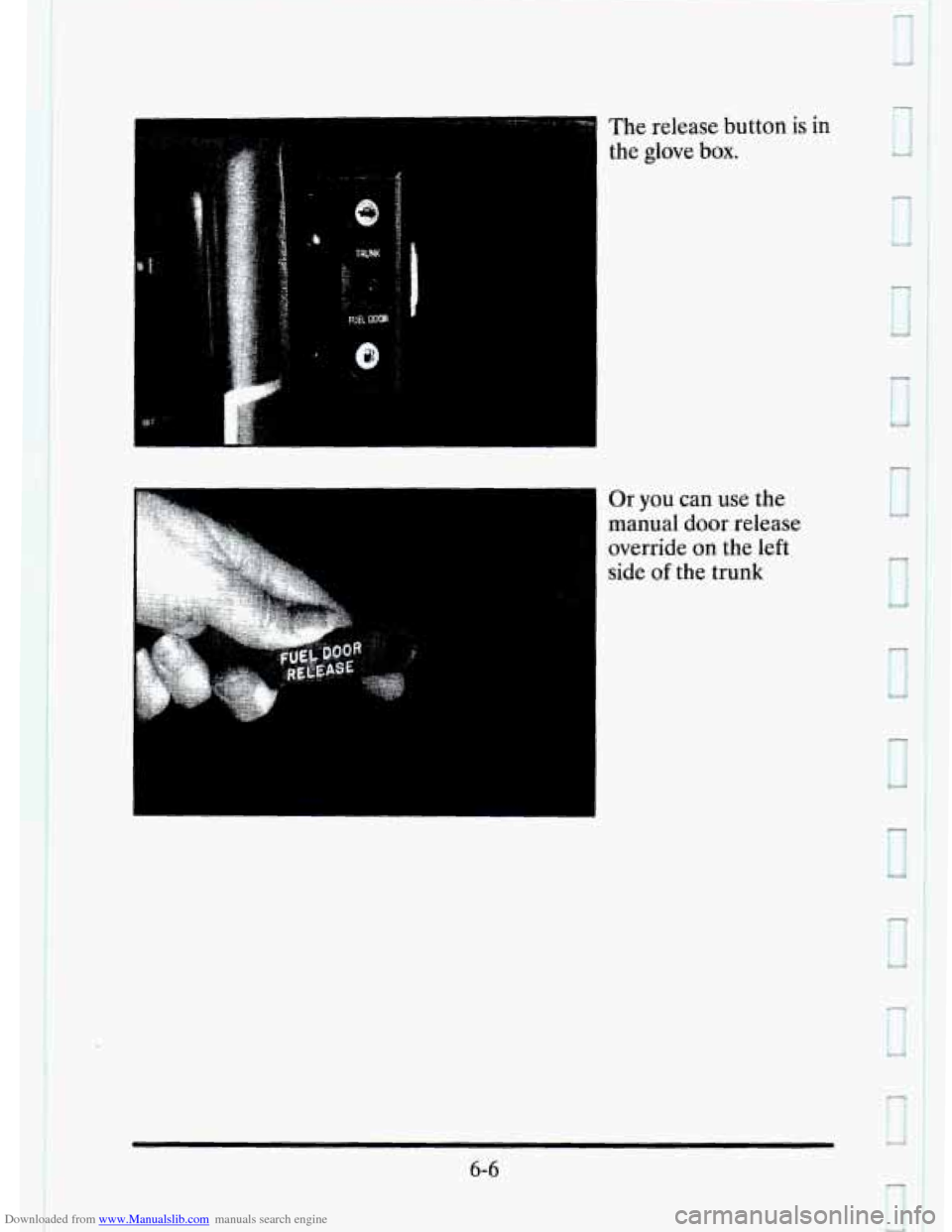

Downloaded from www.Manualslib.com manuals search engine The release button is in
the glove
box.
Or you can use the
manual door release
override on the left
side
of the trunk
6-6
Jl
J
3
J
1

Downloaded from www.Manualslib.com manuals search engine c-
t’

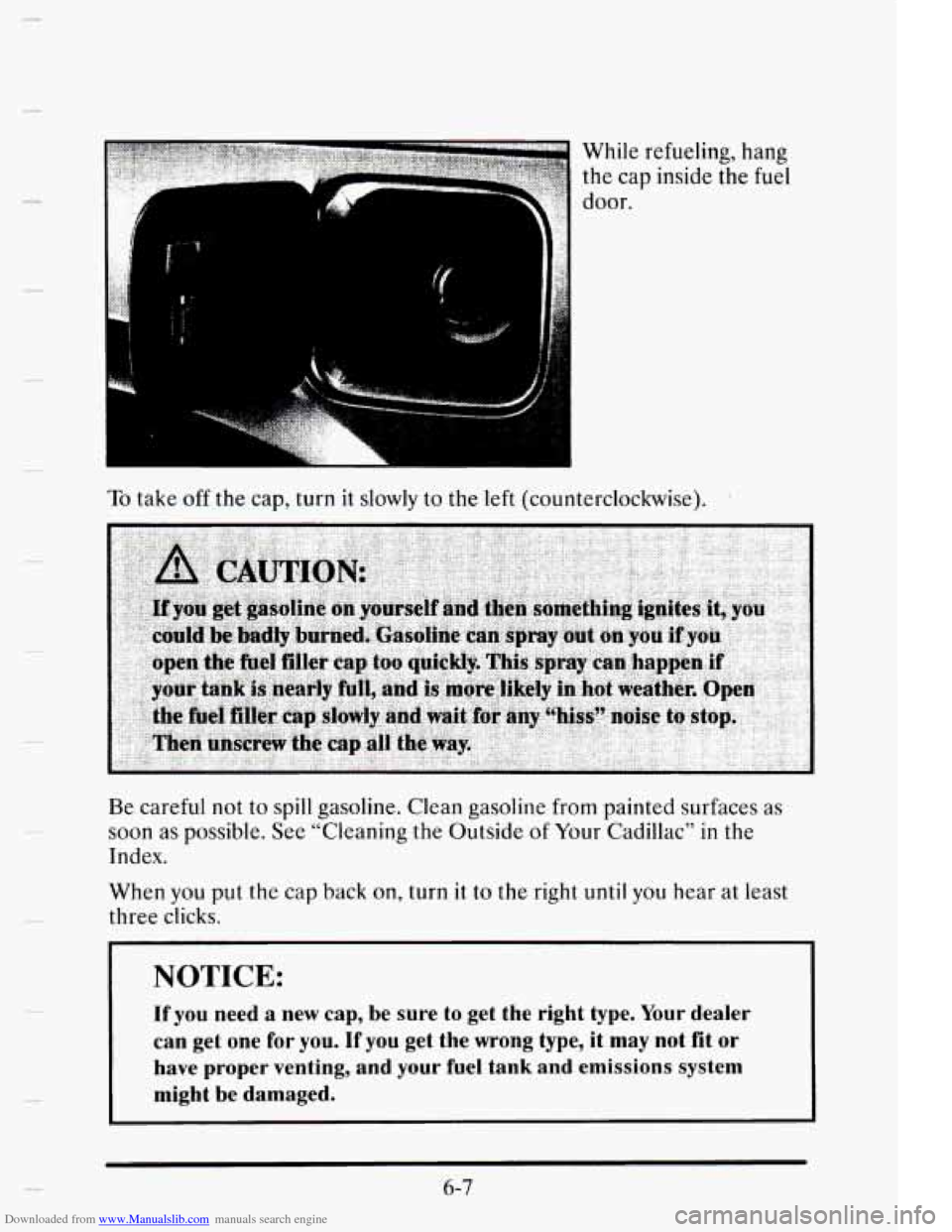

While refueling, hang
the cap inside the fuel
door.
To take off the cap, turn it slowly to the left (counterclockwise).
Be careful not to spill gasoline. Clean gasoline from painted surfaces as
soon as possible. See “Cleaning the Outside of Your Cadillac” in the
Index.
When
you put the cap back on, turn it to the right until you hear at least
three clicks.
I NOTICE:
If you need a new cap, be sure to get the right type. Your dealer
can get one
for you. If you get the wrong type, it may not fit or
have proper venting, and your fuel tank and emissions system
might be damaged.
6-7

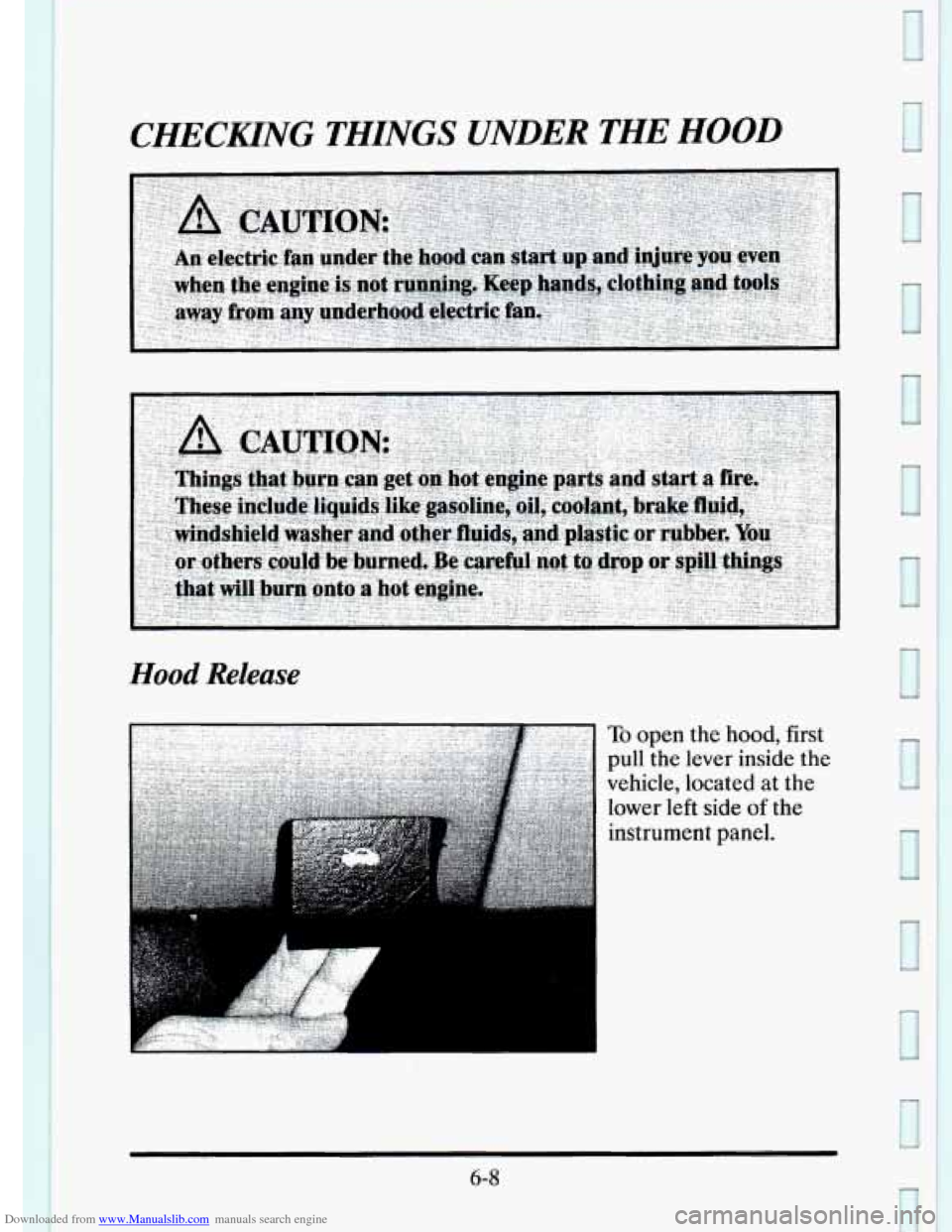

Downloaded from www.Manualslib.com manuals search engine CHECKING THINGS UNDER THE HOOD
Hood Release
To open the hood, first
pull the lever inside the
vehicle, located at the
lower
left side of the
instrument panel.
6-8
3

Downloaded from www.Manualslib.com manuals search engine Fluid Usage Label
LI
Then go to the front of
the vehicle and lift the
secondary hood release
to open the hood.
The fluid usage label is a color coded label identifying the various fluids
used in your vehicle.
Colors represented on the label match the lettering or handle color
of the
fluid you want
to check.
0 GREEN: Engine Coolant
ORANGE: Power Steering Fluid
0 YELLOW: Engine Oil
0 RED: Transmission Fluid
0 WHITE: Brake Fluid
BLUE: Washer Fluid
6-9

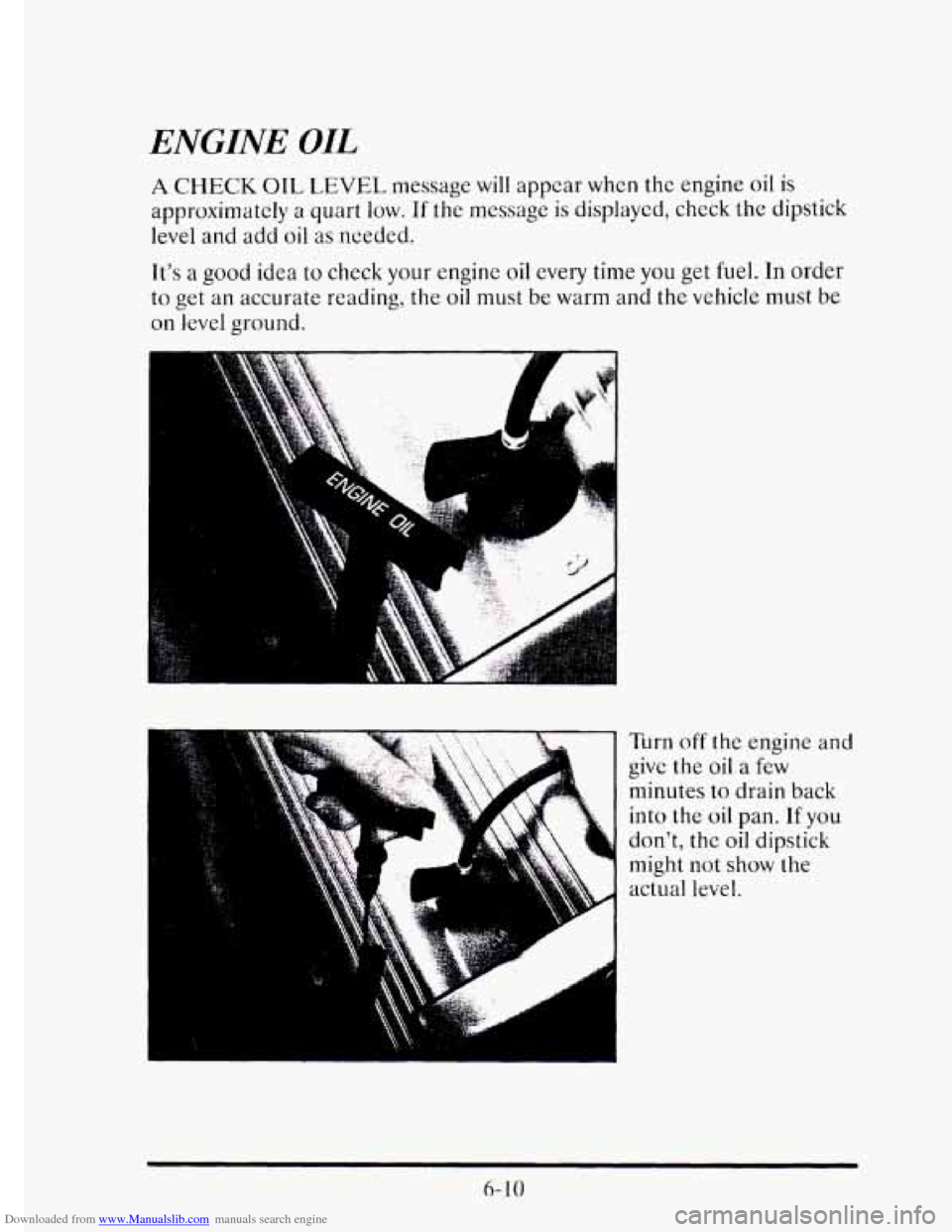

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL
A CHECK OIL LEVEL message will appear whcn the engine oil is
approximately a quart low. If the message is displayed, check the dipstick
level
and add oil as needed.
It's
a good idea to check your engine oil every time you get fuel. In order
to get
an accurate reading, the oil must be warm and the vehicle must be
on level ground.
Turn off the engine and
give the oil a few
minutes to drain back
into the
oil pan. If you
don't, the oil dipstick
might not
show the
actual level.
6- 10

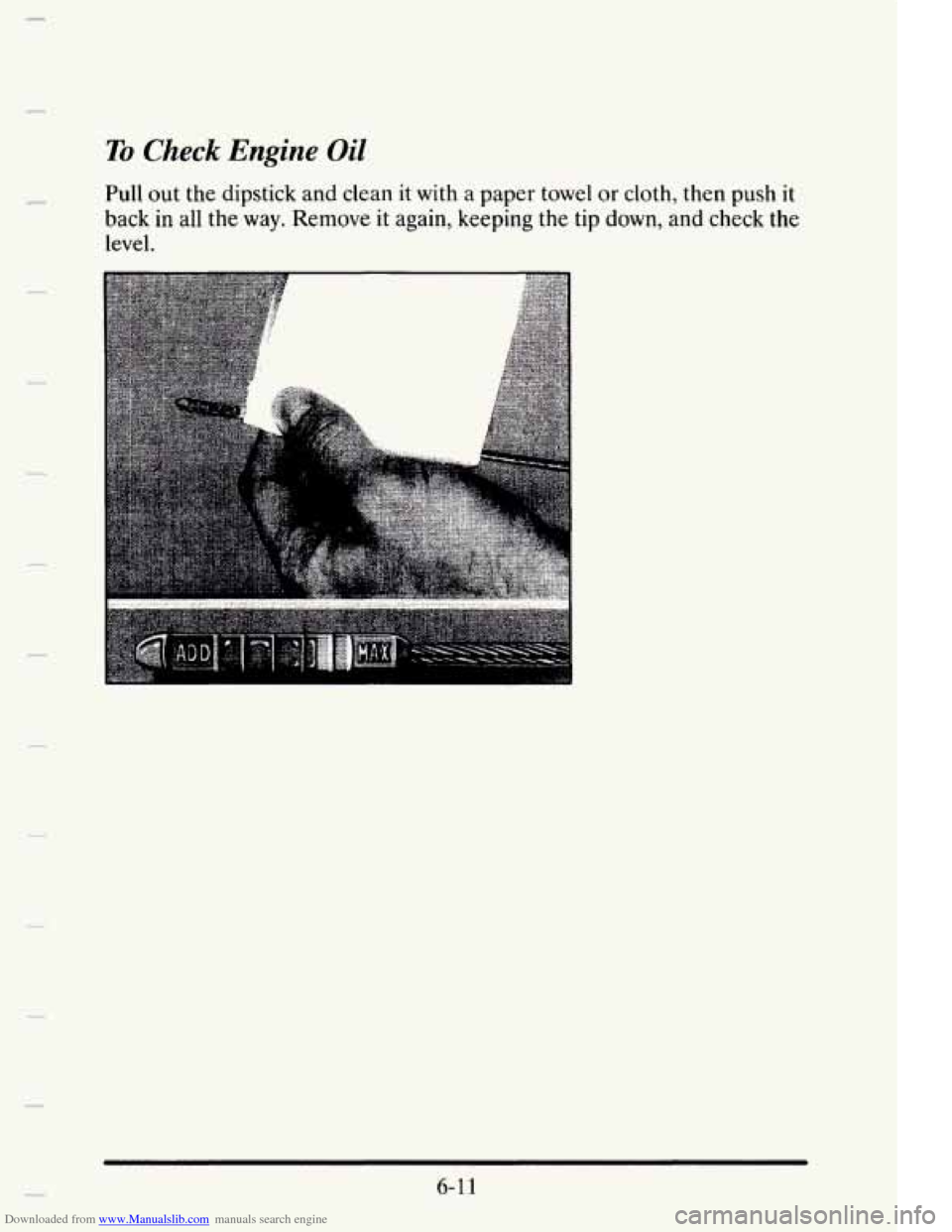

Downloaded from www.Manualslib.com manuals search engine To Check Engine Oil
Pull out the dipstick and clean it with a paper towel or cloth, then push it
back
in all the way. Remove it again, keeping the tip down, and check the
level.
6-1 1

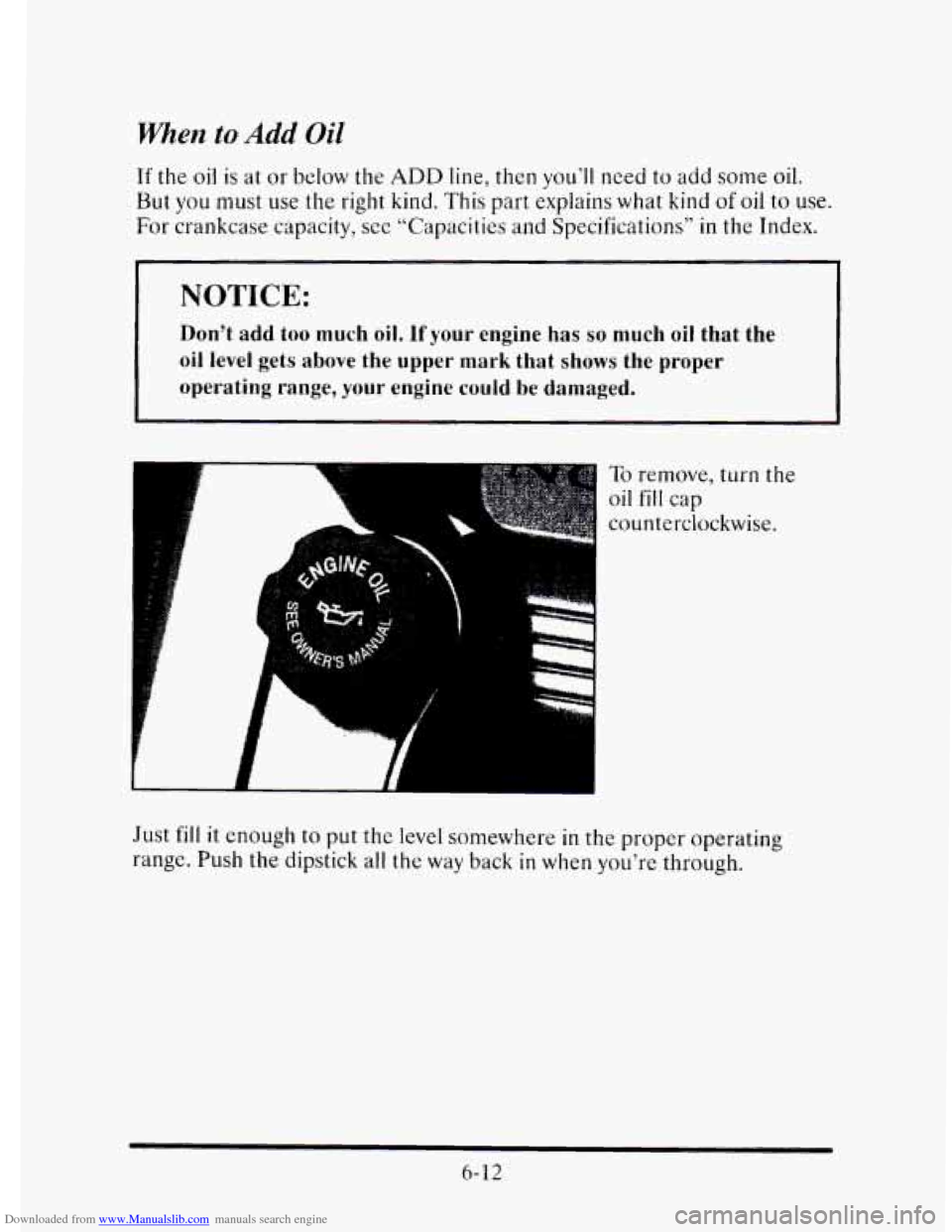

Downloaded from www.Manualslib.com manuals search engine When to Add Oil
If the oil is at or below the ADD line, then you’ll need to add some oil.
But you must use the right kind. This part explains what kind of oil to use.
For crankcase capacity, see “Capacities and Specifications” in the Index.
NOTICE:
Don’t add too much oil. If your engine has so much oil that the
oil level gets above the upper mark that shows the proper
operating range, your engine could be damaged.
To remove, turn the
oil fill cap
counterclockwise.
Just
fill it enough to put the level somewhere in the propcr operating
rangc. Push
the dipstick all the way back in when you’re through.
6-12
