1995 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine 3. Decide which one of the three channels you want to program. Using
both hands, press the hand-held transmitter button and the desired
button on the HomeLink
TM Transmitter. Continue to hold both
buttons through Step
4.
4.
Hold down both buttons until you see the red light on the HomeLink
Transmitter flash rapidly. The rapid flashing, which could take
up to
90 seconds, indicates that the HomeLink TM Transmitter has been
programmed.
Release both buttons once the light starts to flash rapidly.
If you have trouble programming the HomeLink
TM Transmitter, make
sure that
you have followed the directions exactly as described and that the
batteries in the hand-held transmitter are not dead. If you still cannot
program
it, rotate your hand-held transmitter end over end and try again.
The HomeLink TM Transmitter may not work with older garage door
openers that do not meet current Federal Consumer Safety Standards. If
you cannot program the transmitter after repeated attempts, consult your
Cadillac dealer or call
1-800-355-35 15.
Be sure to keep your original hand-held transmitter in case you need to
erase and reprogram the HomeLink TM transmitter.
Note to Canadian Owners: During programming, your hand-held transmitter
may stop transmitting after one or two seconds. If you are programming
from one
of these transmitters, the HorneLink TM indicator light may prompt
you to re-activate your hand-held transmitter
with a series of double blinks.
After you reactivate your hand-held transmitter, the HolneLink
TM light
should flash rapidly. If
it flashes slowly, continue to periodically rc-activate
your hand-held transmitter
until the light flashes rapidly.
Operating the Transmitter
Press the appropriate button on the HomcLink TM Universal Transmitter.
The red light comes on while the signal is being transmitted.
Note that the effective transmission range
of the HomeLink" Transmitter
may differ from your hand-held transmitter and from one channel to another.
Erasing Channels
To erase all three programmed channels, hold down the two outside
buttons until the red light begins
to flash. Individual channels cannot be
erased,
but can be reprogrammed using the procedure for programming
the transmitter explained earlier.
2-66

Downloaded from www.Manualslib.com manuals search engine -

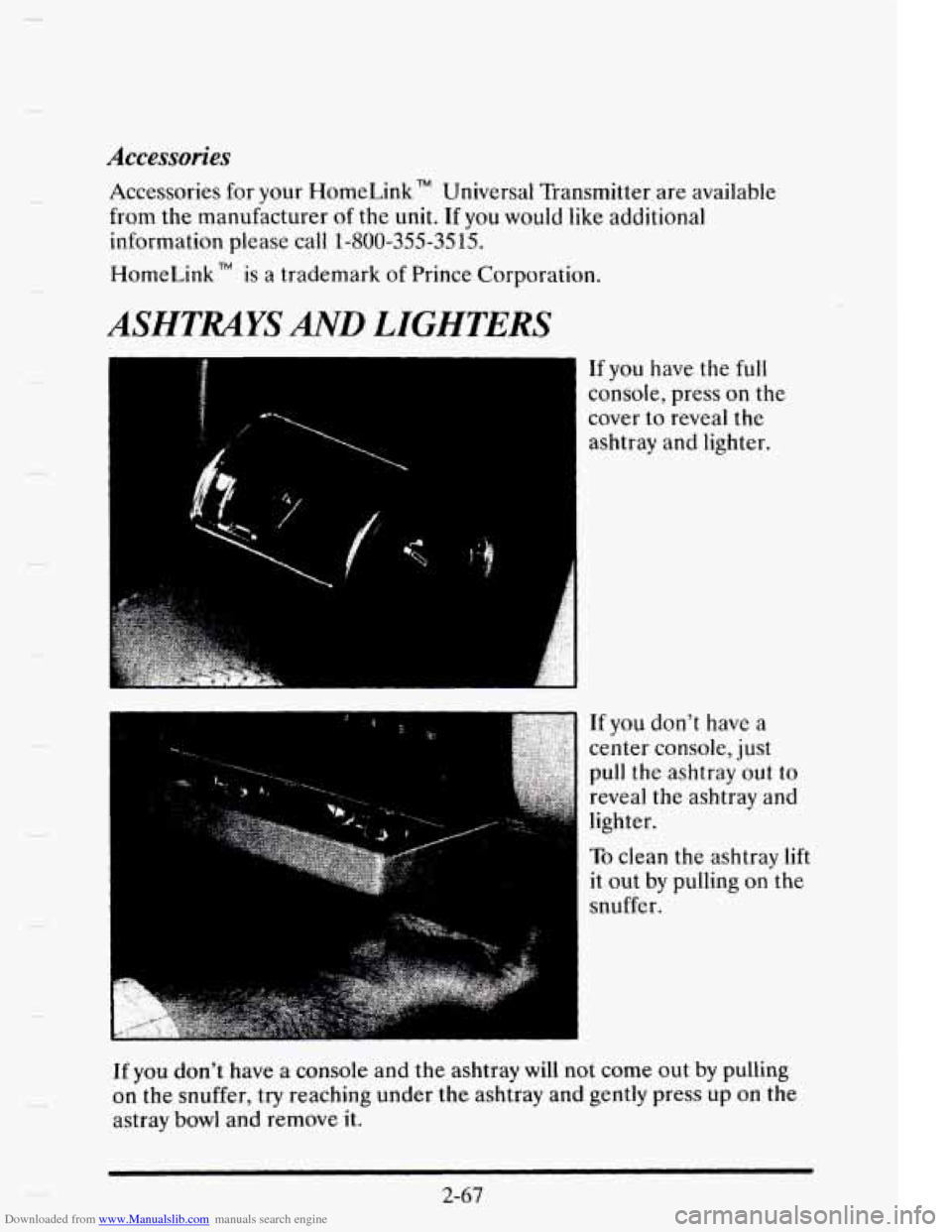

Accessories
Accessories for your HomeLink Universal Transmitter are available
from the manufacturer of the
unit. If you would like additional
information please call 1-800-355-3515.
HorneLink
TM is a trademark of Prince Corporation.
ASHTRAYS AND LIGHTERS
If you have the full
console, press on the
cover to reveal the
ashtray and lighter.
$7 - ...*.
If you don't have a
center console, just
pull the ashtray
out to
reveal the ashtray and
lighter.
To clean the ashtray lift
it out by pulling on the
snuffer.
If you don't have a console and the ashtray will not come out by pulling
on the snuffer,
try reaching under the ashtray and gently press up on the
astray bowl and remove
it.
2-67

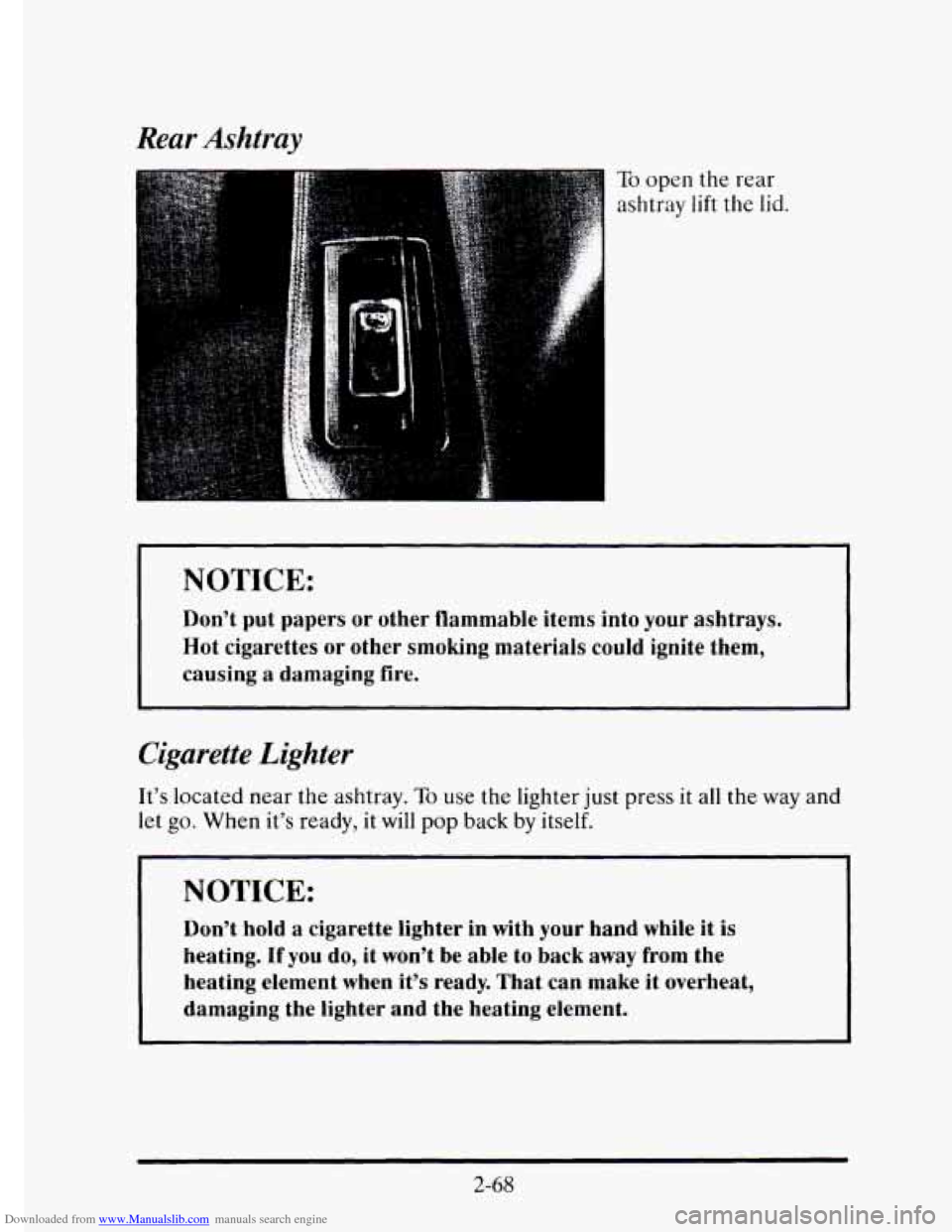

Downloaded from www.Manualslib.com manuals search engine Rear Ashtray
To open the rear
ashtray
lift the lid.
~
NOTICE:
Don’t put papers or other flammable items into your ashtrays.
Hot cigarettes
or other smoking materials could ignite them,
causing
a damaging fire.
Cigarette Lighter
It’s located near the ashtray. To use the lighter just press it all the way and
let go. When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand while it is
heating. If you do, it won’t be able to back away from the
heating element when it’s ready. That can make it overheat,
damaging the lighter and the heating element.
2-68

Downloaded from www.Manualslib.com manuals search engine -

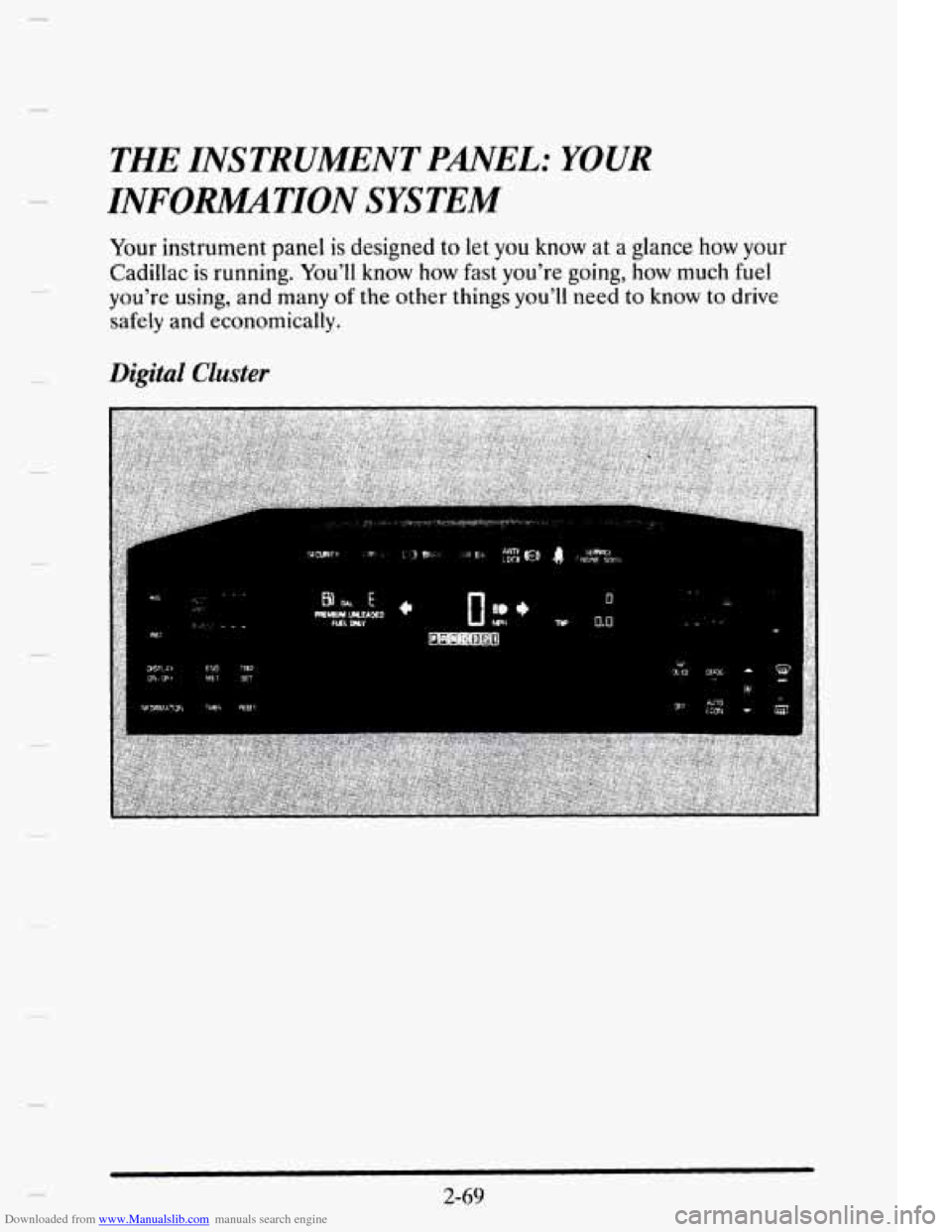

THE INSTRUMENT PANEL: YOUR
INFORMATION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac is running. You'll know how fast you're going, how much fuel
you're using, and many of the other things you'll need to know to drive
safely and economically.
Digital Cluster
2-69

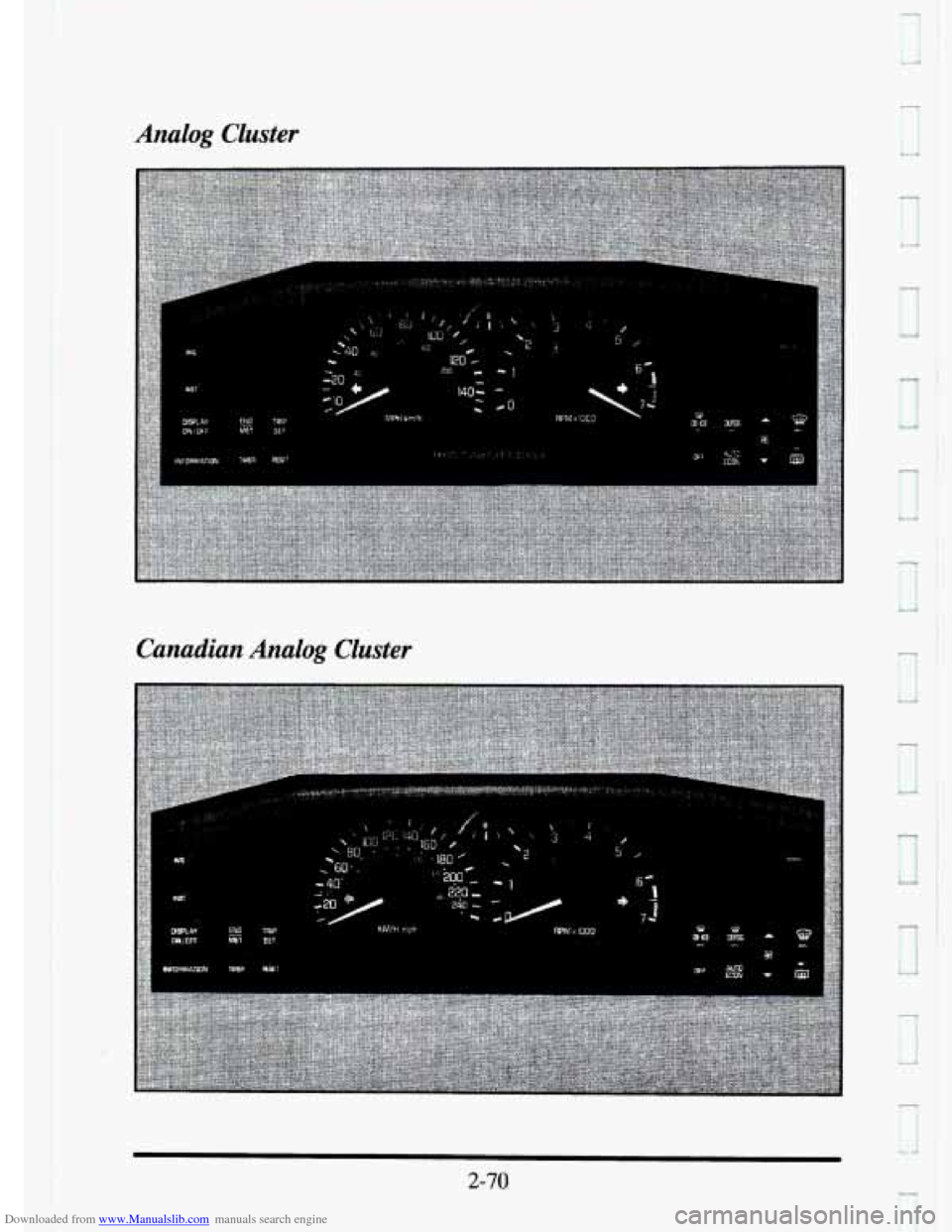

Downloaded from www.Manualslib.com manuals search engine Analog Cluster
Canadian Analog Cluster
2-70
3
I'
3,
I
I

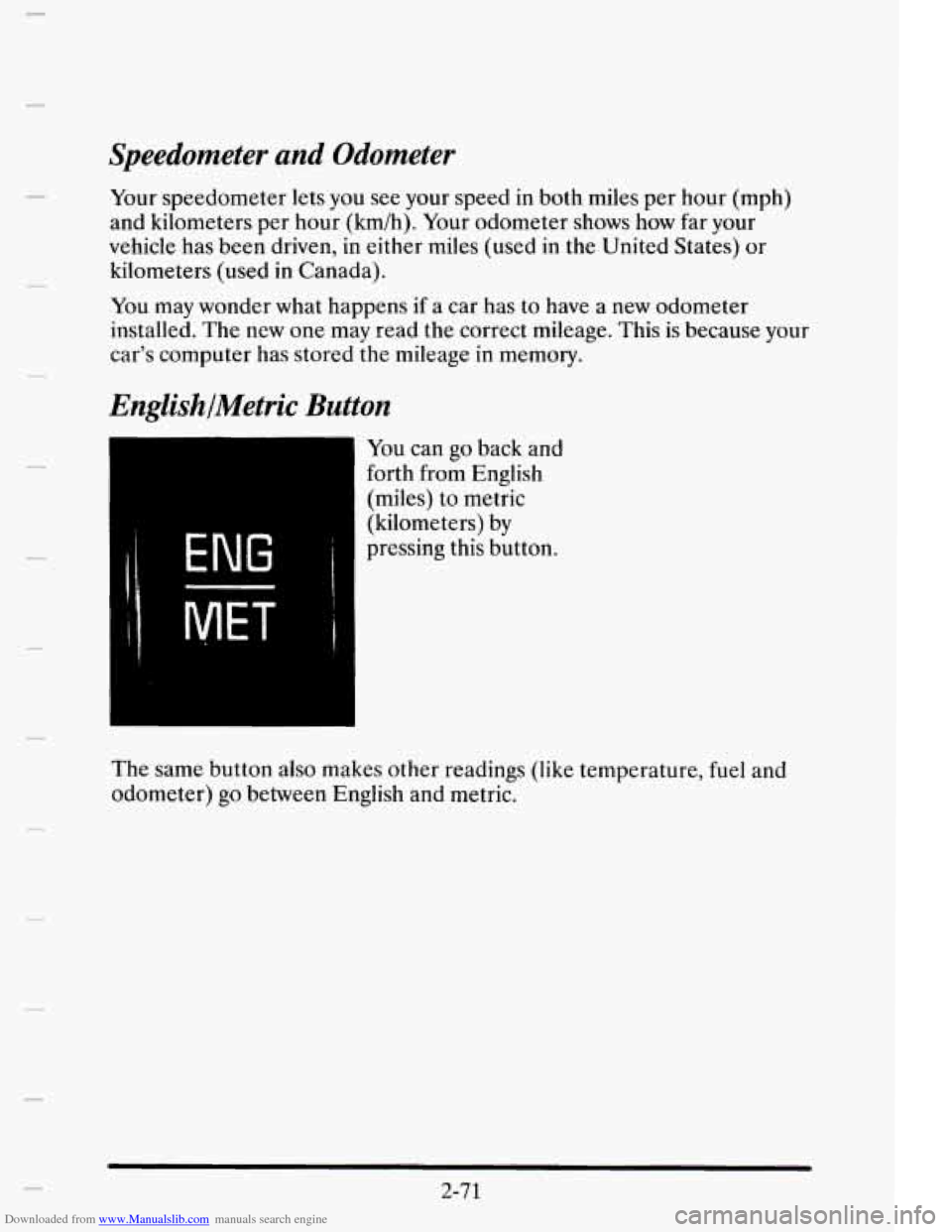

Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (km/h). Your odometer shows how far your
vehicle has been driven,
in either miles (used in the United States) or
kilometers (used in Canada).
You may wonder what happens if a car has to have
a new odometer
installed. The new one may read the correct mileage. This is because
your
car’s computer has stored the mileage in memory.
EnglishlMetric Button
ENG 1
You can go back and
forth from English
(miles) to metric
(kilometers) by
pressing this button.
The same button also makes other readings (like temperature, fuel and
odometer)
go between English and metric.
2-71

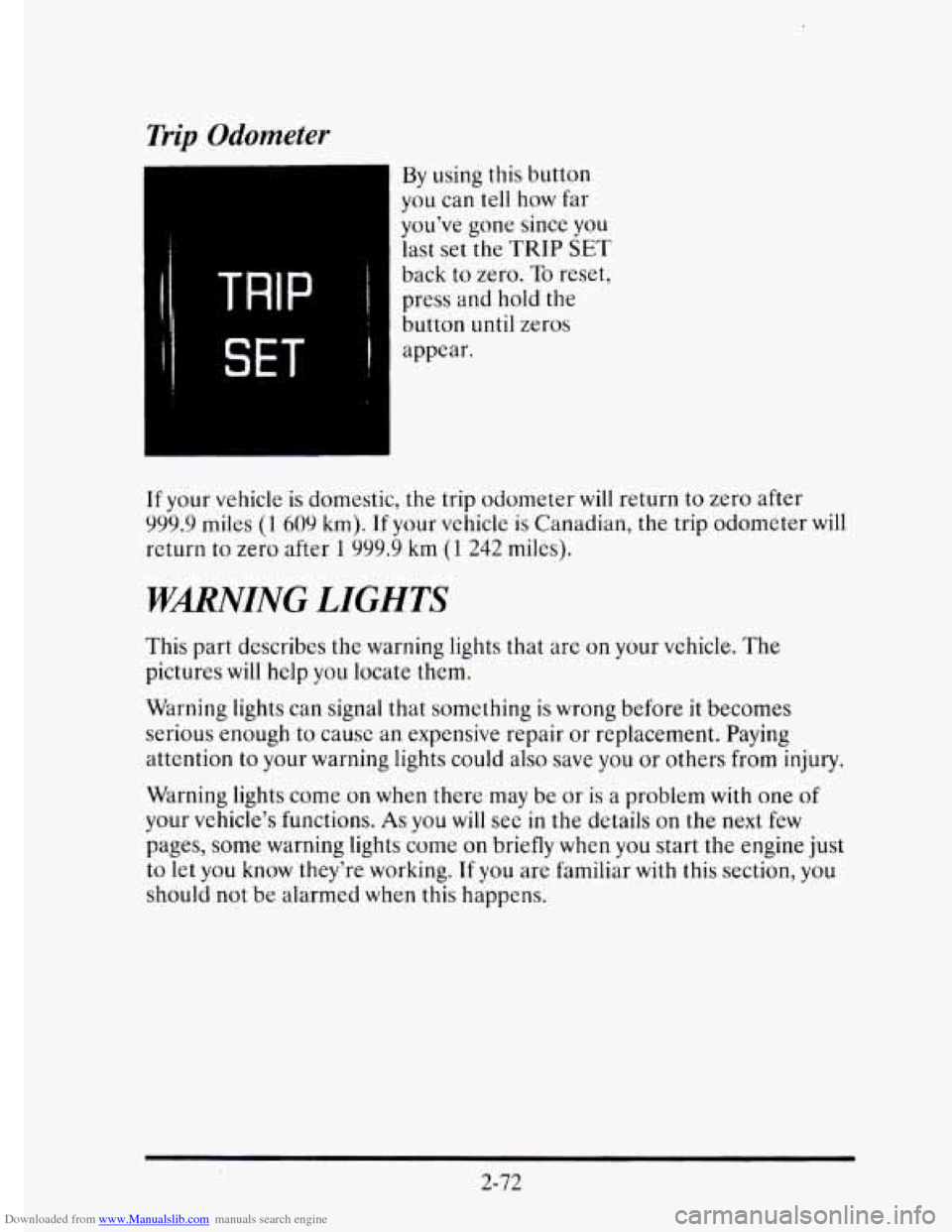

Downloaded from www.Manualslib.com manuals search engine Trip Odometer
By using this button
you can tell how far
you’ve gone since you
last set
the TRIP SET
back to zero. To reset,
press and hold
the
button until zeros
appear.
If your vehicle
is domestic, the trip odometer will return to zero after
999.9 miles (1 609 km). If your vehicle is Canadian, the trip odometer will
return
to zero after 1 999.9 km (1 242 miles).
WMING LIGHTS
This part describes the warning lights that are on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something
is wrong before it becomes
serious enough to cause an expensive repair or replacement. Paying
attention
to your warning lights could also save you or others from injury.
Warning lights come on when
there may be or is a problem with one of
your vehicle’s functions. As you will see in the details on the next few
pages, some warning lights come on briefly when you start the engine just
to let you know they’re working. If you are familiar with this section, you
should not
be alarmed when this happens.
2-72

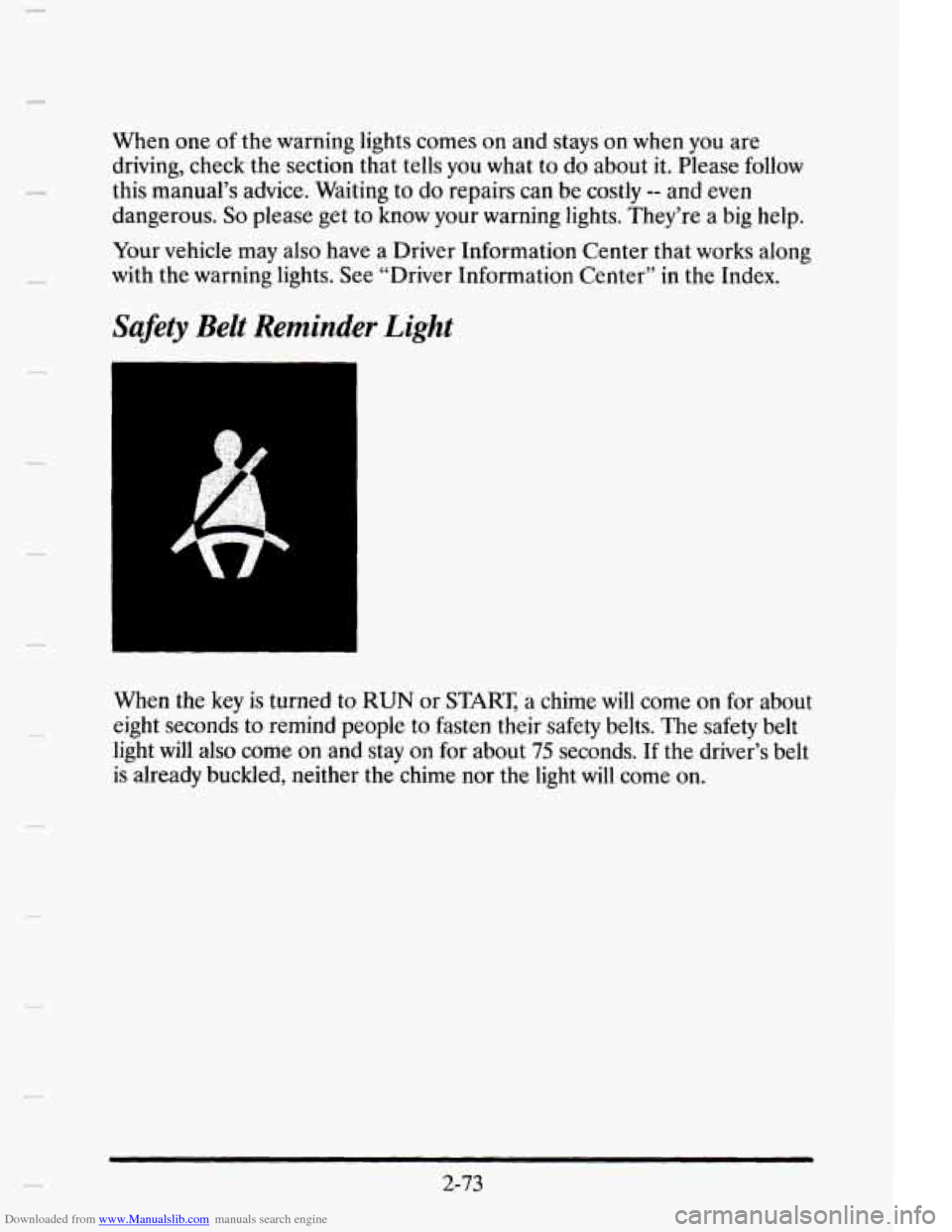

Downloaded from www.Manualslib.com manuals search engine When one of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
this manual’s advice. Waiting to
do repairs can be costly -- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Your vehicle may also have a Driver Information Center that works along
with the warning lights. See “Driver Information Center’’ in the Index.
Safety Belt Reminder Light
c
When the key is turned to RUN or START, a chime will come on for about
eight seconds to remind people to fasten their safety belts. The safety belt
light
will also come on and stay on for about 75 seconds. If the driver’s belt
is already buckled, neither the chime nor the light
will come on.
2-73
