1995 CADILLAC ELDORADO Owners Manual

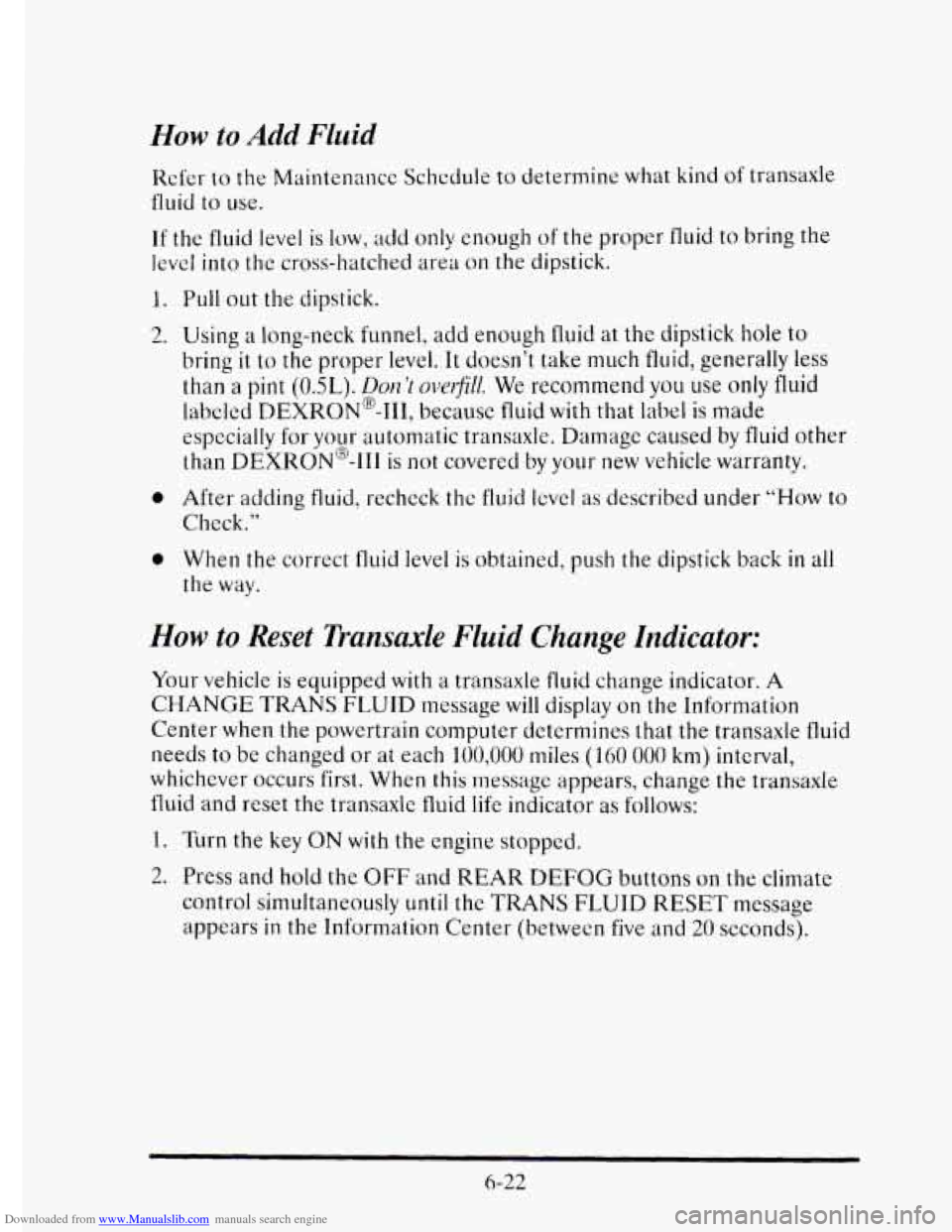

Downloaded from www.Manualslib.com manuals search engine How to Add Fluid
If the fluid level is low, add only enough of the proper fluid to bring the
level
into the cross-hatched area on the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add enough fluid at the dipstick hole to
bring it to the proper level. It doesn’t take much fluid, generally less
than a pint (OSL). Don’t overfill. We recommend you use only fluid
labeled DEXRON@-111, because fluid with that label is made
especially
for your automatic transaxle. Damage caused by fluid other
than DEXRON@-111
is not covered by your new vehicle warranty.
0 After adding fluid, recheck the fluid lcvel as described under “How to
Check.”
0 When the correct fluid level is obtained, push the dipstick back in all
the way.
How to Reset Transaxle Fluid Change Indicator:
Your vehicle is equipped with a transaxle fluid change indicator. A
CHANGE TRANS FLUID message will display on the Information
Center when the powertrain computer determines that the transaxle fluid
needs to be changed or at each
100,000 miles (160 000 krn) interval,
whichever occurs first. When
this message appears, change the transaxle
fluid and reset the transaxle fluid life indicator
as follows:
1. Turn the key ON with the engine stopped.
2. Press and hold the OFF and REAR DEFOG buttons on the climate
control simultaneously until
the TRANS FLUID RESET message
appears
in the Information Center (between five and 20 seconds).
6-22

Downloaded from www.Manualslib.com manuals search engine C

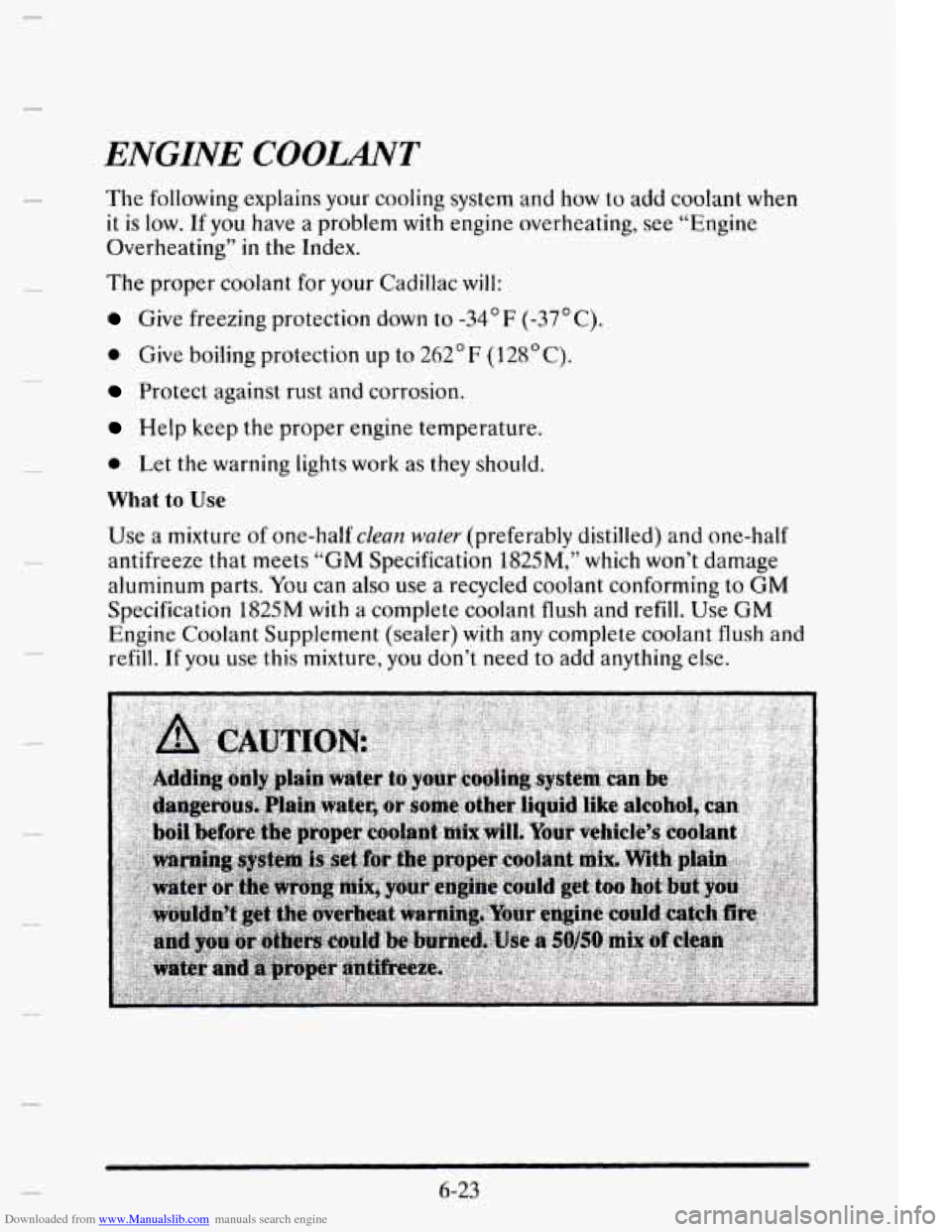

ENGINE COOLANT
The following explains your cooling system and how to add coolant when
it is low. If you have a problem with engine overheating, see “Engine
Overheating”
in the Index.
The proper coolant for your Cadillac
will:
Give freezing protection down to -34’F (-37OC).
0 Give boiling protection up to 262’F (128OC).
Protect against rust and corrosion.
Help keep the proper engine temperature.
0 Let the warning lights work as they should.
What to Use
Use a mixture of one-half clean water (preferably distilled) and one-half
antifreeze that meets
“GM Specification 1825M,” which won’t damage
aluminum parts. You can also use
a recycled coolant conforming to GM
Specification 1825M with a complete coolant flush and refill. Use GM
Engine Coolant Supplement (sealer) with any complete coolant flush and
refill. If you use this
mixture, you don’t need to add anything else.
6-23

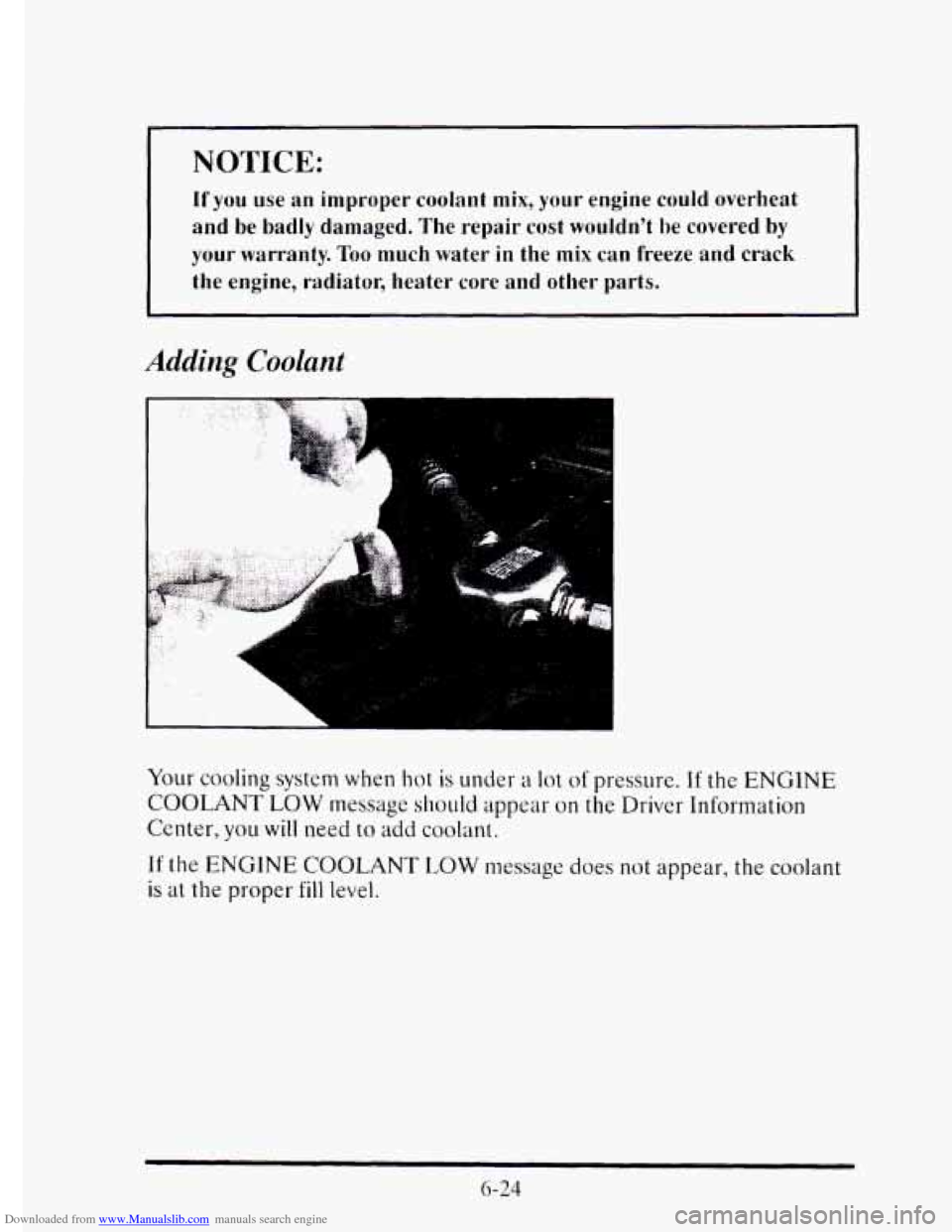

Downloaded from www.Manualslib.com manuals search engine If you use an improper coolant mix, your engine could overheat
and
be badly damaged. The repair cost wouldn't he covered by
your warranty. Too much water in the mix can freeze and crack
the engine, radiator, heater core and other parts.
Adding Coolant
Your cooling system when hot is under a lot of pressure. If the ENGINE
COOLANT LOW message should appear on the Driver Information
Center,
you will need to add coolant.
If the ENGINE COOLANT LOW message does not appear, the coolant
is at the proper fill level.
6-24

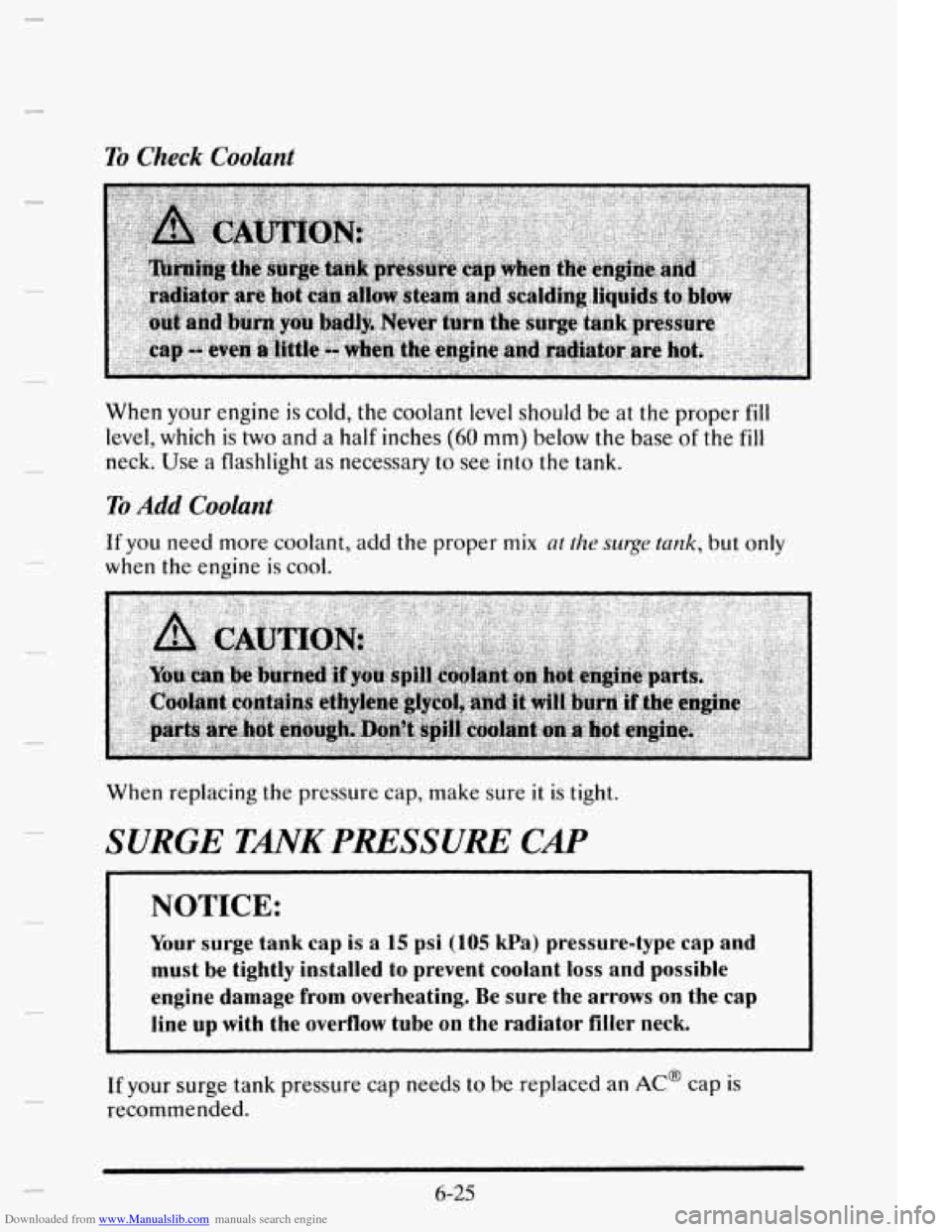

Downloaded from www.Manualslib.com manuals search engine To Check Coolant
When your engine is cold, the coolant level shouId be at the proper fill
level, which is two and a half inches (60 mm) below the base of the fill
neck. Use a flashlight as necessary to see into the tank.
To Add Coolant
If you need more coolant, add the proper mix at the surge tank, but only
when the engine is cool.
When replacing
the pressure cap, make sure it is tight.
SURGE TANK PRESSURE CAP
-~
NOTICE:
Your surge tank cap is a 15 psi (105 kPa) pressure-type cap and
must be tightly installed to prevent coolant
loss and possible
engine damage
from overheating. Be sure the arrows on the cap
line up with the overflow tube on the radiator filler neck.
If your surge tank pressure cap needs to be replaced an AC@ cap is
recommended.
6-25

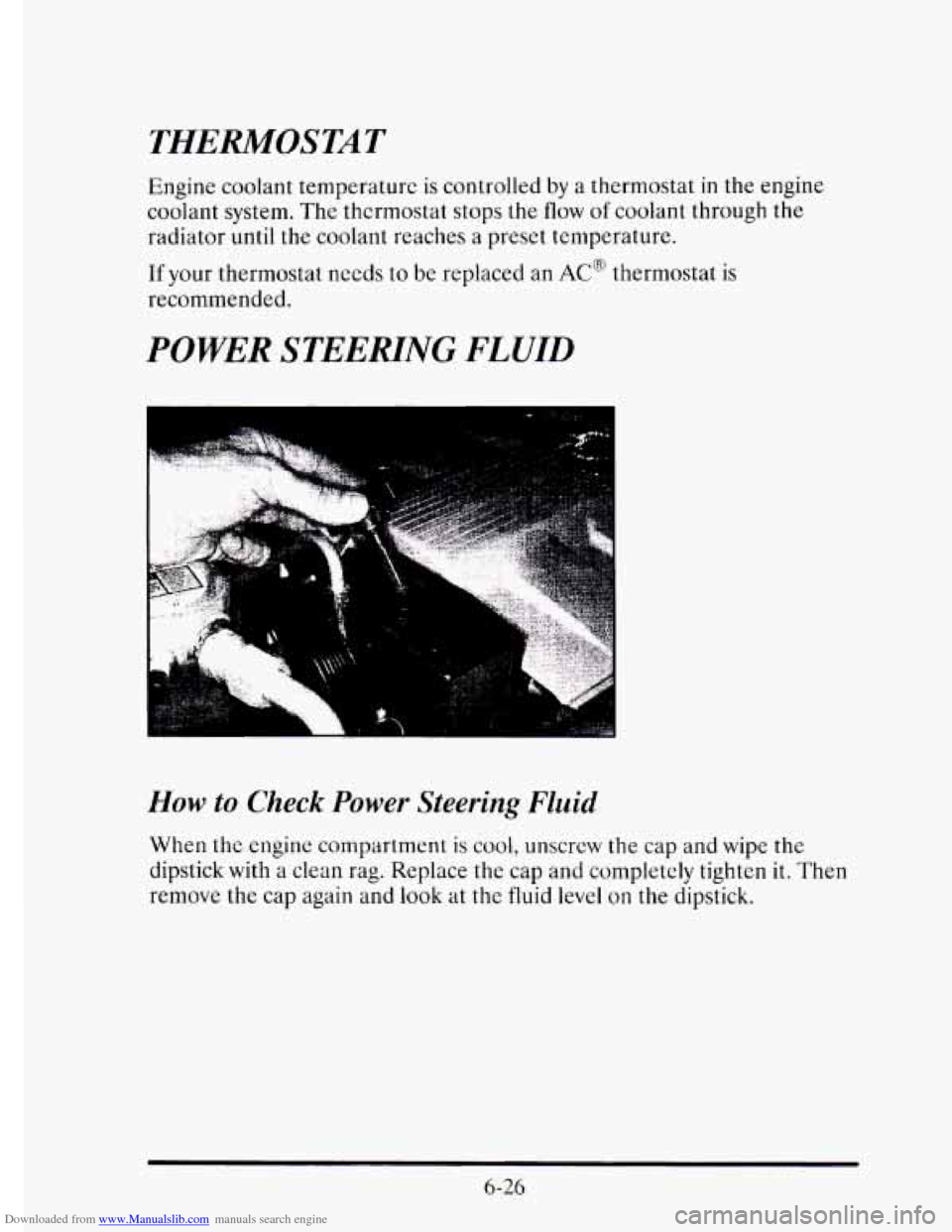

Downloaded from www.Manualslib.com manuals search engine THERMOSTAT
Engine coolant temperature is controlled by a thermostat in the engine
coolant system. Thc thcrrnostat stops
the flow of coolant through the
radiator until the coolant reaches a preset temperature.
If your thermostat needs to be replaced an AC@ thermostat is
recommended.
POWER STEERING FLUID
a
How to Check Power Steering Fluid
When the engine compartment is cool, unscrew the cap and wipe the
dipstick with a clean rag. Replace the cap and completely tighten it.
Then
remove the cap again and look at the fluid level on the dipstick.
6-26

Downloaded from www.Manualslib.com manuals search engine c
When the engine compartment is
hot,
the level
should be at the
HOT mark.
cool, the level
should be at the
FULL COLD
mark.
A fluid loss in this system could indicate a problem. Have the system
inspected and repaired.
What to Add
Refer to the Maintenance Schedule to determine what kind of fluid to
use.
I NOTICE:
When adding power steering fluid or making a complete fluid
change, always use the proper
fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
6-27

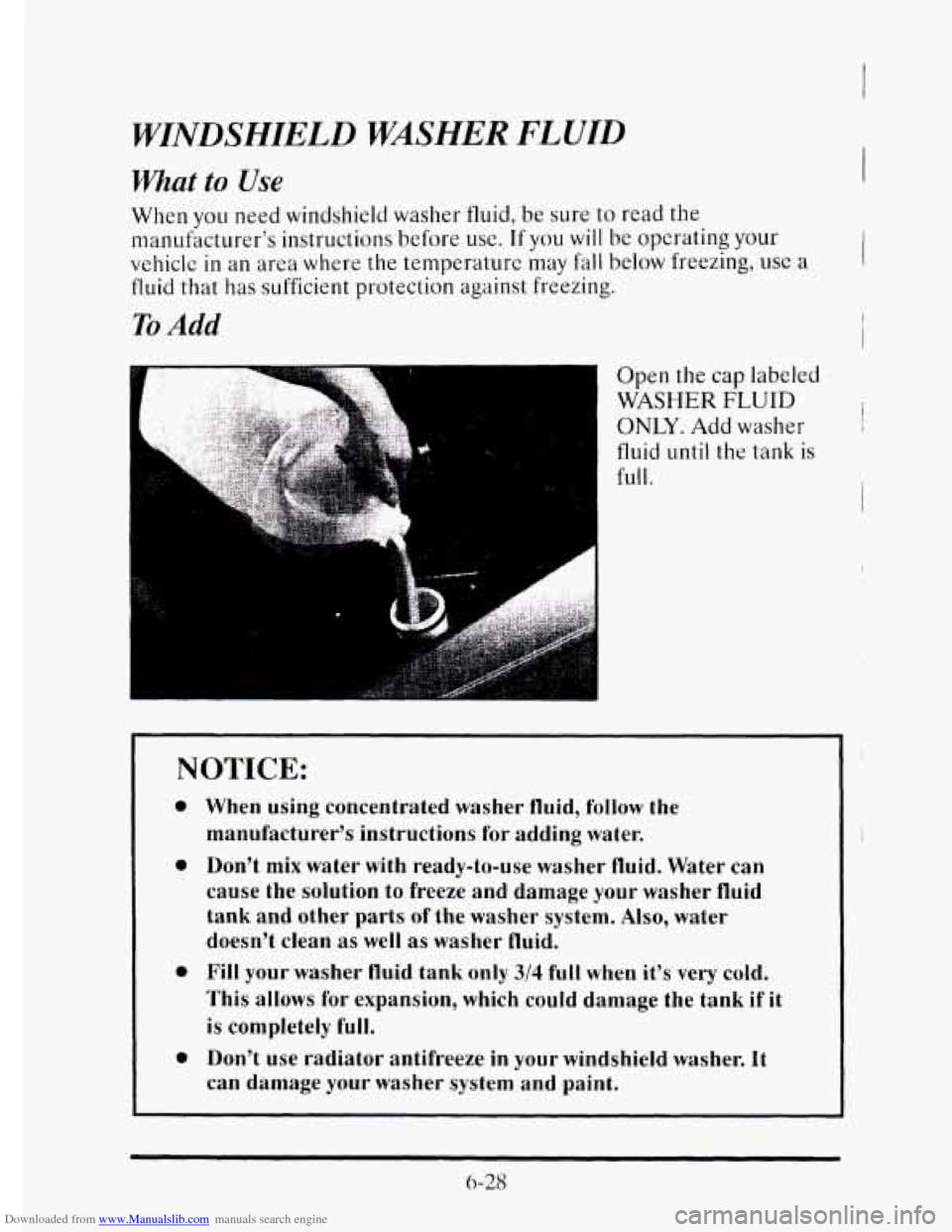

Downloaded from www.Manualslib.com manuals search engine WINDSHIELD WASHER FLUID
What to Use
When you need windshield washer fluid, be sure to read the
manufacturer’s instructions before
use. If you will be operating your
vehicle
in an area where the temperature may fall below freezing, use a
fluid that has sufficient protection against freezing.
To Add I
Open the cap labeled
WASHER FLUID
ONLY. Add washer
fluid until the tank is
full.
NOTICE:
0
0
0
0
When using concentrated washer fluid, follow the
manufacturer’s instructions for adding water.
Don’t mix water with ready-to-use washer fluid. Water can
cause the solution to freeze and damage your washer fluid
tank and other parts of the washer system.
Also, water
doesn’t clean
as well as washer fluid.
Fill your washer fluid tank only 3/4 full when it’s very cold.
This allows
for expansion, which could damage the tank if it
is completely full.
Don’t use radiator antifreeze in your windshield washer. It
can damage your washer system and paint.
6-28

Downloaded from www.Manualslib.com manuals search engine Your brake master cylinder is here. It is filled with DOT-3 brake fluid.
. , .~ . ~I~. . . . . .. ~~
P
P
r
g.
t
.: i
r !
r
k
