1995 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Air Bag Readiness Light
There is an air bag readiness light on the instrument panel, which shows
AIR BAG. The system checks the air bag’s electrical system for
malfunctions. The light tells
you if there is an electrical problem. The
system check includes the air
bag sensors and modules, the wiring and the
diagnostic module. For more information
on the air bag system, see “Air
Bag”
in the Index.
You will see this light flash for a few seconds when you turn your ignition
to RUN or START Then the light should go out. This means the system is
ready.
If the air bag readiness light doesn’t come
on when you start your vehicle,
or stays on, or comes on when you are driving, your air bag system may
not work properly. Have your vehicle serviced right away.
2- 74

Downloaded from www.Manualslib.com manuals search engine Battery Charge Light (Canadian Only)
When you turn the key
to
RUN or START, this
light will come on
briefly, to show that
your alternator and
battery charging
systems are working.
(0) BRAKE
1)
BRAKE
If this light stays on you need service, and you should take your Cadillac
to the dealer at once.
To save your battery until you get there turn off all
accessories.
Brake System Warning Light
1 Your Cadillac’s
hydraulic brake system
is divided into two
parts.
If one part isn’t
working, the other part
can still work
and stop
you. For
good braking,
though,
you need both
parts working well.
If the warning light comes on, there could be a brake problem. Have your
brake system inspected right away.
One
of these lights should come on briefly as you start the vehicle. If it
doesn’t come on then, have it fixed so it will be ready to warn you if
there’s a problem.
2-75

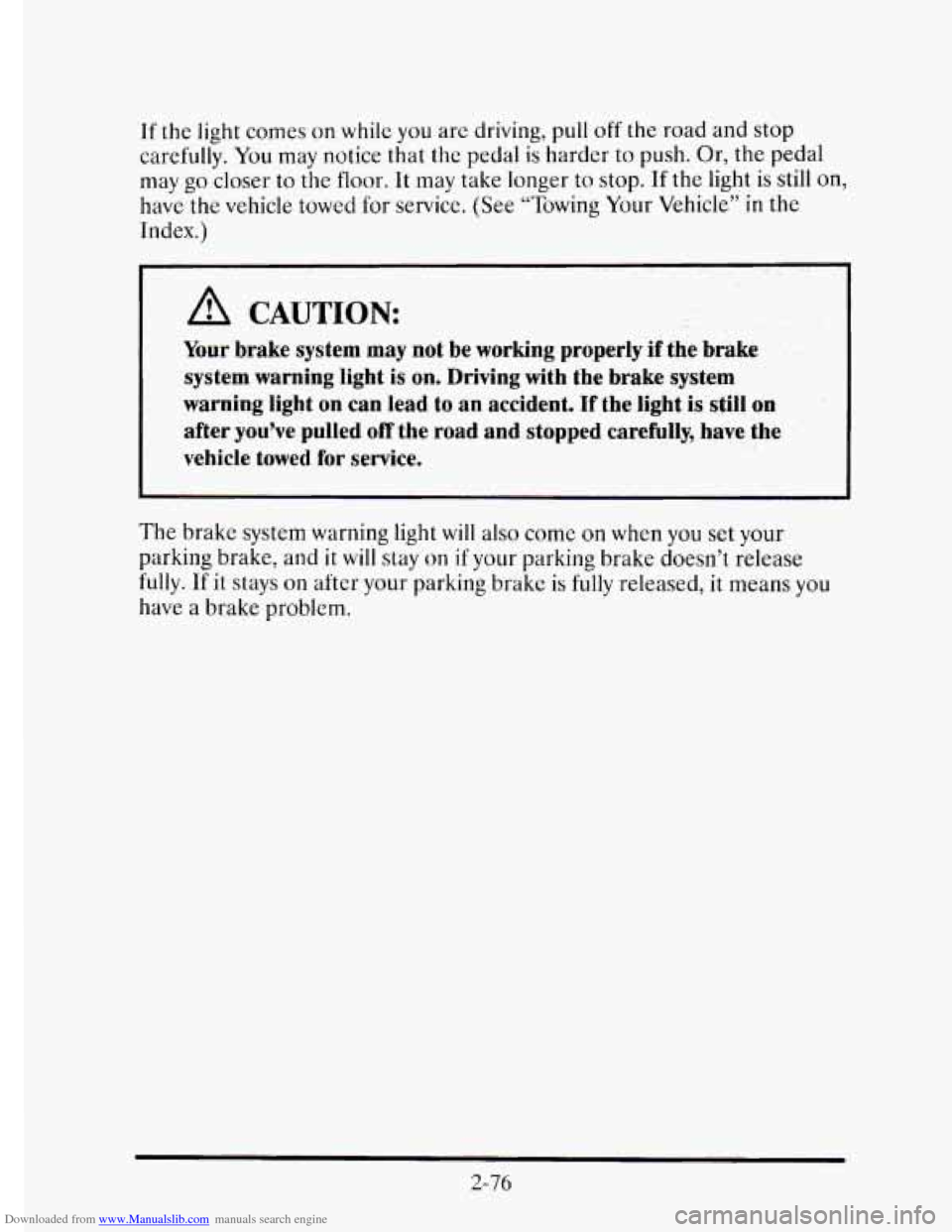

Downloaded from www.Manualslib.com manuals search engine If the light comes on while you are driving, pull off the road and stop
carefully. You may notice that the pedal is harder to push. Or, the pedal
may go closer
to the floor. It may take longer to stop. If the light is still on,
have
the vehicle towed for service. (See “Towing Your Vehicle’’ in the
Index.)
A CAUTION:
Your brake system may not be working properly if the brake
system warning light is on. Driving with the brake system
warning light
on can lead to an accident. If the light is still on
after
you’ve pulled off the road and stopped carefully, have the
vehicle towed
for service.
The brake system warning light will also come on when you set your
parking brake, and
it will stay on if your parking brake doesn’t release
fully. If it stays on after your parking brake is fully released, it means you
have a brake problem.
2-76

Downloaded from www.Manualslib.com manuals search engine Anti-Lock Brake System Warning Light
ANTI-
LOCK (@)
With the anti-lock brake system, this light will come on when you start
your engine and may stay
on for several seconds. That’s normal. If the
light doesn’t come on, have it fixed
so it will be ready to warn you if there
is a problem.
If the light stays on, turn the ignition off. Or, if the light comes on when
you’re driving, stop as soon as possible and turn the ignition
off. Then
start the engine again
to reset the system. If the light still stays on, or
comes on again while you’re driving, your Cadillac needs service. If the
regular brake system warning light isn’t
on, you still have brakes, but you
don’t have anti-lock brakes. If the regular brake system warning light is
also on,
you don’t have anti-lock brakes and there’s a problem with your
regular brakes. See “Brake System Warning Light” earlier
in this part.
Traction Disabled Message
If this message is displayed, there’s a problem with your traction control
system and your vehicle needs service. When this message
is displayed,
the system
will not limit wheel spin. Adjust your driving accordingly.
Traction Control System Active Message
When your traction control system is limiting wheel spin, the TRACTION
ACTIVE message will be displayed. Slippery road conditions may exist if
this message is displayed, so adjust your driving accordingly. This message
will stay
on for a few seconds after the traction control system stops
limiting wheel spin.
2-77

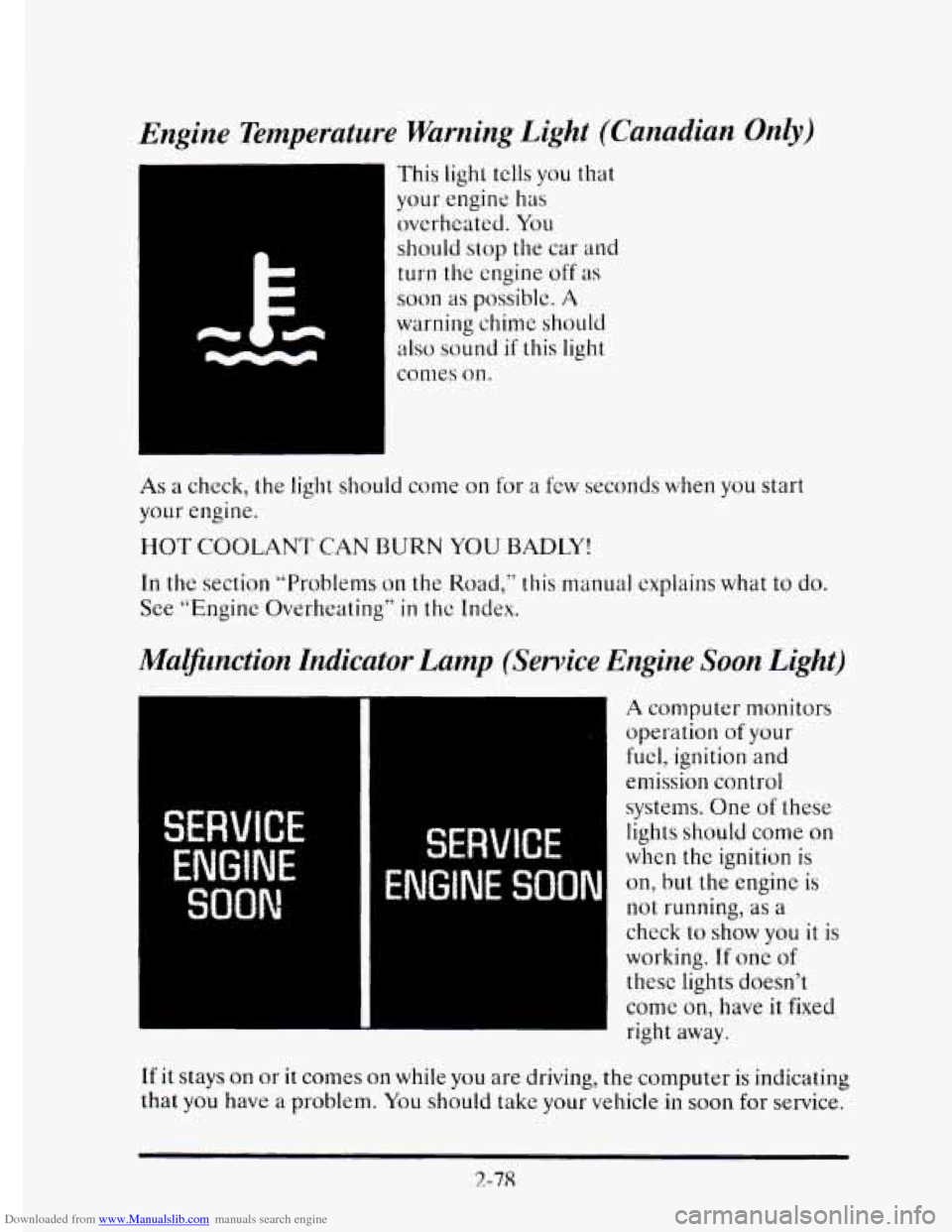

Downloaded from www.Manualslib.com manuals search engine Engine Temperature Warning Light (Canadian Only)
This light tclls you that
your engine has
overheated. You
should stop the car
and
turn the engine off as
soon as possible. A
warning chime should
also sound if this light
comes on.
As a check, the light should come on for a few seconds when you start
your engine.
HOT COOLANT CAN BURN YOU BADLl’!
In the section “Problems on the Road,” this manual explains what to do.
See “Engine Overheating”
in thc Index.
Mammction Indicator Lamp (Service Engine Soon Light)
I
w
A computer monitors
operation
of your
fuel, ignition and
emission control
systems. One
of these
lights should come
on
when the ignition is
on, but the engine is
not running, as a
check to show you it is
working.
If one of
these lights doesn’t
come
on, have it fixed
right away.
If it stays on or it comes on while you are driving, the computer is indicating
that you have a problem. You should take your vehicle in
soon for service.
2-78

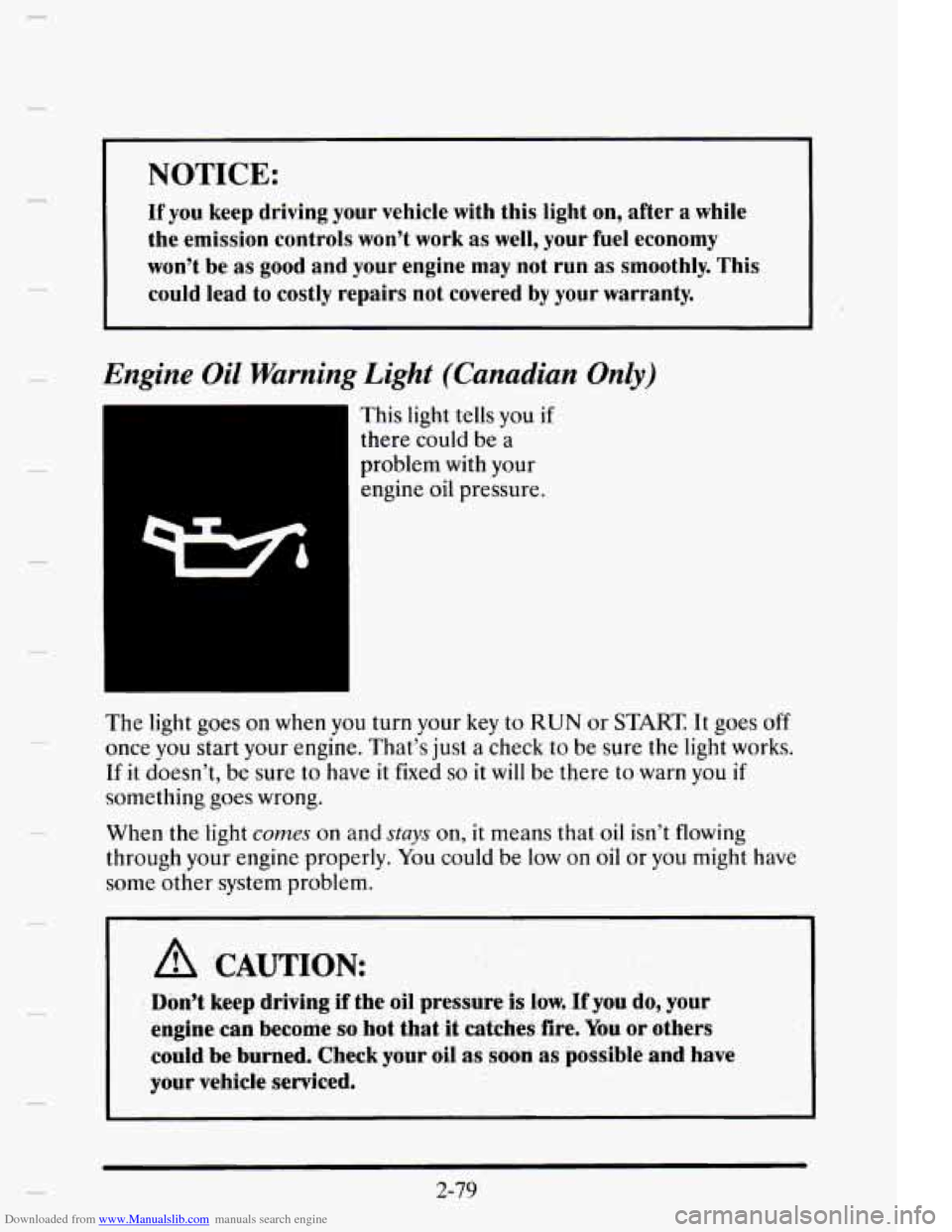

Downloaded from www.Manualslib.com manuals search engine NOTICE:
If you keep driving your vehicle with this light on, after a while
the emission controls won’t work as well, your fuel economy
won’t be as good and your engine may not run
as smoothly. This
could lead
to costly repairs not covered by your warranty.
Engine Oil Warning Light (Canadian Only)
I This light tells you if
there could be a
problem with your
engine
oil pressure.
The light goes on when you turn your
key to RUN or START It goes off
once you start your engine. That’s just a check to be sure the light works.
If it doesn’t, be sure to have it fixed so it will be there to warn you if
something goes wrong.
When the light
comes on and stays on, it means that oil isn’t flowing
through your engine properly. You could be
low on oil or you might have
some other system problem.
I A CAUTION:
Don’t keep driving if the oil pressure is low. if you do, your
engine
can become so hot that hatches fire. You or others
could
be burned. Check your oil as soon as possible and have
your vehicle serviced.
2-79

Downloaded from www.Manualslib.com manuals search engine I I

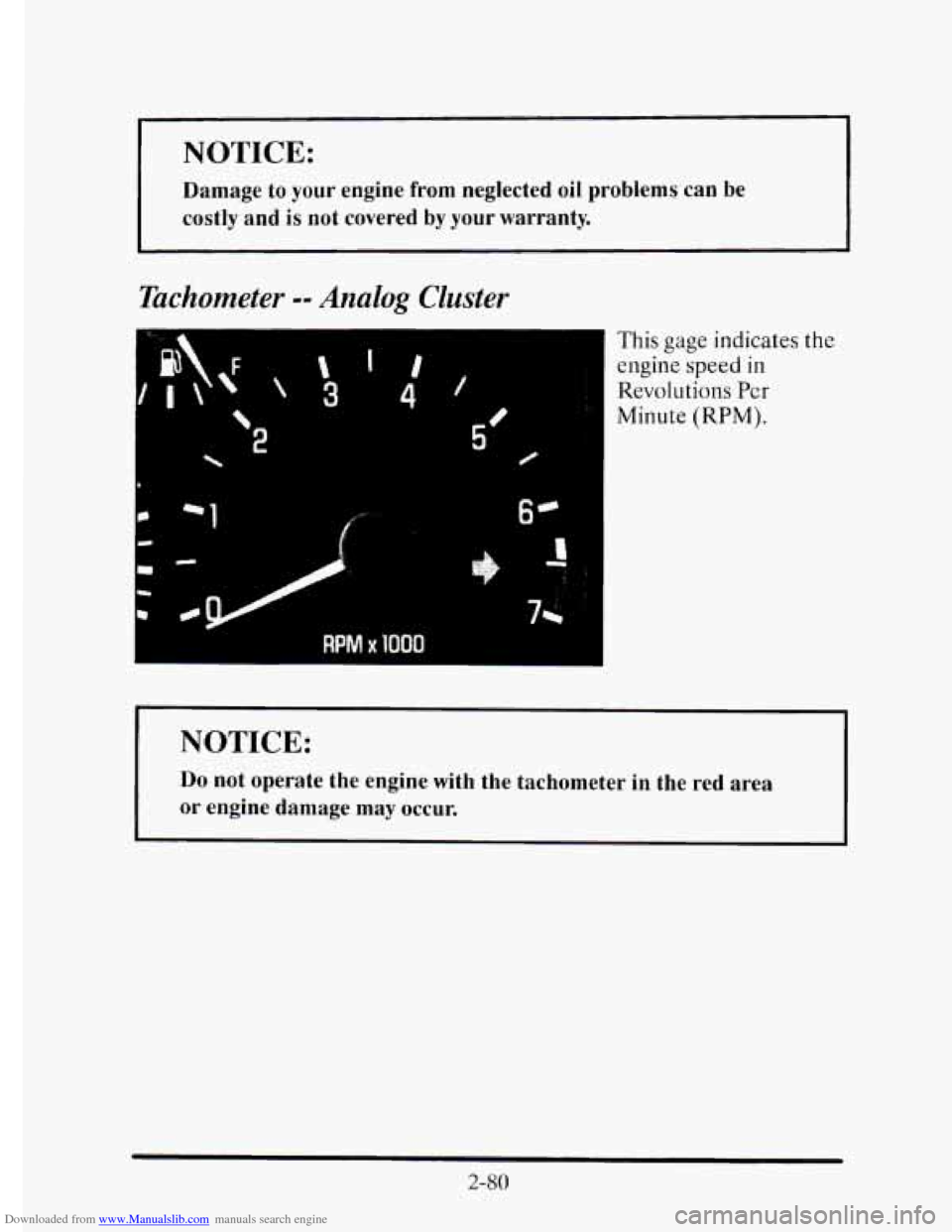

NOTICE:
Damage to your engine from neglected oil problems can be
costly and
is not covered by your warranty.
Tachometer -- Analog Cluster
' -1
c E
RPM x 1000
This gage indicates the
engine speed in
Revolutions
Per
Minute (RPM).
NOTICE:
Do not operate the engine with the tachometer in the red area
or engine damage may occur.
2-80

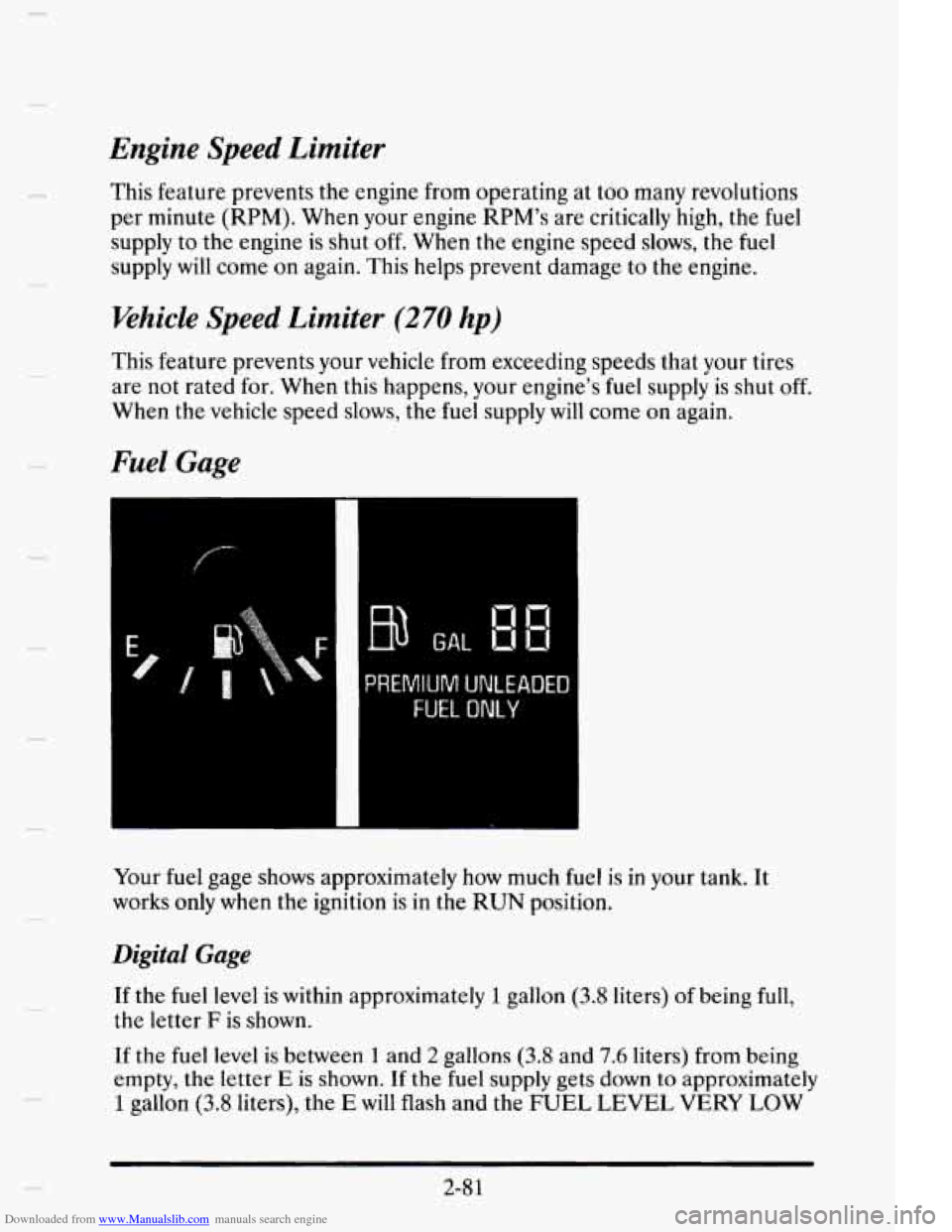

Downloaded from www.Manualslib.com manuals search engine Engine Speed Limiter
This feature prevents the engine from operating at too many revolutions
per minute
(RPM). When your engine RPM’s are critically high, the fuel
supply to the engine is shut
off. When the engine speed slows, the fuel
supply will come on again. This helps prevent damage to the engine.
Khicle Speed Limiter (270 hp)
c
This feature prevents your vehicle from exceeding speeds that your tires
are not rated for. When this happens, your engine’s fuel supply is shut
off.
When the vehicle speed slows, the fuel supply will come on again.
Fuel Gage
PREMIUM UNLEADED
FUEL ONLY
Your fuel gage shows approximately how much fuel is in your tank. It
works only when the ignition is in the RUN position.
Digital Gage
If the fuel level is within approximately 1 gallon (3.8 liters) of being full,
the letter
F is shown.
If the fuel level is between 1 and 2 gallons (3.8 and 7.6 liters) from being
empty, the letter
E is shown. If the fuel supply gets down to approximately
1 gallon (3.8 liters), the E will flash and the FUEL LEVEL VERY LOW
2-8 1
